Product Type	Refrigerator with evaporator compartment (not for freezing)
Model	Hyundai RSC050WW8E
Dimensions (Height × Width × Depth)	910 mm × 470 mm × 510 mm
Net Weight	Approx. 42 kg
Power Supply	220-240 V, 50 Hz, 0.8 A
Energy Class	E (EU energy label)
Climate Class	N, ST (ambient 16-38 °C)
Refrigerant	R600a (isobutane), flammable
Temperature Control	Thermostat with 6 settings (0=off, 1 warmest, 5 coldest)
Interior Light	LED (replaceable by qualified technician)
Door Reversibility	Yes, reversible (left or right opening)
Compartment Configuration	1 fridge compartment, 1 evaporator compartment (non-freezing)
Shelving	3 wire shelves, 1 vegetable bin, door bars
Adjustable Feet	Yes, 2 front feet
Defrosting	Manual defrost for evaporator compartment
Noise Level	Approx. 41 dB(A)
Cleaning	Interior: lukewarm water and neutral soap; avoid abrasives
Safety	Child lock, high temperature alarm, tip-over stability
Spare Parts Availability	At least 7-10 years after last unit sale
Warranty	See www.hyundai-electronics.cz/servis-eu

Frequently Asked Questions - RSC050WW8E HYUNDAI

How do I set the temperature on my Hyundai RSC050WW8E refrigerator?

Plug in the appliance. The thermostat knob has 6 settings: 0 (off), 1 (warmest), and 5 (coldest). For normal ambient temperatures (21-28°C), set to 2-3. Adjust based on your needs.

Can I reverse the door opening direction?

Yes, the door is reversible. To change from left to right opening, follow the detailed instructions in the manual: remove upper hinge cover, screws, lift door, remove lower hinge, move front leg, install hinge on opposite side, and reattach door. Always unplug before starting.

How do I defrost the evaporator compartment?

When frost becomes thick, perform full defrost: unplug the appliance, remove all food, keep door open, place a basin underneath to collect water. Never use sharp tools. After defrosting, dry interior thoroughly and plug back in.

Why is the refrigerator making unusual noises?

Normal sounds include compressor and refrigerant circulation. If unusual, check if the appliance is level (adjust feet), ensure it isn't touching walls or other objects, and verify rear components aren't vibrating against each other.

How do I clean the interior?

Before cleaning, unplug the appliance. Use a cloth with lukewarm water and mild neutral soap. Avoid abrasive cleaners, powders, or steam cleaners. Dry thoroughly before reconnecting.

What should I do if the appliance does not cool?

First, check that the thermostat is not set to '0'. Ensure the mains plug is fully inserted, check the fuse/circuit breaker, and verify the socket is working. If the problem persists, contact a qualified technician.

Can I store frozen food in the freezer compartment?

No, the evaporator compartment is not designed for freezing. It is only a frost-collecting area. Store frozen food only in a dedicated freezer. The temperature here is not low enough for safe freezing.

Where can I find the model and serial number?

The type plate is located inside the appliance (on the back side or near the bottom). It contains the model name (RSC050WW8E) and serial number (SN). Also on the energy label.

How do I replace the interior LED light?

The LED light is a 'special use lamp'. To replace it, contact a qualified technician. Do not attempt to replace it yourself as it may involve electrical hazards.

What is the recommended storage time for different foods?

Vegetables & fruits: 1 week in vegetable bin. Meat & fish: 2-3 days wrapped on glass shelf. Fresh cheese: 3-4 days on door shelf. Butter: 1 week. Milk/yogurt: until expiry. Eggs: 1 month. Cooked food: 2 days on any shelf.

USER MANUAL RSC050WW8E HYUNDAI

Interior view of a modern white refrigerator with open doors and shelves filled with food items (no visible text or symbols)

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI INSTRUCTION MANUAL HASZNÁLATI UTASÍTÁS

GENUINE PRODUCT OF HYUNDAI CORPORATION

CHLADNIČKA

CHLADNIČKA

REFRIGERATOR

LODÓWKA

HÜTÖSZEKRÉNY

1. VŠEOBECNÉ BEZPEČNOSTNÍ POKYNY

4. POKYNY K POUŽITÍ

	RSC050WW8E	RSD064WW8E
A	440 mm 440 mm
B	470 mm 510 mm
C	510 mm 640 mm
D	50 mm 50 mm
E	50 mm 50 mm
F	50 mm 50 mm
G	880 mm 880 mm
H	910 mm 950 mm
I	122° 122°

Nastavení teploty

8. VAROVÁNÍ

VAROVÁNÍ: NEVYSTAVUJTE SPOTŘEBIČ DEŠTI NEBO VLHKOSTI ABYSTE PŘEDEŠLI VZNIKU POŽÁRU NEBO ÚRAZU ELEKTRICKÝM PROUDEM. VŽDY SPOTŘEBIČ VYPNĚTE ZE ZÁSUVKY KDYŽ JEJ NEPOUŽÍVÁTE NEBO PŘED OPRAVOU. V PŘÍSTROJI NEJSOU ŽÁDNÉ ČÁSTI OPRAVITELNÉ SPOTŘEBITELEM. VŽDY SE OBRACEJTE NA KVALIFIKOVANÝ AUTORIZOVANÝ SERVIS. PŘÍSTROJ JE POD NEBEZPEČNÝM NAPĚTÍM.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

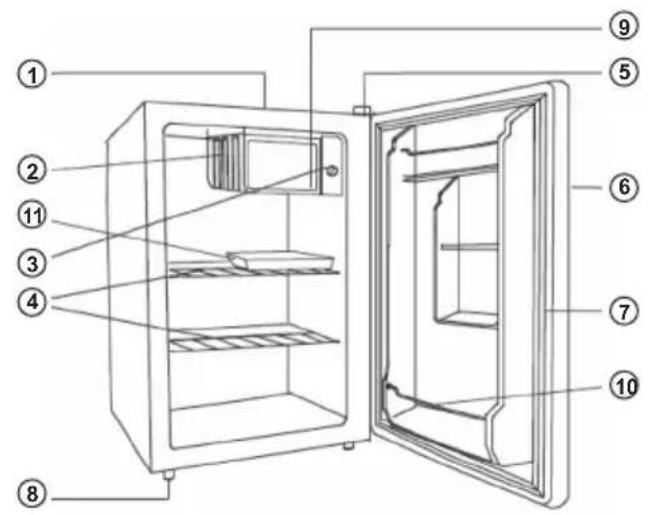

1. Skriňa 6. Dvere
2. Výparník 7. Tesnenie
3. Gombík termostatu 8. Nastavitelné nôžky (u RSC050WW8E zo zadnej strany spotrebiča) 9. Malá dvierka
4. Police 10. Tyč dverí
5. Kryt závesu 11. Odkvapkávacia miska

4. POKYNY NA POUŽITIE

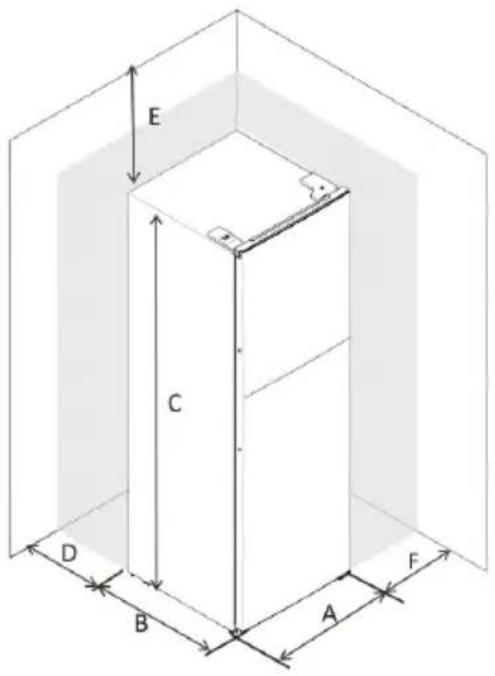

	RSC050WW8E	RSD064WW8E
A	440 mm 440 mm
B	470 mm 510 mm
C	510 mm 640 mm
D	50 mm 50 mm
E	50 mm 50 mm
F	50 mm 50 mm
G	880 mm 880 mm
H	910 mm 950 mm
I	122° 122°

Doporučené nastavenie teploty

Nastavenie teploty

8. VAROVANIE

VAROVANIE: NEVYSTAVUJTE SPOTREBIČ DAŽĐU ALEBO VLHKOSTI, ABY STE PREDIŠLI VZNIKU POŽIARU ALEBO ÚRAZU ELEKTRICKÝM PRÚDOM. PRED OPRAVOU ALEBO VŽDY, KEĎ SPOTREBIČ NEPOUŽÍVATE, VYPNITE HO ZO ZÁSUVKY V PRÍSTROJI NIESÚ ŽIADNE ČASTI OPRAVITEĽNÉ SPOTREBITELOM. VŽDY SA OBRACAJTE NA KVALIFIKOVANÝ AUTORIZOVANÝ SERVIS. SPOTREBIČ JE POD NEBEZPEČNÝM NAPÄTÍM.

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

- For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances with adult supervision.
- Children should be supervised to ensure that they do not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
- Keep all packaging well away from children. There is risk of suffocation.

☐ If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING!

Do not damage the refrigerant circuit.

WARNING!

Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING!

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING!

Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

WARNING!

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
  During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• avoid open flames and sources of ignition
• thoroughly ventilate the room in which the appliance is situated

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications.

☐ This appliance is heavy. Care should be taken when moving it.

- Avoid prolonged exposure of the appliance to direct sunlight.

WARNING!

Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING!

The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

• Power cord must not be lengthened.
• Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
  ☐ Make sure that you can come to the mains plug of the appliance.
  ☐ Do not pull the mains cable.
  ☐ If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

Daily use

☐ Do not put hot on the plastic parts in the appliance.
- Do not place heavy objects or electrical appliances on the top of the refrigerator.
- Do not place food products directly against the rear wall.
- Frozen food must not be re-frozen once it has been thawed out.
- Store pre-packed frozen food in accordance with the frozen food, manufactures instructions. ^2)
- Appliance s manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^2)
☐ Ice lollies can cause frost burns if consumed straight from the appliance. ^2)
- Do not touch the cooled surfaces while the appliance operates, especially not with wet hands, because the skin may stick to the cold surfaces.

To avoid contamination of food, please respect following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces, that can come into contact with food and accessible drainage systems.
• Clean water tanks, if they have not been used for 48 h, flush the water system connected to a water supply, if water has not been drawn for 5 days (if they are presented in the appliance).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments (if they are presented in theAppliance) are not suitable for freezing of fresh food.
  ☐ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Care and cleaning

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal objects.
  ☐ Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^2)
• Regularly examine the drain in the refrigerator for condensate. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance.

Installation

IMPORTANT!

For electrical connection carefully follow the instructions given in specific paragraphs.

□ Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
- It is advisable to wait at least four hours before connecting the appliance to allow the refrigerant to flow back in the compressor.
- Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
- Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
☐ The appliance must not be located close to radiators or cookers.
- Make sure that the mains plug is accessible after the installation of the appliance.

IMPORTANT!

Do not place the appliance in direct sunlight, to places with high temperature or high humidity.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
  ☐ This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energysaving

• Don’t put hot food in the appliance
• Don’t pack food close together as this prevents air circulating
• Make sure food don’t touch the back of the compartment(s)
• If electricity goes off, don’t open the door(s)
• Don’t open the door(s) frequently
• Don’t keep the door(s) open for too long time
• Don’t set the thermostat on exceeding cold temperatures
  ☐ All drawers, shelves and door compartments should be placed in their position for the lowest possible energy consumption.

Environment protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It's risk of fire warning symbol.

There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

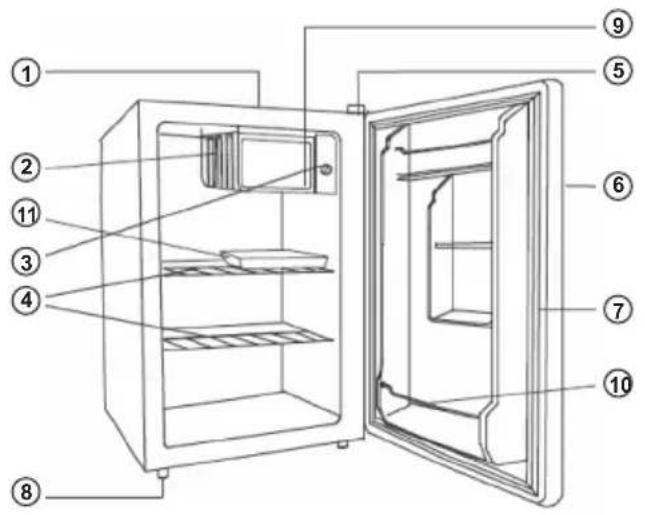

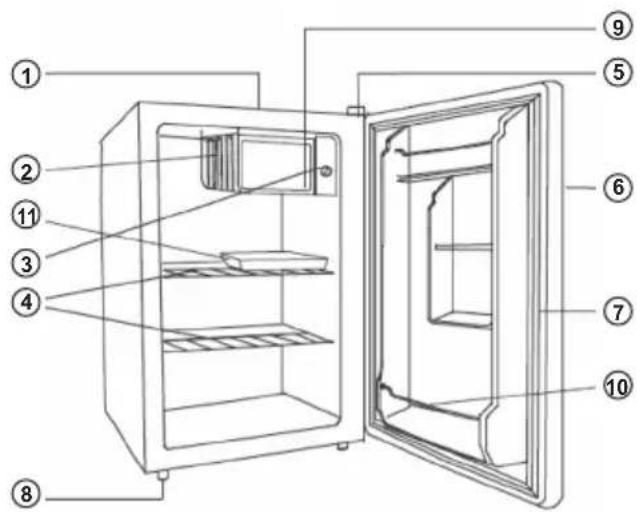

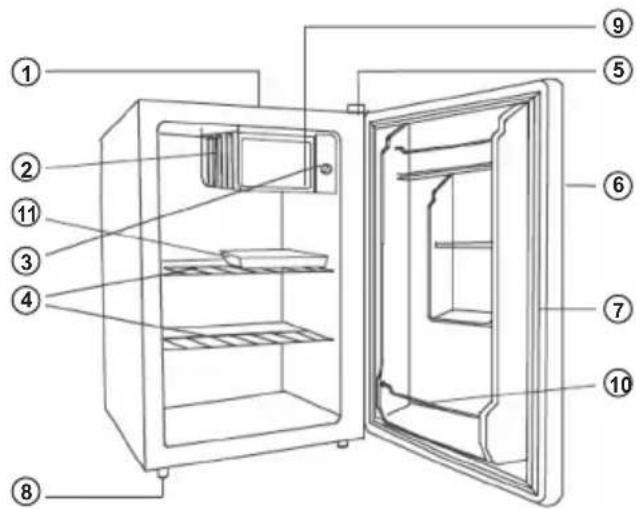

2. OVERVIEW

1. Cabinet 6. Door
2. Evaporator 7. Door Gasket
3. Thermostat Knob 8. Adjustable Foot (RSC050WW8E from the back of the appliance) 9. Small door
4. Wire Shelves 10. Door Bar
5. Hinge Cover 11. Drip Tray

Note: Above picture is for reference only. Real appliance may be a little bit different..

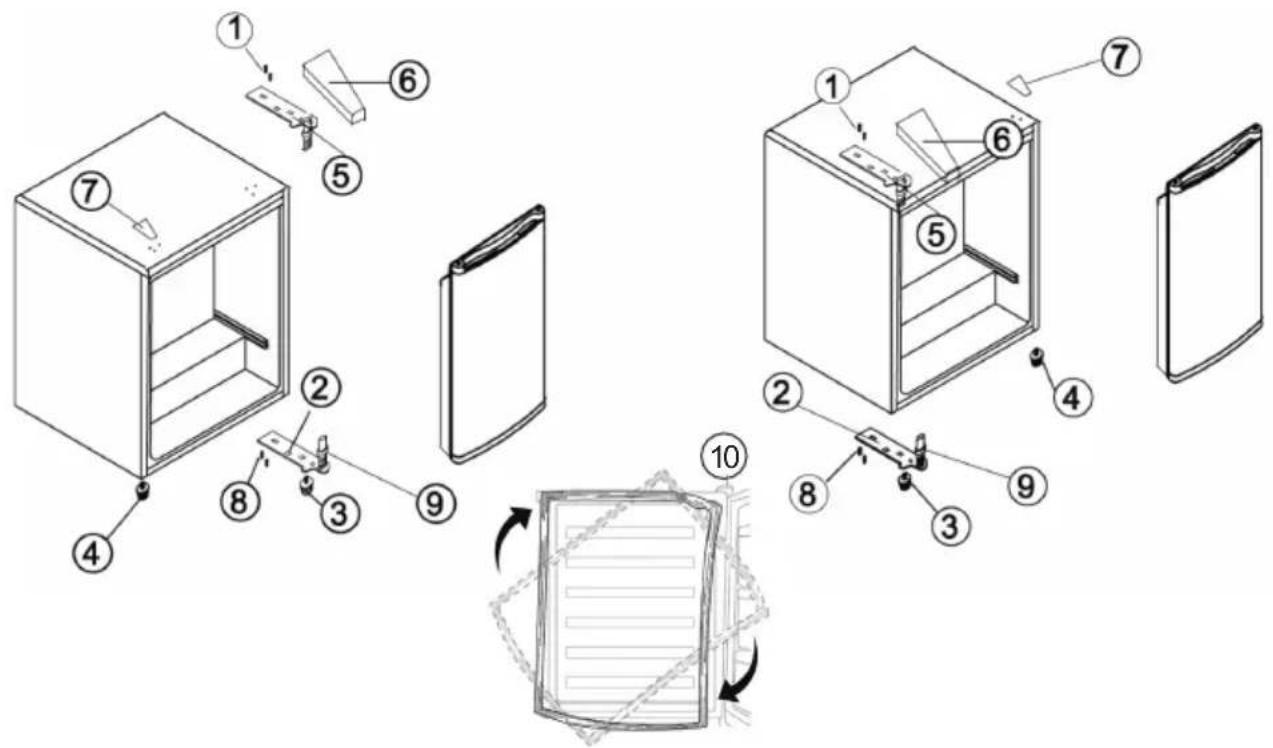

3. REVERSE DOOR

This refrigerator has the capability of either opening the door from the left or right side.

The unit is delivered to you with the door opening from the left side.

Should you desire to reverse the opening direction, please follow these instructions.

NOTE: Before Reversing the door, the power must be shut off. All parts removed must be saved to do the reinstallation of the door.

This refrigerator has been built with the door hinges on the right.

If you wish to change the opening direction, follow the instructions below:

EN

1. Remove the upper hinge cover (6) first
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).
3. Lift the door and place it on a padded surface to prevent scratching it.
4. Remove the two screws (8) that hold the lower hinge (2) and Make sure to Remove the lower hinge (2).
5. Remove the left front leg (4) and transfer it to the right side.
6. Remove the hole cover plate (7) to the right side.
7. Before placing this lower hinge(2), remove the bolt-pin (9) and reverse the direction of the lower hinge(2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).
8. Insert the bolt-pin(9) to the lower hinge (2).
9. Detach the Fridge door gaskets and then attach them after rotating.
10. Set the door to its place making sure the door seat at the lower hinge (2)
11. While holding the door in the closed position secure the upper hinge (5) in the top frame of left side with two screws (1). Please remember that do not tighten the two screws (1) until the top of the door is levelled with the counter top.
12. Install the upper hinge cover (6) on the upper hinge.

4. INSTRUCTIONS FOR USE

Leveling the unit

• To do this adjust the two leveling feet at front of the unit.
• If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Note: Above pictures are for reference only.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance. For refrigerating appliances with climate class:

• extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C (SN)
• temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C (N)
• subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C (ST)
• tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C (T)

This appliance is not intended for use at altitudes exceeding 2000 m.

This device is designed for climate classes N, ST or ambient temperatures of 16 - 38 °C.

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 50 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjust-able feet at the base of the cabinet. This refrigerating appliance is not intended to be used as a built-in appliance.

First use / cleaning the interior

- Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT!

Do not use detergents or abrasive powders, as these will damage the finish.

EN

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides.

	RSC050WW8E	RSD064WW8E
A	440 mm 440 mm
B	470 mm 510 mm
C	510 mm 640 mm
D	50 mm 50 mm
E	50 mm 50 mm
F	50 mm 50 mm
G	880 mm 880 mm
H	910 mm 950 mm
I	122°	122°

Setting The Temperature Control

- Plug on your appliance. The internal temperature is controlled by a thermostat. There are 6 settings:

*1 is warmest setting;

*5 is coldest setting;

*0 is off.

- The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Temperature setting recommendation

Environment temperature Fridge compartment
Warmer(29°C and higher)	set on 2-3
Normal(21°C - 28°C)	set on 2-3
Colder(20°C and lower)	set on 1-2

Impact on food storage

Storage time may be reduced if the appliance is set up differently.

The best storage time in the refrigerator with the recommended setting follows:

Food	Maximum storage time	How and where to store
Vegetables and fruits 1	week Vegetable bin
Meat and fish 2-3 days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3-4 days	On the designated door shelf
Butter and margarine 1	week On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month On the de	designated door shelf
Cooked food 2 days	All shelves

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Note: this recommendation is for guidance only, taking into account the interior design of this appliance.

NOTICE:

The freezer compartment (evaporator) in this appliance is not an actual ice-making or freezing area - it is also not intended for storing frozen food.

The temperature in this area is not low enough to freeze the food safely. A colder setting on the thermostat can be used to partially reduce the temperature in the freezer compartment, but this may also affect the temperature in the appliance's refrigeration compartment.

Cleaning

- For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION!

The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

IMPORTANT!

Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
• After everything is dry place appliance back into service.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• Pull out the plug from the socket;
• Remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
• Keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
• When defrosting is completed, dry the interior thoroughly
• Replace the plug in the power socket to run the appliance again.
• The internal light is a LED type. To replace the lamp, please contact qualified technician.

5. TROUBLESHOOTING

CAUTION!

Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

IMPORTANT!

There are some sounds during normal use (compressor, refrigerant circulation). These sounds are not a reason for complaint!

Problem Possible cause Solution
Appliance does not work	Temperature regulation knob is set at number “OFF”.	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective (circuit breaker is OFF).	Check fuse, replace if necessary (switch ON the circuit breaker).
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level. Re-adjust	the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Side panel is hot Condenser is inside the panel. It's normal.

6. TECHNICAL DATA

• Technical information can be found on the type plate inside the appliance (or on its back side) and on the energy label.
• "Information Sheet" and "Directions for Use" can be downloaded at: www.hyundai-electronics.cz
• QR code on the energy label supplied with the appliance provides a web link to information concerning the specification of this appliance in the EU EPREL database.
• Keep the energy label together with user manual and all other documentation supplied with this appliance.

- The same information in the EPREL database can also be found at: https://eprel.ec.europa.eu

• The model name (product number) can be found on the type plate of the appliance and also on the energy label supplied with the appliance.
• We reserve the right to change technical specifications.

7. CUSTOMER CARE AND SERVICE

• Always use original spare parts.
• When contacting our authorised service or information line, make sure you have the following information available: the model name (product number) and serial number (SN).
• This information can be found on the type plate (or on a separate label near it).

- The manufacturer reserves the right for change without prior notice.

- Original spare parts for particular selected components of the product are available at least 7 or 10 years from the launch of the last piece of the appliance on the market (depending on the type of the component).

- For more information regarding service and purchase of spare parts, visit our website: www.etasince1943.com/support

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service!

Failure to comply with the instructions of the manufacturer will lead to expiration of the right to repair!

The information regarding warranty and product repairs you can find on the website www.hyundai-electronics.cz/servis-eu

8. WARNING

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the

product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

1. WSKAZÓWKI BEZPIECZEŃSTWA

4. INSTRUKCJA UŻYTKOWANIA

	RSC050WW8E	RSD064WW8E
A	440 mm 440 mm
B	470 mm 510 mm
C	510 mm 640 mm
D	50 mm 50 mm
E	50 mm 50 mm
F	50 mm 50 mm
G	880 mm 880 mm
H	910 mm 950 mm
I	122° 122°

8. OSTRZEŻENIE

OSTRZEŻENIE: ABY UNIKNAĆ NIEBEZPIECZEŃSTWA POŻARU LUB PORAŻENIA PRĄDEM ELEKTRYCZNYM, NIE WOLNO WYSTAWIAĆ SPRZĘTU NA DZIAŁANIE DESZCZU BADŹ WILGOCI. URZĄDZENIE ODBIORCZE ZAWSZE WYŁĄCZYĆ Z GNIAZDKA, KIEDY NIE JEST UŻYWANE LUB PRZED NAPRAWA.W URZĄDZENIU NIE MA ŻADNYCH CZĘŚCI, KTÓRE BY MÓGŁ ODBIORCASAMODZIELNIE NAPRAWIAĆ. NAPRAWĘ SPRZĘTU NALEŻY ZLECIĆ ODPOWIEDNIO PRZYGOTOWANEMU SERWISU AUTORYZACYJNEMU. URZĄDZENIE ZNAJDUJE SIĘ POD NIEBEZPIECZNYM NAPIĘCIEM.

Hely

	RSC050WW8E	RSD064WW8E
A	440 mm 440 mm
B	470 mm 510 mm
C	510 mm 640 mm
D	50 mm 50 mm
E	50 mm 50 mm
F	50 mm 50 mm
G	880 mm 880 mm
H	910 mm 950 mm
I	122° 122°

8. FIGYELEM

FIGYELEM: TÜZ VAGY ÁRAMÜTÉS ELKERÜLÉSE ÉRDEKÉBEN NE TEGYE KI A KÉSZÜLÉKET ESÖ VAGY NEDVESSEG HATÁSÁNAK. HASZNÁLATON KÍVÜL VAGY JAVÍTÁS ELÖTT MINDIG HÚZZA KI A KÉSZÜLÉKET AZ ELEKTROMOS HÁLÓZATBÓL. A KÉSZÜLÉK NEM TARTALMAZ A FELHASZNÁLÓ ÁLTAL JAVÍTHATÓ ALKATRÉSZEKET. MINDIG FORDULJON SZAKSZERVIZHEZ. A KÉSZÜLÉK VESZÉLYES FESZÜLTSÉG ALATT VAN.

GENUINE PRODUCT OF HYUNDAI CORPORATION
