USER MANUAL DDHN-24NMXF0 HYUNDAI


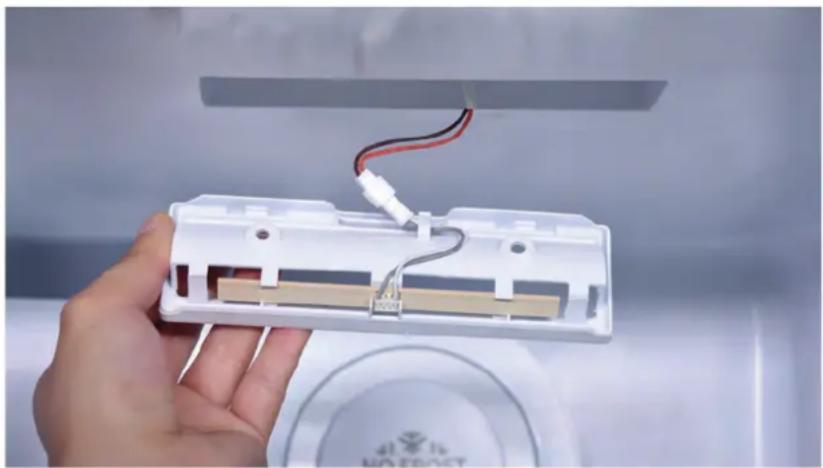

Diagram of a rectangular object with two red circles highlighting a small object, no text or symbols present.Step 1


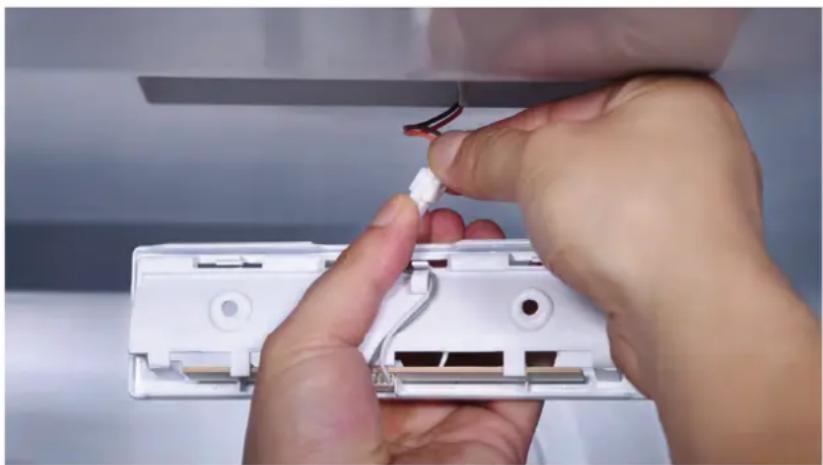

Hand holding a white battery pack with exposed internal circuit and wires, no visible text or symbolsStep 3
Estrarre la scatola luminosa.
Pull down the light box.


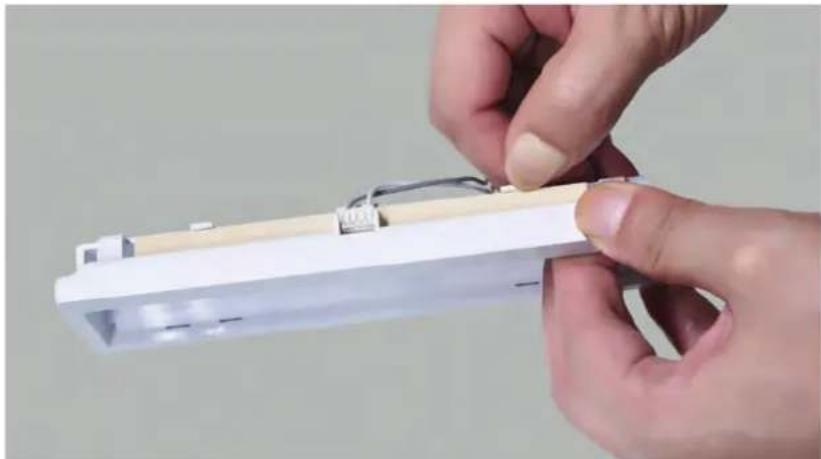

Close-up of hands installing a white plastic component with wires, no visible text or symbolsStep 4
Disconnect terminal of LED light.
Procedura Procedure
Loosen the clips and remove LED light board. Then install a new LED light board.
