Product Type	Refrigerator with freezer compartment
Brand	Hyundai
Model	RSD086GW8AE
Overall Dimensions (H x W x D)	860 mm x 472 mm x 450 mm
Space Requirements	100 mm gap on sides, 300 mm above, 100 mm behind
Climate Class	N, ST, T (16 °C to 43 °C)
Temperature Control	Thermostat with MIN, MED, MAX, OFF settings
Recommended Fridge Temperature	MED for ambient 21-28 °C; adjust based on conditions
Freezer Compartment	Not for freezing fresh food; for short-term storage of pre-frozen items
Defrosting	Manual (for freezer compartment)
Interior Light	LED type (replace by qualified technician)
Reversible Door	Yes (instructions included)
Refrigerant	R600a (isobutane)
Power Supply	220-240 V ~ 50 Hz
Energy Efficiency Class	Refer to energy label supplied with appliance
Noise Level	Normal operation produces sounds (compressor, refrigerant circulation)
Cleaning	Lukewarm water and neutral soap; no abrasive cleaners
Safety Features	Child lock not applicable; warning for flammable refrigerant
Spare Parts Availability	Original spare parts available for at least 7-10 years after last production

Frequently Asked Questions - RSD086GW8AE HYUNDAI

What are the overall dimensions of the Hyundai RSD086GW8AE refrigerator?

The overall dimensions are 860 mm in height, 472 mm in width, and 450 mm in depth. Additionally, allow at least 100 mm gap on each side, 300 mm above, and 100 mm behind for proper ventilation.

How do I adjust the temperature in the refrigerator?

The temperature is controlled by a thermostat knob. The settings range from MIN (warmest) to MAX (coldest), with an OFF position. For normal ambient temperatures (21-28 °C), set it to MED. Adjust as needed based on external conditions and load.

Can I freeze fresh food in the freezer compartment?

No. The freezer compartment is not suitable for freezing fresh food. It is designed for short-term storage of pre-frozen items. For safe freezing of fresh food, use a dedicated freezer.

How do I defrost the freezer compartment?

When frost becomes thick, unplug the appliance, remove all food (wrap in newspaper and store in a cool place), keep the door open, and place a basin underneath to collect defrost water. After defrosting, dry the interior thoroughly and plug it back in.

How do I reverse the door opening direction?

The door is reversible. You will need a Phillips screwdriver, flat screwdriver, and hexagonal spanner. Follow the step-by-step instructions in the manual: remove top hinge cover, unscrew top hinge, move parts to the opposite side, and reassemble. Ensure the unit is unplugged and empty before starting.

Why is the refrigerator making unusual noises?

Normal operation includes sounds from the compressor and refrigerant circulation. If noises are abnormal, check if the appliance is level, not touching walls or other objects, and that no components on the back are interfering. Adjust the leveling feet if necessary.

How do I clean the interior?

Always unplug the appliance before cleaning. Use lukewarm water and a mild neutral soap. Avoid abrasive cleaners, sharp objects, or steam cleaners. Wipe dry thoroughly before plugging back in.

What should I do if the refrigerator is not cooling?

First, check that the thermostat is not set to OFF. Ensure the power plug is securely inserted and the circuit breaker is not tripped. If the socket is defective, contact an electrician. Also, avoid frequent door opening and ensure proper ventilation around the appliance.

What refrigerant does the Hyundai RSD086GW8AE use?

It uses R600a (isobutane), a flammable but environmentally friendly refrigerant. Ensure that the refrigerant circuit is not damaged during installation or use. Keep away from open flames and ventilate the room if a leak is suspected.

How can I reduce energy consumption?

Do not put hot food inside, pack food loosely to allow air circulation, avoid frequent and long door openings, keep the door closed during power outages, set the thermostat to recommended settings, and ensure all shelves and drawers are in place.

USER MANUAL RSD086GW8AE HYUNDAI

White semi-framed refrigerator with 'HYUNDAI' branding on top (no other text or symbols visible)

NÁVOD K POUŽITÍ NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI INSTRUCTION MANUAL HASZNÁLATI UTASÍTÁS

CHLADNIČKA CHLADNIČKA REFRIGERATOR LODÓWKA HÚTŐSZEKRÉNY

GENUINE PRODUCT OF HYUNDAI CORPORATION

1. VŠEOBECNÉ BEZPEČNOSTNÍ POKYNY

Simple line drawing of a mechanical lever with a downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a circular component and a separate view of a bracket (no text or symbols)

Diagram showing directional arrows and a small object with three protrusions, no text or symbols present

Diagram showing a circular object with a downward arrow and a rectangular block, connected to a vertical panel (no text or symbols)

Technical diagram showing a door assembly with an inset view of a mechanical component (no text or symbols present)

Simple line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)

4. POKYNY K POUŽITÍ

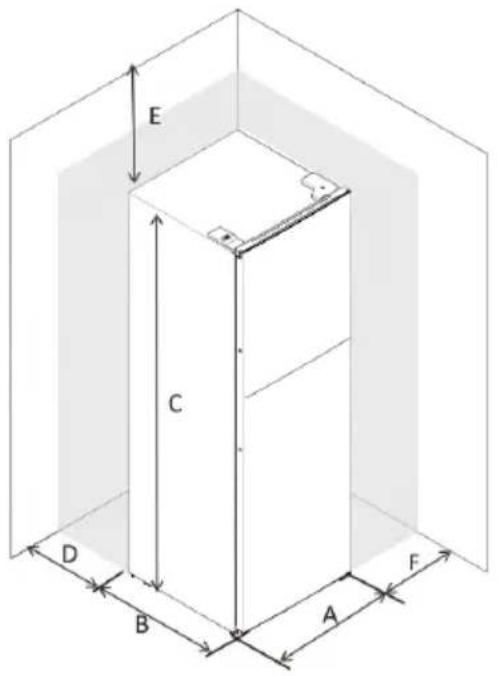

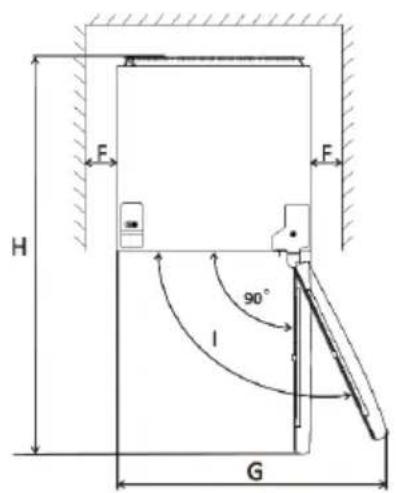

A 472 mm

B 450 mm

C 860 mm

D 100 mm

E 300 mm

F 100 mm

G 920 mm

H 890 mm

I 180°

Nastavení teploty

Line drawing of a hand holding a cylindrical object with a handle, no text or symbols present

Odmrazování mrazáku

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Simple line drawing of a mechanical lever with a downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction, and a magnified inset of a component (no text or symbols present)

Diagram showing directional arrows and a small object on a surface, no text or symbols present

Diagram showing a circular object with internal components and an arrow indicating rotation (no text or symbols)

Technical diagram showing a door assembly with an inset view of a mechanical component (no text or symbols present)

Simple line drawing of a mechanical component with two downward arrows indicating direction (no text or symbols)

4. POKYNY NA POUŽITIE

Místo

A 472 mm

B 450 mm

C 860 mm

D 100 mm

E 300 mm

F 100 mm

G 920 mm

H 890 mm

I 180°

Nastavenie teploty

Line drawing of a hand holding a mechanical component (no text or symbols)

Odmrazovanie mrazničky

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

- For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances with adult supervision.

- Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

☐ If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING!

Do not damage the refrigerant circuit.

WARNING!

Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING!

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING!

Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

WARNING!

When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING!

Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
  During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• avoid open flames and sources of ignition
• thoroughly ventilate the room in which the appliance is situated

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications.

☐ This appliance is heavy. Care should be taken when moving it.

- Avoid prolonged exposure of the appliance to direct sunlight.

WARNING!

Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING!

The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

• Power cord must not be lengthened.
• Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
  ☐ Make sure that you can come to the mains plug of the appliance.
  ☐ Do not pull the mains cable.
  ☐ If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

Daily use

☐ Do not put hot on the plastic parts in the appliance.
- Do not place heavy objects or electrical appliances on the top of the refrigerator.
- Do not place food products directly against the rear wall.
- Frozen food must not be re-frozen once it has been thawed out.
- Store pre-packed frozen food in accordance with the frozen food, manufactures instructions. ^2)
- Appliance s manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
- Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^2)
☐ Ice lollies can cause frost burns if consumed straight from the appliance. ^2)
- Do not touch the cooled surfaces while the appliance operates, especially not with wet hands, because the skin may stick to the cold surfaces.

To avoid contamination of food, please respect following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces, that can come into contact with food and accessible drainage systems.
• Clean water tanks, if they have not been used for 48 h, flush the water system connected to a water supply, if water has not been drawn for 5 days (if they are presented in the appliance).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
  ☐ One-, two- and three-star compartments (if they are presented in the Appliance) are not suitable for freezing of fresh food.
  ☐ If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Care and cleaning

Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal objects.
  ☐ Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^2)
• Regularly examine the drain in the refrigerator for condensate. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance.

Installation

IMPORTANT!

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the refrigerant to flow back in the compressor.
  ☐ Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
  ☐ The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

IMPORTANT!

Do not place the appliance in direct sunlight, to places with high temperature or high humidity.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
  ☐ This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energysaving

• Don’t put hot food in the appliance
• Don’t pack food close together as this prevents air circulating
• Make sure food don’t touch the back of the compartment(s)
• If electricity goes off, don’t open the door(s)
• Don’t open the door(s) frequently
• Don’t keep the door(s) open for too long time
• Don’t set the thermostat on exceeding cold temperatures
  ☐ All drawers, shelves and door compartments should be placed in their position for the lowest possible energy consumption.

Environment protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

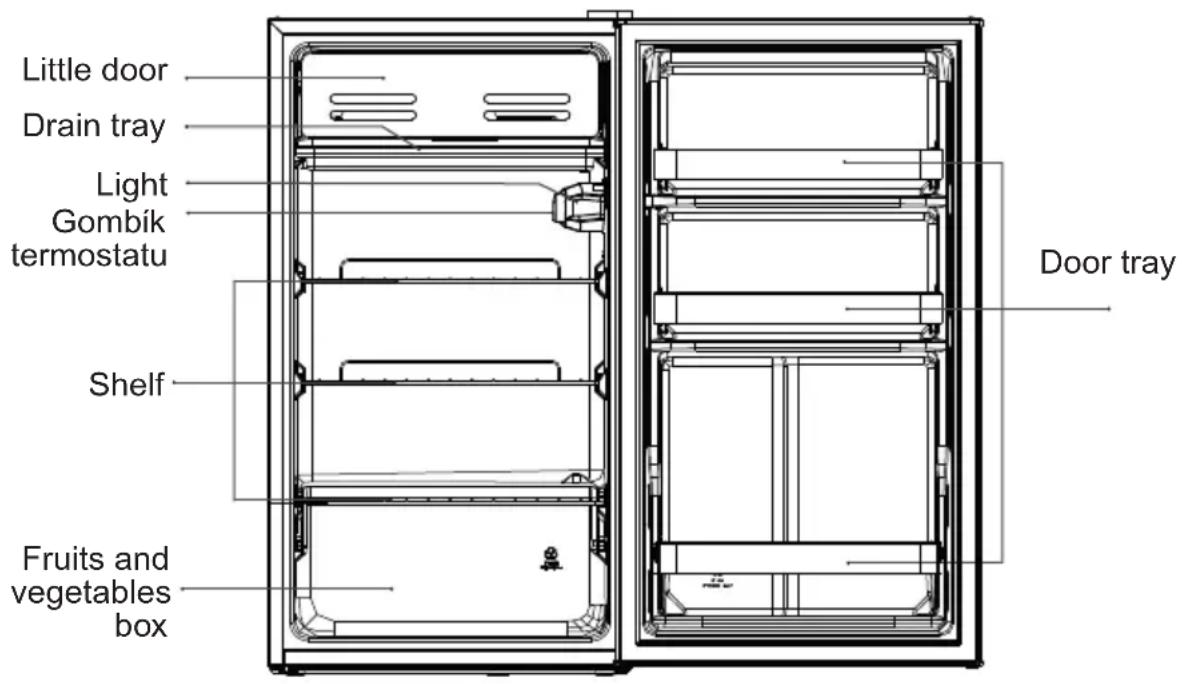

2. OVERVIEW

Note: Above picture is for reference only. Real appliance may be a little bit different.

3. REVERSE DOOR

Tool required: philips screwdriver, flat bladed screwdriver, hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.
• It's better that 2 people handle the unit during assembly.

EN

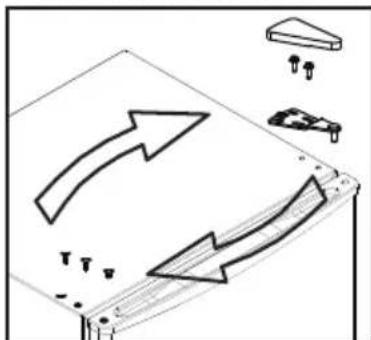

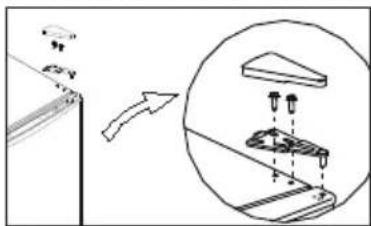

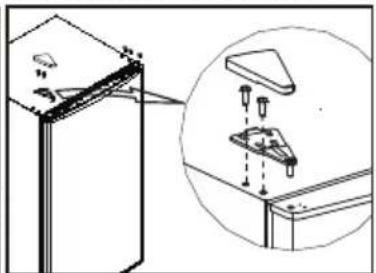

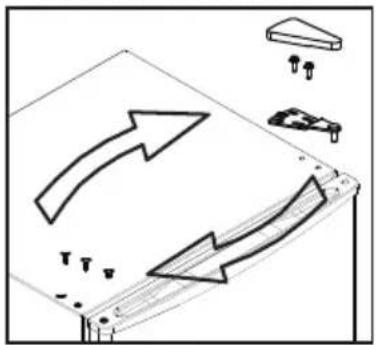

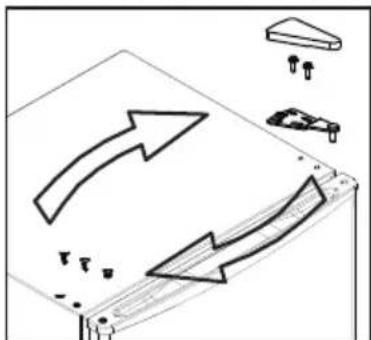

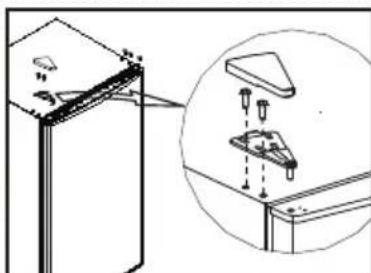

1. Carefully remove the top hinge cover with a flat screw driver.

2. Unscrew the top hinge with a philiphs screw driver.

3. Remove the hole cover with a flat screw driver.

4. Move the core cover from left side to right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.

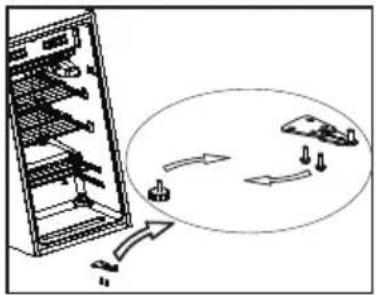

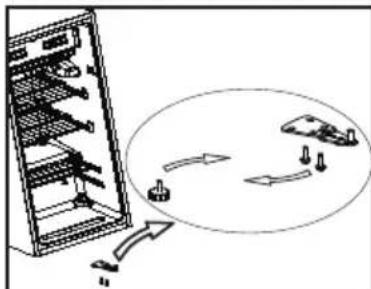

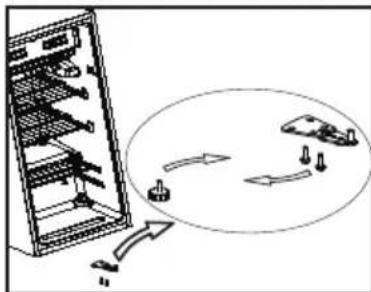

5. Lean the rear of cabinet on a soft pad. And unscrew the bottom hinge and leveling foot. Install the hinge at left side and foot base at right side. Then screw two leveling feet with their original parts. Stand up the unit.

6. Dismantle the stopper under the door then assemble the stopper on the other side. Put the door on the bottom hinge. Make sure the bottom hinge core is inserted in the door hole. Install the upper hinge.

7. Clap in the hinge cover and hole cover on the top of unit.

Simple line drawing of a mechanical lever with a downward arrow indicating force or direction (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Pure mechanical diagram showing a lever and three vertical rods with arrows indicating direction (no text or symbols)

Diagram showing a circular object with internal components and an arrow indicating rotation (no text or symbols)

Technical line drawing of a door frame with an inset showing a component detail (no text or symbols)

Simple line drawing of a mechanical component with two downward arrows indicating force or movement (no text or symbols)

4. INSTRUCTIONS FOR USE

Leveling the unit

• To do this adjust the two leveling feet at front of the unit.
• If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Note: Above pictures are for reference only.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance. For refrigerating appliances with climate class:

• extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C (SN)
• temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C (N)
• subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C (ST)
• tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C (T)

This appliance is not intended for use at altitudes exceeding 2000 m.

This device is designed for climate classes N, ST, T or ambient temperatures of 16 - 43 °C.

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 300 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjust-able feet at the base of the cabinet. This refrigerating appliance is not intended to be used as a built-in appliance.

First use / cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT!

Do not use detergents or abrasive powders, as these will damage the finish.

Space Requirement

• Keep enough space of door open.
• Keep at least 100mm gap at two sides.

A 472 mm

B 450 mm

C 860 mm

D 100 mm

E 300 mm

F 100 mm

G 920 mm

H 890 mm

I 180°

Setting The Temperature Control

- Plug on your appliance. The internal temperature is controlled by a thermostat.

*MIN: is warmest setting

*MAX: is coldest setting;

*OFF: is off.

- The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Temperature setting recommendation

Environment temperature Fridge compartment
Warmer(29°C and higher)
Normal(21°C - 28°C)
Colder(20°C and lower)	set on MED

Impact on food storage

Storage time may be reduced if the appliance is set up differently.

The best storage time in the refrigerator with the recommended setting follows:

Food	Maximum storage time	How and where to store
Vegetables and fruits	1 week Vegetable bin
Meat and fish 2-3 days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3-4 days	On the designated door shelf
Butter and margarine	1 week On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month On the	designated door shelf
Cooked food 2 days	All shelves

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Note: this recommendation is for guidance only, taking into account the interior design of this appliance.

NOTICE:

The freezer compartment (evaporator) in this appliance is not an actual ice-making or freezing area - it is also not intended for storing frozen food.

The temperature in this area is not low enough to freeze the food safely. A colder setting on the thermostat can be used to partially reduce the temperature in the freezer compartment, but this may also affect the temperature in the appliance's refrigeration compartment.

Cleaning

- For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION!

The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

IMPORTANT!

Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
• After everything is dry place appliance back into service.

Replacement of incandescent lamps

• Disconnecting the power supply before carrying out the bulb replacement.
• Hold and remove the light bulb cover.
• Dismantle the old bulb by unscrewing it counterclockwise.
• Replace by a new bulb (Max. 15W) by screwing it clockwise, and make sure it is fixed in the bulb holder tightly.
• Reassemble the light cover and re-connect your fridge to the power supply

Line drawing of a hand holding a mechanical component (no text or symbols)

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• Pull out the plug from the socket;
• Remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
• Keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
• When defrosting is completed, dry the interior thoroughly
• Replace the plug in the power socket to run the appliance again.
• The internal light is a LED type. To replace the lamp, please contact qualified technician.

5. TROUBLESHOOTING

CAUTION!

Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

IMPORTANT!

There are some sounds during normal use (compressor, refrigerant circulation). These sounds are not a reason for complaint!

Problem Possible cause Solution
Appliance does not work	Temperature regulation knob is set at number “OFF”.	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective (circuit breaker is OFF).	Check fuse, replace if necessary (switch ON the circuit breaker).
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	Appliance is not level. Re-adjusted	the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Side panel is hot Condenser is inside the panel. It's normal.

6. TECHNICAL DATA

• Technical information can be found on the type plate inside the appliance (or on its back side) and on the energy label.
• "Information Sheet" and "Directions for Use" can be downloaded at: www.hyundai-electronics.cz.
• QR code on the energy label supplied with the appliance provides a web link to information concerning the specification of this appliance in the EU EPREL database.
• Keep the energy label together with user manual and all other documentation supplied with this appliance.
• The same information in the EPREL database can also be found at: https://eprel.ec.europa.eu
• The model name (product number) can be found on the type plate of the appliance and also on the energy label supplied with the appliance.
• We reserve the right to change technical specifications.

7. CUSTOMER CARE AND SERVICE

• Always use original spare parts.
• When contacting our authorised service or information line, make sure you have the following information available: the model name (product number) and serial number (SN).
• This information can be found on the type plate (or on a separate label near it).
• The manufacturer reserves the right for change without prior notice.
• Original spare parts for particular selected components of the product are available at least 7 or 10 years from the launch of the last piece of the appliance on the market (depending on the type of the component).
• For more information regarding service and purchase of spare parts, visit our website: www.hyundai-electronics.cz/servis-eu

8. WARNING

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY

CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

1. WSKAZÓWKI BEZPIECZEŃSTWA

Simple line drawing of a mechanical lever with a downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Pure mechanical diagram showing a lever and rod assembly without any text, numbers, or symbols

Diagram showing directional arrows and a vehicle silhouette on a road surface (no text or symbols)

Diagram showing a circular object with a square and arrow, next to a rectangular device (no text or symbols)

Technical diagram showing a door assembly with an inset view of a mechanical component (no text or symbols present)

Simple line drawing of a mechanical component with two downward arrows indicating force or movement (no text or symbols)

4. INSTRUKCJA UŻYTKOWANIA

A 472 mm

B 450 mm

C 860 mm

D 100 mm

E 300 mm

F 100 mm

G 920 mm

H 890 mm

I 180°

Line drawing of a hand holding a mechanical component (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Simple line drawing of a mechanical lever with a downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction, no text or symbols present

Pure mechanical diagram showing a lever and rod assembly without any text, numbers, or symbols

Diagram showing directional arrows and a small object with symbols, no readable text or labels present

Diagram showing a circular object with a square and arrow, next to a rectangular device (no text or symbols)

Technical line drawing of a door frame with an inset showing internal components (no text or symbols)

Simple line drawing of a mechanical component with two downward arrows indicating force or movement (no text or symbols)

Hely

A 472 mm

B 450 mm

C 860 mm

D 100 mm

E 300 mm

F 100 mm

G 920 mm

H 890 mm

I 180°

Line drawing of a hand gripping a mechanical component (no text or symbols)
