Zelus E1 L - Chair Gamdias - Free user manual and instructions

Product Type	Gaming Chair
Brand	Gamdias
Model	Zelus E1 L
Overall Height	50 - 54 inches (127 - 137 cm)
Seat Width	20 inches (51 cm)
Seat Depth	20 inches (51 cm)
Backrest Height	33 inches (84 cm)
Weight Capacity	330 lbs (150 kg)
Net Weight	53 lbs (24 kg)
Adjustable Armrests	3D (height, angle, width)
Recline Angle	90° - 180° (flat recline)
Tilt Lock Mechanism	Yes
Gas Lift Class	Class 4 (certified)
Base Material	Aluminum alloy
Caster Size & Material	2.4 inch (60 mm) PU smooth casters
Upholstery Material	PU leather with breathable mesh
Filling Material	High-density cold cure foam
Lumbar Support	Adjustable lumbar cushion
Headrest	Adjustable headrest pillow
Cleaning Instructions	Wipe with a damp cloth; mild soap if needed
Safety Standard	ANSI/BIFMA X5.1-2017 certified
Warranty	2 years limited
Spare Parts Availability	Order through Gamdias support
Recommended User Height	5'5" to 6'3" (165 - 190 cm)

Frequently Asked Questions - Zelus E1 L Gamdias

How do I assemble the Gamdias Zelus E1 L chair?

Refer to the included manual. Generally, attach the base to the gas lift, mount the seat on the base, and attach the backrest with provided screws. Use the included Allen key.

What is the weight limit for this gaming chair?

The Zelus E1 L supports up to 330 lbs (150 kg) when used as intended.

How do I adjust the armrests?

The chair features 3D adjustable armrests: lift levers to change height, rotate for angle, and slide inward/outward for width.

Can I recline the chair fully flat for sleeping?

Yes, the backrest reclines from 90° to 180°, allowing a near-flat sleeping position.

How do I clean the PU leather upholstery?

Wipe with a damp cloth and mild soap. Avoid abrasive cleaners or excessive water. Dry with a soft towel.

What is the warranty period?

Gamdias provides a 2-year limited warranty covering manufacturing defects. Normal wear is excluded.

Are replacement parts available for this model?

Yes, you can order spare parts such as casters, gas lift, or armrests through Gamdias customer support.

How do I lock the tilt mechanism?

Move the lever under the seat to the lock position. This prevents rocking. Unlock to enable tilt.

Is the chair certified for safety?

The Zelus E1 L is certified to ANSI/BIFMA X5.1-2017 standards for durability and safety.

My chair makes a squeaking noise. What should I do?

Check if screws are tight, apply silicone lubricant to moving parts (gas lift, tilt mechanism), and ensure all components are properly seated.

USER MANUAL Zelus E1 L Gamdias

Seat Back & Angle Adjuster Bolts
Black Screws for R/L Plastic Cover

Tool Base Support Bolts

Seat Back

Lumbar Support PillowHead Pillow
ArmrestCasters

Seat Angle Adjuster (R) Connector (L)

Gas Lift

x5

5 Star Base

Assembly Instruction

Line drawing of an office chair with visible seat, spout, and frontrest (no text or symbols)

Technical line drawing of a mechanical device with six arms and a central hub, showing internal components and an inset close-up (no text or symbols)

serial number

↑↓

Diagram of a mechanical assembly with an orange arrow indicating direction (no text or symbols present)

Height Lifting

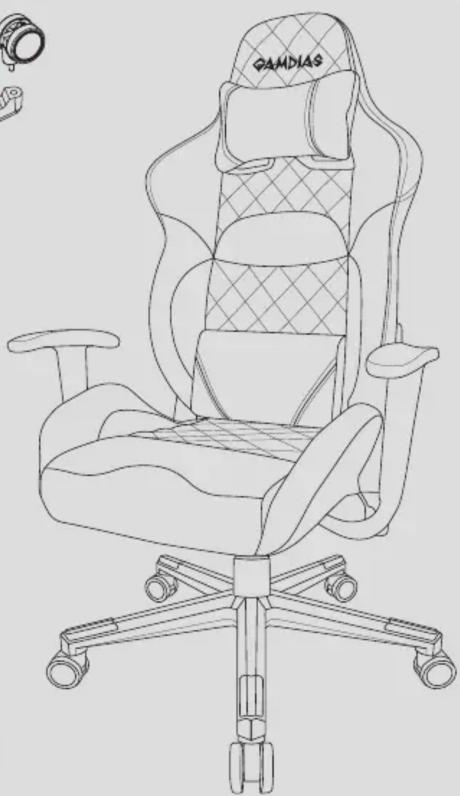

Line drawing of an office chair with orange outline and patterned backrest, no text or symbols present

GAMDIAS Technology Co., Ltd. www.GAMDIAS.com
7F, No.113, Jian 2nd Rd., Jhonghe Dist., New Taipei City 23585, Taiwan (R.O.C.)

© 2018 GAMDIAS Technology Co., Ltd. All rights reserved. All GAMDIAS trademarks and logos are registered trademarks of GAMDIAS Technology Co., Ltd. All other trademarks and logos presented in this material are the property of their respective owners. GAMDIAS Technology Co., Ltd. reserves the right to revise the specifications mentioned on this packaging.
