Product Type	Battery-powered line trimmer
Model	LN3
Brand	Baumr-AG
Battery Voltage	20V
Battery Capacity	2.2Ah Lithium-ion
Charging Time	60 minutes
Running Time	25 minutes
No-Load Speed	9000 rpm
Cutting Diameter	230 mm
Trimmer Line Diameter	1.6 mm
Overall Length	1.12 m
Shaft Type	Aluminium telescopic
Handle Adjustments	Main handle angle (0° for trimming, 180° for edging); auxiliary handle swivel; trimmer head tilt
Trimmer Wheel	Yes, for edge guidance and obstacle distance

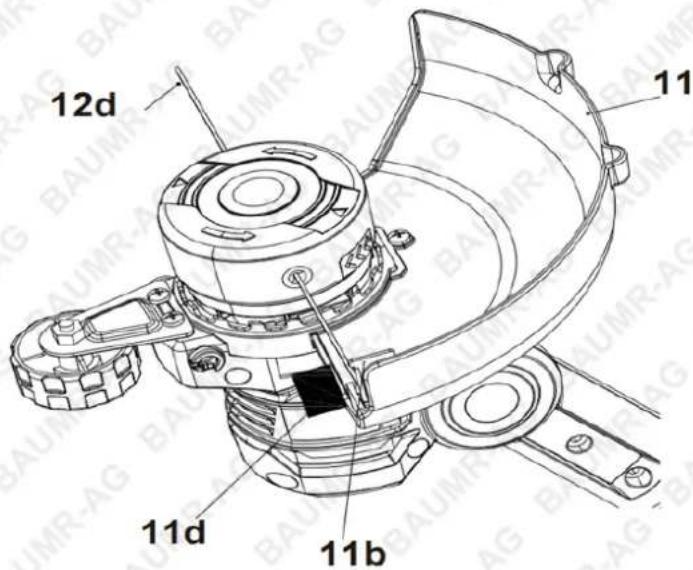

Guard	Included with cutting knife for automatic line trimming
Weight	Approximately 3.5 kg (with battery)
Safety Features	On/off switch, rear safeguard, guard, automatic shut-off on overcurrent
Intended Use	Domestic trimming of grass and weeds in hard-to-reach areas
Included Accessories	Guard, battery pack (may not be included, check listing), charger, knife protector, trimming wheel
Maintenance	Clean with damp cloth and pH-neutral soap; inspect before use; replace trimmer spool as needed
Storage	Cool, dry, frost-free place; ideal temperature 10°C–30°C

Frequently Asked Questions - LN3 Baumr-AG

How do I charge the battery for the first time?

Charge the battery for 60 minutes on the initial charge, even if it arrives with some charge. Use only the charger supplied. Charge in temperatures between 10°C and 30°C, on a non-combustible surface, away from flammable materials.

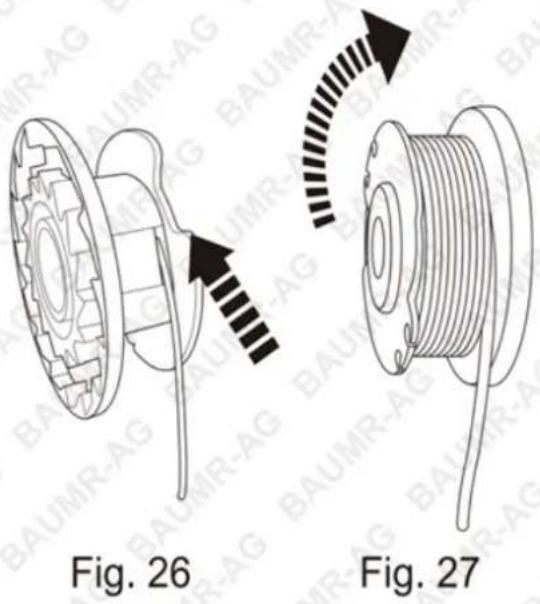

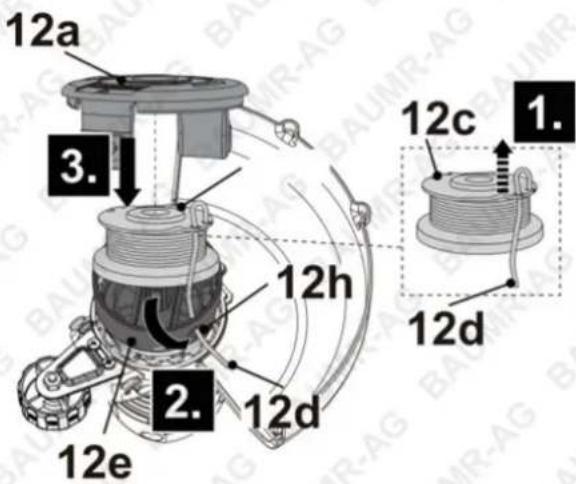

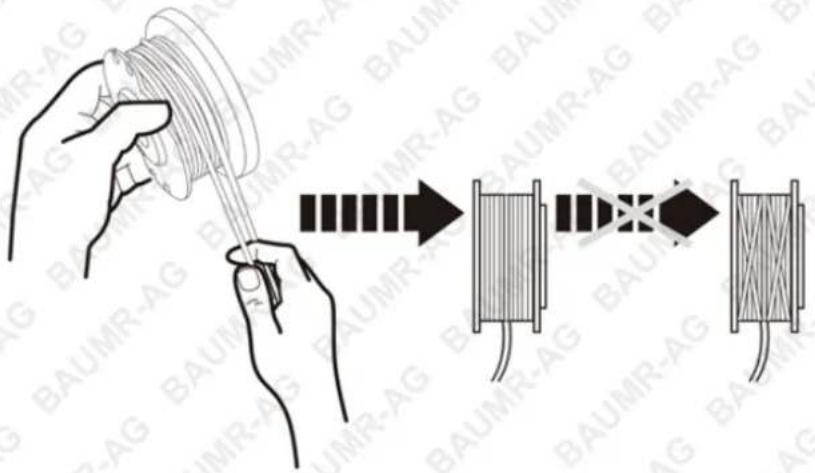

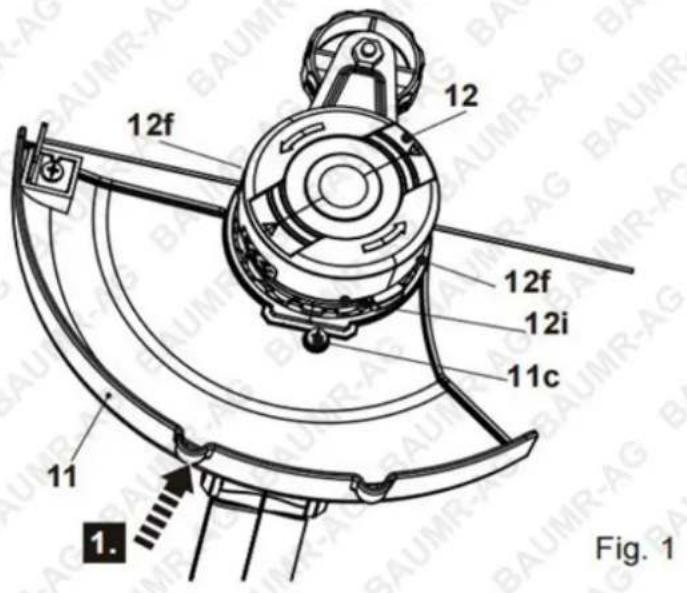

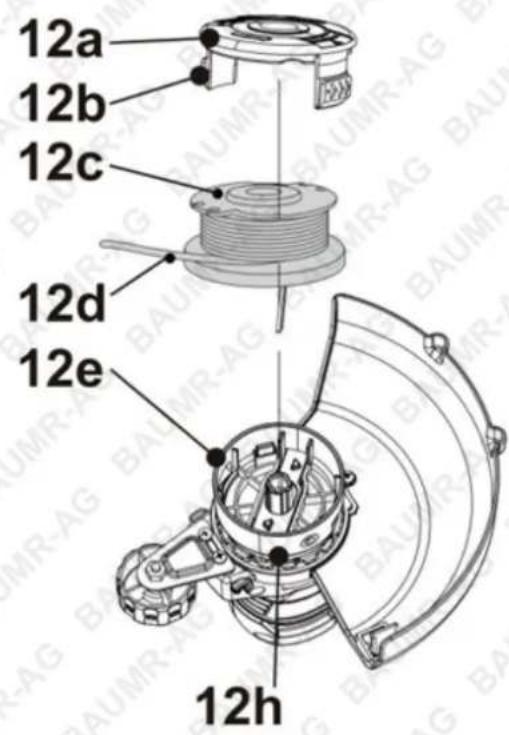

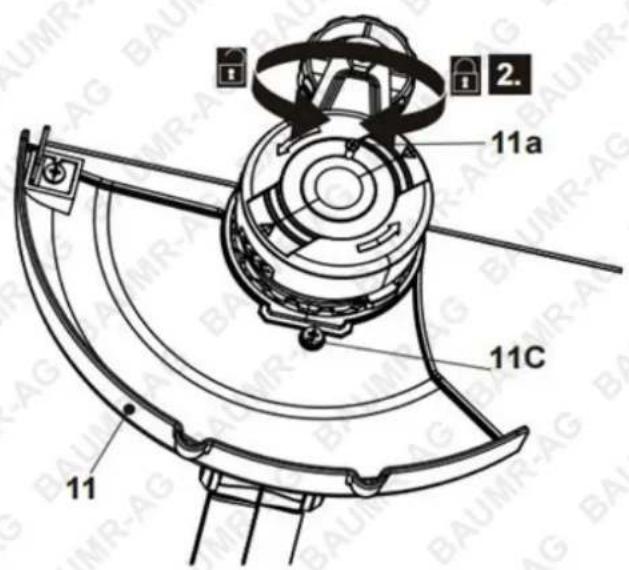

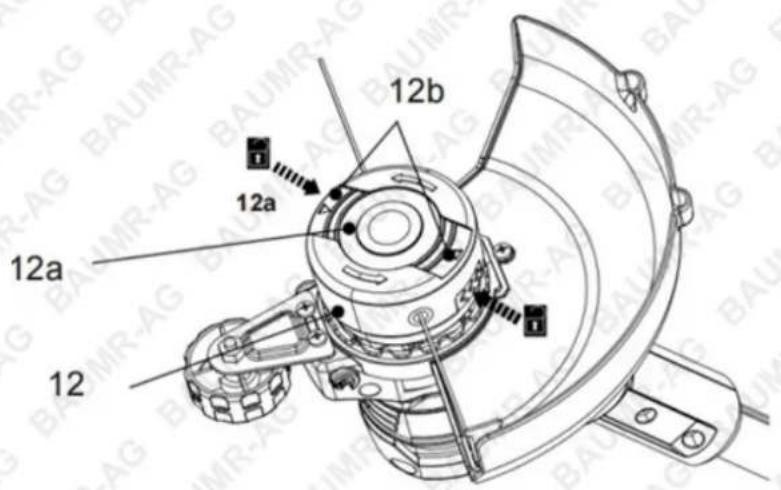

How do I replace the trimmer line?

Remove the battery. Press both release latches on the trimmer head cover, lift it off, and remove the empty spool. Clean the housing. Pull about 12 cm of new line from the spool, thread the end through the eyelet, insert the spool, and snap the cover back on. For refilling, wind 4 meters of new line onto the spool in the direction of the arrows.

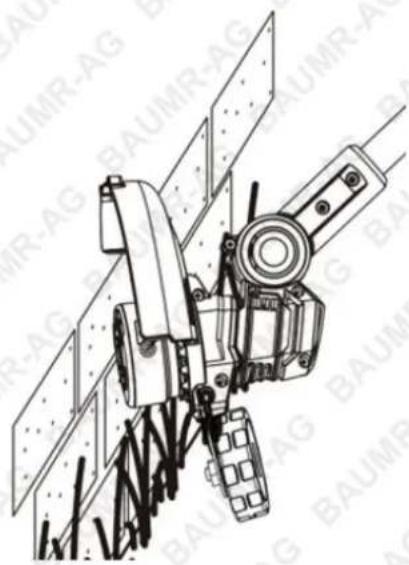

Can I use the trimmer for edging?

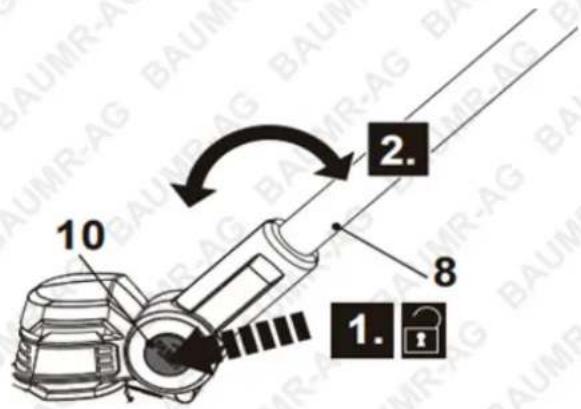

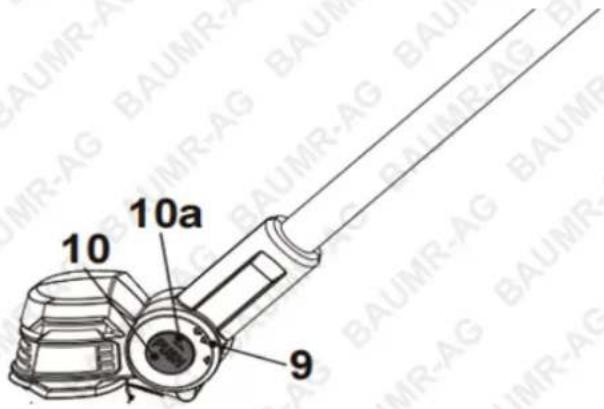

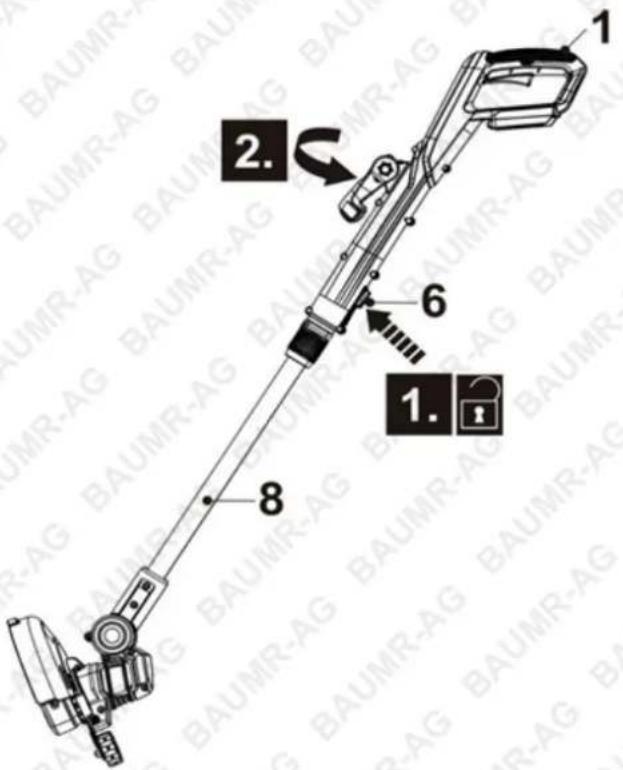

Yes. Press the unlock button on the main handle and rotate the handle to the 180° position for edging. Also tilt the trimmer head using the tilt adjustment button. Ensure the unlock button snaps into place before use.

Why does the trimmer stop during use?

The trimmer may automatically shut off due to overcurrent if the cutting head is blocked by thick grass or uneven ground. Release the trigger for at least 3 seconds, then press it again to resume.

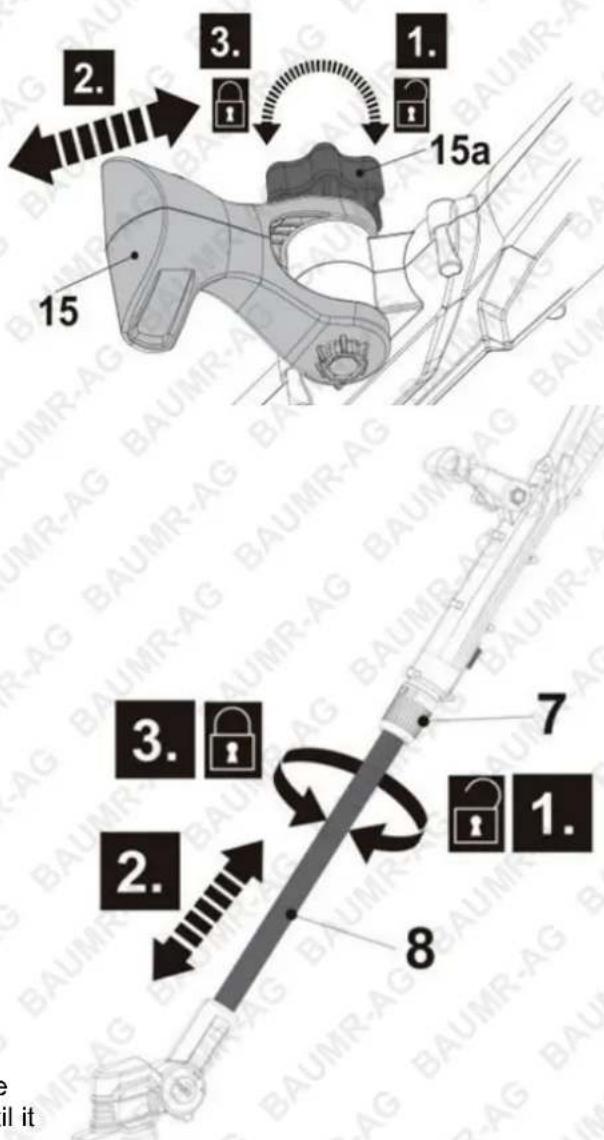

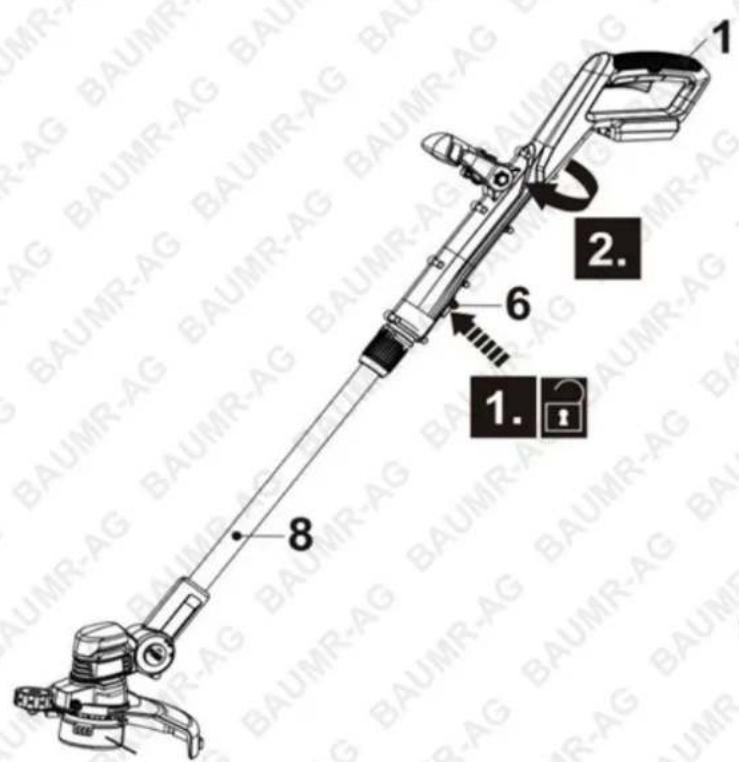

How do I adjust the length of the shaft?

Loosen the locking sleeve between the upper and lower poles by turning clockwise. Pull the lower pole out or push it in to the desired length, then tighten the sleeve anticlockwise to secure.

Is the battery and charger included?

Not necessarily. The manual states that the battery and charger may not be included with your purchase. Please check your product's online listing to confirm what is included.

What safety equipment should I wear?

Always wear eye protection and stout shoes. Use hearing protection, gloves, and a dust mask as needed. Avoid loose clothing and tie back long hair.

How do I clean the trimmer?

After removing the battery, clean with a damp cloth and pH-neutral soap. Use a brush for hard-to-reach areas. Do not use chemical or abrasive cleaners. Keep the guard and air vents free of debris.

What should I do if the trimmer vibrates excessively?

Excessive vibration can indicate a damaged trimmer head, loose screws, or worn/damaged trimmer line. Check and tighten screws, replace the line, or replace the trimmer head if necessary.

How should I store the trimmer when not in use?

Remove the battery. Clean the product. Store in a dark, dry, frost-free, well-ventilated place, ideally between 10°C and 30°C. Keep out of reach of children. Use the original packaging or a cover to protect from dust.

USER MANUAL LN3 Baumr-AG

Red handheld tool with black handle and black end cap, isolated on white background (no text or symbols)

NOTE: Battery and charger may not be included with your purchase. Please refer to your product's online listing to know what is included.

Two cylindrical batteries, one red and one black, shown without any text or symbols.

Close-up of a black industrial robotic arm with a red base and handle (no visible text or symbols)

LN3 Line Trimmer Kit

User Manual

[Revision 1.0 February 2024]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well-ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Always use a Residual Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker / Safety Switch when operating this item (electrical items only).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

- WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.

- Carefully inspect anything a baby or child could gain access to, including this product & packaging.

- Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Important Safety Reminders

• BE AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES, HOT SURFACES AND MOVING PARTS.
• MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.
• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT. FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.
• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

General Safety Warnings

• Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
• Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children.

General Power Tool Safety Warnings

- WARNING! READ ALL SAFETY WARNINGS, INSTRUCTIONS, ILLUSTRATIONS, AND SPECIFICATIONS PROVIDED WITH THIS POWER TOOL. FAILURE TO FOLLOW ALL INSTRUCTIONS LISTED BELOW MAY RESULT IN ELECTRIC SHOCK, FIRE AND /OR SERIOUS INJURY. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

- The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive Atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust of fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical Safety

• Power plugs tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges, and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power Tool Use and Care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories, and tool bits etc. in accordance with these instructions, considering the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean, and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery Tool Use and Care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion, or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging range may damage the battery and increase the risk of fire.

Service

• Have your power tools serviced by a qualified repair person using only identical replacement parts. This will ensure that safety of the power tool is maintained.
• Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Training

• Read the instructions carefully. Be familiar with the controls and the correct use of the machine.
• Never allow children or people unfamiliar with these instructions to use the machine. Local regulations can restrict the age of the operator.
• Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

• Before use check the supply and extension cord for signs of damage or aging. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the machine if the cord is damaged or worn.
• Before use, always visually inspect the machine for damaged, missing or misplaced guards or shields.
• Never operate the machine while people, especially children, or pets are nearby.

Operation

• Keep supply and extension cords away from cutting means.
• Wear eye protection and stout shoes at all times while operating the machine.
• Avoid using the machine in bad weather conditions especially when there is a risk of lightning.
• Use the machine only in daylight or good artificial light.
• Never operate the machine with damaged guards or shields or without guards or shields in place.
• Switch on the motor only when the hands and feet are away from the cutting means.
• Always disconnect the machine from the power supply (i.e. remove the plug from the mains, remove the disabling device or removable battery).

- whenever the machine is left unattended.

• before clearing a blockage.

- before checking, cleaning, or working on the machine.

• after striking a foreign object.

- whenever the machine starts vibrating abnormally.

• Take care against injury to feet and hands from the cutting means.
- Always ensure that the ventilation openings are kept clear of debris.

Maintenance and Storage

• Disconnect the machine from the power supply (i.e. remove the plug from the mains, remove the disabling device or removable battery) before carrying out maintenance or cleaning work.
• Use only the manufacturer's recommended replacement parts and accessories.
• Inspect and maintain the machine regularly. Have the machine repaired only by an authorized repairer.
• When not in use, store the machine out of the reach of children.

Additional Safety Warnings for Battery Pack

• Battery pack needs to be charged before use.
• Always refer to the charger's instruction and charge it Properly.
• Remove the battery pack from the product when not in use.
• Don't maintain the battery pack on the charger when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain the maximum performance.
• Longer life and better performance can be obtained if the battery is charged when the air temperature is between 18°C and 24°C. Do not charge the battery in air temperature below 5°C or above 40°C. This is important as it can prevent serious damage to the battery.
• Do not charge battery in a damp or wet location. Following this rule will reduce the risk of electric shock.
• Do not disassemble the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be emitted. Ensure fresh air and seek medical assistance in the event of discomfort.
• When disposing of battery pack, keep the battery pack of different electrochemical systems separate from each other.

Vibration and Noise Reduction

To reduce the impact of noise and vibration emission, limit the time of operation, use low-vibration and low-noise operating modes as well as wear personal protective equipment. Take the following points into account to minimise the vibration and noise exposure risks:

• Only use the product as intended by its design and these instructions.
• Ensure that the product is in good condition and well maintained.
• Use correct attachments for the product and ensure they are in good condition.
• Keep tight grip on the handles/grip surface.
• Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate).
• Plan your work schedule to spread any high vibration tool use across a longer period of time.
• Prolonged use of the product exposes the user to vibrations that can cause a range of conditions collectively known as hand-arm vibration syndrome (HAVS) e.g. fingers going white; as well as specific diseases such as carpal tunnel syndrome. To reduce this risk when using the product, always wear protective gloves and keep your hands warm.

Emergency

• Familiarise yourself with the use of this product by means of this instruction manual. Memorise the safety directions and follow them to the letter. This will help to prevent risks and hazards.
• Always be alert when using this product, so that you can recognise and handle risks early. Fast intervention can prevent serious injury and damage to property.

- Switch the product off and remove the battery pack if there are malfunctions. Have the product checked by a qualified professional and by a qualified professional and repaired, if necessary, before you operate it again.

Residual risks

Even if you are operating this product in accordance with all the safety requirements, potential risks of injury and damage remain. The following dangers can arise in connection with the structure and design of this product:

• Health defects resulting from vibration emission if the product is being used over long periods of time or not adequately managed and properly maintained.
• Injuries and damage to property due to broken attachments or the sudden impact of hidden objects during use.
• Danger of injury and property damage caused by flying objects.

Recycling and Disposal

• Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
• Check with your Local Authority or local store for recycling advice.
• The product comes in a package that protects it against damage during shipping. Keep the package until you are sure that all parts have been delivered and the product is working properly. Recycle the package afterwards.

Disposal of an Exhausted Battery Pack

• The battery is Li-Ion type. To preserve natural resources, please recycle or dispose of the battery pack properly. Consult your local waste authority for information regarding available recycling and / or disposal options.
• Discharge your battery pack by operating your tool, then remove the battery pack from the tool and cover the battery pack connections with heavy duty adhesive tape to prevent short circuit and energy discharge.
• Do not attempt to open or remove any of the components.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	EXHAUST FUMESCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....7

Parts Identification ....11

Assembly....12

Unpacking....12

You Will Need / Before You Start....12

Set-Up....12

Guard 13

Battery Pack 13

Attaching / releasing the battery pack....13

Charging the battery pack....14

Battery capacity indicators 14

Operation....15

Intended Use 15

Auxiliary Handle Adjustment....15

Length Adjustment....15

Main Handle Angle Adjustment....15

Trimmer Head Tilt Adjustment....16

Trimmer Wheel 17

Guard....17

Switching ON/OFF....17

General Operation....18

Trimming....18

Edging....19

Tips 19

Line Feeding 20

Manual Feeding....20

Auto-Feeding 21

After Use....21

Lithium Battery Care and Maintenance 22

Top 3 Battery Care Requirements....22

Maintenance....24

The Golden Rules for Care....24

General Cleaning....24

Guard....24

Trimming Line 24

Storage 27

Transportation 27

LN3 Line Trimmer Kit

Bäumr-AG®

Troubleshooting 28

Specifications 29

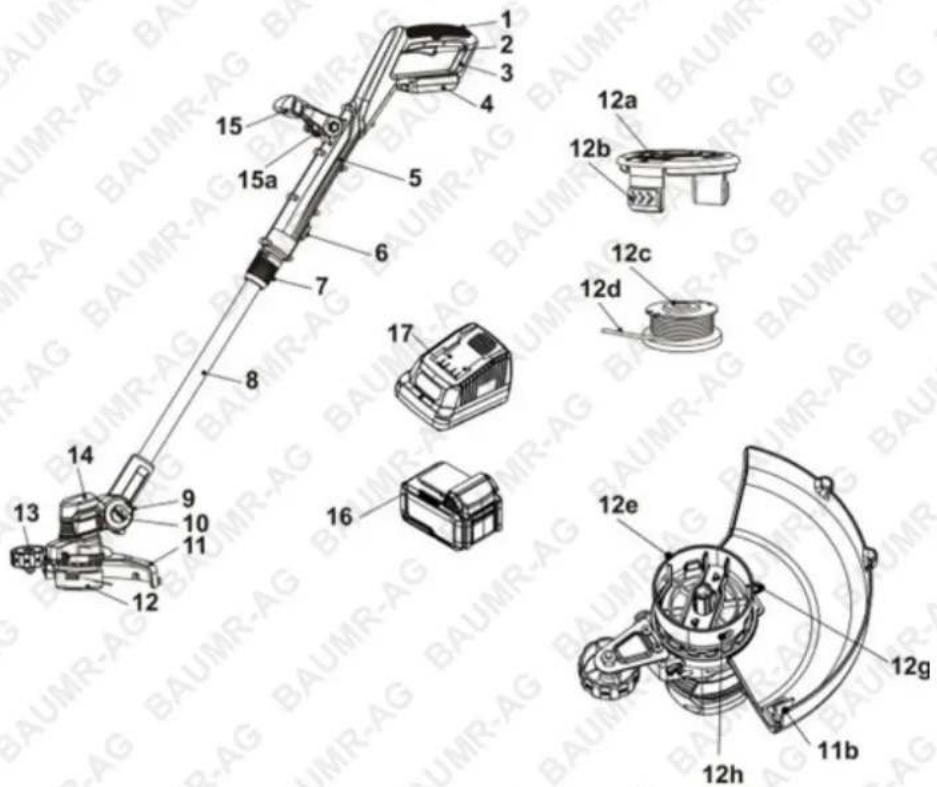

Parts Identification

No.	Name	No.	Name
1	Main handle	10	Unlock button for tilt adjustmenta. Indicator triangle*
2	On/off switch	11	Guarda. Screw*b. Knifec. Screw hole*d. Knife protector*
3	Rear safeguard	12	Trimmer heada. Coverb. Release latch (x2)c. Trimming spoold. Trimming linee. Housingf. Sliding slot (x2)*g. Release push buttonh. Eyeleti. Screw hole*
4	Battery docking port	13	Trimming wheel Screw (x2)*
5	Upper pole	14	Air vents
6	Unlock button for angle adjustment	15	Auxiliary handlea. Lock button
7	Locking sleeve for length adjustment	16	Battery pack
8	Lower pole	17	Charger
9	Pole support

NOTE: Parts marked with * are not shown in this overview.

Assembly

Unpacking

1. Unpack all parts and lay them on a flat, stable surface.
2. Remove all packing materials and shipping devices if applicable.
3. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing and show damage do not use the product but contact your dealer. Using an incomplete or damaged product represents a hazard to people and property.
4. Ensure that you have all the accessories and tools needed for assembly and operation. This also includes suitable personal protective equipment.

WARNING! The product and the packaging are not children's toys! Children must not play with plastic bags, sheets, and small parts! There is a danger of choking and suffocation!

You Will Need / Before You Start

Items not included:

• Suitable personal protective equipment
• Suitable crosshead driver

Items included:

• Guard (11)
• Screw (11a)
• Battery pack (16)
• Charger (17)

NOTE: Battery and charger may not be included with your purchase. Please refer to your product's online listing to know what is included.

Set-Up

WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures provided as a visual guide to easily assemble the product! Do not connect the product to battery pack (16) before it is completely assembled!

NOTE: Take care of small parts that are removed during assembly or when adjusting. Keep them secure to avoid loss.

Guard

1. Turn the trimmer head (12) upside down.
2. Align two tips of the guard (11) with the sliding slots (12f) of the trimmer head (12) (Fig. 1, step 1). Fully insert the guard (11) and make sure that the screw holes (11c, 12i) are well aligned.
3. Secure the guard (11) with the screw (11a) in clockwise (Fig. 1, step 2).

WARNING! Never use the trimmer head (12) without the guard (11) property fitted.

Battery Pack

Attaching / releasing the battery pack

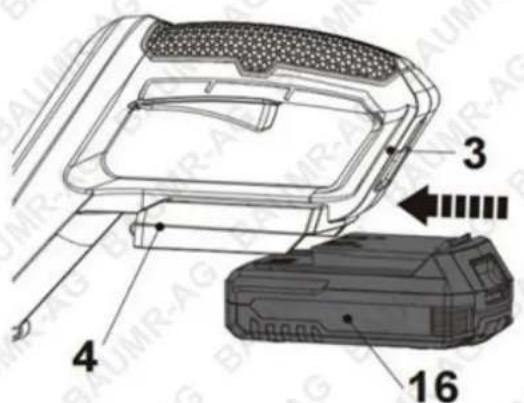

1. Align the battery pack (16) with the sliding slots of the battery docking port (4) under the rear safeguard (3) and slide the battery pack in to attach it. Ensure it clicks in place (Fig. 2).

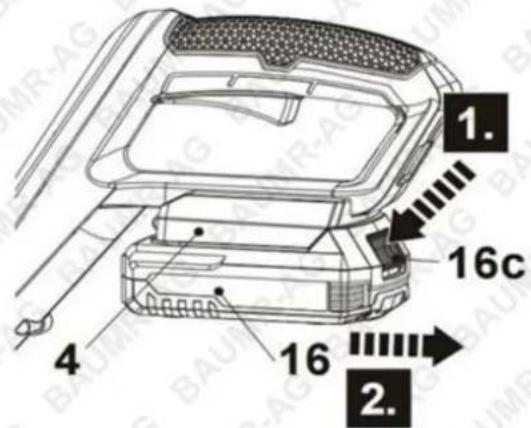

2. Press the release button (16c) and remove the battery pack (16) from the battery docking port (4) (Fig. 3).

Fig. 2

Fig. 3

Charging the battery pack

The battery pack (16) for this product has been shipped in a low charge condition.

Battery capacity indicators

The battery pack is equipped with the battery capacity indicators which are used to give an indication of the battery pack's remaining capacity. Press the battery capacity button to check battery capacity. The LEDs will stay lit for approximately 2 seconds.

Technical diagram of a mechanical component with no visible text or symbols

Battery capacity status indicators		Battery capacity
		75-100%
		51-74%
		26-50%
		5-25%

Operation

Intended Use

• This cordless grass trimmer is designated with a rated voltage of 18V. It is designed only to be used with the battery pack.
• The product is intended for cutting weed, grass or similar soft vegetation in areas that are hard to reach, e.g. under bushes, on slopes and edges. It may not be used to work on unusual thick, dry or wet grass, e. g. pasture grass, or to shred leaves.
• For safety reasons it is essential to read the entire instruction manual before first operation and to observe all the instructions therein.
• This product is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other than those described.

Auxiliary Handle Adjustment

Adjust the angle of the auxiliary handle (15) to fit the intended application.

1. Loosen the lock button (15a) clockwise (Fig.5, step 1), then rotate the auxiliary handle (15) forward or backward to adjust the angle (Fig. 5, step 2).
2. Tight the lock button (15a) in anti-clockwise to secure the auxiliary Length adjustment in position (Fig.5, step 3).

Length Adjustment

Adjust the pole length to fit the body length.

1. Loosen the locking sleeve (7) in clockwise (Fig. 6, step 1).
2. Pull the lower pole (8) out or push it together to adjust the desired length (Fig. 6, step2).
3. Tighten the locking sleeve (7) in anticlockwise (Fig. 6, step 3).

Main Handle Angle Adjustment

Adjust the main handle (1) to either 0^ for trimming or 180^ for edging.

1. Press down the unlock button (6) and turn the main handle (1) clockwise while holding lower pole (8) to adjust the trimmer head (12) to an angle of 180^ (Fig. 7). Release the unlock button (6) and keep turning the main handle (1) until it locks in place. Ensure the unlock button (6) snaps into place.

2. Press down the unlock button (6) and turn the main handle (1) anticlockwise while holding lower pole (8) to adjust the trimmer head (12) to an angle of 0° (Fig. 8). Release the unlock button (6) and keep turning the main handle (1) until it locks in place. Ensure the unlock button (6) snaps into place.

Fig. 6

Fig. 7 (initial position 0)

Fig. 8 (initial position 180°)

WARNING! Always ensure that the unlock button (6) snaps into place after adjusting the main handle in one of the end positions! Never adjust to an intermediate position!

Trimmer Head Tilt Adjustment

Tilt the angle of trimmer head to fit the ground conditions for trimming or edging use by aligning the indicator triangle (10a) on unlock button (10) with one of three indicators of the pole support (9) (Fig. 9).

1. Push the unlock button (10) and hold it in position (Fig.10, step 1).
2. Move the lower pole (8) slightly up or downward (Fig.10, step 2).
3. Release the unlock button (10) and keep moving the lower pole (8) until it locks in place.

Fig. 9

Fig. 10

WARNING! Always ensure that the unlock button (10) snaps into place after adjusting the trimmer head (12) in one of the required positions! Never adjust to an intermediate position!

Trimmer Wheel

1. Use the trimmer wheel (13) to keep distance to obstacles that could be hit by the cutting device.
2. Use the trimmer wheel (13) to cutting the grass at the edges.

Guard

The guard (11) protects the operator against thrown objects during operation. It is equipped with a knife (11b) that cuts the trimming line (12d) (Fig. 13).

Fig. 13

NOTE: Always remove knife protection (11d) before use.

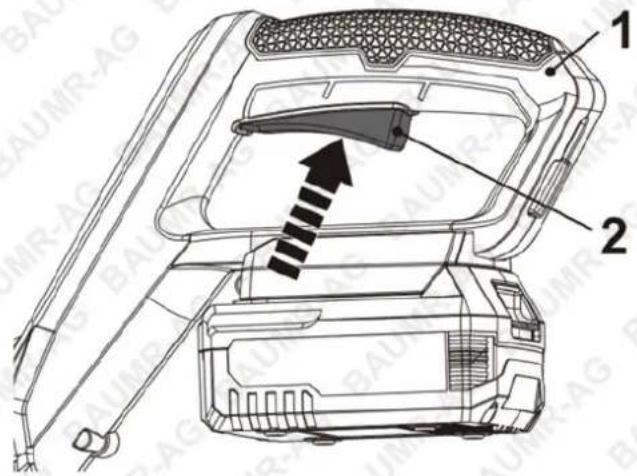

Switching ON/OFF

1. Hold the product with one hand at the auxiliary handle (15) and with the other at the main handle (1).
2. Squeeze the on/off switch (2) to switch the product on (Fig. 14).
3. Release the on/off switch (2) to switch the product off.

Fig. 14

General Operation

1. Check the product, its battery pack and charger as well as accessories for damage before each use. Do not use the product if it is damaged or shows wear.
2. Double check accessories or attachments are properly fixed.
3. Always hold the product by its handles. Keep the handles dry to ensure safe support.
4. Ensure that the air vents are always unobstructed and clear. Clean them, if necessary, with a soft brush. Blocked air vents may lead to overheating and damage the product.
5. Switch the product off immediately if you are disturbed while working by other people entering the working area. Always let the product come to complete stop before putting it down.
6. Do not overwork yourself. Take regular breaks to ensure you can concentrate on the work and have full control over the product.

Trimming

1. Make sure that the knife protector (11d) is removed, the trimming wheel (13) is fixed for use and the battery pack (16) is assembled before operation.
2. Adjust the main handle (1) angle to 0^ for trimming.
3. Hold the product firmly with a gap between the product and your right side.
4. Stand upright, do not lean forward, and pay attention to posture. Keep both feet apart to help retain your balance.

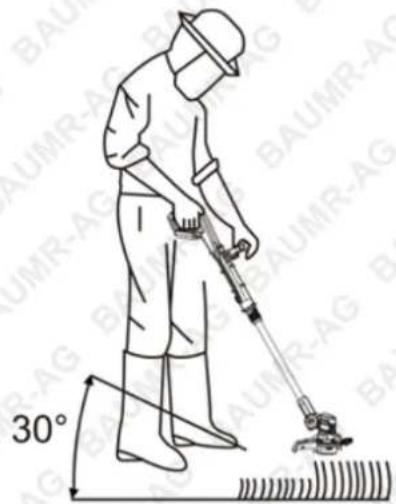

5. Hold the trimmer head (12) just above the ground at an angle of approximately 30^ (Fig. 15).

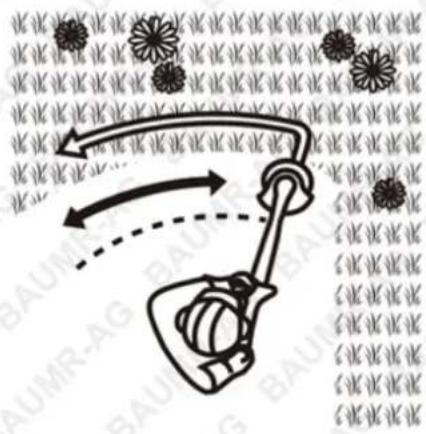

6. Move the product with a slow regular arc from left to right before moving it back to the starting position before trimming the next area (Fig. 16).

Fig. 15

Fig. 16

1. Ensure the cutting device remains clean and free from off-cuts that may cause it to jam. Check regularly. Release the on/off switch (2) and remove the battery pack (16) before checking.

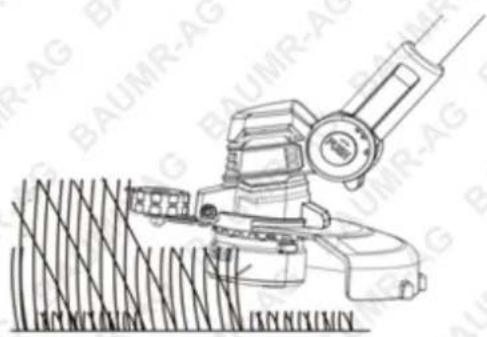

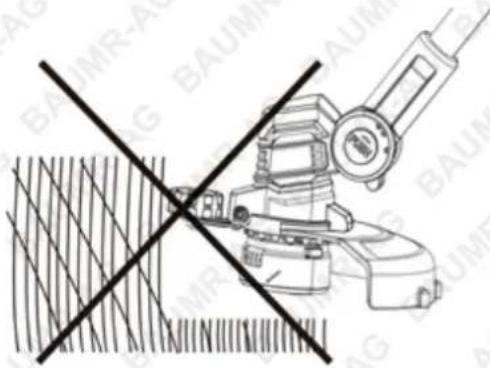

2. Trim longer grasses in stages; do not cut long grass in one cut (Fig. 17). For the best results, cut longer grass in steps (Fig. 18).

Technical line drawing of a mechanical device with intersecting diagonal lines (no text or symbols)

Fig. 17

Technical line drawing of a mechanical tool with no visible text or symbols

Fig. 18

Edging

1. Make sure that the knife protector (11d) is removed, the trimming wheel (13) is fixed for use and the battery pack (16) is assembled before operation.
2. Adjust the main handle (1) angle to 180^ for edging (Fig. 19).

Tips

1. For best results, do not cut wet grass because it tends to stick to the cutting head and guard, prevents proper discharge of grass trimmings, and could cause you to slip and fall.
2. Do not allow the spool cover to drag on the ground or other surfaces.

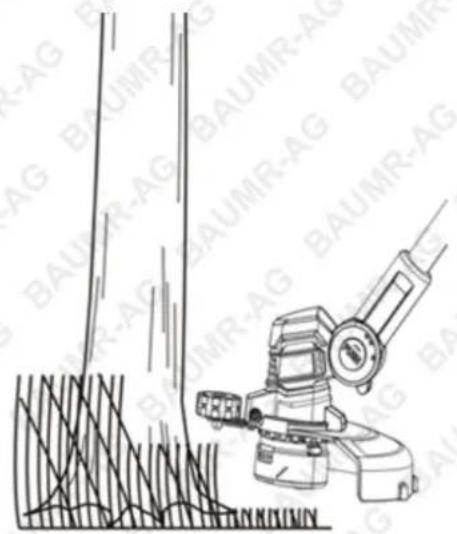

3. Pay special attention when performing the work close to trees and bushes. The cutting head could damage sensitive bark, and damage fence posts.

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 19

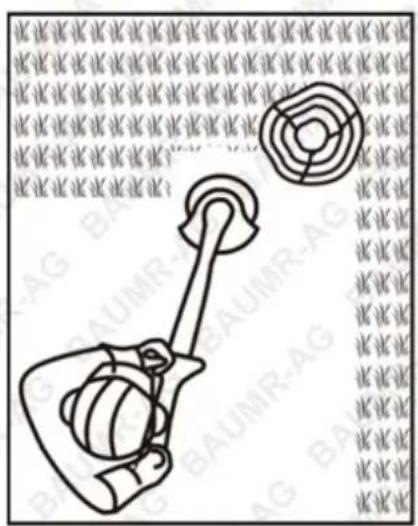

1. Use the trimming wheel to trimming / edging position to avoid bringing the cutting device into contact with hard objects such as walls and curbstones (Figs. 20, 21).

Fig. 20

Line drawing of a microscope with a pointed tool above a textured surface (no text or symbols)

Fig. 21

NOTE: The trimming line will wear faster and require more replacement if cutting is done along sidewalks or other abrasive surfaces, or heavier weeds are being cut.

NOTE: While trimming, the cutting device is possible to be blocked by grass or unevenly ground. So, the product will turn off automatically due to over current. Therefore, release the on/off switch for over 3s and then press down again to go on with trimming.

Line Feeding

During use, the tip of the trimming line will get shorter due to wear and the trimming line may break. Regularly check the condition of the trimming line (12d) and adjust if necessary.

WARNING! Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance, and cleaning work!

NOTE: This product is equipped with an auto-feed head. Do not bump the trimmer head on the ground as this would damage the product.

Manual Feeding

1. Turn trimmer head (12) upside down.
2. Press the release push button (12g) while pulling on the trimming line (12d). The trimming spool (12c) will release the trimming line (Fig. 22).
3. Repeat until the worn part of the trimming line (12d) exceeds the distance to the knife (11b).
4. Attach the battery pack and use the product as described. Excess line will be cut by the knife (11b) and should always remain inside the radius of the guard (11).

WARNING! The trimming line will be thrown out! Danger of injury especially for bystanders!

Auto-Feeding

With the product running, release on/off switch (2) to let it stop completely. Press the on/off switch (2) to start the product.

NOTE: The trimming line will extend about 3-5 mm with each stop and start until the line reach the length of the knife. Avoid stop and start frequently as the trimming line may auto-feed unintentionally and causes waste a lot of line.

After Use

1. Switch the product off, remove the battery back and let it cool down.
2. Attach the knife protector (11d) if necessary.
3. Check, clean and store the product as described in the Maintenance section.

Lithium Battery Care and Maintenance

Top 3 Battery Care Requirements

1. Charge battery before first use. The battery may arrive with some charge, regardless of this the battery must be charged for 60 minutes on the initial charge and 60 minutes for each subsequent charge.
2. Charge battery immediately when it is depleted. Do not store a depleted battery. This will permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully charge the battery before storing.
3. Disconnect battery when not in use. To prolong the life of a battery, disconnect it from the unit when not in use. Disconnect chargers from the battery once charged.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

• For best results, charge batteries in temperatures between 10°C and 30°C
- When battery is charged, disconnect the charger from the power supply and remove the battery from the charger.
- If a battery is stored or otherwise unused for an extended period, and the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge it or to use it. Replace it with a new battery.

• Use only with the battery charger specified by the manufacturer.

- Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.

- Do not use the charger in wet areas or expose it to rain or water.

- The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles, whichever occurs first. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again

- Explosion hazard – protect the battery against heat, for example, direct sunlight and fire. Do not store batteries in vehicles or locations subject to heat.

- Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. Exploding batteries can propel debris and chemicals.

- Do not open the battery – danger of short-circuiting and/or explosion.

- Do not attempt to destroy or disassemble the battery pack or remove any of its components.

- Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.

- Explosion hazard – do not open and/or short-circuit the battery.

- Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10 minutes. Liquid ejected from the battery may cause irritation or burns.

- Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being reduced. In extreme cases or abuse, battery overheating or fire may result.

DANGER - BATTERY CHARGING, USE AND STORAGE

Like mobile phones, laptops, cordless vacuum cleaners etc, this product may contain or be related to a lithium ion battery pack (lithium ion batteries and lithium ion battery related items only). Lithium ion batteries allow fast charging and high capacities, however care must be taken to reduce chances of a fault, and increase safety in case a fault occurs. Catastrophic incidents involving lithium ion batteries have a tendency to result in large amounts of smoke and fire. Be sure to follow the points below to reduce the likelihood of danger whenever you use, charge or store any lithium ion battery.

• Never charge a battery that has been damaged or subjected to a forceful impact.
• Never charge a battery that has been exposed to moisture or water.
• Never charge a battery with a charger that wasn't supplied with the battery.
• Never use a battery in a device that it wasn't specifically designed for.
• Never use a battery with a modified or damaged device.
• Never modify the battery, product, charger, circuitry or wiring.
• Never charge a battery in an exit path that may be used by people to leave a room or building in case of an emergency, for example, the hallway or foyer of a residence.
• Never charge a battery in an area or building that doesn't have the recommended number of working smoke detectors that have been tested in accordance with local guidelines.
• Never charge a battery when the battery or charger is displaying a problem or charging incorrectly.
• Always charge batteries on a non-combustible surface, for example, on a concrete floor.
• Always charge batteries at least 3m away from anything combustible, such as floors, wall surfaces, furniture, storage shelves etc.
• Always charge batteries in an open area (outside if possible) ensuring the battery and charger are away from moisture and water.
• Always disconnect batteries from the charger after charging.
• Always remove or disconnect batteries from the device/product when not in use.
• Always ensure batteries are charged under adult supervision. Do not charge unattended. Do not charge batteries while no one is home or while people are sleeping.
• Keep batteries away from heat and moisture.
• Damaged batteries should be disposed of through your local e-waste collection service.
• Avoid mixing and matching chargers. Unplug products when fully charged, and charge batteries in a cool, dry place away from combustible materials like beds, lounges, or carpet.
• During charging and use, check your lithium-ion batteries for overheating, signs of swelling, leaking, or venting gas. Immediately stop using your product if these signs are present.
• Allow batteries to cool after use and before charging.

Maintenance

The Golden Rules for Care

WARNING! Always switch the product off, remove the battery pack and let the product cool down before performing inspection, maintenance, and cleaning work!

1. Keep the product clean. Remove debris from it after each use and before storage.
2. Regular and proper cleaning will help ensure safe use and prolong the life of the product.
3. Inspect the product before each use for worn and damaged parts. Do not operate if you find broken and worn parts.

WARNING! Only perform repairs and maintenance work according to these instructions! All further works must be performed by a qualified specialist!

General Cleaning

1. Clean the product with a damp cloth and pH-neutral soap. Use a brush for areas that are hard to reach.
2. Remove stubborn dust with high pressure air (max. 3 bar).

NOTE: Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

1. Check for worn or damaged parts. Replace worn parts as necessary or contact an authorised service centre for repair before using the product again.

Guard

1. Keep the guard (11) clean and free of debris. Remove trimmings.
2. Replace the guard (11) with one of the same types when it is worn or shows damage.

Trimming Line

Replace the trimming spool:

Replace the line spool when it is empty or worn.

1. Turn the product upside down to access the trimming line.
2. Hold the trimmer head (12) steady with one hand. Press the release latches (12b) on both sides, then lift the cover (12a) and remove it (Fig. 23).
3. Remove the trimming spool (12c) from the housing (12e) (Fig. 24).

Fig. 23

Fig. 24

1. Clean the housing (12e) before inserting a new spool (12c) of the same type.
2. Pull the line from the new spool for a length of approx.12 cm.
3. Release the trimming line (12d) from the notches and hold it in position. Avoid the trimmer line (12d) scattered from the trimming spool (12c) (Fig. 25, Step 1).
4. Lead the trimming line (12d) ending through the eyelet (12h) of the housing (12e) (Fig. 25, Step 2).
5. Insert the trimming spool (12c) into the housing (12e) (Fig. 25, Step 3). Twist the trimming spool (12c) until it locks into place.
6. Refit the cover (12a) and make sure it snaps into place.

Refill the trimming line in trimming spool:

1. Turn the product upside down to access the trimming line.
2. Hold the trimmer head (12) steady with one hand. Press the release latches (12b) on both sides to remove the cover (12a).
3. Remove the trimming spool (12c) from the housing (12e).
4. Discard all the remaining line (12d) from the trimming spool (12c).
5. Clean the housing (12e) and the trimming spool (12c).
6. Cut a new 4 m long trimming line with a spool (12c) in direction of the arrows (Fig. 26).
7. Lead one end of the new trimming line (12d) through the small eyelet on the trimming spool (12c) in direction of the arrows (Fig. 26).
8. Pull the trimming line (12d) and bend it over (Fig.27).

Fig. 25

1. Wind all the trimming line (12d) firmly around the spool in direction of the arrows on the trimming spool (12c) (Fig. 28).

Fig. 28

Storage

1. Switch the product off and remove the battery pack.
2. Clean the product as described above.
3. Remove the trimming wheel (13) to storage position if necessary.
4. Store the product and its accessories in a dark, dry, frost-free, well-ventilated place.
5. Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 °C and 30 °C .
6. We recommend using the original package for storage or covering the product with a suitable cloth or enclosure to protect it against dust.

Transportation

1. Switch the product off and remove the battery pack.
2. Attach the knife protector (11d) if necessary.
3. Remove the trimming wheel (13) to storage position if necessary.
4. Always carry the product by its handles (1, 15).
5. Protect the product from any heavy impact or strong vibrations which may occur during transportation in vehicles.
6. Secure the product to prevent it from slipping or falling over.

Troubleshooting

Suspected malfunctions are often due to causes that the users can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly.

Problem	Possible cause	Solution
Product does not start	1. Battery pack not properly attached.2. Battery pack is discharged.3. Battery pack is damaged.4. Other electrical defect to the product.	1. Attach properly.2. Remove and charge battery pack.3. Replace with a new one of the same type.4. Check by a specialist electrician.
Product does not reach full power	1. Battery pack capacity is too low.2. Air vents are blocked.	1. Charge battery pack.2. Clean the air vents.
Unsatisfactory result	Trimming line is worn / damaged. Replace with a new one.
Excessive vibration or noise	1. Trimmer head is damaged.2. Screw is loose.3. Trimming line is worn/ damaged.	1. Replace with a new one.2. Tighten screw.3. Replace with a new one.

Specifications

Battery 20V 2.2Ah Lithium

Trimmer Head Single

Trimmer Line Φ1.6mm

No-Load Speed 9000rpm

Cutting Diameter 230mm

Length 1.12m

Front Handle Adjustable Swivel

Shaft Aluminium Telescopic

Charger 240V

Charging Time 60 Minutes

Running Time 25 Minutes

Power Plug Australian Standard

Note: Requires assembly

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

©2024 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
