UT213B - Mètre Uni-T - Free user manual and instructions

Product Type	Digital Clamp Meter
Brand	Uni-T
Model	UT213B
AC Current (A)	400A ±(2.5%+5)
DC Current (A)	400A ±(2%+3)
AC Voltage (V)	600V ±(1.2%+5)
DC Voltage (V)	600V ±(0.8%+3)
Resistance (Ω)	40MΩ ±(1%+2)
Capacitance (F)	40mF ±(4%+5)
Frequency	10Hz~1MHz ±(0.1%+4)
Temperature Range	-40°C~1000°C ±(1%+3) / -40°F~1832°F ±(1%+6)
Display Count	4000
Auto Range	Yes
Jaw Opening	30mm (1.2in)
True RMS	Yes
Diode Test	Around 3.0V
NCV (Non-Contact Voltage)	Yes
Data Hold	Yes
Relative Mode	Yes
MAX/MIN	Yes
LCD Backlight	Yes
Flashlight	Yes
Auto Power Off	Yes
Continuity Buzzer	Yes
Low Battery Indication	≤3.6V
Input Protection	Yes
Input Impedance (DCV)	≥10MΩ
Power Supply	1.5V battery (R03) x 3
Display Size	38mm x 24mm
Product Color	Red and grey
Net Weight	280g (9.9oz)
Product Size	220mm x 75mm x 40mm (8.7in x 3.0in x 1.6in)
Safety Rating	CAT III 600V
Application	Electricians, HVAC/R technicians
Standard Accessories	Batteries, test leads, point contact temperature probe
Package Contents	Meter, carrying bag, English manual
Maintenance	Clean with a dry cloth; avoid moisture and extreme temperatures
Spare Parts / Repairability	Contact Uni-T service center for replacement parts; meter is not user-serviceable

Frequently Asked Questions - UT213B Uni-T

How do I measure AC current with the UT213B?

Set the rotary switch to the AC current (A~) range. Clamp the jaw around a single conductor, ensuring the conductor is centered. Read the value on the display. The UT213B features auto-ranging and True RMS for accurate measurements.

What is the accuracy of the UT213B?

Accuracy varies by function. For example, AC current is ±(2.5%+5), DC voltage ±(0.8%+3), and resistance ±(1%+2). Refer to the user manual for complete specifications.

Does the UT213B have auto-ranging?

Yes, the UT213B features auto-ranging for most functions, automatically selecting the appropriate measurement range for your input.

How do I replace the batteries?

Turn off the meter and remove the test leads. Open the battery compartment on the back. Replace the three 1.5V R03 batteries, ensuring correct polarity. Close the compartment and secure the screws.

Is the UT213B safe for high voltage measurements?

Yes, the UT213B is rated CAT III 600V, making it safe for most industrial and residential electrical systems. Always follow safety guidelines and use appropriate test leads.

What is the maximum jaw opening?

The jaw opening is 30mm (about 1.2 inches), suitable for conductors up to that diameter.

Can the UT213B measure temperature?

Yes, it can measure temperature from -40°C to 1000°C using the included point contact temperature probe. Set the rotary switch to the temperature setting.

How do I use the flashlight?

Press the flashlight button (usually labeled with a bulb icon) to turn the built-in LED light on or off. It is useful for working in dark environments.

What does NCV mean?

NCV stands for Non-Contact Voltage detection. It allows you to detect the presence of AC voltage without touching the conductor. Place the jaw near the conductor; the meter will beep and the LED will flash if voltage is present.

How should I clean and maintain the UT213B?

Clean the meter with a dry, lint-free cloth. Do not use solvents or abrasive cleaners. Avoid exposure to moisture, extreme temperatures, and strong magnetic fields. Store in a dry place when not in use.

USER MANUAL UT213B Uni-T

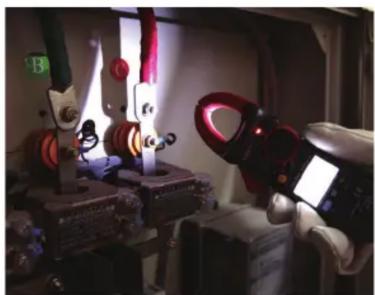

UT213 series are 400A digital clamp meters with CAT III 600V safety standards. These meters are designed for electricians and HVAC/R technicians. The built-in flashlight also makes these meters useful tools when working in dark environments.

	Range UT213	CUT213A	UT213B
AC current (A)	400A	±(1.8%+9)	±(1.8%+9)	±(2.5%+5)
DC current (A)	400A			±(2%+3)
AC voltage (V)	600V	±(1.2%+5)	±(1.2%+5)	±(1.2%+5)
DC voltage (V)	600V	±(0.8%+1)	±(0.8%+1)	±(0.8%+3)
Resistance (Ω)	40MΩ	±(1%+2)	±(1%+2)	±(1%+2)
Capacitance (F)	100μF	±(4%+5)
	40mF		±(4%+5)	±(4%+5)
Frequency	10Hz~1MHz	±(0.1%+4)	±(0.1%+4)	±(0.1%+4)
Temperature	-40°C~1000°C		±(1%+3)	±(1%+3)
	-40°F~1832°F		±(1%+6)	±(1%+6)

Features

Display count		4000	4000 4000
Auto range		√	√	√
Jaw opening		30mm	30mm 30mm
True RMS			√	√
Diode		Around 1.5V	Around 3.0V	Around 3.0V
NCV		√	√	√
Data hold		√	√	√
Relative mode		√	√	√
MAX/MIN			√	√
LCD backlight		√	√	√
Flashlight		√	√	√
Auto power off		√	√	√
Continuity buzzer		√	√	√
Low battery indication	≤3.6V	√	√	√
Input protection		√	√	√
Input impedance for DCV	≥10MΩ	√	√	√

Industrial robotic arm operating a machine with clamps and tools in a dimly lit room (no visible text or symbols)

Power	1.5V battery (R03) x 3
Display	38mm x 24mm
Product color	Red and grey
Product net weight	UT213A/B: 280g; UT213C: 231.7g
Product size	220mm x 75mm x 40mm
Standard accessories	Batteries, test leads,point contact temperature probe (UT213B/UT213C)
Standard individual packing	Gift box, carrying bag, English manual
Standard quantity per carton	20pcs
Standard carton measurement	485mm x 345mm x 205mm
Standard carton gross weight	UT213A: 9.1kg; UT213B: 9.8kg; UT213C: 9.7kg
