Product Type Digital Wood Moisture Meter
Brand Uni-T
Model UT377A
Measurement Range 2% to 40% (Wood moisture)
Resolution 0.1%
Accuracy ±2%
Refresh Rate 2 times/second
Wood Categories 4 categories based on density
Temperature Compensation Automatic ambient temperature correction
Functions Auto range, MAX/MIN, Data hold, Backlight, Low battery indication, Auto power off
Power Supply 1.5V battery (R03) x 3
Display Size 35 x 32 mm
Product Dimensions 135 x 53 x 28 mm
Product Net Weight 130 g
Standard Accessories Batteries, English manual
Certifications CE, UKCA
Operating Temperature 0°C to 40°C
Package Gift box, 20 pcs per carton
Carton Dimensions 272 x 225 x 215 mm
Carton Gross Weight 3.5 kg
Maintenance Keep dry, clean with a soft cloth, remove batteries if not used for long periods
Safety Do not expose to moisture or extreme temperatures; use only as intended

Frequently Asked Questions - UT377A Uni-T

How to measure wood moisture with the UT377A?
Turn on the device, select the appropriate wood category (1-4) based on material density, then press the probes into the wood. The display will show the moisture percentage. Use the MODE button to switch between categories if needed.
What do the wood categories (1-4) mean?
Categories correspond to different wood densities: Category 1 for low-density woods like balsa, Category 2 for medium-density (pine), Category 3 for high-density (oak), and Category 4 for very high-density (ebony). Choose the correct category for accurate readings.
How to change the battery?
Open the battery compartment on the back of the meter, remove the old batteries (3 x 1.5V R03), and insert new ones with correct polarity. Close the compartment securely.
What does 'HOLD' function do?
Press the HOLD button to freeze the current reading on the display. Press again to release and continue real-time measurement.
How to use the backlight?
Press and hold the HOLD button (or dedicated backlight button, if available) for 2 seconds to turn on the backlight. It will automatically turn off after a few seconds to save battery.
Why does the meter show '01' or error?
If the reading is '01', it may indicate the wood is too dry (below 2%) or a poor contact. Ensure the probes are fully inserted. If error persists, replace batteries or refer to the manual.
Can I measure moisture in materials other than wood?
The UT377A is designed specifically for wood, paper, plywood, and similar wooden materials. It may not be accurate for other materials like concrete or drywall.
How to clean the device?
Use a soft, dry cloth to wipe the casing and probes. Do not use solvents or water. Store in a dry place when not in use.
Does the meter auto power off?
Yes, the UT377A has an auto power-off feature that turns off the device after a period of inactivity to save battery. Press any button to wake it up.
What is the accuracy of this meter?
The accuracy is ±2% for moisture readings in the range of 2% to 40%. Temperature compensation ensures consistent accuracy across ambient conditions.

User questions about UT377A Uni-T

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Mètre in PDF format for free! Find your manual UT377A - Uni-T and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UT377A by Uni-T.

USER MANUAL UT377A Uni-T

UT377A

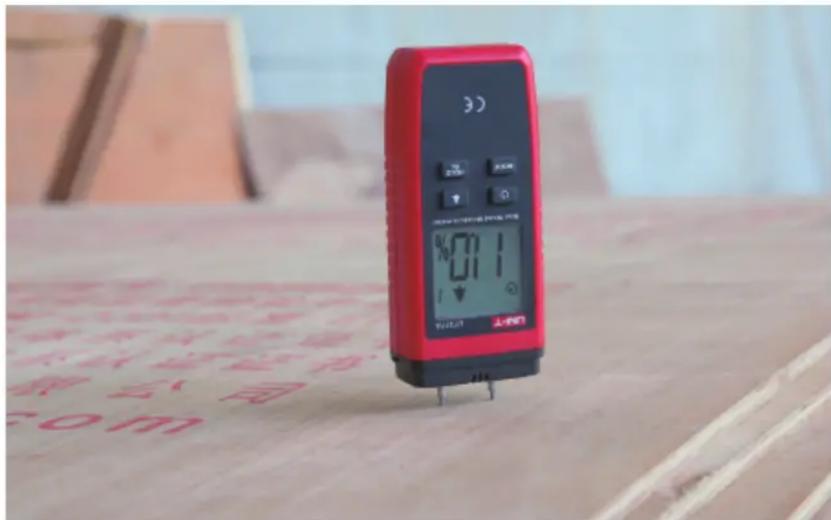

UT377A is a digital meter designed to measure the moisture content of wood, paper, plywood, and other wooden materials. This device classifies wood into four categories based on material density, and applies temperature compensation algorithm to ensure measurement accuracy. UT377A's miniature design, low power consumption, and high precision all make this a great product choice for measuring wood moisture content.

3) 200% 7 0 0.01 - Y=0.01 400% 500% 600% 700% 800% 900% 1000% 1100% 1200% 1300% 1400% 1500% 1600% 1700% 1800% 1900% 2000% 2100% 2200% 2300% 2400% 2500% 2600% 2700% 2800% 2900% 3000% 3100% 3200% 3300% 3400% 3500% 3600% 3700% 3800% 3900% 4000% 4100% 4200% 4300% 4400% 4500% 4600% 4700% 4800% 4900% 5000% 5100% 5200% 5300% 5400% 5500% 5600% 5700% 5800% 5900% 6000% 6100% 6200% 6300% 6400% 6500% 6600% 6700% 6800% 6900% 7000% 7100% 7200% 7300% 7400% 7500% 7600% 7700% 7800% 7900% 8000% 8100% 8200% 8300% 8400% 8500% 8600% 8700% 8800% 8900% 9000% 9100% 9200% 9300% 9400% 9500% 9600% 9700% 9800% 9900% 100 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 6 7 8 9 1 2 3 4 6 7 8 9 1 2 3 4 6 7 8 9 1 2 3 4 6 7 8 9 1 2 3 4 6 7 8 9 1 2 3 4 6 7 8 9 1 2 3

SpecificationsRangeResolutionAccuracy
Certificates CE, UKCA
Wood moisture 2~40%0.1% ±2%
Refresh rate2 times/s
Operating temperature0°C~40°C

Features

Auto range MAX/MIN
Auto power off Wood categories
Low battery indication Backlight
Data hold Ambient temperature correction

Characteristics

Standard accessories Batteries, English manual
Power1.5V battery (R03) x 3
Display35 x 32mm
Product size135 x 53 x 28mm
Product net weight130g
Standard individual packingGift box
Standard quantity per carton20pcs
Standard carton measurement272 x 225 x 215mm
Standard carton gross weight3.5kg
