Product Type	PoE Switch
Model	IPOE-260 Series
Brand	Planet
Number of Ports	8
PoE Standard	IEEE 802.3af/at
PoE Power Budget	120W
Dimensions (W x D x H)	200 x 140 x 44 mm
Weight	0.8 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	150W max
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% non-condensing
Mounting	Desktop, Rack-mountable (bracket included)
LED Indicators	Power, Link/Act, PoE
Key Functions	PoE power delivery, Auto-sensing, Flow control
Maintenance	Clean with dry cloth, avoid liquids
Safety	CE, FCC certified; use grounded outlet
Spare Parts	Power adapter, mounting brackets available
Repairability	No user-serviceable parts; contact authorized service
General Information	Unmanaged PoE switch for small networks

Frequently Asked Questions - IPOE-260 Series Planet

What is the IPOE-260 Series?

The IPOE-260 Series is a range of Power over Ethernet (PoE) switches from Planet, designed to power and connect network devices such as IP cameras, VoIP phones, and wireless access points.

How many PoE ports does the IPOE-260 have?

The IPOE-260 Series typically features 8 PoE ports, each supporting IEEE 802.3af/at standards, providing up to 30W per port.

What is the total PoE power budget?

The total PoE power budget is 120W, allowing multiple devices to be powered simultaneously.

Can the IPOE-260 be mounted in a rack?

Yes, the switch comes with rack-mounting brackets and can also be placed on a desktop.

What is the operating temperature range?

The switch operates safely between 0°C and 50°C (32°F to 122°F).

Does the switch require any software configuration?

No, the IPOE-260 is an unmanaged switch, meaning it works out of the box without any configuration.

What type of power supply is needed?

It uses a standard AC power cord with input 100-240V, 50/60Hz. An internal power supply is included.

How do I clean the switch?

Use a dry, soft cloth to clean the exterior. Do not use any liquids or cleaning agents.

Is the switch fanless?

Yes, the IPOE-260 Series is designed fanless for silent operation, making it suitable for office environments.

What safety certifications does the switch have?

The switch is certified with CE and FCC standards, ensuring compliance with safety and electromagnetic compatibility.

USER MANUAL IPOE-260 Series Planet

Thank you for purchasing PLANET Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub, IPOE-260/IPOE-260-12V. In the following section, the term "Industrial PoE+ Injector Hub" means the IPOE-260 or IPOE-260-12V.

Open the box of the Industrial PoE+ Injector Hub and carefully unpack it. The box should contain the following items:

Industrial PoE+Injector Hub x 1	User's Manual x 1 Wall-mount Kit x 1
DIN-rail Kit x 1 RJ45 Dust Caps x 4

If any of these are missing or damaged, please contact your dealer immediately.

- 1 -

Power Consumption (Ethernet Full Loading)	Max. 2 watts/6.8 BTU (Power on without any connection) Max. 80 watts/272.9 BTU (Full loading with PoE function)	Max. 4 watts/13.6 BTU (Power on without any connection) Max. 80 watts/272.9 BTU (Full loading with PoE function)
Dimensions (W x D x H)	30 x 70 x 105 mm
Weight 280g 280g
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
ESD Protection 6KV
EFT Protection 6KV
Power over Ethernet
PoE Standard	IEEE 802.3at Power over Ethernet Plus/mid-span PSE
PoE Power Output	48V DC input: Per PoE port max. 32 watts56V DC input: Per PoE port max. 36 watts	Per port 54V DC, max. 36 watts
PoE Power Supply Type	Mid-span
Power Pin Assignment	4/5 (+), 7/8 (-)

-3-

3. Hardware Introduction

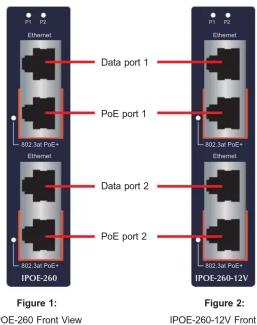

3.1 Switch Front Panel

The front panels of the Industrial PoE+ Injector Hubs consist of Ethernet interfaces and LED indicators.

■ Front View

-5-

3.4 Wiring the Power Inputs

The terminal block connector on the top panel of Industrial PoE+ Injector Hub is used for two DC redundant power inputs. Please follow the steps below to insert the power wire.

When performing any of the procedures like inserting the wires or tightening the wire-clamp screws, make sure the power is OFF to prevent from getting an electric shock.

1. Insert positive and negative DC power wires into contacts 1 and 2 for POWER 1, or contacts 3 and 4 for POWER 2.

1. Tighten the wire-clamp screws for preventing the wires from loosening.

1 2 3 4 Power 1 Power 2

-7-

1. Product Specifications

Model	IPOE-260	IPOE-260-12V
Hardware Specifications
Copper Ports	2 pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports:• Data input port 1 and PoE output port 1• Data input port 2 and PoE output port 2
Connector	Removable 4-pin terminal blockPin 1/2 for Power 1; Pin 3/4 for Power 2
LED Indicator	System:Power 1 (Green),Power 2 (Green),PoE Port:802..3at PoE+ x 2 (Green + Orange)
Network Cable	Twisted-pair cable up to 100 meters (328ft)10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6100BASE-TX: 4-pair UTP Cat. 5, 5e, 61000BASE-T: 4-pair UTP Cat. 5e, 6
Data Rate	10/100/1000Mbps
Power Requirements	48~56V DC, redundant power with reverse polarity protection function.	12~56V DC, redundant power with reverse polarity protection function.

-2-

PoE Power Budget (max.)	72 watts@48~56V DC input	60W @12~23V DC input 72W @24~56V DC input
Number of devices that can be powered	2
Standards Conformance
Regulatory Compliance	FCC Part 15 Class A, CE
Stability Testing	IEC 60068-2-32 (free fall)IEC 60068-2-27 (shock)IEC 60068-2-6 (vibration)
Standards Compliance	IEEE 802.3 EthernetIEEE 802.3u Fast EthernetIEEE 802.3ab Gigabit EthernetIEEE 802.3at Power over Ethernet Plus
Environment
Temperature	Operating: -40~75 degrees CStorage: -40~75 degrees C
Humidity	Operating: 5~90% (non-condensing)Storage: 5~90% (non-condensing)

-4-

3.2 LED Definition:

LED	Color Function
P1	Green Lights to indicate power input 1 has power.
P2	Green Lights to indicate power input 2 has power.
802.3at PoE+ PoE-in-Use	Green	Lights to indicate the device is providing PoE power to 802.3af PD.
	Green + Amber	Lights to indicate the device is providing PoE power to 802.3at PD.

3.3 Switch Upper Panel

The upper panels of the Industrial PoE+ Injector Hubs consist of one terminal block connector within two power inputs.

Figure 3: IPOE-260 Top View

The wire gauge for the terminal block should be in the range between 12 and 24 AWG.

3.5 Grounding the Device

Users MUST complete grounding wired with the device; otherwise, a sudden lightning could cause fatal damage to the device.

Earth Ground

EMD (Lightning) DAMAGE IS NOT CONVERED UNDER WARRANTY.

Figure 4: IPOE-260-12V Top View

-6-

-8-

4. Installation

This section guides you to installing the Industrial PoE+ Injector Hub on the DIN rail and wall. Please read this chapter completely before continuing.

In the installation steps below, this manual uses PLANET IGS-801 8-port Industrial Gigabit Switch as an example. The steps for PLANET Industrial Slim-type Switch, Industrial Media/Serial Converter and Industrial PoE devices are similar.

4.1 DIN-rail Mounting Installation

4.2 Wall-mount Plate Mounting

-9-

4.3 Side Wall-mount Plate Mounting

You must use the screws supplied with the wall-mounting brackets. Damage caused to the parts by using incorrect screws would invalidate your warranty.

-10-

5. Three-View Diagram

■ IPOE-260

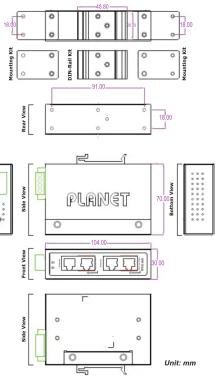

Figure 5: IPOE-260 Three-View Diagram
-11-

■ IPOE-260-12V

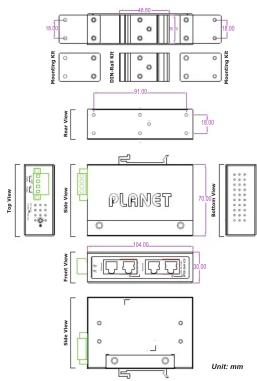

Figure 6: IPOE-260-12V Three-View Diagram

-12--13--14-
