UT-CS09C - Mètre Uni-T - Free user manual and instructions

Product Type	Laser Distance Meter
Brand	Uni-T
Model	UT-CS09C
Measuring Range	0.05 – 60 m
Accuracy	± 2.0 mm
Measurement Units	m, ft, in, inch, ft+in
Laser Class	Class II, < 1 mW @ 635 nm
Auto Power Off	After 3 minutes of inactivity
Continuous Measurement	Yes
Area and Volume Calculation	Yes
Data Storage	Up to 20 measurements
Backlit Display	Yes
Battery Type	2× AAA Alkaline (1.5 V)
Battery Life	Up to 5000 measurements
Dimensions (H×W×D)	110 × 43 × 26 mm
Weight (including batteries)	Approx. 100 g
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Water and Dust Resistance	IP54
Included Accessories	Carrying case, wrist strap, user manual, 2× AAA batteries

Frequently Asked Questions - UT-CS09C Uni-T

How do I switch between measurement units?

Press the UNIT button repeatedly to cycle through m, ft, in, inch, and ft+in. The selected unit appears on the display.

What should I do if the laser does not turn on?

Check that the batteries are inserted correctly with the correct polarity. Replace them if needed. Also ensure the power lock is not engaged.

How accurate is the UT-CS09C?

The specified accuracy is ± 2.0 mm under favorable conditions. Accuracy may be affected by ambient light, target reflectivity, and surface texture.

Can I measure from a corner or edge?

Yes, use the reference point function (press the REF button) to toggle between measuring from the front or rear edge of the device.

How do I retrieve stored measurements?

Press the MEM button to enter memory mode. Use the +/- buttons to browse through stored values. Press MEM again to exit.

What type of battery does the device use?

It uses 2× AAA alkaline batteries (1.5 V). For longer life, you can use lithium or rechargeable Ni-MH AAA batteries.

Is the device waterproof?

The UT-CS09C has an IP54 rating, meaning it is splash-proof and dust-resistant. Do not submerge in water.

How do I clean the lenses?

Use a soft, dry cotton cloth to gently wipe the laser lens and display. Do not use solvents or abrasive cleaners.

Why does the reading show 'Error'?

An 'Error' can occur if the laser is pointed at a reflective surface, if the distance is out of range (> 60 m), or if the target is too close (< 0.05 m). Try aiming at a matte surface.

Can the device be calibrated?

The UT-CS09C is factory calibrated. If you suspect accuracy issues, contact Uni-T support or an authorized service center. Do not attempt to open or adjust the device yourself.

USER MANUAL UT-CS09C Uni-T

UT-CS09C

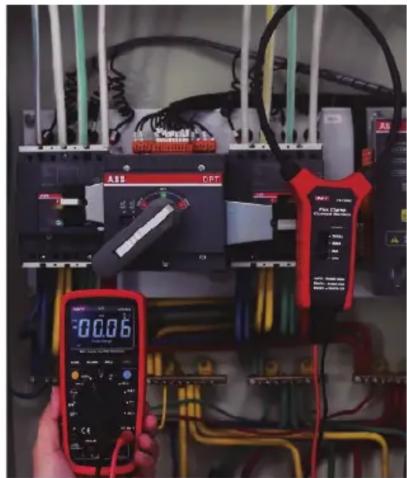

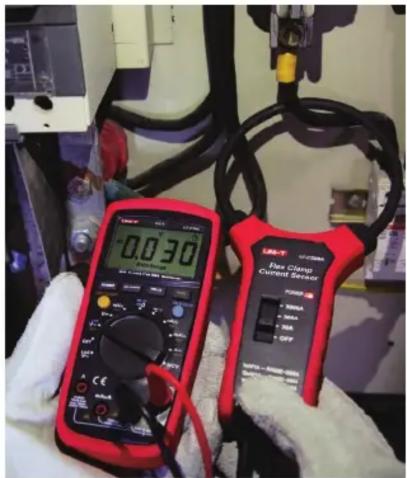

UT-CS09 series flex clamp sensor solves problems in measuring high current conductors in tight spaces. Its Rogowski coil based current sensor provides stable, safe, and high reliable measurements up to 3000A. This series’ unique design and light weight feature make it a great choice for professional electricians. The UT-CS09A coil length is 25.4cm (10 inches), and UT-CS09C coil length is 45.7cm (18 inches).

● Flex clamp can measure from 1.5A to 3000A current
- 1m drop proof
- Robust terminal connection

SPECIFICATIONS

			UT-CS09CRange
AC current (A)	30A/300A/3000A	±(3%+5)	±(3%+5)
Frequency response (Hz)	45Hz~500Hz	√	√

Features

Flex clamp size	UT-CS09A: 25.4cm (10 inches); UT-CS09C: 45.7cm (18 inches)
Operating temperature	0°C~50°C
Storage temperature	-20°C~60°C
Storage humidity	≤80%RH
Low battery indication	About 3.3V
Range selection	Manual

BNC adapter

GENERAL CHARACTERISTICS

Power	1.5V battery (R03) x 3
Product color	Red and grey
Product net weight	260g
Product size	267mm x 119.4mm x 34mm
Standard accessories	Batteries, BNC adapter
Standard individual packing	Blister, English manual
Standard quantity per carton	10pcs
Standard carton measurement	495mm x 405mm x 225mm
Standard carton gross weight	7kg
