KS-502G - Kitchen scale Vivax - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	Vivax
Model	KS-502G
Maximum Capacity	5 kg (176.35 oz)
Resolution (Min. Graduation)	1 g (0.05 oz)
Power Source	1 x 3V CR2032 Lithium Battery
Auto Power Off	After 60 seconds of inactivity
Tare Function	Yes
Unit Conversion	Grams (g) / Ounces (oz)
Display Type	Digital LCD
Cleaning Method	Wipe with a soft, dry cloth; do not immerse in water
Safety Warnings	Keep away from children; do not disassemble; use only as intended
Battery Polarity Warning	Observe correct polarity (+ upward); remove if not used for 3 months
Disposal	Do not dispose with household waste; recycle at designated collection points
Certifications	CE (EU Declaration of Conformity)
Warranty	12 months
Intended Use	Household only, for weighing food
Accessories Included	1 x CR2032 battery (pre-installed)
Storage Conditions	Store in a dry, dark place; remove battery if not used for extended periods
Language of Manual	English

Frequently Asked Questions - KS-502G Vivax

How do I change the battery in the KS-502G?

Open the battery compartment located underneath the scale. Insert one 3V CR2032 lithium battery with the positive (+) side facing up. Close the compartment.

What type of battery does the scale use?

The scale uses one 3V CR2032 lithium battery.

How do I clean the kitchen scale?

Wipe the scale with a soft, dry cloth or paper towel. Do not immerse the scale in water or use abrasive cleaners.

How does the tare function work?

Place an empty container on the scale, then press the TARE/ON button. The display will reset to zero, allowing you to weigh only the added ingredients.

Can I switch between grams and ounces?

Yes, press the UNIT button to toggle between grams (g) and ounces (oz).

Why does the scale turn off automatically?

The scale has an auto-off feature to save battery. It will turn off after 60 seconds of inactivity.

What is the maximum weight I can measure?

The maximum capacity is 5 kg (176.35 oz). Weights above this may damage the scale.

Is the scale waterproof?

No, the scale is not waterproof. Do not immerse it in water. Clean only with a damp cloth.

What does 'LO' on the display mean?

'LO' indicates the battery is low. Replace the battery with a new CR2032 soon.

Can I use this scale for commercial purposes?

No, this scale is intended for household use only and is not suitable for commercial or medical applications.

USER MANUAL KS-502G Vivax

Symbol of a trash bin with no text or numbers present

Proizvodi označeni ovim simbolom označavaju da proizvod spade u grupu električne I elektroničke opreme (EE Proizvodi) te se ne smiju odlagati zajedno s kućnim ili glomaznim otpadom.

Ispravnim postupanjem, zbrinjavanjem i recikliranjem

Symbol of a trash bin with crossed lines indicating no waste or plastic (no text or labels)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid horizontal bar below (no text or labels)

Proizvodi označeni ovim simbolom pripadaju grupi električne i elektronske opreme (EE proizvodi) i ne smeju da budu odlagani zajedno sa svakodnevnim kućnim otpadom.

Pravilnim postupanjem, zbrinjavanjem i recikliranjem proizvoda, sprečavaju se potencijalno negativne posledice na ljudsko zdravlje i okolinu, koje mogu da nastanu zbog neadekvatnog zbrinjavanja ili bacanja ovog proizvoda.

Symbol of a trash bin with crossed lines indicating no waste or restriction (no text or numbers present)

Provjerite lokalne propise u vezi odlaganja potrošenih baterija ili nazovite lokalnu službu za korisnike kako bi dobili uputstva o odlaganju starih i potrošenih baterija. Baterije iz ovog proizvoda ne treba odlagati zajedno sa kućnim otpadom. Obavezno odložite stare baterije na posebna mesta za odlaganje istrošenih baterija koja se nalaze na svim prodajnim mestima na kojima možete kupiti baterije.

IZJAVA O USKLAĐENOSTI

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

DIGITAL KITCHEN SCALE

VIVAX KS-502B/KS-502G

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference

SPECIFICATION

CAPACITY (MAX.) MIN	RANGE (d)
5kg (176.35.oz) 1g (0.05oz)

WELCOME!

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your new unit, and keep it carefully.

If you follow the instructions, your new appliances will provide you with many years of good service.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

SAFETY DIRECTIONS

1. This appliance can be used by children persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children without supervision.
3. Children shall not play with the appliance.
4. Children being supervised not to play with appliance.
5. This appliance is only to be used for household purposes and only for the purpose it is made for. The device is suitable and intended for measuring the weight of food.
6. This appliance is intended for indoor use only.
7. Failure to maintain the scale in a clean condition could lead to damage of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Such damages are not included in the warranty.
8. If your device will not be used for a long time, store the device in a dry and dark place and remove the batteries.
9. Do not use the device for any purpose other than that for which it was intended.
10. Do not disassemble, repair, or modify the device.
11. Do not use other battery types in the Kitchen scale. Do not insert batteries in the opposite polarity.
12. Replace used batteries with new ones when necessary.
13. Never dispose of batteries in a fire.
14. If liquid from the battery spills on your skin or clothing, immediately flush the area with plenty of clean water.
15. During extended periods of non-use, always remove the battery from the battery compartment (approximately 3 months or more).
16. Do not use different types of batteries or mix new and used batteries together.

BATTERY INSTALLATION

• This device applies an eco-friendly design and has very low power consumption.
• Insert or replace the battery, open the battery compartment located underneath the unit.
• When inserting the battery, always observe the correct polarity.
  ● The symbol(+) must face upwards
  ● Use one 3V lithium battery type CR2032.

● The symbol + - appears if the battery needs replacing.
● Auto switch-off occurs if display shows"LO".
● During extended periods of non-use, always remove the battery from the battery compartment.

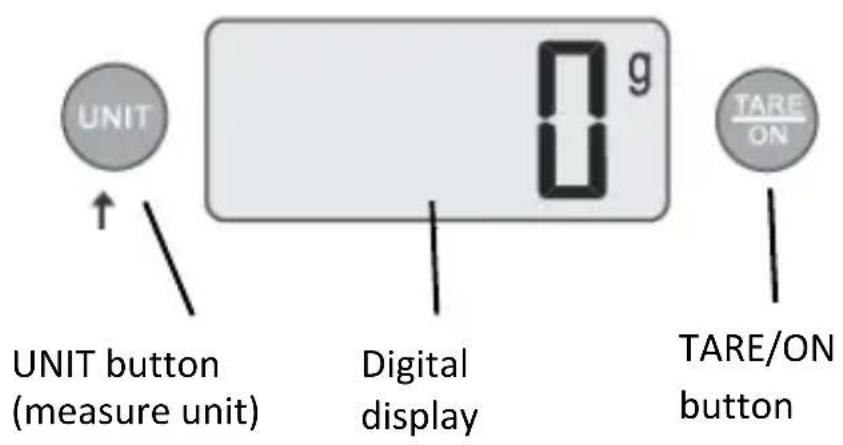

OPERATION

- Put the scales on a firm and level surface.

• Weigh recipe ingredients, place a suitable bowl or container on the Platform. Solid ingredients may be put directly onto the scale.
• Press and release TARE ON, button, wait until display shows "0".

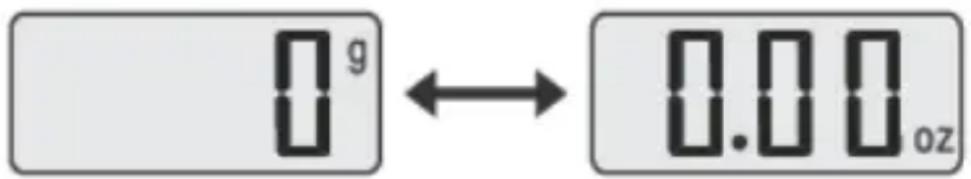

- Press the appropriate key and ounces(oz).

to convert between grams(gm)

• To allow for any additional weight, always make sure to position any accessories(bowl etc.) on the platform before the unit is switched on.
• Add the ingredients to the bowl (or other accessory) used, until the desired weight is displayed.
• To add more ingredients without first emptying the container, the Tare-key may be pressed again.

In this way, only the additional weight is displayed.

• After using, the scales may be switched off by holding down the TARE ON key.
  ● However, the unit will switch off automatically if no key is pressed within a 60 second period.

CLEANING AND CARE

1. Wipe the kitchen scale with kitchen roil, absorbent paper toweling or a soft cloth.
2. Do not immerse the scale into water.
3. Place the device in an area away from direct sunlight, heating equipment, high humidity, or extreme temperature changes.
4. Remove the batteries if the Scale will not be used for an extended period of time.
5. If the Scale does not work, check the battery contact. Replace the batteries.
6. The device is intended for personal use only and is not suitable for commercial and medical purposes.

TRANSPORT I SERVICE

CAUTION

Pay attention not to run down the device. If you run down the device during operation, firstly unplug it. Some parts may be broken and device may be damaged during falling, in this case, have device checked by authorized service before operation.

WARNING

Handling and transportation. It is required to perform transportation of device in its own original box. Plastic parts may be broken during Incorrect packaging. Its electrical parts may be damaged.

This device must be grounded.

Unplug It while It is operating for transport, maintenance or repair purposes

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin with no text or numbers present

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product

must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling. By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

DISPOSAL OF WASTE BATTERIES

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a horizontal line below (no text or numbers present)

Check local regulations for disposal of waste batteries or call your local customer service in order to get instructions on the disposal of old and used batteries. The batteries in this product should not be disposed of with household waste. Be sure to dispose of old batteries in special places for disposal of used batteries

that are found in all retail shops where you can buy batteries.

EU DECLARATION OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.
2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci.
3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.
4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVATELJA

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u garantnom roku bude potreban popravak, molimo da sljedite donje upute!

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:
