KS-505BW - Kitchen scale Vivax - Free user manual and instructions

Type	Digital Kitchen Scale
Brand	Vivax
Model	KS-505BW
Maximum Capacity	5 kg (176.35 oz)
Minimum Weight	1 g (0.05 oz)
Resolution	1 g / 0.05 oz
Power Supply	2 x AAA batteries (1.5 V)
Auto-Off	After 60 seconds of inactivity
Tare Function	Yes
Unit Conversion	g / oz
Battery Low Indicator	Yes ("LO" on display)
Intended Use	Household, indoor only
Cleaning Method	Wipe with soft damp cloth; do not immerse
Storage	Remove batteries if not used for extended periods; store dry and dark
Safety	Do not disassemble, repair, or modify; keep away from children without supervision

Frequently Asked Questions - KS-505BW Vivax

How do I switch between grams and ounces?

Press the appropriate unit conversion key on the scale to toggle between grams (g) and ounces (oz).

How do I use the tare function?

Place an empty container on the scale, then press the Tare key to reset the display to zero. Add ingredients to the container; only the net weight will be shown.

What batteries does the scale require?

The scale uses two AAA batteries (1.5 V). Insert them with correct polarity: the (+) symbol facing upwards.

Why does the display show 'LO'?

The 'LO' symbol indicates low battery. Replace the batteries with new ones to resume normal operation.

How should I clean the kitchen scale?

Wipe the scale with a soft damp cloth or paper towel. Do not immerse the scale in water or use abrasive cleaners.

What is the maximum weight the scale can measure?

The maximum capacity is 5 kg (176.35 oz). Do not exceed this limit to avoid damage.

Does the scale have an auto-off feature?

Yes, the scale automatically switches off after 60 seconds of inactivity to save battery life.

Can I weigh liquids on this scale?

Yes, you can weigh liquids by placing them in a container on the platform. Use the tare function to zero out the container weight first.

Is the scale waterproof?

No, the scale is not waterproof. Do not immerse it in water. Clean only with a damp cloth.

What should I do if the scale stops working?

Check the battery contacts and ensure fresh batteries are installed correctly. If the issue persists, contact authorized service.

USER MANUAL KS-505BW Vivax

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a horizontal bar below (no text or labels)

Proizvodi označeni ovim simbolom označavaju da proizvod spade u grupu električne I elektroničke opreme (EE Proizvodi) te se ne smiju odlagati zajedno s kućnim ili glomaznim otpadom.

Ispravnim postupanjem, zbrinjavanjem i recikliranjem

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a horizontal bar below (no text or labels)

Proizvodi označeni ovim simbolom pripadaju grupi električne i elektronske opreme (EE proizvodi) i ne smeju da budu odlagani zajedno sa svakodnevnim kućnim otpadom.

Pravilnim postupanjem, zbrinjavanjem i recikliranjem proizvoda, sprečavaju se potencijalno negativne posledice na ljudsko zdravlje i okolinu, koje mogu da nastanu zbog neadekvatnog zbrinjavanja ili bacanja ovog proizvoda.

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

Symbol of a trash bin with crossed x- and y-axes, no text or labels present

DIGITAL KITCHEN SCALE

VIVAX KS-505 BW

It is important that you read these instructions before using your product and we strongly recommend that you keep them in a safe place for future reference

SPECIFICATION

CAPACITY (MAX.) MIN	RANGE (d)
5kg (176.35.oz) 1g (0.05oz)

WELCOME!

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your new unit, and keep it carefully.

If you follow the instructions, your new appliances will provide you with many years of good service.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

SAFETY DIRECTIONS

1. This appliance can be used by children persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way understand the hazards involved.
2. Cleaning and user maintenance shall not be made by children without supervision.
3. Children shall not play with the appliance.
4. Children being supervised not to play with appliance.
5. This appliance is only to be used for household purposes and only for the purpose it is made for. The device is suitable and intended for measuring the weight of food.
6. This appliance is intended for indoor use only.
7. Failure to maintain the scale in a clean condition could lead to damage of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation. Such damages are not included in the warranty.
8. If your device will not be used for a long time, store the device in a dry and dark place and remove the batteries.
9. Do not use the device for any purpose other than that for which it was intended.
10. Do not disassemble, repair, or modify the device.
11. Do not use other battery types in the Kitchen scale. Do not insert batteries in the opposite polarity.
12. Replace used batteries with new ones when necessary.
13. Never dispose of batteries in a fire.
14. If liquid from the battery spills on your skin or clothing, immediately flush the area with plenty of clean water.
15. During extended periods of non-use, always remove the battery from the battery compartment (approximately 3 months or more).
16. Do not use different types of batteries or mix new and used batteries together.

BATTERY INSTALLATION

• This device applies an eco-friendly design and has very low power consumption.
• Insert or replace the battery, open the battery compartment located underneath the unit.
• When inserting the battery, always observe the correct polarity.
  ● The symbol(+) must face upwards
• Use 2XAAA battery.

- The symbol appears if the battery needs replacing.

● Auto switch-off occurs if display shows"LO".

● During extended periods of non-use, always remove the battery from the battery compartment.

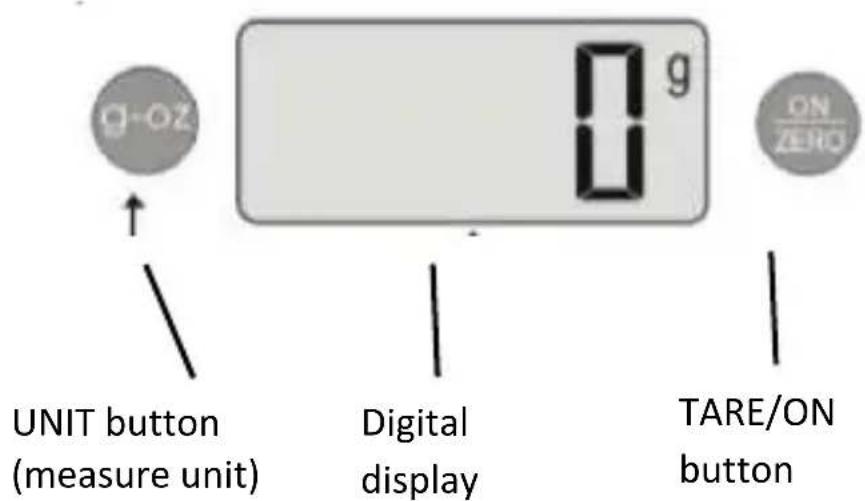

OPERATION

● Put the scales on a firm and level surface.

- Weigh recipe ingredients, place a suitable bowl or container on the Platform.Solid ingredients may be put directly onto the scale.

- Press and release, button, wait until display shows "0".

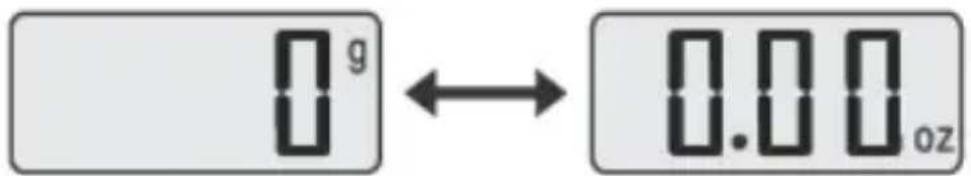

- Press the appropriate key to convert between grams(gm) and ounces(oz).

- To allow for any additional weight, always make sure to position any accessories (bowl etc.) on the platform before the unit is switched on.

- Add the ingredients to the bowl (or other accessory) used, until the desired weight is displayed.

- To add more ingredients without first emptying the container, the Tare-key may be pressed again.

In this way, only the additional weight is displayed.

- After using, the scales may be switched off by holding down the key.

● However, the unit will switch off automatically if no key is pressed within a 60 second period.

CLEANING AND CARE

1. Wipe the kitchen scale with kitchen roil, absorbent paper toweling or a soft cloth.
2. Do not immerse the scale into water.
3. Place the device in an area away from direct sunlight, heating equipment, high humidity, or extreme temperature changes.
4. Remove the batteries if the Scale will not be used for an extended period of time.
5. If the Scale does not work, check the battery contact. Replace the batteries.
6. The device is intended for personal use only and is not suitable for commercial and medical purposes.

TRANSPORT I SERVICE

CAUTION

Pay attention not to run down the device. If you run down the device during operation, firstly unplug it. Some parts may be broken and device may be damaged during falling, in this case, have device checked by authorized service before operation.

WARNING

Handling and transportation. It is required to perform transportation of device in its own original box. Plastic parts may be broken during Incorrect packaging. Its electrical parts may be damaged.

This device must be grounded.

Unplug It while It is operating for transport, maintenance or repair purposes

DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENT

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling. By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact the dealer where you purchased the product.

DISPOSAL OF WASTE BATTERIES

Check local regulations for disposal of waste batteries or call your local customer service in order to get instructions on the disposal of old and used batteries. The batteries in this product should not be disposed of with household waste. Be sure to dispose of old

batteries in special places for disposal of used batteries that are found in all retail shops where you can buy batteries.

EU DECLARATION OF CONFORMITY

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST HR

VIVAX

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava uCrnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.

2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.

4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.

5. Nakon isteka roka za saobraznost potrošaču će biti obezbijeđen servis i snadbijevanje rezervnim djelovima u skladu sa važećim zakonskim propisima.

6. garancija na bateriju je 12 mjeseci

7. PRAVO NA REKLAMACIJU NE OBUHVATA
