| Product Type | Three-Phase Relay Test Set |
| Dimensions (H x W x D) | 280 x 520 x 400 mm (11 x 20.5 x 15.7 in) |
| Weight | 22 kg (48.5 lb) |
| Power Supply | 85-264 V AC, 50/60 Hz, 1500 VA max |
| Voltage Output (per phase) | 0-300 V AC / 0-424 V DC, 150 VA |
| Current Output (per phase) | 0-32 A AC / 0-15 A DC, 150 VA |
| Phase Angle Range | 0° to 360°, resolution 0.01° |
| Frequency Range | 10-500 Hz (power), DC-10 kHz (voltage) |
| Measurement Accuracy | Voltage: 0.1% reading + 0.05% range; Current: 0.1% reading + 0.05% range |
| Display | Color LCD, touchscreen, 800x480 pixels |
| Main Functions | Steady-state and transient testing, harmonic analysis, ramp/ramp & hold, dynamic relay testing, impedance measurement |
| Data Storage | Internal memory (2 GB), USB host for external storage |
| Connectivity | USB, Ethernet, RS-232, optional GPS synchronization |
| Protection Class | IP20 (enclosure), overvoltage category II |
| Safety Standards | IEC 61010-1, IEC 61557-11 |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -20°C to +60°C (-4°F to 140°F) |
| Humidity | Up to 95% non-condensing |
| Maintenance | Regular calibration (recommended annually), clean with dry cloth, inspect cables and connectors |
| Spare Parts & Repairability | Contact Megger authorized service centers; modular design for easy repair |
| Warranty | 3 years (standard), extendable |
Frequently Asked Questions - FREJA 546 Megger
What is the Megger FREJA 546 used for?
The Megger FREJA 546 is a three-phase relay test set designed to test protection relays, transducers, and power system equipment. It can generate voltages and currents for steady-state and transient testing.
How do I connect the FREJA 546 to a relay under test?

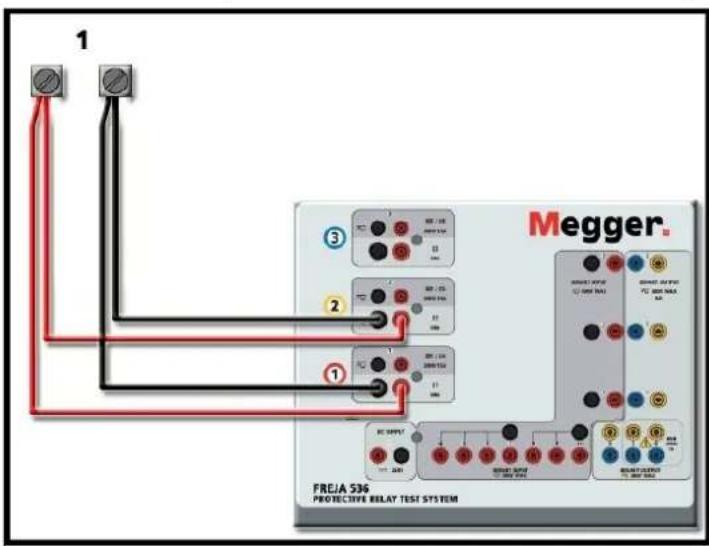

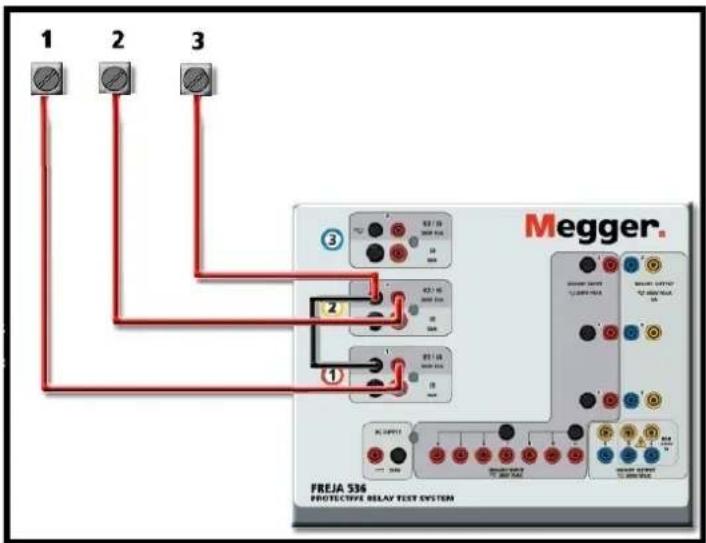

Use the color-coded test leads provided. Connect voltage outputs (yellow, green, red) and current outputs (black) to the relay's inputs. Ensure the device is grounded via the earth terminal. Refer to the manual for specific wiring diagrams.
Can the FREJA 546 perform dynamic tests on relays?

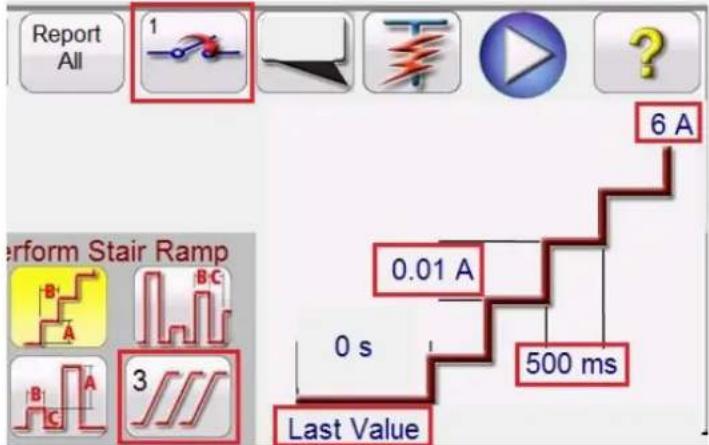

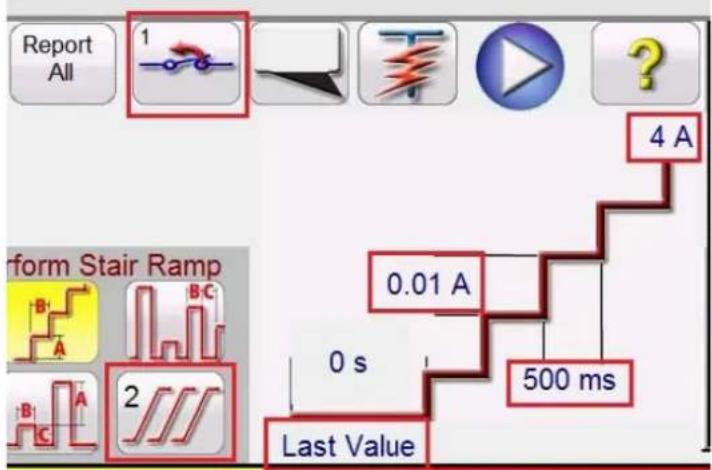

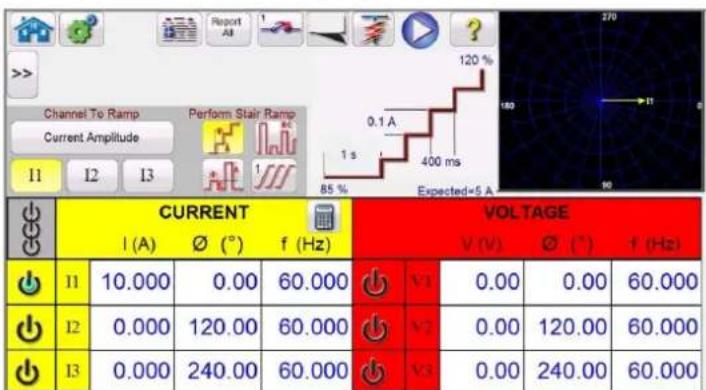

Yes, the FREJA 546 supports dynamic testing including transient simulation, ramp/ramp & hold, and fault sequence testing. It can also record relay trip times and contact status.
What is the maximum voltage output of the FREJA 546?
The maximum voltage output is 300 V AC per phase or 424 V DC per phase, with a power rating of 150 VA per phase.
How do I calibrate the FREJA 546?
Calibration should be performed annually by Megger authorized service centers. The device includes a self-test function for basic verification. Calibration procedures are detailed in the service manual.
Can I save test setups for later use?
Yes, the FREJA 546 has internal memory (2 GB) to store test plans, waveforms, and results. You can also export data via USB or Ethernet.
What safety precautions should I take when using the FREJA 546?
Always use proper personal protective equipment (PPE). Ensure the device is grounded. Do not operate with wet hands. Disconnect power before changing test leads. Follow the safety instructions in the user manual.
How do I update the firmware on the FREJA 546?
Firmware updates are available from Megger's website. Download the update file, save it to a USB drive, insert the USB drive into the device, and follow the on-screen instructions to install.
What is the weight of the FREJA 546?
The device weighs approximately 22 kg (48.5 lb). It is recommended to use two people for lifting or transport.
How do I clean and maintain the FREJA 546?
Clean the exterior with a dry, lint-free cloth. Do not use solvents. Inspect cables and connectors regularly for damage. Store in a dry, dust-free environment. For internal cleaning, contact Megger service.
