CP20 - Household Fan Columbia Vac - Free user manual and instructions

Type	Floor/Air Circulator Fan
Brand	Columbia Vac
Model	CP20
Power Supply	220-240 V, ~50 Hz
Power Consumption	40 W
Speed Settings	Multiple (selected via rotary knob)
Adjustable Tilt	Yes
Carrying Handle	Yes, integrated on top
Protective Mesh	Front and rear grilles
Intended Use	Domestic, commercial, workshops, warehouses
Safety Features	Do not use near water; do not cover mesh; automatic switch-off if tipped? (not specified)
Cleaning Method	Unplug, wipe with soft dry cloth; brush air vents
Material	Recyclable plastic and metal
Environmental Compliance	WEEE, do not dispose as household waste
Warranty	Domestic use only; improper use voids warranty
Repair Service	Only by manufacturer's authorized service center
Accessories Included	Fan base, manual
Operating Temperature Range	Not to exceed 40°C ambient temperature
Humidity Resistance	Not for high humidity areas (e.g., bathroom)
Child Safety	Keep children under 8 away; supervised use for 8+

Frequently Asked Questions - CP20 Columbia Vac

How do I clean the Columbia Vac CP20 fan?

Always unplug the fan before cleaning. Use a soft, dry cloth for the casing and a soft brush for the air inlet and outlet grilles. Never immerse the fan in water.

Can I use the CP20 fan in a bathroom or near water?

No, the manual warns: do not use close to bathtubs, showers, swimming pools or other water containers. High humidity areas are also not recommended.

How many speed settings does the CP20 have?

The fan has multiple speed settings controlled by a rotary knob (switch 4). Turn it to select your desired speed or mode.

Can I leave the fan running unattended?

The manual states: 'Working fan must be always supervised, especially when there are children nearby.' Switch it off when leaving the room.

Is the Columbia Vac CP20 suitable for commercial use?

Yes, it can be used in commercial areas, small workshops, and warehouses in addition to domestic use. However, professional-only use may void the warranty.

What should I do if the fan does not start?

Check that the power cord is plugged into a working outlet with the correct voltage (220-240 V). Ensure the rotary knob is set to a speed (not '0'). If it still doesn't work, contact an authorized service center.

How do I adjust the tilt of the fan?

The fan has an adjustable angle. You can tilt it to your desired direction, but exercise caution when adjusting an operating circulator.

Is the CP20 fan noisy?

No official noise level is specified. Typical fan noise is moderate; ensure the fan is on a flat, stable surface to minimize vibration noise.

How do I dispose of the fan when it's no longer working?

Do not throw it in household waste. Follow WEEE regulations: take it to a designated collection point for recycling electrical and electronic equipment.

Can I repair the fan myself?

No, the manual states repairs should only be carried out by the manufacturer's authorized service center. Use of non-original parts is prohibited and can be hazardous.

USER MANUAL CP20 Columbia Vac

Front view of a metallic multi-free fan with visible blades and mesh grille (no text or symbols)

model: CP20

Eldom Sp. z o.o.

Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

/CZ/

Front view of a four-blade office fan with visible blades and mounting base (no text or symbols)

Before the first use, please read all these instructions carefully:

1. The cord should be plugged into the power supply of parameters indicated in the data plate.
2. Please, do not plug too many appliances to a single elec tric circuit.
3. WARNING: do not use close tobathtubs, showers, swimming pools and other water containers.
4. The unit is designed to operate at a household.
5. Place the unit on a flat and dry surface.
6. Do not inert fingers or any other objects into the inlet and outlet holes.
7. Do not place the unit near cushions or curtains.
8. Working fan must be always supervised, especially, when there are children nearby.
9. Leaving a room where a fan operates, switch it off.
10. Do not spray any insect killers or similar agents near the operating fan.
11. Do not use the appliance under high temperature (ex ceeding 40^irc C), in localizations where the humidity rate is high (e.g. bathroom) and localizations where explosive atmosphere occurs.
12. Before switching the unit on make sure all its elements are correctly fixed. Under no circumstances one may switch the unit on before it has been completely assembled!
13. Do not cover the protective mesh.
14. Do not use the appliance as a hanger.
15. In case the power cord is damaged it must be replaced by the manufacturer's authorized service center.
16. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the ap-

pliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

1. The unit may be repaired by a manufacturer's authorized service center only (list of the centers attached and available on the website: www.eldom.eu). All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous.
2. The device can be repaired only by authorized service center. Any upgrades or any use of non-original spare parts or equipment components is prohibited and endanger the safety of use.
3. Eldom Sp. z o.o. shall not be held liable for any damagecaused by any improper use of the device.

WARNING: Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

CLEANING AND MAINTENANCE

• Before cleaning unplug the hair-dryer and wait until it cools down completely.
• Never immerse the hair-dryer in water.
• Casing and power cord can be cleaned with soft dryor slightly damp cloth.
• The air inlet and outlet should be cleaned with soft brush.

ENVIRONMENTAL PROTECTION

• The appliance is made of materials which can be recycled.
• It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.

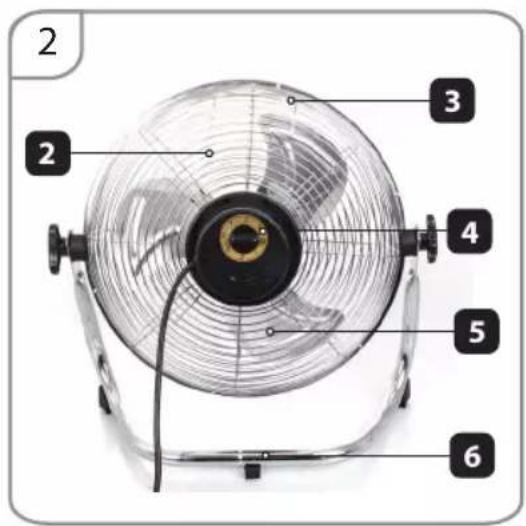

GENERAL DESCRIPTION

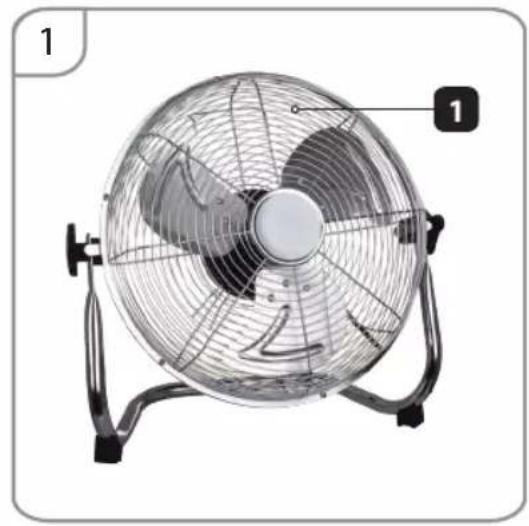

1. Protective mesh – front
2. Protective mesh - rear
3. Carrying handle
4. ON/OFF switch (operation mode)
5. Propeller
6. Base

TECHNICAL DATA

• power: 40 W
• supply voltage: 220-240 V, \~50 Hz

Front view of a four-blade office fan with visible blades and mounting base (no text or symbols)

PURPOSE OF THE DEVICE

CP20 floor/air circulator has been designed to be used in both residential and commercial areas, as well as in small workshops and warehouses. The device has been equipped with a highly efficient engine that easily sets the air in motion, which continuously and uniformly distributes the air in the room. CP20 circulator can be used at any time of the year. In summer, continuous air circulation makes the heat more bearable, and in winter it assists heating, forcing the movement of warm air that naturally amasses under the ceiling. The solid base allows the device to be conveniently placed at the desired angle.

HOW TO USE THE APPLIANCE

Please read this instruction manual carefully before use and operate the heater properly. After unpacking the appliance, make sure it has not been damaged during transport. In case of any doubts, do not use the appliance until consulting a service centre.

• Put the appliance onto a flat and stable ground.
• Set the switch (4) to "0".
• Connect the fan to the mains with parameters compliant with those provided in the instruction.
• Set the angle of the appliance.
• Connect the appliance to a power source with parameters in accordance with the Instructions for Use.
• To turn the device on, select the mode and speed of operation by rotating the knob (4).

Carry the device around by means of the handle (3) only.

Exercise particular caution when adjusting the angle of an operating circulator.

Do not cover the protective nets (1) and (2) during operation.
