WGC40M - Household Fan Columbia Vac - Free user manual and instructions

Product Type	Desk Fan
Brand	Columbia Vac
Model	WGC40M / WGC-40
Power Consumption	40 W
Supply Voltage	230 V ~ 50 Hz
Number of Speed Settings	3 (I, II, III)
Oscillation Function	Yes, push-button activated
Protective Mesh	Front and rear mesh included
Assembly Required	Yes, user assembly of mesh and blade
Control Type	Rotary switch for speed, push-button for oscillation
Usage	Indoor household use
Cleaning Method	Unplug, clean with soft dry cloth; soft brush for vents
Warranty	For private household use, damage from improper operation not covered
Environmental Disposal	Recyclable materials, dispose at collection points for electronic devices
Repair Service	Authorized service center only
Safety Features	Overheat protection not specified; safety instructions for cord and water
Material	Plastic and metal components
Base Type	Flat base for stable placement
Included Components	Front mesh, rear mesh, blade, body, arm, base, screws

Frequently Asked Questions - WGC40M Columbia Vac

How do I assemble the fan?

Unpack the device. Attach the rear protective mesh (C) by matching holes and fastening with screws. Slide the blade (B) onto the pin, aligning the screw hole with the indentation, and tighten the screw. Attach the front protective mesh (A) and secure with the screw and clamps. Place the fan on a stable surface.

How do I clean the fan?

Unplug the fan and allow it to cool completely. Never immerse in water. Clean the casing and power cord with a soft, dry or slightly damp cloth. Clean the air inlet and outlet with a soft brush.

What do the speed settings I, II, and III mean?

Settings I, II, and III correspond to low, medium, and high fan speeds. Use the rotary switch (H) to select your desired speed.

How do I use the oscillation function?

To activate oscillation, press the push-button (G). To deactivate, depress the button. Oscillation works at any speed setting.

What safety precautions should I take?

Do not use near bathtubs, showers, or swimming pools. Do not insert fingers or objects into the mesh. Keep the fan away from curtains. Always supervise children. Unplug when leaving the room. Do not cover the protective mesh.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by the manufacturer's authorized service center to avoid hazards. Do not attempt to repair it yourself.

Can children use the fan?

The fan can be used by children aged 8 and above under supervision. Children under 8 should be kept away from the appliance and cord. Cleaning and maintenance should not be performed by children.

Can I use the fan in a bathroom?

No, do not use the fan in high humidity locations such as bathrooms. The fan is designed for indoor household use only, and moisture can damage the unit and pose electrical risks.

What does the warranty cover?

The warranty covers private household use only. It does not cover damage caused by improper operation. For full warranty terms, refer to the warranty card included in the package.

How should I dispose of the fan when it is no longer usable?

The fan is made of recyclable materials. Do not dispose of it with household waste. Take it to a designated collection point for electronic and electrical devices.

USER MANUAL WGC40M Columbia Vac

Exterior view of a Columbia VAC air conditioner fan with visible blades and mesh grille (no text or symbols on the fan itself)

model: WGC40M / WGC-40

Eldom Sp. z o.o.

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols beyond labels)

DANE TECHNICZE

moc: 40W

Exterior view of a Columbia VAC air conditioner fan with visible blades and base (no text or symbols on the fan itself)

MONTAŻ I PRACA URZĄDZENIA

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a metallic fan or impeller with internal components and mounting holes, no visible text or symbols.

Close-up of a mechanical fan or fan assembly with a circular component and radial blades (no visible text or symbols)

Close-up of mechanical components with a magnified circular detail, no visible text or symbols

SAFETY MEASURES

EN

Before the first use, please read all these instructions carefully:

1. The cord should be plugged into the power supply of parameters indicated in the data plate.
2. Please, do not plug too many appliances to a single elec tric circuit.
3. WARNING: do not use close to bathtubs, showers, swimming pools and other water containers.
4. The unit is designed to operate at a household.
5. Place the unit on a flat and dry surface.
6. Do not inert fingers or any other objects into the inlet and outlet holes.
7. Do not place the unit near cushions or curtains.
8. Working fan must be always supervised, especially, when there are children nearby.
9. Leaving a room where a fan operates, switch it off.
10. Do not spray any insect killers or similar agents near the operating fan.
11. Do not use the appliance under high temperature (exceeding 40^irc C), in localizations where the humidity rate is high (e.g. bathroom) and localizations where explosive atmosphere occurs.
12. Before switching the unit on make sure all its elements are correctly fixed. Under no circumstances one may switch the unit on before it has been completely assembled!
13. Do not cover the protective mesh.
14. Do not use the appliance as a hanger.
15. In case the power cord is damaged it must be replaced by the manufacturer's authorized service center.
16. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of

the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

1. The unit may be repaired by a manufacturer's authorized service center only (list of the centers attached and available on the website: www.eldom.eu). All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous.
2. The device can be repaired only by authorized service center. Any upgrades or any use of non-original spare parts or equipment components is prohibited and endanger the safety of use.
3. Eldom Sp. z o.o. shall not be held liable for any damage caused by any improper use of the device.

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point, that deals with collection and recycling of electronic and electric devices.

WARRANTY

• the device is intended for private use in a household,
• it cannot be used for professional purposes,
• the guarantee does not cover damage caused by improper operation. The guarantee terms are provided in the annex.

CLEANING AND MAINTENANCE

• before cleaning unplug the hair-dryer and wait until it cools down com pletely
• never immerse the hair-dryer in water
• casing and power cord can be cleaned with soft dry or slightly damp cloth
• the air inlet and outlet should be cleaned with soft brush

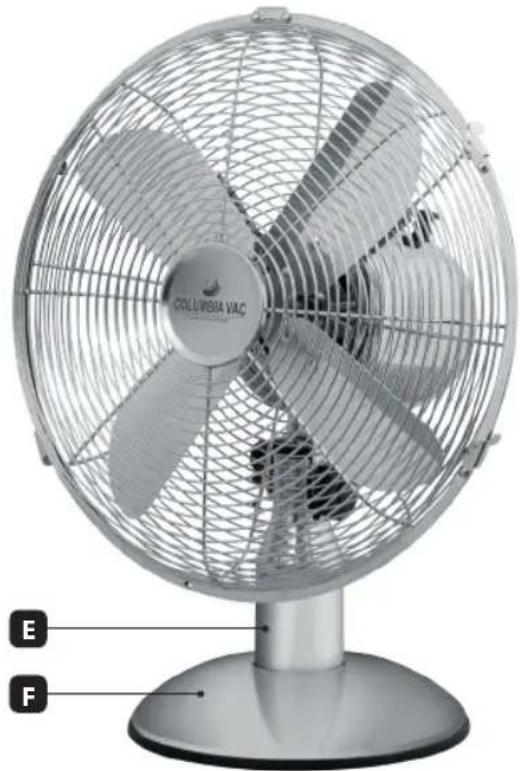

GENERAL DESCRIPTION

A Protective mesh - front
B Airscrew
C Protective mesh - rear
D Body
E Arm
F Base
G Oscillation switch
H Switch and gears: I, II and III

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagram itself)

TECHNICAL DATA

power: 40W

supply voltage: 230V \~ 50Hz

Exterior view of a Columbia VAC air conditioner fan with visible blades and mounting base (no text or symbols on fan body)

USE AND INSTALLATION OF THE DEVICE

Before first use, unpack the device and assemble its components.

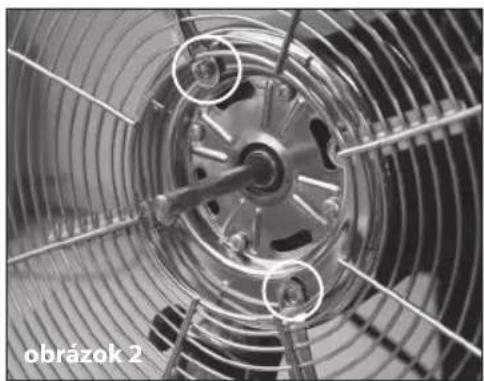

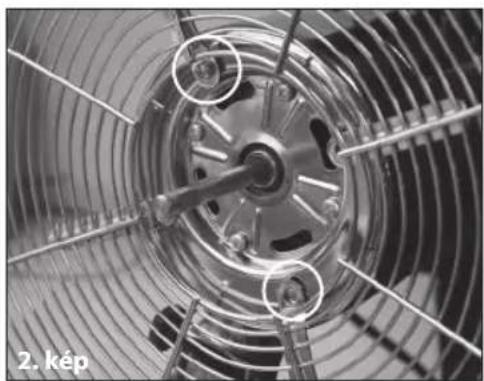

• Install the rear protective mesh (C). The mesh holes shall match the holes in the housing, Fig. 1. Fasten with the enclosed screws, Fig. 2.

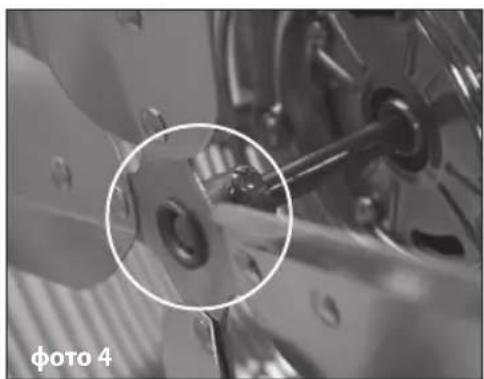

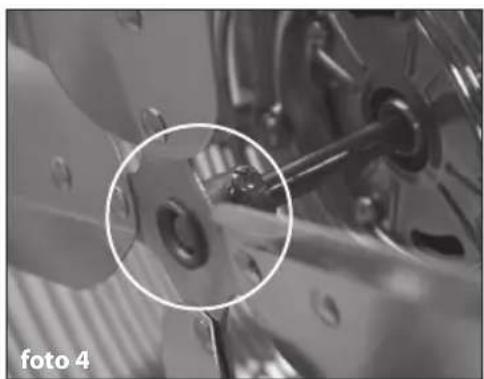

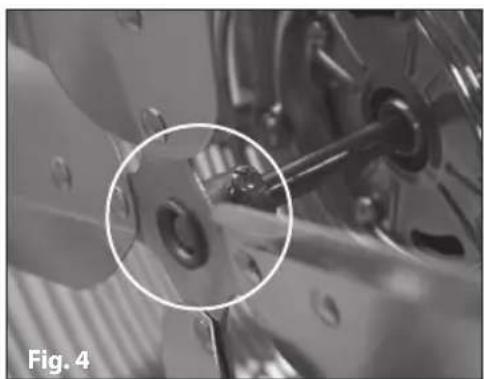

• Slide the blade (B) onto the pin, Fig. 4 so that the screw hole is directly above

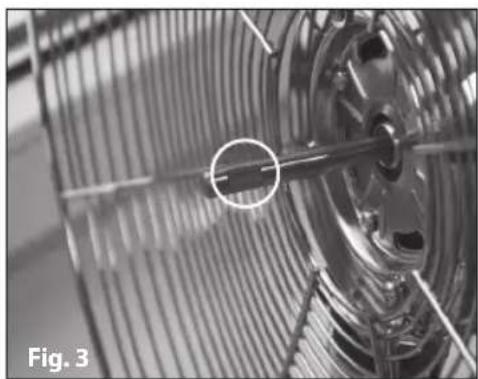

the indentation, Fig. 3, in the pin, and fasten with the screw (attention – the blade has sharp edges)

• Install the front protective mesh (A). Connect both meshes at the bottom with the enclosed screw, and secure with clamps,
• Place the device on a stable and level surface

Set the switch (H) to "0" and connect the device to the mains.

Use the switch (H) to select the fan speed (I, II, III).

To turn the device on, set the switch (H) to a chosen speed.

To turn the device off, set the switch (H) to "0".

Regardless of the speed, the user can activate oscillations by pressing a push-button (G). To deactivate oscillations, depress the push-button (G).

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a metallic industrial fan or turbine component with visible internal structure and mounting holes (no text or symbols)

Close-up of a mechanical fan or fan assembly with a circular annotation and a white dot, labeled 'Fig. 3' (no readable text or symbols on the fan itself)

Close-up of mechanical components with a magnified inset showing a circular detail (no text or symbols visible)

BEZPEČNOSTNÍ DOPORUČENÍ

CZ

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagram itself)

TECHNICKÉ ÚDAJE

výkon: 40W

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

MONTÁŽ A PRÁCE ZAŘÍZENÍ

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a metallic fan or impeller with internal components and radial lines, no visible text or symbols

Close-up of a mechanical fan or fan assembly with a circular annotation and a white dot, no visible text or symbols.

Close-up of mechanical components with a magnified circular detail, labeled 'foto 4' (no other text or symbols visible)

SICHERHEITSHINWEISE

D

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols beyond labels)

TECHNISCHE DATEN

Leistung: 40W

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or impeller with visible blades and central hub, no text or symbols present.

Close-up of a metallic industrial fan or turbine component with radial blades and central hub, no visible text or symbols

Close-up of a mechanical fan or fan assembly with a circular annotation and a white dot, labeled 'Abb. 3' (no readable text or symbols on the fan itself)

Close-up of mechanical components with a circled detail, no visible text or symbols

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagrams themselves)

Front view of a Columbia VAC airship with four blades and a base, labeled E and F (no text or symbols on the fan itself)

Close-up of a mechanical fan or impeller with visible blades and central hub, no text or symbols present.

Close-up of a mechanical fan or turbine component with visible blades and central hub, no text or symbols present.

Close-up of a mechanical fan or fan assembly with a circular hole and a central shaft, no visible text or symbols.

Close-up of mechanical components with a magnified circular detail, no visible text or symbols

BEZPEČNOSTNÉ POKYNY

SK

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagrams themselves)

TECHNICKÉ ÚDAJE:

príkon: 40W

napätie napájania: 230V \~ 50 Hz

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

MONTÁŽ A PRÁCA ZARIADENIA

Close-up of a mechanical fan or impeller with concentric blades and central hub, no visible text or symbols

Close-up of a mechanical fan or turbine component with visible blades and central hub, no text or symbols present.

Close-up of a mechanical fan or fan assembly with a circular mark and a pointer, labeled 'obrázok 3' in the corner (no other text or symbols visible)

Close-up of a mechanical component with a magnified circular detail, labeled 'obrázok 4' (no other text or symbols visible)

BIZTONSÁGi TUDNIVALÓK

HU

MÜSZAKI ADATOK

teljesítmény: 40 W

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagram itself)

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a mechanical component with concentric rings and radial slots, no visible text or symbols

Close-up of a mechanical fan or fan assembly with a circular hole and a pointer, no visible text or symbols.

Close-up of mechanical components with a circled detail, labeled '4. kép' (no other text or symbols visible)

Technical line drawings of four different fan components labeled A, B, C, and D (no text or symbols on the diagrams themselves)

ESPECIFICACIONES

potencia: 40W

Exterior view of a Columbia VAC airship fan with visible blades and base (no text or symbols on the fan itself)

Close-up of a mechanical fan or impeller assembly with concentric blades and central hub (no visible text or symbols)

Close-up of a metallic industrial fan or turbine component with visible internal structure and mounting holes (no text or symbols)

Close-up of a mechanical fan or fan assembly with a circular component and radial blades, labeled 'Fig. 3' (no readable text or symbols)

Close-up of mechanical components with a magnified circular detail, labeled 'Fig. 4' (no readable text or symbols)

_

| _

一

1

KARTA GWARANCYJNA

WAŻNA Z DOWODEM ZAKUPU

WENTYLATOR BIURKOWY WGC40M / WGC-40
