Product Type	Drip Coffee Maker
Brand	Tesla
Model	CoffeeMaster ES200
Water Tank Capacity	Approx. 1.2 L
Number of Cups	Up to 12 cups
Power Supply	220-240 V ~ 50/60 Hz, 900 W
Heating Plate	Yes, for keeping warm
Automatic Shut-off	After 40 minutes from start of brewing
Brewing System	Drip with permanent or paper filter
Filter Type	Permanent filter (included) or paper filter size 1x4
Material	Plastic body, glass kettle
Safety Features	Thermal fuse, anti-drip valve, hot surface warning
Cleaning	Hand wash removable parts with warm water; wipe exterior
Descaling	Regular descaling required to remove calcium deposits
Warranty	2 years (standard)
Dimensions (Approx.)	25 x 20 x 30 cm
Weight (Approx.)	1.5 kg
Accessories Included	Glass kettle, permanent filter, brewing basket

Frequently Asked Questions - CoffeeMaster ES200 TESLA

How do I use the Tesla CoffeeMaster ES200 coffee maker?

Open the water tank lid, fill with cold water according to the water level indicator. Place a permanent filter or a paper filter (size 1x4) in the brewing basket. Add ground coffee (about 1 scoop per cup). Close the lid, place the glass kettle on the heating plate, and press the On/Off button. The indicator lights up and brewing begins. The machine automatically shuts off after 40 minutes. Serve immediately for best taste.

Why is the amount of coffee less than the water I put in?

Some water is absorbed by the ground coffee or evaporates during brewing. This is normal. The coffee maker produces slightly less liquid than the water you add. For optimal taste, serve the coffee immediately after preparation.

How do I clean the coffee maker?

Unplug and let it cool completely. Remove the brewing basket and permanent filter, wash them in warm water. Clean the glass kettle and lid with warm water and mild detergent. Wipe the exterior and heating plate with a soft, damp cloth. Do not use abrasive cleaners. Push the anti-drip valve up 3-4 times to empty residual water.

How do I descale the coffee maker?

Regular descaling is important to remove calcium deposits that affect taste and machine life. Use a descaling solution suitable for coffee makers. Fill the water tank with the solution, run a brewing cycle without coffee, then rinse by running 2-3 cycles with clean water. Refer to the manual for specific instructions.

What does the automatic shut-off feature do?

The coffee maker automatically switches off 40 minutes after the start of coffee preparation. This prevents the heating plate from staying on indefinitely and enhances safety. You can also manually turn off the machine by pressing the On/Off button at any time.

Can I use paper filters? What size?

Yes, you can use paper filters. The recommended size is 1x4 (typically #4 cone filters). Alternatively, use the included permanent filter. Do not use the coffee maker without any filter.

What is the anti-drip valve and how does it work?

The anti-drip valve prevents coffee from dripping onto the heating plate when you remove the glass kettle during brewing. It automatically closes when the kettle is removed. Push it up 3-4 times during cleaning to empty residual water.

Is it safe to leave the coffee maker unattended?

The manual advises not to leave the coffee maker unattended. While it has safety features like a thermal fuse and automatic shut-off, always supervise operation. Do not cover the top lid or place objects on it. Ensure the glass kettle is properly placed.

What should I do if the glass kettle cracks?

Do not use the coffee maker if the glass kettle shows cracks, a loose handle, or any damage. Replace it with an original TESLA spare part. Using a damaged kettle poses a risk of burns or injury. Contact the dealer or official service.

Where can I buy spare parts or accessories?

Original TESLA accessories and consumables (e.g., paper filters, descaling agents) can be purchased from the official TESLA store at eshop.tesla-electronics.eu. For warranty repairs, contact the dealer where you bought the product.

USER MANUAL CoffeeMaster ES200 TESLA

1 Zásobník na vodu

4 Skleněná konvice

Thank you for choosing the TESLA CofeeMaster ES200 coffee machine.

Please read the safe use rules carefully before use and follow all normal safety rules.

IMPORTANT SAFETY NOTICE

THIS PRODUCT IS FOR DOMESTIC USE ONLY.

This device is a complex electromechanical device, please pay attention to the following instructions:

- Use only clean, cold drinking water for cooking. Do not use heated water or other liquids or insert any objects into it.

- Do not cover the top lid or place anything on it while the coffee maker is in operation

- Do not use the coffee maker if the glass kettle shows signs of cracks, has a loose or weakened handle.

• Use the glass pot only with this coffee maker, be careful as it is very fragile.

- Never cover the heating plate of the hot plate and do not place flammable objects on it, it is intended only for heating coffee in a glass pot.

- Do not leave the glass kettle empty on the heating plate when the coffee machine is switched on.

- Do not use the coffee machine without a permanent filter or paper coffee filter.

- Do not use the coffee maker outdoors or in excessively hot, dusty or humid environments.

- Do not leave the coffee machine unattended.

- Connect the coffee maker only to a grounded outlet. Always make sure the plug is properly inserted into the socket.

- The coffee maker is equipped with a thermal safety fuse, which interrupts the power supply in the event of boiling water or starting an empty coffee maker. If this happens, unplug the coffee maker and let it cool down.

- Use only original TESLA accessories intended for this model.

- If the coffee machine is used incorrectly or for professional or semi-professional purposes, or if it is not used according to the instructions in the User Manual, the warranty becomes void.

- The manufacturer and importer to the European Union is not responsible for damages caused by the operation of the coffee machine, such as injuries, burns, scalds, broken glass teapots, fires, deterioration of other items, etc.

CAUTION, HOT SURFACE

- Do not cover the top lid, steam is generated during operation of the appliance.

• Do not place the coffee maker near surfaces that could be damaged by steam.

- Do not touch the heated surface, otherwise burns may occur.

- Use the handle to remove and carry the heated glass kettle.

- Place the heated glass kettle only on heat-resistant surfaces.

- Do not place the hot glass kettle on a cold or wet surface to avoid damage.

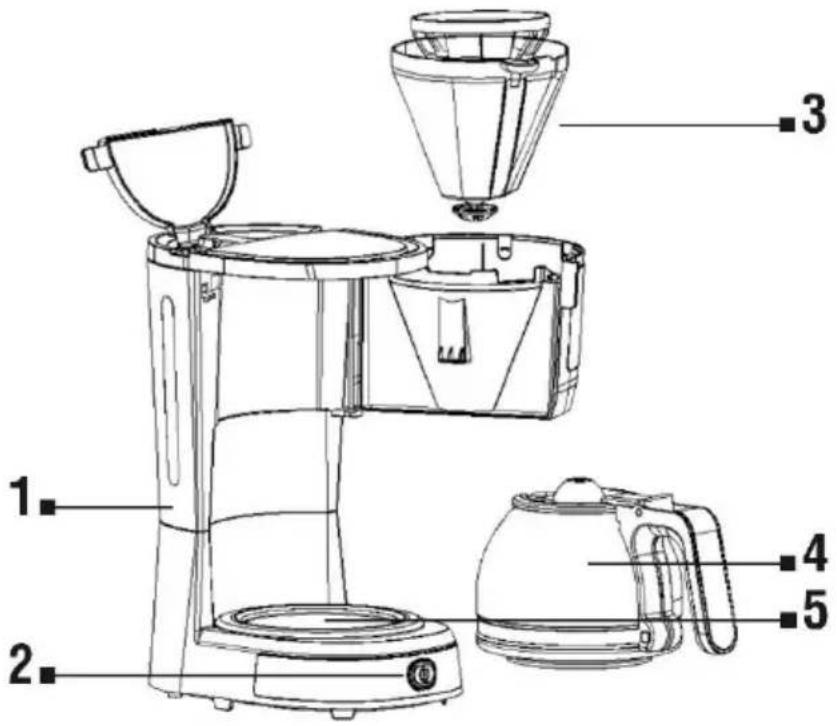

DESCRIPTION

1 Water tank

2 On/Off button

3 Brewing basket with permanent filter

4 Glass kettle

5 Heating plate

FIRST USE

We recommend using the coffee machine several times without coffee powder. Pour a small amount of water into the Water tank and press the "2" button. Then pour the water out of the glass kettle. Thoroughly wash all removable parts such as the brewing basket with the permanent filter in warm water.

USE OF THE COFFEE MACHINE

• Place the coffee machine on a stable and level surface and connect it to a grounded outlet.
• Open the cover of the Water Tank and pour an appropriate amount of water into the coffee machine, according to the water level indicator and close the cover.
  • Use a permanent filter or insert a paper filter (1 x 4) into the filter holder.
  • Pour an appropriate amount of ground coffee into the filter, usually 1 scoop per 1 cup.
• Turn on the coffee machine by pressing the "2" button, the indicator will light up and the coffee will start brewing.
• When the coffee is ready, the coffee maker automatically switches off. If you want to stop the coffee brewing process earlier, press the "2" button.
• Unplug the power cord from the outlet.

The amount of coffee you brew will be less than the amount of water you put in the Water Tank because some of the water is absorbed by the ground coffee or evaporates. When pouring coffee, the angle of inclination of the glass kettle must not be greater than 45^ , so that the coffee does not spill out of the pouring hole. The coffee maker switches off automatically after 40 minutes from the start of coffee preparation. For optimal coffee taste, serve it immediately after preparation.

CLEANING INSTRUCTIONS

• Unplug it from the power supply and let it cool completely before cleaning.
- After each use, clean all removable parts, such as the brewing basket and the permanent filter, with warm water.
- Push the anti-drip valve up 3-4 times to empty the residual water.
- Wipe the exterior of the coffee maker with a soft, damp cloth to remove stains.
- Wipe the heating plate with a damp cloth, do not clean it with an abrasive cleaning agent.
- Clean the coffee maker if there is excessive grease leaching. The small oil droplets on the surface of brewed black coffee are caused by the extraction of oil from the coffee powder. Higher oiliness may occur more often if heavily roasted coffee is used.

CLEANING THE GLASS KETTLE AND LID

Pour the unused coffee out of the glass kettle and let it cool completely. It is important to clean the glass kettle and the lid after each use, this will prevent the formation of deposits that can negatively affect the taste of the prepared coffee and shorten the life of the glass kettle. Rinse it in warm water and wash in warm water with a small amount of neutral dishwashing detergent. Then rinse it under clean running water and dry it thoroughly.

REMOVING CALCIUM DEPOSITS

During use, calcium deposits can form in the appliance, which can negatively affect the taste of the prepared coffee and shorten the life of the coffee machine. It is important to remove calcium deposits regularly.

TECHNICAL SUPPORT

Do you need advice on setting up and operating the TESLA CofeeMaster ES200?

Contact us at www.tesla-electronics.eu.

CONSUMABLES AND ACCESSORIES

Consumables can be purchased in the official TESLA store eshop.tesla-electronics.eu.

WARRANTY REPAIR

For warranty repair, contact the dealer where you purchased the TESLA product.

The warranty does NOT apply to:

• using the device for other purposes
• normal tear and wear
- failure to observe the "Important Safety Instructions" listed in the user manual
• electromechanical or mechanical damage caused by improper use
• damage caused by natural elements such as water, fire, static electricity, overvoltage, etc.
• damage caused by unauthorized repair
- unreadable device serial number

DECLARATION OF CONFORMITY

We, TESLA Electronics LTD, declare that this equipment is in compliance with the essential requirements and other relevant provisions of the standards and regulations relevant to the type of equipment.

This product meets the requirements of the European Union.

Please inquire about your local separate collection system for electrical and electronic products. Please follow local regulations and do not dispose of old products in normal household waste.

As the product is being developed and improved, we reserve the right to modify the user manual. The latest version of this user manual can always be found at www.tesla-electronics.eu.

Design and specifications are subject to change without notice, printing errors reserved.
