Product Type	43-inch Smart TV
Model	ULW 43TS643 SMART
Brand	Hyundai
Display Resolution	Ultra HD (3840 x 2160) – 4K
HDR Support	HDR10 / HLG
Tuner	DVB-T2/C/S2 (digital terrestrial, cable, satellite)
Power Consumption	120 W (typical)
Networked Standby Power	< 2 W
Weight (with stand)	7 kg
Dimensions with Stand (W x H x D)	973 x 619 x 258 mm
Dimensions without Stand (W x H x D)	973 x 567 x 56/82 mm
VESA Wall Mount Pattern	100 x 100 mm, M4 screws
Connectivity	HDMI (x3), USB (x2), LAN (Ethernet), Wi-Fi 802.11 a/b/g/n, Bluetooth (for remote), CI+ slot, VGA, YPbPr, SPDIF optical out, headphone jack
Audio Output Power	2 x 10 W RMS (stereo)
Supported File Systems (USB)	FAT32, NTFS
Energy Saving Modes	Minimum, Medium, Maximum, Auto, Screen Off, Custom Backlight
Operating Temperature	0°C to 40°C, max 85% humidity
Accessories Included	Remote control, 2 x AAA batteries, instruction book, stand
Safety Features	Child lock, parental lock, automatic power down (1-8 hours), no-signal standby

Frequently Asked Questions - ULW 43TS643 SMART HYUNDAI

How do I connect the TV to my Wi-Fi network?

Go to Settings > Network and set Network Type to Wireless Device. Then select Scan Wireless Networks, choose your network, enter the password using the on-screen keyboard, and press OK. If your router supports WPS, you can use the Press WPS on your wifi router option instead.

How do I perform the first-time installation?

When you turn on the TV for the first time, follow the on-screen instructions: select your language, country, set a PIN if required, choose Home Mode (recommended), configure privacy settings, connect to the internet (optional), and select broadcast types to scan. The TV will automatically search for channels and store them.

How can I play media files from a USB drive?

Insert a USB drive (FAT32 or NTFS) into the USB port. The Media Browser will appear automatically. You can also access it via Sources menu or by pressing the Source button on the remote. Select the file you want to play. Supported formats include MP4, AVI, MKV, MP3, JPEG, PNG, etc. Note that a maximum of 1000 files per folder is displayed.

How do I enable HDR content?

For HDR content via HDMI, set the corresponding HDMI input to Enhanced in Settings > System > Sources. The source device must be HDMI 2.0a compatible. HDR content via USB, DVB-S2, or built-in apps works automatically when available.

What are the wall mount dimensions?

The TV supports VESA wall mount with a hole pattern of 100 x 100 mm. Use M4 screws. The required screw length (X) is between the minimum and maximum values given in the manual (typically around 10-12 mm). Do not overtighten.

How do I reset the TV to factory settings?

Go to Settings > Installation and select First Time Installation. This will delete all channels and settings. Alternatively, you can use the Reset option in Settings > System > More for specific items (e.g., Home menu, picture, sound).

What video file formats are supported via USB?

The TV supports MPG, MPEG, DAT, VOB, TS, TRP, M2TS, MTS, AVI, MP4, MKV, FLV, OGM, OGG, ASF, WMV, RM, RMVB, and WebM. Video codecs include MPEG1/2/4, H.264, VC1, VP8, VP9, and more. Audio codecs: MP3, AC3, AAC, WMA, Vorbis, FLAC. See the manual for full details.

How do I use the CEC feature?

Enable CEC in Settings > System > Device Settings. Then connect a CEC-compatible device (e.g., Blu-ray player) via HDMI. The TV will recognize it and you can control basic functions with the TV remote. To switch back to TV control, press and hold the 0 button for 3 seconds.

How do I update the TV software?

Go to Settings > System > More > Software Upgrade. Select Scan for upgrade to check for new firmware via broadcast or internet. If an update is found, it will download and install automatically after a restart. You can also set Automatic scanning to Enabled to search at 3 AM daily.

What should I do if there is no signal?

Check that the correct input source is selected (e.g., HDMI, TV). Ensure the antenna or cable is properly connected and not damaged. For digital channels, run a new channel scan in Settings > Installation > Automatic channel scan. If using an external device, make sure it is powered on and connected correctly.

USER MANUAL ULW 43TS643 SMART HYUNDAI

Front view of a blank rectangular TV or screen with two side connectors at the bottom (no text or symbols)

ULW43TS643SMART

Návod k použití

Návod na použitie

Instrukcja obsługi

Instruction Manual

Használati utasítás

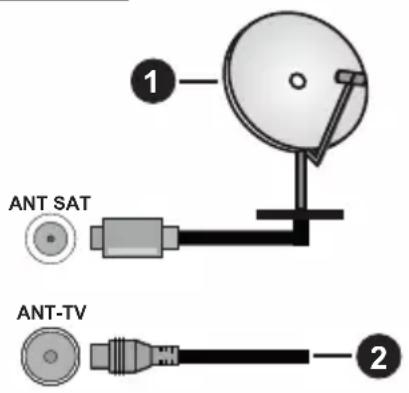

Simple diagram showing a circular object and a rectangular shape with curved lines, no text or symbols present.

1. Satelit

2. Anténa

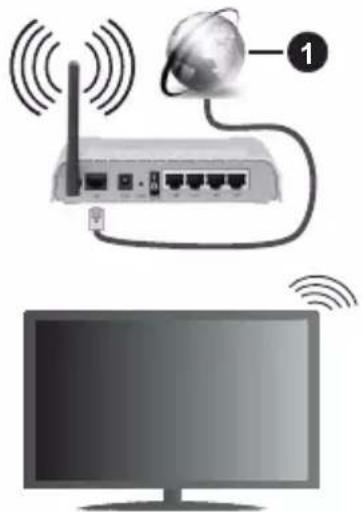

Illustration of a network device with wireless signal waves and a globe icon, connected to a monitor (no text or symbols)

Simple diagram showing a circular object and a rectangular shape with curved lines, no text or symbols present.

1. Satelit

2. Anténa alebo kábel

	56Hz 60Hz	66Hz 70Hz	72Hz 75Hz
640x480		X				X
800x600	X X X
1024x768		X X X
1280x768		X				X
1280x960		X
1360x768		X
1366x768		X
1280x1024		X X X
1400x1050		X
1600x900		X
1920x1080		X

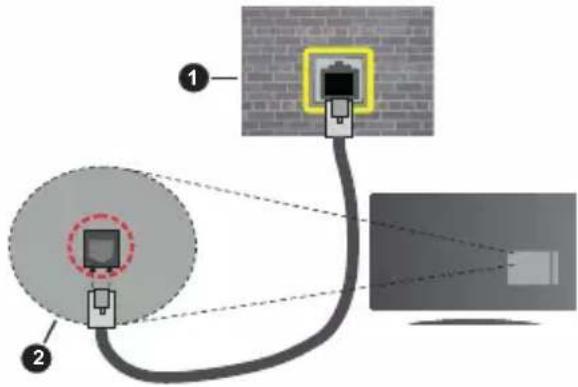

Pripojenie

Káblové pripojenie

Pripojenie ku Káblovej sieti

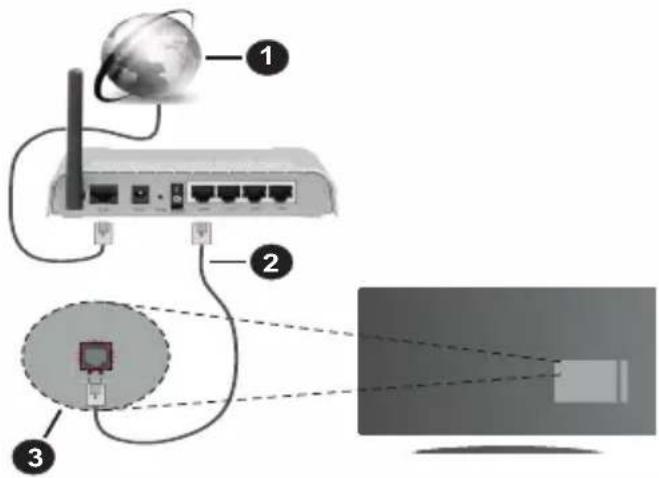

Illustration of a network device with wireless signal waves and a monitor displaying a network icon (no text or symbols)

1. Širokopásmové pripojenie k ISP

Simple diagram showing a circular object and a rectangular shape with curved lines, no text or symbols present.

	56Hz 60Hz	66Hz 70Hz	72Hz 75Hz
640x480		X				X
800x600	X X X
1024x768		X X X
1280x768		X				X
1280x960		X
1360x768		X
1366x768		X
1280x1024		X X X
1400x1050		X
1600x900		X
1920x1080		X

Połączenie

Illustration of a network device with wireless signal waves and a globe icon, connected to a monitor (no text or symbols)

1. Łacze szerokopasmowe ISP

Markings on the Product.... 2

Environmental Information.... 3

Features 3

Ultra HD (UHD)....4

Accessories Included.... 4

Standby Notifications....4

TV Control Button & Operation....4

Using Main TV Menu 5

Inserting the Batteries into the Remote 6

Power Connection 6

Antenna Connection....6

License Notification 7

Disposal Information....7

Specification 8

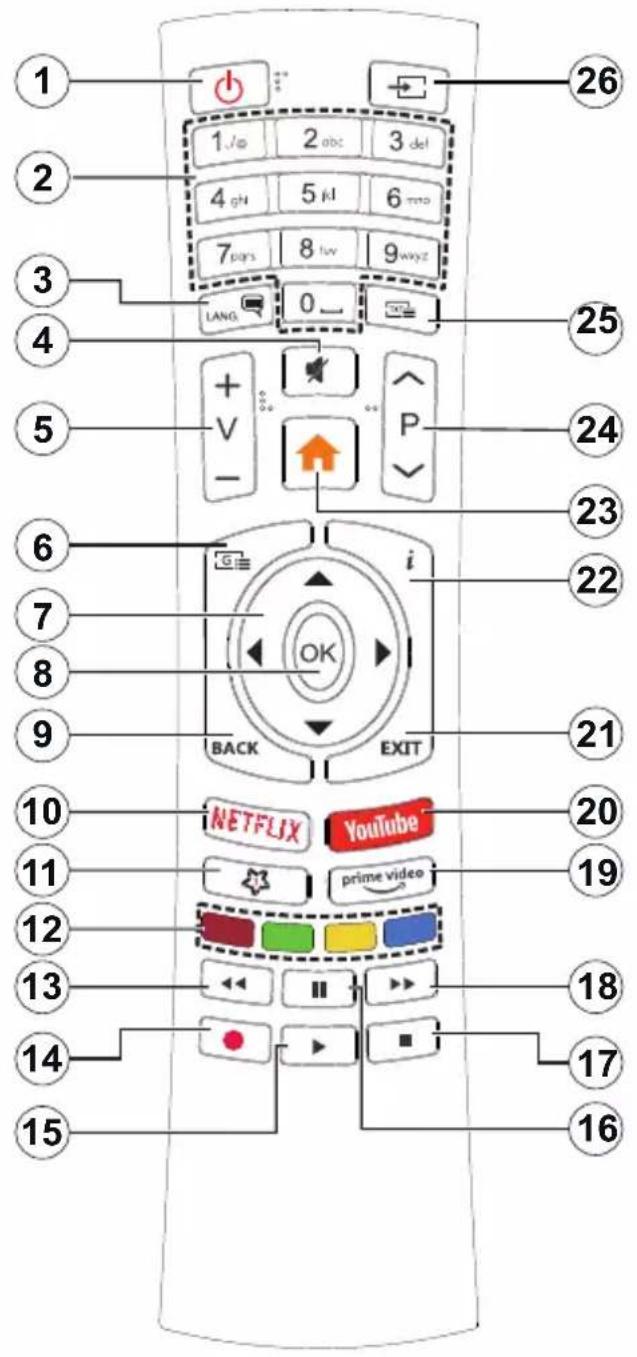

Remote Control 9

Connections.... 10

Switching On/Off.... 11

First Time Installation.... 11

Media Playback via USB Input 12

Media Browser.... 12

CEC....13

E-Manual 13

Settings Menu Content....14

General TV Operation 17

Using the Channel List 17

Configuring Parental Settings....17

Electronic Programme Guide 17

Teletext Services 18

Software Upgrade.... 18

Troubleshooting & Tips.... 18

AV and HDMI Signal Compatibility 19

Supported File Formats for USB Mode 20

Video File Formats 20

Picture File Formats 20

Audio File Formats 20

Subtitle File Formats.... 21

Supported DVI Resolutions 22

Connectivity 23

Wired Connectivity.... 23

Wireless Connectivity 23

Wake ON 24

Wireless Display 24

Connecting Other Wireless Devices....25

Connectivity Troubleshooting 25

Using Audio Video Sharing Network Service......25

Apps 26

Internet Browser 26

HBBTV System.... 27

DVB functionality information 27

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

In extreme weather (storms, lightning) and long inactivity periods (going on holiday) disconnect the TV set from the mains.

The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable. If the TV set is not disconnected electrically from the mains, the device will still draw power for all situations even if the TV is in standby mode or switched off.

Note: Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: This device is intended to be used by persons (including children) who are able / experienced of operating such a device supervised, unless they have been given orvision or instruction concerning the use of device by a person responsible for their safety.

• Use this TV set at an altitude of less than 2000 meters above the sea level, in dry locations and in regions with moderate or tropical climates.
• The TV set is intended for household and similar general use but may also be used in public places.
• For ventilation purposes, leave at least 5cm of free space around the TV.
• The ventilation should not be impeded by covering or blocking the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not expose the TV to dripping or splashing of liquids and do not place objects filled with liquids, such as vases, cups, etc. on or over the TV (e.g., on shelves above the unit).

• Do not expose the TV to direct sunlight or do not place open flames such as lit candles on the top of or near the TV.

• Do not place any heat sources such as electric heaters, radiators, etc. near the TV set.

• Do not place the TV on the floor and inclined surfaces.
• To avoid danger of suffocation, keep plastic bags out of the reach of the babies, children and domestic animals.
• Carefully attach the stand to the TV. If the stand is provided with screws, tighten the screws firmly to prevent the TV from tilting. Do not over-tighten the screws and mount the stand rubbers properly.
• Do not dispose of the batteries in fire or with hazardous or flammable materials.

WARNING - Batteries must not be exposed to excessive heat such as sunshine, fire or the like.

WARNING - Excessive sound pressure from earphones or headphones can cause hearing loss.

ABOVE ALL - NEVER let anyone, especially children, push or hit the screen, push anything into holes, slots or any other openings in the case.

Caution	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Maintenance	Important maintenance component

Markings on the Product

The following symbols are used on the product as a marker for restrictions and precautions and safety instructions. Each explanation shall be considered where the product bears related marking only. Note such information for security reasons.

Class II Equipment: This appliance is designed in such a way that it does not require a safety connection to electrical earth.

Hazardous Live Terminal: The marked terminal(s) is/are hazardous live under normal operating conditions.

Caution, See Operating Instructions: The marked area(s) contain(s) user replaceable coin or button cell batteries.

Class 1 Laser Product: This product contains Class 1 laser source that is safe under reasonably foreseeable conditions of operation.

WARNING

Do not ingest the battery, Chemical Burn Hazard This product or the accessories supplied with the product may contain a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children.

If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

Never place a television set in unstable or inclined locations. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as;

• Using cabinets or stands recommended by the manufacturer of the television set.
- Only using furniture that can safely support the television set.
- Ensuring the television set is not overhanging the edge of the supporting furniture.
- Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
- Not standing the television set on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied.

Apparatus connected to the protective earthing of the building installation through the MAINS connection or through other apparatus with a connection to protective earthing – and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator)

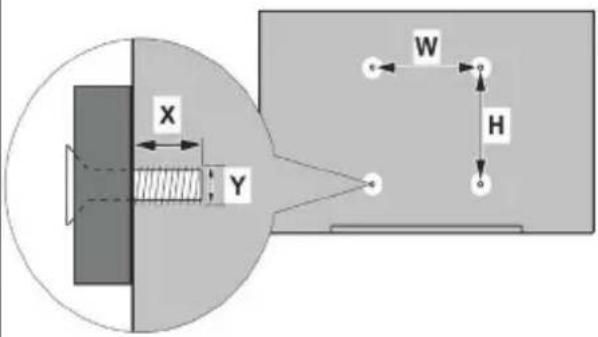

WALL MOUNTING WARNINGS

• Read the instructions before mounting your TV on the wall.
• The wall mount kit is optional. You can obtain from your local dealer, if not supplied with your TV.
• Do not install the TV on a ceiling or on an inclined wall.
• Use the specified wall mounting screws and other accessories.
• Tighten the wall mounting screws firmly to prevent the TV from fall. Do not over-tighten the screws.

Figures and illustrations in this user manual are provided for reference only and may differ from the actual product appearance. Product design and specifications may be changed without notice.

Environmental Information

This television is designed to be environment friendly. To reduce energy consumption, you can follow these steps:

If you set the Energy Saving to Minimum, Medium, Maximum or Auto the TV will reduce the energy consumption accordingly. Set as Off to turn this setting off. If you like to set the Backlight to a fixed value set as Custom and adjust the Backlight (will be located under the Energy Saving setting) manually using Left or Right buttons on the remote.

Note: Available Energy Saving options may differ depending on the selected Mode in the Settings>Picture menu.

The Energy Saving settings can be found in the Settings>Picture menu. Note that some picture settings will be unavailable to be changed.

You can also turn the screen off using the Screen Off option, if you want to hear the sound only and don't need to watch. If pressed Right button or Left button consecutively Screen Off option will be selected and "Screen will be off in 15 seconds." message will be displayed on the screen. Select Proceed and press OK to turn the screen off immediately. If you don't press any button, the screen will be off in 15 seconds. Press any button on the remote or on the TV to turn the screen on again.

Note: Screen Off option is not available if the Mode is set to Game.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce or stop the energy consumption.

Features

• Remote controlled colour TV
- Fully integrated digital terrestrial/cable/satellite TV (DVB-T-T2/C/S2)

• HDMI inputs to connect other devices with HDMI sockets
• USB input
• OSD menu system
• Stereo sound system
• Teletext
  • Headphone connection
  • Automatic programming system
• Manual tuning
  • Automatic power down after up to eight hours.
• Sleep timer
• Child lock
  • Automatic sound mute when no transmission.
• NTSC playback
  • AVL (Automatic Volume Limiting)
• PLL (Frequency Search)
• PC input
  • Game Mode (Optional)
  • Picture off function
  • Ethernet (LAN) for Internet connectivity and service
  • 802.11 a/b/g/n built in WLAN Support
  • Audio Video Sharing
  • HbbTV

Ultra HD (UHD)

TV supports Ultra HD (Ultra High Definition - also known as 4K) which provides resolution of 3840 x 2160 (4K:2K). It equals 4 times the resolution of Full HD TV by doubling the pixel count of the Full HD TV both horizontally and vertically. Ultra HD contents are supported from HDMI, USB inputs and over DVB-T2 and DVB-S2 broadcasts.

High Dynamic Range (HDR) / Hybrid Log-Gamma (HLG)

Using this feature the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures. HDR/HLG promises better picture quality thanks to brighter, more realistic highlights, more realistic colour and other improvements. It delivers the look that filmmakers intended to achieve, showing the hidden areas of dark shadows and sunlight with full clarity, colour and detail. HDR/HLG contents are supported via native and market applications, HDMI, USB inputs and over DVB-S broadcasts. Set the related HDMI source input as Enhanced from the Sources option in the Settings>System menu in order to watch HDR/HLG content, if the HDR/HLG content is received through an HDMI input. The source device should also be at least HDMI 2.0a compatible in this case.

Accessories Included

- Remote Control

- Batteries: 2 x AAA

- Instruction Book

Standby Notifications

If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 3 minutes, it will go into standby. When you next switch-on, the following message will be displayed: "TV switched to stand-by mode automatically because there was no signal for a long time."

The Auto Power Down option(in the Settings>System >More menu) could have been set to a value between 1 and 8 hours by default. If this setting is not set as Off and the TV has been left on and not been operated during the set time, it will switch into standby mode after the set time has expired. When you next switch-on the TV, the following message will be displayed. "TV switched to stand-by mode automatically because no operation was made for a long time." Before the TV switches into standby mode a dialogue window will be displayed. If you do not press any button the TV will switch into the standby mode after a waiting period of about 5 minutes. You can highlight Yes and press OK to switch the TV into standby mode immediately. If you highlight No and press OK, the TV will remain on. You can also choose to cancel the Auto Power Down function from this dialogue. Highlight Disable and press OK, the TV will remain on and the function will be cancelled. You can enable this function again by changing the setting of the Auto Power Down option from the Settings>System>More menu.

TV Control Button & Operation

Simple diagram showing a circular object and a rectangular shape with curved lines, no text or symbols present.

Note: The position of the control button may differ depending on the model.

Your TV has a single control button. This button allows you to control the Standby-On / Source / Programme and Volume functions of the TV.

Operating with the Control Button

• Press the control button to display the function options menu.

• Then press the button consecutively to move the focus to the desired option if needed.

• Press and hold the button for about 2 seconds to activate the selected option. The icon colour of the option changes when activated.

• Press the button once again to use the function or enter the sub menu.
• To select another function option, you will need to deactivate the last activated option first. Press and hold the button to deactivate it. The icon colour of the option changes when deactivated.
• To close the function options menu do not press the button for a period of about 5 seconds. The function options menu will disappear.

To turn the TV off: Press the control button to display the function options menu, the focus will be on the Standby option. Press and hold the button for about 2 seconds to activate this option. The icon colour of the option changes when activated. Then press the button once again to turn the TV off.

To turn on the TV: Press the control button, the TV will turn on.

To change volume: Press the control button to display the function options menu and then press the button consecutively to move the focus to Volume + or Volume - option. Press and hold the button for about 2 seconds to activate the selected option. The icon colour of the option changes when activated. Then press the button to increase or decrease the volume.

To change channel: Press the control button to display the function options menu and then press the button consecutively to move the focus to Programme + or Programme - option. Press and hold the button for about 2 seconds to activate the selected option. The icon colour of the option changes when activated. Then press the button to switch to the next or previous channel in the channel list.

To change source: Press the control button to display the function options menu and then press the button consecutively to move the focus to Source option. Press and hold the button for about 2 seconds to activate this option. The icon colour of the option changes when activated. Then press the button once again to display the sources list. Scroll through the available sources by pressing the button. TV will automatically switch to the highlighted source.

Note: Main menu OSD cannot be displayed via the control button.

Operation with the Remote Control

Press the Menu button on your remote control to display main menu. Use the directional buttons and OK button to navigate and set. Press Return/Back or Menu button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press the Source button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the Programme +/- and Volume +/- buttons on the remote.

Using Main TV Menu

When the Menu button is pressed, the main TV menu will appear on the screen. You can navigate through the menu items using the directional buttons on the remote. To select an item or see the sub-menu options of the highlighted menu press OK button. When you highlight a menu option some of the sub-menu items of this menu may appear on the upper side of the menu bar for quick access. To use a quick access item highlight it, press OK and set as desired using the Left/Right directional buttons. When finished press OK or Back/Return button to exit.

Press Exit button to close the main menu.

1. Home

When main menu is opened Home menu bar will be highlighted. The content of the Home menu can be customised by adding options from other menus. Just highlight an option and press the Down direction button on the remote. If you see Add to Home option you can add it to the Home menu. Same way you can delete or change the position of any item in the Home menu. Press the Down direction button and select Delete or Move option and press OK. In order to move a menu item use the Right and Left direction buttons to select the position that you want the item to move to and press OK.

2. TV

2.1. Search

You can search for channels, programmes, services or settings using this option. Press OK and enter a key word using the virtual keyboard. Then highlight OK and press OK to start the search. Results will be displayed on the screen. Select the desired result using the directional buttons and press OK to open.

2.2. Guide

You can access the electronic programme guide menu using this option. Refer to Electronic Programme Guide section for more information.

2.3. Channels

You can access the Channels menu using this option. Refer to Using the Channel List section for more information.

2.4. Timers

You can set timers for future events using the options of this menu. You can also review the previously created timers under this menu.

To add a new timer select the Add Timer tab using the Left/Right buttons and press OK. Set the sub-menu options as desired and when finished press OK. A new timer will be created.

To edit a previously created timer, highlight that timer, select the Edit Selected Timer tab and press OK. Change the sub-menu options as desired and press OK to save your settings.

To cancel an already set timer, highlight that timer, select Delete Selected Timer tab and press OK. A confirmation message will be displayed. Highlight Yes and press OK to proceed. The timer will be cancelled. It is not possible to set timers for two or more events that will broadcast in different channels at the same time interval. In this case you will be asked to choose one of these timers and cancel others. Highlight the timer you want to cancel and press OK, Options menu will be displayed. Then highlight Set/Cancel and press OK to cancel that timer. You will have to save changes after that. In order to do that press OK, highlight Save Changes and press OK again.

3. Settings

You can manage the settings of your TV using the options of this menu. Refer to Settings Menu Content section for more information.

4. Apps

When your TV is connected to the Internet related contents will also be available, including Apps related contents. Using the Apps menu you can access and manage your applications. You can add new apps from the market or delete the existing ones. Refer to Apps section for more information.

5. Sources

You can manage your input source references using the options of this menu. To change the current source highlight one of the options and press OK.

5.1. Source Settings

Edit the names, enable or disable selected source options. There are also Regular and Enhanced options available for HDMI sources. Regular and Enhanced options are affecting the colour settings of the selected HDMI source.

You can reset your customisations on the Home and Apps menus to defaults using the Reset Menu option in the Settings menu (availability depends on TV model and its features). Highlight this option and press OK. A confirmation message will be displayed. Highlight Yes and press OK to proceed. Note that you will not be able to perform this operation again within the next 2 minutes.

Inserting the Batteries into the Remote

Remove the back cover to reveal the battery compartment. You need to do the followings in order to do that:

• Place the tip of a pen or some other pointed object in the hole above the cover and press it down.
• Then press firmly on the cover and slide in the direction of the arrow.

Insert two size AAA batteries. Make sure the (+) and (-) signs match (observe correct polarity). Do not mix old and new batteries. Replace only with same or equivalent type. Place the cover back on.

A message will be displayed on the screen when the batteries are low and must be replaced. Note that when the batteries are low, the performance of the remote control may be impaired.

Batteries should not be exposed to excessive heat such as sunshine, fire or the like.

Power Connection

IMPORTANT: The TV set is designed to operate on a 220-240V AC, 50 Hz supply. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna Connection

Connect the aerial or cable TV plug to the AERIAL INPUT (ANT-TV) socket or satellite plug to the SATELLITE INPUT (ANT SAT) socket located on the rear side of the TV.

Rear side of the TV

1. Satellite
2. Aerial or cable

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

License Notification

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright ©1992-2019 Dolby Laboratories. All rights reserved.

YouTube and the YouTube logo are trademarks of Google Inc.

This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device's ability to consume PlayReady-protected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

The "CI Plus" Logo is a trademark of CI Plus LLP.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

Disposal Information

[European Union]

These symbols indicate that the electrical and electronic equipment and the battery with this symbol should not be disposed of as general household waste at its end-of-life. Instead, the products should be handed over to the applicable collection points for the recycling of electrical and electronic equipment as well as batteries for proper treatment, recovery and recycling in accordance with your national legislation and the Directive 2012/19/EU and 2013/56/EU.

By disposing of these products correctly, you will help to conserve natural resources and will help to prevent potential negative effects on the environment and human health which could otherwise be caused by inappropriate waste handling of these products.

For more information about collection points and recycling of these products, please contact your local municipal office, your household waste disposal service or the shop where you purchased the product.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

[Business users]

If you wish to dispose of this product, please contact your supplier and check the terms and conditions of the purchase contract.

[Other Countries outside the European Union]

These symbols are only valid in the European Union.

Contact your local authority to learn about disposal and recycling.

The product and packaging should be taken to your local collection point for recycling.

Some collection points accept products free of charge.

Note: The sign Pb below the symbol for batteries indicates that this battery contains lead.

1. Products
2. Battery

Specification

TV Broadcasting	PAL BG/I/DKSECAM BG/DK
Receiving Channels	VHF (BAND I/III) - UHF(BAND U) - HYPERBAND
Digital Reception	Fully integrated digital terrestrial-cable TV(DVB-T-C)(DVB-T2 compliant)
Number of Preset Channels	1 000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Audio Output Power(WRMS.) (10% THD)	2 x 10
Power Consumption (W)	120W
Networked Standby Power Consumption (W)	< 2
Weight (kg)	7
TV Dimensions DxLxH(with stand) (mm)	258 x 973 x 619
TV Dimensions DxLxH(without stand) (mm)	56/82 x 973 x 567
Display	43"
Operation temperature and operation humidity	0°C up to 40°C, 85%humidity max

Wireless LAN Transmitter Specifications

Frequency Ranges Max Output Power
2400 - 2483,5 MHz (CH1-CH13) < 100 mW
5150 - 5250 MHz (CH36 - CH48) < 200 mW
5250 - 5350 MHz (CH52 - CH64) < 200 mW
5470 - 5725 MHz (CH100 - CH140)	< 200 mW

Country Restrictions

This device is intended for home and office use in all EU countries (and other countries following the relevant EU directive) without any limitation except for the countries mentioned below.

Country Restriction
Bulgaria	General authorization required for outdoor use and public service
France In-door use only for 2454-2483.5 MHz
Italy	If used outside of own premises, general authorization is required
Greece	In-door use only for 5470 MHz to 5725 MHz band
Luxembourg	General authorization required for network and service supply(not for spectrum)
Norway	Radio transmission is prohibited for the geographical area within a radius of 20 km from the centre of Ny-Ålesund
Russian Federation	In-door use only

The requirements for any country may change at any time. It's recommended that user checks with local authorities for the current status of their national regulations for both 2.4 GHz and 5 GHz wireless LAN's.

(\*) MY BUTTON 1:

This button may have default function depending on the model. However you can set a special function to this button by pressing on it for five seconds when on a desired source or channel. A confirmation message will be displayed on the screen. Now the My Button 1 is associated with the selected function.

Note that if you perform First Time Installation, My Button 1 will return to its default function.

1. Standby: Switches On / Off the TV
2. Numeric buttons: Switches the channel, enters a number or a letter in the text box on the screen.
3. Language: Switches among sound modes (analogue TV), displays and changes audio/subtitle language and turns subtitles on or off (digital TV, where available)

4. Mute: Completely turns off the volume of the TV

5. Volume +/-

6. Guide: Displays the electronic programme guide

7. Directional buttons: Helps navigate menus, content etc. and displays the subpages in TXT mode when pressed Right or Left

8. OK: Confirms user selections, holds the page (in TXT mode), views Channels menu (DTV mode)

9. Back/Return: Returns to previous screen, previous menu, opens index page (in TXT mode). Quickly cycles between previous and current channels or sources

10. Netflix: Launches the Netflix application

11. My Button 1 (*)

12. Coloured Buttons: Follow the on-screen instructions for coloured button functions

13. Rewind: Moves frames backwards in media such as movies

14. No function

15. Play: Starts to play selected media

16. Pause: Pauses the media being played

17. Stop: Stops the media being played

18. Fast Forward: Moves frames forward in media such as movies

19. Prime Video: Launches the Amazon Prime Video application

20. YouTube: Launches the YouTube application

21. Exit: Closes and exits from displayed menus or returns to previous screen

22. Info: Displays information about on-screen content, shows hidden information (reveal - in TXT mode)

23. Menu: Displays TV menu

24. Programme +/-

25. Text: Displays teletext (where available), press again to superimpose the teletext over a normal broadcast picture (mix)

26. Source: Shows available broadcast and content sources

Connections

Connector Type Cables Device
	VGA Connection (back)
AUDIO IN	PC/YPbPr Audio Connection (back)	YPbPr/PC Audio Cable
	HDMI Connection (side&back)
SPDIF	SPDIF (Optical Out) Connection (back)
BACK AV	Back AV (Audio/Video) Connection (back)	Audio Video Cable
HEADPHONE	Headphone Connection (side)
YPBPR	YPbPr Video Connection (back)	PC to YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)
LAN	Ethernet Connection (back)	LAN / Ethernet Cable

If you want to connect a device to the TV, make sure that both the TV and the device are turned off before making any connection. After the connection is done, you can turn on the units and use them.

Switching On/Off

To Switch the TV On

Connect the power cord to a power source such as a wall socket (220-240V AC, 50 Hz).

To switch on the TV from standby mode either:

• Press the Standby button, Programme +/- or a numeric button on the remote control.
• Press the control button on the TV.

To Switch the TV Off

• Press the Standby button on the remote control.
• Press the control button on the TV, the function options menu will be displayed. The focus will be on the Standby option. Press and hold the button for about 2 seconds to activate this option. The icon colour of the option will change. Then press the button once again, the TV will switch into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched into standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK. In the following steps of the installation guide, set your preferences using the directional buttons and OK button.

On the second screen set your country preference. Depending on the Country selection you may be asked to set and confirm a PIN at this point. The selected PIN cannot be 0000. You have to enter it if you are asked to enter a PIN for any menu operation later.

You can activate Store Mode option in the next step. This option will configure your TV's settings for store environment and depending on the TV model being used, the supported features of it may be displayed on the side of the screen as an info banner. This option is intended only for store use. It is recommended to select Home Mode for home use. This option will be available in Settings>System>More menu and can be turned off/on later. Make your selection and press OK to continue.

Depending on the model of your TV and the country selection Privacy Settings menu may appear at this point. Using this menu you can set your privacy privileges. Highlight a feature and use Left and Right directional buttons to enable or disable. Read the related explanations displayed on the screen for each highlighted feature before making any changes. You can use Programme +/- buttons to scroll up and down to read the entire text. You will be able to change your preferences at any time later from the Settings>System>Privacy Settings menu. If the Internet Connection option is disabled Network/Internet Settings screen will be skipped and not displayed. If you have any questions, complaints or comments regarding this privacy policy or its enforcement, please contact by email at [e-mail].

Highlight Next and press OK button on the remote control to continue and the Network/Internet Settings menu will be displayed. Please refer to Connectivity section to configure a wired or a wireless connection. If you want your TV to consume less power in standby mode, you can disable the Wake On option by setting it as Off. After the settings are completed highlight Next and press OK button to continue.

On next screen you can set broadcast types to be searched, set your encrypted channel searching and time zone (depending on the country selection) preferences. Additionally you can set a broadcast type as your favourite one. Priority will be given to the selected broadcast type during the search process and the channels of it will be listed on the top of the channel list. When finished, highlight Next and press OK to continue.

About Selecting Broadcast Type

To turn a search option for a broadcast type highlight it and press OK. The checkbox next to the selected option will be checked. To turn the search option off clear the checkbox by pressing OK after moving the focus on the desired broadcast type option.

Digital Aerial: If D. Aerial broadcast search option is turned on, the TV will search for digital terrestrial broadcasts after other initial settings are completed.

Digital Cable: If D. Cable broadcast search option is turned on, the TV will search for digital cable broadcasts after other initial settings are completed. A message will be displayed before starting to search asking if you want to perform cable network search. If you select Yes and press OK you can select Network or set values such as Frequency, Network ID and Search Step on the next screen. If you select No and press OK you can set Start Frequency, Stop Frequency and Search Step on the next screen. When finished, highlight Next and press OK button to continue.

Note: Searching duration will change depending on the selected Search Step.

Satellite: If Satellite broadcast search option is turned on, the TV will search for digital satellite broadcasts after other initial settings are completed. Before satellite search is performed some settings should be made. Antenna Type menu will be displayed first. You can select Antenna Type as Direct, Single Satellite Cable or DiSEqC switch by using Left or Right buttons. After selecting your antenna type press OK to

see the options to proceed. Continue, Transponder list and Configure LNB options will be available. You can change the transponder and LNB settings using the related menu options.

• Direct: If you have a single receiver and a direct satellite dish, select this antenna type. Press OK to continue. Select an available satellite on the next screen and press OK to scan for services.
• Single Satellite Cable: If you have multiple receivers and a single satellite cable system, select this antenna type. Press OK to continue. Configure settings by following instructions on the next screen. Press OK to scan for services.
• DiSEqC switch: If you have multiple satellite dishes and a DiSEqC switch, select this antenna type. Then set the DiSEqC version and press OK to continue. You can set up to four satellites (if available) for version v1.0 and sixteen satellites for version v1.1 on the next screen. Press OK button to scan the first satellite in the list.

Analogue: If Analogue broadcast search option is turned on, the TV will search for analogue broadcasts after other initial settings are completed.

After the initial settings are completed TV will start to search for available broadcasts of the selected broadcast types.

While the search continues current scan results will be displayed at the bottom of the screen. After all the available stations are stored, Channels menu will be displayed. You can edit the channel list according to your preferences using the Edit tab options or press the Menu button to quit and watch TV.

While the search continues a message may appear, asking whether you want to sort channels according to the LCN(*). Select Yes and press OK to confirm.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel number sequence (if available).

Note: Do not turn off the TV while initializing first time installation. Note that, some options may not be available depending on the country selection.

Media Playback via USB Input

You can connect 2.5" and 3.5" inch (HDD with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up the files on your storage devices before connecting them to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting.

Wait a little while before each plugging and unplugging as the player may still be reading files. Failure to do so may cause physical damage to the USB player

and the USB device itself. Do not pull out your drive while playing a file.

You can use USB hubs with your TV's USB inputs. External power supplied USB hubs are recommended in such a case.

It is recommended to use the TV's USB input(s) directly, if you are going to connect a USB hard disk.

Note: When viewing media files the Media Browser menu can only display a maximum of 1000 media files per folder.

Media Browser

You can play back music and movie files and display photo files stored on a USB storage device by connecting it to your TV. Connect a USB storage device to one of the USB inputs located on the side of the TV.

After connecting a USB storage device to your TV Media Browser menu will be displayed on the screen. You can access the content of the connected USB device any time later from the Sources menu. Select the related USB input option from this menu and press OK. You can also press the Source button on the remote and then select your USB storage device from the list of sources. Then select the file of your choice and press OK to display or play it back.

You can set your Media Browser preferences by using the Settings menu. Settings menu can be accessed via the information bar which is displayed on the bottom of the screen while playing back a video or an audio file or displaying a picture file. Press the Info button if the information bar has disappeared, highlight the gear wheel symbol positioned on the right side of the information bar and press OK. Picture Settings, Sound Settings, Media Browser Settings and Options menus will be available. The contents of these menus may change according to the type of the currently open media file. Only Sound Settings menu will be available while playing back audio files.

Loop/Shuffle Mode Operation
Start playback and activate	All files in the list will be continuously played in original order
Start playback and activate	The same file will be played continuously (repeat)
Start playback and activate	All files in the list will be played once in random order
Start playback and activate	All files in the list will be continuously played in the same random order

To use the functions on the information bar highlight the symbol of the function and press OK. To change the status of a function highlight the symbol of the function and press OK as much as needed. If the symbol is marked with a red cross, that means it is deactivated.

CEC

This function allows to control the CEC-enabled devices, that are connected through HDMI ports by using the remote control of the TV.

The CEC option in the Settings>System>Device Settings menu should be set as Enabled at first. Press the Source button and select the HDMI input of the connected CEC device from the Sources List menu. When new CEC source device is connected, it will be listed in source menu with its own name instead of the connected HDMI ports name(such as DVD Player, Recorder 1 etc.).

The TV remote is automatically able to perform the main functions after the connected HDMI source has been selected. To terminate this operation and control the TV via the remote again, press and hold the "0-Zero" button on the remote control for 3 seconds.

You can disable the CEC functionality by setting the related option under the Settings>System>Device Settings menu accordingly.

The TV supports ARC (Audio Return Channel). This feature is an audio link meant to replace other cables between the TV and an audio system (A/V receiver or speaker system).

When ARC is active, the TV does not mute its other audio outputs automatically. You will need to decrease TV volume to zero manually if you wish to hear the ARC audio only (same as optical or co-axial digital audio outputs). If you want to change connected device's volume level, you should select that device from the source list. In that case volume control keys are directed to connected audio device.

Note: ARC is supported only via the HDMI2 input.

System Audio Control

Allows an Audio Amplifier/Receiver to be used with the TV. The volume can be controlled using the remote control of the TV. To activate this feature set the Sound Output option in the Settings>Sound menu as HDMI ARC. When HDMI ARC option is selected, CEC option will be set as Enabled automatically, if it is not already set. The TV speakers will be muted and the sound of the watched source will be provided from the connected sound system.

Note: The audio device should support System Audio Control feature.

E-Manual

You can find instructions for your TV's features in the E-Manual.

To access the E-Manual, enter Settings menu, select Manuals and press OK. For quick access press Menu button and then Info button.

By using the directional buttons select a desired category. Every category includes different topics. Select a topic and press OK to read instructions.

To close the E-Manual screen press the Exit or Menu button.

Note: Depending on model, your TV may not support this function. The contents of the E-Manual may vary according to the model.

Settings Menu Content

Picture Menu Content
Mode		You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game(optional), Sports, Dynamic and Natural.
	Contrast	Adjusts the light and dark values on the screen.
	Brightness	Adjusts the brightness values on the screen.
	Sharpness	Sets the sharpness value for the objects displayed on the screen.
	Colour	Sets the colour value, adjusting the colours.
Energy Saving		For setting the Energy Saving to Custom, Minimum, Medium, Maximum, Auto, Screen Off or Off.Note: Available options may differ depending on the selected Mode.
	Backlight	This setting controls the backlight level. This option will be available if the Energy Saving is set to Custom. Highlight and use Left/Right directional buttons to set.
Picture Zoom		Sets the desired image size format.
	Picture Shift	This option may be available depending on the Picture Zoom setting. Highlight and press OK, then use directional buttons to shift the picture upwards or downwards.
Iris HDR		Virtual HDR function that manipulates colour, saturation and dynamic contrast, basically converts Standard Dynamic Range picture to High Dynamic Range picture. Set as On to enable.
Advanced Settings
	Dynamic Contrast	You can change the dynamic contrast ratio to desired value.
	Colour Temp	Sets the desired colour temperature value. Cool, Normal, Warm and Custom options are available.
	White Point	If the Colour Temp option is set as Custom, this setting will be available. Increase the 'warmth' or 'coolness' of the picture by pressing Left or Right buttons.
	Iris Blue	White colour enhancement function that makes white colour more cooler in order to make more bright picture. Set as On to enable.
	Iris Dimming	Low, Medium, High and Off options are available. While Iris Dimming is active, it will enhance contrast locally for each defined zone.
	Noise Reduction	If the signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
	Iris Contour	Low, Medium, High and Off options are available. While Iris Contour is active, it will decrease the contour effects in low resolution contents and auto streaming services.
	Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
	Skin Tone	Skin tone can be changed between -5 and 5.
	Colour Shift	Adjust the desired colour tone.
	Gamut Mapping	You can use this option to set the range of colours displayed on your TV screen. When set as On, colours are set according to the source signal. When set as Off, the TV's maximum colour capacity is used by default (recommended option).Note: This option may not be available depending on the TV model and its features.
	HDMI Full Range	While watching from a HDMI source, this feature will be visible. You can use this feature to enhance blackness in the picture.
	Reset	Resets the picture settings to factory default settings (except Game mode).
PC Position		Appears only when the input source is set to VGA/PC.
	Autoposition	If the image is not centered in VGA mode use this option to automatically adjust the position of the image. Press OK to start the auto adjustment.
	H Position	This item shifts the image horizontally to the right hand side or left hand side of the screen.
	V Position	This item shifts the image vertically towards the top or bottom of the screen.
	Dot Clock	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
	Phase	Depending on the input source(computer etc.) you may see a hazy or noisy picture on the screen. You can use phase to get a clearer picture by trial and error.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture menu while in PC mode.

Sound Menu Content
Dolby Audio	Smart, Movie, Music, News and Off options will be available. Set as Off to disable.Note: Some items in Sound menu will be grayed out and unavailable if set to an option other than Off.
Surround Sound	Surround sound mode can be changed as On or Off.
Sound Output	Sets the sound output preference. TV, S/PDIF and HDMI ARC options will be available. There will be no sound output except through the selected option. If HDMI ARC option is selected, CEC feature will be enabled.Note: Depending on the selected option some items in Sound menu will appear as grayed out and will be unavailable.
AVL (Automatic Volume Limiting)	Sets the sound to obtain fixed output level between programmes.If the Dolby Audio menu item is set to an option other than Off the AVL setting options will change. Auto, Night, Normal and Off options will be available. In Auto mode the TV will switch to Normal or Night mode automatically according to the current time information. If no time information is available this option will always function as Normal. When the TV switches to Night mode for the first time after setting this option as Auto, an information bar will pop up on the screen.Please note that compared to Normal mode Night mode provides more aggressive dynamic compression control which is suitable for silent environments.
Advanced Settings
Equalizer	Selects the equalizer mode. Custom settings can be made only when in User mode.
Dynamic Bass	Enables or disables the Dynamic Bass.
Sound Mode	You can select a sound mode (If the viewed channel supports).
Digital Out	Sets digital out audio type. This option will not be available if the Sound Output option is not set as S/PDIF.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.Please ensure before using headphones that this menu item is set to Headphone. If it is set to Headphone, the output from the headphone socket will be set to maximum which could damage your hearing.
Headphone	Sets headphone volume. This option will not be available if the Headphone/Lineout option is not set as Headphone.Please ensure before using headphones that the headphone volume is set to a low level, to prevent damage to your hearing.
Reset	Resets some of the sound settings to factory defaults.
Network Menu Content
Network Type	Disable the network connection or change the connection type.
Scan Wireless Networks	Start a search for wireless networks. This option will be available if the Network Type is set as Wireless Device.
Press WPS on your wifi router	If your modem/router device has WPS, you can directly connect to it using this option. Highlight this option and press OK. Go to your modem/router device and press the WPS button on it to make the connection. This option will be available if the Network Type is set as Wireless Device.
Internet Speed Test	Start a speed test to check your connection bandwidth. The result will be displayed on the screen when finished.
Advanced Settings	Change the IP and DNS configurations of your TV.
Wake On	Enable or disable this feature by setting it as On or Off.
Note: For detailed information on the options of this menu refer to the Connectivity section.

Installation Menu Content
Automatic channel scan (Retune)	Displays automatic tuning options. D. Aerial: Searches and stores aerial DVB stations. D. Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Satellite: Searches and stores satellite stations.
Manual channel scan	This feature can be used for direct broadcast entry.
Network channel scan	Searches for the linked channels in the broadcast system. D. Aerial: Searches for aerial network channels. D. Cable: Searches for cable network channels. Satellite: Searches for satellite network channels.
Analogue fine tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored and if currently watched channel is not an analogue channel.
Satellite Settings	Displays satellite settings. Satellite list: Displays available satellites. You can Add, Delete satellites or Edit satellite settings on the list. Antenna installation: You can change satellite antenna settings and/or start a satellite scan.
Installation Settings (optional)	Displays installation settings menu. Standby Search (*): Your TV will search for new or missing channels while in standby. Any new found broadcasts will be shown. Dynamic Channel Update(*): If this option is set as Enabled, the changes on the broadcasts such as frequency, channel name, subtitle language etc., will be applied automatically while watching. (*) Availability depends on model.
Clear Service List	Use this setting to clear channels stored. This setting is visible only when the Country option is set to Denmark, Sweden, Norway or Finland.
Select Active Network	This setting allows you to select only the broadcasts within the selected network to be listed in the channel list. This feature is available only for the country option of Norway.
Signal Information	You can use this menu item to monitor signal related information such as signal level/quality, network name etc for available frequencies.
First time installation	Deletes all stored channels and settings, resets TV to factory settings.

General TV Operation

Using the Channel List

The TV sorts all stored stations in the channel list. You can edit this channel list, set favourites or set active stations to be listed by using the Channels menu options. Press the OK button to open the channel list. You can filter the listed channels or make advanced changes in the current list using the Filter and Edit tab options. Highlight the tab you want and press OK to see available options.

In order to add the channel you are currently watching to the Home menu, highlight the Add to Home option in the Edit tab in the Channels menu and press OK.

Managing the Favourite Lists

You can create four different lists of your favourite channels. Enter the TV>Channels menu or press the OK button in order to open the Channels menu. Highlight the Edit tab and press OK to see the editing options and select the Tag/Untag channel option. Select the desired channel on the list by pressing the OK button while the channel is highlighted. You can make multiple choices. You can also use the Tag/Untag all option to select all channels on the list. Then press Back/Return button to return to the Edit menu options. Select Add/Remove Favourites option and press the OK button again. Favourite channel list options will be displayed. Set the desired list option to On. The selected channel/s will be added to the list. In order to remove a channel or channels from a favourite list follow the same steps and set the desired list option to Off.

You can use the filtering function in the Channels menu to filter the channels in the channel list permanently according to your preferences. For instance, using the options of the Filter tab, you can set one of your four favourite lists to be displayed every time the channel list is opened.

Configuring Parental Settings

The Parental menu options can be used to prohibit users from viewing of certain programmes, channels and using of menus. These settings are located in the Settings> System>Parental menu.

To display parental lock menu options, a PIN should be entered. After coding the correct PIN, Parental menu will be displayed.

Menu Lock: This setting enables or disables access to all menus or installation menus of the TV.

Maturity Lock: If this option is set, TV gets the maturity information from the broadcast and if this maturity level is disabled, prohibits access to the broadcast.

Note: If the country option in the First Time Installation is set as France, Italy or Austria, Maturity Lock's value will be set to 18 as default.

Child Lock: If this option is set to On, the TV can only be controlled by the remote control. In this case the control buttons on the TV will not work.

Internet Lock: If this option is set to ON, the internet using applications will be disabled. Set to OFF to release these applications again.

Set PIN: Defines a new PIN number.

Default CICAM PIN: This option will appear as greyed out if no CI module is inserted into the CI slot of the TV. You can change the default PIN of the CI CAM using this option.

Note: Default PIN could have been set to 0000 or 1234. If you have defined the PIN(is requested depending on the country selection) during the First Time Installation use the PIN that you have defined.

Some options may not be available depending on the model and/or on the country selection in the First Time Installation.

Electronic Programme Guide

By means of electronic programme guide function of your TV you can browse the event schedule of the currently installed channels on your channel list. It depends on the related broadcast whether this feature is supported or not.

To access the programme guide, press the Guide button on your remote. You can also use the Guide option under TV menu.

There are 2 different types of schedule layouts available, Timeline Schedule and Now/Next. To switch between these layouts highlight the tab with the name of the alternative layout on the upper side of the screen and press OK.

Use the directional buttons to navigate through the programme guide. Use the Back/Return button to use the tab options on the upper side of the screen.

Timeline Schedule

In this layout option, all events of the listed channels will be displayed by timeline. You can use the directional buttons to scroll through the list of the events. Highlight an event and press OK to display event options menu.

Press Back/Return button to use available tab options. Highlight Filter tab and press OK to see the filtering options. To change the layout highlight Now/Next and press OK. You can use the Previous Day and Next Day options to display the events of the previous and next day.

Highlight Extras tab and press OK to access below options.

Highlight Genre: Displays Highlight Genre menu. Select a genre and press OK. The events in the programme guide matching the selected genre will be highlighted.

Guide Search: Displays searching options. Using these options, you can search the programme guide

database in accordance with the selected criteria. Matching results will be listed.

Now: Displays current event of the highlighted channel.

Zoom: Highlight and press OK to see events in a wider time interval.

Now/Next Schedule

In this layout option, only the current and next events of the listed channels will be displayed. You can use the directional buttons to scroll through the list of the events.

Press Back/Return button to use available tab options. Highlight Filter tab and press OK to see the filtering options. To change the layout highlight Timeline Schedule and press OK.

Event Options

Use the directional buttons to highlight an event and press OK button to display Options menu. The following options are available.

Select Channel: Using this option, you can switch to the selected channel in order to watch it. The programme guide will be closed.

More Info: Display detailed information on the selected event. Use up and down directional buttons to scroll through the text.

Set Timer on Event / Delete Timer on Event: Select Set Timer on Event option and press OK. You can set timers for future events. To cancel an already set timer, highlight that event and press the OK button. Then select Delete Timer on Event option. The timer will be cancelled.

Notes: You cannot switch to any other channel while there is an active timer on the current channel.

It is not possible to set timer for two or more individual events at the same time interval.

Teletext Services

Press the Text button to enter. Press again to activate mix mode, which allows you to see the teletext page and the TV broadcast at the same time. Press once more to exit. If available, sections in the teletext pages will become colour-coded and can be selected by pressing the coloured buttons. Follow the instructions displayed on the screen.

Digital Teletext

Press the Text button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the Text button is pressed again, the TV returns to television broadcast.

Software Upgrade

Your TV is capable of finding and updating the firmware automatically via the broadcast signal or via Internet.

Software upgrade search via user interface

On the main menu select Settings>System and then More. Navigate to Software upgrade and press the OK button. Then select Scan for upgrade and press OK button to check for a new software upgrade.

If a new upgrade is found, it starts to download the upgrade. After the download is completed, a warning will be displayed, press OK button to complete software upgrade process and restart TV.

3 AM search and upgrade mode

Your TV will search for new upgrades at 3:00 o'clock if Automatic scanning option is set to Enabled and if the TV is connected to an aerial signal or to Internet. If a new software is found and downloaded successfully, it will be installed at the next power on.

Note: Do not unplug the power cord while led is blinking during the reboot process. If the TV fails to come on after the upgrade, unplug, wait for two minutes then plug it back in.

All updates are automatically controlled. If a manual search is carried out and no software is found then this is the current version.

Troubleshooting & Tips

TV will not turn on

Make sure the power cord is plugged in securely to a wall outlet. Press the Power button on the TV.

Poor picture

• Check if you have correctly tuned the TV.
• Low signal level can cause picture distortion. Please check antenna connections.
• Check if you have entered the correct channel frequency if you have performed manual tuning.

No picture

• TV is not receiving any signal. Make sure the correct source has been selected.
  • Is the antenna connected properly?
  • Is the antenna cable damaged?
  • Are suitable plugs used to connect the antenna?
  • If you are in doubt, consult your dealer.

No sound

• Check if the TV sound is muted. Press the Mute button or increase the volume to check.
  • Sound may be coming from only one speaker. Check the balance settings from Sound menu.

Remote control - no operation

• The batteries may be exhausted. Replace the batteries.
• The batteries maybe inserted incorrectly. Refer to the section "Inserting the Batteries into the Remote".

No signal on an input source

• It is possible that no device is connected.

• Check the AV cables and connections from your device.
• Check the device is switched on.

The Image is not centered in VGA source

To have your TV automatically center the image, enter the PC Position menu in Picture menu, highlight Autoposition and press OK. Wait for it to finish. In order to set the position of the image manually you can use H Position and V Position options. Select the desired option and use Left and Right directional buttons on the remote to set.PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions.

Index	Resolution	Frequency
1	0x350 85Hz
2	0x480 60Hz
3	0x480 72Hz
4	0x480 75Hz
5	00x600 56Hz
6	0x600 60Hz
7	0x600 72Hz
8	0x600 75Hz
9	24x768 60Hz
10	24x768 70Hz
11	24x768 75Hz
12	24x768 85Hz
13	52x864 75Hz
14	80x768 60Hz
15	280x768 75Hz
16	80x960 60Hz
17	80x960 75Hz
18	80x1024 60Hz
19	80x1024 75Hz
20	60x768 60Hz
21	66x768 60Hz
22	00x1050 59Hz
23	00x1050 60Hz
24	00x1050 75Hz
25	440x900 60Hz
26	40x900 75Hz
27	00x1200 60Hz
28	80x1050 59Hz
29	80x1050 60Hz
30	20x1080 60Hz

AV and HDMI Signal Compatibility

Source Supported Signals Available
Back AV	PAL O
	SECAM O
	NTSC4.43		O
	NTSC3.58		O
YPbPr	480i, 480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i 50Hz,60Hz O
HDMI	480i	60Hz	O
	480p	60Hz	O
	576i, 576p	50Hz	O
	720p	50Hz,60Hz	O
	1080i 50Hz,60Hz O
	1080p	24Hz,25Hz,30Hz,50Hz,60Hz	O
	3840x2160p	24Hz,25Hz,30Hz,50Hz,60Hz	O
	4096x2160p	24Hz,25Hz,30Hz,50Hz,60Hz	O

(X: Not Available, O: Available)

In some cases a signal on the TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Video File Formats

File Extension	Format
	Video Codec Audio
.mpg/.mpeg/.dat/.vob	MPEG1/2, H.264, VC1	MPEG Layer 1/2/3, AC3
.ts/.trp/.m2ts/.mts		MPEG Layer 1/2/3, AC3, E-AC3
.avi	MPEG1/2, MPEG4, H.264, MJPEG	MPEG Layer 1/2/3, AC3, AAC, WMA
.mp4/.m4a/.m4v/.mov/.qt/.3gp/.3g2/.3gpp	MPEG1/2, H.263, MPEG4, H.264	MPEG Layer 1/2/3, AAC LC, AC3
.mkv	MPEG 1/2, MPEG4, H.264	MPEG Layer 1/2/3, AAC, AC3
.flv	Sorenson Spark, MPEG4, H.264	MPEG Layer 3, ADPCM, AAC LC
.ogm/.ogg MPEG1/2, MPEG4 MP3, Vorbis
.asf/.wmv MPEG4,	WMV3, VC1 WMA, AMR-NB
.rm/.rmvb RV30, RV	V40 COOK, AAC LC / HE-AA
.webm VP9, VP8 OPUS, Vorbis

Picture File Formats

File Extension	Format
.jpg/.jpeg JPEG, PJPEG
.bmp BMP
.gif GIF
.png PNG
.tiff/.tif TIFF
.webp Webp

Audio File Formats

File Extension	Format
	Video Codec Audio
.mp3 mp3
.ac3 ac3
.aac AAC
.wma WMA
.wav		MPEG Layer 1/2/3, AAC, PCM
.flac		FLAC
.ogg OGG	Vorbis
.m4a M4A	AAC

Subtitle File Formats

External Subtitles
Extension Specification
.ssa SubStation Alpha
.ass Advanced Sub Station Alpha
.srt Subripper
.sub Micro DVD / SubViewer
.sub + .idx VOBSub
.txt Micro DVD / TMPlayer / MPL2
.mpl MPL2
.smi Sami
.jss JACOSUB
.ttml TTML
.txt / .sub DVDSUBTITLE
.lrc -

Internal Subtitles
Extension Specification
.mkv VOBSub
.mkv ASS / SSA / TEXT
.dat, .mpg, .mpeg, .vob	DVD Subtitle
.mp4 DVD Subtitle,	TEXT

Supported DVI Resolutions

When connecting devices to your TV's connectors by using DVI converter cable(DVI to HDMI cable - not supplied), you can refer to the following resolution information.

	56Hz 60Hz	66Hz 70Hz	72Hz 75Hz
640x480		X				X
800x600	XXX
1024x768		XXX
1280x768		X				X
1280x960		X
1360x768		X
1366x768		X
1280x1024		XXX
1400x1050		X
1600x900		X
1920x1080		X

Connectivity

Wired Connectivity

To Connect to a Wired Network

• You must have a modem/router connected to an active broadband connection.
• Connect your TV to your modem/router via an Ethernet cable. There is a LAN port at the (back) of your TV.

1. Broadband ISP connection
2. LAN (Ethernet) cable
3. LAN input on the rear side of the TV

To configure wired settings refer to the Network section in the Settings menu.

- You might be able to connect your TV to your LAN depending on your network's configuration. In such a case, use an Ethernet cable to connect your TV directly to the network wall outlet.

1. Network wall socket
2. LAN input on the rear side of the TV

Configuring Wired Device Settings

Network Type

The Network Type can be selected as Wired Device, Wireless Device or Disabled, in accordance with the active connection to the TV set. Select this as Wired Device if you are connecting via an Ethernet cable.

Internet Speed Test

Highlight Internet Speed Test and press the OK button. TV will check the internet connection bandwidth and display the result when complete.

Advanced Settings

Highlight Advanced Settings and press the OK button. On the next screen you can change the IP and DNS settings of the TV. Highlight the desired one and press Left or Right button to change the setting from Automatic to Manual. Now you can enter the Manual IP and / or Manual DNS values. Select the related item in the drop down menu and enter the new values using the numeric buttons of the remote. Highlight Save and press the OK button to save settings when complete.

Wireless Connectivity

To Connect to a Wireless Network

The TV cannot connect to the networks with a hidden SSID. To make your modem's SSID visible, you should change your SSID settings via the modem's software.

Illustration of a network device with wireless signal waves and a globe icon, connected to a monitor (no text or symbols)

1. Broadband ISP connection

A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands is designed to increase bandwidth. These are optimized for smoother and faster HD video streaming, file transfers and wireless gaming.

• The frequency and channel differ depending on the area.
- The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic and the products that you use. The transmission may also be cut off or may get disconnected depending on the radio wave conditions, DECT phones or any other WLAN 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.

• The location where the transmission is most effective differs depending on the usage environment.
• The Wireless feature of the TV supports 802.11 a,b,g & n type modems. It is highly recommended that you should use the IEEE 802.11n communicatio protocol in order to avoid any possible prot while watching videos.
• You must change your modem's SSID when there are any other modems around with the same SSID. You can encounter connection problems otherwise. Use a wired connection if you experience problems with a wireless connection.

Configuring Wireless Device Settings

Open the Network menu and select Network Type as Wireless Device to start connection process.

Highlight Scan Wireless Networks option and press OK to start a search for available wireless networks. All found networks will be listed. Highlight your desired network from the list and press OK to connect.

Note: If the modem supports N mode, you should set N mode settings.

If the selected network is password-protected, enter the correct key by using the virtual keyboard. You can use this keyboard via the directional buttons and the OK button on the remote control.

Wait until the IP address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network, high Network Type and press Left or Right buttons to set as Disabled.

If your router has WPS, you can directly connect to the modem/router without entering a password or adding the network first. Highlight Press WPS on your wifi router option and press OK. Go to your modem/router device and press the WPS button on it to make the connection. You will see a connection confirmation on your TV once the devices have paired. Select OK to proceed. No further configuration is required.

Highlight Internet Speed Test and press the OK button to check your internet connection speed. Highly Advanced Settings and press the OK button to open the advanced setting menu. Use directional and numeric buttons to set. Highlight Save and press the OK button to save settings when complete.

Other Information

The status of the connection will be displayed. Connected or Not Connected and the current IP address, if a connection is established.

Connecting to your mobile device via WLAN

- If your mobile device has WLAN feature, you can connect it to your TV via a router, in order to access the content in your device. For this, your device must have an appropriate sharing software.

Connect your TV to your router following the steps mentioned in the sections above.

g Afterwards, connect your mobile device to the router that and then activate the sharing software on your mobile tiondevice. Then, select files that you want to share with mobile TV.

If the connection is established correctly, you v be able to access the shared files installed on your mobile device via the Audio Video Sharing (AVS feature of your TV.

Highlight the AVS option in the Sources menu and press OK, available media server devices in network will be displayed. Select your mobile device and press the OK button to continue.

- If available, you can download a virtual remote controller application from the server of your mobile device application provider.

Note: This feature may not be supported on all mobile devices.

Wake ON

Wake-on-LAN (WoL) and Wake-on-Wireless LAN (WoWLAN) are standards that allow a device to be turned on or woken up by a network message. The message is sent to the device by a program executed on a remote device connected to the same local area network, such as a smartphone.

Your TV is WoL and WoWLAN compatible. This feature might be disabled during the First Time Installation light process. To enable this feature set the Wake On option in the Network menu as On. It is necessary that both the device, from which the network message will be sent to the TV, and the TV are connected to the same network. Wake On feature is only supported for Android OS devices and can only be used via YouTube and Netflix applications.

In order to use this feature the TV and the remote device should be connected at least once while the TV is on. If the TV is powered off, the connection should be re-established, the next time it is switched on. Otherwise this feature will be unavailable. This does not apply, when the TV is switched into the standby mode.

If you want your TV to consume less power in standby mode, you can disable this feature by setting the Wake On option as Off.

Wireless Display

/ed as Wireless Display is a standard for streaming video and sound content. This feature provides the ability to use your TV as wireless display device.

Using with mobile devices

There are different standards which enable sharing of screens including graphical, video and audio content between your mobile device and TV.

Plug the wireless USB dongle to TV first, if the TV doesn't have internal WLAN feature.

Then press the Source button on the remote and switch to Wireless Display source.

A screen appears stating that the TV is ready for connection.

Open the sharing application on your mobile device. These applications are named differently for each brand, refer to the instruction manual of your mobile device for detailed information.

Scan for devices. After you select your TV and connect, the screen of your device will be displayed on your TV.

Note: This feature can be used only if the mobile device supports this feature. If you experience problems with the connection check if the operating system version you use supports this feature. There may be incompatibility problems with the operating system versions which are released after the production of this TV. Scanning and connecting processes differ according to the programme you use.

Connecting Other Wireless Devices

Your TV supports another short range wireless connection technology too. A pairing is required before using these kind of wireless devices with the TV set. You should do the following to pair your device with the TV:

- Set the device to pairing mode

• Start device discovery on the TV

Note: Refer to the user manual of the wireless device to learn how to set the device to pairing mode.

You can connect audio devices or remote controllers wirelessly to your TV. Unplug or switch off any other connected audio device in order for wireless connection feature to work correctly. For audio devices you should use the Audio Link option in the Settings>Sound menu, for remote controllers the Smart Remote option in the Settings>System>More menu. Select the menu option and press the OK button to open the related menu. Using this menu you can discover and connect the devices that use the same wireless technology and start to use them. Follow the on-screen instructions. Start the device discovery. A list of available wireless devices will be displayed. Select the device you want to connect from the list and press the OK button to connect. If "Device connected" message is displayed, the connection is successfully established. If the connection fails try it again.

Connectivity Troubleshooting

Wireless Network Not Available

• Ensure that any firewalls of your network allow the TV wireless connection.
• Try searching for wireless networks again, using the Network menu screen.

If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connectivity section for more information on the process.

If the TV does not function using the wired connection, check the modem (router). If the router does not have a problem, check the internet connection of your modem.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Disruption during playback or slow reactions

You could try the following in such a case:

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other WLAN compatible devices. Try changing the active channel on the WLAN router.

Internet Connection Not Available / Audio Video Sharing Not Working

If the MAC address (a unique identifier number) of your PC or modem has been permanently registered, it is possible that your TV might not connect to the internet. In such a case, the MAC address is authenticated each time when you connect to the internet. This is a precaution against unauthorized access. Since your TV has its own MAC address, your internet service provider cannot validate the MAC address of your TV. For this reason, your TV cannot connect to the internet. Contact your internet service provider and request information on how to connect a different device, such as your TV, to the internet.

It is also possible that the connection may not be available due to a firewall problem. If you think this causes your problem, contact your internet service provider. A firewall might be the reason of a connectivity and discovery problem while using the TV in Audio Video Sharing mode or while browsing via Audio Video Sharing feature.

Invalid Domain

Ensure that you have already logged on to your PC with an authorized username/password and also ensure that your domain is active, prior to sharing any files in your media server program on your PC. If the domain is invalid, this might cause problems while browsing files in Audio Video Sharing mode.

Using Audio Video Sharing Network Service

Audio Video Sharing feature uses a standard t eases the viewing process of digital electronics and makes them more convenient to use on a hot network.

This standard allows you to view and play music and videos stored in the media server connected to your home network.

1. Server Software Installation

The Audio Video Sharing feature cannot be used if the server programme is not installed onto your PC or if the required media server software is not installed onto the companion device. Prepare your PC with a proper server programme.

2. Connect to a Wired or Wireless Network

See the Wired/Wireless Connectivity chapters for detailed configuration information.

3. Enable Audio Video Sharing

Enter the Settings>System>More menu and enable the Audio Video Sharing option.

4. Play Shared Files via Media Browser

Highlight the AVS option in the Sources menu by using the directional buttons and press OK. Available media server devices in the network will be listed. Select one and press OK to continue. The media browser will then be displayed.

Refer to the Media Browser menu section for further information on file playback.

If a problem occurs with the network, switch your television off at the wall socket and back on again. Trick mode and jump are not supported with the Audio Video Sharing feature.

PC/HDD/Media Player or any other devices that are compatible should be used with a wired connection for higher playback quality.

Use a LAN connection for quicker file sharing between other devices like computers.

Note: There may be some PC's which may not be able to utilize the Audio Video Sharing feature due to administrator and security settings (such as business PC's).

Apps

You can access the applications installed on your TV from Apps menu. Highlight an app and press OK to launch.

In order to manage the apps installed on your TV, add new apps from the market or to see all available apps in full screen mode highlight the Add More option and press OK. Using this menu option you can add an installed app to Home menu, launch or remove it. Removed apps will no longer be accessible from Apps menu. You can also add new apps from the market. In order to enter the market highlight the shopping basket logo located on the upper left side of the screen and press OK. Available apps in the market will be displayed. Use directional buttons to highlight an app and press OK. Highlight Add to Apps option and press OK again to add the selected app to Apps menu.

For quick access to Add More menu you can press the Internet button on the remote, if this button is available.

Notes:

Possible application dependent problems may be caused by the content service provider.

Third party internet services may change, be discontinued or restricted at any time.

Internet Browser

To use the internet browser, enter the Apps menu first. Then launch the internet browser application which has an orange coloured logo with earth symbol on it.

In the initial screen of the browser, the thumbnails of the predefined (if any) links to web sites available will be displayed as Speed Dial options along with the Edit Speed Dial and the Add to Speed Dial options.

To navigate the web browser, use the directional buttons on the remote or a connected mouse. To see the browser options bar, move the cursor to the top of the page or press the Back/Return button. History, Tabs and Bookmarks options and the browser bar which contains previous/next buttons, the refresh button, the address/search bar, the Speed Dial and the Vewd buttons are available.

To add a desired website to the Speed Dial list for quick access, move the cursor to the top of the page or press the Back/Return button. The browser bar will appear. Highlight the Speed Dial - button and press the OK button. Then select Add to Speed Dial option and press the OK button. Fill in the blanks for Name and Address, highlight OK and press the OK button to add. Whilst you are on the site you wish to add to the Speed Dial list, highlight the Vewd button and press the OK button. Then highlight Add to Speed Dial option in the submenu and press the OK button again. Name and Address will be filled automatically according to the site you are visiting. Highlight OK and press the OK button to add.

You can also use the Vewd menu options to manage the browser. Highlight the Vewd button and press the OK button to see available page specific and general options.

There are various ways to search or visit websites using the web browser.

Enter the address of a website(URL) into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to visit the site.

Enter keyword/s into the search/address bar and highlight the Submit button on the virtual keyboard and press the OK button to start a search for the related websites.

Highlight a Speed Dial thumbnail and press the OK button to visit the related website.

Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor into the USB input of your TV for easier and quicker navigation.

Some web pages include flash content. These are not supported by the browser.

Your TV does not support any download processes from the internet via the browser.

All sites on the internet might not be supported. According to the site; content problems may occur. In some circumstances video contents might not be able to be played.

HBBTV System

HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, electronic programme guide, interactive advertising, personalisation, voting, games, social networking and other multimedia applications.

HbbTV applications are available on channels where they are signalled by the broadcaster. The broadcaster marks one application as "autostart" and this one is started by the platform automatically. The autostart applications are generally launched with a small red button icon to notify the user that there is an HbbTV application on that channel. Press the red button to open the application page. After the page is displayed you can go back to the initial red button icon state by pressing the red button again. You can toggle between the red button icon mode and full UI mode of the application via pressing red button. It should be noted that the red button switching capability is provided by the application and some application may behave differently (other colour buttons such as green, yellow, blue, may be defined for some other functions, e.g. shortcuts).

If you switch to another channel while an HbbTV application is active (either in red button icon mode or full UI mode), the following scenarios can occur.

• The application can continue running.
• The application can be terminated.
- The application can be terminated and another autostart red button application can be launched.

HbbTV allows the applications to be retrieved both from broadband or broadcast. The broadcaster may enable both ways or one of them. If the platform does not have an operational broadband connection, the platform can still launch applications transmitted on broadcast.

The autostart red button applications generally provide links to other applications. The user then can switch to other applications by using the links provided. The applications should provide a way to terminate themselves, usually Exit button is used for this.

HbbTV applications use keys on the remote control to interact with the user. When an HbbTV application is launched, the control of some keys are owned by the application. For example, numeric channel selection may not work on a teletext application where the numbers indicate teletext pages.

HbbTV requires AV streaming capability for the platform. There are numerous applications providing VOD (video on demand) and catch-up TV services. The user can use play, pause, stop, forward, and rewind keys on the remote control to interact with the AV content.

Note: You can enable or disable this feature from the More menu in Settings>System menu. Depending on the model of your TV and the selected country option in the First Time Installation this feature might be available in the Settings>System>Privacy Settings menu instead of the Settings>System>More menu.

DVB functionality information

This DVB receiver is only suitable for use in the country which it was designed to be used in.

Although this DVB receiver conforms to the latest DVB specifications at the time of manufacture, we cannot guarantee compatibility with future DVB transmissions due to changes that may be implemented in broadcast signals and technologies.

Some digital television functions may not be available in all countries.

We continually strive to improve our products; therefore, specifications may change without prior notice.

For advice on where to purchase accessories, please contact the store where you purchased your equipment.

Tartalomjegyzék

Simple diagram showing a circular object and a rectangular shape with curved lines, no text or symbols present.

	56Hz 60Hz 66Hz 70Hz 72Hz 75Hz
640x480		X			X
800x600	X X X
1024x768		X X X
1280x768		X			X
1280x960		X
1360x768		X
1366x768		X
1280x1024		X X X
1400x1050		X
1600x900		X
1920x1080		X

A	Product Fiche
B	Commercial Brand:HYUNDAI
C	Product No.	10125068
D	Model No.	ULW43TS643SMART
E	Energy efficiency class	A+
F	Visible screen size (diagonal,approx.) (inch/cm)	43 inches	108 cm
G	On mode average power consumption (Watt)	54,0
H	Annual energy consumption (kWh/annum) (*)	78
I	Standby power consumption (Watt)	0,50
J	Off mode power consumption (Watt)	N/A
K	Display resolution (px)	3840x2160

	A	B	C	D	E	F
English Product Fiche Commercial Brand Product No. Model No. Energy efficiency class Visible screen size(diagonal, a prox.) (inch/cm)
Deutsch	Produkt-Datenblatt Markenzeichen Produkt-Nr. Modell-Nr. Energieeffizienzklasse Sichtbare Bildschirmgröße(diagonal.ca) (Zoll /cm)
عربي	فابس انتج	العلامة التجارية: تليوئكن	رقم انتج	رقم الوبيل	ف teensة العلامة الطاقة	(بوزص/م)
Български	Справочен лист с техническитед анни	Търговска марка	Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана (диагонал.прибл.) (инча /см
čeština	Produktovy list	Značka výrobce	Číslo produktu	Model č.	Energetická třída	Viditelná velikost obrazovsky (ühlo přička.přibl.) (palců /cm)
Dansk	Produktoplysningsskema	Varemærke	Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt.ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Näkyvän kuvaruudun koko (diagonaalinen.n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visibile (diagonale,approx.) (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva veličina ekrana (diagonalna, pibližno) (inča/cm
Nederlands	Productfiche	Commercieel merk.	Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgrootte (diagonaal.ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial	N° de Producto	N° de Modelo	Clasificación Energética	Tamaño de pantalla visible (diagonal. aprox. ynubadas/cm
Svenska	Produktspecifikation	Varumärke	Produktnr.	Modellnr.	Energiklass	Synlig skärmstorlek (diagonal. ungefädig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensioni visibili dello schermo (diagonale. circaip ollici/cm)
Polski	KARTA PRODUKTU	Marka produktu	Nr produktu	Nr modelu	Klasa efektywności energetycznej	Widoczny obraz ekranu (przeką tna.okolo) (cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi márka	Termékszám	Modellszám	Energiahatékonysági osztály	Latható képtartomány (diagonális.kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência energética	Tamanho ecrà visível (diagonal, aprox.) (polegadas/cm)
Română	Fişă produs	Marcă comercială	Nr. Produs	Nr. Model	Clasa de eficiență energetică	Dimensiunea ecranului vizibil (diagonală, ș rox.) (inch/cm
Русский	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали, Около) (дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали, Около) (дюймов/см)
македонски	Технички податоци	Комерцијална марка	Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран (диагонала. окол у) (инчи/cm)
український	Технічні дані	Кормеційна марка	Артикул	Модель	Клас енергоспоживання	Видимий розмір екрана (диагональ, Приблизно) (д юймів/см)
Srpski	Tehničke odlike	Komercijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Veličina vidljivog ekrana (diagonala, tokom) (inča/cm)
Slovenčina	Produktovy list	Značka výrobcu	Číslo produktu	Model č.	Energetická trieda	Viditelná velikost obrazovsky (uhlo prička.zhruba) (palcov/cm
Slovenščina	Opis izdelka	Komercialna znamka	Št. Izdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллнікі	Делтіо проϊόντος	Емторико о́німа	Ар. Проϊόντος	Ар. Монтёлου	Катуура іверyeισκής аттобооңς	Оратó μέγεθος οθόνης (διαγώνιος, περ) (vtσεc/cm
Bosanski	Tehnički podaci	Komercijalna marka	Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva veličina ekrana (diagonala, πιλίπικο) (inča/cm)
ن脫	ن脫ت عَلَّدُ	ن脫ت عَلَّدُ	ن脫ت عَلَّدُ	ن脫ت عَلَّدُ	ن脫ت عَلَّدُ	(ο/υχ)(σιμασι, σιμασι) (σιμασι)
Türkçe	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimliliği simfi	Görülen ekran boyutu (çapraz, yakışk.) (in c/cm
Shqip	Tê dhénat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa e eficiencês sé energjisë	Madhésia e ekranit të dukshëm (diagonal, afërsish) (inc/m
Lietuvlių	Gaminio etiketė	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasé	Matomas ekran odydis (įstrižainė, a pprox.) (coł) (cm)
Latviešu	Produkta apraksts	Marka	Produkta nr.	Modelja nr.	Energoeffektivitätes klase	Ekrána izmërs (pa diognäll, apmçram) (collas/cm
Eesti	TOOTEKIRJELDUS	Tootja firma	Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekraani suurus (diagonaal, umbeş) (tolli/cm)
فارمسی	مشخصات محصول	مارک تجاريى	ثمارات محصول	ثمارات Montreal	گروه کزایی ارزی	انذازه صفحه قابل مشاهده (هنستی کتریا) (انیچ) (سندی متر)

	G	H	I	J	K
English On mo	le average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im elrgeschaltetem Zustand (Watt )	Jährlicher Energieverbrauch ( kWh/Jahr )	Standby-Stromverbrauch (Watt) Stromverbrauch im ausgeschaltetem Zustand (Watt)		Display-Auflösung (px)
عربية	متوسط استهلاك الطاقة đến تج ergان (أيول)	(الاسستهلاك المسيدي الماقلاك) (كابو وطلاطلاة)	(شستهلاك اتطة في وضيع الاسستهلاك) (فراط)	(شستهلاك الطاقة في وضيع الاسستهلاك) (فراط)	(ضوح الشاشة) (كيل)
Български	Средна консумация на електроенергия във включено състояние(Watt)	годиша консумация на електроенергия (kWh/Годишна)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Prüměrná spotřeba elektrické energie v zap nutém režimu(Wattú)	Roční spotřeba energie ( kWh/Roční )	Spotřeba elektrické energie v photovostním režimu (Wattú)	Spotřeba elektrické energie ve vypnutém režimu (Wattú )	Rozlišení displeje (px)
Dansk	Gennemsnitligt stromforbrug i taedt tilstand(Watt )	Arligt energiforbrug (kWh/Arligt)	Stromforbrug (standby)(Watt)	Stromforbrug i slukket tilstand (Watt)	Skærmoplopsning (px)
Suomi	Päälla-tilan keskimääräinen virrankulutus(Wattia)	Vuosittainen sähkönkulutu ( kWh/Vuosittainen )	Vakovirran kulutus (Wattia) Pois-tilan	Virrankulutus (Wattia) Naytön erottelukyky	(pikselia)
Français	Consommation énergétique moyenne en mode "marche"Watt )	Consommation énergétique annuelle ( kWh/annuel )	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode "arrêt" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosjačna polrošnja el. energije kada je proizvod ukučen (Watta)	Godišnja polrošnja el. Energije ( kWh/Godišn ji	Polrošnja el. energija u modu pripravnosti (Watta)	Polrošnja el. energije kada je proizvod iskl jučen(Watta )	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt )	Jaarlijks energieverbruik ( kWh/Jaarlijks )	Stand-by stroomverbruik (Watt) Uit-modus stroomverbruik (Watt) Schemresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento(Vatio)	Consumo eléctrico anual ( kWh/anual )	Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado ( Vatió	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PA-läge (Watt) Energikonsumtion per ár ( kWh/Arig )	Consumo anuale di energia ( kWh/annuf )	Strömkonsumtion i viloläge (Watt) Strömkonsumtion i AV-läge (Watt) Skåmpuplösning (pixlar)
Italiano	Consumo di corrente medio da acceso (Watt )	Consumo annuale di energia ( kWh/annuf )	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt) R	Resolución del display (px)
Polski	Srednie zużycie energil w trybie watzony m(Watów )	Roczne zużycie energil ( kWh/Roczne )	Srednie zużycie energil w trybie oczekiwania Watów )	Zużycie energil w tryble wyłączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hapvott üzemmódban ( Watt )	Eves energiafogyasztás (kWh/Eves)	Energiafogyasztás standby üzemmódban Watt	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Kapernyőfelbontás (px)
Norsk	Pàmodus gjennomsnittlig stromforbruk (Watt )	Arlig stromforbruk (kWh/Arlig)	Hvilemodus stromforbruk (Watt)	Av-modus stromforbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt )	Consumo annual energia ( kWh/anual )	Consumo energia em stand-by (Watt)	Consumo energia em modo alimenta gao( Watt)	Resolução do visor (pixel)
Română	Consum electric mediu in modul pornit (Wat )	Consum anuale de energie ( kWh/anual )	Consum electric in stare de repaus (Wat)	Consum electric in modul oprit (Wat)	Rezolutja ecranului (pixel)
Русский	Средний расход энергии в режиме работы(Bt )	Ежегодный расход энергии (кВт/Год)	Расход энергии в режиме ожидания(Bt)	Расход энергии в выключенном режиме (Bt)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включенияватт)	Ежегодный расход энергии ( kWh/гаю авоэ)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е вяччен	Годиша потрошувачка на енергія ( kWh/Годишна )	Потрошувачка во мирување (вати)	Потрошувачка кога е исклучен (вати)	Резолуција на екран (пиксели)
український	Середня споживана потужність у робочому режимі (Вт)	Середньорфіна споживана потужність ( kWh/Річні)	Споживана потужність у режимі очівування ( Вт)	Споживана потужність у вимкненому стані ( Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključení (Vati)	Godišnja potrošnja energije ( kWh/Godišn ji	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključení (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priememá spotreba elektrickej energie v zapnutom režime(Wattov)	Ročná spotreba energie ( kWh/Ročná )	Spotreba elektrickej energie v photovostnom režime (Wattov )	Spotreba elektrickej energie vo vyprutom režime (Wattov)	Rozlíšenie displeja (pixl.)
Slovenščina	Poraba električne energije v рокреčнем načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju priprajenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллэнvikó	Месяن катаво́шоң peúματος λειτονγίας (Watt)	Επήσια κατανάλωση ενέργειας ( kWh/Επ στό)	Κατανάλωση peúματος στην αναμονή (Watt)	Κατανάλωση peúματος στε απενεργοποι κοπ (Watt)	Ανάλυση οδόνης (Піξελ)
Bosanski	Prosjecna potrošnja kada je uključen (Watt )	Godišnja potrošnja energije ( kWh/Godišn ji	Potrošnja tokom mirovanja (Watt) Potrošnja kada je isključen (Watt) Rezolucija ekrana (piks.)
Түйкçe	(оки)'звеки төнгөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн негін нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөкнін нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн нөн неги	(подыт "дип" түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түй, түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түй күнгүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн түйкүн т

(*) English Energy consumption kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
(*) Deutsch Energieverbrauch kWh/Jahr, auf der Grundlage eines täglich vierständigen Betriebs des Fernsehgerätes an 365 Tagen. Der tatsächliche Energieverbrauch hängt von der Art der Nutzung des Fernsehgerätes ab
(٣) عَرَابِ (٤) استبَالِهِ اطَّدَة كَيْن وَأَطْ سُرْبِوا بِكُهِ بِنَدَى على استبَالِهِ طَذَة تَلَزَّوِن يُحْصَل 4 سَاعاتِ وَمُبا لَمَدَ 365 بِمْر. بِعَضَدِ الْإِسْتَبِالِكُ الْعَلَى تِنْطَائَة عَلَى مِنْ طَرِفَة إِسْخَذَاكُ الْحُمِيل.
(*) Български Консумация на енергия KWh годишно, изчислена на базата на 4 работни часа дневно при 365 дни. Действително консумираната енергия ще зависи от начина на употреба на телевизора.
(*) čeština Spotřeba elektrické energie kWh za rok vycházejici ze spotřeby elektrické energie televizního přijimače, kter ý je v provozu 4 hodiny denně po dobu 365 dní. Skutečná spotřeba elektrické energie závisi na způsobu půžití televizního p římače.
(*) Dansk Energiforbrug: kWh om årel, beregnet som fjernsynets effektforbrug, hvis del er taandt 4 timer om dagen i 365 dage. Del faktiske energiforbrug vil bero på, hvordan fjernsynet bruges.
(*) Suomi Energiankulutus kWh: a vuodessa, kun oletetaan, että televisiota käytetään 4 tuntia päivässä 365 päivän ajan. Todellinen energiankulutus rilppuu television käyttötavasta.
(*) Francais Consommation d'énergie de kWh par an, sur la base de la consommation électrique d'un téléviseur fonctionnant quatre heures par jour pendant trois cent soixante-cinq jours. La consommation réelle dépend des
conditions d'utilisation du téléviseur.
(*) Hrvatski Utrošak enerolie iznosi kWh oodišnie na temeliu utroška enerolie televizora koji radi četiri sata dnevno 365 dana u odini. Stvarni utrošak enerolie ovisit će o tome kako se upotreblava televizor.
(*) Nederlands Energieverbruik kWh per jaar, gebaseerd op het elektriciteitsverbruik van de televisie wanneer deze gedurende 365 dagen 4 uur per dag aanstaat. Het feitelijke energieverbruik is afhankelijk van de manier waarop de televisie wordt gebruikt.
(*) Español Consumo de energía: kWh al año, suponiendo cuatro horas de funcionamiento diario durante 365 días. El consumo efectivo dependerá de las condiciones reales de uso de la televisión.
(*) Svenska Energiförbrukning kWh per år, beräknad utifrån effektförbrukningen för en tv-mottagare som används fyra timmar per dygn under 365 dygn. Den faktiska energiförbrukningen kommer att bero på hur tv-mottagaren används.
(*) Italiano Consumo di energia kWh/anno calcolato sulla base del consumo di un televisore in funzione per 4 ore al giorno per 365 giorni. Il consumo effettivo di energia dipende dall'utilizzo reale del televisore.
(*) Polski Zużycie energii kWh/rok na podstawie zużycia energii przez telewizor działający 4 godziny dziennie przez 365 dni. Rzeczywiste zużycie energii zależy od sposobu użytkowania telewizora.
(*) Magyar A televiziókészülék napi 4 órás üzem mellett az év 365 napjára vetilve évente kWh mennyiség ü energiát fogyaszt. A tényleges energiafogyasztás a készülék üzemeltelési módjától függ.
(*) Norsk Energiforbruk kWh per år, strømforbruket er basert på bruk av TV-en for 4 timer per dag for 365 dager. Det faktiske energiforbruket vil være avhengig av hvordan TV-en brukes.
(*) Português Consumo de energia de kWh por ano, baseado no consumo, em termos de potência, do televisor a funcionar 4 horas por dia durante 365 dias. O consumo de energia real dependerá do modo como o televisor é utilizado.
(*) Română Consumul de energie de kWh pe an, pe baza puterii consumate de aparatul TV atunci când este în funcțiune 4 ore pe zi timp de 365 de zile; consumul real de energie depinde de condițiile de utilizare a aparatului
(*) Русский Энергопотребление кВт-ч в год приводится из расчета потребления энергии телевизором при работе 4 часа в день на протяжении 385 дней. Фактическое потребление электроэнергии будет зависеть от того, как используется телевизор.
(*) беларуская Энергаспакыванне квт-г у год прыводзіцца з разпіку спажывання энергії тэлевізарам пры працы 4 гадзіны ў дзень на працягу 365 дз ён. Фактычнає спажьванне электраэнергії будзе запежаць ад таго, як выкарыстоўваєцца тэлевізар.
(*) македонски Евенгретската потрошувачка е kWh годишно, врз основа на потрошувачката на телевизиски уред што работи 4 часа дневно, 365 денови. Реалната енергетска потрошувачка – ke зависи од тоа како се користи телевизискит уред.
(*) український Значенняен енергоспоживання кВт-год на рік базується на потужності, споживаної телевізором, що працюс протягом 4 годин на день впродовж 365 днів. Фактичне споживання електроенергії залежить від способу використання телевізора.
(*) Srpski Potrašnja struje od kWh na godišnjem nivou zasnovana je na potrošnji televizora koji je uključen 4 sata dnevno 365 dana godišnje. Stvarna potrošnja struje zavisiće o načina korišćenja televizora.
(*) Slovenčina Sootreba energie kWh za rok na základe spotreby elektrickei energie televizora, ktor v'ie v činnosti 4 hodinv denne počas 365 dní. Skutočná sootreba energie závisí od toho, ako sa televizor použiva.
(*) Slovenščina Poraba energije je kWh na leto, glede na napajalno energije televizorja, ki deluje 4 ure na dan v vseh 365 dneh. Dejanska poraba energije je odvisna od načina uporabe televizorja.
(*) Ελληνικά Κατανάλωση ενέργειας kWh ανά έτος, με βάση την κατανάλωση ισχύος από την τηλεόραση για τετράωρη λειπουργία ανά ημέρα επί 365 ημέρες. Η πραγματική κατανάλωση ενέργειας εξαρτάται από τον τρόπο χρήσης της συσκευής.
(*) Bosanski Energetska potrošnja je XYZ kWh na godišnjem nivou, na osnovu potrošnje TV-a koji radi 4 h dnevno, 365 dana. Stvarna energetska potrošnja zavisi od toga koliko e TV koristi.
(*) הַרְהָאִי, מַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָבּוֹת אֶלְרָם, 365 אֶלְרָם 4 אֶלְרָם לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהּוֹת אֶלְרָם, 365 אֶלְרָם 4 אֶלְרָם לַרְהָאִי לַרְהָאִי לַרְהָאִי לַרְהָאִי לַר •
(*) Türkçe 365 gün boyunca günde 4 saat çalı şan televizyonun tükettiği güç referans alınarak yılda kWh enerji tüketimi. Güncel enerji tüketimi televizyonun nasıl kullanıldığına bağlı olacaktır.
(*) Shqip Konsumi i energjisë kWh në vit, bazuar në konsumin e energjisë së televizorit kur punon për 4 orë në ditë për 365 ditë. Konsumi aktual i energjisë varet nga mënyra e përdorimit të televizorit.
(*) Lietuvių kWh energijos sunaudojimas per metus nurodomas atsižvelgus i tai, kiek energijos sunaudojama televizorius veikiant 4 valandas per dieną 365 dienas iš eilės. Faktinį energijos sunaudojimą lems tai, kiek laiko bus naudojamas televizorius.
(*) Latviešu Enerģijas patēriņš kWh gadā, ṣemot vērā televizora elektroenerģijas patēriņu, darbojoties 365 dienas, ĉetras stundas dienā. Faktiskais energījas patēriņš būs atkarīgs no tā, kā televizors tiks izmantots.
(*) Eesti Energiatarbimine kWh aastas, eeldusel et televisor töötab neli tundi päevas ja 365 päeva aastas. Tegelik energiatarbimine oleneb televisori kasutusviisist.

(*) قارسى

A	VESA WALL MOUNT MEASUREMENTS
B	Hole Pattern Sizes (mm)	W	H
		100	100
C	Screw Sizes
D	Length (X)	min. (mm)
		max. (mm)
E	Thread (Y)	M4

	ABCDE
English	VESA WALL MOUNT MEASUREMENTS	Hole Pattern Sizes (mm) Screw Sizes Length (X) Thread (Y)
Deutsch	MASSANGABEN FÜR VESA-WANDMONTAGE	Lochmustergrößen (mm)	Schraubengrößen	Länge (X)	Gewinde (Y)
Français	DIMENSIONS DU SUPPORT DE FIXATION MURALE VESA	Dimensions des modèles de trous de montage (mm)	Dimensions des vis	Longueur (X)	Filetage (Y)
Italiano	Misurazioni installazione a parete VESA	Dimensioni schema foro (mm)	Dimensioni vite	Lunghezza (X)	Filettatura (Y)
Português	MEDIÇÕES DE MONTAGEM MURAL VESA	Dimensões do molde de furação (mm)	Tamanhos do parafuso	Comprimento (X)	Rosca (Y)
Español	MEDIDAS DEL MONTAJE DE PARED VESA	Tamaños de patrón para agujero (mm)	Tamaños de tornillo	Longitud (X)	Rosca (Y)
Türkçe	VESA DUVARA MONTAJ APARATI ÖLÇÜLERİ	Açılacak Delik Ölçüleri (mm)	Vida Ölçüleri	Uzunluk (X)	Yüzey (Y)
Ελληνικ	ΔΙΑΣΤΑΣΕΙΣ ΒΑΣΗΣ ΤΟΙΧΟΥ VESA	Μεγέθη σχήματος οπών (mm)	Μεγέθη βιδών	Μήκος (X)	Σπείρωμα (Y)
Polski	WYMIARY DO MONTAZU NAŚCIENNEGO VESA	Rozmiary szablonu otworów (mm)	Rozmiary wkrętów	Długość (X)	Gwint (Y)
čeština	ROZMĚRY DRŽÁKU NA ZEĎ VESA	Rozměry velikosti dèr (mm)	Rozměry šroubů	Délka (X)	Závit (Y)
Magyar	VESA FALI TARTŐ MÉRETEK	Lyukak méretének nagysága(mm)	Csavar méret	Hossz (X)	Menet (Y)
Română	MĂSURĂTORI SUPORT PERETE VESA	Dimensiuni tipar gaură (mm)	Dimensiuni şuruburi	Lungime (X)	Filet (Y)
Svenska	VESA VĂGGMONTERINGSMÄTT	Hålmönsterstorlear (mm)	Skruvstorlekar	Längd (X)	Trăd (Y)
Nederlands	VESA WANDMONTAGE METINGEN	Grootte booropening (mm)	Schroefgroote	Lengte (X)	Draad (Y)
Suomi	VESA-SEINĂASENNUKSEN MITAT	Reikäkuvion koot (mm)	Ruuvinkoot	Pituus (x)	Kierre (Y)
Norsk	VESA VEGGMONTERINGSMÄL	Hullmønster størrelser (mm)	Skruestørrelser	Lengde (x)	Trăd (Y)
Dansk	VESA VÆGMONTERINGS-MÄL	Hulmønster-størrelser (mm)	Skruestørrelser	Længde(X)	Trăd (Y)
Русский	РАЗМЕРЫ НАСТЕННОГО КРЕПЛЕНИЯ VESA	Размеры системы отверстий	Размеры винтов	Длина(X)	Резьба (Y)
беларуская	ПАМЕРЫ НАСЦЕННАГА МАЦАВАННЯ VESA	Памеры сістмы адтулін	Памеры вінтоў	Даўжыня (X)	Разьба (Y)
македонски	МЕРКИ ЗА МОНТИРАЊЕ НА СИД ЗА „BECA“	Шема на големини на дупката (мм)	Големина на шрафот	Должина (X)	Навој (Y)
українська	РОЗМІРИ НАСТИННОГО КРІПЛЕННЯ VESA	Відстань між кріпильними отворами, мм	Розміри гвинтів	Довжина (X)	Діаметр різьби (Y)
Srpski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije zavrtnjeva	Dužina (X)	Navoj (Y)
Slovenčina	ROZMERY DRŽIAKA NA STENU VESA	Rozmery velkosti dier (mm)	Rozmery skrutiek	Dĺžka (X)	Závit (Y)
Slovenščina	MERE STENSKEGA NOSILCA VESA	Velikosti vzorca lukenj (mm)	Velikosti vijakov	Dolžina (X)	Navoj (Y)
Hrvatski	VESA MJERE ZIDNOG DRŽAČA	Veličine uzorka otvora (mm)	Veličine vijka	Dužina (X)	Navoji (Y)
Bosanski	DIMENZIJE VESA ZIDNOG NOSAČA	Dimenzije šablona za bušenje	Dimenzije vijaka	Dužina (X)	Navoj (Y)
Български	РАЗМЕРИ ЗА КОМПЛЕКТ ЗА МОНТАЖ НА СТЕНА VESA	Размери на отвора (mm)	Размер на болта	Дължинат (X)	Резба (Y)
Lietuvių	VESA TVIRTINIMO PRIE SIENOS MATAVIMAI	Angos šablono dydis (mm)	Varžty dydis	Igis (X)	Sriegis (Y)
Latviešu	VESA SIENAS STIPRINĀJUMA IZMĚRI	Caurumu šablona izmērs (mm)	Skrūvju izmēri	Garums (X)	Vitne (Y)
Eesti	VESA SEINALE KINNITAMISE MÕÕDUD	Kruvi suuruse mõõt (mm)	Kruvi suurus	Kõrgus(x)	Keere (Y)
Shqip	PËRMASAT E NIJÉSISE SÉ MONTIMIT NË MUR VESA	Madhësitė modele të vrimave (mm)	Madhësitė e vidhave	Gjatësia (X)	Filetimi (Y)
عربي	مقايبس للتشبیت على الجدار	(م) أ '+حام النقوب (م)	أ '+حام البرائی	(Х) اطول	(У) screens
لازه	VESA رنوبال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نر�ال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نرطال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نرPortesال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر Portesال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نर portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال نر portsال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徝ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徴ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徹ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徇ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徦ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徢ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن徳ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن徇ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن往ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن径ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徂ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徃ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن従ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن待ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徴ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徍ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徹ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徉ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徦ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徲ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن律ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徠ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徖ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徝ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徢ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徧ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徆ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن徟ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征ال ن征(د)

TR: İşbu belgede; ETA, a.s., telsiz ekipmanı tipi TFT IDTV'nin 2014/53/AB sayılı direktife uygun olduğunu beyan eder. AB uygunluk beyanının tam metni internet adresinde mevcuttur: doc.vosshub.com
EN: Hereby, ETA, a.s., declares that the radio equipment type TFT IDTV is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: doc.vosshub.com
BG: С настоящото ETA, a.s., декларира, че този тип радиосъоръжение TFT IDTV е в съответствие с Директива 2014/53/EC. Цялостният текст на EC декларацията за съответствие може да се намери на следния интернет адрес: doc.vosshub.com
CZ: Tímto ETA, a.s., prohlašuje, že typ rádiového zařízení TFT IDTV je v souladu se směrnící 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: doc.vosshub.com
DA: Hermed erklærer ETA, a.s., at radioudstyrstypen TFT IDTV er i overensstemmelse med direktiv 2014/53/EU. EU-overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: doc.vosshub.com
DE: Hiermit erklärt ETA, a.s., dass der Funkanlagentyp TFT IDTV der Richtlinie 2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: doc.vosshub.com
EL: Με την παρούσα ο/η ETA, a.s., δηλώνει ότι ο ραδιοεξοπλισμός TFT IDTV πληροί την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρφωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα στο διαδίκτυο: doc.vosshub.com
ES: Por la presente, ETA, a.s., declara que el tipo de equipo radioeléctrico TFT IDTV es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: doc.vosshub.com
ET: Käesolevaga deklareerib ETA, a.s., et käesolev raadioseadme tüüp TFT IDTV vaštab direktiivi 2014/53/EL nõuetele. ELi vaštavusdeklaratsiooni täielik tekst on kättesaadav järgmisel internetiaadressil: doc.vosshub.com
FI: ETA, a.s., vakuuttaa, että radiolaitetyppi TFT IDTV on direktiivin 2014/53/EU mukainen. EU-vaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa internetosoitteessa: doc.vosshub.com
FR: Le soussigné, ETA, a.s., déclare que l'équipement radioélectrique du type TFT IDTV est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l'adresse internet suivante: doc.vosshub.com
HR: ETA, a.s., ovime izjavljuje da je radijska oprema tipa TFT IDTV u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: doc.vosshub.com

HU: ETA, a.s., igazolja, hogy a TFT IDTV típusú rádióberendezés megfelel a 2014/53/EU irányelvnek. Az EU-megfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: doc.vosshub.com
IT: Il fabbricante, ETA, a.s., dichiara che il tipo di apparecchiatura radio TFT IDTV è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: doc.vosshub.com
LT: Aš, ETA, a.s., patvirtinu, kad radijo įrenginių tipas TFT IDTV atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: doc.vosshub.com
LV: Ar šo ETA, a.s., deklarē, ka radioiekārta TFT IDTV atbilst Direktīvai 2014/53/ES. Pilns ES atbilstības deklarācijas teksts ir pieejams šādā interneta vietnē: doc.vosshub.com
MT: B'dan, ETA, a.s., niddikjara li dan it-tip ta' taghmir tar-radju TFT IDTV huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li gej: doc.vosshub.com
NL: Hierbij verklaar ik, ETA, a.s., dat het type radioapparatuur TFT IDTV conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: doc.vosshub.com
PL: ETA, a.s., niniejszym oświadcza, że typ urządzenia radiowego TFT IDTV jest zgodny z dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodności UE jest dostępny pod następującym adresem internetowym: doc.vosshub.com
PT: O(a) abaixo assinado(a) ETA, a.s., declara que o presente tipo de equipamento de rádio TFT IDTV está em conformidade com a Diretiva 2014/53/UE. O texto integral da declaração de conformidade está disponível no seguinte endereço de Internet: doc.vosshub.com
RO: Prin prezenta, ETA, a.s., declară că tipul de echipamente radio TFT IDTV este în conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la următoarea adresă internet: doc.vosshub.com
SK: ETA, a.s., týmto vyhlasuje, že rádiové zariadenie typu TFT IDTV je v súlade so smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: doc.vosshub.com
SL: ETA, a.s., potrjuje, da je tip radijske opreme TFT IDTV skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: doc.vosshub.com
SV: Härmed försäkrar ETA, a.s., att denna typ av radioutrustning TFT IDTV överensstämmer med direktiv 2014/53/EU. Den fullständiga texten till EU-försäkran om överensstämmelsefinns på följande webbadress: doc.vosshub.com
