Product Type	Induction Hob with Integrated Cooker Hood
Brand	Concept
Model	IDV6083bc
Power Supply	220-240 V~ / 380-415 V~, 50/60 Hz
Total Power Input	7360 W
Number of Cooking Zones	2 (with Bridge Zone function)
Cooking Zone Size & Power	175 x 195 mm, 2000 W per zone
Hood Power Input	160 W
Fan Sound Power Level	< 71 dB(A)
External Dimensions (W x D x H)	830 x 515 x 200 mm
Installation Dimensions (W x D x H)	750 x 482 x 220 mm
Weight	20 kg
Connection Cable Length	150 cm
PowerBoost Function	Yes, maximum power on selected zone
KeepWarm Function	Yes, maintains low temperature
Child Lock	Yes, prevents accidental operation
Timer	Yes, up to 99 minutes per zone
Hob2Hood Function	Automatic hood activation with cooking zone
Fresh Air Function	Post-cooking residual vapour extraction
Filters	Metal filter (dishwasher safe) and carbon filter (replace every 6 months)
Water Tank	Yes, for steam extraction (daily emptying required)
Safety Features	Residual heat indicator (H), automatic switch-off, overheat protection
Cleaning	Ceramic glass hob; use special cleaner and scraper; hood filters washable
Installation	Built-in, requires ventilation gap of 50 mm behind and above
Warranty	Refer to manufacturer; damages from incorrect installation not covered

Frequently Asked Questions - IDV6083bc Concept

What type of cookware is suitable for this induction hob?

Only cookware with a magnetic bottom (e.g., iron or stainless steel with magnetic base) is suitable. You can test with a magnet or look for the induction symbol. Unsuitable materials include pure aluminum, copper, glass, ceramic, or non-magnetic stainless steel.

How do I use the PowerBoost function?

Select the cooking zone, then touch the letter 'B' on the slider. The display shows 'B', indicating maximum power. It lasts a limited time; to deactivate, set a lower level or switch off the zone.

Why does the display show the 'U' symbol?

The 'U' symbol means no cookware is detected, the pan is too small, or the cookware is not induction-compatible. Check the pan size and material. If using suitable cookware, it may have overheated; let it cool and restart.

How do I clean the ceramic glass hob?

Clean after each use with a special ceramic glass cleaner and a soft cloth or paper towel. For burnt residues, use a glass scraper at an acute angle. Avoid abrasive sponges or harsh chemicals. Keep the control panel dry and clean.

What does the 'H' symbol mean?

The 'H' symbol indicates residual heat on the cooking zone. The zone is still hot and can cause burns. It disappears when the surface cools to a safe temperature. You can use this residual heat to keep food warm.

How do I set the child lock?

Press and hold the child lock button (E) until the indicator lights up. This locks all controls except the ON/OFF button (A). To unlock, press and hold the same button again until the indicator goes out.

What should I do if the hob automatically switches off during cooking?

This may be due to accidentally pressing the ON/OFF button, overheating, or the automatic timer limit (3 hours). Simply turn the hob back on and reset the cooking zones. If the problem persists, check the error code on the display.

How often should I clean or replace the cooker hood filters?

Clean the metal filters daily manually or in the dishwasher. The carbon filter should be replaced approximately every 6 months, depending on usage. Empty the lower water container daily to maintain efficiency.

Can I use all cooking zones at maximum power simultaneously?

No, if connected to a 230 V single-phase supply, the hob automatically reduces power to prevent circuit overload. For maximum power, a 400 V three-phase connection is recommended. Check the electrical installation.

What are the installation clearance requirements?

Leave at least 50 mm space on the sides and behind the hob. Ensure a ventilation gap of 50 mm between the hob and the cabinet above. The worktop must be heat-resistant (min. 120 °C) and at least 38-40 mm thick.

USER MANUAL IDV6083bc Concept

Hob with cooker hood

concept

CZ

Poděkování

A. Vamé zóny

B. Digestor

ROZMĚRY SPOTŘEBIČE

IDV6083bc

IDV6083bc

concept

concept

VAŘENÍ S INDUKCÍ

Technical line drawing of two mechanical or architectural components with dimension annotations (no text or symbols)

Architectural floor plan diagrams showing room layouts and staircases (no text or labels)

IDV6083bc

concept

concept

Two identical architectural floor plan views showing room layouts and door placements (no text or labels)

Technical line drawing of three 3D rectangular components with dimension annotations (no text or symbols)

IDV6083bc
IDV6083bc

concept

concept

POPIS OVLÁDACIEHO PANELU

A Hlavný vypinač

B Funkcia na prepojenie dvoch zón - BRIDGE ZONE

C Ventilator

D Časovač

E. Detská poistka

F Výber varnej zóny

G KeepWarm

Architectural floor plan showing room layouts and structural elements (no text or labels)

J

K

Two technical line drawings of a mechanical assembly or enclosure, showing front and side views with no text or symbols.

Technical line drawing of three views of a rectangular object with a 1000x height dimension (no text or symbols)

47

IDV6083bclDV6083bc

SK

concept

concept

SK

Pripojenie do elektrickej siete

OPIS PANELU STEROWANIA

IDV6083bclDV6083bc

PL

concept

concept

PL

GOTOWANIE NA INDUKCJI

Technical line drawing of a mechanical assembly with dimension annotations (no readable text or symbols)

J

IDV6083bclDV6083bc

PL

concept

concept

PL

Two identical architectural floor plan views showing room layouts and staircases (no text or labels)

Technical schematic of a mechanical assembly with cross-sectional views and dimension labels (no text or symbols)

64

IDV6083bclDV6083bc

PL

concept

concept

PL

VADĪBAS PANELA APRAKSTS

A galvenais slēdzis

B divu zonu savienošanas funkcija – tilts

C ventilators

D taimeris

Architectural floor plan showing room layouts and ventilation ducts (no text or labels)

Architectural floor plan diagrams showing room layouts and door placements (no text or labels)

K

Two identical architectural floor plan views showing room layouts and structural elements (no text or labels)

Technical line drawing of three views of a rectangular object with dimension标注 (no text or symbols present)

IDV6083bclDV6083bc

LV

concept

concept

LV

Thank you for purchasing a Concept product. We wish you much joy with your new appliance every day you use it. Please read the instruction manual carefully before initial use. To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

TABLE OF CONTENTS

Acknowledgements

Technical specifications

Important safety information

Product description

Control panel layout

Examples of cooking application

Cooking tips

Energy saving tips

Operating instructions

Advanced features

Care and cleaning

Installation instructions

Troubleshooting

Error message

Environmental concerns

TECHNICAL SPECIFICATIONS
Voltage 220-240 V~/ 380-415 V~, 50/60 Hz
Power input of the hood 160 W
Size and power of cooking zones ø 175 mm, 195 mm, 2000 W
External dimensions (w x d x h) 830 x 515 x 200 mm
Fan sound power level < 71 dB(A)
Dimensions of the hood (w x h) 310 x 180 mm
Dimensions for installation (w x d x h) 750 x 482 x 220 mm
Weight 20 kg
Diameter and power input of each individual cooking zone	175 x 195 mm, 2000 W
Max. power input	7360 W
Connection cable length	150 cm

The manufacturer reserves the right to make any technical changes, printing errors and differences in the illustration without prior notice.

94

IMPORTANT SAFETY INFORMATION

Delivery

• Check the package and unit immediately after the delivery for any damage that may have occurred during shipping.
• CAUTION! Some corners and edges of this appliance that will be hidden after installation can be sharp! Take care to avoid injury!
• If the unit is damaged, do not operate it. Contact the authorized service as soon as possible.
• Remove all the covering and marketing materials from the appliance before the first use.
• Keep all packaging away from children and dispose of it appropriately.
• This appliance must be installed in accordance with the regulations in force and should only be used in a well-ventilated area. Read the manuals before installing and using the appliance.

Installation

• The appliance is intended for assembly into correct built-in units and workspaces that align to the standards.
• The sealant on the edges of the appliance protects the cut surfaces of the worktop against moisture.
• Use the unit only as described in this instruction manual.
• The appliance has to be disconnected from the power supply during installation.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the main power supply. Use only correct electricity mains cable that is earthed.
  • This appliance can be used in households and similar areas such as:

• Kitchen areas in shops, offices and other workplaces.
• Appliances used in agriculture.
- Appliances used by guests in hotels and other areas in a hotel environment.
- Appliances used in a Bed and Breakfast environment.

IDV6083bclDV6083bc

EN

concept

concept

EN

• Make sure the mains cables of other electrical appliances do not touch the hot cooking zones. Otherwise both the insulation of the cables and the hob may be damaged.
• Never touch hot cooking zones. Risk of burns!
• The indicator of residual heat "H" shows that the cooking zones are still hot. Keep children away from the appliance. Risk of serious burns!
• Do not touch the hot surfaces when using the appliance or shortly after.
• Do not operate the appliance with wet or damp hands.
• Do not operate the appliance when it has contact with water.
• If there is a drawer under the appliance, do not keep flammable or inflammable objects, aluminium foil or sprays in it. Risk of fire or explosion!
• Use the appliance out of reach of children and do not allow the children and unauthorised individuals to operate the appliance.
• Do not let children play with the appliance.
• Care should be taken when using the appliance near children.
• Do not use the appliance as a toy.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• In case of any failure turn off the appliance and disconnect it from the mains outlet or switch off the circuit breaker from the power supply.
• Do not immerse the mains cable in water or any other liquid.
• Check the appliance and the mains cable for damage regularly.
• Never switch on a damaged appliance.
• Make sure that all controls are in the OFF position when the appliance is not in use.

• Do not use cookware with bulging or irregular bottoms or with a smaller diameter than recommended. Otherwise the cooking effectiveness could be reduced.

• If there is water between the cookware bottom and the cooking zone, vapour pressure may arise. The vapour pressure could make the cookware jump up. CAUTION! Risk of injury!
  • Make sure that the cooking zones and cookware bottom are dry.

• Do not use cookware with cracked enamel. High temperature occurs in the point of enamel damage, which heats the corresponding spot on the hob. Risk of damage to the hob!
• Do not put cookware on the control panel or the frame or edge of the hob. Risk of damage to the hob!
• Never use plastic or aluminium foil cookware on the appliance.
• Do not lay flammable things on the hob. Risk of fire!
• Do not lay any metal objects on the induction hob. If the appliance has been switched on accidentally, these objects could heat up very quickly and cause burns!
• Do not use the appliance as a work surface or as a storage surface!
• Keep the appliance clean at all times. Food remnants could ignite during operation and cause fire!
• Food such as soups, sauces or beverages may heat up and overflow very quickly during cooking. Proceed carefully, use the appropriate settings and stir the food as often as necessary.
• While deep frying or frying food observe this it at all times. In the case of oil overheating, there is a risk of fire!
• Never heat up grease or oil unattended. Overheated oil or grease may ignite rapidly. Risk of fire!
• Never try to extinguish a fire with water. Immediately cover the flame in the cookware with a lid or a plate. Switch off the appliance and let the cookware cool down.
• Use manufacturer-recommended accessories only.
• Do not use accessories which have a damaged surface, are worn or have other defects.
• Do not use any corrosive cleaning agent for cleaning. With regular maintenance and cleaning you extend the lifetime of the appliance.
  • Children aged under 8 years shall not carry out cleaning and user maintenance of the appliance without supervision.

EN

concept

concept

EN

WARNING!

• This appliance complies with the directive of safety and electromagnetic compatibility; nevertheless, individuals with an implanted pacemaker should keep away from the appliance. In some other devices, such as hearing aids, etc., malfunction may occur.
• If the unit is switched on, do not bring magnet sensitive things (e.g. credit cards, USB, hard discs, etc.) near it.

Possible malfunctions

- Only an authorised service technician can install, connect or repair this appliance.

- Disconnect the appliance from the mains supply before maintenance or repair. Turn off the relevant circuit breaker.

- If the mains cable is damaged, contact an authorized service centre.

Damages from failure to follow the manufacturer's instructions are not covered by the warranty.

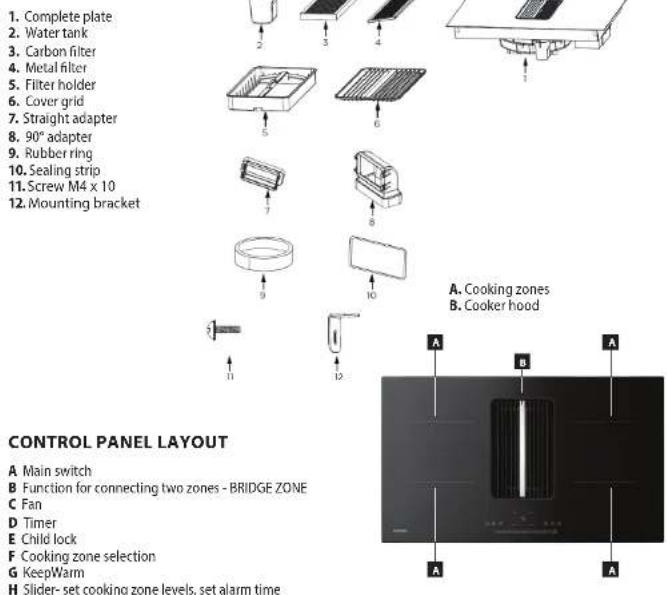

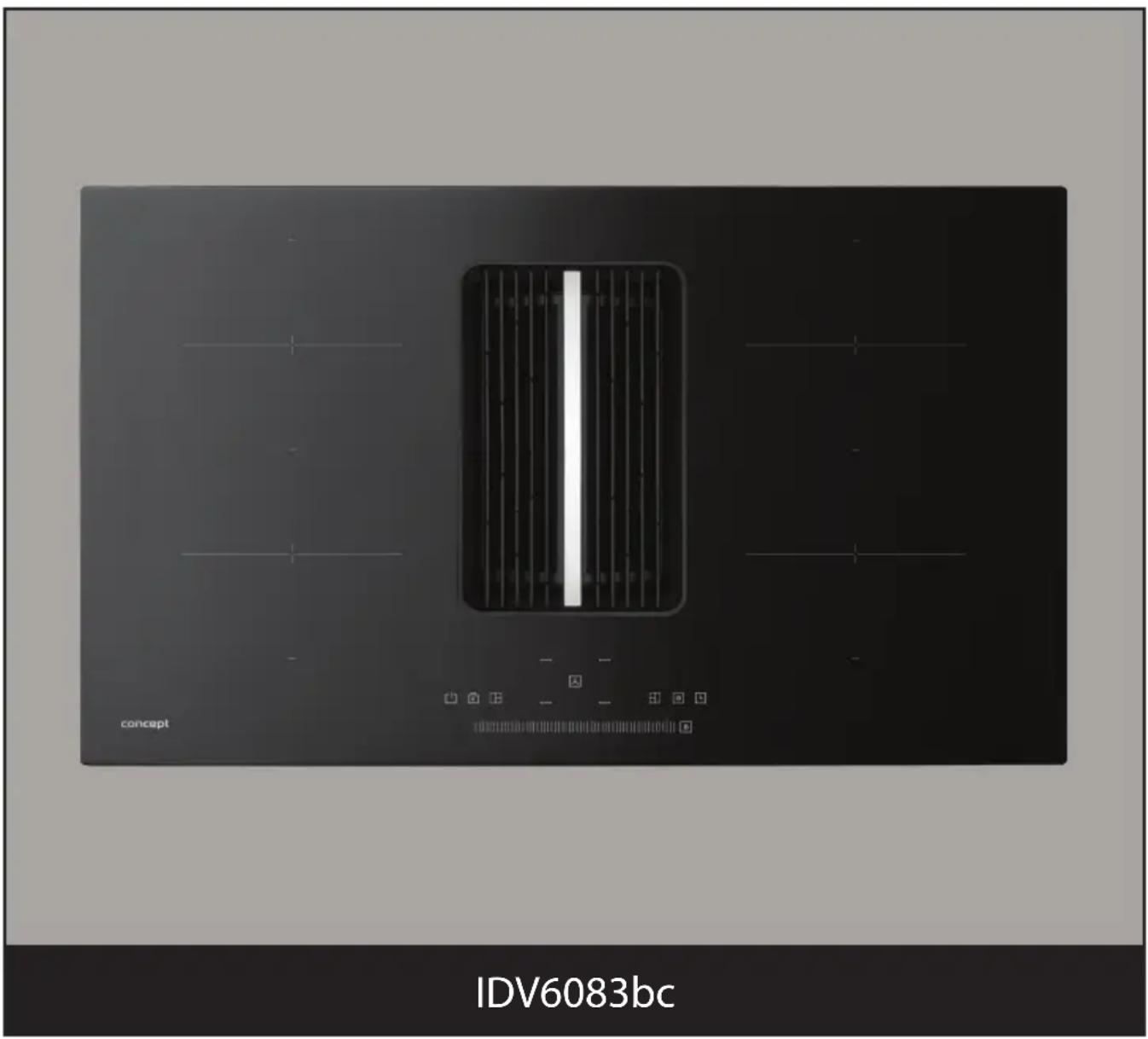

PRODUCT DESCRIPTION

IDV6083bclDV6083bc

EN

concept

concept

EN

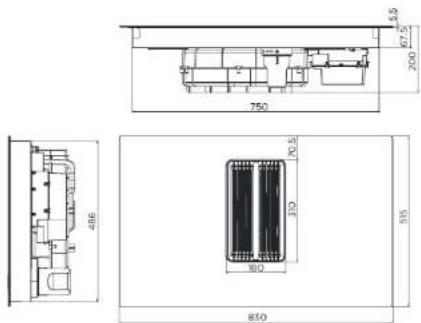

APPLIANCE DIMENSIONS EXAMPLES OF COOKING APPLICATION

What does cooking with an induction hob mean?

Cooking on an induction hob is based on a completely different principle than the usual ways of heating. The heat is created directly in the cookware, whilst the cooking zone remains cold. This method of heating has many advantages in comparison with others:

1. Time saving during cooking and baking

The cookware is heated directly, not the ceramic glass hob. There are no big heat losses so the effectiveness is higher than other heating methods.

2. Energy saving

It is established that cooking on an induction hob consumes less electric power than other cooking methods.

3. Controlled supply of heat and more safety

The cooking zone transfers heat or interrupts its supply immediately after setting the power. As soon as you take the cookware off the cooking zone, heat is interrupted without the need of switching off the cooking zone. After cooking, only residual heat coming from the cookware remains on the cooking zone. Nevertheless, we do not recommend leaving anything on the hob without attendance.

Note:

As to prevent unwanted heating up, e.g. in case of laying metal instruments on the hob, the system activates only if the bottom of the utensil is of a specific dimension or bigger.

COOKING TIPS

The power level settings described below are just examples. The correct setting of power levels depends on several factors, including the cookware used and the amount of food you cook. Experiment with the induction hob, and gradually determine which power level settings are most suitable for you.

Some examples of power level settings:

a) Level 1-2 can be used for:

• Keeping liquids simmering,
• Moderate and slow heating without the risk of burning,
• Melting butter or chocolate, etc.
• Defrosting,
  • Boiling a small quantity of liquid.

b) Level 3–4 can be used for:

• Intensive boiling,
• Keeping a larger quantity of liquid boiling,
• Stewing.

c) Level 5-6 can be used for:

- Pancakes

d) Level 7–8 can be used for:

- Cooking pasta.

e) Level B can be used for:

• Cooking food requiring fast heating and high temperature (beef steaks, schnitzels, fried potatoes, etc.),
• Boiling water or soup.
  • Heating food before switching over to a lower level.

IDV6083bclDV6083bc

100

EN

concept

concept

EN

ENERGY SAVING TIPS

Cooking on an induction hob is based on the generation of heat utilising the magnetic properties of the cookware. That is why the cookware material must contain iron. Check this by looking for a symbol for induction cooking on the bottom of the cookware (Fig. 1) or by using a magnet, whether the cookware is magnetic (Fig. 2).

Fig. 1 Fig. 2

If you do not have the possibility to check the bottom of the cookware with a magnet:

1. Put some water into the cookware you want to check.
2. If the "U" symbol is not displayed on the control panel, and the water in the cookware is simmering, the cookware is of suitable material for induction cooking.

The following cookware material is unsuitable for an induction hob:

• pure stainless steel.
• aluminium or copper,
  • without a magnetic substrate,
• glass, wood, stone,
• porcelain, ceramics, etc.
• Do not use cookware with bulging or irregular bottoms (Fig. 3) or otherwise the cooking effectiveness could be reduced and may result in extension of the cooking time.

- For each cooking zone, use the correct cookware size. The diameter of the cookware bottom should correspond to the size of the cooking zone (Fig. 4).

Fig. 4

• Use small cookware for small amount of food. A big and only partially filled up cookware requires a lot of energy.
  • Always cover the cookware with a suitable lid. When cooking without a lid, you consume much more energy.
• Always cook food with a small amount of water or fat. You save energy. This way vitamins and minerals will be preserved when cooking vegetables.
• At the beginning of the cooking, set the cooking zone to the highest power level and reduce the cooking zone power level after it is heated up.

102

Examples of possible damage

- Coarse bottoms of cookware could scratch the ceramic glass plate. Check the cookware bottom regularly. Cookware with coarse bottom can cause scratches of the hob. Always lift these objects up when you have to move them on the cooking surface (Fig. 5). To protect the hob from being scratched.

Fig. 5

• Salt, sugar and sand grains (e.g. from cleaning vegetables) can scratch the hob. Do not use the appliance as a work surface or as a storage surface!
• Sugar, as well as food with high sugar content, damages the hob when in contact with it. Immediately remove the overcooked food of this kind using a glass scraper.

CAUTION! The ceramic glass scraper is sharp and can cause injuries!

- The following damages do not negatively affect the function or performance of the hob.

Stains

Burnt remains of sugar or food with high sugar content.

Colouring

Metallic-gloss colouring caused by the use of unsuitable cleaning agents or abrasions from the cookware bottom.

Scratches

Scratches caused by grains of salt, sugar or sand or by the coarse cookware bottom.

Wear of the decoration Wear caused by the use of unsuitable cleaning agent

- This damage has been caused by inappropriate maintenance of the hob and hence is not subject to warranty. These are not technical problems with the appliance.

OPERATING INSTRUCTIONS

• Areas designed for cooking only – electric cooking zones – are indicated on the hob. The diameters of the cooking zones are derived from the usual dimensions of cookware.
• Only the surface inside the indicated diameter is heated; other surfaces remain relatively cold and can be used as put aside areas.
  • The temperature sensor prevents the cooking zone under the ceramic glass plate from overheating.
• The light up "H" symbol on the indicator position of the input power levels signals increased temperature of the cooking zone after being switched off (residual heat). The symbol will go off as soon as the cooking zone has cooled down to such a temperature that there is no risk of burning.
• The cooking zone extensions can be adjusted in a range of 8 stages, which are set by pressing or dragging a finger on the slider on the control panel. A beep sounds each time the button is pressed. The response time per button press is 1 second.

IDV6083bclDV6083bc

EN

concept

concept

EN

Note:

• The touch control is activated by placing a finger on the required symbol on the ceramic glass hob.
• Use the entire fingertip, not just the tip, to operate the touch buttons (Fig. 6).
• Keep the control panel clean and dry. Even a small amount of water on the control panel can make it more difficult to operate the buttons. Do not place anything on the control panel of the hob.
  • The sensors do not respond to matte and dark colours (do not use black gloves).
• Make sure not to switch on the appliance accidentally. Risk of serious burns!

Before first use

Prior to first operation of the appliance, you should wipe it with a wet cloth.

Switching on a cooking zone

1. Press the button (A) to switch on the hob.
2. Press the cooking zone selection symbol to activate it. When you press the cooking zone selection button, the number "5" will automatically appear.
3. Set the required power level by pressing or moving your finger over the values from 1 to 8 on the slider. The left edge of this symbol means the cooking zone is switched off (0), the right edge of this symbol means the maximum power (8).

Note:

• You can change the desired cooking zone performance at any time during cooking.
• If you do not set any power level on the cooking zone within 1 minute of switching on the induction hob, the induction hob will automatically switch off.
• If the "U" symbol is lit on the control panel display, it means that no container is placed or the diameter of the bottom of the container is too small, or the cookware you are using is not suitable for induction cooking. Check the bottom of the pot to make sure the pot is suitable for induction cooking.
• Match the choice of cooking zone to the size of the pot.

Switching OFF the cooking zone

1. Press the cooking zone selection symbol to activate it (the digit of the selected zone flashes).
2. Press or slide your finger on the slider to gradually adjust the power to 0.

Note:

• After switching off the hob the "H" symbol can be displayed, which indicates that the used cooking zone is still hot and there is a risk of serious burns.
• Symbol "H" disappears, when the used cooking zone cools down to a safe temperature (that is not too hot to touch).
• If the "H" symbol is light up on the control panel, it is possible to use the residual heat e.g. for heating up another cookware.

Switching OFF the hob

• By pressing the ON/OFF button you can turn off the induction hob. All the settings will be reset.
• After switching off the hob the "H", symbol can be displayed, which indicates that some of the used cooking zones are still hot and there is a risk of serious burns. Never touch these cooking zones!

Note:

• If all the cooking zones will be switched off and within 1 minute the control panel will not be touched the induction hob will switch off automatically.
• For safety reasons, the automatic switch off (cooking time) on individual cooking zones is limited to 3 hours. After 3 hours of continuous operation, an audible signal will sound 6 times and the induction hob will automatically switch off.
• The induction hob deactivates automatically even when any cooking zone does not detect any cookware after 2 minutes.

104

ADVANCED FEATURES

Function of connecting two zones - Bridge Zone

1. A short touch on the left or right icon will lock that half of the board. The cooking zones on that half will merge into one.
2. Adding and removing levels is done simultaneously for both zones together. Touch again to switch off the function.

POWERBOOST function

1. To activate this function, select the letter "B" on the scale on the right side. The letter "B" will then appear on the display "B" indicates that the cooking zone is set to maximum power.
2. To deactivate this function, set the heat to a lower level or switch off the hob completely.
3. You can use the PowerBoost function on any cooking zone.

KEEPWARM function

1. When the (G) button is pressed, the zone switches to the lowest level and "L" is displayed. When another button is pressed, the function switches off and the zone returns to the original power level.

Child lock function

This function prevents the cooking zones from being switched on unintentionally.
1. To lock the control panel, press and hold the button to activate/deactivate the child lock (E).
2. The child lock indicator lights up on the display to indicate that the control panel is locked. The control panel is locked except for the on/off button (A), which is deactivated.
3. To unlock the control panel, press and hold the child lock activation/deactivation button (E).
4. The symbol goes out and the control panel is operational.

Timer setting

This function can only be set for the specific cooking zone selected.

1. You must first select the cooking zone (F).
2. During cooking, press the timer setting button (D). The display above the timer buttons will show "00".
3. Press or drag your finger on the slider (H) to gradually set the time to 1-99.
4. Once the cooking time has been set, the display will flash the set time for 3 seconds. After this time, the set cooking time will start counting down. After pressing the timer button (D), the icon for setting tens of minutes flashes first for 3 seconds. Then press or drag the slider (H) to set the time from 1-9. After 3 seconds, the icon for setting the units of minutes starts flashing.

Hob2Hood function

Switch on the cooking zone to activate this function. This is an automatic switching on of the cooker hood when the cooking zone is switched on and the power is adjusted.

Fresh Air function

This function allows the extraction of residual vapours after the cooking zones have been switched off - the cooker hood switches to power 1, then the 3 bars start flashing and the cooker hood continues to extract at the lowest power for some time.

Setting the hood

• Press the fan symbol and use the scale to adjust the extraction strength 1-8 or B. The highest gear B will turn off after 3 minutes and set the speed to 7.
  • The display above the fan icon shows the speed.
• If you press the fan icon again, the 1 min delayed shutdown function starts.
• If you press the icon again, the hood will switch off completely.

IDV6083bclDV6083bc

EN

concept

concept

EN

CARE AND CLEANING

The hob itself does not warm up, so no food remains should get burnt on it. Therefore, you do not have to wait until it cools down to clean the hob.

Do not use a steam cleaner or high-pressure cleaner to clean the appliance. Risk of damage to the hob!

• Clean the hob with a protective and preservation agent specially designed for ceramic glass surfaces.
• For removal of food remains and other dirt, apply dirt repellent to the hob, which will facilitate cleaning of the hob surface.
• Never use coarse sponges, abrasive agents or aggressive cleaners (e.g. spray for cleaning ovens) or stain removers.
• Keep the control panel clean! Make sure the panel is always clean and dry.
• Food and water residues negatively affect the operation of the control panel; therefore it may not be fully functional.
• Clean the hob after each cooking session. It will prevent the remains of food from burning during the next cooking session.
• For cleaning the lukewarm hob use a cleaning agent and a paper towel. Then wipe the hob with a damp cloth and wipe it dry using a soft cloth.
• If the hob is cleaned while hot, stains could appear on it.
• Never leave residues of the cleaning agent on the hob; it could stain the glass surface.
  • Metallic-gloss colouring appears after the use of unsuitable cleaners or abrasion of the cookware bottom.
• Its removal is very difficult. Use cleaning agents specially designed for ceramic glass surfaces.
• For the removal of food remains and a layer of grease use a special scraper for the glass.
• Clean the hob by placing the scraper at an acute angle and move the blade on the surface. Never use the handle for cleaning the glass surface. Risk of scratches!
• WARNING! The glass scraper is very sharp! Risk of injury! If the edge is damaged, replace it immediately.
  • After cleaning, secure the scraper again and keep it out of the reach of children.

CLEANING THE COOKER HOOD

1. Remove the top grille and clean carefully.
2. Clean the top filters every day. Remove the filter holder and then remove the filters from the filter holder. The filters can be washed conventionally or in dishwasher. Drain any residual water.
3. The carbon filter has a lifespan of approximately 6 months, depending on the frequency of cooking and frying. After that, we recommend replacement.
4. Check the lower water container daily. Unscrew the container and pour out the contents. Return the container.

INSTALLATION INSTRUCTIONS

• The warranty does not cover damages caused by incorrect installation.
  • The responsibility for installing the appliance lies with the buyer, not the manufacturer.
  • The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation.
  • To ensure the correct function of the appliance, place it in a suitable furniture.
• The appliance should be assembled into correct built-in units and work surfaces that align to the standards and have dimensions shown in Fig. 7.

The kitchen furniture must be made of sufficiently heat-resistant material, at least 120 °C. The materials and adhesives used must be resistant to heat from the appliance as according to the CSN EN 60335-2-6 standard. Materials and adhesives that do not meet the stated standard may deform or peel-off.

Fig. 7

Follow the following instruction during installation:

1. Remove all the covering and marketing materials from the appliance before the first use.
2. The required dimensions of the built-in space in the worktop made of heat-resistant material of a minimum thickness of 38–40 mm are on figure.
3. Leave min. 50 mm space for the adjacent cabinets on the sides. Leave at least 50 mm free space behind the hob.
4. For sufficient air circulation the appliance needs to be installed as shown in figure and the cabinet must be designed so that the air can flow at the bottom - we recommend placing a ventilation grille in the lower plinth. Make sure that the ventilation space of 20mm , between the drawer, the rear wall and 50mm between the drawer and the hob, is free and under the worktop there must be a ventilation gap of min. 5mm, ideally if the design of the cabinet allows it, even more.
5. Make sure that the ventilation space of 50 mm, between the hob and the top of the below unit, is free.
6. If the appliance is installed above drawers make sure that the space, between the bottom of the appliance and the upper drawer, is 50 mm.
7. Position the appliance onto the edge of the worktop and pass the mains cable through the opening so that the plug or terminals remain accessible after installation.

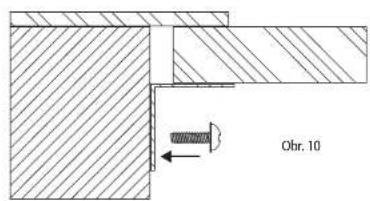

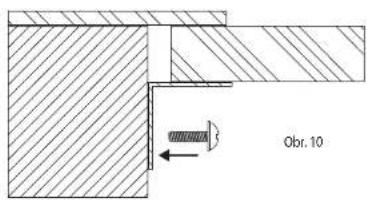

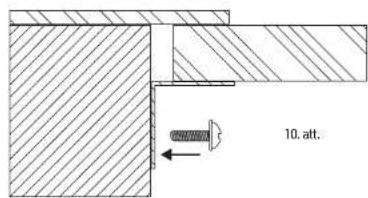

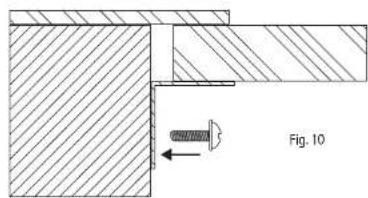

8. Push the appliance carefully into place. Make sure not to cause damage to the mains plug or to the mains cable.
9. The bottom of the hob base is fitted with a sealant to prevent it from moisture and leakage of liquids. After installation the space between the edge of the hob and the worktops should be min. 3 mm (Fig. 9).
10. Connect the supply cable to the terminal box and then turn on the appropriate circuit breaker on.

A Stick on the sealing ring.

B
• Install the 90" adapter and the water tank. After installation, glue the adapter.

106

IDV6083bclDV6083bc

C

D

• Insert the whole device and align it. (Figure C, D)

E

H

Architectural cross-section diagrams of two building layouts with staircases and ventilation ducts (no text or labels)

• The pipe can be shortened to the appropriate length. (Figure G,J)

Architectural floor plan diagrams showing room layouts and door placements (no text or labels)

K

Two identical architectural floor plan views showing room layouts and structural elements (no text or labels)

Installation under plaster - dimensions Standard installation - dimensions

Installation to allow air circulation to the outside:
Image A - Application of sealing tape. Image B - Install the 90" adapter and the water tank. Image C, D - Insert the whole device and align it.

E

IDV6083bclDV6083bc

EN

concept

concept

EN

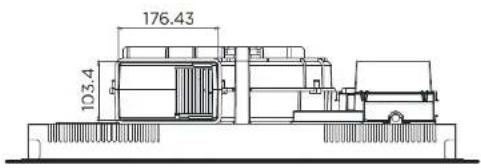

Technical line drawing of three views of a rectangular object with dimension标注 (no text or symbols present)

Installation diagram with direct adapter

110

IDV6083bclDV6083bc

EN

concept

concept

EN

Connecting to the mains power

• Only a qualified person can install this appliance!
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the main power supply.
• Make sure that the parameters on the rating plate are compatible with the mains voltage and the current protection. Otherwise the installed electric circuit could be overloaded, especially in the case of single-phase connection (230 V).

- If the hob is connected to the mains power in a single phase (see Connection of the terminal box of the appliance), all cooking zones cannot be used for maximum performance. The hob automatically reduces the power consumption of individual cooking zones to avoid overloading of the circuit breaker.

• We recommend using a self-contained electrical circuit to connect to the mains.

- Use solely electric power distribution with PE protective conductor.

- Do not use multi-plug adapters, connectors and extension cables. Risk of fire due to overheating!

• Make sure that there is access to the mains plug or the circuit breaker after the installation.

- The electrical safety of the appliance can only be guaranteed if the protective terminal of the unit is connected to the protective conductor of the mains.

- The manufacturer is not responsible for any injuries or damages that are the result of incorrect or missing protective installation.

- Make sure the mains cable or plug does not touch the hot appliance or hot cookware, to prevent it from becoming deformed and excessively bent.

- In the event of disconnecting the hob from the mains power, all set parameters will be reset and the hob control panel will be locked.

Connection of the terminal box of the appliance

• The hob is already supplied with a mains cable. In case it is necessary to replace the mains cable due to damage, Fig. 11 or Fig. 12, shows the wiring of the terminal box.
  • The mains cable must be replaced with the same type of cable with the corresponding wire cross section.
  • After connecting the new mains cable to the terminal box, secure the cable from being pulled out from the terminal box.
• Follow the same procedure as described above when installing the appliance into the worktop cut-out and connecting it to the mains power.

Connecting the hob by a 3-core mains cable (230 V)

Use a cable with wires of a diameter of at least 4 mm ^2 .

Fig. 11

Connecting the hob by a 4-core mains cable (400 V)

Use a cable with wires of a diameter of at least 4 mm ^2 .

Fig. 12

TROUBLESHOOTING

Problem Possible cause Remedy
When the hob is switched on the household wiring protection reacts.	The current load is too high for household wiring.	Check that the input of all switched-on units does not exceed the maximum load of the household wiring. Make sure that the parameters on the rating plate are compatible with the mains voltage and the current protection.
After pressing the ON/OFF button of the hob, the hob turns on, but the display for each cooking zone does not work	Power electronics malfunction	Replacement of power electronics required. Contact an authorized service centre.
	Control panel electronics malfunction	Replacement of control panel electronics required. Contact an authorized service centre.
After setting the power level of the cooking zone, the cooking zone does not work	Overheating of the cooking zone	The temperature of the cooking zone is too high. Check that the cooling fan located at the bottom of the hob functions well. If the fan is working, contact an authorised service centre.
	Cooling fan malfunction	Cooling fan replacement required. Contact an authorized service centre.
	Power electronics malfunction	Replacement of power electronics required. Contact an authorized service centre.
The cooking zone is hot but the control panel does not work	Control panel or power electronics malfunction	Press the ON/OFF button on the hob again and re-set the cooking zones.

IDV6083bclDV6083bc

EN

concept

concept

EN

Problem Possible cause Remedy
The hob switches off during cooking	The ON/OFF button has been pressed accidentally	Press the ON/OFF button on the hob again and re-set the cooking zones.
After the cookware is placed on the cooking zone, the „U" symbol is displayed (and the cooking zone does not heat up).	The cookware used is not suitable for induction cooking	Check that the cookware used is suitable for induction cooking – by placing a magnet to the cookware bottom.
	The diameter of the cookware bottom is smaller than the cooking zone	Check that the cookware bottom is not smaller than the cooking zone.
	Overheating of the cookware	Allow the cookware to cool down. Then place it on the cooking zone and continue cooking. If the "U" symbol is still on the display of the cooking zone even after switching the cooking zone on and off again, turn off the hob completely, wait for 20 seconds and turn on the hob again.
	Main electronics malfunction	Main electronics replacement required. Contact an authorized service centre.
Cracks or tears in the ceramic glass hob	Cookware has been dropped on the hob, which damaged the ceramic glass hob.	Disconnect the appliance immediately from the power supply by pressing the ON/OFF button or the appropriate circuit breaker. Contact an authorized service centre.

Operation sounds of the appliance

The induction heating technology is based on specific parameters of metal materials, when under the influence of high frequency waves. Under special circumstances these vibrations can manifest themselves by weak acoustic sounds, which do not signal any fault. These include:

Deep hum such as at a transformer	This sound accompanies cooking at high power level. It is caused by the big amount of energy which is transferred from the cooking zone to the cookware. This sound will disappear or weaken as soon as the cooking zone is switched to lower level.
Beeping	This sound usually appears in case of an empty cookware. It will disappear when you pour water or put food in the cookware.
High beeping sounds	These sounds appear mainly with cookware consisting of several layers of various materials, when they are in operation at the maximum heating power. This effect does not influence the result of cooking. The beeping disappears or weakens as soon as the power is reduced.
Cracking	This sound appears with cookware consisting of several layers of various materials. It is caused by vibrations on the connecting areas of respective layers. The sound depends on the cookware. It may change depending on the quantity and type of food being cooked in the cookware.
Sound of the fan	For good operation of the electronics it is necessary that it works at a permanently controlled temperature. That is why the hob is equipped with a fan which can be set to various power levels according to the measured temperature. The fan may work even after the hob has been switched off, if the measured temperature is still too high.

ERROR MESSAGES

Codes Source Solution
01,02,04 Electronic defect Contact processing
03 The induction hob has overheated Wait for the plate to cool down
05,06,07	Low Input voltage	Check that the input voltage is not less than 150 V
08	High input voltage	Check that the input voltage is not more than 270 V
09,10,11	Electronics fault	Contact servicing
12,13	Fan fault	Contact servicing
14	Display error	Contact servicing

ENVIRONMENTAL CONCERNS

• Packaging materials and old appliances should be recycled.
• Packaging materials may be disposed of as sorted waste.
• Dispose of the plastic bags made of polyethylene (PE) as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance conforms the European Union Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE Directive). The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The disposal of such material must be performed in accordance to the regulations of waste disposal. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

114

IDV6083bclDV6083bc

concept concept

CONCEPT POLSKA sp. z o.o.
