Product Type	Portable Bluetooth Speaker / Hi-Fi System
Model	BS-160
Brand	Vivax
Water Resistance	IPX6 (water resistant, suitable for beach, poolside, boat)
Bluetooth	Bluetooth 5.0 (A2DP), range: up to 10 m
Battery	Lithium 3600mAh, 3.7V
Working Time	Approx. 3 hours at max volume / 6.5 hours at moderate volume
Charging Time	Approx. 4-6 hours
Power Input	DC5V, 500-2000mA
Power Consumption	14 W
Output Power	Maximum 14 Watt (2x7W) RMS, 100Hz-20kHz
FM Radio	FM 87.5-108 MHz
USB Playback	Yes (MP3 audio)
AUX Input	Yes (3.5mm audio cable)
Voice Assistant	Siri / Google Assistant
Hands-Free Calling	Yes
TWS Function	Yes (pair two identical speakers for stereo)
RGB Lighting	Yes, side lighting with on/off control
Dimensions	Approx. 283 mm (L) x 123 mm (W) x 126 mm (H)
Accessories	Type-C USB charging cable, AUX audio cable (3.5mm), shoulder strap, instruction booklet
Operation Temperature	+5°C to +35°C
Shoulder Strap	Yes, included for easy carrying
Charging Port	Type-C USB

Frequently Asked Questions - BS-160 Vivax

How do I charge the Vivax BS-160?

Use the included Type-C USB charging cable and connect it to a standard 5V/1-2A charger (not included) or a PC USB port. Charging time is approximately 4-6 hours.

How long does the battery last?

The built-in 3600mAh lithium battery provides approximately 3 hours of playback at maximum volume and up to 6.5 hours at moderate volume.

Is the speaker waterproof?

It is IPX6 water resistant, meaning it can withstand splashes and rain, making it suitable for beach, poolside, and outdoor use. However, it should not be submerged in water.

How do I pair two speakers using TWS?

Turn on both speakers. On one speaker, short-press the TWS button. A tone will sound and the TWS button will stay lit once paired. Then connect your phone via Bluetooth to play music in stereo.

How do I use the FM radio?

Press the MODE button to select FM mode. Then long-press the Play/Pause button to auto-scan and store available FM channels. Use Forward/Backward buttons to cycle through stored stations.

Can I use voice assistants like Siri or Google Assistant?

Yes. After Bluetooth pairing with your phone, short-press the Siri button to activate Siri or Google Assistant on your connected device.

What should I do if the speaker is not responding?

Use a small round pin to press the RESET button located on the unit. This will restart the speaker.

What is the Bluetooth range?

The effective Bluetooth range is up to approximately 10 meters (33 feet) in open space, though obstacles may reduce this.

How do I adjust the volume?

Short-press the Forward (+) button to increase volume and the Backward (-) button to decrease volume. You can also adjust volume from your connected device.

What accessories are included with the Vivax BS-160?

The package includes: Type-C USB charging cable, AUX audio cable (3.5mm), shoulder strap, and instruction booklet.

USER MANUAL BS-160 Vivax

Black VIVAX portable electronic device with adjustable buttons and a circular cover (no visible text or symbols on body)

Karakteristike:

Cross symbol of all three items (bottle, box, bottle) crossed, no text or labels present

OTKLANJANJE POTEŠKOĆA

Black VIVAX portable electronic device with adjustable buttons and a circular cover (no visible text or symbols on body)

Karakteristike:

1.2. O CH prenosni Bluetooth zvučnik
2. Vodootporna zaštita IPX6, savršen za plažu, pored bazena, brod i druge aktivnosti na otvorenom
3. TWS funkcija, uparite dva zvučnika bežično kako biste doživeli odličan stereo zvuk
4. Optimizirani Google asistent i Siri glasovno upravljanje
5. Jednostavno prihvatanje poziva sa "HANDS FREE" funkcijom
6. LED RGB bočno osvetljenje
7. A2DP Bluetooth za bežično priključenje na bilo koji spoljašnji uređaj kao što su Smartphone, Notebook, iPhone ili iPad
8. USB priključak
9.FM Radio
10. "AUX Line-In" funkcija pogodna za povezivanje na PC, MID, TV i druge Audio uređaje
11. Ugrađena Lithiumska punjiva baterije kapaciteta 3600mAh
12. Ručka za nošenje na ramenu

Oprema uz uređaj:

1. Type-C USB kabl za punjenje
2. Audio kabl (3,5mm)
3. Uputstvo za upotrebu
4. Ručka za nošenje na ramenu

Dobrodošli

Zahvaljujemo na kupovini audio uređaja VIVAX BS-160. Molimo vas da pažlivo pročitate i sledite sva uputstva navedena u ovom priručniku kako biste s lakoćom mogli da koristite ovaj proizvod. Preporučujemo da ova uputstva sačuvate kako biste ih, u slučaju potrebe, mogli koristiti u budućnosti.

VAŽNA SIGURNOSNA UPOZORENJA

Uređaj je tako dizajniran i proizveden da je potpuno siguran za upotrebu ukoliko se njime pravilno rukuje. Međutim, nepravilna upotreba može da dovede do potencijalnih opasnosti kao što su električni udar ili požar. Pažljivo pročitajte sva uputstva o bezbednosti i upotrebi pre instalacije i upotrebe i pridržavajte se svih upozorenja navedenih u priručniku kao i na uređaju.

OPREZ: KAKO BI SE SMANJILA OPASNOST OD ELEKTRIČNOG UDARA, NEMOJTE DA OTVARATE UREĐAJ. U UREĐAJU NEMA DELOVA ILI KOMANDI KOJE SU NAMJENJENE PODEŠAVANJU OD STRANE KORISNIKA. ZA POPRAVKE KONTAKTIRAJTE OVLAŠĆENI SERVIS.

1. Voda i vlaga – Uređaj ne sme da se upotrebljava u blizini vode ili u prostorijama sa visokom vlažnošću vazduha - npr. u blizini kade, umivaonika, sudopera, bazena ili u vlažnom podrumu, perionici i slično.
2. Ventilacija – Uređaj treba postaviti tako da se ne ometa pravilna ventilacija uređaja. Npr. uređaj ne sme da se stavlja na krevet, kauč, tepih i slične površine koje mogu blokirati ventilacijske otvore. Također, ne sme da se stavlja u ugrađene instalacije, poput polica za knjige ili ormariće, koje mogu ometati ili blokirati protok zraka kroz ventilacijske otvore.
3. Vrućina – Uređaj smestite dalje od izvora toplote kao što su radijatori, grejalice, peći i drugi uređaji (uključujući i pojačala) koji stvaraju toplinu.
4. Izvor napajanja – Uređaj sme da se priključi samo na električno napajanje koje je navedeno u uputstvima i koje je naznačeno na uređaju (5VDC, 1-2A Max).
5. Zaštita kabla za punjenje – Kabl za punjenje treba da bude smešten tako da nije verovatno da će se po njemu gaziti ili ga pritiskati drugim predmetima. Nemojte da uvijate, gnječite ili savijate kabl ili da vučete uređaj za kabl.
6. Čišćenje – Uređaj čistite mekanom vlažnom krpom. Nemojte da koristite rastvarače ili abrazivna sredstva. To može nepovratno da ošteti uređaj.
7. Strani predmeti i ulazak tečnosti – Pazite da strani predmeti ne padnu na uređaj. Isto tako pazite da se na uređaj ne prospe voda ili neka druga tečnost. Ukoliko se to dogodi, odmah isključite uređaj i kontaktirajte servis.
8. Dodaci – Nemojte da koristite bilo kakve dodatke na uređaju, osim ako ih nije odobrio ili preporučio proizvođač.

9. Ukoliko se uređaj ne koristi – Ako uređaj neće biti u upotrebi duže vremena, npr. mjesec dana ili duže, kabl za punjenje treba da odspojite sa uređaja, kako bi se sprečilo oštećenje baterije uređaja. Čuvajte uređaj na suvom i tamnom mestu.

10. Servis – Nemojte da pokušavate da popravljate ili prepravljate uređaj. Popravke uređaja prepustite stručnom i ovlašćenom servisnom osoblju.

11. UPOZORENJE: Uređaj sadrži punjive baterije. Ukoliko baterije postanu slabe ili se istroše, za promenu baterija, kontaktirajte ovlašćeni servis ili prodavca.

12. Uređaj i baterije ne smeju biti izloženi pretjeranom zagrevanju i toploti, npr. sunčevoj svetlosti, zagrevanju ili vatri.

13. Hemikalije u bateriji mogu da uzrokuju nadraživanje kože. Ako hemikalije dotaknu vašu kožu, odmah ju operite.

14. Duža upotreba Audio uređaja ili upotreba na visokoj jačini može trajno da oštetiti vaš sluh. Ako osjetite zujanje u ušima ili druge probleme odmah prekinite upotrebu. Preporuka je da koristite uređaj na umerenoj jačini.

15. Mesta izložena vibracijama mogu da utiču na oštećenje unutrašnjih delova uređaja. Uređaj ne sme da bude smešten u blizini otvorenog plamena i izvora jake toplote, kao što su električne grejalice, peći i sl.
16. Nemojte dozvoliti deci da se igraju uređajem!

1. TASTER ZA UKLJ./ISKLJ.
2. TWS TIPKA (uparivanje dva zvučnika)
3. PAUZA/REPRODUKCIJA
4. SLEDEĆI ZAPIS/POJAČAVANJE ZVUKA
5. INDIKACIJA NAPUNJENOSTI BATERIJE
6. PRETHODNI ZAPIS/SMANJIVANJE ZVUKA
7. TASTER ZA NAČIN RADA (Bluetooth/USB/MicroSD/FM ili AUX)

8. SIRI GLASOVNO UPRAVLJANJE

9. Type-C USB DC 5V PRIKLJUČAK ZA PUNJENJE

10. USB ULAZ

11. AUX ULAZ

12. TASTER ZA RESET UREĐAJA

UPOTREBA

Crossed black-and-white illustration of three cosmetic products (bottle, box, bottle) with no visible text or symbols

OTKLANJANJE POTEŠKOĆA

U slučaju pojave poteškoća u radu, pročitajte donja uputstva pre nego što uređaj odnesete na popravku. U slučaju da niste u mogućnosti otkloniti problem pomoću donjih uputstava, molimo kontaktirajte ovlašćenog trgovca ili službu za korisnike.

Black VIVAX portable electronic device with adjustable buttons and a circular cover (no visible text or symbols on body)

Карактеристики:

Black and white crossed-out illustration of three cosmetic products (no text or symbols)

Black VIVAX portable electronic device with adjustable buttons and a circular cover (no visible text or symbols on body)

Funksionet:

PËRGATITJE PËR PËRDORIM

Hapja e paketimit dhe vendosja

1. NËRRUESI KRYESOR ON/OFF
2. BUTONI TWS
3. PAUSE/PLAY
4. PËRPARA/NGRI VOLUMIN
5. TREGUESI I BATERISË
6. PRAPA/ ULE VOLUMIN
7. BUTONI MODE (Bluetooth/USB/FM or AUX) BUTONI TWS

8. BUTONI I KONTROLLIT PËRMES ZËRIT SIRI

9. DC 5V PORTI MBUSHËS

10. USB PORT
11. AUX PORT
12. BUTONI I RIVENDOSJES

OPERATION

Ndiz/fik (on/off)

Black and white crossed-out symbol on white background, no text or symbols present

MËNJANIMI I PROBLEMEVE

SPECIFIKIMET TEKNIKE
TË PËRGJITHSME
Energjia e kërkuar	DC5V, 500-2000mA
Energjia e konsumuar	14 W
Bateria / Koha e punës*	Lithium, 3600mAh 3,7V / Aprox. 3h on Max / 6,5h on moderate volume
Dimensionet	Approx.283 mm(L)x123mm(W)x126mm(H)
Temperatura e operimit	+5°C - +35°C
SEKTORI I PRANIMIT
Brezet valore të pranuara	FM
Brezi I kërkimit	FM: 87.5-108 MHz
Brezi I Bluetooth	2402-2480 MHz, gain: 0,89 dBi
SEKSIONI AUDIO
Fuqia dalëse	Maximum 14 Watt - (2x7W) RMS, 100Hz-20kHz
AKSESORËT
Broshurë udhëzimesh	1
Type-C - USB kabllo e karikimit	1
Audio AUX 3,5mm Cable	1
Rripi i krahut.	1

Black VIVAX portable electronic device with adjustable buttons and a circular display (no visible text or symbols on body)

Karakteristike:

Black cross symbol crossed over a collage of cosmetic bottles and boxes (no text or labels)

ODPRAVLJANJE TEŽAV

V primeru pojava težav, v celoti preberite ta navodila, preden boste napravo odnesli na popravilo. V primeru, da naprave ne morete usposobiti s pomočjo navodil, se obrnite na pooblaščenega prodajalca ali servis.

OPOZORILO: V nobenem primeru sami ne popravljajte in odpirajte naprave, saj se bo tako garancija prekinila.

Bluetooth/MP3 Player with FM Radio

Black VIVAX portable electronic device with adjustable buttons and a circular cover (no visible text or symbols on body)

Features:

1. 2.0 CH Outdoor Bluetooth speaker
2. Water resistant IPX6, perfect for beach, poolside, boat and more outdoor activities
3. TWS function, achieve true wireless playing with double enhanced stereo sound
4. Optimized Google Assistant and Siri voice control
5. Hands-free Microphone for easy picking up the call
6. LED RGB Side Lighting
   7.A2DP BI uetooth for Music wireless streaming from any Bluetooth enabled device such as your Smartphone, Notebook, iPhone or iPad
7. USB stick support with MP3 Audio play
   9.FM Radio
8. Line-in function, suitable for PC, MID, TV and other audio devices
9. Built-in lithium rechargeable Battery 3600mAh
10. Shoulder strap, easy to take out

Accessories:

1. Charging cable
2. Audio cable
   3.User manual.
3. Shoulder strap

Welcome

Thank you for purchasing the Bluetooth Audio system VIVAX BS-160.

It is important to read this user manual prior to using your new product for the first time. In order to fully benefit from this product, please follow the instructions in this user manual very carefully. Store this user manual in a safe place for future reference. We are sure your new Micro Audio system will satisfy your needs.

IMPORTANT SAFETY INSTRUCTIONS

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
5. Charger Cable Protection – Charger cable should be routed so that they are not likely to be walked on or pinched by items placed upon or against them.
6. Cleaning – The unit should be cleaned only using a warm damp cloth. Do not use solvents, etc.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product. In that case, immediately disconnect power supply and contact authorized service.
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Periods of Non use – If the unit is to be left unused for an extended period of time, such as a month or longer, the power charging cable should be unplugged from the unit to prevent damage. Storage device on dry and dark place.
10. Servicing – The user should not attempt to service the unit beyond those methods described in the user's operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

11. WARNING: Unit contains Rechargeable batteries. To change batteries in case that battery became weak, contact your Official Service or Dealer.

12. Unit and batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.

13. Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.

14. Using Audio product prolonged periods or at a high volume can damage your hearing permanently. If you experience noise in the ears or other problems immediately stop using the unit. It is recommended to use Audio unit at a moderate volume.

15. Place exposed to vibration can affect the damage of internal parts of the device. The device should not be placed near open flames and sources of intense heat, such as, electric heaters.
16. Do not allow children to play with device.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of knowledge and experience to use the appliance, unless they are supervised by a person who is responsible for their safety or you're not received training on the use of appliances.

1. Place the unit on a hard and flat surface so that the unit does not tilt.
2. Do not cover the unit. Adequate ventilation with a minimum gap of 15cm between the ventilation holes and surrounding surfaces is necessary to prevent heat build-up

PREPARATION FOR USE

Unpacking and Setup

* Carefully remove the unit from the display carton and remove all packing material from the unit itself.
* Do not remove any labels located on either the back or button cabinet of the unit.

POWER SUPPLY-CHARGING

1. The charger is not included in the package, please charge the speaker via a standard 5V/1-2A charger or via a PC.
2. Put the provided charge cable into the charge slot of unit (DC 5V, 1-2A)
3. Connect the other end to Adapter, PC or other charger with 5V output (Not included)
4. When battery voltage is low, the speaker will prompt for recharging.
5. Charge time should be aprox. 4-6 hours.
6. When battery voltage is low, the speaker will prompt for recharging.

ATTENTION: In order to prolong the life of battery, please do not leve unit continuously on Charger or charge unit more than 8 hours.

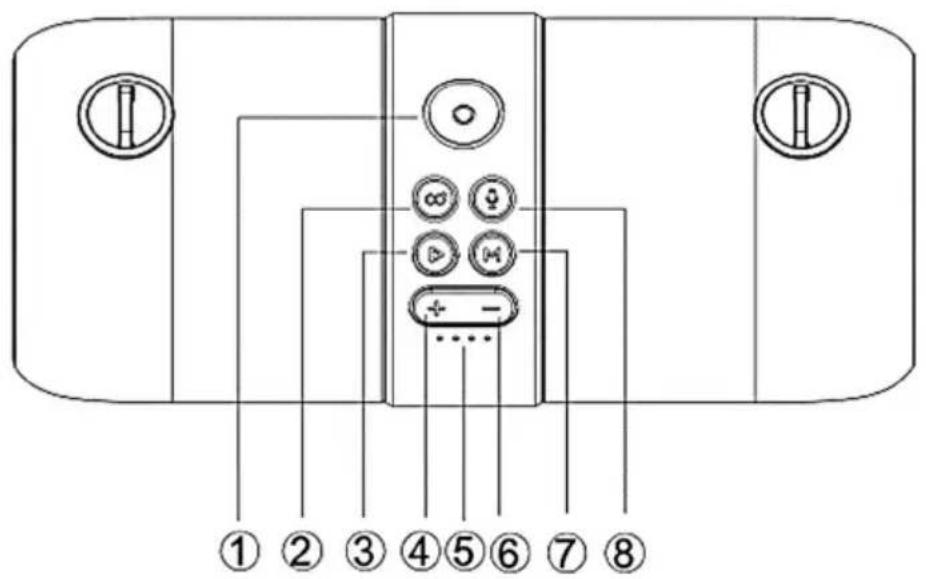

OVERVIEW OF THE PLAYER

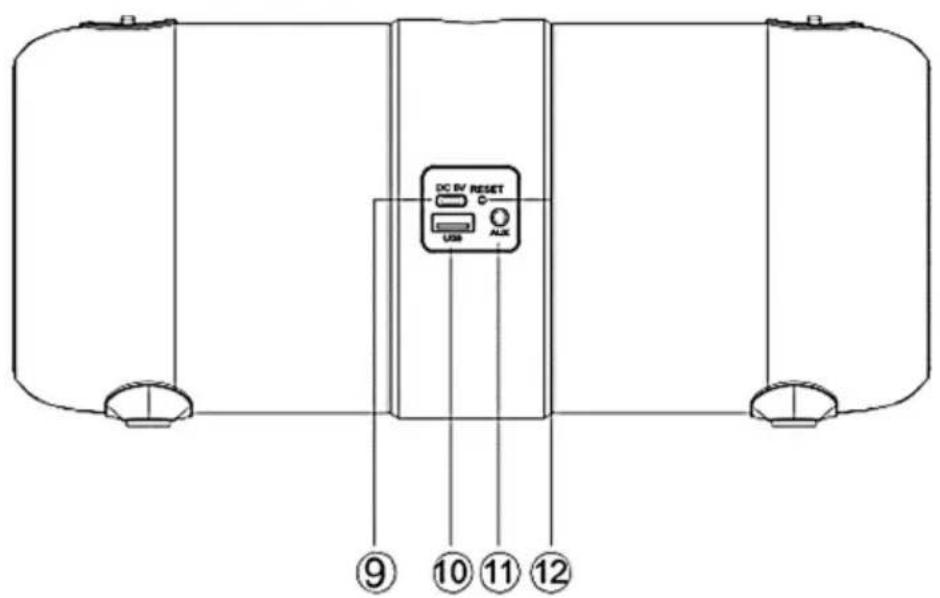

1. MAIN SWITCH ON/OFF
   2.TWS BUTTON
   3.PAUSE/PLAY
   4.FORWARD/VOLUME UP
2. BATTERY INDICATOR
   6.BACKWARD/VOLUME DOWN
3. MODE BUTTON (Bluetooth/USB/FM or AUX)TWS BUTTON

4. SIRI VOICE CONTROL BUTTON

5. DC 5V CHARGING PORT

10.USB PORT

11.AUX PORT

1. RESET BUTTON

OPERATION

Power On/Off

Long-press the Power button to turn the speaker on, short-press the Power button to turn the speaker off.

Note: Each time you press the MODE button, the operating mode switches between Bluetooth / AUX / USB and FM mode.

The Bluetooth connection is active only if no connected external device or cable to the AUX input or USB external stick.

When you connect the Audio cable to the AUX input or USB stick into USB slot, the Bluetooth connection is automatically disconnected and playback switches to the connected device.

Bluetooth:

1. Turn the power button to "ON", The speaker enter Bluetooth mode automatically.
2. Activate Bluetooth of mobile phone and search for device name "VIVAX BS-160" then connect it.
3. Play the music from your mobile phone and enjoy.
4. Long-press Forward (+) or Backward (-) button on the device or operate on Mobile phone to select songs you like.
5. Short-press Forward (+) or Backward (-) button to adjust Volume up (+) and Volume down (-). Or adjust volume on external connected device.
6. Short-press Play/Pause button on the device or operate on external device to play/pause the music.
7. Long-press TWS button to disconnect Bluetooth connection, then make Bluetooth connection with other mobile phone.

Playing music from USB disk

1. Turn the Power button to "ON".
2. Insert USB flash disk into slot
3. The speaker will play the stored music automatically.
4. Long-press Forward (+) or Backward (-) to select songs you like, short-press to adjust the Volume up (+) and Volume down, Short-press Play/Pause to play or pause.

Notes: Under Bluetooth playing mode, insert USB disk will disconnect the Bluetooth and switch to play the USB disk. You can short-press the MODE button to switch to Bluetooth mode again.

FM Radio:

Turn the power button to "ON", short-press the "MODE" button to enter radio state.

Long-press "Play/Pause" button to auto search the FM Channel and store it automatically.

Short-press "Play/Pause" button to mute the speaker.

Long-press Forward (+) or Backward (-) button to change the stored FM channel,

Short-press to adjust the Volume up (+) and Volume down (-)

AUX:

For other compatible music devices or your MP3/MP4 players, use the supplied audio line cable to connect from the device's "Line Out" to the "AUX" of this devices. Then press the MODE button to switch to AUX-IN state.

When using an external device, all functions will be controlled by the external device.

Activating Voice Assistant:

1. Make Bluetooth connection with your mobile phone.
2. Short-press Siri button to activate voice assistant SIRI/GOOGLE ASSISTANT.

TWS Function:

1. Turn on two identical speakers you want to pair, both under BT mode.
2. Only need to set one of the two units.
3. Short-press the TWS button to pair, a tone will be audible and TWS button will keep lighting after paired successfully.
4. Make Bluetooth connection with your mobile phone to play music by the two paired Speakers.
5. Short-press the "TWS" button again to exit the TWS connection.

Notes:

Under TWS mode and Bluetooth connected, when user long-press the TWS button, both the TWS connection and Bluetooth connection will be disconnected.

When Bluetooth connected, if user short-press TWS button to make TWS connection, the Bluetooth connection will be disconnected for a short time, after TWS paired, the Bluetooth will be connected again.

RGB Lighting:

When the speaker is turned on, the RGB light is on automatically, user can long-press the Mode button to switch the RGB light on and off.

Hands-free call:

1. Under Bluetooth connection status, if there is an incoming call, user can short-press Play/Pause button to accept the call or long-press Play/Pause button to reject the call.
2. During the call, user can long-press Play/Pause button to switch to talking on the phone.
3. Short-press Play/Pause button or operate on mobile phone to end the call.

Reset Functionality:

If the speaker does not turn off or respond, user can short-press the RESET button with a small round pin to reset the speaker.

More Remarks:

Default volume is at 50% status of max volume.

Play time may vary depending on volume level and music style.

Place the unit on a hard and flat surface so that the unit does not tilt.

• Do not expose the unit to excessive humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.
• Do not cover the unit. Adequate ventilation to prevent heat build-up.
• To clean the set, use a soft dry cloth. Do not use any cleaning agents containing alcohol, ammonia, benzene or abrasives as these may harm the cabinet.

TROUBLESHOOTING

If a fault occurs, it is important you first check the points listed below before taking the unit for repair. If you are unable to remedy a problem by following these hints, consult your dealer or service center.

WARNING:

no circumstances should you try to repair the unit yourself, as this will invalidate the warranty.

No Sound / Power

- Volume not adjusted Adjust the VOLUME

- Battery is Empty

- Connect the power cord for charging

No reaction to operation of any of the controls

- Electrostatic discharge Switch off the unit. Connect it after a few seconds

TECHNICAL SPECIFICATIONS
GENERAL
Power Requirement	DC5V, 500-2000mA
Power consumption	14 W
Battery / Working time*	Lithium, 3600mAh 3,7V / Aprox. 3h on Max / 6,5h on moderate volume
Dimensions	Approx.283 mm(L)x123mm(W)x126mm(H)
Operation temperature	+5°C - +35°C
RECEIVER SECTION
Receiving Bands	FM
Tuning Range	FM: 87.5-108 MHz
Bluetooth Range	2402-2480 MHz, gain: 0,89 dBi
AUDIO SECTION
Output Power	Maximum 14 Watt - (2x7W) RMS, 100Hz-20kHz
ACCESSORIES
Instruction Booklet	1
Type-C - USB charge cable	1
Audio AUX 3,5mm Cable	1
Shoulder strap	1

* The working time is aproximative, depends on how the device is used.

The Bluetooth ^® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vivax (MSI) is under license. Other trademarks and trade names are those of their respective owners.

Bluetooth®

Disposal of Waste Electrical & Electronic Equipment

This symbol on the product(s) and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. Alternatively, in some countries you may be able to return your products to your local retailer upon purchase of an equivalent new product. Disposing of this product correctly will help save valuable resources and prevent any potential negative effects on human health and the environment, which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point. Penalties may be applicable for incorrect disposal of this waste, in accordance with your national legislation.

Disposal of waste batteries

Check local regulations for disposal of waste batteries or call your local customer service in order to get instructions on the disposal of old and used batteries. The batteries in this product should not be disposed of with household waste. Be sure to dispose of old batteries in special places for disposal of used batteries that are found in all retail shops where you can buy batteries.

EU Declaration of Conformity

This device is manufactured in accordance with the applicable European standards and in accordance with applicable RED Directives 2014/53/EU and Regulations.

The full text of the EU declaration of conformity is available at the following internet address: www.msan.hr/dokumentacijaartikala

POŠTOVANI!

Zahvaljujemo na kupnji Vivax uređaja i nadamo se da ćete biti zadovoljni odabirom. Ako u jamstvenom roku bude potreban popravak proizvoda, molimo savjetujte se sa ovlaštenim prodavačem koji Vam je proizvod prodao ili nas kontaktirajte na dolje navedene brojeve i adrese. MOLIMO VAS DA PRIJE UPORABE PROIZVODA PAŽLJIVO PROČITATE UPUTE PRILOŽENE UZ PROIZVOD!

JAMSTVENI LIST

VIVAX

HR

MODEL UREĐAJA

SERIJSKI BROJ

DATUM PRODAJE

BROJ RAČUNA PRODAVATELJA

POTPIS I PEČAT PRODAVATELJA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu.
   Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.

2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore za koje jamstvo traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.

4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.

5. JAMSTVO NE OBUHVAĆA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.

2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.

3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.

4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.

5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.

6. PRAVO NA REKLAMACIJU NE OBUHVATA

Kosova Electronic Service Center

Kosova Electronic Service Center

VIVAX Air Conditioners; White Goods and Small Home appliances
