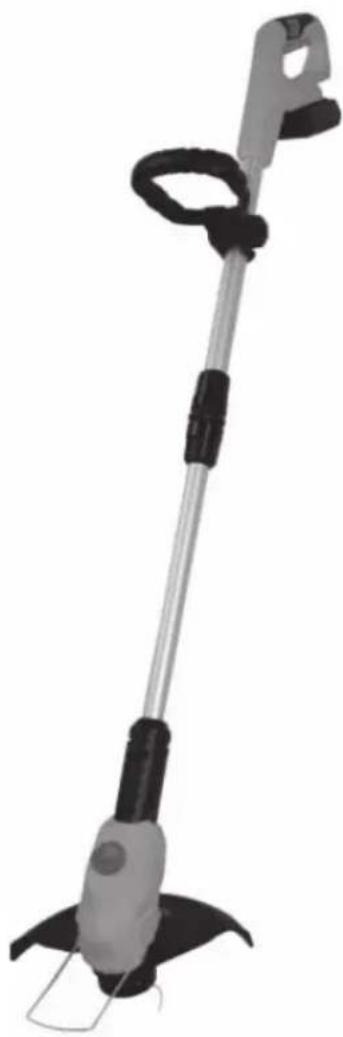

Product Type	Cordless Garden String Trimmer
Model	FZS 1005-A
Brand	Fieldmann
Rated Voltage	18 V DC
Battery Type	Li-Ion
Battery Capacity	1500 mAh
Charging Time	Approximately 4 hours
No-Load Speed	8500 rpm
Cutting Width	260 mm
Charger Input	230 V / 50 Hz
Weight	Approx. 2.3 kg
Power Source	18 V Li-Ion battery (included)
String Length	6.5 m (max)
Cutting Mechanism	Nylon string
Safety Features	Protective cover, safety lock, automatic string cutting blade
Adjustable Height	Telescopic rod with locking screw
Adjustable Angle	Adjustable mowing head (vertical)
Included Accessories	Battery, charger, protective cover, spacing arc, user manual
Maintenance	Remove battery before cleaning; use damp cloth; do not immerse in water
Storage	Dry place; remove battery; clean before storage
Disposal	Do not dispose as household waste; recycle battery and device at appropriate facility

Frequently Asked Questions - FZS 1005-A Fieldmann

How do I start the trimmer?

Press and hold the power switch safety lock with your thumb, then squeeze the trigger switch. Release the trigger to stop.

How can I adjust the string length?

Press the coil button and pull the nylon string to the desired length. Alternatively, tap the spool on the ground while the trimmer is running to automatically extend the string.

How do I replace the string spool?

First, turn off the trimmer and remove the battery. Hold the serrated outer part, push and twist the coil head to unlock. Remove the old coil and insert a new one or rewind with 6.5 m of string. Replace the coil, twist clockwise until it clicks.

How long does it take to charge the battery?

The battery charges fully in approximately 4 hours. The LED is red during charging and turns green when fully charged.

What is the recommended temperature for charging?

Charge the battery at room temperature between 18°C and 24°C. Do not charge below 4°C or above 40°C to prevent damage.

Can I use the trimmer in wet conditions?

No, do not use the trimmer in rain or moist conditions. The tool is not waterproof and exposure to water may cause electric shock.

What safety equipment should I wear?

Always wear protective glasses and safety gloves. Keep bystanders, especially children and pets, at least 15 m away.

How should I store the trimmer?

Store in a dry room out of reach of children. Remove the battery and clean the trimmer before storage. Do not place other items on it.

What should I do if the battery gets wet?

If the battery gets wet, do not use it. Wipe dry with a cloth. If damaged, return it to a recycling centre. Avoid contact with leaked electrolyte.

How do I dispose of the battery and trimmer?

Do not dispose in household waste. Take the battery to a recycling centre for Li-Ion batteries. The trimmer should be disposed of at an electrical waste collection point.

USER MANUAL FZS 1005-A Fieldmann

Home & Garden Performance

Exterior view of a metal tool with black handle and metal bar (no text or symbols visible)

FZS 1005-A

English 7-18

Čeština....19-31

Slovenčina 32-45

Magyarul 46-59

Polski 60-79

1

2	3

5	6	7
8		9

10	11

12	13

14

Line drawing of two connected devices in a corner room, one with a cable and the other with a rectangular component (no text or symbols)

Cordless garden string trimmer USER'S MANUAL

Thank you for purchasing this garden string grass trimmer. Before you start using it, please read this user manual carefully and save it for future use.

TABLE OF CONTENTS

ILLUSTRATED ATTACHMENT 2

1. GENERAL SAFETY REGULATIONS ....8 Important safety notice Packaging User manual

2. EXPLANATION OF THE INSTRUCTION LABELS ON THE MACHINE....9

3. DESCRIPTION OF THE MACHINE AND CONTENTS....10 Machine description Supplied contents

4. OPERATING INSTRUCTIONS .... 11 Operation Purpose of use Use the right kind of tool

5. SAFETY INSTRUCTIONS....12 Safety Instruction for your new trimmer Safety instructions for the battery and charger

6. ASSEMBLING THE MACHINE....14 Protective cover installation Protective guide installation

7. PUTTING INTO OPERATION....14 Turning on the tool Replacing the string spool Charging the battery Important information about charging

8. MAINTENANCE AND STORAGE....17 Maintenance Storage

9. TECHNICAL SPECIFICATIONS....17

10. DISPOSAL....18

1. GENERAL SAFETY REGULATIONS

Important safety notice

Carefully unpack the product and take care not to throw away any part of the packaging until all the product parts have been identified.
Store the trimmer in a dry place out of reach of children.
Read all warnings and instructions. Failure to comply with the warnings and instructions may lead to electric shock, fire and/or serious injuries.

Packaging

The product's packaging prevents damage during transport. This packaging is a resource and can be recycled.

User manual

Before you start working with your grass trimmer, read the following safety and usage instructions. Get familiar with the controls and correct use of the equipment. Keep the User manual in a safe place where it can be easily found for future use. Save the original packaging, including the internal packing material, guarantee card and proof of purchase receipt for at least the time of the guarantee.

If you need to ship this machine, pack it in the original cardboard box to ensure maximum protection during shipping or transport (e.g. when moving or when you need to send this product for repair).

NOTE: If you hand over the appliance to somebody else, do so together with this user's manual.

Following the instructions in the included user's manual is a prerequisite for the proper use of the trimmer.

The user's manual also contains operating, maintenance, and repair instructions.

The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions.

2. EXPLANATION OF THE INSTRUCTION LABELS ON THE MACHINE

General danger warnings!

Carefully read the manual before use.

Keep other people away from the work area.

Do not use in the rain or in unfavourable climatic conditions.

While working use protective aids.

Make sure that people standing nearby are not injured by deflected foreign objects.

Keep other persons (particularly children) and animals out of range, at least 6 m from the working area.

Prior to performing repair and maintenance jobs or cleaning the machine, it's necessary to remove the battery.

Danger of injury while the machine is running out.

3. DESCRIPTION OF THE MACHINE AND CONTENTS

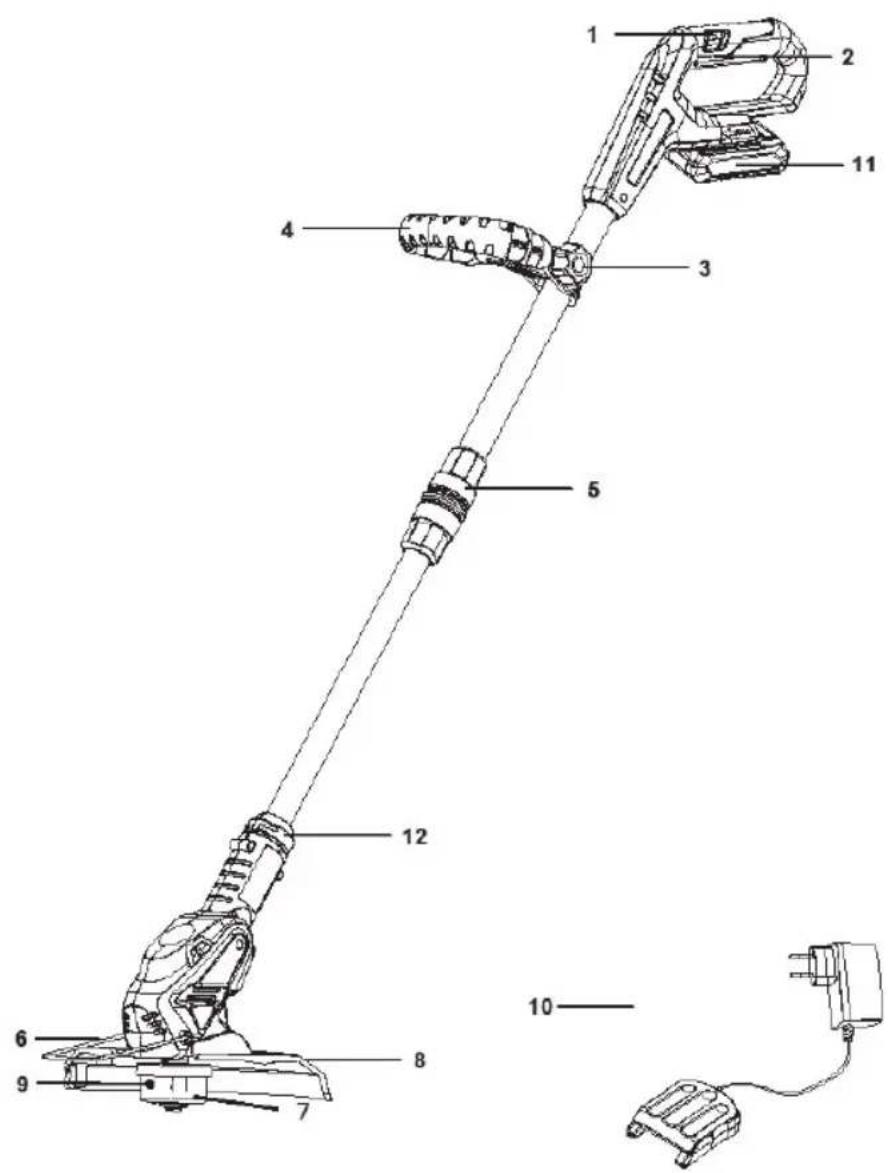

Machine description (see fig. 1)

1. Power switch safety lock 8. Protective cover
2. Power switch 9. String
3. Handle screw 10. Battery charger
4. Auxiliary handle 11. Battery
5. Working height adjustment lock 12. Working angle setting
6. Protective arc
7. String trimmer head

ATTENTION! The line cutting blade on the protective cover is sharp!

Supplied contents

Carefully take out the garden tool from the packaging and check whether all the following parts are present:

* Cordless garden grass trimmer
Spacing arc
Battery
Charger
Protective cover
Instructions for use

If there are parts missing or they are damaged, please contact the vendor from whom you bought the tool.

4. OPERATING INSTRUCTIONS

Operation

This product must not be used by children and persons with physical or mental impairments or by inexperienced persons, unless properly trained or schooled in the safe use of the product, or unless they have been properly supervised by a qualified person who will be responsible for their safety.
Never use your garden trimmer if you are in close vicinity to other people, children or freely moving home pets.
Use extra care if the product is used near children. Always keep the product out of reach of children. Children must be supervised to ensure that they do not play with the product.
* Never allow children or persons who do not know the contents of this user's manual to work with the device. Local regulations may set the minimum age of the user. The user is responsible for damages caused to third parties in the grass trimmer's working area as a result of its use.
Do not use the machine if your are tired, under the influence of alcohol or narcotics.

Purpose of use

The string grass trimmer is designed only to mow grass. Do not use the product for purposes other than those intended. The string trimmer is suitable for use in private gardens. The charger is designed to charge batteries supplied with this machine. Do not use it to charge other batteries.

Use the right kind of tool

This user's manual describes the designated use of tools. Do not overload small tools or accessories for work, where high performance tools are necessary. The tool will work better and more safely during work for which it is designed. When using any accessories or additions or when performing any kind of work, which is not recommended by this user's manual, there may be a risk of injury to persons. Do not overload the tool.
* Prevent the situation where the tool is turned on accidentally. Do not carry the tool with the finger on the start/stop trigger.
Never pull on the power cord when disconnecting power plug from the power socket. Do not lead the power cord over greasy and hot surfaces and make sure that it does not go over sharp edges.

5. SAFETY INSTRUCTIONS

ATTENTION! Before you start working with your cordless string grass trimmer, read the following safety and usage instructions. Get familiar with the controls and correct use of the equipment. Keep the User manual in a safe place where it can be easily found for future use.

Safety Instruction for your new trimmer

* Wear protective glasses designed for working with a machine.
Wear safety gloves designed for working with a machine.
Do not expose the machine to rain or moisture.
Get acquainted with operation and correct use of your string trimmer.
Do not allow children to operate the trimmer. All persons working with the grass trimmer must well acquainted with the user's manual.
Keep other persons (mainly children) and animals out of the trimmer's reach as the cut grass may contain stones or debris. Stop the trimmer if there are children, adults or animals in the vicinity.
Keep other persons (particularly children) and animals out of range, at least 15 m from the working area.
Work only in sufficient light.
Before each use or after a strike, please check for any signs of damage and repair as needed. Do not use the string grass trimmer if damaged or the security is not guaranteed.
On regular basis and before each use, please check the trimmer condition (mainly if all screws and nuts are tightened and the safety cover is attached). If the trimmer is not in good condition, it's cannot be used safely.
The protective cover must be attached at all times during trimming.
Do not use the trimmer if the cover is damaged.
Prior to starting the string trimmer, make sure that the nylon cutting edge is not touching the ground, stones or other items.
Keep your hands and feet sufficiently apart from the rotating string, mainly after starting the motor.
Protect yourself from injuries that may be caused by the rotating string that may be turning for a while after the machine is turned off. After prolonging the string, always return your trimmer to its original working position.
Do not use metallic mowing parts for grass trimming.
Always use only original spare parts.
* Disconnect the battery before maintenance or cleaning or if you don't use your trimmer.
* Always make sure that the ventilation openings are clean.
* Prevent the trimmer from being started at random. Never carry the trimmer with your finger on the trigger.
When operating the trimmer, make sure it's in a safe and stable position.
Before starting the trimmer, check the work area and remove wires, stones, debris etc.
Do not trim against solid objects. This could lead to injury or damage to the grass trimmer.

ATTENTION! Mowing parts rotate even after the trimmer is turned off.

Do not attempt to stop the string (nylon) with your hand! Let the string run out on its own.

Do not use the trimmer to cut grass that doesn't contact the ground such as grass growing on stones, walls etc.
Keep off pavement, gravel paths etc. while is string is still rotating.

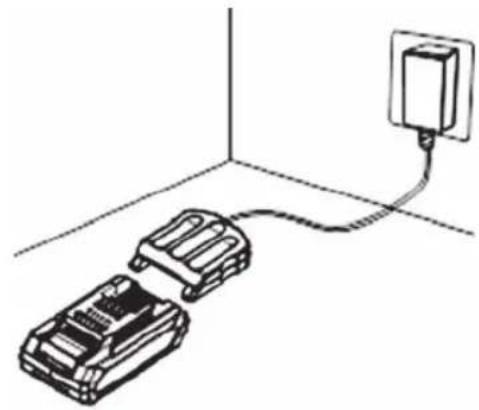

Safety instructions for the battery and charger

Battery

Never open the battery.
Do not expose the battery to water.
Do not throw the battery in fire as there is a risk of explosion!
Do not store the battery in locations where the temperature could exceed 40°C.
Do not leave the battery in charger if the charging is finished. Otherwise, electrolyte could leak out of the battery.
Charge at room temperature only.
Use only original charger supplied by the battery.
Before charging check that the battery is dry and clean.
Use only the battery types approved by the manufacturer.
Do not put the battery in common household waste but return it in a battery recycling centre instead.
Under extreme conditions there is a risk of the electrolyte leaking out of the battery. If the electrolyte leaks, proceed as follows:

- Carefully wipe the electrolyte away with a dry cloth. Avoid contact with skin.

- If contact with skin or eyes does occur, proceed according to the instructions below.

The battery contains a 25-30% potassium hydroxide solution, which may be harmful. If contact with the skin occurs, immediately wash with large amounts of water. Neutralise with a mild acid, e.g. lemon juice, vinegar. When eyes are affected, thoroughly rinse with water (for at least 10 minutes) and seek medical attention.

NOTE: The batteries are Li-lon types. Do not throw the batteries in household waste, fire or water. The batteries must be disposed of in environmentally friendly manner.

Charger

* Never replace any electric cord, risk of injury could occur!
Only use the charger for charging the original batteries supplied with the product. When charging a different battery type there is danger of sudden combustion, serious injury to persons, damage to property.
Only two batteries can be charged continuously one after another, otherwise charger overheating might occur. Allow the charger to cool down before a new charging.
When the charging process is complete, unplug the charger from the power socket remove the battery.
Do not leave the battery in the charger.
When carrying the charger, do not hold the cord or the plug. To disconnect the charger from a power socket, do not pull the cord but hold plug instead. Protect the charger from heat and contact with sharp objects.
* Never charge non-rechargeable batteries.
Do not use the charger cord if damaged in any way.
Do not expose the charger to water or rain effects and do not use it in wet environment.
Do not open the charger.
Do not disassemble the charger.
Do not use the charger outdoors as it's designed for indoor use only.

6. ASSEMBLING THE MACHINE

Protective cover installation (see fig. 2)

◆ Slide the cover onto the grass trimmer's head. (fig. 2)
The cover is properly attached when the retaining pawls click.

Protective guide installation (see fig. 3)

Attach both ends of the protective guide on the trimmer as shown on fig. 3.

Grip the machine handle and move the release button backwards with your thumb (A), then press and hold the trigger switch (B) (see fig.5). Turn off the grass trimmer by releasing the trigger switch.

Turning on the tool

Before using the string trimmer for the first time, make sure that the nylon string is properly attached and long enough. If the string is not long enough, proceed as follows:
- Press the coil button. (see fig.6) - Pull out the nylon string to a desired length. (see fig.6)
As soon as the grass trimmer is turned on, the extended nylon line will automatically be shortened by the shortening blade to the correct length.
While the grass trimmer is in operation the nylon line will become shorter and will wear out. To automatically extend or pull out the nylon string, tap the butt on the spool lightly against the ground (even while the grass trimmer is in running). (see fig. 7)

This procedure should be repeated several times before starting work to make sure that the grass trimmer is working correctly and that you are completely informed about the use of the grass trimmer. Start slowly and as soon as you become more experienced, you will be able to take advantage of the full potential of the grass trimmer.

The working height of the grass trimmer can be continuously set and adjusted to suit the height of the operator. (see fig. 8)

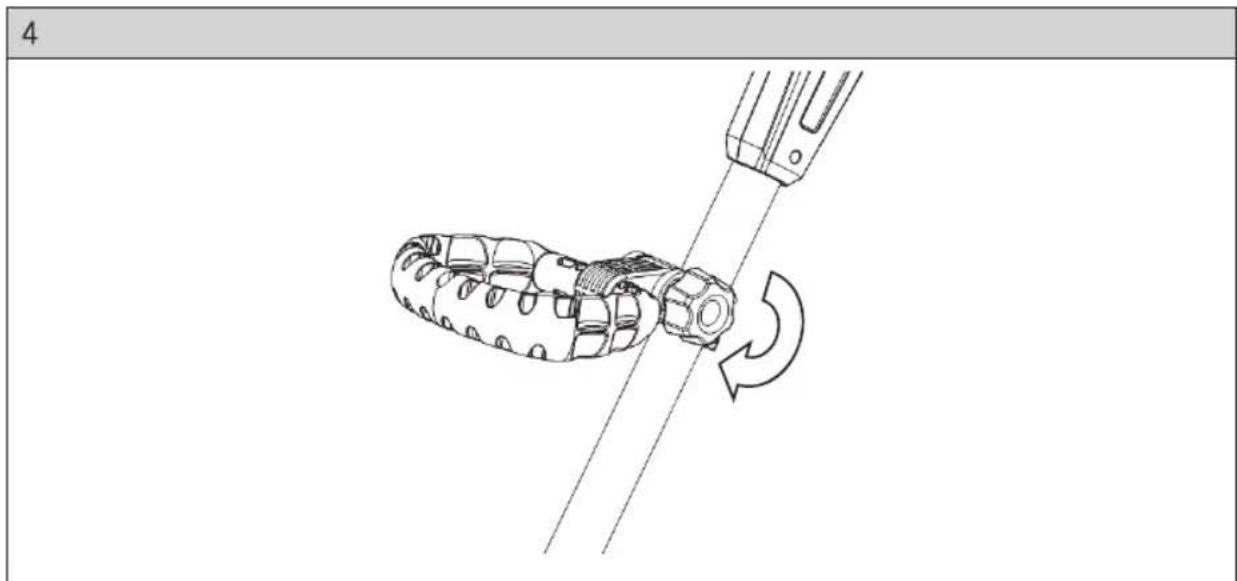

• Hold the bearing rod and loosen the locking screw.
• Adjust the telescopic rod to a correct length and tighten the locking screw.

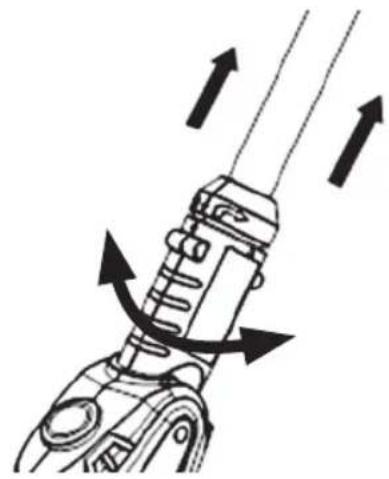

The trimmer also allows you to set the mowing head vertically (see fig.9).

• Hold the trimmer's bearing rod with one hand and the plastic chassis with the other (at the motor).
• Move both components from each other to release the lock and adjust the mowing string head's position.

Replacing the string spool

Turn the string trimmer off and wait until all rotating parts come to a full stop.
Remove the battery.

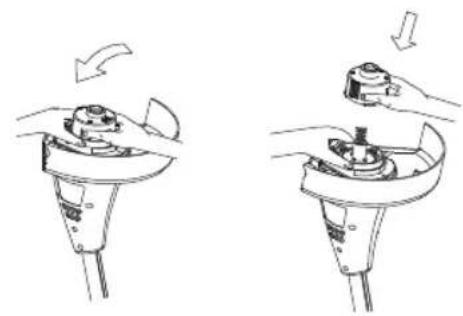

Remove the coil from the trimmer: hold the serrated outer part with one hand and push and twist the coil head to unlock with the other (fig.10). The coil holder and the coil can be easily removed now.

Note: There is a spring inside the head which can easily get lost. Make sure that it is kept in a safe place.

* To replace the coil, please select OPTION 1 or OPTION 2.

- OPTION 1: COIL REPLACEMENT

Replace the coil for a new one

Thread the coil through the eye on the coil holder and insert the coil inside. (fig.11)
Make sure you have inserted the spring inside, then replace the coil and the holder to their original position: press the head and twist clockwise until it clicks. (fig.12)
Make sure the nylon string is properly attached, press the coil button with your thumb while pulling out the nylon string with your fingers. The nylon string should eject easily.

- OPTION 2: REWINDING THE STRING ON THE COIL

To attach the nylon string, follow the instructions below:

• Thread the nylon string end through the coil hole with a 3mm lap as shown on fig.13.
• Wind the nylon string on the coil gently and steadily in the arrow direction marked on the coil (see fig.13), until the nylon string reaches the coil's edge groove. Do not rewind the coil. The coil allows you to wind nylon string in length of about 6.5m.

Note: Spare nylon string or coil are not supplied.

Charging the battery (see fig.14)

Before first use or when you have not used the string trimmer for a long time, it is necessary to fully charge the battery, otherwise its lifespan will be reduced. The battery heats up slightly when charging, this is a normal condition and does not indicate a problem.

Note: The battery will achieve full capacity after several charge/discharge cycles.

Note: DO NOT CHARGE THE BATTERY IF THE AMBIENT TEMPERATURE IS BELOW 4°C OR ABOVE 40°C. RECOMMENDED TEMPERATURE FOR CHARGING: APPROXIMATELY 24°C.

Insert the battery in the charger as shown on fig.14. Make sure that the battery is firmly seated in the charger. The LED indicator light is red, indicating that the battery is being charged.
The battery is fully charged after approximately 4 hours. The LED indicator light is green, indicating that the battery is fully charged.

Important information about charging

Note: To reach a long lifetime and the best performance of the battery, charge it at temperatures between 18 and 24°C. Do not charge the battery under extreme temperature conditions to prevent serious damage.

The battery may heat up if you use your trimmer continuously. Allow the battery to cool for at least 30 minutes down before charging.
The charger and the battery heat up slightly during the charging process. This is a normal condition, not a malfunction.
We recommend to charge the battery at room temperature. To prevent overheating, never cover the battery, charge in sunlight or near heat sources.
If the battery is not charged properly:

• check if the plug and connector are plugged in properly
• position the charger in an area where temperature ranges between 18 and 24°C
• if the problems persist, please contact a professional service centre.

The battery should be always recharged when the trimmer power decreases. Under such conditions, DO NOT resume working. Please proceed according to the instructions for charging the battery. You can also charge a partially used battery provided that this will not have a negative impact on the battery.
Under certain circumstances and when the charger is connected to mains, a short-circuit may occur. Foreign conductive objects such as steel wools, aluminium foils or others containing metallic parts must be placed out of the charger's reach. Always disconnect the charger from the mains if the battery is not charged. If you want to clean the battery, disconnect the charger from the mains.
Do not immerse the charger in water or any other liquid.

ATTENTION! Make sure that no liquid enters the charger. This may result in electric shock. To facilitate the battery cooling after use, avoid placing the battery or the charger in a warm environment such as metallic hall or uninsulated trailer.

⚠️ ATTENTION! Never attempt to open the battery. If the battery plastic cover is damaged, return it in the relevant recycling centre and stop using it.

8. MAINTENANCE AND STORAGE

Maintenance

When finished, remove the battery from the string trimmer.
* Only use spare parts and accessories approved by the manufacturer.
To keep the trimmer in a perfect condition, please store its parts - coils - in a closeable bag.
* Disconnect the battery before cleaning. For cleaning, use only a cloth moistened in water (you can also use soap solution). Never immerse the trimmer in water. Never rinse the trimmer under water jet (such as with a garden hose). No water may get inside the machine. Do not clean with a pressure washer.
The cutting tool on the cover edges may get blunt over time. We recommend to check the cutting tool sharpness on regular basis.

Storage

Store the trimmer in a dry room.
Do not place any other items on the machine.
At the end of the season, perform a complete inspection of the trimmer and remove accumulated grass clippings.
If a repair is necessary, contact an authorised customer service centre or your vendor.

9. TECHNICAL SPECIFICATIONS

Type.....Battery-powered garden string grass trimmer
Rated voltage 18V DC
Battery type....Li-Ion
Battery capacity 1500Ah
Charging time...... approximately 4 hours
Number of revolutions....8500 rpm
Cutting width 260 mm
Input power voltage 230V/50Hz

10. DISPOSAL

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste.

Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the date of purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim for service can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking over the product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation...

This warranty is void especially if apply as follows: ■ Defects which were put on sale. ■ Wear-out or damage caused by common use. ■ The product was damaged by unprofessional or wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person. ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

Fast Poland, Sp. z o.o.

Sokołowska 10

PL 05-090 Puchały

Poland

Tel.: [phone]

Fax: [phone]

[e-mail]

www.fastpoland.pl

Metal detector device with black handle and metal contacts (no visible text or symbols)

FIELDMANN®

Home & Garden Performance
