ROWER-500D - Rowing Machine LifeSpan - Free user manual and instructions

Product Type	Dual Air/Magnetic Rowing Machine
Brand	LifeSpan
Model	ROWER-500D
Resistance Levels	32
Display Type	LCD
Display Functions	Time, Distance, Resistance Level, Strokes, Calories, Bluetooth connection status, Pulse
Power Source	AC adapter (included)
Bluetooth Connectivity	Yes, compatible with FitLink and Kinomap apps
Pulse Monitoring	Wireless 5.3 kHz chest strap (optional, not included)
LED Light	Voice-controlled, turns green at low speed, red at high speed
Pedal Adjustment	Adjustable pedal strap for foot size
Computer Angle Adjustment	Yes, adjustable for optimal viewing
Transport Wheels	Yes, on front stabilizer for easy moving
Storage	Can be stored upright
Assembly	Required, includes Allen wrenches (S4, S5) and spanner (S13-14-15)
Maintenance	Lubricate moving joints regularly; clean with dry cloth; check and tighten all nuts and bolts periodically
Safety	Read manual before use; consult doctor before exercise; keep children away; inspect before each use
Warranty	Through original place of purchase; Australian Consumer Law applies
User Manual	20 pages, available for download at lifespanfitness.com.au

Frequently Asked Questions - ROWER-500D LifeSpan

How do I adjust the resistance on the ROWER-500D?

Rotate the knob on the display clockwise to increase resistance and counterclockwise to decrease it. There are 32 levels available.

How do I connect the rowing machine to a Bluetooth app?

Turn on Bluetooth on your device, open the FitLink or Kinomap app, and select the device to connect. The Bluetooth icon on the display will illuminate when connected.

How do I pause or stop a workout?

Press and hold the center knob for 3 seconds to pause; the display shows 'PAU'. To resume, press the knob for 1 second. To clear data, press and hold for 3 seconds while paused.

What does the LED light indicate?

The LED light on the turntable changes with speed: green at lower speeds and red at higher speeds. It is voice-controlled.

How can I move the machine to a different location?

Lift the rear stabilizer until the transportation wheels touch the ground, then push the machine to the desired location.

Can the rowing machine be stored upright?

Yes, when not in use, you can store the machine in an upright position to save space.

How do I clean and maintain the machine?

Wipe the machine with a dry cloth. Lubricate moving joints with grease after periods of use. Regularly check and tighten all nuts and bolts.

What should I do if the display shows abnormally?

Unplug the power adapter and then plug it back in. If the issue persists, ensure the adapter is connected properly and the cord is not damaged.

How do I claim a warranty?

Any warranty claim must be made through your original place of purchase. Proof of purchase is required. For online purchases from LifeSpan Fitness, visit their warranty form at lifespanfitness.com.au/warranty-form.

What safety precautions should I take before using the machine?

Read the entire manual. Consult a doctor, especially if over 45 or have health conditions. Keep children away. Ensure the machine is on a flat surface with 2 meters of free space. Check that all bolts are tight.

USER MANUAL ROWER-500D LifeSpan

ROWER-500D Dual Air/Magnetic Rowing Machine

USER MANUAL

Line drawing of a stationary exercise machine with levers and wheels (no text or symbols)

Read all instructions carefully before using this product. Retain this owner's manual for future reference.

! IMPORTANT

All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your threads and void your warranty.

NOTE:

Product may vary slightly from the item pictured due to model upgrades. This manual may be subject to updates or changes. Up to date manuals are available through our website at www.lifespanfitness.com.au

TABLE OF CONTENTS

I. Important Safety Instructions 03
II. Care Instructions 04
III. Exploded Diagram 05
IV. Parts List 07
V. Assembly Instructions 09
VI. Display Guide 13
VII. Adjustment Guide 15
VIII. Exercise Guide 17
IX. Warranty 19

I. IMPORTANT SAFETY INSTRUCTIONS

WARNING: Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty.

Please keep this manual with you at all times.

• It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions
• Before starting any exercise program you should consult your doctor to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do experience any of these symptoms, you should consult your doctor before continuing with your exercise program.
• Keep children and pets away from the equipment. This equipment is designed for adult use only.
• Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 meters of free space around it.
• Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the equipment until the problem has been rectified.
• Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movement.
• This equipment is designed for indoor and family use only.
• Care must be taken when lifting or moving the equipment so as not to injure your back.

• Always keep this instruction manual and assembly tools at hand for reference.
- The equipment is not suitable for therapeutic use.
- The pulse or heart rate sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

II. CARE INSTRUCTIONS

- Lubricate moving joints with grease after periods of usage.

- Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.

- The machine can be kept clean by wiping it down using dry cloth.

- All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your thread and void your warranty.

- Check AC adaptor is plugged in correctly and do not use if cord is damaged.

III. EXPLODED DIAGRAM

IV. PARTS LIST

No. Description Qty.

1 Tablet holder 1
2 Bolt M5*20 4
3 Computer holder 1
4 Nylon nut M8*H7.5*S13 9
5 Washer d8*Φ20*2 13
6 Bolt M8*35*18*S5 1
7	Handlebar	1
8	Round end cap Φ28*15	2
9	Foam grip	2
10	Pedal strap	2
11R/L	Pedal	1
12 Pedal plate 2
13	Bolt M8*20*S5	10
14	Bolt M8*12*S5	4
15	Bolt M8*42*15*S5 2
16	Transportation wheel	2
17	Washerd8*Φ16*1.5	10
18	End cap	4
19	Non-slip mat	2
20	Screw ST4.0*19*Φ11	4
21	Front stabilizer	1
22	Spring washer d8	6
23	Bolt M6*20*S5	4
24	Rubber pad	4
25	Bolt M5*10*Φ9	4
26	Bolt M6*15*S4	4
27	Sliding rail	1
28	Alum plate	1
29	Washerd6*Φ16*1.5	4
30	Bolt M6*15*S5	4
31	Adjustable pad	2
32	NutM8*H5.5*S14	2
33	Rear stabilizer	1
34	Rail cover	1

No. Description Qty.

35	Bolt M5*12*Φ10	4
36	Seat cover	2
37	Roller Φ35*Φ8*11	2
38	SpacerΦ12.5*Φ8.2*4.5	6
39	Bolt M8*28*10*S5	2
40	Adjustable bolt M6*40	4
41	Adjustable U seat	4
42	Nylon nut M6*H6*S10	5
43	Seat plate	2
44	Washer d22*1.0	4
45	Bearing608ZZ	4
46	Roller Φ36*14	4
47	Seat shaft Φ10*118	2
48	Seat	1
49	Nut M10*1*H8*S15	4
50	Nut M10*1*H5*S17	4
51	Bearing 6000-2RS	2
52	Flywheel shaft φ10*130	1
53	Screw ST4.2*13*Φ7	8
54	Alum plate T4.0*165*30	4
55	Fan wheel	1
56	Cover	2
57	Bolt M8*16*S5	2
58	Bushing	2
59	Shaft	1
60	Computer post	1
61	Bolt M6*55*15*S10	1
62	Spacer	2
63	Bearing6000	2
64	Mesh belt Wheel	1
65	Fixed plate	2
66	Mesh belt plate	1
67	Round magnet Φ24*5	3
68	Magnet plate	1

No. Description Qty.

69	Steel plate	1
70	Screw ST4.2*16*Φ10	2
71	Bolt M5*10	4
72	Magnet plate	1
73	Spring	1
74	Main frame	1
75	Screw ST4.2x16xΦ8	3
76	Sticker	2
77	Turntable	2
78	Chain cover	1
79	Upper cover	1
80	Screw ST4.8*19*Φ8	6
81	Screw ST4.8*16*Φ8	1
82	Support pad	1
83	Connector	2
84	Sensor holder	1

No. Description Qty.

85	Sensor	1
86	Screw ST4.2*8*Φ8	9
87	Computer	1
88	Motor	1
89	Belt	1
90	Trunk wire	1
91	Power trunk wire	1
92	Adapter	1
93	Tension wire	1
94	LED light trunk wire	1
95	LED light	2
96	Screw ST2.0*5	6
A	Allen Wrench S4	1
B	Allen Wrench S5	1
C	Spanner S13-14-15	1

HARDWARE

2 M5*20 4pcs.

24 Φ27*Φ23*16*Φ6 4pcs.

4 M8*H7.5*S13 1pc. #25 M5*10*Φ9

5 D8*Φ20*2 7pcs.

26 M6*15*S4 4pcs.

6 M8*35*S5 1pc. #29 D6*Φ16*1.5

4pcs.

13 M8*20*S5 6pcs. #30 M6*15*S5

22 D8 6pcs.

23 M6*20*S5 4pcs.

C S13-14-15 1pc.

V. ASSEMBLY INSTRUCTIONS

NOTE:

Some nuts and bolts are attached on the parts, and you will need to remove and re-attach it to the connecting parts.

STEP 1

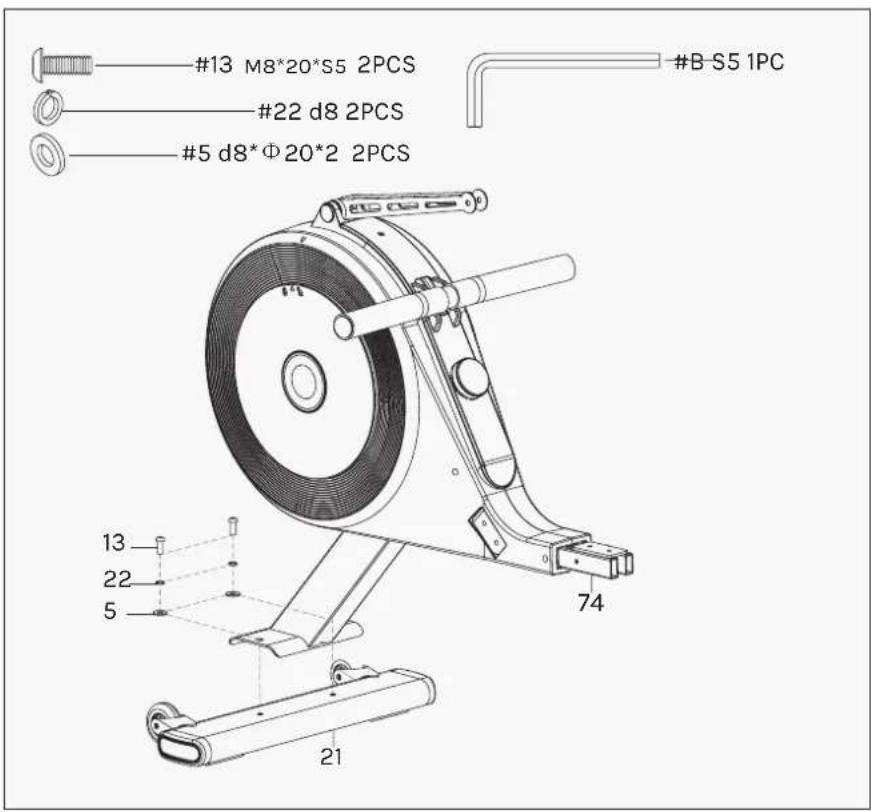

Attach front stabilizer (21) to main frame (74) using bolts (13), spring washers (22), and washers (5). Tighten and secure with Allen wrench (B).

STEP 2

Attach rear stabilizer (33) to sliding rail (27) using bolts (26). Tighten and secure with Allen wrench (A).

STEP 3

a. Attach sliding rail (27) to main frame (74) using bolts (30) and washers (29). Tighten and secure with Allen wrench (B).
b. Secure alum plate (28) into sliding rail (27) using screws (27) with wrench (C).
C. Secure rubber pad (24) in sliding rail (27) using bolts (23) with Allen wrench (B).

STEP 4

a. Insert seat (48) into sliding rail (27).
b. Secure rubber pad (24) in sliding rail (27) using bolts (23) with Allen wrench (B).
C. Attach pedal (11L/R) into main frame (74) using bolts (13), spring washers (22) and washers

! IMPORTANT:

Ensure to fully tighten bolt 13 to secure the pedals (11L/R) to the frame.

STEP 5

a. Secure computer holder (3) with computer post (60) with nylon nut (4) and washer (5) by Allen wrench (B) and wrench (C).
b. Secure iPad holder (1) in the computer holder (3) with bolts (2) by wrench (C).
C. Insert adapter wire (92) to power hole at the front of the main frame (74), then plug the adapter into an outlet.

! IMPORTANT:

Turn off the power point when machine is not in use.

VI. DISPLAY GUIDE

Description of instrument window:

• Scanning mode: Displays in the following order for every 1800 seconds: Time---Distance---Resistance Level---Strokes---Calories---Bluetooth---Pulse
• Press the knob of Display to select and fix a certain function, and then display it on the main window.
• Display of 32-resistance force adjustment.

ITEM Description RANGE

	Time Time of exercise 0 min: 00 s ~ 99 min: 59 s
	Distance Distance of exercise 0.00 ~ 99.9 km
	Resistance Level Resistance level of exercise 1 ~ 32
	Strokes	Number of strokes: Statistics of the number of strokes during exercise	0 ~ 9999
	Calorie Energy consumed during exercise 0.0~ 999.9 kcal
	Bluetooth & App	Support that APP is controlled via Bluetooth. When there is Bluetooth equipment connected, the icon is displayed
[BAHW]	Wireless Pulse (Optional)	Support the standard 5.3 kHz wireless heart rate chest strap. When there is a heart rate, the user's current heart rate is displayed

Description of button functions

- Start or stop the exercise: Press the middle of knob to start or stop the exercise.

A. Start: Press the middle of knob to start the exercise and turn on display.

B. Stop: During workout, press the knob 3 seconds to stop display counting until it displays "PAU" to pause the workout; Press the knob again for 1 second to un-pause and continue the counting.

• In the paused state, press and hold for 3 seconds and the previous data will be cleared.
• Function mode of upward selection: Rotate the knob clockwise to increase resistance levels during workout.
• Function mode of downward selection: Rotate the knob counterclockwise to decrease resistance levels during workout.

Bluetooth APP

1. Turn on the Bluetooth on your device, then open the FitLink or Kinomap APP. On the App connect to the device for equipment.
2. Select the device and click "Connect". At this time, the Bluetooth icon ✝ of on the instrument display will be ON.
3. Enter the exercise mode of Scene Selection, with the default of no-scene mode.

Note: If a flashback occurs after connecting to the APP, please reconnect it.

Sleep and Automatic Paused Mode

• When in use, if you have stopped rowing within 4 minutes the display will be pause the workout automatically.
• If there is no operation or activity after 10 minutes, the display will enter into sleep mode.
• Press the knob to un-pause if your display goes to pause mode.
• When not in use the display can be turned off from the power plug.

Calories Calculation

Calories are calculated at 15 calories per kilometer.

When there is no speed signal, calories and distance will not be counted.

NOTE:

1. The equipment requires a power adapter. When the equipment displays abnormally, please unplug and then plug in the power plug again.
2. Without any operation, the product will enter sleep mode after ten minutes.

VII. ADJUSTMENTS GUIDE

1. PEDAL ADJUSTMENT

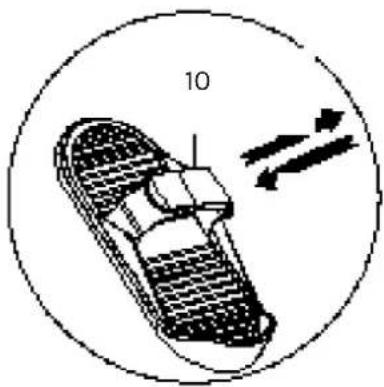

The pedal strap (10) is adjustable and can be personalized to fit the user's foot size.

2. COMPUTER ANGLE ADJUSTMENT

Technical line drawing of a mechanical assembly with rotating components and springs (no text or symbols)

The rotation angle of Table holder (1) and computer post (60) can be adjusted to obtain the best view of the computer LCD screen.

3. MOVING THE MACHINE

To move the machine, lift the rear stabilizer (33) until the transportation wheels (16) touch the ground. With the wheels on the ground, you can transport the machine to the desired location with ease.

4. LED VOICE CONTROL LIGHT

Technical line drawings of two stationary exercise bikes, showing front and side views (no text or symbols)

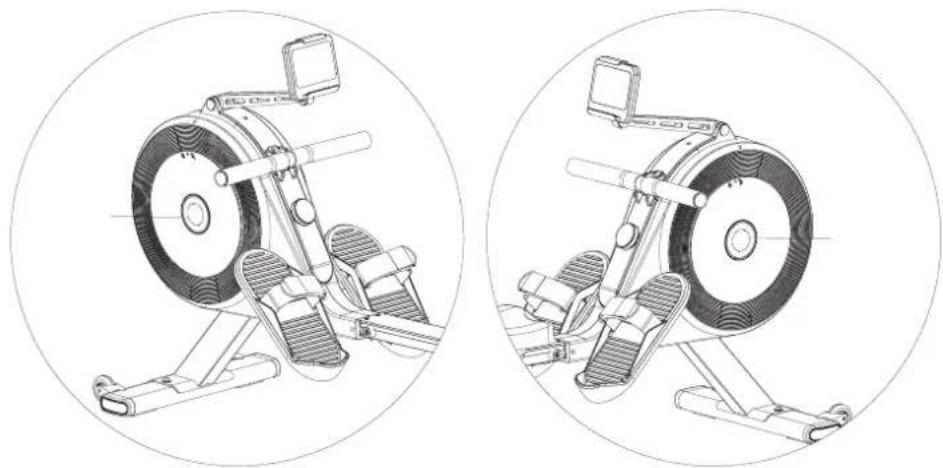

LED Voice control light in both side of turntable (77). If in lower speed, the light will be turn green. If in higher speed, the light will be turn red.

5. STORAGE

Technical line drawing of a mechanical device with no visible text or symbols

When not in use, you can store the machine in an upright position.

! PLEASE NOTE:

Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems.

The pulse sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.

Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.

The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.

So as you can see, the fitter you are, the healthier and greater you will feel.

Four sequential line drawings of a person performing a stretching or martial arts pose, no text or symbols present.

WARM UP

Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise.

COOL DOWN

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

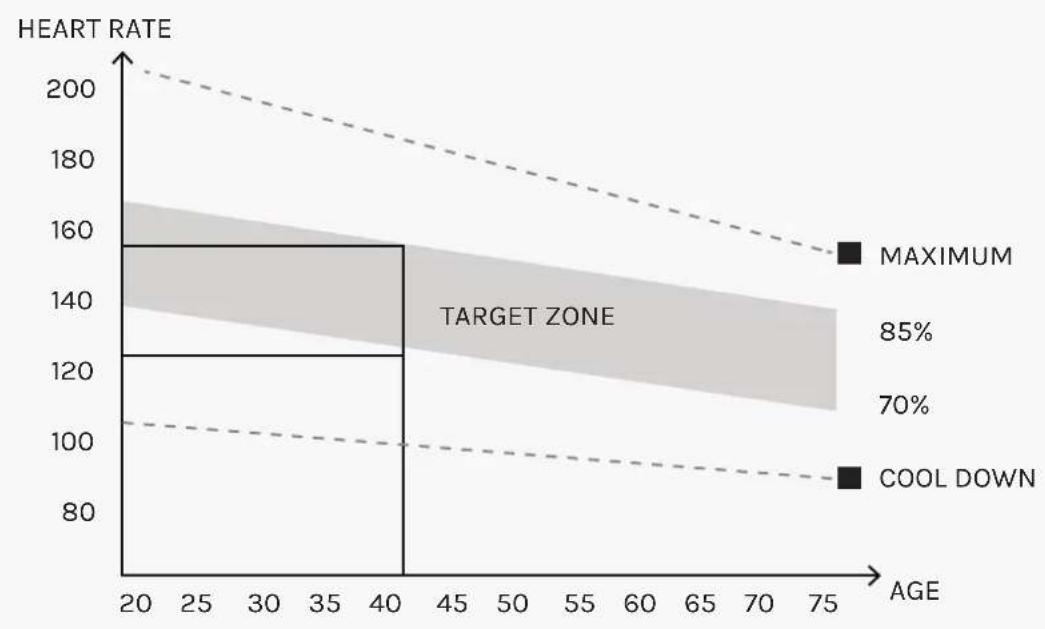

WORKOUT GUIDELINES

This is how your pulse should behave during general fitness exercise. Remember to warm up and cool down for a few minutes.

IX. WARRANTY

AUSTRALIAN CONSUMER LAW

Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au.

Please visit our website to view our full warranty terms and conditions:

http://www.lifespanfitness.com.au/warranty-repairs

WARRANTY AND SUPPORT

Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed.

If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form

For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service Request Form or Parts Purchase Form.

Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
