ROWER-445 - Rowing Machine LifeSpan - Free user manual and instructions

Product Type	Rowing Machine
Brand	LifeSpan
Model	ROWER-445
Resistance Type	Magnetic, manually adjustable
Resistance Adjustment	Rotary knob with fine adjustment
Display Type	LCD computer
Display Functions	Time, Count, Calories, Total Count, Average Velocity, Scan
Power Supply	2 dry batteries (AA or similar)
Seat Type	Sliding seat on rail
Pedal Adjustment	Adjustable straps
Folding Capability	Yes, slide tube folds up vertically
Transport Wheels	Yes, on front foot tube
Frame Material	Steel (assumed)
Intended Use	Indoor, home use only
Assembly Required	Yes, tools included
Warranty	Standard manufacturer warranty (see manual)

Frequently Asked Questions - ROWER-445 LifeSpan

How do I assemble the rowing machine?

Follow the step-by-step instructions in the manual. Key steps: attach front and rear foot tubes, install seat on slide tube, attach pedals, connect computer and batteries. Use the included Allen wrench and open-end wrench.

How do I adjust the resistance?

Turn the Resistance Control Knob (fine adjustment) clockwise to increase resistance, counter-clockwise to decrease. The magnetic system provides smooth, continuous adjustment.

How can I fold the rowing machine for storage?

Unscrew the knob and flat washer, remove the hanging ring bolt, then rotate the slide tube to a vertical angle. Reinsert the hanging ring bolt and tighten the knob to secure. The seat slides down during folding.

What is the proper way to move the rowing machine?

Lift the rear foot tube until the transportation wheels on the front foot tube touch the ground. Then roll it to the desired location. Never lift by the seat.

What do the display functions mean?

SCAN: cycles through all functions every 6 seconds. TIME: workout duration (0:00-99:59). CNT: stroke count (0-9999). CAL: calories burned (0.0-999.9). TOT.CNT: total strokes since battery installation. REPS/MIN: average strokes per minute.

How do I change the batteries?

Remove the computer from the protective cover by pressing at point A. Open the battery compartment, insert two dry batteries with correct polarity. Reattach the computer and connect the wires. Use only standard alkaline batteries; do not mix old and new.

How do I adjust the pedal straps?

Pull the strap in direction A to loosen, direction B to tighten. Adjust to fit your foot size securely.

How should I maintain the rowing machine?

Regularly lubricate moving joints, clean with a dry cloth, tighten all nuts and bolts, and inspect for worn parts. Store in a clean, dry place. Remove batteries if not using for a long time.

Is it safe to use if I have a medical condition?

Consult your doctor before starting any exercise program, especially if you are over 45 or have pre-existing health issues. The pulse sensors are not medical devices; use only as an exercise aid. Stop if you experience pain, dizziness, or irregular heartbeat.

What is the warranty coverage?

The product comes with a manufacturer's warranty and additional guarantees under the Australian Consumer Law. Claims must be made through the original place of purchase. For details and to submit a claim, visit lifespanfitness.com.au/warranty-form.

USER MANUAL ROWER-445 LifeSpan

Exterior view of a black stationary stationary exercise machine (no text or symbols visible)

Read all instructions carefully before using this product. Retain this owner's manual for future reference.

IMPORTANT

All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your threads and void your warranty.

NOTE:

This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available through our website at www.lifespanfitness.com.au

TABLE OF CONTENTS

I. Important Safety Instructions 03
II. Care Instructions 04
III. Exploded Diagram 05
IV. Parts List 06
V. Assembly Instructions 07
VI. Display Manual 14
VII. Storage and Maintenance 16
VIII. Exercise Guide 17
IX. Warranty 19

I. IMPORTANT SAFETY INSTRUCTIONS

! WARNING: Read all instructions before using this machine.

It is important your machine receives regular maintenance to prolong its useful life. Failing to regularly maintain your machine may void your warranty.

Please keep this manual with you at all times.

• It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. PLEASE NOTE: It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.
• Before starting any exercise program you should consult your doctor to determine if you have any medical or physical conditions that could put your health and safety at risk, or prevent you from using the equipment properly. Your doctor's advice is essential if you are taking medication that affects your heart rate, blood pressure or cholesterol level.
• Be aware of your body's signals. Incorrect or excessive exercise can damage your health. Stop exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular heartbeat, and extreme shortness of breath, light-headedness, dizziness or feelings of nausea. If you do experience any of these symptoms, you should consult your doctor before continuing with your exercise program.
• Keep children and pets away from the equipment. This equipment is designed for adult use only.
• Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure safety, the equipment should have at least 2 meters of free space around it.
• Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the equipment until the problem has been rectified.
• Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movement.
• This equipment is designed for indoor and family use only.
• Care must be taken when lifting or moving the equipment so as not to injure your back.
• Always keep this instruction manual and assembly tools at hand for reference.
• The equipment is not suitable for therapeutic use.
• The pulse or heart rate sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as exercise aids in determining heart rate trends in general.

II. CARE INSTRUCTIONS

• Lubricate moving joints with grease after periods of usage.
• Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects.
• The machine can be kept clean by wiping it down using dry cloth.

- All nuts and bolts are to be checked and tightened on a regular basis. This includes pedals and other moving parts. Failure to do so may cause damage to your thread and void your warranty.

- Keep the rowing machine in a clean dry place.

- Grasp the frame to move the rowing machine. Do not use the seat to move it. The seat will move, and it may hurt your hand and fingers.

• Always make sure all the nuts and bolts are properly tightened.

- Regular inspection is required. Replace any worn or damaged parts immediately.

BATTERY USAGE

- Batteries are to be installed or replaced by adult only.

- Do not use rechargeable batteries. Do not mix different battery types. Do not mix old and new batteries. Do not mix alkaline, standard (Carbon-Zinc), or rechargeable (Nickel-Cadmium) batteries.

- Remove batteries when product is not in use.

- Remove exhausted batteries from product and dispose of in accordance with the manufacturer's recommendation.

- Do not attempt to recharge non-rechargeable batteries.

- Batteries are to be inserted with correct polarity.

- The supply terminals are not to be short-circuited.

- Do not dispose of batteries in fire, batteries may explode or leak.

Simple line drawing of two batteries with positive and negative charges, no text or symbols present

III. EXPLODED DIAGRAM

IV. PARTS LIST

Some items on this list may come pre-installed on your equipment. If you feel like you're missing anything, please double check your equipment.

NO. Description Qty

1	Main frame 1
2	Front foot tube frame 1
3	Rear foot tube frame 1
4	Slide tube frame	1
5	Tension tube	1
6	Seat cushion limiting plate	1
7	Seat cushion left mounting plate	2
8	Screw ST4.2*9.5	1
9	Double-thread screw Φ12*80	1
10	Hanging ring bolt Φ8*112	1
11	Magnetic wheel	1
12	Deep groove ball bearing 608-2RS	6
13	Deep groove ball bearing 6000-2RS	2
14	Pulley casing	1
15	Pulley spacer	6
16	Pull rod M6*51	4
17	Pull rod limiting plate	4
18	Open end wrench S17-19	1
19	Allen Wrench S=5	1
20	Dry battery	2
21	Wrench with screwdriver S13/14/15	1
22	Screw M6	4
23	Screw M8	3
24	Screw M10*1.0	4
25	Screw M10*1.0	4
26	Bolt M8*125*25	3
27	Bolt M12*160*20	4
28	Bolt M6*60	1
29	Bolt M8*55	2
30	Bolt M10*95	1
31	Bolt M8*20	8
32	Bolt M6*15	1

NO. Description Qty

33 Computer	1
34 Bolt M5*15	3
35 Bolt ST4.2*30	6
36 Screw ST4.2*19	8
37 Flat washer Φ12	1
38 Flat washer Φ6	2
39 Flat washer Φ8	16
40 Spring Washer 6	1
41 Spring Washer 8	10
42 Type c buckle φ9.3*1.0	2
43 Left protective cover	1
44 Right protective cover	1
45 Water bottle box	1
46 Armrest fixing pad	1
47 Cushion pad	1
48 Pedal	2
49 Belt PJ686/270J	1
50 Ribbon pulleyΦ45*35	1
51 Foam L=210mm	2
52 Foot pedal adjusting belt	2
53 Bottom wire 500mm	2
54 Fine adjustment (assembly)	1
55 Pullback device	1
56 Seat cushion tube wheel Φ40*92	3
57 Seat cushion	1
58 Front left foot tube sleeve	1
59 Front right foot tube sleeve	1
60 Rear foot tube sleeve	2
61 Circular tube plug	2
62 Induction rod clamp	1
63 Knob M12	1
64 Foot pad 25*18	4

V. ASSEMBLY INSTRUCTIONS

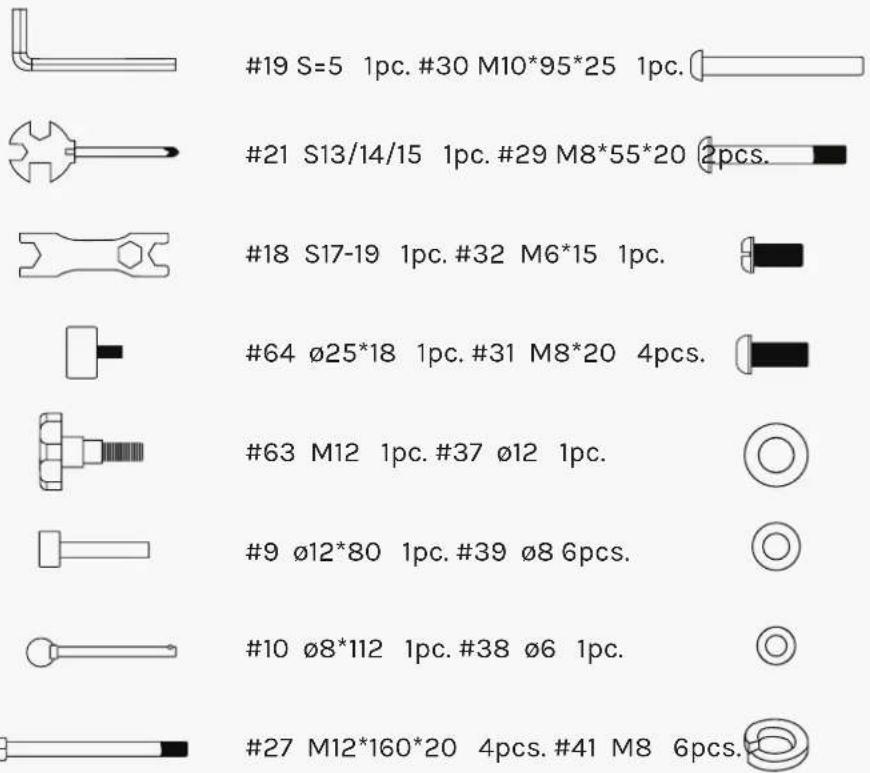

BOLT PACK

TOOLS

19 Allen Wrench S=5 1pc.

18 Open end Wrench S17, 19 1pc.

21 Wrench with screwdriver S13, 14, 15 1pc.

29 M8*55*20 - 2pcs.

41 M8 - 2pcs. #39 ø8 - 2pcs

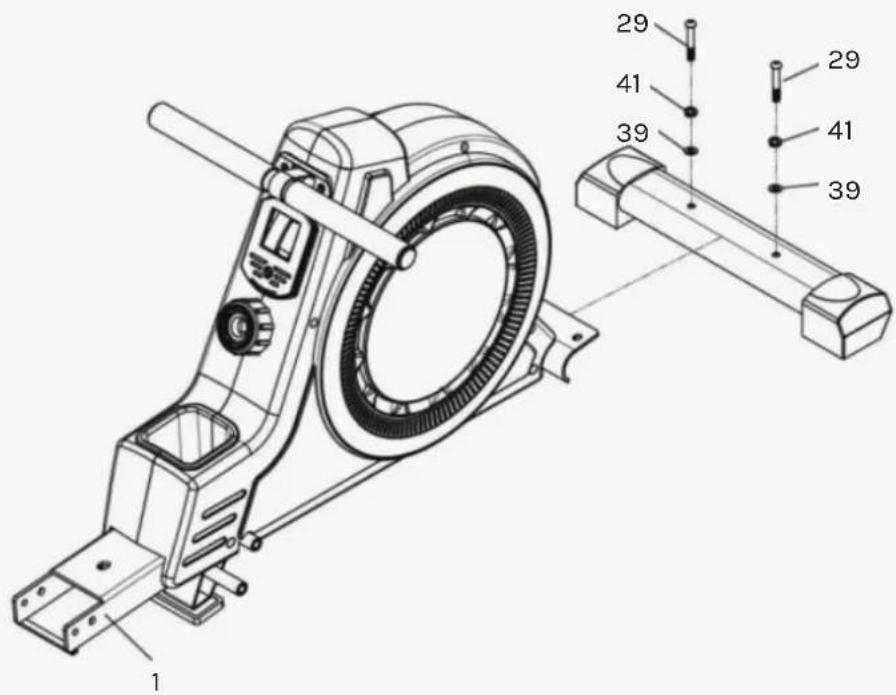

STEP 1

1. Use the Bolt (29), Washer (39), Spring Washer (41) to secure the main frame (1) onto the Front foot tube frame (2).

27 M12*160*20 - 4pcs.

18 S17-19 - 1pc.

1. Lock the Pedal (48) and Bolt (27) into the hole marked A in the Main Frame (1) and repeat the same on right side.
2. Lock the Pedal (48) and Bolt (27) into the hole marked B, through the hole of Pedal (48) into the top hole of the Main Frame (1) and repeat the same on left side.

1. Put the Seat cushion (57) into the Slide tube (4).
2. Insert the Double-thread Bolt (9) into the hole of the Slide tube (4) and screw the Foot pad (64) tightly to Sliding tube (4).

19 S=5 - 1pc.

31 M8*20 - 4pcs.

41 M8 - 4pcs.

39 ø8 - 4pcs.

Technical line drawing of a mechanical component with labeled part '4' (no text or symbols beyond label)

STEP 4

1. Use Bolt (31), Spring washer (41) and Flat washer (39) to lock the Rear foot tube (3) to the Sliding tube (4).

10 ø8*112 - 1pc.

38 ø6 - 1pc.

32 M6*15 - 1pc.

37 ø12 - 1pc.

30 M10*95*25 - 1pc.

63 M12 - 1pc.

19 S=5 - 1pc.

21 S13/14/15 - 1pc.

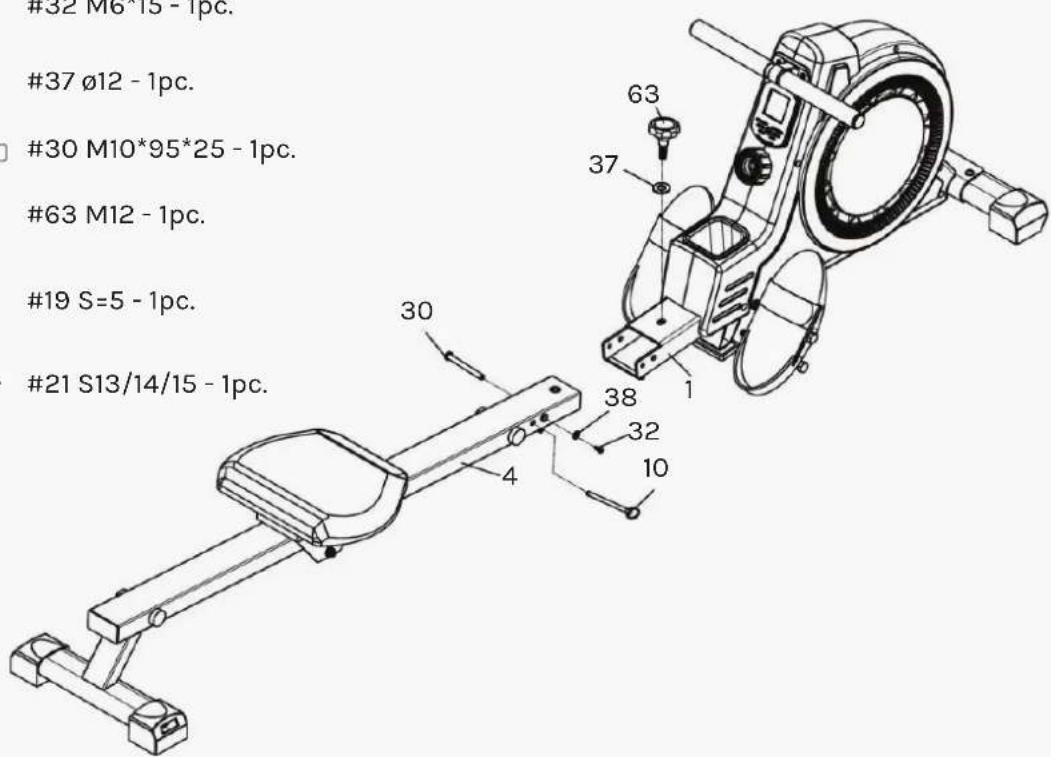

STEP 5

1. Lock the Bolt (30) and the Flat washer (38) and Bolt (32) to the Sliding tube (4) and insert the Hanging ring bolt (10). Then fix the Knob (63) and the Flat washer (37) to the Main frame (1) and the Sliding tube (4).

STEP 6

1. Press the Computer (33) at the place (A), take out the Computer (33) from Protective cover (43).
2. After taking off the Computer (33), put the dry battery (20) off into the place (B) of Computer (33).
3. Connect the wire A/B of computer (33) with the wire B/A inside protective cover (43).
4. Put the computer back into protective cover (43).

PEDAL ADJUSTMENT

The pedal strap is adjustable according to the size of feet. The specific tightness adjustment method is shown above. A direction is loose, B direction is tense.

Line drawing of a person pulling a rowing machine on a flat surface (no text or symbols)

MOVING THE MACHINE

To move the machine, lift-up the rear foot tube frame until the transportation wheels on the front foot tube frame touch the ground. With the wheels on the ground, you can move it to anywhere with ease.

THE RESISTANCE ADJUSTMENT

RESISTANCE ADJUSTMENT:

Rotate the Resistance Control Knob (Fine adjustment) (54) clockwise to increase the level of resistance. Rotate the tension control counter-clockwise to decrease the level of resistance.

FRAME HORIZONTAL REGULATION:

When the ground is uneven, the frame can be adjusted to a horizontal state through rotating the wheel on the side of the rear foot sleeve (60).

FOLDING INSTRUCTION

As shown in the above figure, when the product is not used, the sliding tube can be fold up to save space. The operation is as follows:

1. Unscrew the knob (63) and the flat washer (37), remove the hanging ring bolt (10), and turn the sliding tube (4) to a vertical angle. (The seat cushion slides down when the slide tube is folded up) As the Figure C above.
2. When the sliding tube (4) rotates to a vertical angle, insert the hanging ring bolt (10) into the hole and fix it. Screw the Knob (63) and flat washer (37) onto the sliding tube, as shown in Figure D above.
3. The folding step is completed.

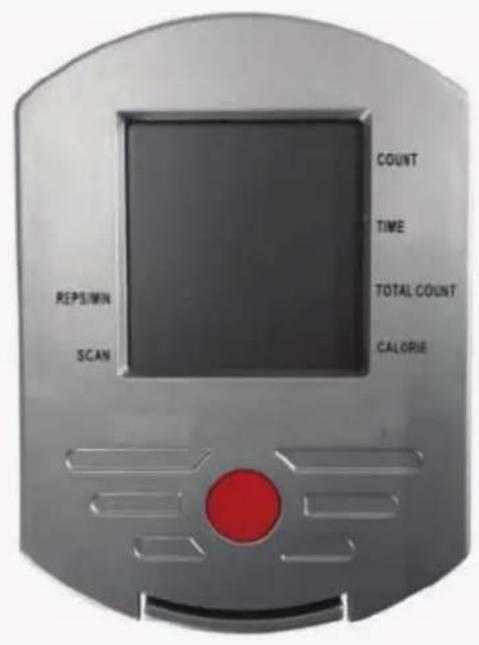

VI. DISPLAY MANUAL

Button Function

MODE: Press this button to select the function.

---- Keep pressing this button for 3 seconds to clear all time, times, and calories.

SET: Press this key to set the time, number of times, and calories.

RESET: Press this key to reset the time, number of times, and calories.

--- Keep pressing this key for 3 seconds to clear all time, times, and calories.

Functional Operation

1. SCAN: Press the MODE button into scan state, the computer will automatically scan, time, times, calories, total number of times, and every scan interval is 6 seconds.

2. TIME: The time when the computer starts and ends.

3. TIMES COUNT (CNT): When the supply current of the product is lower than 3.2A, a red warning light will flash.

4. CAL: Show the total calories during the computer starting.

5. TOTAL NUMBER OF TIMES (TOT.CNT) count all times after installing the battery. Without any movement signal, the computer will automatically close the display after 4 minutes and will wake up when there is movement signal, or any key is operated.

6. AVERAGE VELOCITY (REPS/MIN): the average number of movements per minute at the beginning of the motion of the computer.

Scope Description

Function	Scanning interval	Every 6 seconds
	TIME 0:00–99:59
	TIMES COUNT	0–9999 times
	CALORIES	0:0–999.9 CAL.
	Total number of times	0–9999 times
Battery 2 pieces of dry battery
Working temperature 0–40 degree
Storage Temperature -0 degree –+60 degree

VII. STORAGE AND MAINTENANCE

• Keep the rowing machine in a clean dry place.
• Grasp the frame to move the rowing machine. Do not use the seat to move it. The seat will move, and it may hurt your hand and fingers.
• Remove the battery before storing the machine for a long time.
• Clean the Seat Rail with an absorbent cloth.
  • Always make sure all the nuts and bolts are properly tightened.
• Regular inspection is required. Replace any worn or damaged parts immediately.

VIII. EXERCISE GUIDE

! PLEASE NOTE:

Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems.

The pulse sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.

Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.

The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.

So as you can see, the fitter you are, the healthier and greater you will feel.

Four sequential illustrations of a person performing a stretching or martial arts movement, showing different postures (no text or symbols present)

WARM UP

Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise.

COOL DOWN

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

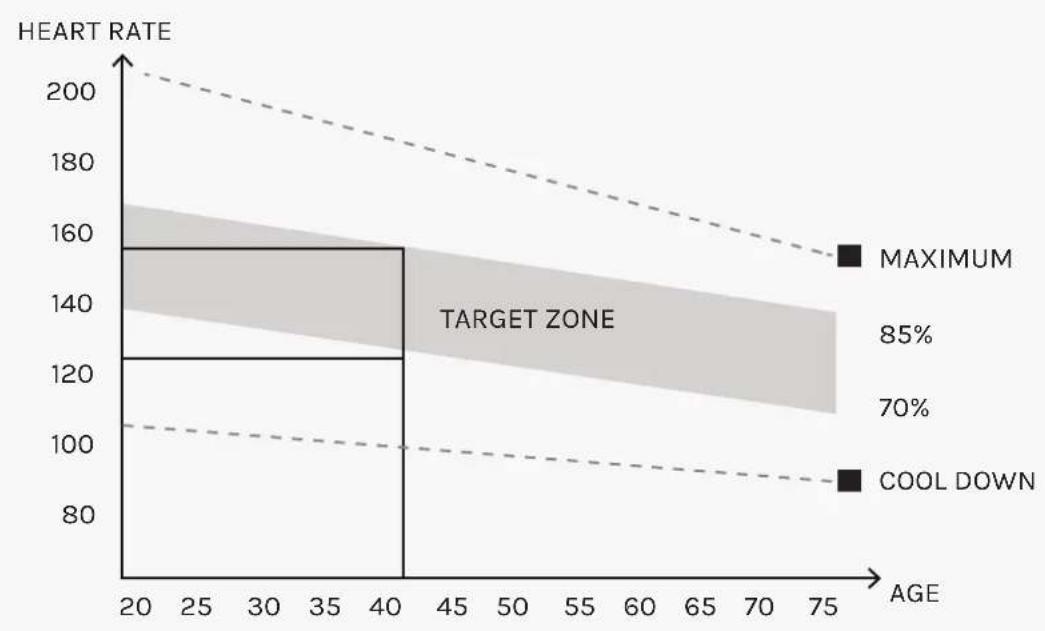

WORKOUT GUIDELINES

This is how your pulse should behave during general fitness exercise. Remember to warm up and cool down for a few minutes.

IX. WARRANTY

AUSTRALIAN CONSUMER LAW

Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au.

Please visit our website to view our full warranty terms and conditions:

http://www.lifespanfitness.com.au/warranty-repairs

WARRANTY AND SUPPORT

Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed.

If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form

For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service Request Form or Parts Purchase Form.

Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
