Product Type	Microwave Oven
Model	HYUMC40F
Brand	Hyundai
Capacity	20 liters
Dimensions (W x D x H)	451 x 362 x 280 mm
Net Weight	11.5 kg
Power Consumption	1150 W (microwave), 1000 W output
Control Type	Digital with LED display
Preset Cooking Programs	8 auto cook menus
Defrost Function	Yes, by time or weight
Timer	Up to 99 minutes 99 seconds
Child Lock	Yes
Turntable	Glass, 245 mm diameter
Interior Material	Enamel coated interior
Exterior Material	Stainless steel
Door Opening	Side-opening with safety interlock
Cleaning Instructions	Wipe interior and exterior with a damp cloth and mild detergent. Avoid abrasive cleaners.
Safety Features	Auto shut-off, door interlock, child lock
Spare Parts Available	Turntable, roller ring, fuse, bulb
Repairability	User-replaceable parts; professional repair for complex issues
Energy Class	A
Noise Level	50 dB

Frequently Asked Questions - HYUMC40F HYUNDAI

How do I set the cooking time on my Hyundai HYUMC40F microwave?

Press the Time Cook button, then use the number pad to enter the desired time (up to 99 minutes 99 seconds). Press Start to begin.

Can I use metal containers in the microwave?

No, metal can cause sparks and damage the microwave. Use only microwave-safe glass, ceramic, or plastic containers.

How do I use the defrost function?

Press the Defrost button repeatedly to select defrost by weight or time. Enter the weight or time using the number pad, then press Start.

What should I do if the microwave display shows an error?

Check if the door is properly closed. If the error persists, unplug the microwave for 30 seconds and plug it back in. If the error continues, contact Hyundai customer service.

How do I clean the microwave interior?

Wipe the interior with a damp cloth and mild dish soap. For stubborn stains, heat a bowl of water with lemon slices for 2 minutes to loosen residue. Avoid abrasive cleaners.

Is the turntable removable for cleaning?

Yes, the glass turntable and roller ring can be removed. Wash them in warm soapy water, rinse, and dry before placing back.

How do I activate the child lock?

Press and hold the Stop/Cancel button for 3 seconds until a lock icon appears on the display. Repeat to disable.

What is the maximum power output of the HYUMC40F?

The microwave has a maximum output power of 1000 watts, with adjustable power levels from 10% to 100%.

Can I use the microwave if the door seal is damaged?

No, a damaged door seal can cause microwave leakage. Stop using the microwave and contact an authorized service center for replacement.

Where can I find replacement parts like a turntable or fuse?

Replacement parts can be ordered from Hyundai's official website or authorized dealers. Use the model number HYUMC40F to find compatible parts.

USER MANUAL HYUMC40F HYUNDAI

Exterior view of a Hyundai air purifier with two fans and wheels (no text or symbols on the device itself)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

Minichladnička / Minichladnička / Mini lodówka

Close-up of a grid-patterned surface with rounded rectangular cells (no text or symbols)

Two views of a white plastic container with open lid, showing internal compartments and side profile (no text or symbols)

Exterior view of a gray portable electronic device with two circular vented ports and a handle (no text or symbols visible)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing. The appliance is designed for short-term transport and cooling of food. It is not intended for long-term food storage.

I. SAFETY WARNING

• Consider the instructions in the user's manual as a part of the appliance and provide it to other users of the appliance.
• Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.
• This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.
• If the power cord of this appliance is damaged, the cord must be replaced by the manufacturer, their service technician or by a similarly qualified person, this will prevent the creation of a dangerous situation.
• Never use the appliance if the power cord or power plug are damaged, if it is not functioning correctly or if it has fallen on the floor and been damaged or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.
• CAUTION: Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
• Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!
• Never immerse the appliance into water (even its parts)! Do not wash it under running water! Never expose the appliance to rain!
• It is very important that it will be possible to close the cover properly and that it is not damaged (bent). Neither hinges (fractured or released) nor sealing surfaces of the cover may be damaged.
• The appliance may be powered from the mains of 220-240 V (AC) or via the 12 V (DC) auto-connector. Use a corresponding supply cord for the selected method of supply. Always use only one method of supply and never both of them at once!
• In case of powering the appliance from a car battery, please check whether its voltage is 12 V with an earthed negative terminal.
• Never cover the appliance; thus you will prevent the risk of interior fire.

• Do not use the appliance in an environment saturated with explosive or flammable fumes.

• The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

• The appliance must not be used in areas where chemicals, paints and other flammable, explosive, volatile and harmful substances are used or stored.
• Use the appliance in the working position at places with no risk of turning over and in sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. heater, stove, etc.) and wet surfaces (e.g. sinks, wash-basins, etc.).
• Check the condition of the power cord of the appliance regularly.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
  – Use only original spare parts.
• Make sure that there is enough space around the appliance to ensure its ventilation. Keep at least 10 cm free space from the ventilator hole on the cover. Don't cover the appliance to avoid its overheating.
• The appliance is suitable for outdoor camping. When using outside, protect the appliance from unfavourable weather (e.g. moist, rain, snow, frost, direct sunlight etc.).
• The appliance is not suitable for transportation of corrosive or solvent-based substances.
  – Food is allowed to be stored in its original packaging or suitable containers.
• Put liquids and ice into the car fridge only in suitable containers.
• Put unpackaged food in a suitable protective packaging before placing it into the car fridge.
• Do not fill the appliance with ice and do not poor any liquids into the inside (e.g. water).
• If you need to cool medicaments, make sure the cooling capacity of the appliance is sufficient for the specific drug.
• If you do not intend to use the appliance for a longer period of time, unplug it from the supply, empty its contents and clean the inside.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• The manufacturer is not responsible for damage and injuries caused by improper use of the appliance and the accessories (e.g. food deterioration, injury, cutting) and its guarantee for the appliance does not apply in situations when the safety warnings above are not complied with.

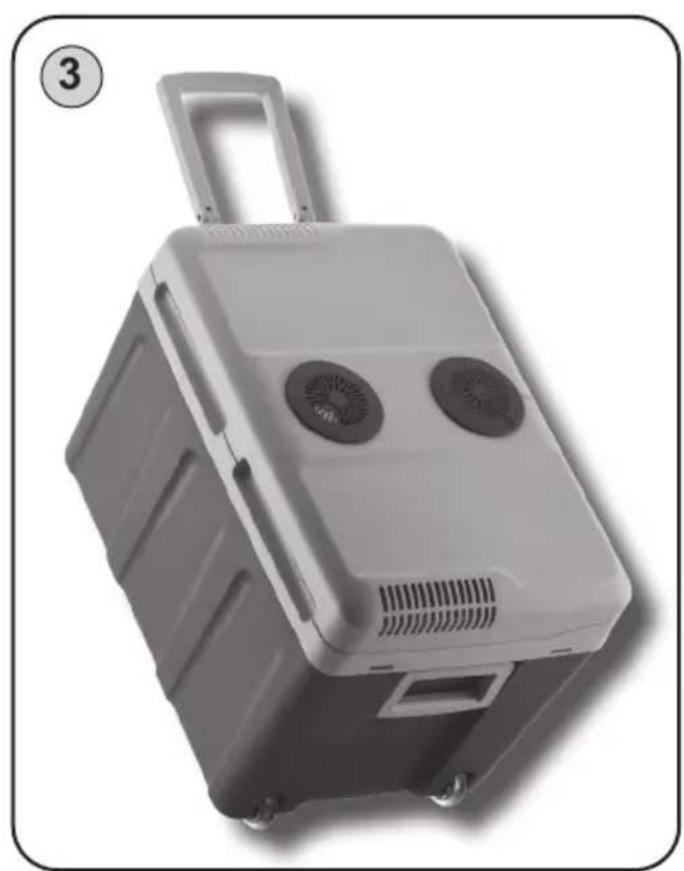

II. DESCRIPTION OF THE CONTROLS

A – Mini refrigerator

A1 – cover with a cooling unit

A2 – rotary cap of the control elements and the space for the supply cords

A3 - COLD/OFF/HOT switch

A4 - ECO/OFF/MAX switch

A5 – light signalization of operation

A6 - car connector for the 12 V (DC) supply

A7 – plug for the 220-240 V (AC) outlet

A8 – holder for handling

A9 – holder for handling and transporting

A10-wheels

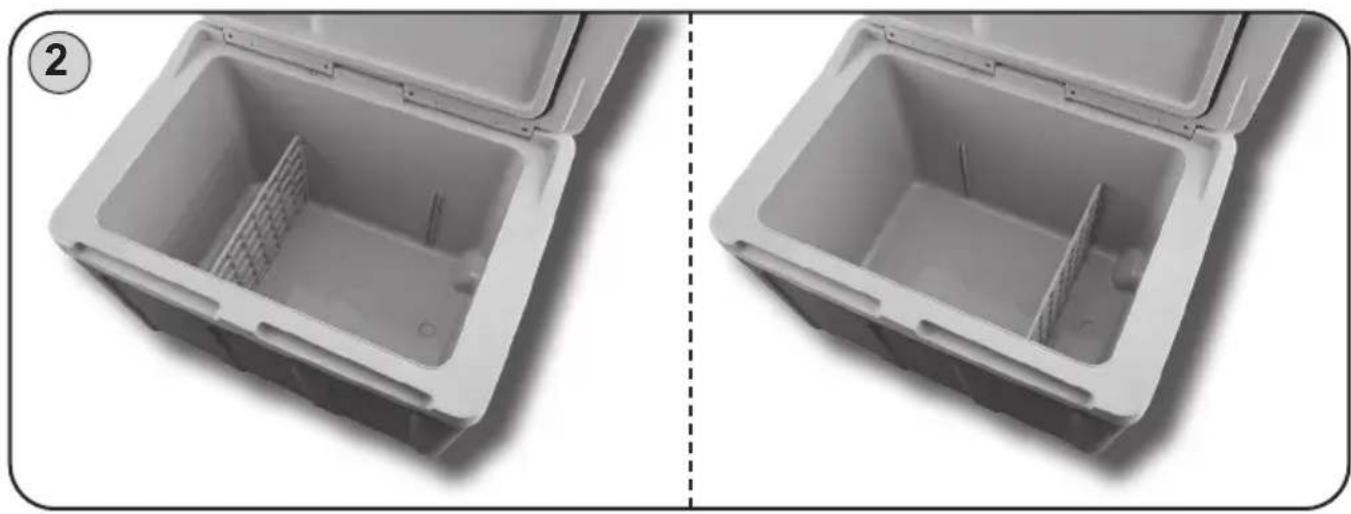

A11 – grated barrier

III. INSTRUCTIONS FOR USE

Remove all the packaging material and take out the appliance. Remove any possible adhesion foils, stick-on labels or paper from the appliance. Place the assembled appliance on a flat, steady, smooth and clean surface at a height, out of the reach of children (see sec. I. SAFETY WARNING). Leave enough space to ensure sufficient ventilation. Make sure that the power supply cord is not damaged and that it is not led underneath the appliance or over any sharp or hot surfaces. Select a method of supply of the mini refrigerator: 12 V (DC) or 220-240 V (AC), and use a corresponding supply cord. The space inside the mini refrigerator may be divided by means of a barrier A11 (Fig. 2). Thanks to the wheels, the refrigerator may be easily transported (Fig. 3).

Attention

• If you intend to use the car fridge in a car, we recommend turning it off when turning off the engine. Otherwise there is a risk of the car battery getting discharged when connected for a longer period of time without the engine running.
• Do not switch directly from one operating mode into the other (HOT -COLD or COLD-HOT). This will may cause inner body deformation. If you would like to change the operating mode, turn the appliance off. Wait about 30 minutes before you switch it to the other operating mode.

COLD/OFF/HOT (A3) switch

„COLD“ position - switch-over to the cooling function

„OFF“ position - switch-off of the appliance

„HOT“ position - switch-over to the heating mode

ECO/OFF/MAX (A4) switch

„ECO“ position - switch-over to the ECO mode - use in 220-240 V (AC)

„OFF“ position - switch-off of the appliance

„MAX“ position - switch-over to the maximum power mode

Remarks:

• The lowest temperature, which may be achieved inside the mini refrigerator, depends on ambient temperature and on the volume of food to be cooled. Food may be cooled to temperature up to 18^ lower than ambient temperature.
• Food may be heated and kept at temperature of about 50 - 60^ in the heating mode.
• To ensure maximum effect, we recommend that you insert cooled/heated food into the refrigerator depending on the used function (cooling/heating).
• After using, we recommend that you switch-over the both switches (A3, A4) into the „OFF“ position.
• The standby mode is primarily used to maintain the temperature. To ensure the best effect of cooling/heating, use the maximum power.

IV. CLEANING AND MAINTENANCE

Clean the appliance with a damp cloth only. Make sure water does not get into the inner parts! Keep the appliance clean. Do not use any coarse and aggressive cleaning agents (e.g. sharp objects, scrapers, thinners or other solvents)! Do not wash the appliance under running water or in a dishwasher.

V. TECHNICAL SPECIFICATIONS

* Technical information can be found on the type plate inside the appliance (or on its back side) and on the energy label.
* "Information Sheet" and "Directions for Use" can be downloaded at: www.hyundai-electronics.cz
* QR code on the energy label supplied with the appliance provides a web link to information concerning the specification of this appliance in the EU EPREL database. Keep the energy label together with user manual and all other documentation supplied with this appliance. The same information in the EPREL database can also be found at: https://eprel.ec.europa.eu

The model name (product number) can be found on the type plate of the appliance and also on the energy label supplied with the appliance.

VI. CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our authorised service or information line, make sure you have the following information available: the model name (product number) and serial number (SN). This information can be found on the type plate (or on a separate label near it).

* The manufacturer reserves the right for change without prior notice.

Original spare parts for particular selected components of the product are available at least 7 or 10 years from the launch of the last piece of the appliance on the market (depending on the type of the component). The manufacturer provides standard legal warranty for the appliance for a period of 24 months.

For more information regarding service and purchase of spare parts, visit our website: www.etasince1943.com/support

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

VII. LEGISLATIVE & ECOLOGY

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product (or battery/ accumulator) shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

NOTICE
