Product Type	Portable Air Conditioner
Brand	Volteno
Model	VO2786
Refrigerant	R290 (flammable)
Power Supply	AC 220-240V, 50Hz
Cooling Capacity	Approx. 9000 BTU/h (estimated)
Heating Capacity	Optional (approx. 9000 BTU/h estimated)
Temperature Range	16°C – 31°C (61°F – 88°F)
Modes	Cooling, Heating (optional), Dehumidifying, Fan, Auto
Fan Speeds	High, Medium, Low
Timer	1 – 24 hours (on/off)
Remote Control	Included (batteries not specified)

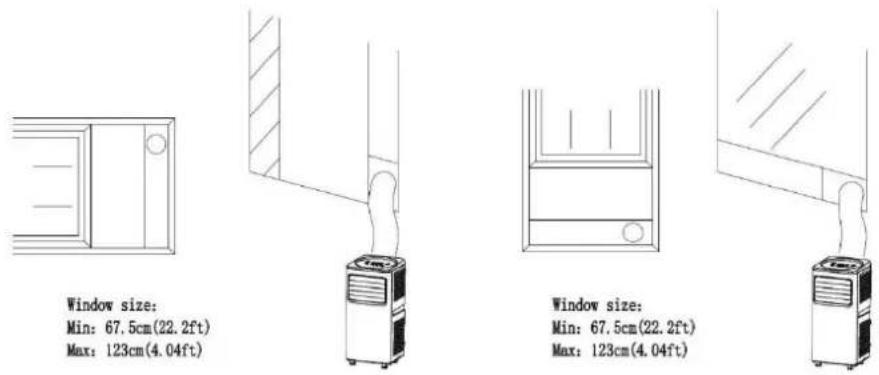

Window Kit	Included (adjustable: 67.5 – 123 cm)
Exhaust Hose	Included (length not specified)
Drainage	Automatic evaporation or continuous drain
Filter	Washable (clean every 2 weeks)
Noise Level	Approx. 52 dB (estimated)
Dimensions (Unit)	Approx. 35 x 35 x 70 cm (estimated)
Weight	Approx. 25 kg (estimated)
Safety Features	Overheat protection, water full alarm, R290 safety precautions
Certifications	CE

Frequently Asked Questions - VO2786 Volteno

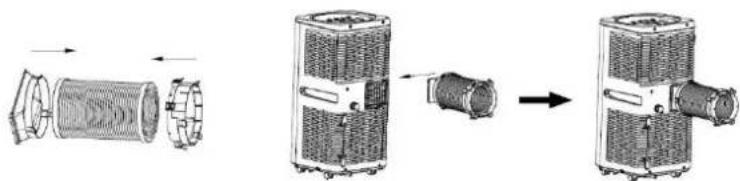

How do I install the exhaust hose and window kit?

Attach the hose connectors to both ends of the exhaust hose. Insert the square connector into the unit’s rear opening. Extend the window kit to fit your window (min 67.5 cm, max 123 cm) and secure the flat connector to the window kit. Ensure the hose is not kinked for proper airflow.

How often should I clean the air filter?

Clean the air filter every two weeks. Remove it by opening the inlet grille, wash with neutral detergent in lukewarm water (max 40°C), let it dry in the shade, then reinstall.

What does error code E3 mean?

Error E3 indicates the water tank is full. The unit will stop cooling and sound 5 beeps. Remove the drain plug at the bottom, drain the water, and replace the plug. The unit will resume normal operation.

Can I use the air conditioner without the exhaust hose?

No, the exhaust hose must be installed for cooling and heating modes to expel hot air outside. For dehumidifying mode, the hose is not required.

How do I switch between Celsius and Fahrenheit?

Press and hold both the TEMP+ and TEMP- buttons on the remote control simultaneously to toggle between °C and °F.

What is the recommended room size for this air conditioner?

The manual states the appliance should be installed in a room with a floor area larger than 22 m². For optimal cooling, a room of about 20-25 m² is suitable.

How do I use the timer function?

Press the TIMER button. In standby, set the desired startup time (1-24 hours) using TEMP+/-. In operation, set the shutdown time. Press TIMER again to confirm. The timer indicator will stay on.

Is it safe to use an extension cord?

No, do not use an extension cord or share the same socket with other appliances. Plug the unit directly into a grounded AC 220-240V/50Hz socket to avoid fire or electrical hazards.

What should I do if the unit does not start?

Check that the power cord is securely plugged into a working socket. Ensure the water tank is not full (no E3 error). Wait at least 3 minutes before restarting after turning off. If the problem persists, contact a qualified technician.

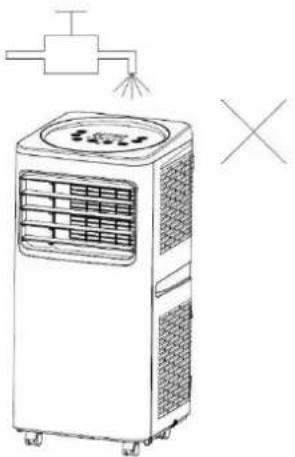

How do I clean the exterior of the air conditioner?

Disconnect the unit from power. Use a soft cloth dampened with a mild neutral detergent and water to wipe the surface. Do not use gasoline, chemicals, or spray water directly onto the unit.

USER MANUAL VO2786 Volteno

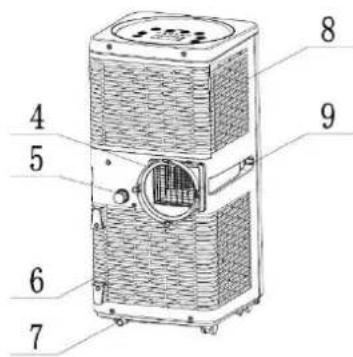

Line drawing of a portable air conditioner unit with control panel and wheels (no text or symbols)

CE

Line drawing of a remote control with various function buttons (no text or symbols)

Line drawing of two air purifiers with ventilation ducts, no text or symbols present

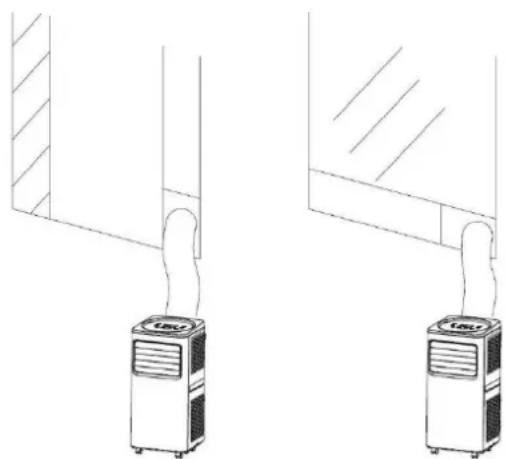

Diagram showing two views of a portable air conditioner unit connected to a plug, with no visible text or symbols.

Technical line drawings of a mechanical device showing internal components and assembly (no text or symbols)

Line drawing of an air conditioner unit with a piping and indicator light above it, no text or symbols present.

WKŁADANIE BATERII

Please do not install or use your mobile air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference.

WARNING

Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater.

Do not pierce or burn.

Be aware the refrigerants may not contain an odour.

Appliance shall be installed, operated and stored in a room with a floor area larger than 22 m2.

WARNING

Specific information regarding appliances with R 290 refrigerant gas.

• Thoroughly read all of the warnings.

- When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.

- The appliance must be placed in an area without any continuously sources of ignition (for example: open flames, gas or electrical appliances in operation).

- Do not puncture and do not burn.

- This appliance contains Y g (see rating label back of unit) of R290 refrigerant gas.

- R290 is a refrigerant gas that complies with the European directives on the environment. Do not puncture any part of the refrigerant circuit.

- If the appliance is installed, operated or stored in a nonventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.

- The appliance must be stored in such a way as to prevent mechanical failure.

- Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organization that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.

- Repairs must be performed based on the recommendation from the manufacturing company. Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.

1. The appliance is for indoor use only.
2. Do not use the unit on a socket under repairs or not installed properly.
3. Do not use the unit, follow these precautions:

A: Near to source of fire.

B: An area where oil is likely to splash.

C: An area exposed to direct sunlight.

D: An area where water is likely to splash.

E: Near a bath, a laundry, a shower or a swimming pool.

1. Never insert your fingers, rods into the air outlet. Take special care to warn children of these dangers.

2. Keep the unit upward while transport and storage, for the compressor locates properly.

3. Before cleaning the air-conditioner, always turn off or disconnect the power supply.

4. When moving the air-conditioner, always turn off and disconnect the power supply, and move it slowly.

5. To avoid the possibility of fire disaster, the air-conditioner shall not be covered.

6. All the air-conditioner sockets must comply with the local electric safety requirements. If necessary, please check it for the requirements.

7. Children should be supervised to ensure that they do not play with the appliance.

8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

10. The appliance shall be installed in accordance with national wiring regulations.

11. Details of type and rating of fuses: T, 250V AC,2A.

12. Recycling

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

1. GWP: R290: 3

2. Contact authorized service technician for repair or maintenance of this unit.

3. Do not pull, deform, or modify the power supply cord, or immerse it in water. Pulling or mixing the power supply cord can result in damage to the unit and cause electrical shock.

4. Compliance with national gas regulations shall be observed.

5. Keep ventilation openings clear of obstruction.

6. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their

competence to handle refrigerants safely in accordance with an industry recognized assessment specification.

1. Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
2. Do not operate or stop the unit by inserting or pulling out Die power plug, it may cause electric shock or fire due to heat generation.
3. Unplug the unit if strange sounds, smell, or smoke comes from it.

Notes:

— If any parts damage, please contact the dealer or a designated repair shop;
— In case of any damage, please turn off the air switch, disconnect the power supply, and contact the dealer or a designated repair shop;
— In any case, the power cord shall be firmly grounded.
— To avoid the possibility of danger, if power cord is damaged, please turn off the air switch and disconnect the power supply. It must be replaced from the dealer or a designated repair shop.

INSTRUCTIONS FOR REPAIRING APPLIANCES CONTAINING R290

1 GENERAL INSTRUCTIONS

1.1 Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to con-ducting work on the system.

1.2 Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

1.3 General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

1.4 Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak tection equipment being used is suitable for use with flammable refrigerants, i.e. nonsparking, adequately sealed or intrinsically safe.

1.5 Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO 2 fire extinguisher adjacent to the charging area.

1.6 No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including igarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are flammable hazards or ignition risks. “No Smoking” signs shall be displayed.

1.7 Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

1.8 Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: the charge size is in accordance with the room size within which the refrigerant containing parts are installed; the ventilation machinery and outlets are operating adequately and are not obstructed; if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs that

are illegible shall be corrected; refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing compo

nents, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

1.9 Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised.

Initial safety checks shall include: that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that there no live electrical components and wiring are exposed while charging, recovering or purging the system; that there is continuity of earth bonding.

2 REPAIRS TO SEALED COMPONENTS

2.1 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation.

2.2 Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall

include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE: The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

3 REPAIR TO INTRINSICALLY SAFE COMPONENTS

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.

Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

4 CABLING

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

5 DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

6 LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

7 REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs – or for any other purpose – conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: remove refrigerant; purge the circuit with inert gas; evacuate; purge again with inert gas; open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be “flushed” with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing

operations on the pipework are to take place. Ensure that the outlet for the vacuum pump is not clos to any ignition sources and there is ventilation available.

8 CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed.

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system.

Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior leaving the site.

9 DECOMMISSIONING

Before carrying out this procedure, it is essential that the technician is completely familiar

with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that :mechanical handling equipment is available, if required, for handling refrigerant cylinders; all personal protective equipment is available and being used correctly; the recovery process is supervised at all times by a competent person; recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various part of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

10 LABELLING

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed.

Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

11 RECOVERY

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only

appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).

Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs.

The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt.

The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders.

If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Competence of service personnel General

Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected.

In many countries, this training is carried out by national training organisations that are accredited to teach the relevant national competency standards that may be set in legislation.

The achieved competence should be documented by a certificate.

Training

The training should include the substance of the following:

Information about the explosion potential of flammable refrigerants to show that flammables may be dangerous when handled without care.

Information about potential ignition sources, especially those that are not obvious, such as lighters, light switches, vacuum cleaners, electric heaters. Information about the different safety concepts:

Unventilated – (see Clause GG.2) Safety of the appliance does not depend on ventilation of the housing. Switching off the appliance or opening of the housing has no significant effect on the safety. Nevertheless, it is possible that leaking refrigerant may accumulate inside the enclosure and flammable atmosphere will be released when the enclosure is opened.

Ventilated enclosure – (see Clause GG.4) Safety of the appliance depends on ventilation of the housing. Switching off the appliance or opening of the enclosure has a significant effect on the safety. Care should be taken to ensure a sufficient ventilation before.

Ventilated room – (see Clause GG.5) Safety of the appliance depends on the ventilation of the room. Switching off the appliance or opening of the housing has no significant effect on the safety. The ventilation of the room shall not be switched off during repair procedures.

Information about the concept of sealed components and sealed enclosures according to IEC 60079-15:2010.

Information about the correct working procedures:

a) Commissioning

- Ensure that the floor area is sufficient for the refrigerant charge or that the ventilation duct is assembled in a correct manner.

- Connect the pipes and carry out a leak test before charging with refrigerant.

- Check safety equipment before putting into service.

b) Maintenance

- Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.

- Ensure sufficient ventilation at the repair place.

- Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.

- Discharge capacitors in a way that won't cause any spark. The standard procedure to short circuit the capacitor terminals usually creates sparks.

- Reassemble sealed enclosures accurately. If seals are worn, replace them.

- Check safety equipment before putting into service.

c) Repair

- Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.

- Ensure sufficient ventilation at the repair place.

- Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.

- Discharge capacitors in a way that won't cause any spark.

- When brazing is required, the following procedures shall be carried out in the right order:

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

- Evacuate the refrigerant circuit.

- Purge the refrigerant circuit with nitrogen for 5 min.

- Evacuate again.

• Remove parts to be replaced by cutting, not by flame.
• Purge the braze point with nitrogen during the brazing procedure.
• Carry out a leak test before charging with refrigerant.
• Reassemble sealed enclosures accurately. If seals are worn, replace them.
• Check safety equipment before putting into service.

d) Decommissioning

• If the safety is affected when the equipment is put out of service, the refrigerant charge shall be removed before decommissioning.
• Ensure sufficient ventilation at the equipment location.
• Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
• Discharge capacitors in a way that won't cause any spark.
• Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.
  • Evacuate the refrigerant circuit.
• Purge the refrigerant circuit with nitrogen for 5 min.
• Evacuate again.
• Fill with nitrogen up to atmospheric pressure.
• Put a label on the equipment that the refrigerant is removed.

e) Disposal

• Ensure sufficient ventilation at the working place.
• Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.
• Evacuate the refrigerant circuit.
• Purge the refrigerant circuit with nitrogen for 5 min.
• Evacuate again.
• Cut out the compressor and drain the oil.

Transportation, marking and storage for units that employ flammable refrigerants Transport of equipment containing flammable refrigerants

Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas. The maximum number of pieces of equipment or the configuration of the equipment, permitted to be transported together will be determined by the applicable transport regulations.

Marking of equipment using signs

Signs for similar appliances used in a work area generally are addressed by local regulations and give the minimum requirements for the provision of safety and/or health signs for a work location.

All required signs are to be maintained and employers should ensure that employees receive suitable and sufficient instruction and training on the meaning of appropriate safety signs and the actions that need to be taken in connection with these signs. The effectiveness of signs should not be diminished by too many signs being placed together. Any pictograms used should be as simple as possible and contain only essential details.

Disposal of equipment using flammable refrigerants

See national regulations.

Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions. Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge.

The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

Name of Parts

1. Control panel
2. Guide the wind box
3. Castor
4. Exhaust joint
5. Lid
6. The grille
7. Outfall
8. On the grid
9. Handle

Appearance and Function of Remote Controller

1. POWER: On/Off switch
2. MODE: MODE selector
3. TIMER: Hourly programming
4. SPEED: Fan speed selector
5. TEMP+: Temperature selector up
6. TEMP-: Temperature selector down
7. SLEEP: Sleep function key
8. SWING: Swing function key

Line drawing of a remote control with various function buttons (no text or symbols)

Accessories

Fig 2

Part	Description	Quantity
	Main Air Conditioner Unit	1
	Hot-Air exhaust hose	1
	Hose Connector(Window end)	1
	Hose Connector (Air Conditioner end)	1
	Window Kit	1
	Remoter Controller	1
	Crossover Connection	1
	Drain-pipe	1

SPEED

Press this button to select wind speed. You can choose low wind speed, medium wind speed or high wind speed.

Note: in dehumidification and sleep mode, the wind speed cannot be adjusted. The wind speed will be locked in low wind.

SLEEP

1. When in cooling mode, when press the sleep button to enter sleep mode, an hour later, the set temperature automatically increase 1^ C, 2 hours later, the set temperature automatically add 2^ C.
2. When the heating mode, when press the sleep button to enter sleep mode, an hour later, the set temperature automatically reduce 1 °C, 2 hours later, the set temperature automatically reduce 2 °C.
3. Press the sleep button again to exit the sleep function.

Note: in sleep mode, the wind speed will be locked in low wind and the temperature can not be adjusted.

TIMER

You can set the timer on/off.

Timing start up: after setting timing start up, the machine will automatically start up and run when the timing time arrives.

In standby mode, press the timing key, and the corresponding timing indicator time value flashes. The timing time can be adjusted by adjusting the temperature up and down key (step distance is 1 hour), and the time interval range can be set as 1\~24 hours. Finally, press this button to start timing. At this time, the timing indicates that the time value is always on, and the display displays the remaining time

1. The machine will automatically start up and run after the timing time is set.

2. If you want to cancel the timing function, you can press this button again.

3. If the set timing boot time is not reached, press the "on/off" button in advance, the timing will be cancelled, and the machine will start up and run at the same time.

Regular shutdown: after regular shutdown is set, the machine will automatically stop running when the regular time is reached.

1. In the boot state, press the timing button, and the corresponding timing indicator time value flashes. The timing time can be adjusted by adjusting the temperature up and down key (step distance is 1 hour), and the time interval range can be set as 1\~24 hours. Finally, press this button to start timing, and the timing LED will always be on; The digital tube displays the current set temperature.

2. The machine will shut down automatically when the timing time is set.

3. If you want to cancel the timing function, you can press this button again.

4. If the set timing shutdown time is not reached, press the "on/off" button in advance, the timing will be cancelled, and the machine will be shut down and stop running.

ON/OFF

Press "on/off" to start up, and then press "on/off" to shut down.

WIND

Press the swing wind button to start the swing wind function; Press the swing button again, and the let and right swing function will be cancelled.

TEMP-

Under cooling and heating function, set in the range of 16 \~ 31 °C temperature. Every click on the temperature, set temperature reduced by 1 °C.

TEMP+

Under cooling and heating function, set in the range of 16 \~ 31 °C temperature. Each press keys on temperature, set temperature increase 1 °C.

MODE

Press the mode key to perform mode conversion and select one of the operation modes of "refrigeration, dehumidification, air supply, heating (optional), and automation".

Cooling operation

1. Press the mode key until the refrigeration indicator is on, and select the refrigeration function. While the refrigeration function is in progress, extend the bar Put the tube out of the window so that hot air can escape from the room.
2. According to the temperature rise or lower key can adjust the set temperature, the temperature range of 16-31 °C / 61 \~ 88 °F.
3. Press the wind speed button to select one of the high, medium and low wind speeds.

Note: In order to improve the cooling capacity of the machine, please note the following: A) if the room is in direct sunlight, please close the curtains.

B) do not place the machine where there is a heat source.

Dehumidifying operation

1. Close the doors and Windows when using the machine to prevent excess moisture from entering the room.

2. Press the mode key, the dehumidification indicator will light up, and the display screen will display dH, and select the dehumidification function. In this mode, the wind speed is not adjustable, the default low speed.

3. In the case of selecting dehumidification mode, expansion tube is not required.

Fan operation

Press the mode key, the display will display FA, and select the function of air supply. Press the wind speed button to select one of the high, medium and low.

wind speeds.

Heating operation (optional)

1. Keep pressing the mode key until the heating light is on.
2. Press the "+" or "-" key to choose their own need to temperature, temperature range of 16-31 °C 61 \~ 88 °F.
3. Press the wind speed button to select one of the high, medium and low wind speeds.

Automatic function

Press the mode key, the automatic light will turn on and select the automatic function. The machine can automatically select appropriate functions according to the environment temperature.

Note: optional function is to supply consumers according to the need to choose, the specification shows the full functionality.

Temperature display conversion

Press both the temperature - and + keys, and the display will switch between Fahrenheit and Celsius.

Operation Introduction

Before starting operations in this section:

1) Find a place where there is power supply nearby.
2) Install the exhaust ducts as shown in the figure below, and adjust the positions of the mounting plates and windows.

Line drawing of two identical air purifiers with ventilation ducts, mounted on a wall (no text or symbols)

3) Insert the power cord into an grounded AC220V/50Hz socket;
4) Please open front window-shades first, then press the power button to open the machine.

Before Using Notice:

1. Operation temperature range:

	Maximum cooling	Minimum cooling
Degrees Celsius (°C)	35 (Cooling)	18 (Cooling)
Degrees Celsius (°C)	27 (Heating)	7 (Heating)

• When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each POWER.
• Power supply meets the requirements.
• The socket is for AC use.
• Do not share one socket with other appliances.
• Power supply is AC220V, 50Hz

2. Drainage mode

1. Condensate automatic evaporation drainage

The machine can automatically evaporate condensed water and discharge it through the exhaust pipe. In the refrigeration and dehumidification mode, the machine does not need to connect the drainage pipe for drainage, please ensure that the water plug of the machine has been installed.

2.Continuous drainage

Refer to the installation guide below.

3. Water filled with alarm

- When the water tank is full, the indicator light will be on, the buzzer will sound 5 times, the display screen will display "E3", the compressor will automatically stop running. At this time, the water plug at the drain under the machine can be removed, and the water can be discharged through the drain pipe. The machine returned to normal operation.

Installation Explanations

1. Installation Explanations

• A removal air-conditioner shall be installed in the flat and empty place all around. Don't block the air outlet, and the required distance around should be at least 30cm. (See Fig.6)
• Should not be installed in dry cleaner.
• Socket wiring should be in accordance with the local electric safety requirements.

2. Introduction to Exhaust Hose Installation

Technical line drawing of a mechanical device showing exploded view, internal structure, and final assembly (no text or symbols)

Temporary installation (AS shown in the figure above):

(1) Twist both ends of the exhaust hose into the square fixing clip and the flat fixing clip.
(2) Insert the square fixing clip into openings at back of the air conditioner (see Fig.7).
(3) Put the other end of the exhaust hose to the near windowsill.

3. Window Slider Kit Installation

The installation manner of window slider kit is mostly in "horizontal" and "vertical", No much difference in actual process.

4. Continuous drainage - pipe installation

1. Remove the screw cover of the machine and pull out the rubber water plug inside;
2. Install the drainage nozzle;
3. Finally, install the drain pipe on the drain changer.(see figure 9)

Diagram of two identical portable air purifiers connected by a cable, showing internal components and wiring (no text or labels)

5. Internal Tank Water Full Alarm Function

The inner water tank in the air-conditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. (If water pump is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will drain outside.)

Maintenance Explanations

1) Before cleaning, be sure to disconnect the unit from any electric supply outlet;

2) Do not use gasoline or other chemicals to clean the unit;

3) Do not wash the unit directly;

4) If the conditioner is damaged, please contact the dealer or rep

Line drawing of an air conditioner unit with a piping and indicator light above it, no text or symbols present.

Air Filter

• If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks
• Dismounting: Open the air inlet grille and take off air filter.
• Cleaning: Clean the air filter with neural detergent in lukewarm (40°C) and dry it up in the shade.
• Mounting: Putting the air filter into the inlet grille, replace the components as they were.

Clean the Air-conditioner Surface

First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.

Line drawing of a remote control with various function buttons (no text or symbols)

SPEED

Line drawing of a portable air conditioner unit with airflow from a chimney (no text or symbols)

Line drawing of a portable air conditioner unit emitting vapor, with no text or symbols present.

Diagram showing a mechanical assembly process with exploded view and assembled view (no text or labels)

Diagram showing two identical electronic devices connected by a cable, with one device emitting a plug (no text or symbols present)

Line drawing of an air conditioner unit with a lamp and warning symbol (no text or labels)

1.5 Presence of fire extinguisher

Part	Description	Quantity
	Main Air Conditioner Unit	1
	Hot-Air exhaust hose	1
	Hose Connector(Window end)	1
	Hose Connector (Air Conditioner end)	1
	Window Kit	1
	Remoter Controller	1
	Crossover Connection	1
	Drain-pipe	1

SPEED

Line drawing of two identical air purifiers labeled 'LATE' with no text or symbols on the devices themselves

Diagram showing a mechanical assembly process with three stages: cylindrical, side, and final assembled device (no text or labels)

Window size: Min: 67.5cm(22.2ft) Max: 123cm(4.04ft)

Line drawing of a portable air conditioner unit with a handle, connected to a wall (no text or symbols)

Window size: Min: 67.5cm(22.2ft) Max: 123cm(4.04ft)

Line drawing of a portable air conditioner unit emitting vapor, with no text or symbols present.

folyamatban.

Diagram showing two identical air purifiers connected by a cable, with one device emitting exhaust and the other emitting a plug (no text or labels present)

ábrát).

Line drawing of a portable air conditioner with ventilation grilles and a hanging control unit above (no text or symbols)

Légszűrő

Line drawing of a remote control with various function buttons (no text or symbols)

1. SWING: Swing: funkčné tlačidlo Swing

Príslušenstvo

Part	Description	Quantity
	Main Air Conditioner Unit	1
	Hot-Air exhaust hose	1
	Hose Connector(Window end)	1
	Hose Connector (Air Conditioner end)	1
	Window Kit	1
	Remoter Controller	1
	Crossover Connection	1
	Drain-pipe	1

SPEED

Line drawing of two identical air purifiers mounted on vertical supports, with no text or symbols present.

Technical line drawings of a mechanical component showing assembly and disassembly (no text or symbols)

4. Priebežné

Diagram of two industrial air purifiers connected by a pipe, showing internal components and wiring (no text or labels)

Line drawing of a portable air conditioner unit with a sensor emitting light, no text or symbols present
