Product Type	LED Recessed Ceiling Panel Light
Brand	Emos
Model	ZV2111
Power Consumption	6 W
Light Color	Neutral White / Warm White
Luminous Flux	400 lm
Dimensions (L x W x H)	75 x 75 x 20 mm
Ceiling Cut-out Diameter	55 mm
Input Voltage	220-240 V AC, 50/60 Hz
Lifetime	30,000 hours
IP Rating	IP65
Suitable Locations	Indoor and outdoor (with IP65)
Mounting Type	Fixed (recessed)
Installation	By authorized electrician only
Safety	Disconnect power before maintenance
LED Replacement	Not replaceable (integrated)
Cover Replacement	Replace if damaged
Covering with Insulation	Not suitable
Compliance	CE, EU directives
Disposal	Separate collection for electronic waste

Frequently Asked Questions - ZV2111 Emos

What is the power consumption of the Emos ZV2111?

The Emos ZV2111 consumes 6 watts of power, making it an energy-efficient lighting solution.

Is the Emos ZV2111 suitable for outdoor use?

Yes, it is rated IP65, meaning it is dust-tight and protected against water jets, making it suitable for both indoor and outdoor use.

What are the dimensions of the Emos ZV2111?

The product measures 75 mm x 75 mm x 20 mm (length x width x height).

What size ceiling cut-out is required for installation?

The required ceiling cut-out diameter is 55 mm.

Can I replace the LED chips in the ZV2111?

No, the LED chips are integrated and non-replaceable. The entire luminaire should be replaced if the LEDs fail.

What is the lifespan of the Emos ZV2111?

The LED luminaire has a rated lifespan of 30,000 hours, which typically corresponds to many years of use.

Is the Emos ZV2111 dimmable?

The manual does not mention dimming capability; it is likely non-dimmable. For safety, do not use with a dimmer unless explicitly stated.

What color temperatures are available for the ZV2111?

The ZV2111 offers both neutral white and warm white light colors, providing flexibility for different ambiances.

Can I cover the ZV2111 with insulation material?

No, this luminaire is not suitable for covering with insulation material. Doing so may cause overheating and fire risk.

Do I need an electrician to install the Emos ZV2111?

Yes, installation should be performed by an authorized person to ensure electrical safety and compliance with regulations.

USER MANUAL ZV2111 Emos

Line drawing of a frying pan with a shaded lid and a coiled cord, no text or symbols present

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	400 lm ø 75	5 × 20 mm ø 55 mm		220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 8 W Neutral white		525 lm ø 100 × 20	mm ø 80 mm
ZV1131	11 W Neutral white	Warm white	850 lm ø 1	25 × 20 mm ø 105 mm
ZV1132
ZV1142 13 W Neutral white		1 180 lm ø 155 ×	20 mm ø 135	mm
ZV1152 18 W Neutral white		1 530 lm ø 185 ×	20 mm ø 165	mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with a power supply and cable (no text or symbols)

Type | Typ | Typ | Typ | Típus | Nasvet | Tip | Typ | Tínp | Tip | Tipas | Tips | Tüüp | Tínp: ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a mechanical component with a circular housing and spring attached (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	400 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 8 W Neutral white		525 lm 100 × 100	× 20 mm 80 mm
ZV2131	11 W Neutral white	Warm white	850 lm 125	× 125 × 20 mm 105 mm
ZV2132
ZV2142 13 W Neutral white		1 180 lm 155 × 1	55 × 20 mm	135 mm
ZV2152 18 W Neutral white		1 530 lm 185 × 1	85 × 20 mm	165 mm

1.

Simple line drawing of a mechanical setup with a spring and lever, no text or symbols present

Simple line drawing of a circuit board with a resistor and cable, no text or symbols present

GB This luminaire is not suitable for covering with insulation material.

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

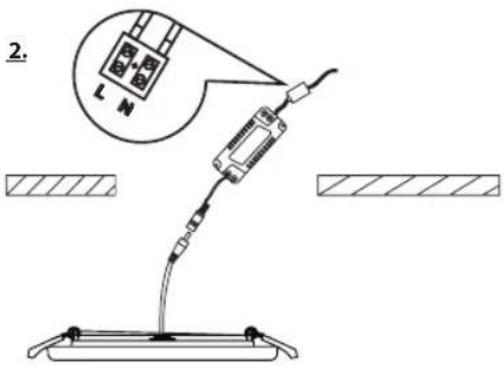

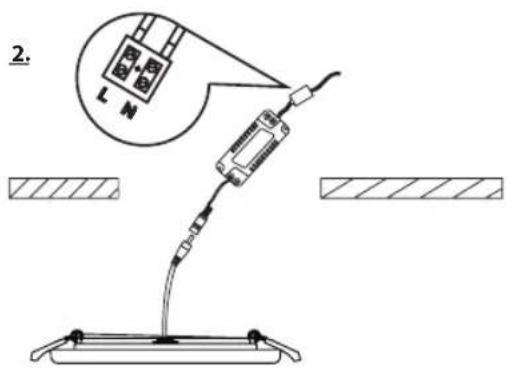

Mounting

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

Emos spol s.r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED PANEL VESTAVNÝ

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi II, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
