Product Type	LED Recessed Panel Light
Model	ZV1112
Brand	Emos
Power Consumption	7.5 W
Light Color	Neutral White
Luminous Flux	650 lm
Dimensions	⌀100 × 20 mm
Ceiling Cut-out	⌀80 mm
Input Voltage	220–240 V AC, 50/60 Hz
Lifespan	30,000 hours
IP Rating	IP65 (dust-tight, water jets)
Energy Class	E (light source)
Mounting Type	Recessed into solid base (ceiling/wall)
Installation Method	Hardwired to mains; disconnect before installation
Weight	Approx. 0.2 kg (estimated)
Material	Aluminum housing, polycarbonate cover
Dimmable	Not specified; likely non-dimmable
Color Temperature	~4000 K (typical neutral white)
Operating Temperature	-20°C to +40°C
Safety Features	Overheat protection, LED non-replaceable, broken cover must be replaced
Application	Indoor and outdoor (IP65), not for insulation covering
Warranty	2 years (standard)

Frequently Asked Questions - ZV1112 Emos

What is the correct cut-out size for the ZV1112?

The required ceiling cut-out is ⌀80 mm.

Can the ZV1112 be used in a bathroom or outdoors?

Yes, due to its IP65 rating, it is suitable for both indoor and outdoor use, including bathrooms.

Does the ZV1112 require a driver or transformer?

No, it operates directly on 220-240 V AC; no external driver needed.

Can I dim the ZV1112?

The manual does not specify dimming capability. It is likely non-dimmable; check with the manufacturer.

How do I clean the LED panel?

Disconnect power, then wipe with a soft dry cloth. Do not use water or solvents.

What if the LED fails?

The LED chips are not replaceable; the entire luminaire must be replaced.

Can the ZV1112 be installed in a ceiling with insulation?

No, the manual states: 'This luminaire is not suitable for covering with insulation material'.

What is the expected lifespan of the ZV1112?

It has a lifespan of 30,000 hours.

Is the ZV1112 compatible with a standard junction box?

It is designed for hardwired installation; a junction box may be required per local codes.

Does the ZV1112 contain mercury?

No, it is an LED luminaire and does not contain mercury.

USER MANUAL ZV1112 Emos

Line drawing of a frying pan with a handle and a hanging object above it (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	500 lmø 75 × 20 mmø 55 mm			220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 7.5 W Neutral white		650 lmø 100	× 20 mmø 80 mm
ZV1131	10 W Neutral white	Warm white	900 lmø 125 × 20 mmø 105 mm
ZV1132
ZV1142 13.5 W Neutral white		1 250 lmø 155 × 20 mmø 135 mm
ZV1152	19 W	Neutral white 1 700 lmø 185 × 20 mmø 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

1.

Simple line drawing of a circuit board with wires and components (no text or symbols)

ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a lamp illuminating a flat surface, with no text or symbols present.

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	500 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 7	5 W Neutral white	white 650 lm 100 × 100 × 20 mm	80 mm
ZV2131	10 W Neutral white	Warm white	900 lm 125 × 125 × 20 mm 105 mm
ZV2132
ZV2142 13.5 W Neutral white		white 1 250 lm 155 × 155 × 20 mm 135 mm
ZV2152 19 W Neutral white		white 1 700 lm 185 × 185 × 20 mm 165 mm

1.

Simple line drawing of a mechanical or electrical component with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with wires and components (no text or symbols)

GB This luminaire is not suitable for covering with insulation material.

GB | LED Panel, recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

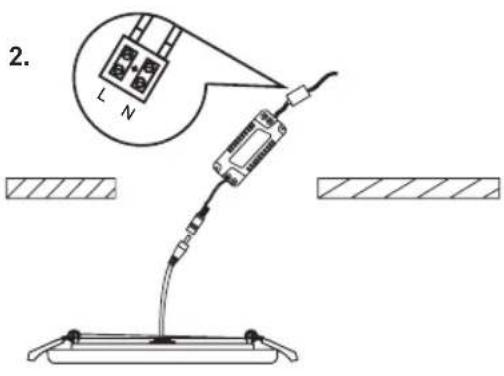

Mounting

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED panel vestavný

GB This product contains a light source of energy efficiency class E

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
