Product Type	Refrigerator
Brand	Hyundai
Model	MC 08
Energy Class	A+
Total Net Capacity	80 L
Refrigerator Net Capacity	70 L
Freezer Net Capacity	10 L
Star Rating	4 star
Dimensions (H x W x D)	85 x 50 x 55 cm
Weight	20 kg
Power Supply	220-240 V, 50 Hz
Annual Energy Consumption	150 kWh
Noise Level	39 dB
Climate Class	N-ST
Refrigerant	R600a
Defrost System	Manual (freezer), automatic (fridge)
Adjustable Shelves	Yes, 3 glass shelves
Door Reversibility	Yes
Interior Light	LED
Temperature Control	Mechanical dial
Warranty	2 years

Frequently Asked Questions - MC 08 HYUNDAI

How do I adjust the temperature on my Hyundai MC 08 fridge?

Turn the thermostat dial inside the fridge compartment. A higher number means colder temperature. Typically, setting 3-4 is suitable for normal use. Adjust based on ambient temperature and load.

Why is my refrigerator not cooling properly?

Check if the door is fully closed, the temperature dial is set correctly, and the vent openings are not blocked. Also ensure the condenser coils at the back are clean. If problem persists, contact service.

How often should I defrost the freezer?

Defrost the freezer compartment when ice buildup reaches about 5 mm. To defrost, unplug the fridge, remove food, and let ice melt naturally. Do not use sharp objects to remove ice.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual: remove hinge screws, switch door handle to other side, and reattach hinges. You may need a screwdriver and patience.

What does the star rating on the freezer mean?

A 4-star rating means the freezer can store frozen food at -18°C and is suitable for long-term storage. It can also freeze fresh food if the capacity is not exceeded.

How do I clean the interior of my fridge?

Unplug the fridge. Remove all food and shelves. Wipe interior with a solution of warm water and mild detergent. Rinse with clean water and dry. Do not use abrasive cleaners.

Why is there water pooling inside the fridge?

Check if the drain hole at the back is clogged. Clean it with a cotton swab. Also ensure the fridge is level so water can flow to the drain. Overfilling may also cause condensation.

Is the Hyundai MC 08 energy efficient?

Yes, it has an A+ energy class, consuming about 150 kWh per year. This makes it relatively energy efficient for a small refrigerator.

What is the size of this refrigerator?

The dimensions are approximately 85 cm in height, 50 cm in width, and 55 cm in depth. It fits well in a kitchen or dorm room.

Where can I find spare parts or service?

Contact Hyundai customer service or an authorized service center. The manual includes contact information. For shelves and other parts, check online retailers or the official website.

USER MANUAL MC 08 HYUNDAI

Exterior view of a Hyundai refrigerator with ventilation grilles and a mesh cover (no text or symbols visible on the device itself)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

Minichladnička / Minichladnička / Mini lodówka Minifridge / Minihútő

CE

1

Close-up of a textured, mesh-wrapped object with black connectors and a label 'B' (no other text or symbols visible)

Coiled black cable with a metallic connector, labeled 'C' in the corner (no other text or symbols)

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

- Consider the instructions in the user's manual as a part of the appliance and provide it to other users of the appliance.

- Check if the reading on the label corresponds with the voltage in your car plug. The plug of the supply cord can be plugged in only to 12 V (DC) car plug, which complies with relevant standards.

- This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- If the power cord of this appliance is damaged, the cord must be replaced by the manufacturer, their service technician or by a similarly qualified person, this will prevent the creation of a dangerous situation.

- Never use the appliance if the power cord or power plug are damaged, if it is not functioning correctly or if it has fallen on the floor and been damaged or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.

- Always turn the appliance off immediately after use or before each maintenance by pulling the plug of the supply cord from the car plug

- Never immerse the appliance into water (even its parts)! Do not wash it under running water! Never expose the appliance to rain!

- Never cover the appliance; thus you will prevent the risk of interior fire.

- It is not permissible to adjust the surface of the appliance in any way (e.g. by means of selfadhesive wall-paper, foil, etc.)!

- Do not use the appliance in an environment saturated with explosive or flammable fumes.

- The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- The appliance must not be used in areas where chemicals, paints and other flammable, explosive, volatile and harmful substances are used or stored.

• Use the appliance in the working position at places with no risk of turning over and in sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. heater, stove, etc.) and wet surfaces (e.g. sinks, wash-basins, etc.).
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
  – Use only original spare parts.
• Make sure there is enough free space around the appliance to ensure its good ventilation! Do not cover or block at least 10 cm of free space from the vent on the back side! Risk of overheating.
• Do not put any objects into the vents.
• The appliance is suitable for outdoor camping. When using outside, protect the appliance from unfavourable weather (e.g. moist, rain, snow, frost, direct sunlight etc.).
• The appliance is not suitable for transporting animals or putting them away, as well as storing el. appliances or chemicals (e.g. solvents, diluents).
• The appliance is not suitable for transportation of corrosive or solvent-based substances.
  – Food is allowed to be stored in its original packaging or suitable containers.
• Put liquids and ice into the car fridge only in suitable containers.
• Put unpackaged food in a suitable protective packaging before placing it into the car fridge.
• Do not fill the appliance with ice and do not poor any liquids into the inside (e.g. water).
• If you need to cool medicaments, make sure the cooling capacity of the appliance is sufficient for the specific drug.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• The manufacturer is not responsible for damage and injuries caused by improper use of the appliance and the accessories (e.g. food deterioration, injury, cutting) and its guarantee for the appliance does not apply in situations when the safety warnings above are not complied with.

II. DESCRIPTION OF THE CONTROLS

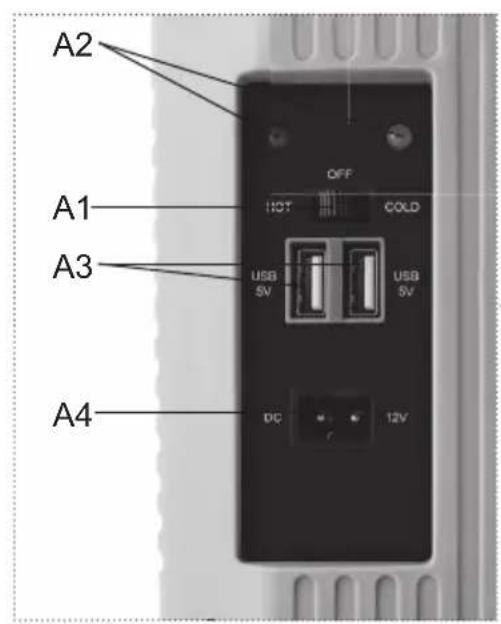

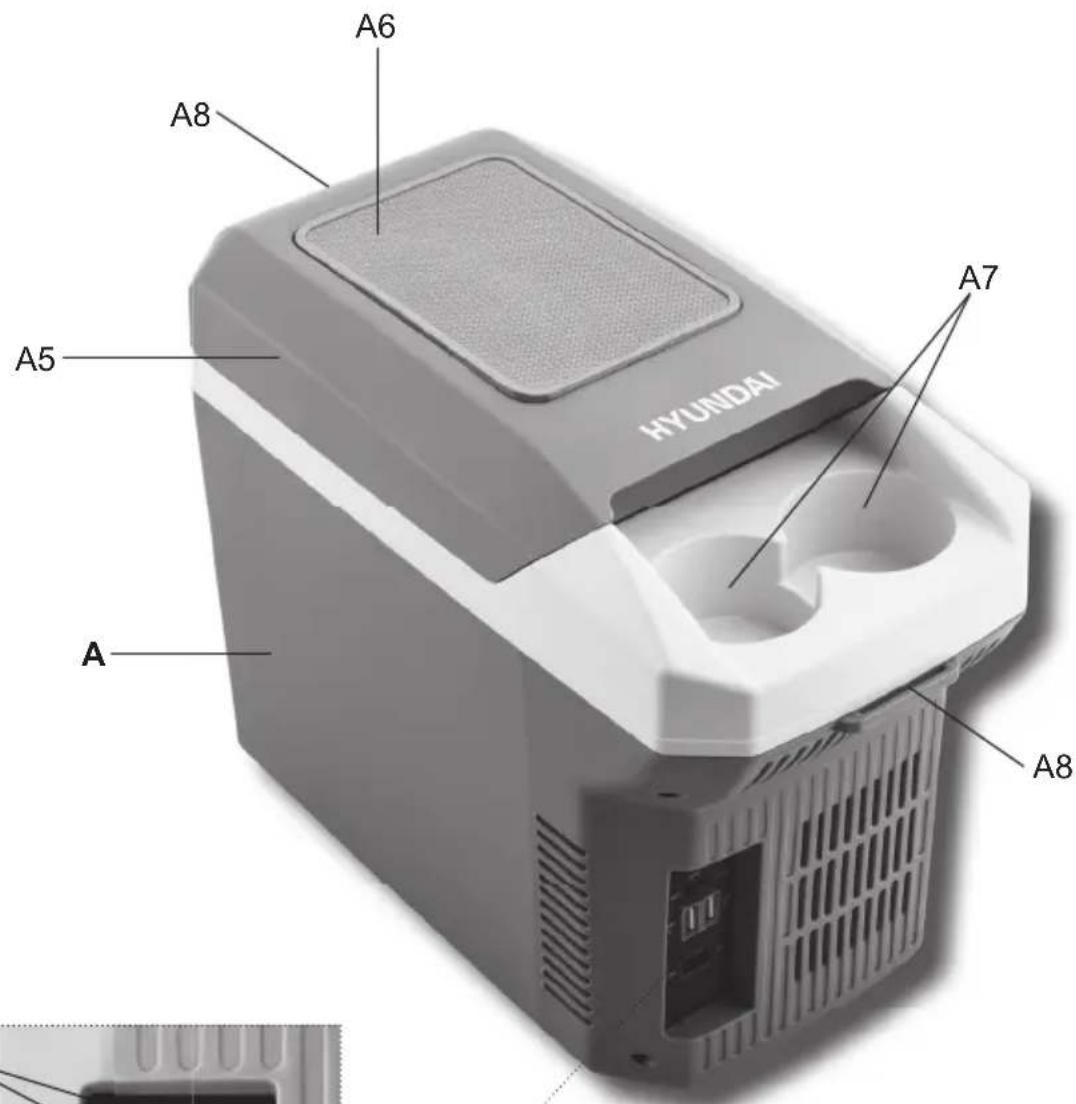

A – Mini refrigerator

A1 - HOT/OFF/COLD switch

A2 – light signalization of operation

A3 – USB ports 5 V (DC)

A4 – power connector

A5 – lid

A6 – non-slip shelf

A7 – bottle/cup storage (∅ 68 mm)

A8 – eyelet for shoulder strap

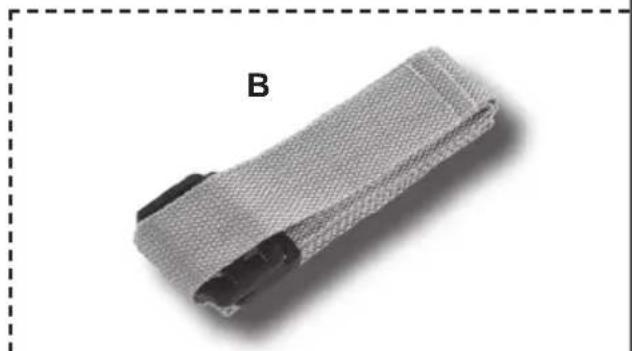

B – Shoulder strap

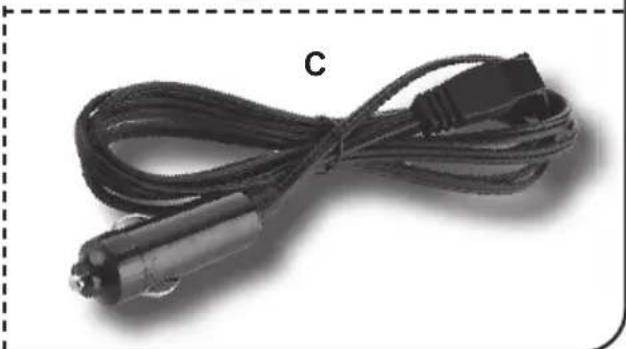

C – Power supply

Available accessories:

Charging adaptor 12 V with a car connector (HYUMCR1).

III. INSTRUCTIONS FOR USE

Remove all the packaging material and take out the appliance. Remove any possible adhesion foils, stick-on labels or paper from the appliance. Place the assembled appliance on a flat, steady, smooth and clean surface at a height, out of the reach of children (see sec. I. SAFETY WARNING). Leave enough space to ensure sufficient ventilation. Make sure that the power supply cord is not damaged and that it is not led underneath the appliance or over any sharp or hot surfaces. The appliance is designed to be powered from a 12 V (DC) car socket.

Attention

• If you intend to use the car fridge in a car, we recommend turning it off when turning off the engine. Otherwise there is a risk of the car battery getting discharged when connected for a longer period of time without the engine running.
• Do not switch directly from one operating mode into the other (HOT -COLD or COLD-HOT). This will may cause inner body deformation. If you would like to change the operating mode, turn the appliance off. Wait about 30 minutes before you switch it to the other operating mode.

HOT/OFF/COLD (A1) switch

„HOT“ position - switch-over to the heating mode
„OFF“ position - switch-off of the appliance
„COLD“ position - switch-over to the cooling function

USB ports (A3)

USB ports provide output voltage of 5 V (DC). They can be used to power or charge various devices (e.g. mobile phones, tablets, navigation devices, etc.).

Remarks:

• The lowest temperature, which may be achieved inside the mini refrigerator, depends on ambient temperature and on the volume of food to be cooled. Food may be cooled to temperature up to 15^ lower than ambient temperature.
• Food may be heated and kept at temperature of about 50^ in the heating mode.
• To ensure maximum effect, we recommend that you insert cooled/heated food into the refrigerator depending on the used function (cooling/heating).
• If warm items have to be cooled down, this takes approx. 5 hours.
• After use, set the switch A1 to "OFF".

IV. CLEANING AND MAINTENANCE

Clean the appliance with a damp cloth only. Make sure water does not get into the inner parts! Keep the appliance clean. Do not use any coarse and aggressive cleaning agents (e.g. sharp objects, scrapers, thinners or other solvents)! Do not wash the appliance under running water or in a dishwasher.

V. TECHNICAL SPECIFICATIONS

Voltage (V) / Input (W) specified on the type label of the appliance

Protection class of the appliance II.

The internal capacity 8 l

Weight (kg) approx. 2.5

Size of the product (mm) 195 x 390 x 300

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

VI. LEGISLATIVE & ECOLOGY

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product (or battery/accumulator) shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this

product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

NOTICE
