Product Type	Radio Switch Set (Remote Control + 3 Sockets)
Model	RF102T / RF102R
Brand	REV (REV Ritter GmbH)
Power Supply	230V~, 50Hz
Max Load	3680 W (16 A)
Number of Sockets	3
Remote Control Battery	1x CR2032, DC 3V
Frequency	433.92 MHz (band 433.05-434.79 MHz)
Max Transmission Power	20 mW
Range (Free Field)	Up to 30 m
Protection Rating	IP20 (dry indoor spaces only)
Ambient Temperature	0 °C to 35 °C
Operation	Continuous
Functions	ON/OFF per channel (1-3) or all simultaneously via ALL button
Pairing Method	Press socket button >5s, then remote ON button on desired channel
Safety Features	Do not cover; keep accessible; not for unattended hazardous devices
Cleaning	Unplug, use dry or slightly damp cloth, mild detergent if needed
Disposal	WEEE separate collection; batteries return to collection points
Certification	CE (Directive 2014/53/EU)
Included Components	1 remote control, 3 radio-controlled sockets, 1 CR2032 battery

Frequently Asked Questions - RF102T REV

How do I pair a radio-controlled socket with the remote?

Plug the socket into a mains outlet. Press and hold the ON/OFF button on the socket for more than 5 seconds until the LED flashes. Then press the ON button of the desired channel (1, 2, or 3) on the remote control. The socket is now paired.

What is the maximum power I can connect to one socket?

The total power connected to each socket must not exceed 3680 W (16 A at 230V~). Do not exceed this limit to avoid overheating.

What is the range of the remote control?

In open field conditions, the range is up to 30 m. Indoors, range can be reduced by walls, furniture, and other obstacles. Structural conditions affect the range.

How do I replace the battery in the remote control?

Open the battery compartment, remove the old CR2032 battery, and insert a new one with the correct polarity as marked. Dispose of used batteries properly.

Can I use this product outdoors or in wet areas?

No. The product is rated IP20 and is only suitable for dry indoor spaces. Keep away from water, moisture, and outdoor environments.

Why is my device not responding to the remote?

Check if the device is switched on and within range. Ensure the battery in the remote is not dead. Try moving closer or repositioning the socket. Also check for radio interference from other devices.

Can I control multiple sockets with one channel?

Yes. If you assign the same channel to multiple sockets, pressing that channel's ON/OFF button will control all paired sockets simultaneously.

How do I clean the product?

Always unplug the product before cleaning. Use a dry or slightly damp lint-free cloth with mild detergent if needed. Never use abrasive cleaners or solvents.

Is this product safe to use with children?

The product is not intended for use by children. Keep it out of reach of children and ensure only responsible adults operate it.

What should I do if the product is damaged?

Do not operate a defective product. Do not attempt to open or repair it yourself. Contact REV service via www.rev.de or email [e-mail] for assistance.

USER MANUAL RF102T REV

White electrical outlet plug with a terminal pin and two internal slots (no text or symbols visible)

White electrical outlet plug with a terminal and two screw holes (no text or symbols visible)

White electrical outlet plug with terminal socket and power outlet (no text or symbols visible)

REV Ritter GmbH

Frankenstr. 1-4 • 63776 Mömbris • Deutschland • www.rev.de

E-Mail: [e-mail] • D AT Service-Telefon: [phone]*

1
Typ:
RF102R

2

S

Simple line drawing of a house outline with no text or symbols

Simple diagram showing a power outlet connected to a padlock with a cross mark, labeled S4 (no text or symbols beyond label)

Simple line drawing of a trash bin with no text or symbols, featuring intersecting lines and a circular object at the bottom (no readable text or symbols)

GB You can find a multilingual version of this manual

at www.rev.de. Alternatively, you can also follow R-code below.

Radio switch set compact Assembly and operating instructions

INTRODUCTION

Dear Customer,

We'd like to thank you for purchasing our product. Please read the following operating instructions thoroughly before using this product for the first time and keep it handy for future reference (S1). Please check the product before use for any damage.

PROPER USE

• The product conforms to the appropriate European CE directives (S2).
• This product conforms to the appropriate European safety standards.

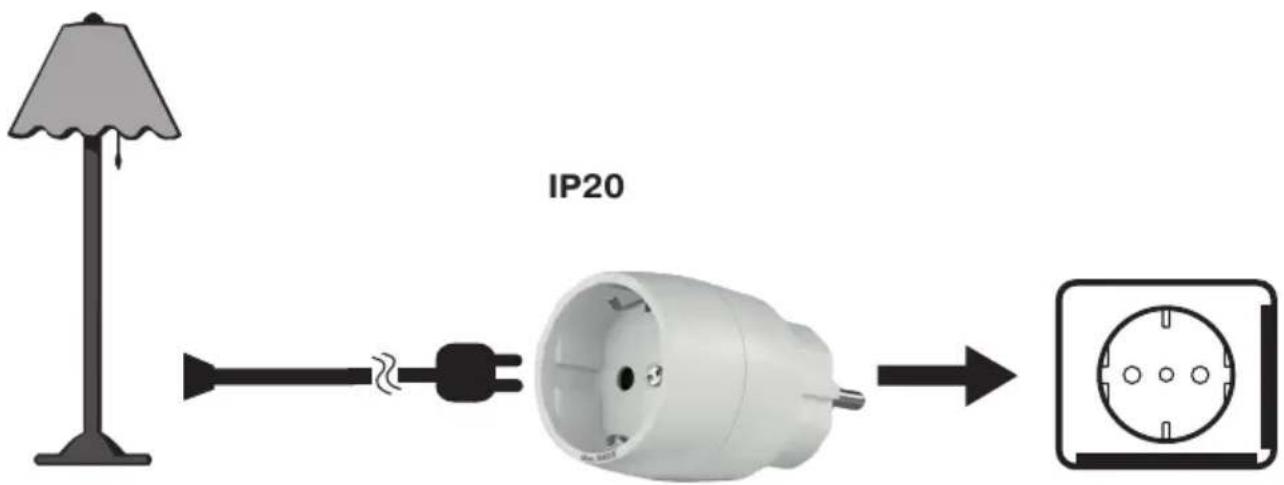

• The product is IP20 rated and suitable for use in dry interior spaces (S3).
• The product may only be used only for the purpose for which it is intended, in accordance with this user manual!
• The product is not suitable for rough use (e.g. construction sites)!
- The product is not intended for use by persons (including children) whose physical, sensory or mental abilities are limited or who lack experience and knowledge! These persons may only use the product if they are supervised by a person responsible for their safety, or if they have been inducted into how to use the product! The supervision and use of this product must be carried out by a responsible person!
- Make sure that this product is kept out of the reach of children or unauthorised persons.
• The product is only designed for use with the appropriate batteries.

GENERAL INFORMATION

• Handle this product carefully. It can be damaged by shocks, blows or by being dropped, even from a low height!
• Do not use additional components!
  • This product has no replaceable parts. Do not attempt to open or repair this product!
• This product cannot be operated as under normal conditions if there are strong radio frequency effects. In this case, a change in location is necessary!
• Shielding caused by metal parts can severely impair reception, so that the transmission of a signal is not possible. For this reason, never attach the transmitter to metal surfaces!

GENERAL SAFETY INSTRUCTIONS

• Please observe the technical specifications!
• Please follow this instruction manual and keep it in a safe place!
• Please pass on this instruction manual to a subsequent owner!
  • Not to be used by children!
  • Do not operate a defective product!
• Use only in connection with a sufficiently fused 230V\~ installation!
• Must not be used in areas that represent an explosion hazard (e.g. carpentry workshop, paintshop, or similar)!
• Do not use in the immediate vicinity of flammable materials!
• Do not install in the immediate vicinity of paddling pools, fountains, ponds or similar bodies of water.
• Do not immerse in water or other liquids!
• Do not operate with wet hands!
• Never undertake repairs yourself. Repairs may only be carried out by the manufacturer or an authorised service representative.
  • This product is suitable for normal household applications; it may not be used as a safety device!
• When you are using multiple products, make sure there is an adequate clearance between the products (approx. 1.5–2m)!
• Make sure there's enough free space around the product for good ventilation! All objects in the vicinity of the product should be at least 10cm away!
• Do not operate the product when covered (S4). This could lead to a dangerous buildup of heat!
  • The product must remain freely accessible (also when in use)!
• For the connection, only use regular mains sockets (230V\~, 50Hz) with protective conductors of the public supply network which are easily accessible!
  • Do not open the housing!
• Never operate with an open housing, or missing or damaged terminal compartment cover.

• A conversion or modification of the product affects product safety. Caution: risk of injury! A conversion or modification of the product must not be carried out!

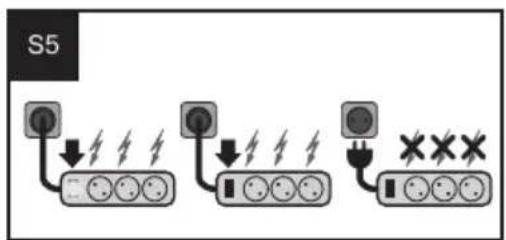

• De-energised only when the plug is pulled out (S5)!

• Do not operate the product's buttons with electrically conductive objects!
• Do not plug one behind the other (S6)!
• Do not operate the product at, on or in the vicinity of open flames (e.g. candles)!
• Do not expose the product to direct sun and shield it from extreme heat!
• Do not operate any devices whose unattended operation could endanger life and property!
• Plugged-in power supply units must not exceed a temperature of 50^ .
• Only connect devices up to max. 3680W total power!
• The product's keys must not be in permanent operation!

EQUIPMENT/FUNCTION

This radio switch set consists of a remote control and three radio-controlled sockets. With this product you can switch any electrical and electronic devices (e.g. lamps, TV, computer, Christmas lights,...) up to 3680W power over a range of up to 30m (free field). You can switch your devices on and off from any location, even through furniture and walls. The range in buildings depends on the structural conditions.

The correspondingly taught-in radio-controlled socket is switched on and off via the ON - OFF buttons on the respective channel -1-, -2-, -3-.

The ON -OFF buttons on the -ALL- channel are used to switch all connected radio-controlled sockets ON or OFF simultaneously.

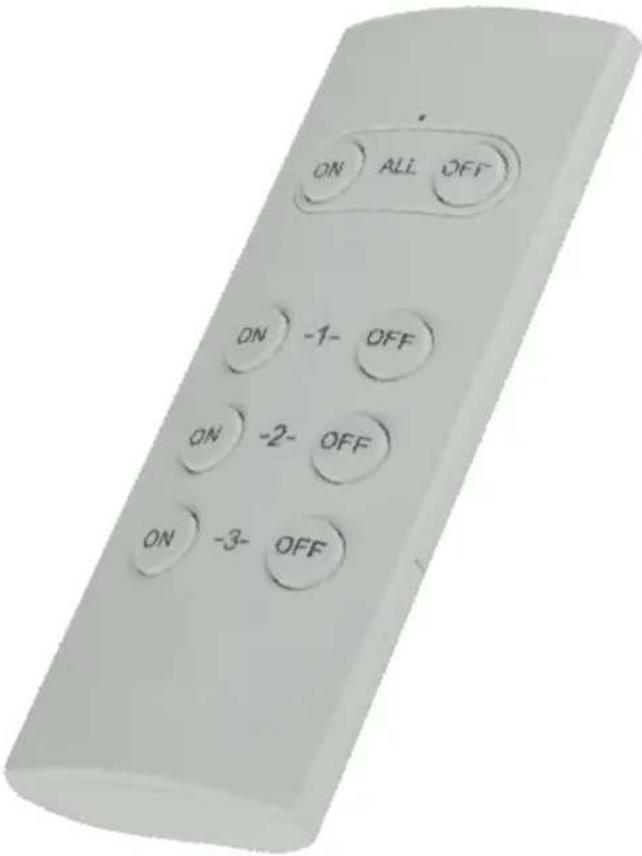

Remote control (A1):

A CR2032 battery is required for the remote control. This is already in the unit at the time of purchase. Remove the battery strip before first use. Please be sure to observe the position marked in the battery compartment! There is a risk of explosion if the battery is replaced with the wrong type.

Caution: Replace the battery when the range of the remote control decreases considerably. Remove the battery from the unit if you are not going to use it for a long time. We recommend replacing the battery once a year. Please dispose of used batteries in an environmentally friendly way by returning them free of charge to the retailer.

Commissioning (A2) and use:

Plug the radio-controlled socket into the socket provided. Press the ON/OFF button on the radio-controlled socket for >5 seconds. As soon as the LED in the button on the radio-controlled socket flashes, press the ON button of the channel to be assigned on the remote control. The radio-controlled socket is then paired with the remote control. Repeat the procedure for the other radio-controlled sockets. If you assign the same channel to several radio-controlled sockets on the remote control, they will be switched simultaneously.

Attention: The connection cable of the individual radio-controlled sockets of max. 3680W must not be exceeded.

ERROR SEARCH

No reaction at the device to be switched:

• Is the load (device to be switched) switched on?
• Is the radio-controlled socket within range? Test by approaching.
• Does the device to be switched (type and power) match the receiver?

Unintentional switching on/off of the consumer:

- Is another transmitter, such as wireless headphones, radio gong, etc. nearby?

Change location.

Range too low:

• If several radio-controlled sockets are used, are they at a sufficient distance from each other? (approx. 1.5 to 2m)?
• Direct connection (free field) between remote control and radio-controlled socket results in optimum range.
• Is the radio link interrupted by as few obstacles as possible (walls, furniture, etc.)?
• Other transmitters in the vicinity reduce the radio range. Only one system may transmit at a time!
• Structural conditions have a considerable influence on the range. Slight changes of location can have a considerable influence on the range of the radio link.
• Battery used up? Replace if necessary.

SAFETY INSTRUCTIONS FOR BATTERIES:

• An incorrect battery polarity can destroy the unit. Pay attention to the correct polarity when inserting the batteries.
• Do not attempt to revive batteries or rechargeable batteries by heating or similar measures. Primary batteries must not be recharged as this can lead to electrolyte leakage, explosion or fire.
• Do not immerse batteries in water and store them in a dry, cool place, not a damp one.
• Do not throw batteries into a fire, do not open them nor solder or weld them yourself.
• Do not short-circuit batteries.
  • If you will not be using the product for a long time, remove the batteries.
• Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries have been swallowed or are lodged in any part of your body, seek medical attention immediately.

TECHNICAL DATA

• Output: 3680W
• Nominal values: 230V\~; 50Hz; 16A
• Ambient temperature: 0°C – 35°C
• Frequency: 433,92MHz
• Frequency band: 433,05-434,79MHz
• Max. transmission power: 20mW
• Range (free field): 30m
• Battery: 1x CR2032 DC3V
• Continuous operation possible

- Remote control for up to 3 independently operable wireless sockets

CLEANING

• Before cleaning, unplug the product from the power point or disconnect it from the mains supply!
• Clean with a dry or slightly moist, clean, lint-free cloth and a mild detergent if required. Do not use cleaners that contain abrasives or solvents.
• Never spray for cleaning or use a steam pressure cleaner, as this may damage the insulation and seals!

WEEE DISPOSAL INFORMATION

According to the European regulations, used electrical and electronic equipment may no longer be put out into unsorted rubbish. The symbol on the wheeled rubbish bin points out the necessity for separated collection. Help us to protect the environment and ensure that this unit is put out in the appropriate systems for separate collection once you do not use it any longer. DIRECTIVE OF THE EUOROPEAN PARLIAMENT AND COUNCIL of 4th July 2012 concerning used electrical and electronic equipment. (S7)

BATTERY DISPOSAL INSTRUCTIONS

Batteries and rechargeable batteries must not be disposed of with household waste. Every consumer is legally obliged to dispose of all batteries and rechargeable batteries, whether or not they contain harmful substances, to a suitable commercial or municipal collection point municipality/district so that they can be disposed of in an environmentally friendly manner. Batteries and rechargeable batteries should only be returned in a discharged state! (S8)

CE CONFORMITY STATEMENT

REV Ritter GmbH hereby declares that the radio equipment type RF102R + RF102T complies with DIRECTIVE 2014/53/EU. For the complete CE Declaration of Conformity look up the corresponding product or type number at www.rev.de

SERVICE

If you have any questions concerning our products or a complaint, then please go to www.rev.de to find out how to make contact or how to organise a return. Alternatively, send an email to [e-mail]. We'd like to point out that we are unable to process any shipments which do not have a return number and will not accept them.
