Product Type	Alarm Clock Radio
Brand	Hyundai
Model	RAC 201 PLL
Power Source	AC 230 V ~ 50 Hz
Power Consumption (Radio On)	5 W
Power Consumption (Clock Only)	< 1 W
Frequency Range AM	522 – 1620 kHz
Frequency Range FM	87.5 – 108 MHz
Clock Backup	2 x 1.5 V AAA batteries (not included)
Number of Preset Stations	10 FM + 10 AM
Alarm Types	Buzzer, Radio
Alarm Number	2 (Alarm 1 and Alarm 2)
Snooze Duration	Approximately 9 minutes
Sleep Timer	10 to 90 minutes (10-minute steps)
Projector	Yes, with flip function
Display Dimmer	Bright/Dim/Off
Display Type	LED (estimated)
FM Aerial	Wired, extendable
Ventilation Requirements	At least 10 cm gap around product
Maintenance	Wipe with soft cloth; use mild detergent if necessary
Safety Warning	Do not expose to water, naked flames, or extreme heat
Repairability	No user-serviceable parts; contact qualified service

Frequently Asked Questions - RAC 201 PLL HYUNDAI

How do I set the clock on my Hyundai RAC 201 PLL?

In standby mode, press and hold SET until the display flashes. Use HR and MIN to set hours and minutes, then press SET to confirm.

How do I set the alarm?

Press and hold AL1 or AL2 for 2 seconds until the time flashes. Set the hour and minute using HR and MIN, then press the same alarm button again to select alarm sound (OFF, BUZZER, or RADIO).

How do I use the snooze function?

When the alarm sounds, press SNOOZE/DIMMER. The alarm will stop and sound again after approximately 9 minutes.

How do I preset radio stations?

Tune to the desired station, then press and hold SET for about 2 seconds until P01 flashes. Press SET again to store. Repeat for up to 10 FM and 10 AM stations. To recall, press MEM repeatedly.

How do I adjust the display brightness?

Repeatedly press DIMMER to cycle between bright, dim, and off.

How do I use the projector?

Press PROJECTION ON/FLIP/OFF to turn it on. Press and hold for 2 seconds to flip the projection. Press again to turn off. You can manually move the projector arm.

What should I do if the alarm does not sound?

Check that the alarm indicator is lit on the display. Ensure the time is set correctly and the alarm is not set to OFF. Also check that the volume is not too low if using radio alarm.

How do I replace the backup batteries?

Open the battery cover on the bottom. Insert 2 x AAA batteries (not included) as indicated. Only adults should handle batteries. Replace with same type if needed.

How do I clean the alarm clock radio?

Unplug the unit. Wipe external surfaces with a soft cloth. If very dirty, use a damp cloth with mild soapy water. Dry thoroughly before reusing.

What is the sleep timer and how do I set it?

The sleep timer turns off the radio automatically. Press SLEEP repeatedly to select time from 90 down to 10 minutes. The radio turns off after the selected time.

USER MANUAL RAC 201 PLL HYUNDAI

ZAPNUTIE / REŽIM RÁDIA

SPRAWDZANIE CZASU ALARMU

IMPORTANT: Please read before using and retain for future reference.

• Thank you for buying our product.
- Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference.

WARNING

• This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
  • No naked flame sources, such as lighted candles, should be placed on the apparatus.
• The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  • Ventilations allow at least a 10 cm gap all around the product.
  • The use of apparatus in a moderate climate.
  • Marking plate is located at bottom enclosure of the apparatus.
• Never place the projector clock close to electric motors or other equipment generating strong electromagnetic fields. Exposure to strong magnetic fields may cause malfunctions or corrupt image.
  • Do not place projector clock on places sensitive to vibrations or table edges.
  • Do not look directly into the projector lens as doing this may permanently damage your sight.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device will remain readily operable.
  • Attention should be drawn to the environmental aspects of battery disposal.
• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
  • Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

ENG - 16

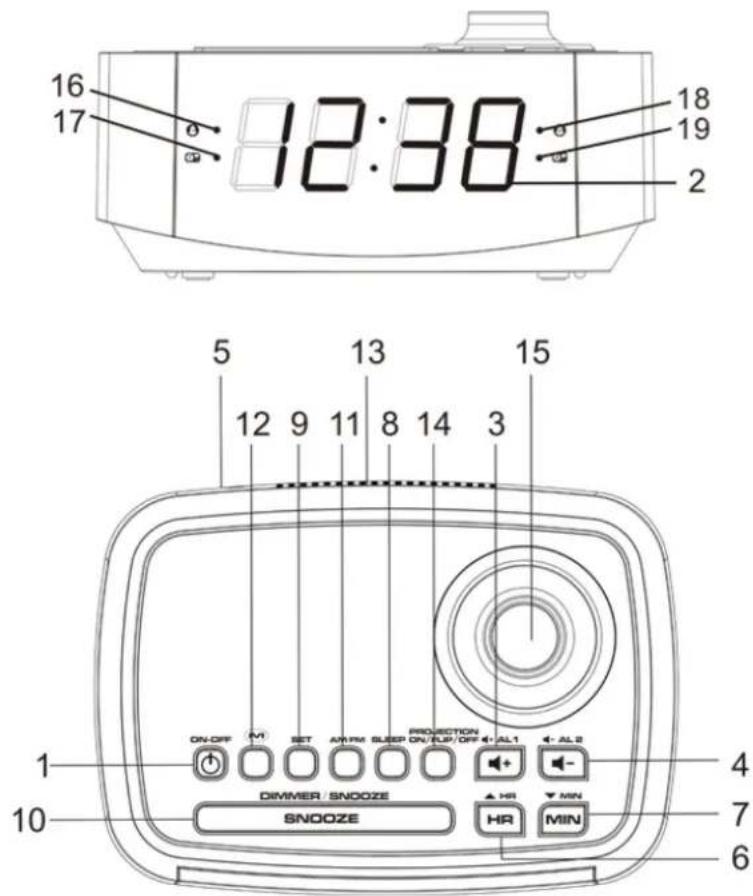

LOCATION OF CONTROL

1. POWER ON-OFF
2. DISPLAY
3. VOLUME + / AL1
4. VOLUME - / AL2
5. FM AERIAL
6. TUNING ▲ / HR
7. TUNING ▼ / MIN
8. SLEEP
9. SET

10. SNOOZE/DIMMER

11. BAND (AM/FM selector)

12. MEM (Preset radio station)
13. BATTERY COVER
14. PROJECTION ON / FLIP / OFF
15. PROJECTION LENS
16. Alarm 1 buzzer indicator
17. Alarm 1 radio indicator
18. Alarm 2 buzzer indicator
19. Alarm 2 radio indicator

BATTERY BACKUP

The clock, alarm and preset stations settings can be protected against AC power failure with the batteries for a short period of time. If no backup batteries are installed or the power failure is prolonged, you will need to set the clock again.

Battery handling and usage

Only adults should handle battery. Do not allow a child to use this apparatus unless the battery cover is securely attached to the unit.

STANDBY MODE

Place the unit on a flat stable surface and plug the power cord into the mains socket. The unit is in standby mode and "0:00" will flash on the display.

SETTING THE CLOCK

1) In standby mode, press and hold SET until the display flashes.
2) Repeatedly press HR to set the hours.
3) Repeatedly press MIN to set the minutes.
4) Press SET to confirm.
The hour and minute digits will stop flashing.

POWER ON/RADIO MODE

Press POWER ON-OFF to switch the unit on and enters the radio mode.

- The radio frequency will briefly appear on the display and then return to clock time.

RADIO OPERATION

1) Press POWER ON-OFF to turn on the radio.
The default FM frequency or the last frequency you tune the radio to will show on display.
The default FM radio frequency is 87.5 MHz.

2) Press BAND once to enter the AM radio mode.

The default AM radio frequency is 522 kHz.

3) Repeatedly press BAND to select the desired radio band.

4) Adjust the volume by repeatedly pressing VOLUME +/-

5) Repeatedly press TUNING ▲/▼ to tune into the desired station.

Press and hold TUNING ▲/▼ for auto forward or backward radio station searching.

Note:

• For the best FM reception, extend the FM aerial to its full length.
• For the best AM reception, rotate the unit to the position giving best reception.

PRESETTING YOUR FAVOURITE RADIO STATION

Up to 10 FM and 10 AM radio stations can be preset.

1) Follow steps in "RADIO OPERATION" and tune into the station that you wish to preset.
2) Press and hold SET for about 2 seconds, "P01" will flash on the display.

3) Press SET again to store the station.

4) Repeat steps 1 to 3 to store desired stations.

5) To listen to preset radio stations, press MEM repeatedly to select the desired radio station.

Before setting the alarm time, make sure the Clock has been set.

Setting Alarm 1 or Alarm 2

1) In standby mode, press and hold AL1 or AL2 for 2 seconds. The hour and minute digits will flash.
2) Set the alarm time by repeatedly pressing HR and MIN respectively. Press and hold HR and MIN respectively for fast advance.
3) Press AL1 or AL2 again to select the alarm sound (OFF>BUZZER>RADO) in cycle.

Checking alarm time

Press and hold AL1 or AL2 for 2 seconds, the alarm time will flash on the display.

To turn off the alarm, press POWER ON-OFF and the alarm will come on again at the set time on the following days.

To cancel the alarm, repeatedly press AL1 or AL2 until the alarm indicator light goes out on the display.

Snooze function

This function can be used to stop the alarm temporarily for about 9 minutes once the alarm is activated. When the snooze button is pressed, the buzzer or radio alarm sounds will stop and sound again after about 9 minutes.

The sleep function is designed to automatically turn off the Radio.

Setting sleep timer

1) Press SLEEP. "90" will illuminate on the display.
2) Repeatedly press SLEEP to select the desired sleep time from 90, 80, 70, 60, 50, 40, 30, 20 or 10 minutes.
3) The radio will be turned off after the selected time has elapsed.

To check remaining sleep time, press SLEEP.

To cancel sleep timer, press SLEEP until "OFF" is selected.

To turn off the radio before the sleep time has elapsed, press POWER ON-OFF.

PROJECTOR

Switch on the projection clock by pressing the PROJECTION ON/FLIP/OFF (14). Press this button again and long for 2 seconds, flip projection view upside down. To switch off the projection clock by pressing this button again. Projector move in one direction (forward and backward) manually.

DIMMER CONTROL

Repeatedly press DIMMER to adjust the brightness of display (bright or dim) or turn off the display.

CARE AND MAINTENANCE

Wipe external surfaces with a soft cloth. If the cabinet is very dirty, unplug from the mains supply and use a damp cloth soaked in a weak solution of washing up liquid and water. Allow to dry thoroughly before reusing.

SPECIFICATIONS

Power source: AC 230 V\~50 Hz

Frequency range: AM 522 – 1620 kHz; FM 87,5 – 108 MHz

Power consumption: 5 W

Power consumption (clock only): < 1 W

Clock backup: 2 x 1.5 V AAA size batteries (not included)

WE RESERVE THE RIGHT TO CHANGE TECHNICAL SPECIFICATIONS.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A

QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will

help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

ETA Inc. hereby declares that the product RAC201PLL is in compliance with requirements and other relevant provisions of the directive 2014/53/EU. The complete EU Declaration of Conformity can be found at http://www.hyundai-electronics.cz/declaration_of_conformity

Licensed by Hyundai Corporation, Korea
