SM 626 - Stapler HYUNDAI - Free user manual and instructions

Product Type	Sandwich Maker
Brand	Hyundai
Model	SM 626
Power Consumption	750 W
Dimensions (W x H x D)	24 x 9.5 x 24 cm
Weight	1.35 kg
Standby Power Consumption	0.00 W
Plate Coating	Non-stick
Indicator Lights	Red power light, green heating light
Locking Clip	Yes, replaceable with spare clips included
Handle	Yes, for safe handling
Safety Features	Thermal fuse, overheat protection
Cleaning Method	Wipe with soft damp cloth after cooling; do not immerse in water
Intended Use	Household use only; not for commercial use
Accessories Included	2 spare locking clips

Frequently Asked Questions - SM 626 HYUNDAI

How do I use the Hyundai SM 626 sandwich maker for the first time?

Remove all packaging and any stickers. Clean the baking plates with a soft damp cloth. Let the appliance heat up empty for 4-6 minutes until the green light comes on. Discard the first sandwich cooked as it may have residual oils.

Why does the green indicator light turn on and off during use?

The green light is a temperature indicator. It switches on and off periodically to maintain the correct cooking temperature, ensuring even toasting.

Can I use metal utensils to remove the sandwich?

No. Use only plastic or wooden utensils to avoid damaging the non-stick coating on the baking plates.

How do I clean the sandwich maker after use?

Unplug and let it cool completely. Wipe the exterior and baking plates with a soft wet cloth. Do not immerse in water or use abrasive cleaners. Regular cleaning prevents filling buildup.

What if the locking clip breaks?

The locking clip is replaceable. The package includes two spare clips. Remove the damaged clip from its axis using a knife or screwdriver, then press a new clip into place.

Is the sandwich maker safe to leave unattended?

No. Never leave the appliance unsupervised during operation. Always unplug when not in use or before cleaning.

Can I cook frozen sandwiches in this appliance?

Yes, but you may need to increase cooking time. Ensure the sandwich fits without excessive force when closing the lid.

What does the red power light indicate?

The red light (P2) turns on when the appliance is plugged in and indicates that power is supplied. It stays on during use.

Why does the appliance emit smoke during first use?

A slight smoke is normal during the first heating as manufacturing residues burn off. It is not a defect. Ensure good ventilation.

Can I store the sandwich maker vertically?

Yes, the appliance can be stored in a vertical position after cooling and cleaning, saving counter space.

USER MANUAL SM 626 HYUNDAI

Black and white photo of a Hyundai car seat with floral decoration (no text or symbols on body)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ / BEDIENUNGSANLEITUNG

Sendvičovač / Sendvičovač Toster / Sandwich maker Szendvicssüt / Sandwichmaker

NÁVOD K OBSLUZE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

SAFETY INSTRUCTIONS

• Consider these instructions to be a part of the appliance and provide them to other users of the appliance.
• Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket.

- This product can be used by children at the age of 8 years and older and people with reduced physical or mental abilities or lack of experience and knowledge if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.

- Pay careful attention when handling the appliance to avoid injury, (e.g. burns, scalding).

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance and after use turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

• Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- NOTICE – Some parts of this product may become very hot and cause burns. Take special care when children or handicapped persons are present.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Do not use the grill if it is wet, your hands are wet or on a wet surface!

- Do not insert or take out the plug to or from a socket with wet hands and do not pull the power cord!

- Never use the toaster outdoors!

• Do not place any objects on the appliance.
• Do not use the appliance for heating a room!
• Do not use the toaster for other purposes (e.g. for drying textile products, footwear, etc.) than those recommended by the producer.
• Before preparation, remove possible packages from food (e.g. paper, a PE bag, etc.).
• While preparation there is a risk of self-ignition of the prepared food. In the case of sudden ignition, disconnect the appliance from power supply and extinguish the fire.
• Never immerse the appliance into water (even its parts)!
• Do not place the toaster on unstable, fragile and flammable surfaces (e.g. paper, glass, paper and plastic, varnished wooden plates and various fabrics/cloths).
• Never leave the appliance unsupervised and check it during the whole time of preparing meals! When handling the appliance, use the handle.
• Use the appliance in the working position at places with no risk of turning over and in sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. heater, stove, etc.) and wet surfaces (e.g. sinks, wash-basins, etc.).
• Do not use the appliance in an environment saturated with explosive or flammable steams.
• The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).
• When roasting, there is a risk of spontaneous ignition of the processed food. In case of a sudden flare-up, disconnect the appliance from the mains and extinguish the fire.
• To avoid injury (burning), do not move the appliance when it is hot!
• Check the condition of the power cord of the appliance regularly.
• The product is equipped with a safety fuse which protects it against overheating.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire and it must not be sunk into water. Make sure that the power cord does not hang over the edge of the working table where children could reach it.
• The appliance is portable and it is equipped with a movable connector with a plug which ensures double-pole disconnection from power supply.
• With regards to fire safety, the appliance complies with EN 60 335-2-6. Within the intention of the standard, this appliance can be operated on a table or on a similar surface while safe distance must be maintained from flammable materials of at least 500 mm in the direction of the main heat radiation and 100 mm in the other directions.
• Never use the appliance for any other purpose than for that described in these instructions for use!
• WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
• The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. deterioration of food, injury, burning, scalding, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.

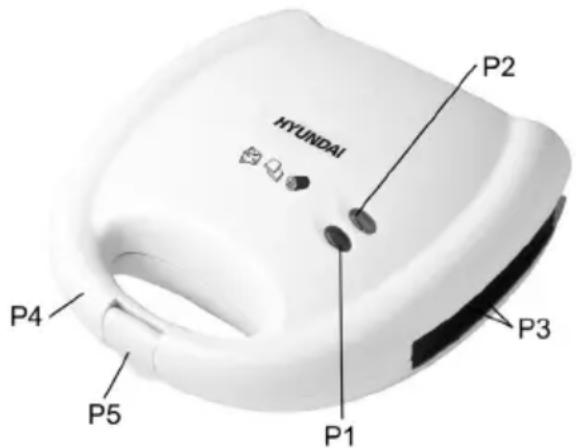

DESCRIPTION OF THE CONTROLS

P1. Heating ligth (green)
P2. Power light (red)
P3 baking plates
P4. Handle
P5. Locking clip

ENG - 21

INSTRUCTIONS FOR USE

Before you start:

Remove all the packing material and take out the toaster. Remove all possible adhesion foils, stick-on labels or paper from the toaster. Before the first use, clean all parts of the appliance that will be in contact with food with a soft wet cloth.

• Cook 1 or 2 sandwiches, please do not eat these first pieces of sandwich you made. Using the unit
• Place the toaster on flat and dry surface (e. g. kitchen table) at least 85 cm high, out of reach of children. Choose suitable board.
• Insert the plug into a suitable mains power socket. Power indicator light P2 will come on.
• Prepare the sandwich while waiting for the toaster to heat up.
• After 4 to 6 minutes the sandwich maker will be ready as indicated by the green light (P1) going on.
• For golden brown toasted sandwiches, place the buttered sides of the bread onto the cooking plates.
• Open the sandwich maker and place in the sandwich. Be careful of the hot surfaces.
• Do not close the lid by excessive force!
• Close both halves of the sandwich maker without placing too much force on the sandwich. If too much force is required to close the sandwich maker, the clip may come loose or break during toasting.
• Keep the sandwich maker closed during toasting.
• Cooking time will depend on the type of bread used and personal preferences.
• After toasting is complete open the toaster maker and remove sandwich with a plastic or wooden untensil. Never use a metal or sharp object as this wil damage the non-stick coating on the cooking plates.
  • After use remove the plug from the power socket outlet.

Note:

During cooking the green indicator (P1) of temperature is periodically switching ON and OFF to keep the correct temperature of the appliance.

IMPORTANT NOTICES

• A short slight smoke may appear during the first use; it is not a defect and reason for sales return.
• Always let the plates heat up to the operating temperature before putting food in.
- Leave the cover down when heating up the boards.
- Do not touch the plates as they are HOT! Be specially careful and prevent children and incapable persons from touching the plates!
- Use handle P4 when transferring the appliance.
- Do not leave the appliance on when it is empty.
- Never cut the prepared food on the plates!
- In order to maintain optimal properties of the non-stick layer, do not use the appliance to prepare food wrapped in baking/parchment paper or aluminium foil.

CLEANING AND MAINTENANCE

Unplug the appliance from power supply by taking the plug of the power cord out of the socket! Clean the toaster only when it has cooled down! Clean the appliance regularly after each use. Do not use rough and aggressive detergents (e.g. sharp objects, peelers, caustic agents for cleaning ovens, or other solvents). For cleaning the cover, use detergents for cleaning plastic surfaces. Clean the surface by wiping it with a soft and wet cloth. It is normal that the colour of the surface changes in the course of time. This change does not change the features of the surface in any way and thus is not a reason for sales return of the appliance!

• Do not immerse the appliance or the cord in water or any other liquid.
  Never use an abrasive to clean the appliance.
  Clean after each use to prevent any caking of fillings.
• The appliance can storage in the vertical position.

LOCKING CLIP AND ITS EXCHANGE

If the locking clip is damaged it can be replaced. There are two spare clips in the package.

Remove the damaged clip from the axis using a strong tool such as knife or screwdriver.

New clip just strike on the axis of the sandwich body. More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

TECHNICAL SPECIFICATIONS

• Power drain: 750 W; - Size: 24 x 9.5 x 24 cm
• Weight: 1.35 kg; - Input in off mode is 0.00 W

The manufacturer reserves the right to change the technical specifications and accessories for the respective models. Product image are for illustrative purposes only.

tention.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

HOT. DO NOT COVER. HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

WARNING: HOT SURFACE
