Product Type	Multimedia Receiver (Monitor with Receiver)
Brand	Kenwood
Model	DMX820WS
Display	6.8-inch TFT Active Matrix, 800 × 480 (RGB), LED backlight
Maximum Power Output	50 W × 4
Typical Power Output	22 W × 4 (Full Bandwidth, <1% THD)
Preout Voltage	5 V / 10 kΩ
Speaker Impedance	4 – 8 Ω
Operating Voltage	12 V DC (car battery)
USB Port	1 × USB (DC 5 V, 1.5 A) for music playback and smartphone connection
Bluetooth Version	HFP V1.7, A2DP, AVRCP V1.6, PBAP, SPP
Bluetooth Audio Codecs	SBC, AAC
Smartphone Integration	Apple CarPlay (wired/wireless with GPS antenna), Android Auto
Audio Decoders	MP3, WMA, AAC, WAV, FLAC, Vorbis
Video Decoders	MPEG-1, MPEG-2, MPEG-4, WMV, H.264, MKV
Equalizer	13-band Graphic EQ (-9 to +9 dB), 2-way/3-way Crossover
Radio Bands	FM (87.5 – 108.0 MHz), AM (531 – 1611 kHz)
Digital Radio	DAB+ (DAB/DAB+)
Video Input	1 Vp-p/75 Ω (RCA), NTSC/PAL
Camera Input	Rear view camera compatible
Dimensions (Chassis)	178 × 100 × 160 mm (Standard 2 DIN)
Weight	Approx. 1.5 kg

Frequently Asked Questions - DMX820WS KENWOOD

How do I connect my iPhone to the Kenwood DMX820WS?

You can connect via USB cable or wirelessly using Bluetooth. For Apple CarPlay, use a certified Lightning cable or ensure the GPS antenna is connected for wireless CarPlay.

Can I play DVDs on the DMX820WS?

No, the DMX820WS is a monitor with receiver and does not have a built-in DVD drive. It is designed for digital media playback from USB, Bluetooth, or smartphone mirroring.

How do I set up the Bluetooth hands-free calling?

Go to SETUP > Bluetooth > Select Device. Ensure your phone is discoverable, then pair using the passkey shown on the display. Accept the connection on your phone.

What audio formats are supported via USB?

The unit supports MP3, WMA, AAC, WAV, FLAC, and Vorbis audio files from a USB drive.

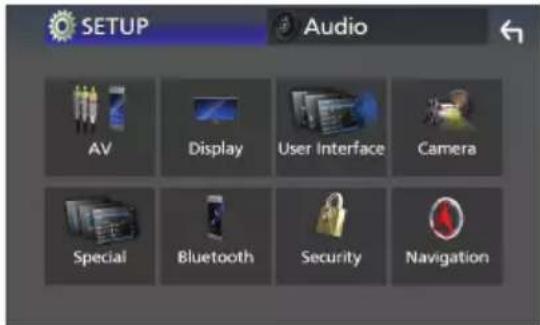

How do I adjust the sound settings?

Press SETUP > Audio. You can adjust the graphic equalizer, crossover (2-way/3-way), fader/balance, listening position, and sound effects like Bass Boost or Supreme.

Why is my USB device not recognized?

Ensure the USB device is formatted in FAT32 or exFAT. The maximum current is 1.5A. If the display shows 'No Device', try a different USB cable or reformat the device.

Can I use Android Auto with this unit?

Yes, the DMX820WS supports Android Auto via USB connection. Make sure your phone has the Android Auto app installed and connect using a high-quality USB cable.

How do I reset the device?

Go to SETUP > System > Initialise. You can reset settings or restore factory defaults. Alternatively, press the reset button (recessed) on the front panel.

Does the unit support a backup camera?

Yes, it has a dedicated camera input (RCA). Connect the camera to the CAMERA IN jack and enable the camera setting in SETUP > Camera.

How do I update the firmware?

Firmware updates are available on the Kenwood support website. Download the update file to a USB drive, insert it into the unit, and follow the on-screen instructions in SETUP > System > Update.

USER MANUAL DMX820WS KENWOOD

MONITOR WITH DVD RECEIVER

DDX9020DABS

DDX920WDABS

DDX8020S

DDX820WS

MONITOR WITH RECEIVER

DMX8520DABS

DMX8020S

DMX820WS

คู่มือการใช้งาน

JVCKENWOOD Corporation

Technical line drawing of two views of a flatboard or shelf unit (no text or symbols)

การเลือนแผงหน้าจอ

Language

אַרְשָׁה

DMX820WS

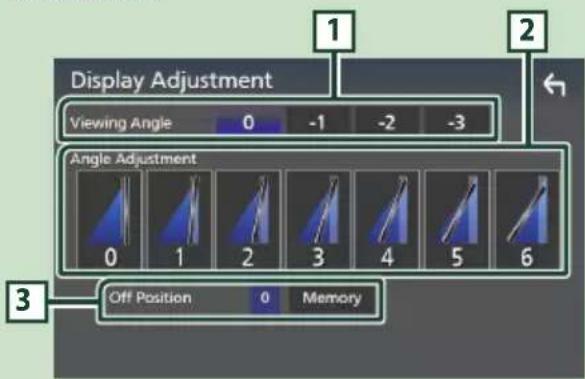

1 Viewing Angle

Simple line drawing of a hand cursor clicking a button (no text or symbols)

-การกดต้าง

DDX820WS / DMX820WS

NOTE

Diagram of a CD or DVD disc being placed into a rectangular device (no text or symbols visible)

Technical line drawing of a CD or DVD disc assembly with an arrow indicating motion (no text or symbols present)

Diagram of a CD or DVD disc being placed into a rectangular frame, showing internal components and an arrow indicating direction (no text or symbols present)

Scenic coastal landscape with green foliage and distant ocean, framed by numbered labels (6, 7, 8) — no readable text or symbols in the main scene.

Coastal landscape with green foliage and ocean background, no visible text or symbols

City highway with traffic and urban skyline in background, featuring inset images of high-speed trains and a cityscape (no visible text or symbols)

หมายเหตุ

Coastal landscape with green plants and ocean in the background under a partly cloudy sky (no text or symbols visible)

Apple CarPlay is connected

אַרְשָׁה

Line drawing of a USB connector with a cable, showing a connector inserted into a port (no text or symbols present)

หมายเหตุ

ปิดหน้าที่ช่อนไว้

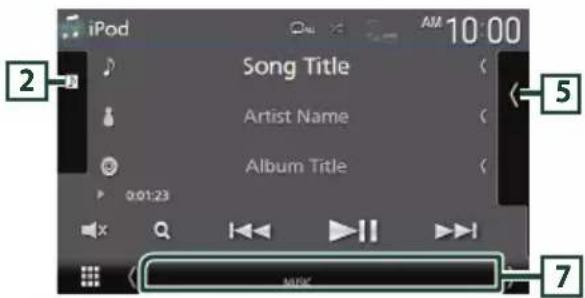

1 ข้อมูลเพลง

אַרְשָׁה

Solid dark green rectangular shape with no visible text, symbols, or features.

2 กดที่ AME

3 กดที่ YES

หมายเหตุ

1 แสดงสถานะ

หมายเหตุ

■Announcement Select

■Select All

PBAP (Phonebook Access Profile)

เครื่องเล่นออติโอ:

A2DP (Advanced Audio Distribution Profile)

AVRCP (V1.6) (Audio/Video Remote Control Profile)

Sound codec

LDAC (DDX9020DABS / DDX920WDABS / DMX8520DABS),

SBC, AAC

หมายเหตุ

■TEL (HFP) 1, TEL (HFP) 2

หมายเหตุ

เลือกทั้งหมด

Bluetooth HF/Audio

Coastal landscape with green foliage and ocean background, no visible text or symbols

Beach scene with green plants and ocean in background, no visible text or symbols

■NAV Voice Volume

หมายเหตุ

■ Open Source Licensed

User

3 กดที่ Enter

DMX8520DABS / DMX8020S

4 เลือกประเภทรถ

■Speaker

หมายเหตุ

HPF FREQ

■ FREQ (High Pass)

■ HPF FREQ, LPF FREQ (Band Pass)

■Fader / Balance

5 กดไปที่ Dual Zone

■ Zone Select

■ Front Source, Rear Source

■Bass Boost

"OFF"/ "Small"/ "Medium"/ "Large"

หมายเหตุ

Diagram of a battery pack with internal components and directional arrows indicating movement (no text or symbols)

■VCD 1.X and 2.X (PBC OFF)

เลขแทร็ค

■VCD 2.X (PBC ON)

เลขฉาก / เลขแทร็ด

■ Music CD

หมายเลขแทร็ด

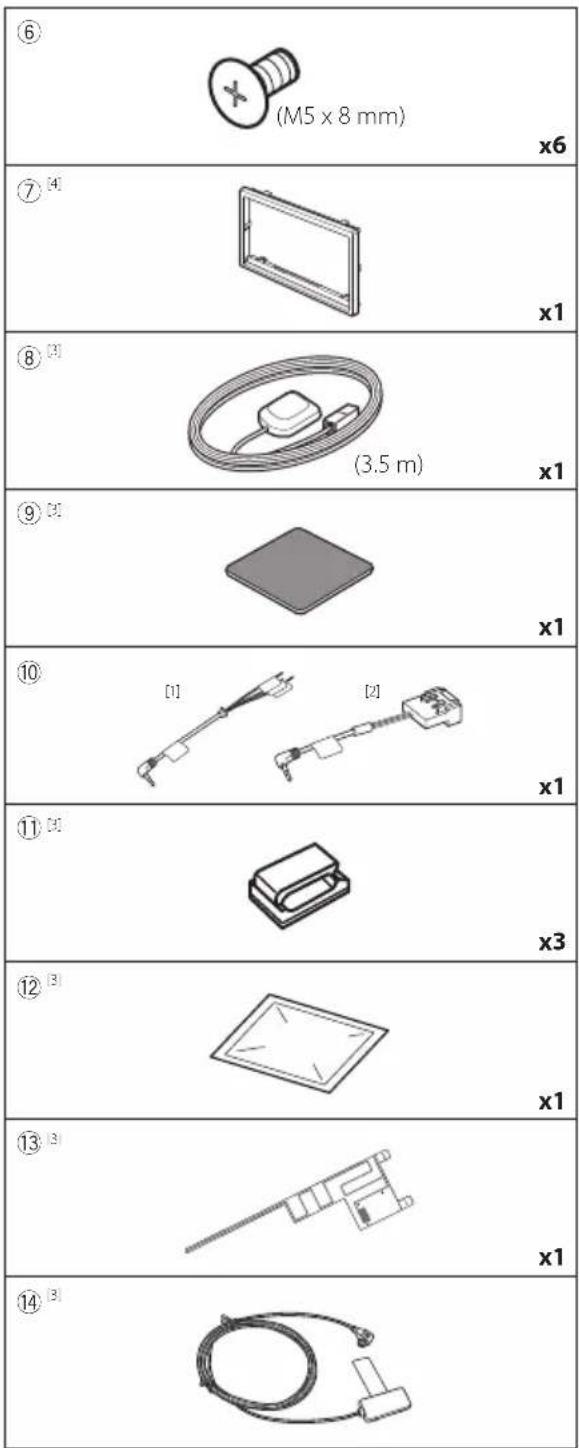

Diagram showing a rectangular box being placed on a frame with an arrow indicating rotation (no text or symbols present)

หมายเหตุ

Medical illustration showing a surgical instrument inserted into a joint (no text or labels present)

Pure technical line drawing of a curved panel or duct with an arrow indicating direction (no text or symbols)

7)

Technical illustration of a mechanical connector with a coiled cable (no text or symbols)

There is an error in the speaker wiring. Please check the connections.

No Device (USB device)

Disconnected (iPod, Bluetooth audio player)

USB device over current status detected.

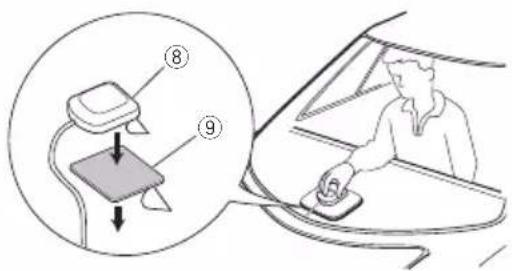

The GPS antenna must be connected to use Apple

CarPlay wirelessly. Please verify the proper connections or plug in by USB to use Apple CarPlay.

The GPS antenna must be connected to use Apple

CarPlay wirelessly. Please verify the proper connections or plug in by USB to use Apple CarPlay.

■ DVD disc marks

: TFT active matrix system

จำนวนพิกเชล

: 1,152,000 (800H × 480V × RGB)

Effective Pixels

: 99.99 %

Pixel Arrangement

: RGB striped arrangement

ไพบื้นหลัง

: LED

■เกี่ยวกับ DVD

(DDX9020DABS / DDX920WDABS / DDX8020S /

DDX820WS)

D/A Converter

: 24 bit/32 bit

Audio Decoder

: Linear PCM / Dolby Audio / MP3 / WMA / AAC /

WAV / FLAC / Vorbis

Video Decoder

: MPEG-1 / MPEG-2 / MPEG-4 / WMV / H.264 / MKV

Wow & Flutter

: Below Measurable Limit

Frequency Response

• 96 kHz : 20 - 44,000 Hz

• 48 kHz : 20 - 22,000 Hz

• 44.1 kHz : 20 - 20,000 Hz

Total Harmonic Distortion

: 0.010 % (1 kHz)

S/N Ratio (dB)

: 90.5 dB (DVD-Video 96 kHz)

Dynamic Range

: 89 dB (DVD-Video 96 kHz)

รูปแบบติสก์

: DVD-Video / VIDEO-CD / CD-DA

Quantifying Bit Number

: 16 bit/20 bit/24 bit

Maximum Power Supply Current

DDX9020DABS / DDX920WDABS / DMX8520DABS

: DC 5 V 1.5A × 2

DDX8020S / DDX820WS / DMX8020S / DMX820WS

: DC 5 V 1.5 A × 1

D/A Converter

: 24 bit/32 bit

Audio Decoder

: MP3 / WMA / AAC / WAV / FLAC / Vorbis

Video Decoder

: MPEG-1 / MPEG-2 / MPEG-4 / WMV / H.264 / MKV

Frequency Response

(DMX8520DABS / DMX8020S / DMX820WS)

• 192 kHz : 20 – 88,000 Hz

• 96 kHz : 20 – 44,000 Hz

• 48 kHz : 20 – 22,000 Hz

• 44.1 kHz : 20 - 20,000 Hz

Total Harmonic Distortion

(DMX8520DABS / DMX8020S / DMX820WS)

: 0.010 % (1 kHz)

S/N Ratio (dB)

(DMX8520DABS / DMX8020S / DMX820WS)

: 98.5 dB

Dynamic Range

(DMX8520DABS / DMX8020S / DMX820WS)

: 89 dB

11ac (80 MHz): 8 dBm ± 2 dB

5 GHz/MIMO

: 11n (20 MHz)/11ac (20 MHz): 11 dBm ± 2 dB /

11n (40 MHz)/11ac (40 MHz): 11 dBm ± 2 dB /

11ac (80 MHz): 11 dBm ± 2 dB

Maximum Communication range

: Line of sight approx. 10ม. (32.8 พต)

Audio Codec

: LDAC (DDX9020DABS / DDX920WDABS /

DMX8520DABS)/SBC/AAC

Profile (Multi Profile support)

• HFP (V1.7) (Hands Free Profile)

• SPP (Serial Port Profile)

• A2DP (Advanced Audio Distribution Profile)

• AVRCP (V1.6) (Audio/Video Remote Control Profile)

• PBAP (Phonebook Access Profile)

■เกี่ยวกับ DSP

Graphics equalizer

Band: 13 Band

ความถี (BAND1 - 13)

: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/

10k/16k Hz

Gain

:-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB

2-way X'Over

High pass filter

Frequency: Through, 30/40/50/60/70/80/90/100/

120/150/180/220/250 Hz

Slope: -6/-12/-18/-24 dB/Oct.

Low pass filter

Frequency: 30/40/50/60/70/80/90/100/120/150/

180/220/250 Hz, Through

Slope: -6/-12/-18/-24 dB/Oct.

3-way X'Over

High pass filter

Frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k

Hz

Slope: -12/-18/-24 dB/Oct.

Band pass filter

Frequency: Through, 50/60/70/80/90/100/120/150/

180/220/250/300 Hz

250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k Hz,

Through

Slope: -12/-18/-24 dB/Oct.

Low pass filter

Frequency: 30/40/50/60/70/80/90/100/120/150 Hz,

Through

Slope: -12/-18/-24 dB/Oct.

ตําแหน่ง

Front / Rear / Subwoofer Delay

: 0 - 6.1 m (0.01 m Step)

Gain

:-8-0dB

Subwoofer level

:-50-+10 dB

Frequency Range (step)

: 87.5 MHz - 108.0 MHz (50 kHz)

Usable Sensitivity (S/N : 30 dB)

: 9.3 dBf (0.8 μV/75 Ω)

Quieting Sensitivity (S/N : 46 dB)

: 15.2 dBf (1.6 μV/75 Ω)

Frequency Response

: 30 Hz – 15 kHz

S/N Ratio (dB)

: 65 dB (MONO)

Selectivity (± 400 kHz)

: Over 80 dB

Stereo Separation

: 45 dB (1 kHz)

Frequency Range (step)

DDX8020S / DDX820WS / DMX8020S / DMX820WS

: 531 kHz - 1611 kHz (9 kHz)

DDX9020DABS / DDX920WDABS / DMX8520DABS

: 531 kHz - 1701 kHz (9 kHz)

Usable Sensitivity

DDX8020S / DDX820WS / DMX8020S / DMX820WS

: 25μV

DDX9020DABS / DDX920WDABS / DMX8520DABS

: 28dBμ

■ เกี่ยวกับ Video

Color System of External Video Input

: NTSC/PAL

External Video Input Level (mini jack)

: 1 Vp-p/75 Ω

External Audio Max Input Level (mini jack)

: 2 V/25 kΩ

Video Input Level (RCA jacks)

: 1 Vp-p/75 Ω

Video Output Level (RCA jacks)

: 1 Vp-p/75 Ω

Audio Output Level (mini jack)

: 0.9 V/10 kΩ

■เกี่ยวกับ Audio

Maximum Power (Front & Rear)

: 50 W × 4

Typical Power Output (Front & Rear)

Full Bandwidth Power (at less than 1% THD)

: 22 W × 4

Output frequency band

: 20 - 88,000 Hz

Preout Level (V)

: 5 V/10 kΩ

Preout Impedance

: ≤ 300 Ω

Speaker Impedance

: 4 - 8 Ω

■ทั่วไป

Operating Voltage

: 12 V DC car battery

CLASS 1 LASER PRODUCT
