KT2123 - Uncategorized Emos - Free user manual and instructions

Product Type	TV Wall Mount Bracket
Brand	Emos
Model	KT2123
Installation Type	Fixed, Wall-mounted
VESA Compatibility	100x100 mm to 400x400 mm
Maximum Screen Size	Up to 70 inches
Load Capacity	35 kg (77 lbs)
Material	Steel (black coated)
Color	Black
Distance from Wall	Approx. 20 mm
Level Adjustment	Yes, with built-in level
Hardware Included	Lag bolts, concrete anchors, spacers, washers, bolts (M4, M6, M8)
Tools Required	Drill, screwdriver, level, pencil
Installation Persons	At least two persons recommended
Wall Type	Concrete, brick, wood stud
Safety Certification	CE, RoHS
Features	Easy slide-on design, security locking screws
Warranty	2 years
Package Contents	Wall plate, display plate, hardware bag, instruction manual

Frequently Asked Questions - KT2123 Emos

What tools are needed to install the Emos KT2123 wall mount?

You will need a Philips head screwdriver, an electric or portable drill, an 8mm drill bit (or as required for your wall), a pencil, and a level (if not included). Additional anchors may be needed for plasterboard or chipboard walls.

What is the maximum weight the mount can hold?

The recommended maximum load is 35 kg (77 lbs). Ensure your TV and mount do not exceed this weight to avoid damage or injury.

What VESA patterns are compatible?

The KT2123 supports VESA patterns from 100x100 mm up to 400x400 mm. It includes various bolts (M4, M6, M8) to fit most TV backplates.

Is the mount suitable for all wall types?

The mount is designed for concrete and brick walls. For wood stud walls, appropriate anchors (not included) are required. Drywall alone is not sufficient without proper reinforcement.

How many people are needed for installation?

It is recommended that at least two people install the mount, with one person physically fit enough to handle the heavy load and technically skilled.

Can I install the mount near electrical wires or pipes?

Before installation, ensure there are no electrical cords, gas, or water pipes in the mounting area. Use a stud finder or consult a professional if unsure.

Does the mount allow tilting or swiveling?

No, this is a fixed wall mount. It keeps the TV flat against the wall with minimal gap. For tilting or full-motion options, consider other models.

How do I remove the TV from the mount?

To remove the TV, first unplug all electrical cords. Then loosen the locking screws at the bottom of the display plate and lift the TV upward to disengage it from the wall plate.

What should I do if my TV’s screw holes don’t align?

The mount includes a variety of bolts and spacers. If alignment issues persist, verify your VESA pattern and use the appropriate spacers (small or large) provided to adjust the depth.

Is it necessary to use a level during installation?

Yes, using a level is crucial to ensure the mount is perfectly horizontal. Mark the drill points with a pencil after leveling, and double-check before drilling.

USER MANUAL KT2123 Emos

Black metal mechanical component with four arms and mounting holes (no text or symbols visible)

GB/ Wall Mount Installation Instructions

Caution:

1. It is recommended for this product to be installed by at least two persons, of which at least one person should be physically fit enough to handle heavy loads and technically skilled.
2. Before installing, please read this manual and make sure that there are no electrical cords, gas or water pipes in the place designated for mounting the holder.
3. We are not responsible for any damage incurred during installation, improper installation or subsequent use.
4. If in doubt, contact your nearest dealer and ask for assistance with installation.
5. For installation it is necessary to use safe and appropriate tools. Disregarding the instructions may cause property damage or injury.
6. If you intend to remove the TV from the wall, always make sure all electrical cords are unplugged.
7. If you are unsure of your wall load, select a different location for your installation or carrying capacity and increase the strength of the wall with renovation.
8. The product can be installed only for flat screen televisions or televisions containing mounting holes and have a flat back wall.

Tools necessary for installation (not included):

Philips Head Screw Driver

Electric or Portable Drill

Drill bit with 8mm in Diameter (for Wood, Concrete, or as needed)

Plaster Board or Chipboard Anchors (as needed)

Pencil

Level (if not included)

Included:

(A) M8×63 Lag Bolt 2 pcs (L) M5 Lock Washer 4 pcs
(B) Concrete Anchor or 2 pcs (M) M6×12 Bolt 4 pcs
(C) Lag Bolt Washer M8, 2 pcs (N) M6×30 Bolt 4 pcs
(D) Small Spacer 4 pcs (0) M6 Lock Washer 4 pcs
(E) Large Spacer 4 pcs (P) M8×12 Bolt 4 pcs
(F) M6 Washer 4 pcs (Q) M8×30 Bolt 4 pcs
(G) M4×12 Bolt 4 pcs (R) MB Lock Washer 4 pcs
(H) M4×25 Bolt 4 pcs (S) M8×20 Bolt 4 pcs
(I) M4 Lock Washer 4 pcs (T) adapter A7 + 4×M4 Bolt
+4×M4 Nut

(M) Schraube M6×12, 4 St

(N) Schraube M6×30, 4 St

(O) Federscheibe M6, 4 St

(P) Schraube M8×12, 4 St

Mechanical component with four arms and mounting holes (no visible text or symbols)

Simple geometric diagram with three vertical dashed lines inside a rectangle (no text or symbols)

Pure mechanical diagram showing a lever mechanism without any text, numbers, or symbols

Make sure it is level. Use a pen to mark off the locations. / Ujistěte se, že je v rovině. Body označte tužkou / Ulistite sa, že je v rovine. Body označte ceruzkou. / Sprawdzamy ustawienie w poziomie. Punkty zaznaczamy ołówkiem. / Győződjön meg róla, hogy vizszintben van-e! Egy ceruzával jelölje be a lyukak helyét. / Preverite, ali je v ravninil. Točke označite s svinčnikom. / Uvjerite se da je vodoravan. Mjesta označite olovkom. / Vergewissern Sie sich, dass er gerade liegt die Punkte mit Bleistift markieren. / Переконайтеся, чијрівно. Контури значіть олівцем. / Verificați să fie la nivel. Marcați punctele cu creion. / Patikrinkite, ar jis lygus. Naudokite pleštuką reikiamoms vietoms paslžyměti. / Pärliecinieties, ka tas ir līdzens. Izmantojiet pildspalvu, lai atzīmētu atrašanās vietas.

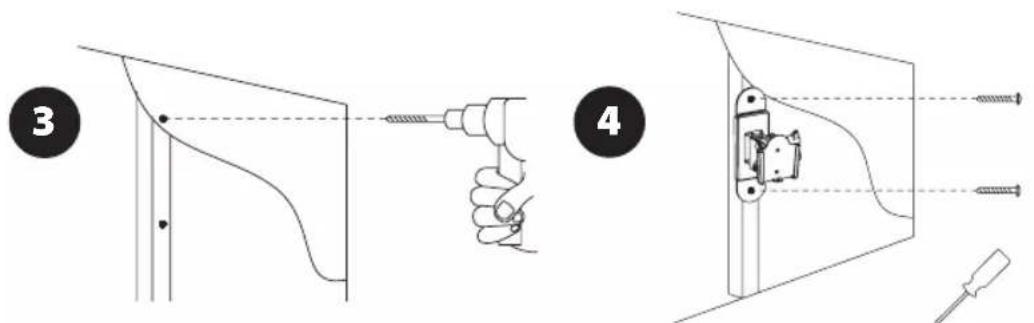

Fix the wall plate to the wall using the Lag Bolt (A) provided. / K uchycení nástěnné desky ke zdi, použijte šroub s částečným závitem (A). / Na uchytenie nástennej dosky k stene, použite skrutku s čiastočným závitom (A). / Do umocowania płyty do ćsiany, wykorzystujemy šruby z gwintem niepełnym (A). / Rögzítse a fali panelt a falra a termékhez csomagolt négyszögletes fejü facsavarral (A). / Za pritrditev stenske plošče na steno uporabite vijak z delnim navojem (A). / Za pričvršćivanje zidne ploče na zid, uporabite vijak s djelomičnim navojem (A). / Zur Befestigung der Wandplatte die Schrauben (A) benutzen. / Для prikrípлення nastínnoї doшки do stíni, використовуйте гвинт з частичною різьбою (A). / Fixați placa de perete pe zid, folosind şurub cu filet partjal (A). / Pritvirtinkite sienos plokstelę prie sienos naudodami pridėt varžta su kvadratine galvute (A). / Piestipriniet sienas pläksni pie sienas, izmantojot komplektáciją iekļauto koka skrūvi (A).

Technical diagram showing two views of a drone's internal components: one with a panel, the other with a four-pole antenna (no text or symbols)

Choose the proper bolts for installation. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ šrub. / A szereléshez használja a megfelelő típusú és méretű csavarokat. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben auswählen. / Для установки виберіть правильний тип гвинтів. / Pentru instalare alegeți tipul adecvat de şuruburi. / Pasirinkite montavimui reikiamus varžtus. / Izvēlieties uzstādīšanai piemērotas bultskrūves.

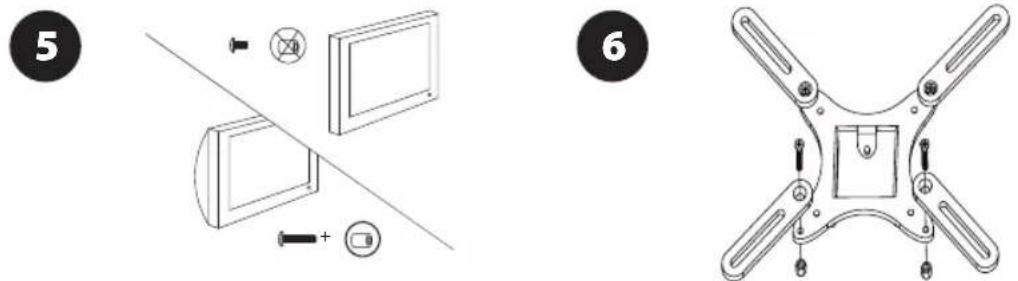

Install the screen on the display plate. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ śrub. / Helyezze fel a képernyőt a képernyő panelre. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben wählen. / Для установki виберіть правильний тип гвинтів. / Pentru instalare alegeti tipul adecvat de şuruburi. / Sumontuokite ekraną ant plokštės. / Uzstădiet ekrānu uz ekrāna pläksnes.

Mechanical component with four arms and mounting holes (no visible text or symbols)

Pure brick wall pattern with no text, numbers, or symbols

Concrete – Brick Installation / Instalace – zděná stavba / Inštalácia – murovaná stavba / Instalacja – ściana murowana / Beton – téglafalra való szerelvény / Instalacija – zidana gradnja / Montaža – zidani objekt / Installation – gemauerter Bau / Монтаж – цегляна конструкция / Instalare – construcție zidită / Montavimas ant betono – plytu sienos / Uzstādīšana pie betona – kieğellem

1

Diagram of a brick wall with a dashed oval highlight, no text or symbols present

Diagram of a switch mounted on a brick wall, no text or symbols present

Make sure it is level. Use a pen to mark off the locations. / Ujistěte se, že je v rovině. Body označte tužkou / Ulistite sa, že je v rovine. Body označte ceruzkou. / Sprawdzamy ustawienie w poziomie. Punkty zaznaczamy ołówkiem. / Győződjön meg róla, hogy vizszintben van-e! Egy ceruzával jelölje be a lyukak helyét. / Preverite, ali je v ravninil. Točke označite s svinčnikom. / Uvjerite se da je vodoravan. Mjesta označite olovkom. / Vergewissern Sie sich, dass er gerade liegt die Punkte mit Bleistift markieren. / Переконайтеся, чијрівно. Контури значіть олівцем. / Verificați să fie la nivel. Marcați punctele cu creion. / Patikrinkite, ar jis lygus. Naudokite pleštuką reikiamoms vietoms paslžyměti. / Pärliecinieties, ka tas ir līdzens. Izmantojiet pildspalvu, lai atzīmētu atrašanās vietas.

Simple line drawing of two rectangular panels with a diagonal line and a cross symbol, no text or labels present.

Choose the proper bolts for installation. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ śrub. / A szereléshez használja a megfelelő típusú és méretű csavarokat. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben auswählen. / Для установки виберіть правильний тип гвинтів. / Pentru instalare alegeți tipul adecvat de şuruburi. / Pasirinkite montavimui reikiamus varztus. / Izvēlieties uzstādīšanai piemērotas bultskrūves.

Technical line drawing of a four-blade mechanical component with mounting holes and a central square feature (no text or symbols)

Install the screen on the display plate. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ šrub. / Helyezze fel a képernyőt a képernyő panelre. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben wählen. / Для установki виберіть правильний тип гвинтів. / Pentru instalare alegeți tipul adecvat de şuruburi. / Sumontuokite ekraną ant plokštės. / Uzstädiet ekrānu uz ekrāna plāksnes.

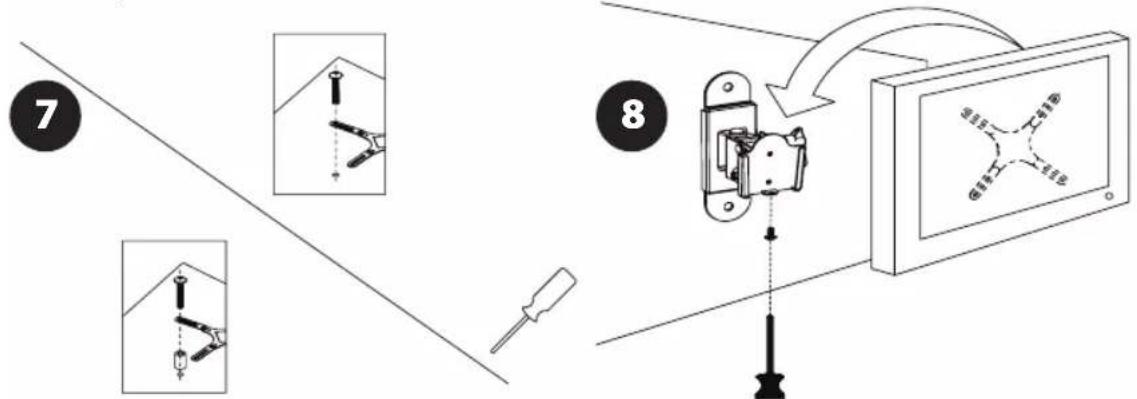

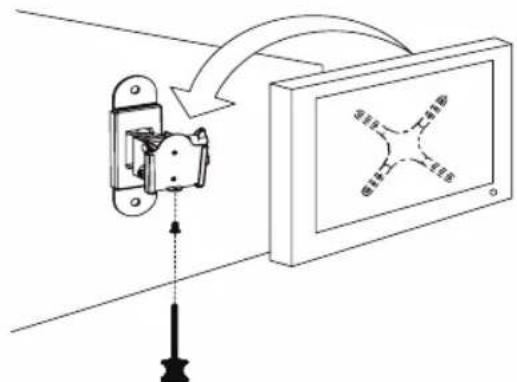

Put the display plate on the wall plate. / Zasuňte monitor do nástěnné desky. / Zasuňte monitor do nástennej dosky. / Odbiornik wkładamy do plyty nošne. / Helyezze a képernyő panelt a fali panelre. / Monitor vtaknite v stensko ploščo. / Postavite televizor (monitor) na zidnu ploču. / Den Bildschirm in die Wandplatte schieben. / Вставте монітор в стінну дошку. / Glisați ecranul pe plăcile de perete. / Uždėkite ekrano plokštę ant sieninės plokštės. / Uzlieciet ekrāna plăksní uz sienas plăksnes.

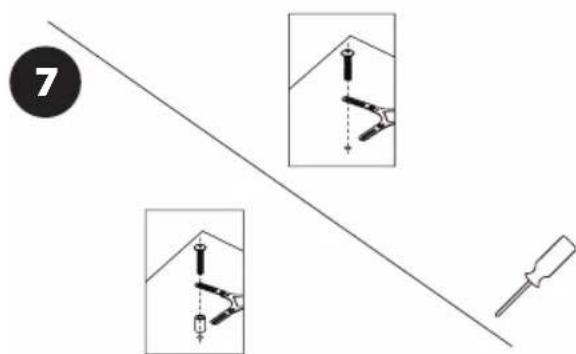

Tighten the screw to lock the display plate on the wall plate. / Utáhněte šrouby pro uzamčení monitoru k nástěnné desce. / Utiahnite skrutky pre uzamknutie monitora k nástennej doske. / Dokręcamy śruby mocujące odbiornik do płyty naściennej. / Húzza meg a csavart, hogy a képernyő panel a fali panelre szoruljo. / Za zaklenitev položaja monitorja na stenski plošči privijte vijake. / Zategnite vijke kako bi fiksirali televizor (monitor) u odnosu na zidnu ploču. / Die Schrauben für das Verschließen des Bildschirms an der Wandplatte festziehen. / Затягніть гвинти, щоб зафіксувати монітор до дошки на стіні. / Strângeți şuruburile pentru blocarea poziției ecranului la placa de perete. / Priveržkite varztą ir užfiksuokite ekrano plokštę prie sieninės plokštės. / Pievelciet skrūvi, lai nostiprinātu ekrāna plâksni pie sienas plâksnes.
