Product Type	TV Wall Mount
Brand	Emos
Model	KT1186
Color	Black
Material	Metal
Maximum TV Size	Up to 55 inches
Weight Capacity	30 kg
VESA Compatibility	100x100 to 400x400 mm
Distance from Wall	20-50 mm (adjustable with spacers)
Installation	Requires at least two persons; tools: drill, screwdriver, level
Included Hardware	Lag bolts, concrete anchors, washers, spacers, M4/M5/M6/M8 bolts
Safety	Check for electrical cords/pipes behind wall; use appropriate tools; ensure wall load capacity
Cleaning	Wipe with a dry cloth
Spare Parts	Available from dealer; contact Emos for replacements
Certifications	Not specified

Frequently Asked Questions - KT1186 Emos

What tools are needed for installation?

You will need a Philips head screwdriver, an electric or portable drill, an 8mm drill bit (for wood or concrete), and a level. Plaster board or chipboard anchors may be required for drywall.

What is the maximum weight this mount can hold?

The weight capacity is 30 kg (66 lbs). Ensure your TV does not exceed this limit.

What VESA patterns are compatible?

The mount supports VESA patterns from 100x100 mm up to 400x400 mm. Check your TV's VESA hole spacing.

Can I install this mount on drywall?

Yes, but you must use appropriate drywall anchors (not included). Ensure the wall can support the total weight of the TV and mount.

How far from the wall will the TV sit?

The distance from the wall is adjustable using the included spacers, ranging from 20 mm to 50 mm.

Is it safe to install this mount alone?

No, the manual recommends at least two persons for installation. One person should be physically fit and technically skilled.

What should I do if I hit an electrical cord while drilling?

Stop immediately and consult a professional. Before drilling, always use a stud finder to locate cords and pipes behind the wall.

Does this mount allow tilting or swiveling?

No, the KT1186 is a fixed wall mount. It does not tilt or swivel. For adjustable mounts, consider other Emos models.

How do I ensure the mount is level?

Use a level (included in some packages) to check. Mark the drill points with a pencil, then drill and attach the wall plate.

Where can I find replacement bolts or spacers?

Replacement hardware can be obtained from the dealer where you purchased the mount or by contacting Emos directly. Use only specified sizes (M4, M5, M6, M8).

USER MANUAL KT1186 Emos

Black metal shelving unit with vertical supports and a central green indicator light (no text or symbols)

GBV Wall Mount Installation Instructions

Caution:

1. It is recommended for this product to be installed by at least two persons, of which at least one person should be physically fit enough to handle heavy loads and technically skilled.
2. Before installing, please read this manual and make sure that there are no electrical cords, gas or water pipes in the place designated for mounting the holder.
3. We are not responsible for any damage incurred during installation, improper installation or subsequent use.
4. If in doubt, contact your nearest dealer and ask for assistance with installation.
5. For installation it is necessary to use safe and appropriate tools. Disregarding the instructions may cause property damage or injury.
6. If you intend to remove the TV from the wall, always make sure all electrical cords are unplugged.
7. If you are unsure of your wall load, select a different location for your installation or carrying capacity and increase the strength of the wall with renovation.
8. The product can be installed only for flat screen televisions or televisions containing mounting holes and have a flat back wall.

Tools necessary for installation (not included):

Philips Head Screw Driver

Electric or Portable Drill

Drill bit with 8mm in Diameter (for Wood, Concrete, or as needed)

Plaster Board or Chipboard Anchors (as needed)

Pencil

Level (if not included)

Included:

(A) M8×63 Lag Bolt 6 pcs (K) M5×25 Bolt 4 pcs
(B) Concrete Anchor or 6 pcs (L) M5 Lock Washer 4 pcs
(C) Lag Bolt Washer M8, 6 pcs (M) M6×12 Bolt 4 pcs
(D) Small Spacer 4 pcs (N) M6×30 Bolt 4 pcs
(E) Large Spacer 4 pcs (0) M6 Lock Washer 4 pcs
(F) M6 Washer 4 pcs (P) M8×12 Bolt 4 pcs
(G) M4×12 Bolt 4 pcs (Q) M8×30 Bolt 4 pcs
(H) M4×25 Bolt 4 pcs (R) MB Lock Washer 4 pcs
(I) M4 Lock Washer 4 pcs (S) M8×20 Bolt 4 pcs

(J) M5×12 Bolt 4 pcs

Pure structural diagram of a multi-story frame with vertical supports and horizontal beams (no text or symbols)

Blank white rectangle with three vertical dashed lines dividing the top and bottom (no text or symbols)

Diagram of a device with a lever and cable, no text or symbols present

Make sure it is level. Use a pen to mark off the locations. / Ujistěte se, že je v rovině. Body označte tužkou / Ulistite sa, že je v rovine. Body označte ceruzkou. / Sprawdzamy ustawienie w poziomie. Punkty zaznaczamy ołówkiem. / Győződjön meg róla, hogy vizszintben van-e! Egy ceruzával jelölje be a lyukak helyét. / Preverite, ali je v ravninil. Točke označite s svinčnikom. / Uvjerite se da je vodoravan. Mjesta označite olovkom. / Vergewissern Sie sich, dass er gerade liegt die Punkte mit Bleistift markieren. / Переконайтеся, чијрівно. Контури значіть олівцем. / Verificați să fie la nivel. Marcați punctele cu creion. / Patikrinkite, ar jis lygus. Naudokite pleštuką reikiamoms vietoms paslżyměti. / Pärliecinieties, ka tas ir līdzens. Izmantojiet pildspalvu, lai atzīmētu atrašanās vietas.

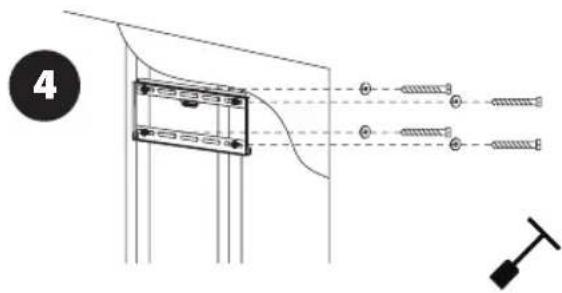

Fix the wall plate to the wall using the Lag Bolt (A) provided. / Kuchycení nástěnné desky ke zdi, použijte šroub s částečným závitem (A). / Na uchytenie nástennej dosky k stene, použite skrutku s čiastočným závitom (A). / Do umocowania płyty do ćsiany, wykorzystujemy šruby z gwintem niepełnym (A). / Rögzítse a fali panelt a falra a termékhez csomagolt négyszögletes fejű facsavarral (A). / Za pritrditev stenske plošče na steno uporabite vijak z delnim navojem (A). / Za pričvršćivanje zidne ploče na zid, uporabite vijak s djelomičnim navojem (A). / Zur Befestigung der Wandplatte die Schrauben (A) benutzen. / Для prikrípлення nastínnoї doшки do stíni, використовуйте гвинт з частичною різьбою (A). / Fixați placa de perete pe zid, folosind şurub cu filet partial (A). / Pritvirtinkite sienos plokštelę prie sienos naudodami pridėt varžta su kvadratine galvute (A). / Piestipriniet sienas pläksni pie sienas, izmantojot komplektāciją iekļauto koka skrūvi (A).

Choose the proper bolts for installation. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ šrub. / A szereléshez használja a megfelelő típusú és méretű csavarokat. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben auswählen. / Для установки виберіть правильний тип гвинтів. / Pentru instalare alegeți tipul adecvat de şuruburi. / Pasirinkite montavimui reikiamus varžtus. / Izvēlieties uzstādīšanai piemērotas bultskrūves.

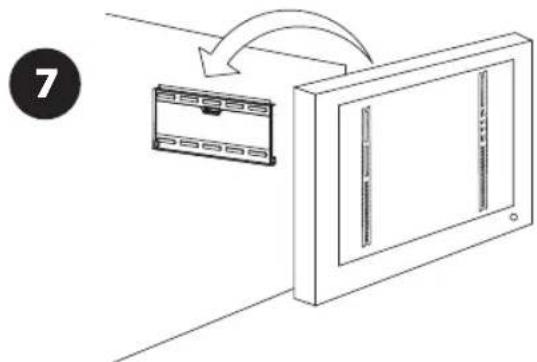

Install the screen on the display plate. / Pro instalaci zvolte správný typ šroubů. / Pre inštaláciu vyberte správny typ skrutiek. / Do instalacji wybieramy odpowiedni typ śrub. / Helyezze fel a képernyőt a képernyő panelre. / Za instalacijo izberite primeren tip vijakov. / Za montažu odabrati odgovarajuću vrstu vijaka. / Für die Befestigung die richtigen Schrauben wählen. / Для установki виберіть правильний тип гвинтів. / Pentru instalare alegeti tipul adecvat de şuruburi. / Sumontuokite ekraną ant plokštės. / Uzstădiet ekrānu uz ekrāna pläksnes.
