PHTB 7000 - Blender Philco - Free user manual and instructions

Product Type	Blender
Brand	Philco
Model	PHTB 7000
Power Consumption	700 W
Capacity	1.5 L
Main Material	Plastic jug, stainless steel blades
Number of Speeds	2 speeds + pulse
Voltage / Frequency	220-240 V, 50/60 Hz
Noise Level	~85 dB
Cord Length	1.2 m
Dimensions (WxDxH)	18 x 18 x 38 cm
Weight	1.5 kg
Safety Features	Non-slip feet, safety lock lid
Cleaning	Detachable parts dishwasher safe
Warranty	2 years
Included Accessories	Measuring cup, ice crush function
Maintenance	Clean after each use; do not immerse base

Frequently Asked Questions - PHTB 7000 Philco

How do I use the Philco PHTB 7000 blender?

Place ingredients in the jug, secure the lid, and select the desired speed or pulse. For best results, cut food into small pieces and do not exceed the max fill line.

Can I crush ice with this blender?

Yes, use the pulse function to crush ice. Add a small amount of water and pulse in short bursts for best results.

How do I clean the blender?

Rinse the jug immediately after use. The jug, lid, and blades are dishwasher safe. Wipe the motor base with a damp cloth; never immerse it in water.

What should I do if the blender stops working?

Check if the power cord is connected and the lid is properly locked (safety mechanism). If it still doesn't work, allow the motor to cool down as it may have overheated.

Can I blend hot liquids?

No, do not blend hot liquids (above 60°C) as the pressure can cause the lid to pop off or the jug to crack. Let liquids cool before blending.

Is the blender jug dishwasher safe?

Yes, the jug, lid, and blade assembly can be placed on the top rack of the dishwasher. Ensure blades are securely inserted.

What is the warranty period?

The Philco PHTB 7000 comes with a 2-year warranty covering manufacturing defects. Keep your receipt for proof of purchase.

Where can I find spare parts?

Contact Philco customer service or visit the official website. Spare parts like jugs, blades, and lids are available.

Why does the lid leak during blending?

Ensure the lid is securely locked in position and the gasket is properly placed. Overfilling can also cause leaks. Do not exceed the max fill line.

Can I grind nuts or seeds?

Yes, use the pulse function for nuts and seeds. For best results, process in small batches to avoid overloading the motor.

USER MANUAL PHTB 7000 Philco

Famous for Quality the World Over

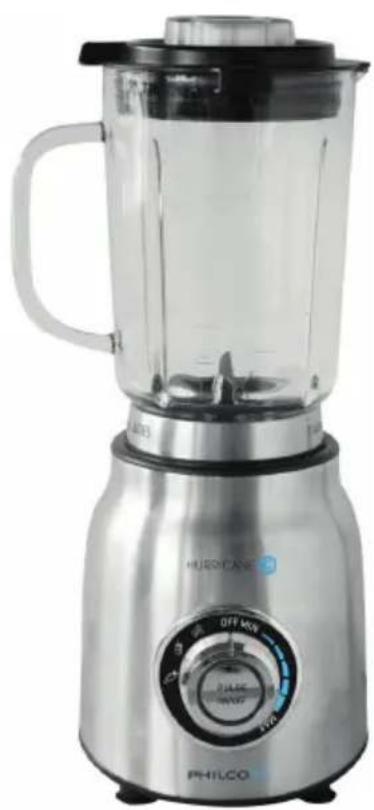

Exterior view of a modern stainless steel blender with control panel (no visible text or symbols)

PHTB 7000

User's Manual

Návod k obsluze

Návod na obsluhu

Instrukcja obsługi

Használati útmutató

PHILCO®

Famous for Quality the World Over

TABLE BLENDER

Exterior view of a modern kitchen blender with visible control knob and brand logo (no text or symbols on main body)

PHTB 7000

User's Manual

Dear customer,

thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENT

PART 1: IMPORTANT SAFEGUARDS....3

PART 2: DESCRIPTION ....7

PART 3: USING YOUR APPLIANCE ....8

PART 4: CARE AND CLEANING....10

PART 5: TECHNICAL SPECIFICATION....11

Only for household using.

Please read carefully and keep the instruction well.

PART 1: IMPORTANT SAFEGUARDS

When using electrical appliances, to reduce the risk of fire, electric shock, and/or injury to persons, basic safety precautions should always be followed, including the following:

You should respect the following safety warnings:

WARNING: The blades of the knife are extremely sharp.

Handle them with caution.

1. Read all instructions carefully.
2. To protect against electric shock, do not place cord, plug or appliance in water or other liquid.
3. Close supervision is necessary when any appliance is used by or near children.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless instructions concerning use of the appliance by a person responsible for their safety.

5. Unplug from outlet when not in use and before cleaning.

6. Do not operate any appliance with a damaged cord or plug, in case of appliance malfunctions or if the appliance has been damaged in any manner.
7. The use of accessory attachments not recommended by manufacturer may cause malfunctions.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place the appliance on or near hot gas or electric burner, or in a heated oven.
11. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and guarantee is no more valid.
12. Do not use your food processor if any part is broken.

13. Do not put the appliance, the power cord or the plug into water or any other liquid.

14. Make sure that the cover is securely locked in place before operating the appliance.

15. Never place ingredients in the container by hand and while the appliance is in use. Always use the food pusher.
16. The blade and discs are sharp. Handle carefully. Store out of reach of children.
17. If the power cord or the plug are damaged, do not use your appliance.
18. For your own safety, please use only the original accessories and spare parts which are suitable for your appliance.
19. Never remove the lid until the knife has stopped completely.
20. This appliance is designed to process small quantities. Do not exceed the quantities indicated in these instructions for use.
21. Do not use this appliance to mix glutinous food or substance.

22. Do not use appliance for other than intended use.

23. For your safety, this appliance conforms to the appliance standards, regulations and directives of Low Voltage, Electromagnetic Compatibility, Environment, etc.

SAVE THESE INSTRUCTIONS

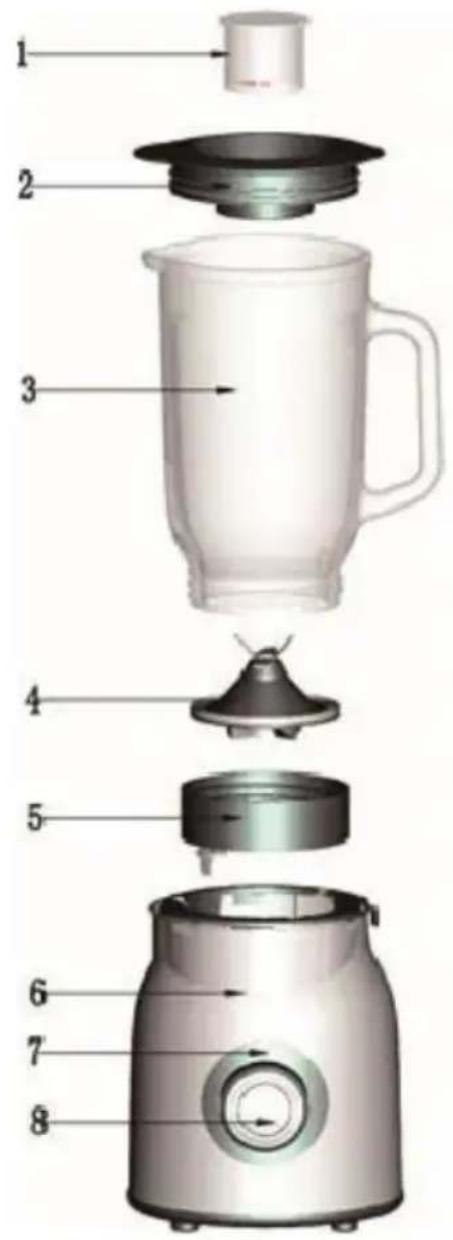

PART 2: DESCRIPTION

1. Measuring Cup 5. Glass Bowl Holder
2. Glass Bowl Lid 6. Body
3. Glass Bowl 7. Start Knob
4. Blade 8. Function Button

PART 3: USING YOUR APPLIANCE

Before first use, clean the various parts of the appliance.

Notes:

- When plug in the appliance, the start knob will with red flashing light. During the product working, it will stop flashing and the knob lights up red or white.

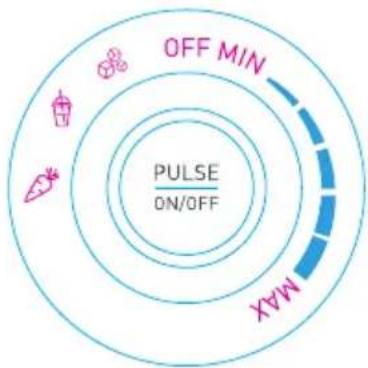

• The start knob allows you use variety speeds from mini power to max power.

• The rotary knob has 3 positions on the left specifying the following programs.

* Ice Crushing function.

* Smoothie function.

* Vegetable or fruit puree function.

• The pulse button starts the mixer at full power while you hold it.
• The glass jar is 1.75 L working capacity

Mincing and Blending With Speed nob

- Pour in the ingredients and cover the glass bowl (Fig. 1), and then place the glass bowl into the host (Fig. 2) and turn clockwise (Fig. 3).

Lift the glass bowl to check it is locking whether or not.

• Plug in the appliance and rotate the start knob to which speed you need.

- At the end of preparation, rotate the start knob to position OFF, unplug the appliance and wait until the blades come to a complete stop.

- Remove the glass bowl and take off the lid, then pour out the ingredients.

Mincing and Blending With function button

- Pulse function.

When you using Pulse button for your food, You need to keep knob on "OFF" position, and press Pulse button in center. When the foods are finished, please release it.

• Ice Crushing function.

When you using Ice Crushing button for your food, You need to turn the knob anticlockwise to and press button in center. When you press this button, the machine will start the program: work 60s total and stop automatically returns to standby state.

- Smoothie function.

When you using Ice Crushing button for your food, You need to turn the knob anticlockwise to and press button in center. When you press this button, the machine will start the program: work 60s and stop automatically returns to standby state.

- Vegetable and fruit puree function. When you press this button, the machine will start the program: work 2 second---stop 2 seconds, 8 cycles, and then continue to work 30 seconds, the program automatically returns to standby state.

Baby Food

To mix or blend cooked food:

- Chop the food into small pieces, add some broth (meat or vegetables) and mix the ingredients with pulses. To blend the mixed food, rotate the start knob till you reach the desired result.

For fruit preserves:

- Chop the fruits into small pieces, add some milk, water or juice and mix the ingredients with pulses. To blend the fruits, rotate the start knob till you reach the desired result.

CAUTION: Maximum time of processing should not exceed 1min continuous use. In order to achieve below processing times, use the appliance with pulses and intermediate 10 second pauses.

CAUTION: DO NOT OPERATE THE UNIT WHEN EMPTY.

CAUTION: DO NOT PUT HOT INGREDIENTS INTO THE BOWL. BEFORE FOOD PREPARATION, ALLOW FOOD TO COOL DOWN FOR A FEW MINUTES.

CAUTION: Before you eat or serve blended food, please always check for ingredients that might have not been blended adequately.

GENERAL:

For better results: please make sure that the quantity of ingredients fully covers the blade while chopping solid food.

PART 4: CARE AND CLEANING

• Always unplug the appliance first.
• Only use a damp sponge to clean the motor unit. Never place it in water, or under running water.

PART 5: TECHNICAL SPECIFICATION

Voltage: 220-240V\~50/60Hz

Power: 1200W

Class II

Recommended use of diagrams (function buttons)
Function button Usage / ingredients	Maximum recommended dosage	Program time
Smoothie function/ Vegetable or fruit puree function	Cold drinks / cocktails 0.8 liters		60s
	Milk shade and dairy drinks 0.8 liters
	Smoothie First place fresh fruit and liquid ingredients (including yogurt, milk and juice). Then add ice or frozen food (including frozen fruit, ice or ice cream)	1 liters
Ice Crushing function	Use the pulse position (P). The speed change in the process of treatment is a normal phenomenon. Making smoothie from frozen Juice.	200 grams (10 pieces of ice)	60s
Rinse	Rinse the mixing cup before cleaning. For better results, it is recommended to thoroughly clean and dry the blending cup before reassembling.	500 milliliter warm water	20s

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

PHILCO®

Famous for Quality the World Over

STOLNÍ MIXÉR

Exterior view of a modern kitchen blender with visible control knob and brand logo (no text extraction needed)

PHTB 7000

Návod na obsluhu

Vážený zákazníku,

TYTO POKYNY SI USCHOVEJTE

ČÁST 2: POPIS JEDNOTLIVÝCH ČÁSTÍ

Famous for Quality the World Over

STOLNÝ MIXÉR

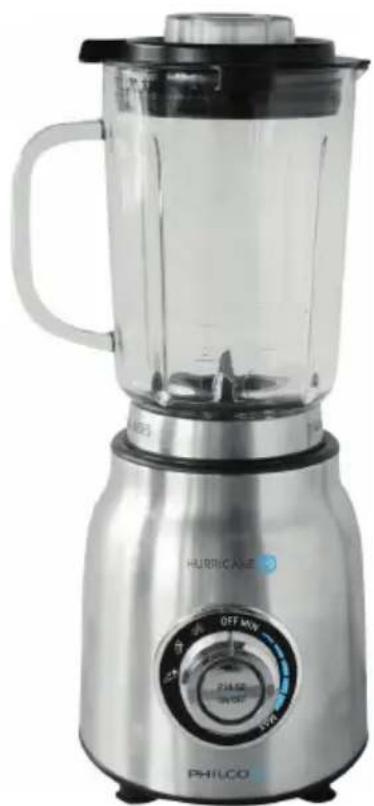

Exterior view of a modern kitchen blender with visible control knob and brand logo (no text or symbols on main body)

PHTB 7000

Návod na obsluhu

Vážený zákazník,

TIETO POKYNY SI USCHOVAJTE

ČAST 2: POPIS JEDNOTLIVÝCH ČASTÍ

Famous for Quality the World Over

MIKSER STOŁOWY

Exterior view of a modern kitchen blender with visible control knob and brand logo (no text or symbols on main body)

PHTB 7000

Instrukcja obsługi

Drogi kliencie,

Famous for Quality the World Over

ASZTALI MIXER

Exterior view of a modern kitchen blender with visible control knob and brand logo (no text or symbols on main body)

PHTB 7000

Használati utasítás

Tisztelt vásárlónk,
