Product Type	Power Blender
Brand	Philco
Model	PHTB 2401/02
Rated Power	2000 W
Rated Voltage	220-240 V
Rated Frequency	50/60 Hz
Jar Capacity	2 L
Blade Material	SUS 420 Stainless Steel
BPA Free	Yes
Maximum Speed	33000 rpm
Speed Control	Stepless from 0 to 10
Program Functions	Pulse, Ice Crush, Juice
Noise Level	Less than 85 dB (at 1 m)
Overheat Protection	Yes, with thermal limiter
Overcurrent Protection	Yes, with current limiter
Housing Material	Plastic (motor base)
Dimensions (Approx.)	Not specified
Weight (Approx.)	Not specified
Cord Length	Not specified
Safety Features	Interlock switch, non-slip feet, overheat/overcurrent protection
Cleaning	Jar washable with water; motor base wipe with dry cloth only
Dishwasher Safe Parts	Jar and lid (top rack recommended)

Frequently Asked Questions - PHTB 2401 Philco

Can I blend hot liquids in the Philco PHTB 2401 blender?

Yes, but be cautious. When blending hot liquids, always keep the vented lid in place to allow steam to escape. Do not fill the jar more than half full to avoid ejection due to sudden steaming. Use the provided lid and handle carefully.

How do I clean the blender?

For the blending jar, wash it with water and mild detergent. The motor base must only be cleaned with a dry cloth; never immerse it in water or use a wet cloth. The blade is sharp, so handle with care during cleaning.

What is the maximum capacity of the blending jar?

The blending jar has a maximum capacity of 2 liters. Do not overfill to ensure proper blending and avoid spills.

What are the program functions on this blender?

The blender has three program functions: Pulse, Ice Crush, and Juice. When the speed regulator is set to 'Program', you can select these modes by pressing the corresponding button.

What should I do if the blender stops suddenly during operation?

This may be due to overheat or overcurrent protection. If the thermal limiter activates, reduce the load and wait about 30 minutes for the motor to cool. If the current limiter activates due to hard food blocking the blade, turn off the blender, remove the obstruction, and restart.

Is the blade removable for cleaning?

The blade assembly is fixed to the jar but can be cleaned in place. Use a brush or sponge with warm soapy water. Be careful as the blades are very sharp. The jar is dishwasher safe on the top rack.

Can I crush ice with this blender?

Yes, the blender has a dedicated Ice Crush program function. Simply turn the speed regulator to 'Program' and press the 'Ice' button. The blender will operate at maximum speed for crushing ice.

What safety precautions should I take when using the blender?

Always ensure the lid is securely in place before operation. Do not touch moving parts, and keep hands and utensils out of the jar. Never operate the blender empty. Always unplug before cleaning or assembling.

How do I adjust the blending speed?

Turn the speed regulator knob from '0' (off) to '10' (maximum). Position '1' is minimum speed. You can adjust continuously between 1 and 10 for stepless control. The 'Pulse' function provides short bursts at maximum speed.

What does the blinking LED light mean?

A blinking LED light may indicate that the overheat protection has been activated. After the motor cools down (about 30 minutes), the light should stop blinking. If it persists, wait an additional 10-20 minutes.

USER MANUAL PHTB 2401 Philco

Famous for Quality the World Over

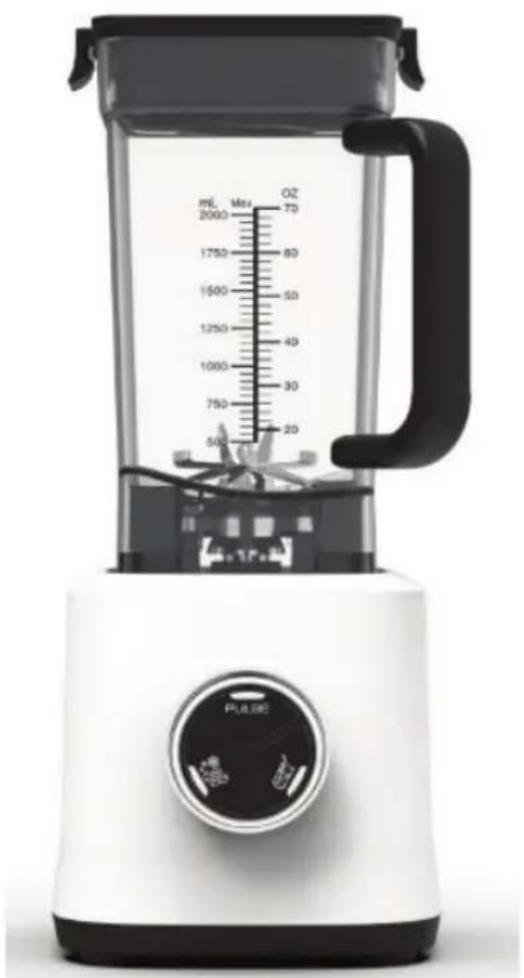

White kitchen blender with digital caliper and control knob (no visible text or symbols)

PHTB 2401/02

User's Manual Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató

PHILCO®

Famous for Quality the World Over

POWER BLENDER

PHTB 2401/02

User's Manual

Dear customer,

thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: IMPORTANT SAFEGUARDS....3
PART 2: PRODUCT LINE GRAPH 8
PART 3: CARE AND CLEANING....10
PART 4: KEY POINT INSTRUCTION ....10
PART 5: CLEANING & MAINTENANCE....11
PART 6: STORAGE....11
PART 7: TECHNICAL RATINGS....11
PART 8: ENVIRONMENT FRIENDLY DISPOSAL....11

PART 1: IMPORTANT SAFEGUARDS

The following basic safety precautions apply when using electrical appliances, read all instructions before use. And save this instruction manual for future use.

(a) This product is intended for household and indoor use only. Do not use this product for commercial use purpose, and do not use outdoor.

(b) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

(c) This product shall not be used by children. Keep this product and its cord out of reach of children.

(d) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
(e) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
(f) Cleaning the appliance please use the dry cloth, do not use water cleaning the motor base, it may cause the potential injury from misuse.
(g) The blade accessory is very sharp, please paid attention for handing the sharp cutting blades during cleaning, emptying the bowl and user maintenance.

(h) Be careful if hot liquid is poured into the product as it can be ejected out of the appliance due to a sudden steaming.
(i) Always switch off the product and disconnect from supply if it is left unattended and before assembling, disassembling, cleaning or approaching parts that move in use.
(j) Do not immerse the product or allow the supply cord and plug come into contact with water or other liquid.
(k) Do not touch the jar surfaces that may be hot. Use handles provided.
(I) The use of accessory attachments, including canning jars, not recommended by the appliance manufacturer may cause a risk of fire, electric shock or injuries to persons.

(m) Do not let cord hang over edge of table or counter or touch hot surfaces.
(n) Do not place on or near a hot gas or electric burner or in a heated oven.
(o) Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
(p) Where applicable, always attach plug to appliance and check that the control is OFF before plugging cord into wall outlet. To disconnect, turn the control to OFF then remove plug from wall outlet.
(q) Do not use appliance for other than intended use.
(r) Avoid contacting moving parts.
(s) Keep hands and utensils out of container while blending to reduce the risk of severe injury to persons or damage to the power blender. A scraper may be used but must be used only when the blender is not running (does not apply to an acceptable scraper integral with the appliance).

(t) The vented lid should be remained in place over the cover opening when blending hot liquids.
(u) Do not use the product if the blade is curve or damage.
(v) Do not try remove the blending jar form the motor base during operation.
(w) Never operate the product without any liquid in the jar or empty.
(x) Never try to defeat the interlock switch mechanism, make sure the accessory is completely installed before operation.
(y) Do not overfill the jar.
(z) Always operate blender with cover in place.

PART 2: PRODUCT LINE GRAPH

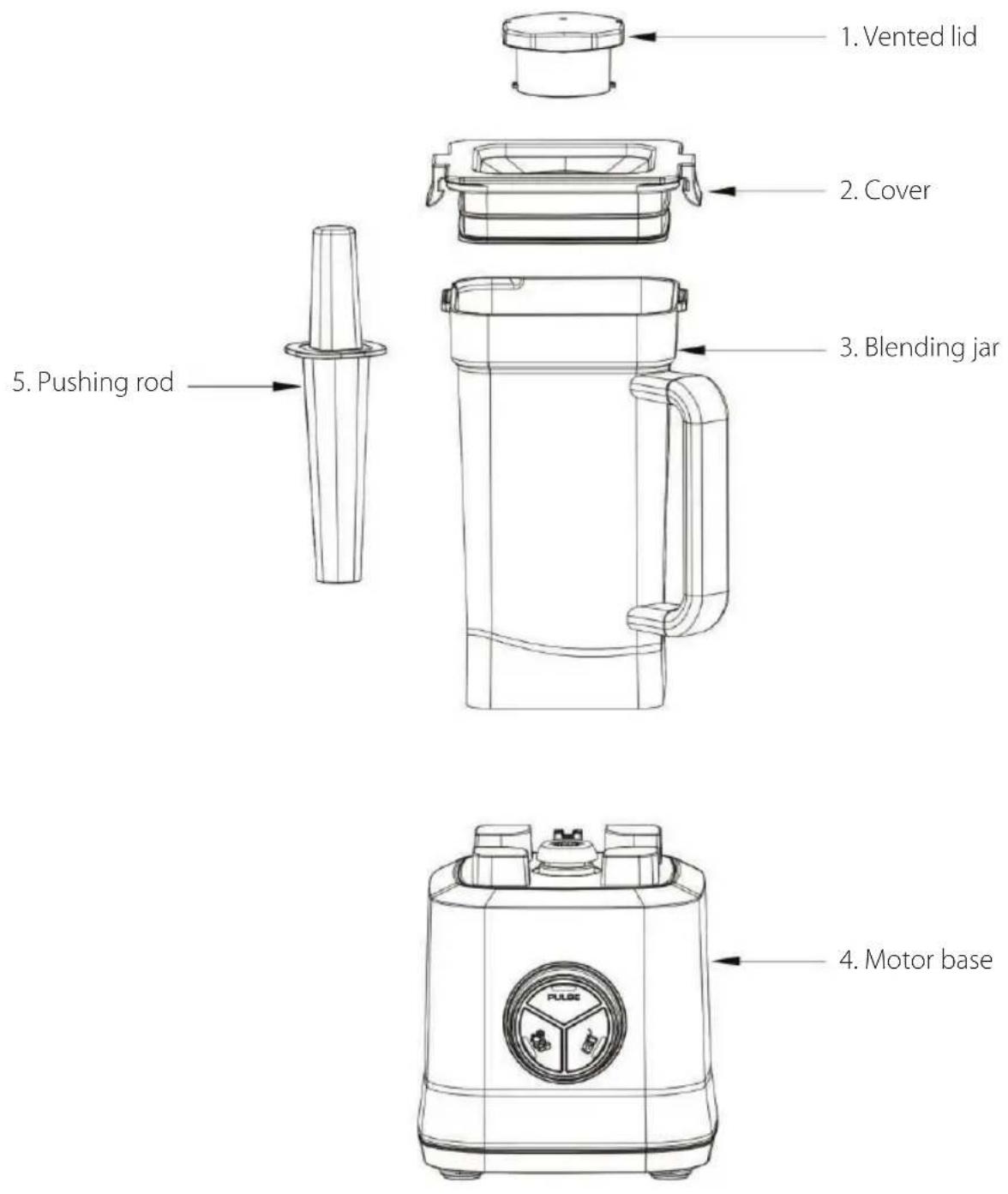

1. The whole product

1. Control panel


PART 3: CARE AND CLEANING

1. Rotary switch knob – "0" means Power OFF; "Program" means standby mode, you can use the program function (Pulse, Ice crush and Juice); "0" to "10" is stepless speed control.
2. Speed regulator, "0" means Stop, "Program" means standby mode, "1" means minimum speed, "10" means maximum speed. When turn the knob to "1" position, then product start working at minimum speed. You can control the speed by rotating the knob.
3. Program function button – 3 different operating mode: "Pulse", "Ice", "Juice". When the knob is turned to "Program" keep pressing "Pulse" function switch, the product is working by maximum speed, If the product is working under "Ice" mode, press the "Ice" button, the product will stop working and turn into standby mode. If press other function button, the product will turn into the relevant function mode. When product is working under "Ice", "Juice". mode, the speed regulator and pulse switch will not work.

PART 4: KEY POINT INSTRUCTION

1. Blending jar – 2 liters capacity, SUS 420 stainless steel blade, food contact grade material, BPA free.
2. Pushing rod – push the food close to the blade, make sure the good performance. Caution: the pushing rod is only use for mixing during blending food, not for other purpose. Before use the pushing rod, make sure the cover is in position.
3. Speed - 33000 rpm high speed, good performance assurance.
4. Voice - less than 85 dB (1 meter form the product, background voice less than 65 dB).
5. Overheat protection – If the product overload working for long time, the thermal limiter will stop the product to protect the motor not overheat. If thermal limiter operate, please reduce the load of blending jar, and wait for almost 30 min to let the motor cool down, and then use the product again. If LED light still flashing, but product still not work, wait more 10 to 20 min. Overcurrent protection – If blending very hard food (or very big food) incorrectly, the blade may block, the current limiter will stop the product. If current limiter operate, please switch off the product and remove the very hard or very big food, and then use the product again.

PART 5: CLEANING & MAINTENANCE

1. Before cleaning, make sure the power switch and speed regulator is in "0" position, remove the plug from the supply main.
2. Cleaning the blending jar can use the water, but not chemical agent or other liquid.
3. Cleaning motor base only use the dry cloth, never use wet cloth clean the motor base, or immerse the motor base into water.
4. If the product operating with abnormal noise, or shaking seriously. Please stop use this product, and send back to the service agent to check it. Never repair the product by yourself.

PART 6: STORAGE

1. After use the product, please repack the product, and store it in a dry place and avoid sun exposure.
2. Make sure the children could not reach the product.
3. Keep the product dry before repack.

PART 7: TECHNICAL RATINGS

Rated voltage: 220 - 240 V

Rated frequency: 50/60 Hz

Rated power: 2000 W

Rated capacity of blending jar: 2 L

PART 8: ENVIRONMENT FRIENDLY DISPOSAL

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.
