Product Type	Refrigerator-Freezer
Model	LKK-210RB / LKK-210RC
Brand	Ravanson
Energy Class	E
Climate Class	N, ST
Nominal Voltage	220-240 V
Nominal Frequency	50 Hz
Rated Current	1.0 A
Protection Rating	I
Refrigerant / Mass	R600a / 51 g
Insulation Gas	C5H10
LED Rated Power	1 W
Freezer Temperature	Approx. -18 °C
Cooling Chamber Temperature	0 °C to 10 °C
Compartment Layout	Upper freezer, lower fridge with crisper drawer, wine rack, shelves, bottle compartments
Defrosting	Manual defrosting required when ice thickness reaches 3-5 cm
Light Bulb	Replaceable LED bulb behind thermostat housing
Ventilation Clearance	At least 10 cm on sides and back, 20 cm on top
Warranty	Minimum 24 months
Safety Features	RCD recommended (30 mA); flammable refrigerant R600a; grounded plug
Intended Use	Domestic and similar environments; not built-in

Frequently Asked Questions - LKK-210RB Ravanson

How do I set the temperature on my Ravanson LKK-210RB refrigerator?

Turn the thermostat knob to a position between 1 and 5. Position '0' stops the refrigerator. Lower numbers provide higher cooling temperature. Position '5' is for fast freezing. After rapid freezing, return to a normal operating position.

Why is my refrigerator making a noise like running water or tapping?

These sounds are normal. Running water is typical of a working compressor. Tapping occurs due to sudden temperature changes. Also, the compressor can reach 90°C and the side walls up to 55°C during operation.

How do I defrost the freezer?

When ice builds up to 3-5 cm, set the thermostat to '0' and unplug the appliance. Remove food and open the door to let ice melt. You may place a bowl of hot water inside to speed up. Do not use metal tools or electric heaters. Wipe up water, clean, dry, and restart.

How do I clean the refrigerator?

Unplug the refrigerator. Use a soft damp cloth with neutral detergent to clean inside and outside. Avoid solvents, gasoline, benzene, alcohol, or abrasives. Pay special attention to door seals. Dry thoroughly before reconnecting.

How do I replace the interior light bulb?

Set thermostat to '0' and unplug. Remove food from top shelf and pull shelf forward. Open the light cover at the rear of the thermostat housing. Twist out the old bulb and replace with a new one (LED 1W). Close the cover.

What should I do if the refrigerator stops cooling?

Check that the thermostat is not set to '0', the plug is properly inserted, and power supply is on. Wait at least 5 minutes after a power outage before restarting. If still not cooling, check for overloading, poor ventilation, or proximity to heat sources. If problem persists, contact service.

Is it normal for the sides of the refrigerator to feel hot?

Yes, during operation the side walls can reach an average temperature of 55°C. This is normal heat dissipation. Ensure at least 10 cm clearance on sides and back for proper ventilation.

Can I store flammable substances like gasoline or alcohol in this refrigerator?

No. Do not store flammable or explosive materials such as ether, methanol, gasoline, or alcohol. The refrigerator uses flammable refrigerant R600a; keep away from ignition sources.

How long should I wait before plugging in the refrigerator after moving it?

After positioning the refrigerator, wait at least 2 hours before connecting to power. This allows the refrigerant to settle and prevents compressor damage.

What is the correct way to transport this refrigerator?

Transport only in the vertical position. Tilt should not exceed 45 degrees. Use original packaging to protect against humidity, dust, and mechanical damage.

USER MANUAL LKK-210RB Ravanson

Line drawing of a two-door refrigerator with handlebars (no text or symbols)

MODEL:

LKK-210RB; LKK-210RC

Producent:

Ravanson

Ravanson Ltd Sp. z o.o. ul. Mazowiecka 6, 09-100 Płońsk, Polska

tel.: [phone], fax: [phone]

PL

Pure technical diagram of a mechanical device with no text, numbers, or symbols

ROZWIĄZYWANIE PROBLEMÓW

INFORMACJE DODATKOWE

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries.

Keep safety instructions and warnings at hand for future reference.

GENERAL SAFETY GUIDELINES

This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device. Cleaning and maintenance must not be performed by unsupervised children.

Children are not aware of dangers that may arise during the use of electric devices.

Never use a damaged machine. Do not operate the appliance with a damaged cord.

Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

Do not allow the power cord to touch sharp edges or hot surfaces.

The plug must fit the socket.

The plug must not be modified in any way.

The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors. Avoid rain or moisture when using the appliance.

To clean use soft damp (not wet) cloth with mild detergent.

Do not use solvents, petrol or other and other measures that would damage the device.

Transport and store the device in the vertical position, in the original packaging, protecting against mechanical damage, moisture and dirt.

The appliance must be repaired by a qualified person using only original spare parts.

The vent openings in the housing or in the compartments

surrounding thereof must be completely unobstructed and free of any obstacles.

Make sure there is at least 10 cm of free space on the sides of the device and 10 cm at the back when positioning it. This will provide adequate ventilation.

Do not use mechanical devices or other means to accelerate defrosting process, other than those recommended by the manufacturer.

Take care not to damage the cooling circuit.

Do not use electrical appliances inside the food storage compartments if they are not of the type recommended by the manufacturer.

Do not operate the device with wet hands standing on a wet surface to avoid electric shock or electrocution.

It is advisable to connect the device to mains via an RCD with the maximum sensitivity of 30 mA.

CAUTION! The device is not designed to be used with a timer or an independent remote control system

Do not store hot food or beverages in the refrigerator until they reach room temperature.

Close the door immediately after putting items into the refrigerator to prevent a rapid increase in temperature inside.

Keep the device away from heat sources or direct sunlight.

Position the device on a flat and stable surface. Do not put it on any soft material.

Do not put any devices on the refrigerator.

Do not store substances that can readily evaporate, ignite, or explode, such as a ether, methanol, or gasoline.

Extremely flammable gas. Keep out of reach of children. Protect from sunlight. Store in a well-ventilated place.

CAUTION! Flammable material – the risk of fire! Keep the device away from ignition sources

The refrigerator contains flammable but environmentally friendly natural gas isobutane (R600a).

Gas (R600 a) is flammable. Before connecting, make sure that the refrigerant circuit is not damaged.

If damaged:

- avoid open flames

- immediately ventilate the room where the refrigerator is located.

PLEASE NOTE!

Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

PURPOSE AND CONSTRUCTION

The device is intended for use in domestic or similar environments, such as:

- kitchens in shops, offices and other working environments

- households and by clients in hotels, motels and other residential environments

Refrigerator-freezer is designed for storing and freezing food.

This refrigerating appliance is not intended to be used as a built-in appliance.

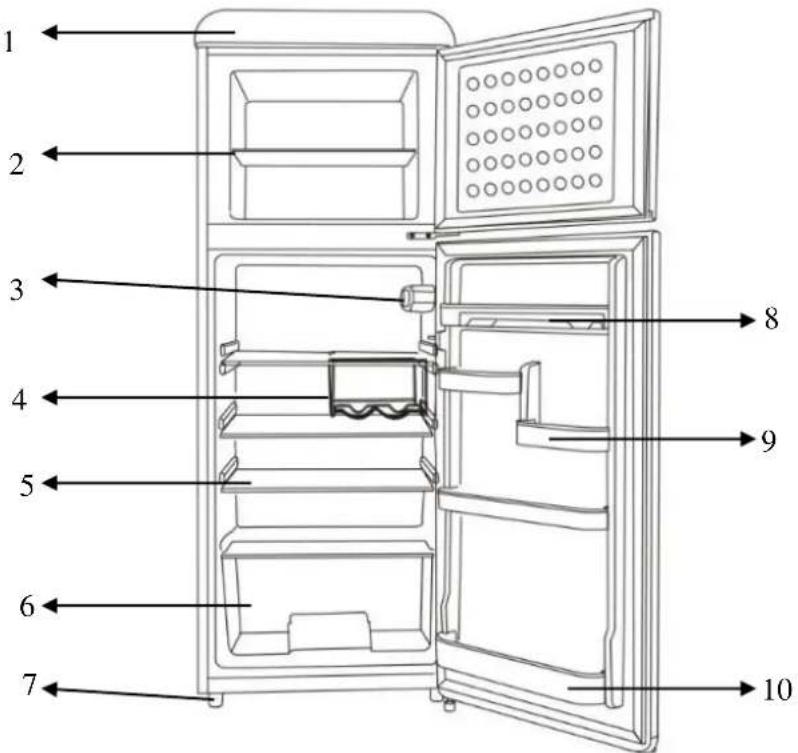

1. Upper cover
2. Freezer compartment
3. Thermostat
4. Wine rack
5. Refrigerator compartment
6. Crisper drawer
7. Legs
8. Small bottle compartment
9. Shelf
10. Large bottle compartment

TECHNICAL PARAMETERS

Nominal voltage: 220-240 V

Nominal frequency: 50 Hz

LED rated power: 1 W

Rated current 1,0 A

Protection rating: I

Climate class: N, ST

Coolant/ mass: R600a/ 51 g

Insulation gas:

C 5H10

Energy class: E

CHARACTERISTICS OF CLIMATE CLASSES

Climate class Air temperature

SN (extended - moderate) from +10°C to +32°C

N (moderate) from +16°C to +32°C

ST (sub -tropical) from +18°C to +38°C

T (tropical) from +18°C to +43°C

PREPARATION FOR WORK

1. Remove all safety elements.
2. Refrigerator should be set on a level surface. Whenever required, adjust the level using adjustable feet.
3. To ensure appropriate ventilation, position the fridge ensuring the following distance from the walls and other objects: back and sides of the fridge at least 10 cm, the top at least 20 cm. Leave enough space to open the fridge door to the angle of 160^ .
4. The fridge should be placed far from any heat sources (cooker, radiator, stove) and it should not be exposed to direct sunlight.
5. The fridge cannot be located near flammable or explosive materials such as gas, petrol, alcohol etc. Do not store the above-mentioned materials in the fridge.
6. Do not place the fridge in areas with high moisture.
7. After setting the refrigerator in a suitable place, wait at least 2h before connecting it to the power supply.
8. Make sure that the power source to which you want to connect the device meets the specifications given on the nameplate. This device is equipped with a grounded type plug and must be plugged into a grounded type outlet. If any power flickers take place, connect a special device to the fridge, controlling the power automatically.
9. The power cord should not be extended or wound when the device is on. Moreover, take care the power cord is not placed too close to the compressor at the fridge back. The operating compressor generates high temperature and can damage the power cord.
10. In case of accidental disconnection from the power supply wait at least 5 minutes before restarting.

First use

After connecting the refrigerator to a power source switch the thermostat knob to the position between 1 and 5. The refrigerator will start working. Close the door, after about 30 minutes the housing of the refrigerator on the right or left side should be warm, and the temperature in the cooling chamber should decrease. This means proper operation of the compressor.

Thermostat

Refrigerator is controlled by thermostat. In "0" position refrigerator stops working. For positions "1 to 5", the lower setting, the higher cooling temperature. The refrigerator should be set at a higher level for the user. The level "5" is suitable for fast freezing. After rapid freezing it is recommended to bring the thermostat to its normal operating position.

Preparation of ice

Pour drinking water to the ice container and put it in the freezer. Set the thermostat knob in position 4/5.

Cooling chamber

The temperature of the cooling chamber is about 0^ C - 10^ C. It is suitable for storage of vegetables, fruit, drinks for a short time.

Freezer

The freezer temperature is about -18^ . It is suitable for storage of frozen fish, meat and other products, which require longer storage time.

FOOD STORAGE

It is recommended to keep food in sealed containers intended for contact with food, in order to prevent influence of other odours.

Food should not be placed too closely to allow free air flow.

Do not put hot food in the refrigerator. Cool to room temperature beforehand.

Minimize the frequency and time of opening the refrigerator door and keeping it opened.

If the food be cleaned before putting into the refrigerator, wash it, dry it and then put to the refrigerator.

DEFROSTING AND CLEANING

If the ice layer inside the freezer gets about 3-5 cm thick, the device should be defrosted. The device requires manual defrosting. To defrost you should:

√ Set the thermostat to "0" and unplug the device.
√ Remove food from the freezer chamber.
√ Open the door to let the ice melt. To speed up the defrosting process, you can place a bowl with hot water on the shelf and close the door of the freezer.

Do not use metal tools or electric heaters to accelerate the defrosting process.

√ Remove water from the freezer with a soft cloth. Clean the device inside and outside using a soft, wet cloth with a neutral washing agent. Dry the chambers.

Do not pour water over the outer part of the refrigerator. This can damage the insulation layer. It is forbidden to wash with hot water, acid, alkalis, gasoline, benzene, caustic means, alcohol or abrasives.

√ Place food in the freezer, set the thermostat to the desired position and plug the device.

To ensure hygiene, clean the fridge interior with sufficient frequency. To do this:

√ unplug the power cord from the electrical outlet
√ wash with a soft damp cloth with a neutral detergent
√ dry afterwards.

Pay special attention to keep the rubber seals at the door in the appropriate condition. They should always be clean.

If the device is not used for an extended period of time, remove clothes, clean the fridge and freezer chamber and dry them. The door should remain open.

REPLACING THE BULB

Before replacing the light bulb set the thermostat knob to the "0" position and disconnect the refrigerator from the power supply. Remove the food from the top shelf and pull shelf forward. A bulb is located at the rear of the thermostat housing. Open light cover. Twist off a burnt bulb, twist in a new one and replace the bulb cover.

Pure technical diagram of a mechanical device with no text, numbers, or symbols

TROUBLESHOOTING

Laudable sound of running water is normal for working compressor.

Laudable tapping is a reaction to sudden changes of temperature.

Hot compressor – during operation, the compressor's temperature can reach 90°C

Hot side wall of the refrigerator – during operation, both sides of the refrigerator can achieve an average temperature of 55^ C.

Brumous deposit appears on the outer part of the refrigerator. This is normal due to the high humidity. A freezer should be dried.

Check before calling for service:

Refrigerator stopped working

• thermostat knob is not set to "0".
• a plug is well inserted to the socket
• power supply is on
• the device starts working within 5 minutes after the last power off.

Refrigerator's work is not effective

• too much food in the fridge or food arranged too tightly which prevents air flow
• the device is set in the sun an ambient temperature is too high
• fridge located near a radiator or other heat-emitting devices
• food in the refrigerator/freezer is too warm
• not closed door of the refrigerator/freezer
• frequent opening of the door of the refrigerator/freezer
• fridge ventilation is insufficient. There can be an insufficient distance between the fridge and the surrounding walls/furniture/other devices.

Food in the refrigerator chamber is too much chilled

• position of thermostat is too high
• food with high water content was placed directly over the cold air inlets. This is not a symptom of incorrect device operation.

Refrigerator-freezer is too noisy

• the device is not level
• the device touches the wall.

If the above-mentioned advice does not solve the problem, contact the repair service. Don't repair on your own.

WARNING! If, despite compliance with the specified rules, a refrigerator-freezer is not working properly, inform the manufacturer's authorized service centre.

WARNING! If an electric shock (tingling) is sensed after touch a refrigerator-freezer housing, immediately turn it off and ask a certified electrician to check the protective circuit in the socket

The current list of service points can be found at: www.ravanson.pl Service is provided by the Quadra-Net network, please visit: www.quadra-net.pl And the helpline number: 61 853 44 44

TRANSPORTATION

Transport (carry) only in vertical position. A tilt should not exceed 45^ Transport in a package protecting from humidity, dust and mechanical damages.

NOTE!

The illustrations and descriptions may differ from reality depending on the product model. Manufacturer reserves the right to change the technical parameters of the device without notice. The producer reserves the right to mistakes and misprints.

ADDITIONAL INFORMATION

The minimum warranty period offered by the manufacturer: 24 months

A link to the manufacturer's website where the information is available from point 4 lit. a) of the Annex to Commission Regulation (EU) 2019/2019: www.ravanson.pl

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain

substances which may adversely affect the environment over the life of the product and after use have been limited in this device.

DE

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

PROBLEMLÖSUNG

Pure technical diagram of a mechanical device with no text, numbers, or symbols

Pure technical diagram of a mechanical component with no text, numbers, or symbols

ŘEŠENÍ PROBLÉMŮ

Pure technical diagram of a mechanical device with no text, numbers, or symbols

RIEŠENIE PROBLÉMOV

NAMEMBNOST IN SESTAVA

Simple line drawing of a mechanical device with no text or symbols

REŠEVANJE PROBLEMOV

Slišni zvok tekoče vode je normalen pojav, kadar kompresor deluje.

Nominali srové: 1,0 A

Apsaugos klasė:

Pure mechanical diagram showing a rotating component with no text or symbols

PROBLEMŲ ŠALINIMAS

Pure technical diagram of a mechanical component with no text, numbers, or symbols

PROBLEEMIDE LAHENDAMINE

Pure technical diagram of a mechanical or electrical component with no visible text, numbers, or symbols

PROBLÉMAMEGOLDÁS

Pure technical diagram of a mechanical device with no text, numbers, or symbols
