Brand	Goddess
Model	RSD084GW8SS
Product Type	Refrigerator with freezer compartment
Energy Class	A+
Total Net Capacity	93 L
Fridge Net Capacity	83 L
Freezer Net Capacity	10 L
Annual Energy Consumption	110 kWh/year
Climate Class	N, ST (+16°C to +38°C)
Noise Level	41 dB(A)
Refrigerant	R600a (isobutane)
Temperature Control	Thermostat with 6 settings (1 warmest, 5 coldest, 0 off)
Door Reversibility	Yes (user-reversible)
Adjustable Feet	Yes (2 front leveling feet)
Interior Light	Yes (replaceable bulb)
Defrosting	Manual (freezer compartment)
Cleaning	Lukewarm water and neutral soap; no abrasive cleaners
Safety Features	Flammable refrigerant warning; child safety; electrical shock precautions
Spare Parts	Light bulb (special use lamp)
Dimensions (approx.)	Not specified in manual; typical for 93L: H850 x W500 x D550 mm

Frequently Asked Questions - RSD084GW8SS Goddess

What should I do if the appliance does not work?

Check that the temperature regulation knob is not set to '0'. Ensure the mains plug is inserted properly and the fuse/circuit breaker is not blown. If the socket is defective, contact an electrician.

How can I adjust the temperature?

The internal temperature is controlled by a thermostat with 6 settings: '1' is warmest, '5' is coldest, and '0' turns the appliance off.

Why is my food too warm?

Possible causes: temperature not properly adjusted, door left open for long, large amount of warm food placed inside, or the appliance is near a heat source. Adjust the setting or relocate the appliance.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual using a Philips screwdriver, flat bladed screwdriver, and hexagonal spanner. Ensure the unit is unplugged and empty.

How do I clean the refrigerator?

Unplug the appliance. Clean the interior and accessories with lukewarm water and neutral soap. Do not use abrasive cleaners or steam cleaners. Dry thoroughly before reconnecting.

What should I do if the freezer is covered with frost?

Defrost the freezer manually: unplug, remove food, keep the door open, and place a basin underneath to collect defrost water. Dry the interior before restarting. Do not use sharp tools.

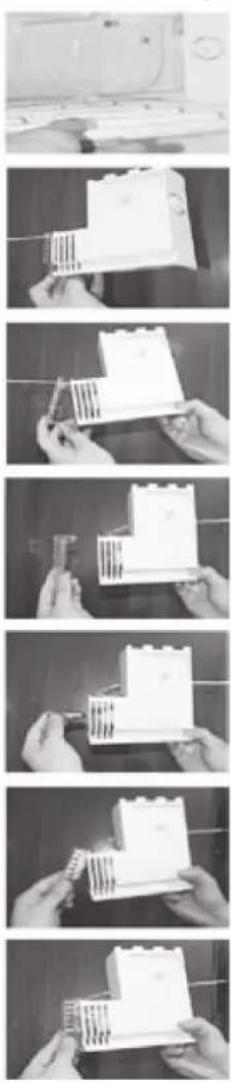

How do I replace the light bulb?

Unplug the appliance. Remove the water drip tray, push the lamp cover inward, remove it, unscrew the old bulb, and screw in a new one of the same type. Reassemble the cover and tray.

What are the safety precautions for using this appliance?

Keep ventilation openings clear. Do not use mechanical defrosting devices. Do not damage the refrigerant circuit. Do not store explosive substances. Ensure the power cord is not trapped. Keep children away from packaging.

What does the strange noise mean?

Normal sounds include compressor and refrigerant circulation. If unusual, check if the appliance is level, touching walls/objects, or if a rear component is touching another part. Adjust as needed.

What is the correct way to store food?

Store raw meat, poultry, fish in the bottom chiller. Dairy and eggs on middle shelf. Ready-to-eat foods on top. Fruit and vegetables in the crisper drawer. Do not store bananas, onions, potatoes, or garlic in the refrigerator.

USER MANUAL RSD084GW8SS Goddess

White portable refrigerator with 'Golfless' branding on the front panel (no other text or symbols visible)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI UTASÍTÁS

Line drawing of a simple kitchen appliance with a lid and base (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical linkage assembly with two views (one circular, one straight), no text or symbols present.

Technical line drawing of a mechanical clamp or bracket assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a simple rectangular frame with a handle and small protrusion, no text or symbols present.

INSTALACE

Pure geometric diagram showing a rectangle with a dashed rectangle and a curved line, no text or symbols present.

Line drawing of a simple kitchen appliance with a lid and base, no text or symbols present

1. Odskrutkujte horný záves, odoberte dvere a položte ich na mäkkú podložku, aby sa predišlo poškriabaniu.

Technical line drawing of a mechanical assembly with a tool inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical linkage assembly with two views (one circular, one oval) showing different joint configurations (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with a circular inset showing a circular component (no text or symbols)

1. Nasad'te horný kryt a upevnite ho pomocou 4 skrutiek na zadnej strane.

Line drawing of a flatboard-mounted device with a screwdriver inserted (no text or symbols)

INŠTALÁCIA

Pure geometric diagram showing a rectangle with a dashed rectangle and a curved line, no text or symbols present.

Vyrovnanie spotrebiča

Line drawing of a simple kitchen appliance with a lid and base, no text or symbols present

Technical line drawing of a mechanical assembly with a tool inserted into a bracket (no text or symbols)

Technical line drawing of a mechanical linkage assembly with two views (one circular, one oval) showing different joint configurations (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with a circular inset showing a rotating component (no text or symbols)

Line drawing of a flatboard with a screwdriver inserted, no text or symbols present

INSTALACJA

Pure geometric diagram with lines and shapes, no text or symbols present

Sequence of black-and-white images showing a hand holding a LEGO brick with visible internal components, no text or symbols present.

• In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
• For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition

• thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

- This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting. ^1)

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.

- Do not pull the mains cable.

- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

- You must not operate the appliance without the lamp. ^1)

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out. ^2)
• Store pre-packed frozen food in accordance with the frozen food, manufacture s instructions. ^2)
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^2)
• Ice lollies can cause frost burns if consumed straight from the appliance. ^2)

^1) If there is a light in the compartment.
2) If there is a freezer compartment.
^3) If there is a fresh-food storage compartment.

To avoid contamination of food, please respect following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces, that can come into contact with food and accessible drainage systems.
• Clean water tanks, if they have not been used for 48 h, flush the water system connected to a water supply, if water has not been drawn for 5 days (if they are presented in the appliance).
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
• One-, two- and three-star compartments (if they are presented in the
• Appliance) are not suitable for freezing of fresh food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^2)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in te bottom of the appliance. ^3)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

1) If there is a light in the compartment.
2) If there is a freezer compartment.
^3) If there is a fresh-food storage compartment.

Energysaving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

EnvironmentProtection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

- The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using, service and disposal.

OVERVIEW

Note: Above picture is for reference only. Real appliance may be a little bit different.

REVERSE DOOR

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. ou should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
• Do not lay the unit flat as this may damage the coolant system.

• It's better that \$ people handle the unit during assembly.

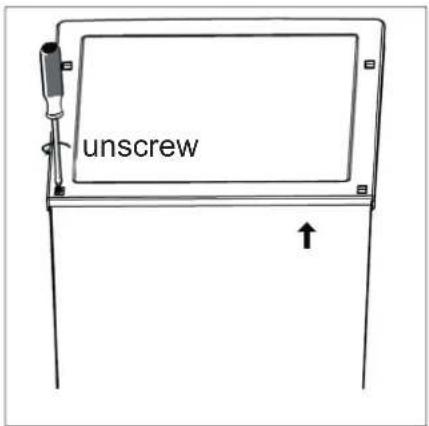

• Remove four screws in top of top cover.

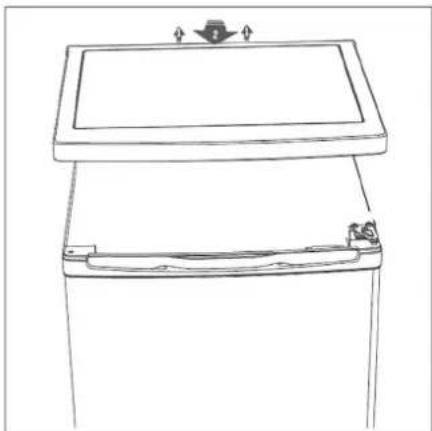

1. Remove top cover and place it aside.

Line drawing of a rectangular appliance with a lid and base, no text or symbols present

1. Unscrew top hinge and then remove door and place it on a soft pad to avoid scratch.

Technical line drawing of a mechanical assembly with a tool and mounting bracket (no text or symbols)

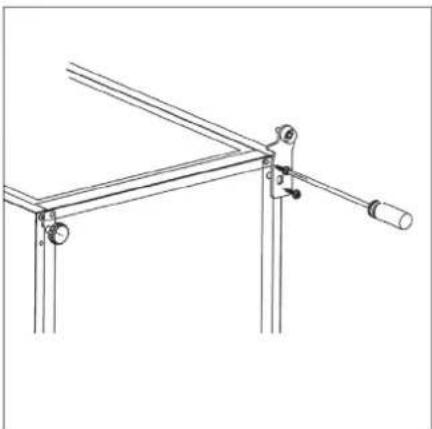

1. Unscrew bottom hinge. Then remove the adjustable feet from another side.

Pure mechanical linkage diagram without any text, numbers, or symbols

1. Unscrew and remove the bottom hinge pin with flat screw drivers, turn the bracket over and replace the pin.

1. Refit the bracket fitting the bottom hinge pin. Replace adjustable foot.

Technical line drawing of a mechanical linkage assembly with two circular insets showing close-up views (no text or symbols)

1. Place the door back on. Ensure the door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hinge.

Technical line drawing of a mechanical assembly with a circular component and mounting bracket (no text or symbols)

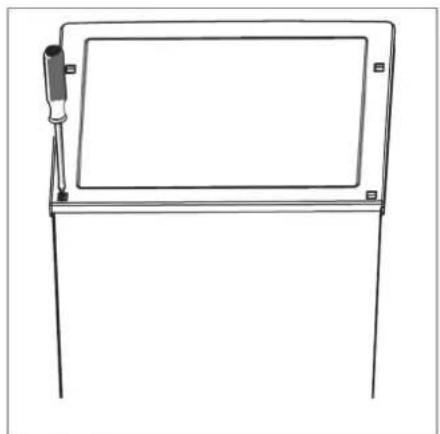

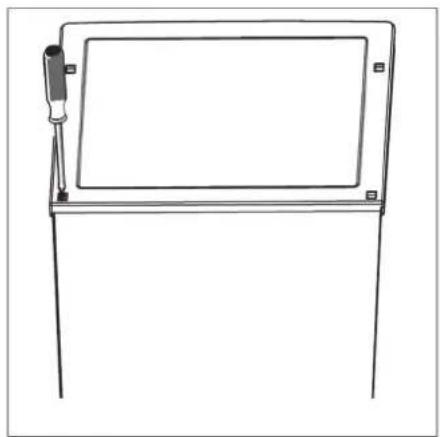

1. Put the top cover and fix it with 4 screws on the back.

Line drawing of a rectangular frame with a small tool inserted, no text or symbols present

INSTALLATION

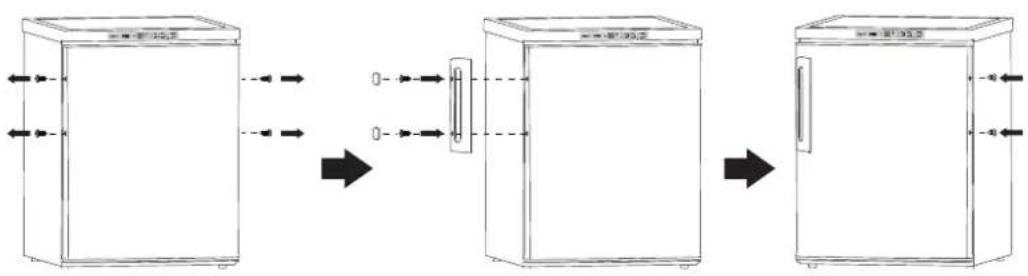

Install door external handle (if external handle is present)

Space Requirement

• Keep enough space of door open.
• Keep at least 50mm gap at two sides.

Pure geometric diagram showing a rectangle with a dashed rectangle and a curved line, no text or symbols present.

Leveling the unit

To do this adjust the two leveling feet at front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Note: Above pictures are for reference only.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class Ambient temperature
SN +10 °C	to +32 °C
N +16 °C	to +32 °C
ST +16 °C	to +38 °C
T +16 °C	to +43 °C

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabi-net and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjust-able feet at the base of the cabinet.

WARNING! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
• The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

DAILY USE

First use / cleaning the interior

- Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

IMPORTANT! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 6 settings:
  *1 is warmest setting;
  *5 is coldest setting;
  *0 is off.
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour
• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.

- For safety, store in this way only one or two days at the most.

- Cooked foods, cold dishes, etc....: these should be covered and may be placed on any shelf.

- Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Position different food in different compartments according to below table

Refrigerator compartments Type of food
Door or balconies of fridge compartment	* Food with natural preservatives, such as jams, juices, drinks, condiments* Do not store perishable foods
Crisper drawer (salad drawer)	* Fruit, herbs and vegetables should be placed separately in the crisper bin* Do not store bananas, onions, potatoes, garlic in the refrigerator
Fridge shelf - bottom Chiller (box/drawer)	* Raw meat, poultry, fish (for short-term storage)
Fridge shelf - middle * Dairy products, eggs
Fridge shelf - top	* Foods tha do not need cooking, such as ready-to-eat foods, deli meats, leftovers

NOTICE:

• The freezer compartment (evaporator) in this appliance is not an actual ice-making or freezing area - it is also not intended for storing frozen food.
• The temperature in this area is not low enough to freeze the food safely. A colder setting on the thermostat can be used to partially reduce the temperature in the freezer compartment, but this may also affect the temperature in the appliance's refrigeration compartment.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

IMPORTANT! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
  • After everything is dry place appliance back into service.

REPLACING BULBS:

When replacing the bulb, Unplug the appliance from the mains, proceed as follows :

1. Remove the water drip tray.
2. Hold the lamp cover and push toward inside of the cabinet.
3. Remove the lamp cover.
4. Unscrew the bulb and screw the new bulb.
5. Hold the lamp cover and put the hook of the lamp cover to click the thermostat box.
6. Pull the lamp cover to click the thermostat box.
7. Assemble the water tray.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

• Pull out the plug from the socket;
• Remove all stored food, wrap it in several layers of newspaper and put it in a cool place;
• Keep the door open, and placing a basin underneath of the appliance to collect the defrost water;
• When defrosting is completed, dry the interior thoroughly
• Replace the plug in the power socket to run the appliance again.

TROUBLESHOOTING

CAUTION! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

IMPORTANT! There are some sounds during normal use (compressor, refrigerant circulation). These sounds are not a reason for complaint!

Problem Possible cause Solution
Appliance does not work	Temperature regulation knob is set at number “0”.	Set the knob at other number to switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective (circuit breaker is OFF).	Check fuse, replace if necessary (switch ON the circuit breaker).
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much Temperature is set too cold.		Turn the temperature regulation knob to a warmer setting temporarily.

Problem Possible cause Solution

Unusual noises	Appliance is not level. Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Side panel is hot Condenser	is inside the panel. It's normal.

If the malfunction shows again, contact the Service Center.

INFORMATION LETTER

Brand	GODDESS
Model RSD084GW8SS,	RSD084GS8SS
Type of appliance 3)	3
Energy class(A - low consumption,G - high consumption)	A+
Consumption for 365 days 1)	110
Net capacity total(I) 93
thereof : fridge compartment (I) 83
thereof : freezer compartment(I) 10
Designation of freezer compartment (0 °C)
Time of storage in case of the power interruption (hrs)	-
Freezing capacity (kg/24 hrs) -
Climatic class 2)	N, ST
Noise level (dB(A)) 41

1)

Consumption of energy in kWh/year, based on the results of the 24hrs-standard test. Real consumption depends on the way of use and on the allocation of the appliance.

2)

SN : surround. temp. from + 10°C to + 32°C

N : surround. temp. from + 16°C to + 32°C

ST : surround. temp. from + 16°C to + 38°C

T : surround. temp. from + 16°C to + 43°C

3)

3 = fridge with low-temp. compartments

4 = fridge with low-temp. compartments (*)

5 = fridge with low-temp. compartments (**)

7 = fridge with low-temp. compartments ( ** )

8 = freezer

9 = freezer

This refrigerator must be used in ambient temperature between +16°C and +38°C, if the refrigerator is located in ambient temperature out of the given range, may not function properly).

We reserve the right to change technical specifications.

For any further information, please write to: [e-mail]

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent

possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

TARTALOM

Line drawing of a simple kitchen appliance with a lid and side panel (no text or symbols)

Technical line drawing of a mechanical assembly with a tool inserted (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical line drawing of a mechanical linkage assembly with two views (one circular, one straight), no text or symbols present.

Technical line drawing of a mechanical assembly with clamps and a circular component (no text or symbols)

Line drawing of a flatboard with a screwdriver inserted, no text or symbols present

TELEPÍTÉS

Helyszükséglet

Pure geometric diagram showing a rectangle with a dashed rectangle and a curved line, no text or symbols present.

Hely

Sequence of black-and-white images showing a person assembling a LEGO brick with a small object, no text or symbols visible.
