17Z012 - Kettle Zelmer - Free user manual and instructions

Product Type	Electric Kettle
Brand	Zelmer
Model	17Z012
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Housing Material	Plastic / Stainless Steel
Color	White / Black
Auto Shut-Off	Yes
Boil-Dry Protection	Yes
Concealed Heating Element	Yes
Cordless Base	Yes
360° Rotation	Yes
Removable Filter	Yes
Water Level Indicator	Yes
Lid Type	Flip-top / Push-button
Handle	Ergonomic, Cool-touch
Weight	Approx. 1.2 kg
Dimensions (H x W x D)	Approx. 25 x 22 x 18 cm
Cable Length	Approx. 0.75 m
Safety Features	Auto shut-off, boil-dry protection, thermal fuse
Care Instructions	Descale regularly, wipe with damp cloth
Spare Parts Availability	Filters, lids, bases (contact support)

Frequently Asked Questions - 17Z012 Zelmer

How do I descale the Zelmer 17Z012 kettle?

To descale, fill the kettle with a mixture of water and white vinegar (1:1) or use a commercial descaler. Boil, let sit for 30 minutes, then rinse thoroughly. Repeat if needed.

Does the kettle automatically shut off when boiling?

Yes, the Zelmer 17Z012 features an automatic shut-off that turns the kettle off once the water reaches boiling point.

What is the capacity of the Zelmer 17Z012 kettle?

The kettle has a capacity of 1.7 litres, ideal for multiple cups.

Is the heating element concealed?

Yes, the heating element is concealed, making cleaning easier and reducing limescale buildup.

Can I use the kettle without the base?

No, the kettle is cordless but must be placed on the base to operate. The base connects to the mains.

What is the power rating of this kettle?

The kettle operates at 2200 W for fast boiling.

Does the kettle have a water level indicator?

Yes, it features a transparent water level window with markings for easy filling.

Is the filter removable?

Yes, the kettle includes a removable anti-scale filter that can be cleaned or replaced.

What safety features does the kettle have?

It includes auto shut-off, boil-dry protection, and a thermal fuse for safe operation.

How do I clean the outside of the kettle?

Wipe the exterior with a damp cloth and mild detergent. Do not immerse in water or use abrasive cleaners.

USER MANUAL 17Z012 Zelmer

Two modern water heaters with coffee cups and chocolate cookies, one with a blue logo (no visible text or symbols)

PL	NISTROKIA JYRTIATNA CZAJNIK ELEKTRYCZNY Typ 172912 Typ 172918	4-5
CZ	NIVOD K PCUZI ELEKTRICKA KONVICE Typ 172912 Typ 172918	7-9
TA	NIVOD NA OBSUŁKI ELEKTRICKA KANICA Typ 172912 Typ 172918	10-12
TC	HASZVALTUNAS ELEKTROMOS VIZFORALO 172912 Typs/172918 Typs	13-10

ISO	N3106.1.15 DE 17 LEAV- PERBATOR ELECTRIC
	Tm 172012/Tip 172016	18-19
ISO	N3106.1.15 CHENI 17 2004/17/2014- ЭЛЕКТРИЧЕСКИЙ ЧАЙНИК
	Tm 172012/Tip 172018	19-21
ISO	N3106.1.15 CHENI 31 2004/17- ЭЛЕКТРИЧЕСКА КАНА
	Tm 172012/Tip 172018	22-24
ISO	N3106.1.15 31 2004/17- ЭЛЕКТРОЧАЙНИК
	Tm 172012/Tip 172018	29-27

17	VARTOSIMO FEDRUKCALELEKTRINIAI VIRDULIAITlps 172812T/tpas 172019	20-28
	LEJISARNSA NISHIKANLELEKTRISKÄS TELIKANNASTls 172812T/tpas 172019	30-3
	KASUUSULUDELEKTRITEEKANNUDTUSp 172812T/tpas 172319	32-32
	VULKANPELELECTRIC KETTLERTypas 172012/TPas 172019	34-36

The following table is in Chinese:

无法识别

2014年

The

[Unreadable]

zelmer

www.zelner.pl www.zelner.com

A

B

C

Szanowni Klienci!

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.

Safety precautions and instructions on the proper use of the electric kettle

Always abide by the following basic safety measures during the operation of the electric appliance:

Danger! / Warning!

Health hazard

Special attention is necessary when the kettle is used in the presence of children.

Do not operate the appliance if the power cord is damaged or the kettle body is visibly damaged.

the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

Only qualified staff may make repairs of the appliance. A wrongly done repair my cause a serious threat to the user. It may also result in a cancellation of the warranty. In case any defects occur, we recommend that you take the appliance to a specialist service point.

Do not touch the metal body of the kettle when in use – only use the handle to move the kettle.

Do not fill the kettle beyond the maximum fill indicator „max“ – water might spatter out of the kettle.

- Be careful not to wet the plug of the connecting cord.

Mind the steam coming out of the kettle while water is boiling.

Allow the kettle to cool completely before cleaning it.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Caution!

Not observance can result in damage to possessions

always plug in the appliance to a mains outlet (alternating current only) with the voltage corresponding to that indicated on the appliance rating plate and equipped with a grounding prong.

always place the kettle on a stable, even, and flat surface; the power cord may not hang loosely off the edge of a table or any other work surface, nor touch a heated surface.

Do not remove the plug from the outlet by pulling by the cord.

The kettle can only be operated with the original power base, each base is type-specific.

Use the kettle for boiling water only.

- Do not open the lid immediately after water has boiled – steam might condense and appear on the exterior of the kettle.

Do not place the kettle on or near hot objects.

Do not immerse the kettle or the power base in water when filling or washing the electric kettle.

the event that water gets into the inside electric elements of the kettle, or onto the power base, carefully dry these elements before plugging the kettle into the mains.

Do not operate the kettle when empty.

Do not use the kettle with the lid open – the automatic shut off will not work then.

Do not use any abrasive cleaning agents such as emulsions, creams, pastes, etc for cleaning the kettle body. They might remove graphic information symbols such as: scales, marks, warning signs, etc.

The appliance is not intended to be operated by means of an external timer or separate remote-control system.

stion

Information on the product and suggestions for its use

The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions shall change.

Do not use the kettle without a filter.

The kettle type covered by this user's manual brings water to boil very quickly and draws up to 10 A of current from the mains.

Check that the mains fuses used can cope with this level of power consumption. While boiling water, unplug all other appliances from this circuit.

Technical data

The technical parameters are given on the data plate of the product.

1.7 liter capacity.

Zelmer electric kettles are built in I class insulation and they are equipped with supplying cord with grounding wire and grounding plug.

The ZELMER kettle meets the requirements of the standards in force.

The appliance is compliant with the requirements of the following directives:

The Low Voltage Directive (LVD) - 2006/95/EC.

Electromagnetic Compatibility (EMC) - 2004/108/EC.

The product is affixed with a CE Mark on the data plate.

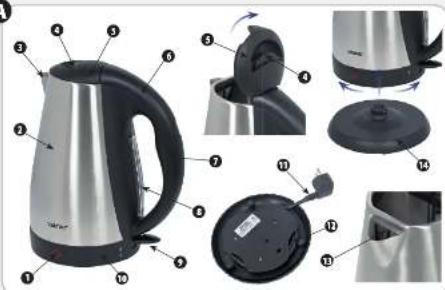

Structure of the kettle (Fig. A)

① Control light
2 Metal casing
3 Spout
4 Lid release button
5 Lid
6 Handle cover
7 Handle
8 Water level indicator
9 On/off button
10 Base of the kettle
11 Supplying cord
12 Storage space for the connecting cord
13 Anti-deposit filter
14 Base

Preparation of the electric kettle for operation

before the first use, wash the kettle (for washing instructions see “Cleaning maintenance”), fill it with water up to the “max” level, and let it boil four times (use fresh water each time) and wash again.

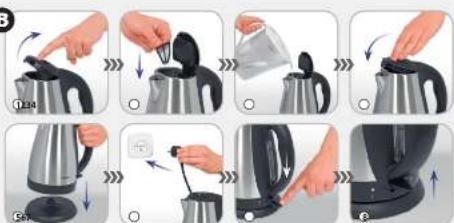

Operating instructions of the electric kettle (Fig. B)

① Press the lid button (4) – the kettle lid will open.
② Place the filter (13) in the kettle – if it was taken out before.
③ Fill the kettle up with the desired amount of water (the level is visible on the indicator (8)).

not boil the water if it is below the minimum level or beyond the maximum level indicator (8).

④ Close the lid.
⑤ Place the kettle on the power base (14).
⑥ Put the plug of the connecting cord into a mains socket with an earth pin – the upper part of the kettle body will light up.
⑦ Turn the kettle on by pressing the lever (9) – the indicator light will come on.
⑧ The kettle switches off automatically when the water has reached the boiling point, the lever switch returns to its starting position – the light comes off.

If further use of the kettle is anticipated, it is not necessary to remove the plug of the connecting cord from the power socket.

Be careful not to fill up with water beyond the nominal capacity when pouring water into the kettle.

The rising of the water level in the kettle is delayed in relation to the speed of pouring the water. It is caused by the filter slowing down the speed of the flow. This can be prevented by pouring the last portions of water extremely carefully before the water reaches the maximum level on the indicator.

In the event that an empty kettle is switched on, it will be switched off by a thermal device automatically.

In order to switch the kettle on again after it has cooled down (approx. 15 minutes), take it off the base, replace it and switch the kettle on by pressing the lever (9). The cooling down of the kettle can be accelerated by puring cold water into the kettle.

Cleaning and maintenance

(Fig. C)

Always clean a cold kettle!

① Remove the plug of the connecting cord from the power socket.
② Take out the filter (13).
③ Clean the outside surfaces with a soft cloth moistened inside with washing-up liquid.
In order to remove the build-up of hard water film from the outside and inside walls of the kettle, wipe them with a cloth moistened with vinegar.
④ Rinse the kettle with fresh water.

Filter replacement – descaling

In the event that scale builds up on the bottom of the kettle, it needs to be removed. 6% or 10% vinegar is used for this purpose.

• Open the lid (4).
  Take out the filter (14).
• Wash the filter under running water.
  Pour in 0.5 l of vinegar and switch on the kettle (9).
• But the vinegar and leave in the kettle for about 30 minutes.

Pour the vinegar out and rinse the kettle with fresh water.
Fill the kettle up with fresh water, boil the water and pour it out after is has boiled.
Repeat the above procedure if there still is scale on the bottom.
When the procedure is finished, replace the filter (13) in the kettle, following the procedure of taking the filter out in reverse order.

gligence in descaling the kettle may results in its damage.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose into the domestic waste disposal!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
