| Product Type | Kettle |
| Brand | Zelmer |
| Model | 17Z024 |
| Capacity | 1.7 Liters |
| Power | 2200 - 2400 W |
| Voltage | 220 - 240 V |
| Frequency | 50 - 60 Hz |
| Material | Stainless Steel |
| Weight | Approx. 1.2 kg |
| Dimensions (H x W x D) | 24 cm x 22 cm x 17 cm |
| Auto Shut-off | Yes |
| Boil-Dry Protection | Yes |
| Cord Length | Approx. 0.75 m |
| Cordless | Yes (360° base) |
| Filter | Removable lime scale filter |
| Water Level Indicator | Yes |
| Lid Opening | One-button push |
| Safe Handling | Cool-touch handle |
| Cleaning | Descale regularly with vinegar or citric acid; wipe exterior with damp cloth |
| Spare Parts Availability | Contact authorized service centers or online retailers |
Frequently Asked Questions - 17Z024 Zelmer
User questions about 17Z024 Zelmer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Kettle in PDF format for free! Find your manual 17Z024 - Zelmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 17Z024 by Zelmer.
USER MANUAL 17Z024 Zelmer
| CZAJNIK ELEKTRYCZNY | |
| Typ 172024 |
| CD HAS784 AT UTASITAS ELEKTROMOS VIZFORRALÓ 122024 Típus | 13-15 |
The image is too blurry to recognize any text content.
The quick brown fox jumps over the lazy dog.
zelmer
www.ahnet.pl
www.zelmer.com
A
B
C
PL
Szanowni Kliendi!
the unichamia, craniha her wocy.
Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.
In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.
We urge that you read this user's manual carefully. Special attention needs to be paid to the safety precautions. Please save this manual so it can be referred to in the future use of the product.
Safety precautions and instructions on the proper use of the electric kettle
Always abide by the following basic safety measures during the operation of the electric appliance:
Danger! / Warning! Risk of injury
Special attention is necessary when the kettle is used in the presence of children.
Do not operate the appliance if the power cord is damaged or the kettle body is visibly damaged.
the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.
Repairs may only be undertaken by qualified staff. Repairs not properly carried out may result in serious injuries to the user. In case of malfunction, contact specialized service centre.
Do not touch the metal body of the kettle when in use – only use the handle to move the kettle.
Do not fill the kettle beyond the maximum fill indicator "max" – water might spatter out of the kettle.
Use the kettle for boiling water only.
Be careful not to wet the plug of the connecting cord.
Mind the steam coming out of the kettle while water is boiling.
Allow the kettle to cool completely before cleaning it.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Warning! Risk of property damage
Plug the kettle into a 220÷240 V alternating current socket equipped with an earth pin only.
Place the kettle on a stable, even and flat surface; the connecting cord may not hang over the edge of the surface on which the kettle is placed.
Do not remove the plug from the outlet by pulling by the cord.
The kettle can only be operated with the original power base, each base is type-specific.
Do not open the lid immediately after water has boiled – steam might condense and appear on the exterior of the kettle.
Do not place the kettle on or near hot objects.
Do not immerse the kettle or the power base in water when filling or washing the electric kettle.
the event that water gets into the inside electric elements of the kettle, or onto the power base, carefully dry these elements before plugging the kettle into the mains.
Do not operate the kettle when empty.
Do not use the kettle with the lid open – the automatic shut off will not work then.
Do not use any abrasive cleaning agents such as emulsions, creams, pastes, etc for cleaning the kettle body. They might remove graphic information symbols such as: scales, marks, warning signs, etc.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.
Information on the product and hints on its use
The kettle is intended for household use only.
The kettle type covered by this user's manual brings water to boil very quickly and draws up to 10 A of current from the mains.
Check that the mains fuses used can cope with this level of power consumption. While boiling water, unplug all other appliances from this circuit.
Do not use the kettle without a filter.
Technical data
The technical parameters are given on the data plate of the product.
1.7 liter capacity.
The ZELMER kettle meets the requirements of the standards in force.
The appliance is compliant with the requirements of the following directives:
The Low Voltage Directive (LVD) - 2006/95/EC.
Electromagnetic Compatibility (EMC) - 2004/108/EC.
The product is affixed with a CE Mark on the data plate.

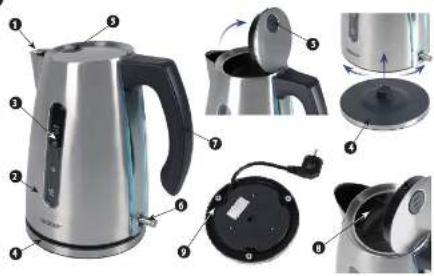

Structure of the kettle (Fig. A)
1 Spout
2 Kettle body
3 Dual water indicator
4 Revolving power base
5 Lid release button
6 On/off lever
7 Handle
8 Anti-deposit filter
9 Storage space for the connecting cord
Preparation of the electric kettle for operation
Before the first use, wash the kettle inside (for washing instructions see “Cleaning and maintenance”), fill it with water up to the “max” level, and let it boil four times (use fresh water each time) and wash again.

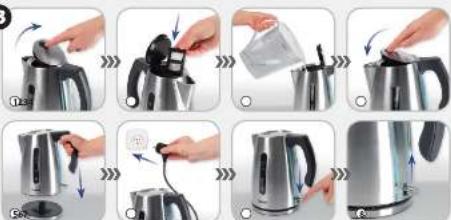

Operating instructions of the electric kettle (Fig. B)
① Press the lid button (5) – the kettle lid will open.
② Place the filter (8) in the kettle – if it was taken out before.
③ Fill the kettle up with the desired amount of water (the level is visible on the indicator (3)).
not boil the water if it is below the minimum level or beyond the maximum level on the indicator (3).
④ Close the lid.
⑤ Place the kettle on the power base (4).
⑥ Put the plug of the connecting cord into a mains socket with an earth pin – the upper part of the kettle body will light up.
⑦ Turn on the kettle by pressing the on/off lever (6) – the water level indicator will light up (3).
⑧ The kettle switches off automatically when the water has reached the boiling point, the lever switch returns to its starting position – the light comes off.
If further use of the kettle is anticipated, it is not necessary to remove the plug of the connecting cord from the power socket.
reful not to fill up with water beyond the nominal capacity when pouring water into the kettle.
The rising of the water level in the kettle is delayed in relation to the speed of pouring the water. It is caused by the filter slowing down the speed of the flow. This can be prevented by pouring the last portions of water extremely carefully before the water reaches the maximum level on the indicator.
In the event that an empty kettle is switched on, it will be switched off by a thermal device automatically.
In order to switch the kettle on again after it has cooled down (approx. 15 minutes), take it off the base, replace it and switch the kettle on by pressing the lever (6). The cooling down of the kettle can be accelerated by pouring cold water into the kettle.
Cleaning and maintenance (Fig. C)
Always clean a cold kettle!
① Remove the plug of the connecting cord from the power socket.
② Take out the filter (8).
③ Clean the outside surfaces with a soft cloth moistened with washing-up liquid.
In order to remove the build-up of hard water film from the outside and inside walls of the kettle, wipe them with a cloth moistened with vinegar.
④ Rinse the kettle with fresh water.
Filter replacement – descaling
In the event that scale builds up on the bottom of the kettle, it needs to be removed. 6% or 10% vinegar is used for this purpose.
- Open the lid (5).
Take out the filter (8). - Wash the filter under running water.
- Pour in 0.5 l of vinegar and switch on the kettle (6).
- Boil the vinegar and leave in the kettle for about 30 minutes.
- Pour the vinegar out and rinse the kettle with fresh water.
- Fill the kettle up with fresh water, boil the water and pour it out after is has boiled.
- Repeat the above procedure if there still is scale on the bottom.
- When the procedure is finished, replace the filter (8) in the kettle, following the procedure of taking the filter out in reverse order.
gence in descaling the kettle may results in its damage.
Ecology – environment protection
Each user can protect the natural environment. It is neither difficult nor expensive.
In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.
When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.
Do not dispose into the domestic waste disposal!!!
The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.
The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
