Product Type	LED TV
Screen Size	40 inches (100 cm)
Aspect Ratio	16:9
Resolution	1920 x 1080 pixels (Full HD)
Dynamic Contrast	1,000,000:1
Tuner	HD DVB-T MPEG2/4
Sound Output	2 x 10 W
Connectivity	3 x HDMI, 1 x USB, 1 x SCART, 1 x Component YPbPr, 1 x VGA, 1 x PC Audio In, 1 x Headphone, 1 x RF In
Power Consumption (max)	75 W
Standby Power	≤ 0.5 W
Energy Class	A
Dimensions with Stand	909 x 516 x 210 mm
Dimensions without Stand	909 x 516 x 70 mm
Device Weight	9.5 kg
VESA Mount	200 x 200 mm
Supported Media Formats	.mpg, .avi, .ts, .mp4, .mkv, .vob, .mp3, .aac, .jpg, .wav, .m4a, .wmv
Special Features	PVR recording to USB, Timeshift, EPG, Parental Lock, Sleep Timer, Auto Shut-off
Safety Class	Class II (double insulation)
Video Systems	PAL / NTSC / SECAM
Cleaning Instructions	Unplug power, wipe with dry cloth

Frequently Asked Questions - 40 LED 722 PVR ECG

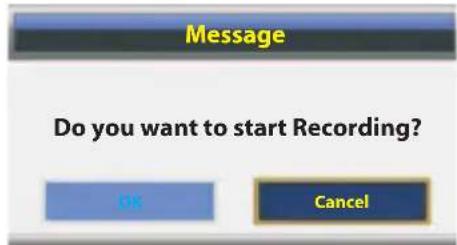

How do I record a TV program using the PVR function?

Press the REC button on the remote controller while watching a DTV channel. Confirm the prompt to start recording. For timed recording, use the EPG menu: press the green button twice to schedule a recording. Ensure a USB storage device is connected and has sufficient speed.

How do I set up parental controls?

Go to Menu > Function > Lock. Enable Lock Channel or Parental Control and set a 4-digit PIN (default: 0000). You can also change the PIN using the Change Pin Code option.

What should I do if the TV has no picture but sound is working?

Check the Brightness and Contrast settings in the Picture menu. Also ensure the input source is correct using the SOURCE button. If using PC mode, verify the video cable connection and PC resolution.

Can I connect a USB drive? What file formats are supported?

Yes, connect a USB drive to the USB IN port. Supported formats include: .mpg, .avi, .ts, .mp4, .mkv, .vob, .mp3, .aac, .jpg, .wav, .m4a, .wmv. The TV can play multimedia files and record programs to the USB.

How do I perform a software update?

Download the update file (binary) to the root of a USB drive. Connect the USB to the TV, go to Menu > Setup > Software Update, and press ENTER. Do not turn off the TV during the update.

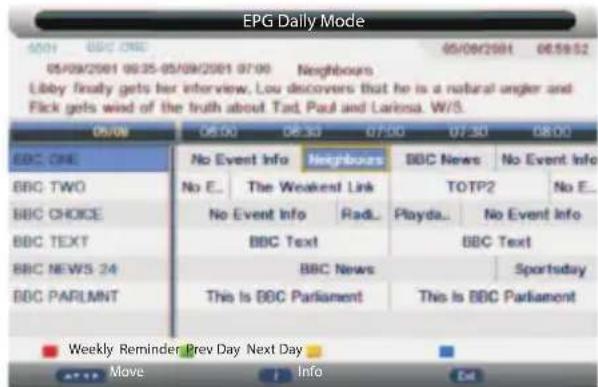

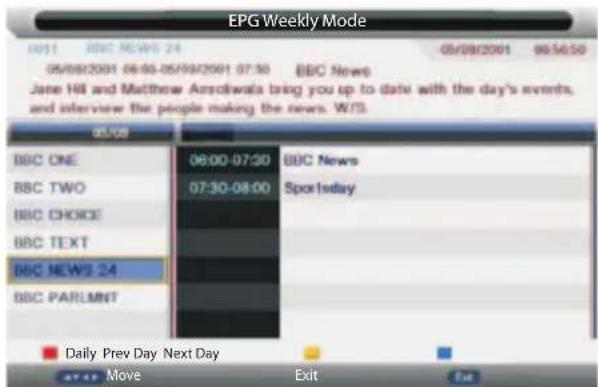

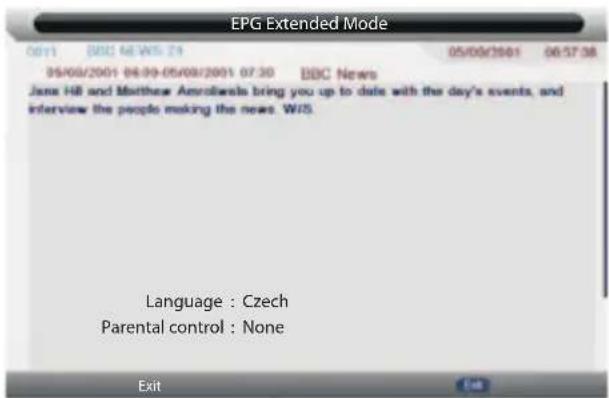

How do I use the Electronic Program Guide (EPG)?

Press the GUIDE button on the remote. You can view program schedules in Daily, Weekly, or Extended modes. Use arrow keys to navigate, and the green button to set reminders or recordings.

What are the dimensions for wall mounting?

The TV supports VESA 200 x 200 mm wall mounts. The device dimensions without stand are 909 x 516 x 70 mm. Ensure the wall can support the weight (9.5 kg).

How do I reset the TV to factory settings?

Go to Menu > Setup > Reset TV Setting. If locked, enter the PIN (default 0000). Confirm the reset. The TV will restart and enter the initial setup.

Why is the remote controller not working?

Check the batteries: replace if dead. Ensure there are no obstacles between the remote and the TV sensor. Point the remote directly at the sensor. If still not working, try resetting the TV by unplugging it for 60 seconds.

Is the TV energy efficient?

Yes, it is rated Energy Class A with a maximum power consumption of 75 W and standby power ≤0.5 W. The annual energy consumption is approximately 103 kWh (based on standard usage).

USER MANUAL 40 LED 722 PVR ECG

Modern ECG monitor displaying a pink abstract background with flowing pink and black streaks (no text or symbols visible)

40 LED 722 PVR

LED TV

NÁVOD K OBSLUZE

CZ

LED TV

NÁVOD NA OBSLUHU

SK

LED TV

INSTRUCTION MANUAL

GB

Simple line drawing of a kitchen sink with a faucet and water spray (no text or symbols)

Illustration of a table with a tray and a magnified inset showing three objects (no text or symbols)

Umístění televizoru

POPIS

OSTATNÍ FUNKCE

EPG

Simple line drawing of a laboratory setup with a funnel and test tube (no text or symbols)

Illustration of a table with a mouse and a magnified inset showing three small objects (no text or symbols)

Pripojenie antény a napájania

POPIS

LED TV

CONTENTS

INTRODUCTION 50

TV INSTALLATION AND SETUP ....50

Instructions for assembling the stand ....50

Positioning....50

Antenna and power connection....50

DESCRIPTION 51

TV and interface buttons....51

Installation diagram for external devices....53

TELEVISION CONTROLS....54

Picture menu....54

Audio menu....55

Channel menu....56

Function menu....58

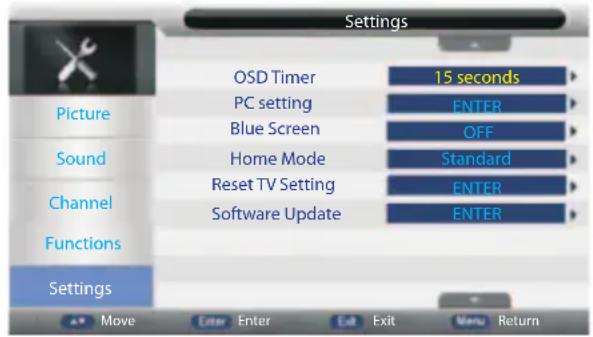

Setup Menu 59

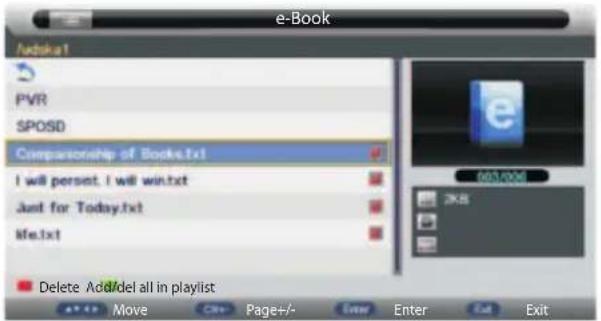

Multimedia 61

OTHER FUNCTIONS 62

EPG 62

PVR....63

Recording....63

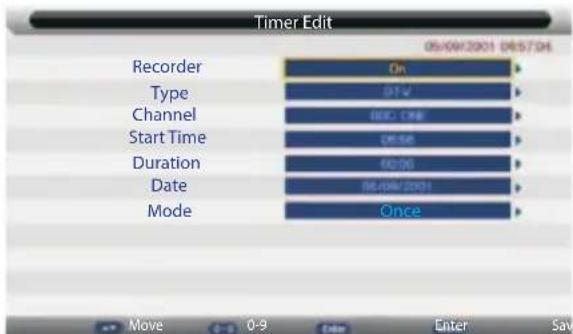

Timed recording 63

TROUBLESHOOTING 65

TECHNICAL SHEET 66

SAFETY INSTRUCTIONS

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fl uctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fi re or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

ATTENTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN THE COVER OR BACK PANEL OF THE DEVICE. THERE ARE NO COMPONENTS INSIDE THAT THE USER COULD REPAIR HIMSELF. ALWAYS REFER TO TRAINED SERVICE EMPLOYEES.

A lightning arrow symbol inside an isosceles triangle shall warn the user about uninsulated "dangerous voltage" inside the device, which can be high enough to cause injury by electric current.

An exclamation point inside an isosceles triangle shall inform the user about the abundant amount of important instructions for operating the device and its maintenance (or service) that can be found in the included manual.

1. Read all of the instructions carefully.
2. Keep the instructions for future use.
3. Pay attention to warnings found in the manual.
4. Follow all instructions.
5. Do not use the device close to water.

6. Clean only with dry cloth.

7. Do not block exhaust vents. Install the device according to the manufacturer's instructions.

8. Do not install near heating sources, such as radiators, heating units, stoves, or other appliances (including amplifiers) producing heat.

9. Do not bypass the safety function of a grounded outlet. The power cord plug has two pins and one ground contact, ensuring your safety. If your socket does not match the power cord of this TV, ask an electrician to replace the old socket.

10. Protect the power cord, do not step on it, prevent against pinching the cord, particularly near the plug and the area where the cord exits the device.

11. Use only accessories and optional accessories recommended by the manufacturer.

12. Disconnect the power cord from the socket during thunderstorms or in case you do not plan to use the device for a long period of time.

13. Refer to qualified service workers for all necessary repairs. The device requires service if it is damaged in any way. For example, if the power cord or plug is damaged, liquid gets inside the device or a the device is penetrated by a foreign object, is exposes to rain or moisture, falls or does not function as usual.

14. The socket that the TV is connected to is used to disconnect the device from the power network and must be easy to access at all times.

15. Ventilation holes shall not be covered by objects such as newspapers, tablecloths, curtains etc., because this prevents the necessary ventilation of the device.

16. Do not place any sources of open fire on the device, for example burning candles.

17. Respect the ecological disposal of batteries.
18. The device is designed for operation in mild climates.
19. Prevent water dripping on the device and getting into the device. Do not place any objects filled with liquid on the device, e.g. a vase with flowers.
20. Electric discharge can lead to failing device functions. Functions can be manually restored by turning the device off and on again.

WARNING:

Do not expose the device to rain or moisture, this reduces the risk of fire or electric shock.

WARNING:

Protect the batteries against exposure to high temperatures, e.g. direct sunlight. Do not throw batteries into a fi re.

This symbol indicates the device is classified as a class II device, with double insulation between dangerous voltage and user access parts. Only use identical spare parts when performing service work.

GB

Warning

This television receiver uses high voltage for operation. Do not remove the back cover of the device. Have all service operations carried out by qualified workers.

Attention

Make sure the power cord does not get caught under the TV.

Warning

Do not expose the device to rain or moisture, this reduces the risk of fire or electric shock.

Attention

Do not lean against the TV, tilt or push the device. Pay close attention to the presence of children. A falling device could cause serious injury.

Warning

Prevent foreign objects entering the ventilation holes of the device. Protect the TV against liquid spills.

Attention

Do not install the TV on unstable carts, stands, shelves or tables. A fall could damage the device or cause injury.

Attention

Do not cover the ventilation holes on the back cover of the device. Sufficient ventilation is necessary for the proper functioning of electrical components.

Attention

Minimum spacing distances must be respected if the TV is installed in the entertainment centre compartment or other enclosed area. Overheating can shorten the service life of the device and can also be dangerous.

Attention

If you do not plan to use the device for a longer period of time, we recommend disconnecting the power cord from the socket.

INTRODUCTION

Thank you for purchasing this television product. In order to use this device to its full potential from the very start, read this manual carefully and keep handy for future use.

ATTENTION

Do not tamper with any internal device components and do not perform any adjustments that are not defined in this manual. LED TVs use high voltage. When cleaning dust or drops off the display or device case, you should first unplug the power cord from the socket and then wipe the device with a dry towel. To prevent damaging the TV, disconnect the power cord and antenna during a thunderstorm. Refer to a qualified service centre for all necessary repairs.

TV INSTALLATION AND SETUP

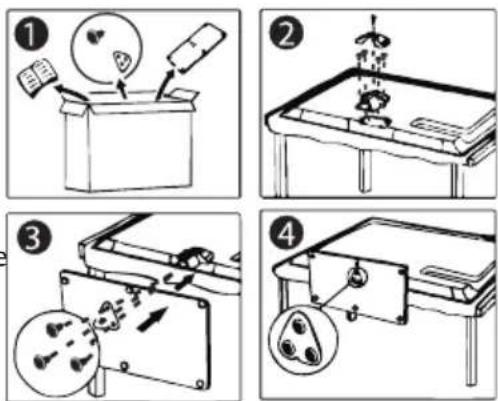

Instructions for assembling the stand

1. Open the cardboard box and remove the TV, accessories and stand (only available with certain models).
2. Place the device on a fl at service with the screen facing down. Use a blanket or other soft fabric to protect the display.
3. Slide the stand into the holder and firmly tighten with the included screws.
4. You are now finished with the assembly.

Positioning

• Place the unit within the room so that the display is not exposed to direct sunlight.
• Complete darkness or reflections on the screen can cause eye fatigue. Soft indirect light is recommended for comfortable viewing.
• Leave enough space between the device and wall to allow sufficient air circulation.
• Stay away from excessively warm areas to prevent damaging the case of the device or the premature ageing of components.
• Do not cover ventilation holes.

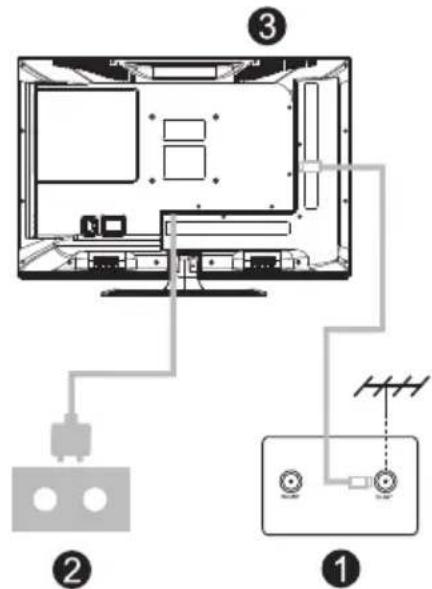

Antenna and power connection

1. Connect the antenna cable to the antenna connector on the back side of the TV.
2. Plug the power cord into the electric socket.
3. Switch the TV on.
   Press the On/Off switch on the TV. The indicator will turn green. When the TV is in standby mode (red indicator), the TV can be turned on by pressing a button on the remote controller.

DESCRIPTION

TV and interface buttons

Buttons on the TV

Note: The following description only represents a functional diagram. The actual position and layout can differ for various models.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

+

Power On/Off

SOURCE : External signal source

MENU : Displays the main menu and confi rms selected items

CH+/- : Channel selection

VOL +/- : Volume control

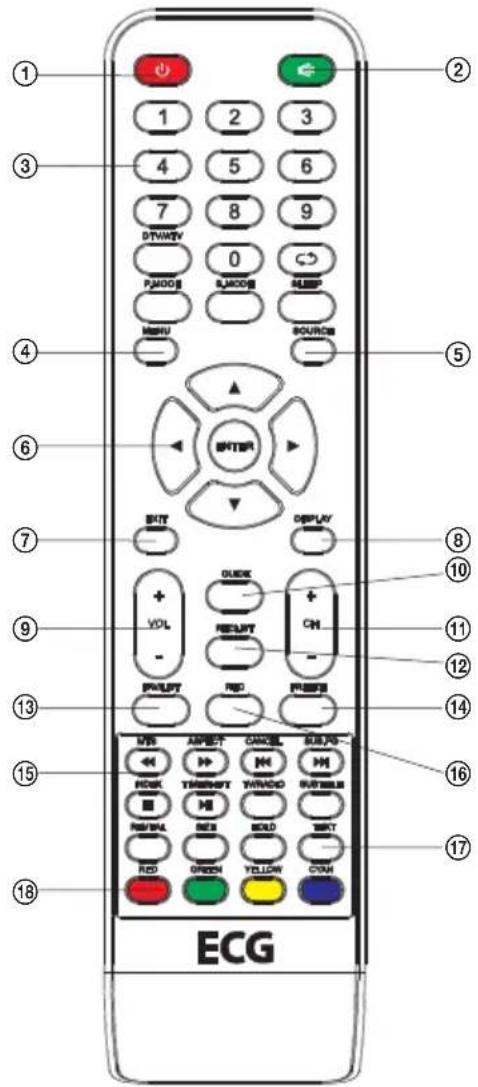

Buttons on the remote controller

1. ⏻: Turn the TV on or off into standby mode.
2. ☐: Audio on/off toggle.
3. NUMERICAL BUTTONS: Direct channel entry.
4. MENU: Display main menu on screen.
5. SOURCE: Press to display the available sources of video and their selection.
6. ARROWS: Menu controls. / ENTER: Confirm selection.
7. EXIT: Return to previous menu or leave menu.
8. DISPLAY: Display information
9. VOL +/-: Volume control.
10. GUIDE: Displays information about the current program and programs that follow (in DTV mode).
11. CH-/CH+: Switch to previous or next channel.
12. RECLIST: List of recordings
13. FAV/LIST: Access to the list of favourite channels.
14. FREEZE: Freezes the display on the screen.
15. USB speaker control button.
16. REC: Press to start recording the current TV program (in DTV mode).
17. TEXT: Open teletext.
18. Color buttons: Controlling the function indicated on the screen

Interface

Note: The following table provides an overview of various interfaces. The actual position, type, layout and number of interfaces can differ for various models.

	AV inExternal video and audio signal In (left and right channel).
	CI slotThis slot supports cards for viewing paid TV channels.
	Y Pb Pr InComposite video signal connection from DVD/VCR.*
	HDMI InDigital signal input via HDMI connector.
	ANT 75Antenna In connection (75/VHF/UHF).
	VGA InAnalog video from PC In.
	PC audio InAudio signal from PC with VGA video signal connection.
	Headphone jackSound is automatically disabled from the TV speakers when headphones are connected.
	USB INConnecting a USB device and playing media fi les or recording programs to USB.
	SCART InComposite and RGB signal input supported as a standard.(Some models are not equipped with this interface)
	COAXIALSupports the connection of an SPDIF receiver.

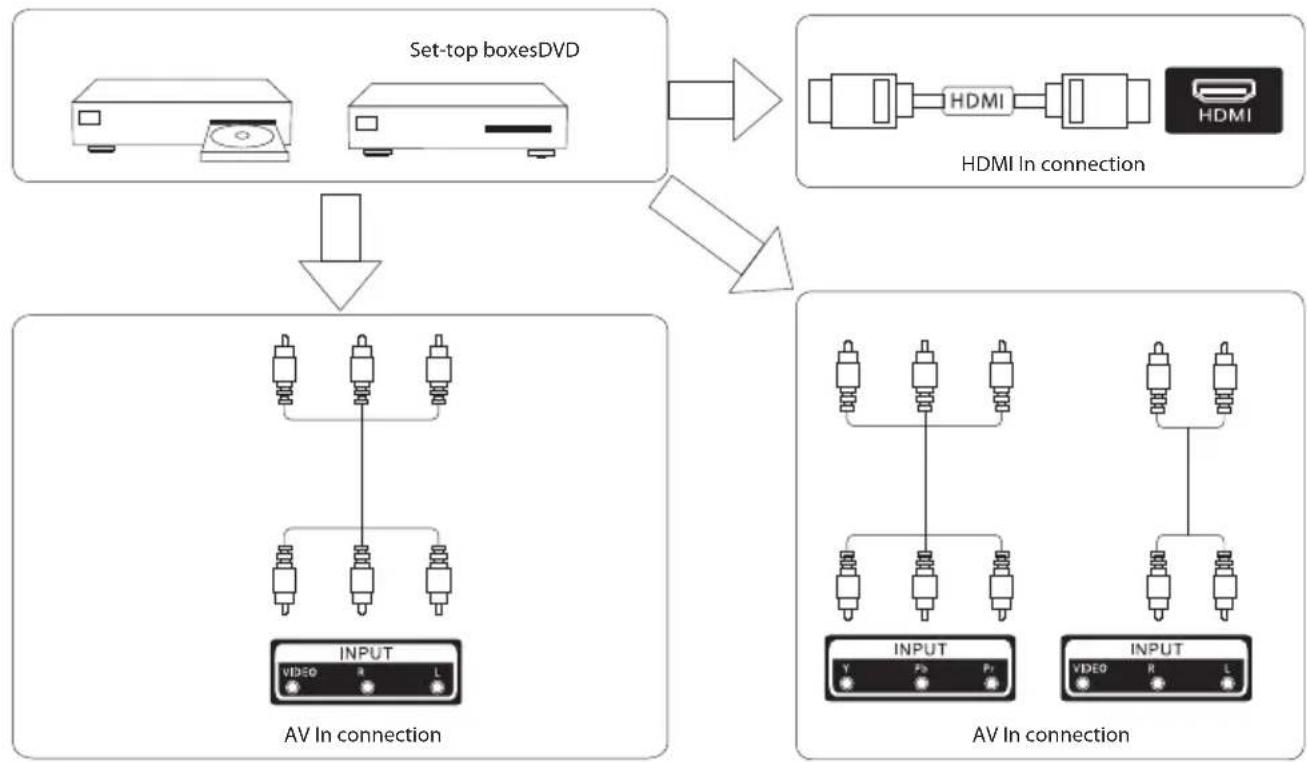

Installation diagram for external devices

GB

TELEVISION CONTROLS

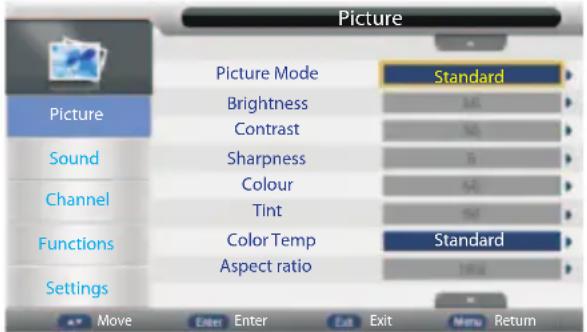

Picture menu

Press MENU to display the main menu.

Press ENTER /▶ to select Picture from the main menu and press ENTER /▶ to enter the menu.

1. Select the option you wish to configure in the "Picture" menu via ▼/▲.
2. Press ENTER/▼ to enter the menu and press ◀/► to choose the desired setting.
3. When you have finished with the configuration, press MENU/ENTER to save the changes and return to the previous menu.

GB

Picture Mode

Available picture modes: Dynamic, Soft, Standard, User.

Tip: Press P.MODE to directly set the screen mode.

Brightness/Contrast/Sharpness/Colour/Tint

Brightness Brightness settings.

Contrast Contrast settings.

Sharpness Sharpness settings

Colour Colour saturation settings.

Tint Colour hue settings. For signal in NTSC format only.

Colour Temp

Changes the overall colour representation of the picture.

Aspect ratio

Choose the desired aspect ratio.

Tip: Press ASPECT to directly change the picture aspect ratio.

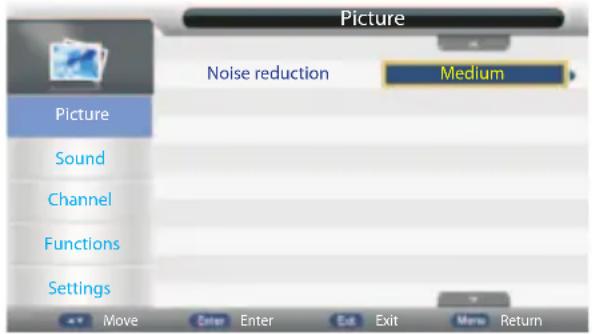

Noise reduction

Noise reduction in picture. This setting is used to reduce noise and enhance picture quality. Noise reduction settings include Low-Middle-High. Increased noise reduction can be achieved at the expense of picture sharpness

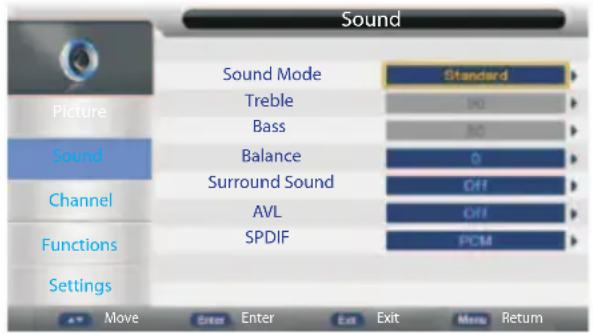

Audio menu

Press MENU to display the main menu.

Press ENTER /▶ to select Sound from the main menu and press ENTER /▶ to enter the menu.

1. Select the option you wish to configure in the "Sound" menu via ▼/▲.
2. Press ENTER/▼ to enter the menu and press ◀/► to choose the desired setting.
3. When you have finished with the configuration, press MENU/ENTER to save the changes and return to the previous menu.

Sound Mode

Available modes: Standard, Movie, Music, Speech, User.

Tip: Press S.MODE to directly set the sound mode.

Press ▼/▲ to select Sound Mode and choose the desired mode via ◀/▶.

Treble / Bass / Balance

Treble High frequency tones can be increased or decreased.

Bass Low frequency tones can be increased or decreased.

Balance The balance between left and right channel volume can be adjusted.

Surround Sound

Press ENTER/▶ to enter the menu and press ▼/▲ to choose On or Off.

AVL

Automatic volume control setup.

Press ▼/▲ to select On or Off.

SPDIF

Press ENTER/▶ to enter the menu and press ▼/▲ to choose Off / Auto / PCM.

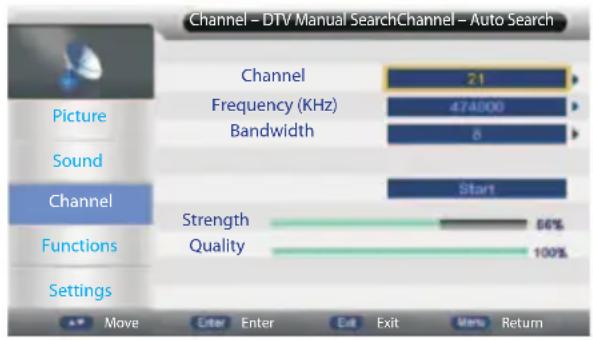

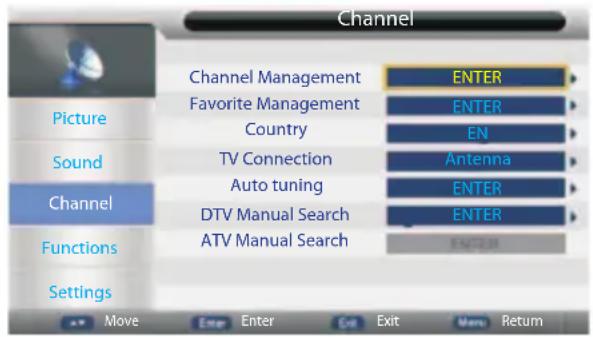

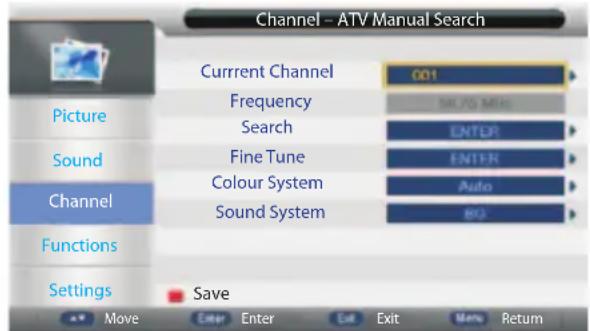

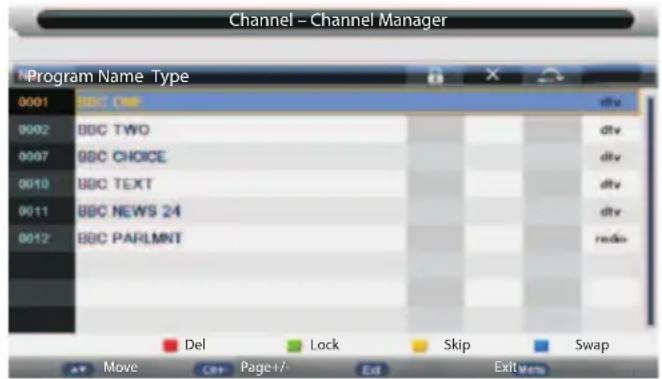

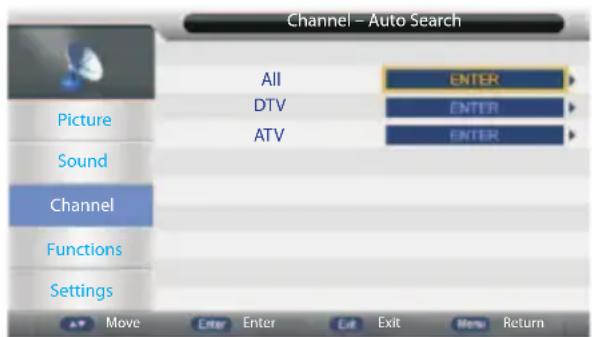

Channel menu

Press MENU to display the main menu.

Press ENTER /▶ to select Channel from the main menu and press ENTER /▶ to enter the menu.

1. Select the option you wish to configure in the "Channel" menu via ▼/▲.
2. Press ENTER/▼ to enter the menu and press ◀/► to choose the desired setting.
3. When you have finished with the configuration, press MENU/ENTER to save the changes and return to the previous menu.

GB

Channel Manager

The Channel Management menu allows the user to manage individual channels (delete/rename/swap/lock/skip).

Press ▼/▲ first highlight the channel you wish to delete, move or skip. Next:

• Press the red button to delete the highlighted program.
• Press the green button to run set the channel lock. (When surfi ng through channels via CH+/-, these channels will automatically be skipped.)
• Press the yellow button to move the channel to a new position via the ▼/▲ buttons.
• Press the blue button to swap the channel at the current position with a different channel. Press ▼/▲ to select a different channel and press the blue button to swap these channels.

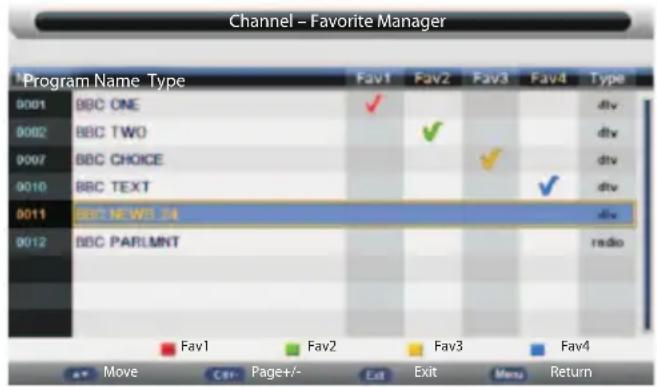

Favorite Management

Allows managing (add/delete) favorite channels.

Press ▼/▲ to select the channel you want to add to the favorites list, and press the red, green, yellow or blue button to highlight to the channel.

Country

Press ▼/▲ to select the country.

Auto-tune

All Mode: Select "All" to first search through all digital channels and then automatically search through all analog channels within the selected country. Press EXIT/MENU to skip searching through digital channels and go directly to analog channels, press EXIT/MENU while searching through analog channels to exit the search process.

DTV mode: Search all digital channels in selected country. The search process is started by pressing EXIT/MENU.

ATV mode: Search all analog channels in selected country. The search process is started by pressing EXIT/MENU.

DTV Manual Search

Press ENTER /▶ to select the channel number or enter the channel number directly. The signal strength and quality is displayed in the bottom part of the screen. Press ENTER on Start to start the search for the current band.

ATV Manual Search

GB

Press ▼/▲ to select an option. Press ENTER/▶ to enter the menu and press ▼/▲ to choose the desired setting. Select "Search" and press ◀/▶ to start the tuning process.

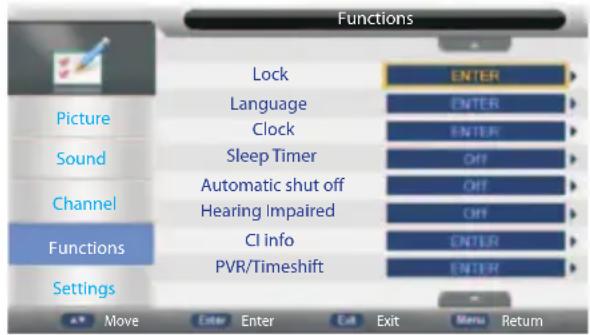

Function menu

Press MENU to display the main menu.

Press ENTER /▶ to select Function from the main menu and press ENTER /▶ to enter the menu.

1. Select the option you wish to configure in the "Function" menu via ▼/▲.
2. Press ENTER/▼ to enter the menu and press ◀/► to choose the desired setting.
3. When you have finished with the configuration, press MENU/ENTER to save the changes and return to the previous menu.

Lock

Lock Channel:

On: activates lock.channel. Viewing a locked channel requires the user to enter a password. The password shall also be entered for changes such as reset system or reset database.

Off: deactivates lock channel.

Parental control: Off : deactivates parent control

4–18: activates parent control and age limit setting for viewing programs

Change Pin Code:

Press ENTER /▶ to set a new password, then enter a four digit password and enter again to confirm.

Default password: 0000

Language

Press ▼/▲ to select "Language" menu. Press ENTER /▶ to enter the menu and set the OSD menu language, preferred subtitle and audio track language, digital teletext language and analog teletext language.

Clock

This menu is used to set the time, time zone and daylight savings time.

Sleep Timer

This function can be used to set the time after which the TV shall be switched off. The timer can be set to Off (inactive), or to 10, 20, 30, 60, 90, 120, 180, or 240 minutes.

Automatic shut off

The Auto Power Off function can be used to set the time after which the TV shall be automatically switched off. The available options are 1, 2 or 4 hours.

Hearing Impaired

This function displays non-speech subtitles, such as “knock on door” or the “bell ringing”, making the viewing experience better for the hearing impaired.

CI info

This option is only available in DTV mode with an inserted CI card.

Setup Menu

Press MENU to display the main menu.

Press ENTER /▶ to select "Setup" from the main menu and press ENTER /▶ to enter the menu.

1. Select the option you wish to configure via ▼/▲.
2. Press ENTER/▼ to enter the menu and press ◀/► to choose the desired setting.
3. When you have finished with the configuration, press MENU/ENTER to save the changes and return to the previous menu.

OSD Timer

Here you can confi gure how long the menu shall be displayed on the TV screen. The available options are 5, 10, 15, 20, 25 and 30 seconds or "Never".

Auto SCART

Switch to the Auto SCART feature.

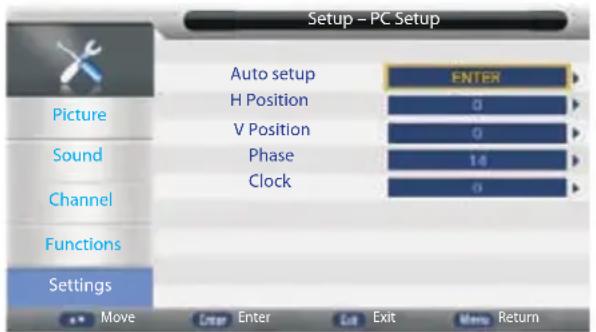

PC setting

Available only in PC mode (signal input from PC).

GB

Auto setup: Automatic setup of the horizontal and vertical position, phase and clock.

H Position: Manual setup of the horizontal position.

V Position: Manual setup of the vertical position.

Phase: Manual setup of the phase.

Clock: Manual setup of the clock.

Blue Screen

Not available in PC mode, DTV mode or multimedia mode. If no input signal is available for analogue TV reception and the blue screen feature is disabled, noise will be shown on the screen. If the feature is enabled, a blue screen will be shown in the absence of signal reception.

Reset settings

If the lock is enabled for this menu, a password shall be entered to reset the current settings. This command will reset the system settings and database. The user will be prompted to confirm the reset before the reset itself. Once the reset is complete, the device will go to the auto-installation page.

Software Update

A Software Upgrade can be performed using a binary file. The file containing binary code is placed into the root directory of the memory device, the memory device is connected to the USB port of the TV and the upgrade sequence is started by pressing ENTER. Do not switch off the power during the upgrade sequence. The device will restart after the upgrade is complete.

Multimedia

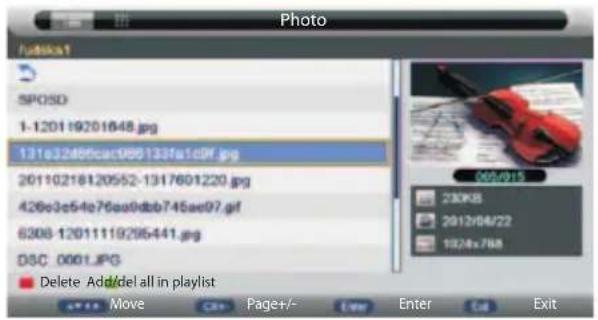

Press ◀/▶ to select PHOTO in the main menu and press ENTER to access the photo page.

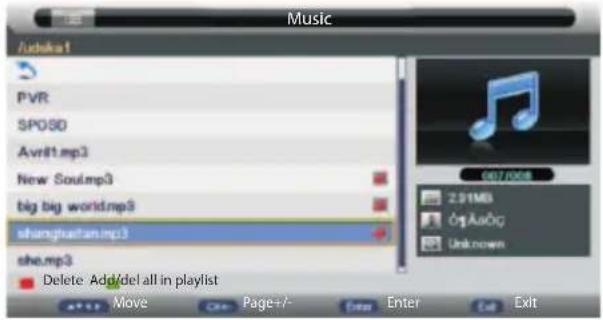

Music

Press ◀/▶ to select MUSIC in the main menu and press ENTER to access the music page.

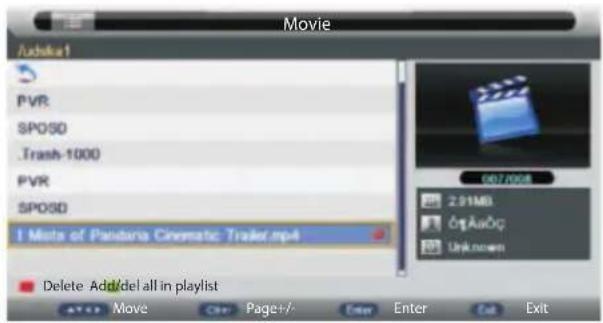

Movie

Press ◀/▶ to select MOVIE in the main menu and press ENTER to access the movie page.

eBook

The only supported format for eBooks is TXT.

Press ◀/▶ to select eBook in the main menu and press ENTER to access the e-book page.

OTHER FUNCTIONS

EPG

Press EPG on the remote controller to show information about the current program or to determine upcoming programs for the current station. The date and time will be displayed in the top right corner of the menu, a list of currently available stations will be shown on the left side of the screen, the names of programs and their schedule times will be shown in the right part of the screen. Press ◀/▶ to toggle between lists, press ▼/▲ to select a program. The top part of the screen displays information about the highlighted program.

The Electronic Program Guide (EPG) has three modes:

Daily: program information is displayed in daily mode.

Weekly: program information is displayed in weekly mode.

Extended: detailed information is displayed for each program.

Daily Mode

Displays program information and scheduled showing times for each station. The information includes the name of the program, start time, end time, short description of the program, current date/time, etc.

Provided the currently highlighted program is not protected by parent lock, it will also be displayed in the background of the menu.

GB

Weekly Mode

Displays program information and scheduled showing times for each station. The information includes the name of the program, start time, end time, short description of the program, current date/time, etc.

Highlighting various stations in the list on the left displays the program scheduling for these stations.

Provided the currently highlighted program is not protected by parent lock, the current program will also be displayed in the background of the menu.

Extended Mode

PVR

This chapter describes some of the functions the integrated recorder has to offer, including PVR menus, playing recorded material and recording limitations.

PVR menus: PVR/Timeshift, Partition List, Timer, Timer Edit, Record List, REC info and Timeshift info.

GB

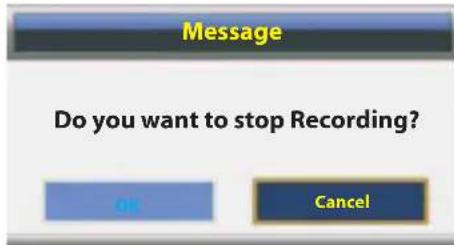

Recording

Press REC to start recording the currently broadcast program. "Do you want to start Recording?" will appear. After the message is confirmed, the device determines the speed of the connected memory device. "Device speed not enough, RECORD anyway?" will appear if the device is too slow for recording. If you select "Yes", forced recording will start in limited mode. If the speed is sufficient, the recording sequence starts automatically.

Timed recording

There are two ways to set the timer:

Programmed viewing or recording a program under the EPG menu.

Press the green button once to program viewing only (the TV will switch to the respective program at the start time).

Press the green button twice to program recording (the TV will switch to the selected program at the configured time and the recording sequence starts). If the TV is in standby mode at the program start time, the device will start 2 minutes before the scheduled recording time and the recording sequence will start in the background without turning on the display. To view the program, the On/Off switch must be pressed.

Scheduled program recordings can be reviewed in the Timer menu.

Scheduled program recordings can be added and deleted in the Timer menu. Information about scheduled program recordings can be edited in the Timer Edit menu.

Timer menu: press the yellow button to navigate to the Timer Edit menu and add a timer. Set the information for the given timer under the Timer Edit menu.

Timer parameters:

Type: Set the program type – DTV or RADIO.

Mode: Timer start method (once/daily/weekly/monthly).

Recorder: On – programmed viewing and recording. Off – programmed viewing only (reminder).

Set the date/time and duration (exact minutes). The parameters must be valid (the start of the program should not be set before the current time).

A warning message will appear in the event of a timer conflict.

Press MENU to save the information and return to the Timer menu.

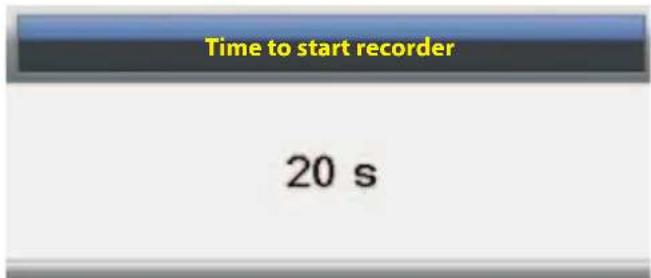

The TV automatically switches to the respective station at the program start time and starts the recording sequence. If manual recording is already active, the manual recording sequence will be interrupted and the timed recording process will start. The following information dialog will appear 20 seconds before the recording sequence is scheduled to start:

If no storage device is connected, recording will not start and "No Storage Device" will appear on the screen. If no target partition is set, the first partition of the memory device is automatically selected for the recording sequence.

TROUBLESHOOTING

Problem Solution
No power • Make sure the power cord plug	is plugged into the electric socket. Unplug the TV from the power supply, wait about 60 seconds and then plug the TV in again and power on.
Bad signal reception • High buildings or hills	is can lead to analog signal reflection and shadows. Changing the antenna orientation can improve picture quality.• If you use an inside antenna, reception can be worse under certain circumstances. Try changing the antenna positioning to improve reception. If the picture does not improve, use an outdoor antenna.
No image • Make sure the antenna is correctly connected to the TV.• Try changing to a different channel to verify the issue does not lie outside of your receiver.
The picture is fine, but no sound • Increase the volume.• Make sure the sound on the TV is not muted. Press the mute button again to restore the previous volume.
The sound is fine, but no picture or incorrect colors	• Increase the contrast and brightness.
Snowy picture, noise or picture freezes • Make sure the antenna connection is correct.
Interfering horizontal stripes through the picture	• Interference caused by electric appliances, such as hair dryers or vacuum cleaners. Switch appliances used near the TV off .
The TV does not react to remote controller operations	• Direct the remote controller towards the remote control sensor on the TV.• Remove any obstacles between the remote controller and the TV sensor.• Make sure the batteries in the remote controller are not dead.
No picture in PC mode • Make sure the video cable connection to the VGA connector is intact.• Makes sure the format of the picture from the PC is compatible with this TV.
Vertical vibration (in PC mode) • Adjust the display frequency for the picture from the PC.
The picture in PC mode is too light or dark	• Adjust the brightness and contrast.

If the instructions above do not help eliminate the issue, unplug the TV from the power supply for about 60 seconds and then plug the TV in again. Should the issue persist, refer to a qualified repair shop. Do not attempt to repair the appliance yourself.

TECHNICAL SHEET

MODEL 40 LED 722 PVR
Screen
Panel size 40" (100 cm)
Aspect ratio 16:9
Resolution 1920 × 1080
Dynamic contrast 1 000 000 : 1
Tuner
Digital tuner HD DVB-T MPEG2/4
Electronic Programme Guide EPG yes
PVR recording to USB yes
Timeshift yes
Channel list yes
Video system PAL/NTSC/SECAM
Progressive Scan yes
Comb fi Iter yes
Noise reduction	yes
OSD menu	yes
Sound
Sound output	2× 10 W
Pitch correction	stereo balance
Stereo sound NICAM/A2
Connectivity
USB	1
Supported formats	.mpg\.avi\.ts\.mp4\.mkv\.ts\.vob\.mp3\.aac\.jpg\.mp3\.wav\.m4a\.aac\.wmv
HDMI	3
SCART	1
Component YPbPr	1
VGA (D-Sub5 pin)	1
PC audio in	1
Headphone jack	1
RF IN	1
General specifications
Parent lock	yes

Power

Power input ≤ 75 W

Standby power input ≤0.5 W

Power input OFF 0 W

Energy class A

Main switch no

Dimensions and weight

Device dimensions with stand (w × h × d) (mm) 909 × 516 × 210

Device dimensions without stand (w × h × d) (mm) 909 × 516 × 70

Weight (device/package) 9.5/11.2 kg

Wall suspension VESA 200 × 200

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

GB

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg.cz. Changes in text and technical parameters reserved.

www.ecg.cz
