Freezer A30 - Computer Cooling Component ARCTIC COOLING - Free user manual and instructions

Product Type	CPU Cooler
Cooler Dimensions	140 x 74 x 160 mm (LxWxH)
Fan Dimensions	120 x 120 x 25 mm
Weight	550 g
Fan Speed	600 – 1500 RPM (PWM controlled)
Airflow	74 CFM
Noise Level	0.6 Sone (max)
Connector	4-pin PWM
Socket Compatibility	Intel LGA1150/1151/1155/1156, AMD AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+
Max TDP	200 W
Material	Aluminum fins with copper heat pipes
Number of Heat Pipes	4 (6 mm)
Fan Bearing	Fluid dynamic bearing
Thermal Compound Included	ARCTIC MX-4 (pre-applied or separate)
Warranty	6 years limited
Manufacturer	ARCTIC Cooling
Installation Notes	Requires backplate, supports dual fan configuration
Maintenance	Clean dust with compressed air; reapply thermal paste if removed

Frequently Asked Questions - Freezer A30 ARCTIC COOLING

What sockets is the Freezer A30 compatible with?

The Freezer A30 supports Intel LGA1150/1151/1155/1156 and AMD AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+ sockets.

Does the cooler come with thermal paste pre-applied?

Yes, it includes ARCTIC MX-4 thermal compound, either pre-applied or in a separate tube.

What is the maximum TDP the Freezer A30 can handle?

It can handle CPUs with a TDP up to 200 watts.

How do I clean the cooler?

Use compressed air to remove dust from the fins and fan. Avoid using liquids.

What is the warranty period?

ARCTIC provides a 6-year limited warranty for the Freezer A30.

Can I add a second fan to the Freezer A30?

Yes, the cooler supports a dual fan configuration for improved performance.

Is the fan speed controllable?

Yes, the 120mm fan uses a 4-pin PWM connector, allowing speed control from 600 to 1500 RPM.

What is the noise level?

The maximum noise level is 0.6 Sone, which is very quiet.

Do I need to remove the motherboard to install this cooler?

Installation requires access to the back of the motherboard for the backplate, so removing the motherboard is recommended.

Where can I get replacement thermal paste?

Use ARCTIC MX-4 or any high-quality thermal compound. Spare tubes are available on the ARCTIC website.

USER MANUAL Freezer A30 ARCTIC COOLING

Mounting Clips A x 2	Mounting Clips B x 2 Screws (M3	x 2 Plastic Spacers x 4 MX-4 (syringe, 0.5 g) x 1			Adhesive Tape x 1

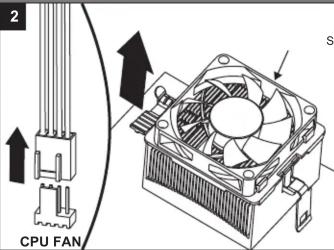

Preparation

Tips for Airflow Direction

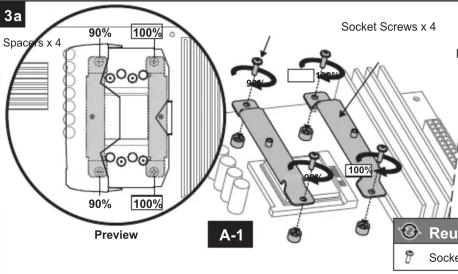

Direction A-1 / A-2

Direction B-1 / B-2

Thermal Compound
If the cooler has to be installed a second time, we highly recommend using the MX-4 thermal compound from ARCTIC. Only this compound guarantees optimal performance in combination with the surface of our heatsinks.
Warranty
This ARCTIC product includes a six-year limited warranty. For further information, please consult warranty.arctic.ac
ARCTIC Switzerland AG
www.arctic.ac
© 2011 ARCTIC (HK) Ltd. All Rights Reserved.
No part of this manual including the products described in it, may be reproduced, transmitted, stored in a retrieval system liable for any indirect, incidental or consequential damages arising from any defect or error in this manual or product.
