Brand	Hyundai
Model	RSC050WW8
Product Type	Freestanding Refrigerator with Low-Temperature Compartment
Energy Class	A+
Annual Energy Consumption	110 kWh/year
Total Net Capacity	46 L
Fridge Net Capacity	42 L
Freezer Net Capacity	4 L
Freezer Temperature	-2 °C
Climate Class	ST (16–38 °C)
Noise Level	41 dB(A)
Power Supply	220-240 V, 50 Hz
Defrost Type	Manual
Door Reversibility	Yes (left or right opening)
Door Opening Angle	160°
Shelves	2 adjustable wire shelves
Thermostat Control	Knob
Interior Light	Not available
Adjustable Feet	Yes
Door Storage	Door bar
Ice Box	Yes
Cooling System	Static (manual defrost)
Required Clearance	Back 100 mm, sides 100 mm, top 200 mm

Frequently Asked Questions - RSC050WW8 HYUNDAI

How do I defrost the refrigerator?

To defrost, place a pan under the evaporator to collect defrost water. Defrost manually when the ice layer is thick, as thick frost reduces efficiency.

How can I reverse the door opening direction?

The door can be reversed from left to right. Follow the steps in the manual: remove upper and lower hinges, transfer the left front leg, reverse the lower hinge direction, and reinstall. Ensure the power is disconnected before starting.

What should I do if the refrigerator is not cooling enough?

Check if food is packed too tightly blocking airflow, if hot food was added, if the door is closed properly, if door gaskets are damaged, if ventilation is poor, or if the temperature control dial is set correctly.

Why does condensation form on the outside?

Condensation on the outside is normal in high humidity conditions (e.g., wet season). It occurs like water on a cold glass. Simply wipe dry with a cloth.

Why does the side panel become hot?

The side panel heats up when the door is opened/closed frequently, when starting the unit, or in summer. This is caused by heat dissipation from inside and does not indicate a malfunction.

What are the energy-saving tips?

Place the refrigerator in a cool, dry place away from heat sources. Regularly remove ice from the freezer (manual defrost). Keep fridge temperature at +5 °C. Avoid keeping the door open for long.

What climate class does this refrigerator have?

The climate class is ST, meaning it is designed for ambient temperatures from 16 °C to 38 °C. Operating outside this range may affect performance.

Can I store bottled beverages in the freezer compartment?

No, do not store bottled beverages in the freezing compartment. Only store packed food in the freezer.

How often should I clean the refrigerator?

Clean the refrigerator once a month. Disconnect the power, wipe interior and exterior with a wet cloth, use neutral detergent if needed, and polish with glass wax. Regularly clean the door gaskets and drain pan.

What should I do after a power failure?

Wait for 5 minutes before restarting the unit after a power supply blackout to avoid compressor damage.

USER MANUAL RSC050WW8 HYUNDAI

Interior view of a modern white refrigerator with open doors showing food and beverage containers (no visible text or symbols)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUCTION MANUAL

CHLADNIČKA / CHLADNIČKA / REFRIGERATOR

1. NÁZVY SOUČÁSTÍ SOUČÁSTI A FUNKCE

RSC 050 WW8 RSC 064 WW8

Cartoon illustration of a book character with arms and legs, waving (no text or symbols)

DOBRÉ ODVĚTRÁVÁNÍ

Cartoon illustration of a book character with a magnifying glass showing magnetic field lines (no text or symbols)

SÍTOVÝ KABEL

Cartoon illustration of a document character holding an umbrella and pointing at it (no text or symbols)

OCHRANA PŘED VLHKOSTÍ

Cartoon illustration of a smiling book character with steam rising from its head (no text or symbols)

OCHRANA PŘED TEPLEM

Cartoon illustration of a book character with arms and legs, no text or symbols present

OCHRANA PŘED NEBEZPEČNÝMI MATERIÁLY

Cartoon illustration of a person standing with arms raised, holding a 45-degree angle marker (no text or symbols)

PŘEMISTOVÁNÍ

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

RSC 050 WW8 RSC 064 WW8

1. Skriňa
2. Výparník
3. Gombík termo- statu
4. Police
5. Kryt závesu

6. Dvere

7. Tesnenie

8. Nastavitelné nôžky
9. Malá dvierka

10. Tyč dverí

11. Skriňa

12. Výparník
13. Odkvapkávacia miska
14. Gombík termo- statu

15. Police

16. Kryt závesu

17. Dvere
18. Tesnenie
19. Nastavitelné nôžky
20. Malá dvierka
21. Tyč dverí

Cartoon illustration of a smiling book character waving (no text or symbols)

DOBRÉ VETRANIE

Cartoon illustration of a book character with a thought bubble showing a magnetic field (no text or symbols)

SIEŤOVÝ KÁBEL

Cartoon illustration of a document character holding a hat and splashing water (no text or symbols)

OCHRANA PRED VLHKOSTÍ

Cartoon illustration of a sad, anthropomorphic container with steam rising from its head (no text or symbols)

OCHRANA PRED TEPLOM

Cartoon illustration of a book character with arms and legs, no text or symbols present

OCHRANA PRED NEBEZPEČNÝMI MATERIÁLMI

Cartoon illustration of a person standing with arms raised, holding a rectangular object (no text or symbols)

PREMIESTOVANIE

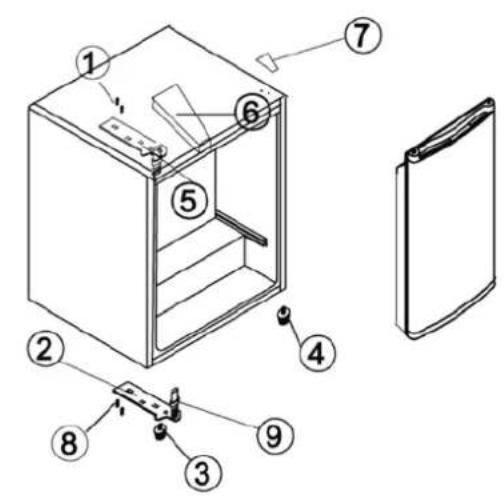

OBRÁZOK 1 Otváranie dverí z l'avej strany

OBRÁZOK 2 Otváranie dverí z pravej strany

5. ÚDRŽBA

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

RSC 050 WW8 RSC 064 WW8

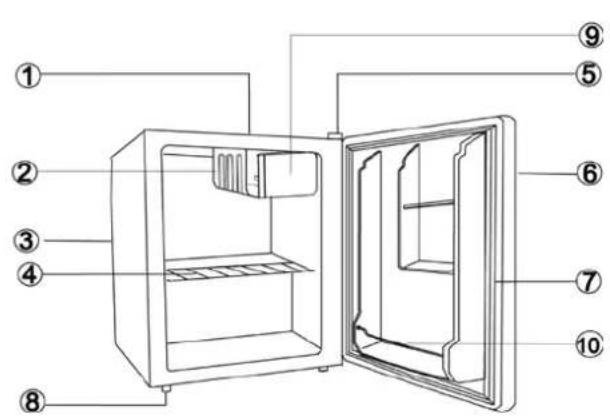

1. Cabinet
2. Evaporator
3. Thermostat Knob
4. Shelf
5. Hinge Cover

6. Door

7. Gasket

8. Adjustable
9. Small Door

10. Door Bar

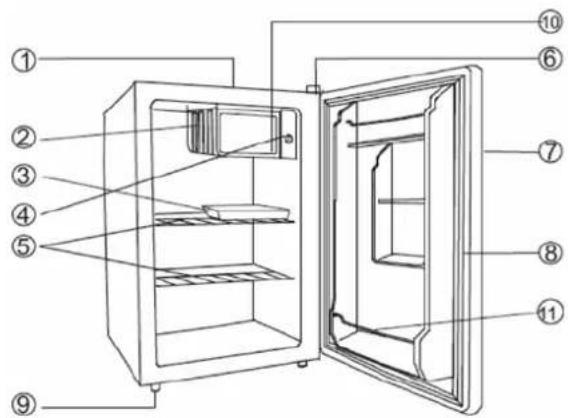

11. Cabinet

12. Evaporator
13. Drip Tray
14. Thermostat Knob
15. Wire Shelves

16. Hinge Cover

17. Door

18. Door Gasket
19. Adjustable Foot
20. Ice Box Room Door
21. Door Bar

* Combination of shelves – see the picture – corresponds to the most efficient use of the appliance.

2. CORRECTLY POSITIONING

Cartoon illustration of a smiling book character waving (no text or symbols)

WELL VENTILATING

There is need of good ventilation around the refrigerator for easy dissipation of heat, high efficiency of refrigeration and low power consumption. For this purpose, sufficient clear space should be need around the refrigerator. Its back is at least 100 mm away from the wall, its sides at least have a space of 100 mm separately and the height from over its top is not less than 200 mm. A clear space should be left to open its doors to 160°.

POWER SUPPLY

The refrigerator is only applied with power supply of single phase alternating current of (220-240)V\~/50Hz; If fluctuation of voltage in the district user is of so large that the voltage exceeds the above scope, for safety sake, be sure to apply a.c. automatic voltage regulator to the refrigerator. The refrigerator must employ a special power socket instead of common one with other electric appliances. Its plug must match the socket with ground wire.

Cartoon illustration of a book character with a magnifying glass showing magnetic field lines (no text or symbols)

POWER LINE CORD

The cord should be neither lengthened nor folded into coil during operation. Moreover, it is forbidden that cord is kept close onto the compressor at the back of the refrigerator, the surface temperature of which is quite high when operating. Touching with it would deactivate the insulation or cause leakage for electricity.

Cartoon illustration of a document character holding an umbrella, with raindrops falling (no text or symbols)

PROTECTION FROM MOISTURE

Avoiding placing the refrigerator in a place where heavy moisture is present so as to minimize possibility of rusty for its metal parts. Still more, the refrigerator is forbidden to be directly sprayed by water, otherwise, poor insulation and current leakage would occur.

Cartoon illustration of a smiling book character with steam rising from its head (no text or symbols)

PROTECTION FROM HEAT

The refrigerator should be far away from any heat source or direct sunshine.

FIXING STABLE

Floor on which refrigerator will be placed must be flat and solid. It should not be laid on any soft material such as foam plastic, etc. If the refrigerator is not on the same level, adjust the screws suitably. The refrigerator should not be placed near anything which may echo.

Cartoon illustration of a book character holding a small object, no text or symbols present

KEEP AWAY FROM DANGER

It is inadvisable that the refrigerator is placed near any volatilizable or combustible such as gas, petrol, alcohol, lacquer and banana oil, etc. The above-mentioned objects can not be stored in the refrigerator.

MOVING

When fixed or moved, the refrigerator can not be set horizontally or declined to more than 45 or upside-down.

3. CAUTIONS

• It must be checked that the voltage used should be the same as the rated voltage before the refrigerator is used.
• Water contained in food or getting into air inside the refrigerator by opening doors may form a layer of frost inside. It will weaken the refrigerator when the frost is thick. Therefore you should defrost manually when the ice is thick. When defrosting, a pan is needed to put under the eva porator for taking the defrost water.
• If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because special purpose tools are required.
• Do not store bottled beverage in the freezing compartment, nor the food without packing.
• It is dangerous to alter the specifications or attempt to modify this products in any way
• When you change the bulb, or the refrigerator is not in use for long periods, disconnect it from the electricity supply.
• Do not allow children to tamper with the controls or play with the product.
• Wait for 5 minutes before restart the unit after the power supply blackout.

4. CHANGING THE REVERSIBLE DOOR

This refrigerator has the capability of either opening the door from the left or right side.

The unit is delivered to you with the door opening from the left side.

Should you desire to reverse the opening direction, please follow these instructions.

NOTE:

Before Reversing the door, the power must be shut off.

All parts removed must be saved to do the reinstallation of the door.

This refrigerator has been built with the door hinges on the right.

If you wish to change the opening direction, follow the instructions below:

1. Remove the upper hinge cover (6) first
2. Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).
3. Lift the door and place it on a padded surface to prevent scratching it.
4. Remove the two screws (8) that hold the lower hinge (2) and Make sure to Remove the lower hinge (2).
5. Remove the left front leg (4) and transfer it to the right side.
6. Remove the hole cover plate (7) to the right side.
7. Before placing this lower hinge(2), remove the bolt-pin (9) and reverse the direction of the lower hinge(2). Then install the lower hinge (2) onto the left side of the lower frame with two screws (8).
8. Insert the bolt-pin(9) to the lower hinge (2).
9. Set the door to its place making sure the door seat at the lower hinge (2)
10. While holding the door in the closed position secure the upper hinge (5) in the top frame of left side with two screws (1). Please remember that do not tighten the two screws (1) until the top of the door is levelled with the counter top.
11. Install the upper hinge cover (6) on the upper hinge.

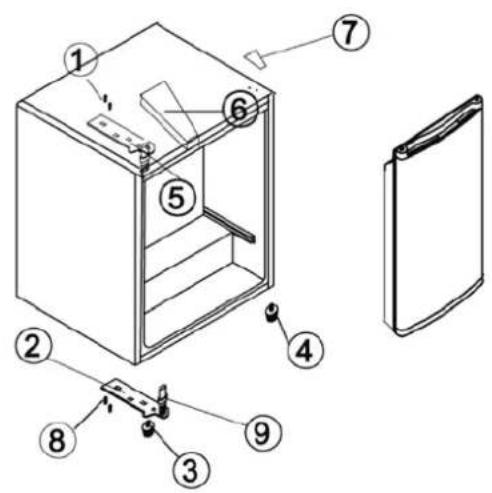

FIGURE 1 Door opening from left side

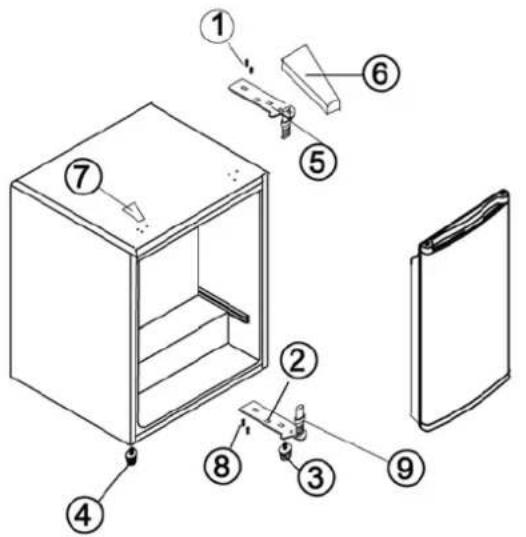

FIGURE 2 Door opening from right side

5. MAINTENANCE

• The refrigerator should be cleaned and maintained once a month.
• When performing maintenance, make absolutely sure that the power plug is first disconnected from the power outlet.
• Wipe the inner and outer surface of the refrigerator and its accessories with wet cloth. If they are too dirty, scrub them with neutral detergent, and then clean them with water and dry them with clean cloth. After this, a small quantify of glass wax is recommended to polish the refrigerator surface with a flannelette.
• Be careful to upkeep the sealing rubber bars of the doors. They should always be cleaned.
• If the plastic parts in refrigerator remain contaminated for a long time by oil (animal or vegetable), they will be easy aged and possibly cracked. The drain pan gets dirty very easily if it is not cleaned regularly, bad odours will be produced, get into the habit of cleaning this pan regularly.

6. TROUBLESHOOTING

1. When the refrigerator does not work.
   Check if there is a power failure.
   Check if the power plug is plugged into the power outlet.
   Check that the fuse has not blown.

2. When the refrigerator is cooling excessively.
   The temperature control dial may be set too high.
   If you place foodstuffs containing a lot of moisture directly under the cool air outlets, they will freeze easily. This does not indicate a malfunction.

3. When the refrigerator is not cooling sufficiently
   The food may be packed too tightly together which will block the flow of cool air.
   You may have put something hot or a lot of foodstuffs into the refrigerator.
   The door may not have been closed properly.
   The door gaskets may be damaged.
   The refrigerator may not be ventilated.
   There may be insufficient clearance between the refrigerator and the surfaces.
   The temperature control dial may not be set properly.

4. When condensation form on the outside of the refrigerator.

Condensation may form on the outside when the humidity is high such as during a wet season. This is the same result as the condensation formed when chilled water is poured into a glass. It does not, therefore, indicate a failure, wipe dry with a dry cloth.

1. When you hear a sound like water flowing.

A sound like water flowing is the refrigerant flowing. It does not Indicate a malfunction.

1. When the cabinet's side panel heats up.

The side panel of the cabinet will heat up when the door is opened or closed frequently, when starting the unit and when the unit operates in summer with high ambient outside temperature. In such case, do not touch the panel, it results from the dissipation of the heat from inside the cabinet, and it does not mean that something is wrong with the refrigerator.

7. TECHNICAL SPECIFICATIONS

* For the detailed technical specifications, please refer to the nameplate at the back of the refrigerator.
* We reserve the right to change technical specifications.

INFORMATION LETTER :

Brand HYUNDAI HYUNDAI
Model RSC064WW8 RSC050WW8
Type of appliance3)	3	3
Energy class(A - low consumption,G - high consumption)	A+ A+
SConsumption for 365 days1)	113 110
Net capacity total (I) 68 46
thereof: fridge compartment (I) 64 42
thereof: freezer compartment (I)	4 4
Designation of freezer compartment	(-2°C)	(-2°C)
Time of storage in caseof the power interruption (hrs)	-	-
Freezing capacity (kg/24 hrs)	-	-
Climatic class2)	ST	ST
Noise level dB(A)	41 41

1)

Consumption of energy in kWh/year, based on the results of the 24hrs-standard test.

Real consumption depends on the way of use and on the allocation of the appliance.

2)

SN : surrounding temp. from + 10°C to + 32°C

N : surrounding temp. from + 16°C to + 32°C

ST : surrounding temp. from + 16°C to + 38°C

T : surrounding temp. from + 16°C to + 43°C

3)

3 = fridge with low-temp. compartments

4 = fridge with low-temp. compartments (*)

5 = fridge with low-temp. compartments (**)

7 = fridge with low-temp. compartments ( ^** )

8 = freezer

The appliance is set for operation at specific ambient temperature ranges, according to the climatic class indicated on the data plate: The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

HOW TO SAVE ENERGY :

• Place the refrigerator in dry and colder place (never near the heating element!).
• Remove ice from the freezer compartment regularly, (if you don't have the No-frost system), as the thick layer of ice can rise the energy consumption by 75 %.
• Keep the temperature in the refrigerator at +5^ (fridge).

When you decrease the temperature by 1^ C, the energy consumption will rise by 6 % approx.

- Keep clear arrangement of food in the refrigerator – you will not have to keep the door opened for long time. Your energy consumption will not rise unnecessarily.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible

negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.
