CK1400 - Kettle Zelmer - Free user manual and instructions

Product Type	Electric Kettle
Brand	Zelmer
Model	CK1400
Color	Stainless Steel / Black (typical)
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V, 50/60 Hz
Dimensions (HxWxD)	25 x 22 x 15 cm
Weight	1.2 kg
Cord Length	Approx. 75 cm
Base Type	360° swivel base, cordless
Material	Stainless steel body, plastic lid
Functions	Boil water, keep warm (if available), auto shut-off
Safety Features	Auto shut-off, boil-dry protection, overheat protection
Filter	Removable lime scale filter
Lid Opening	Button-operated, wide opening
Water Level Indicator	Yes, visible window
Maintenance	Descale regularly; wipe exterior with damp cloth
Spare Parts Available	Lid, base, filter, handle
Repairability	Repairable by authorized service; use original parts
Warranty	2 years (typical)

Frequently Asked Questions - CK1400 Zelmer

How do I descale the Zelmer CK1400 kettle?

Mix equal parts of white vinegar and water, fill the kettle, boil, let sit for 30 minutes, then rinse thoroughly. Alternatively, use a commercial descaling product.

What is the capacity of the CK1400?

The kettle has a 1.7-liter capacity, suitable for most daily needs.

Can I boil water without the lid?

No, always operate with the lid closed to prevent splashing and ensure proper functioning.

Why does my kettle turn off before boiling?

This may be due to limescale buildup on the sensor. Descale the kettle regularly. Also, check if the voltage matches your outlet.

How do I clean the lime scale filter?

Remove the filter from the spout, rinse under running water using a soft brush, or soak in vinegar solution to remove scale.

Is the cord long enough?

The cord is approximately 75 cm, but the kettle is cordless when placed on the base, giving you flexibility.

Can I open the lid while boiling?

It is not recommended as steam may cause burns. Wait until the kettle has stopped boiling and the element is off.

What does the auto shut-off feature do?

The kettle will automatically turn off when the water reaches boiling point. It also shuts off if no water is present or if the lid is removed.

Where can I find spare parts for the CK1400?

Contact Zelmer customer service or check the official website. Parts like the lid, base, handle, and filter are available.

How long is the warranty?

The standard warranty is 2 years. Check your local retailer or Zelmer for specific terms.

USER MANUAL CK1400 Zelmer

(2) minimum water gauge

CHI-1000017

zelmer

www.zelmerpl www.zelmer.com

zelmer

CK1400

Product photo of a kitchen keener with glass and plate, no visible text or symbols

PENI KONICA ELEKTRICKA CZAJNK ELEKTRYCZNY Tbk CK1400	4-5	NIE BURG DUN ELIC LAVARE PIERBATOR ELECTRIC Tb CK1400	18-19	TJAM KONICA ELEKTRICKA ELEKTRINAI VRDULSAI Tbk CK1400	26-30
MAYO KONDAI ELEKTRICKA KONVICE Tbk CK1400	7-9	JIE KONDAI VIZ DUKRAVANI PELEKTRINECKOMI YAHNIK Tbk CK1400	18-19	LEKTRINAVI BIKRKHA ELEKTRISKAS TJKANNAS Tbk CK1400	31-32
MAYO KONDAI ELEKTRICKA KANVCA Tbk CK1400	10-12	JIE KONDAI VIZ DUKRAVANI PELEKTRINECKA KANA Tbk CK1400	22-24	KONDAI VIZ DUK ALEKTRITECKANNUD Tbk CK1400	34-36
HABYAKUTUKE TBS ELEKTRONOS VIZFORRALO CK1400 Tbk	13-15	JE KONDAI VIZ DUKRAVANI ELEKTRONAVHIK Tbk CK1400	25-27	JIA KONDAI PL ELECTRIC KETTLE Tbk CK1400	37-38

CK1400

m = 311

[Unreadable]

m = 311

注：

1. 2017年

m = 311

bluanyan

[Unreadable]

m = 311

1. 2017年1月1日

m = 311

1. 1984.

m = 311

M

The quick brown fox jumps over the lazy dog.

zelmer

www.zeimercl

www.123.com

A

B

C

Szanowni Klienci!

Congratulations on your choice of Zelmer electric kettle, and welcome among the users of Zelmer products.

In order to achieve best results, we recommend using only original Zelmer accessories. They have been specially designed for this product.

Please read this user manual carefully. Special attention should be paid to the safety precautions. Please keep this manual safe for future reference.

Safety precautions and instructions on the proper use of the electric kettle

Read this entire manual carefully before using the appliance.

Make sure that you understand the below safety precautions.

Danger! / Warning! Risk of injury

Special attention should be kept when using the kettle in the presence of children.
Do not operate the kettle if the power cord is damaged or if there is any visible damage to the kettle body.
Do not plug the power cord with wet hands.
the non-detachable power cord is damaged, it should be replaced by the manufacturer, an authorised service point or a qualified person in order to avoid any hazards.
Only qualified staff may repair the appliance. Improper repair may cause a serious threat to the user. In case of any defects, contact an authorised ZELMER service point.
Do not touch the metal body of the kettle when in use; move the kettle only using the handle.
Do not touch any hot surfaces of the kettle. Surfaces remain hot even after the device is switched off.
Do not fill the kettle beyond the maximum fill indicator "max" – water might spatter out of the kettle.
Be careful not to wet the plug of the power cord.
- Team coming out of the kettle when the water is boiling may cause scalding.
Allow the kettle to cool completely before cleaning.
Do not open the lid while the water is boiling.
Always remove the plug from the mains before cleaning the kettle.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.

Warning! Risk of property damage

Always plug the appliance to the mains (AC only) with voltage corresponding to that indicated on the rating plate.
Always place the kettle on a stable, smooth, flat surface; the power cord must not hang loosely off the edge of a table (or any other work surface) or touch a heated surface.
Do not remove the plug from the mains by pulling by the cord.
This appliance is intended for indoor use only.
The kettle can only be operated with the original power base (each base is type-specific).
Use the kettle for boiling water only.
Do not open the lid right after the water has boiled – steam might condense and appear on the exterior of the kettle.
Do not place the kettle on or near hot objects.
Do not immerse the kettle or the power base in water when filling or washing the electric kettle.
water gets into any electric elements inside the kettle or onto the base, carefully dry these elements before plugging the kettle to the mains.
Do not operate the kettle when empty.
Do not use the kettle with the lid open – the automatic shut off will not work then.
Do not use any abrasive cleaning agents – such as emulsions, creams, pastes, etc. – for cleaning the kettle body. They might remove graphic information symbols, such as scales, marks, warning signs, etc.
The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Product information and tips on use

The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions change.

Do not use the kettle without the filter.

Technical data

The technical parameters are given on the rating plate of the product.

1.7 litre capacity.

The kettle is built in insulation class I and is equipped with a power cord provided with a grounding wire and a grounding plug.

The kettle meets the requirements of valid standards.

The appliance is compliant with the requirements of the following directives:

Low Voltage Directive (LVD) - 2006/95/EC.

Electromagnetic Compatibility (EMC) - 2004/108/EC.

The product is affixed with the CE mark on the rating plate.

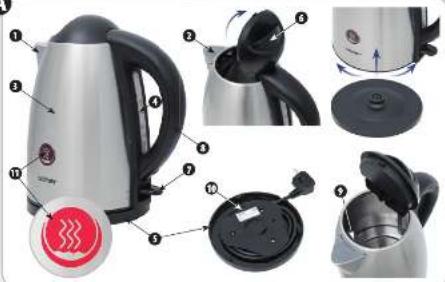

Kettle elements (Fig. A)

1 Spout
2 Plastic spout protection – steam protect
3 Kettle body
4 Water level indicator
5 360° swivel base
6 Lid release button
7 On/off switch (0-1)
8 Handle
9 Anti-deposit filter
10 Cord storage
11 Termo-wskaźnik

spout protection – steam protect (2) prevents the steam from being released when water is boiled. The protection also reduces energy losses, maintaining the heat inside the kettle for a longer time.

Preparing the kettle for operation

re first use, wash the kettle inside (for washing instructions see the “Cleaning and maintenance” section), fill it with water up to the “max” level, boil water four times (each time use fresh water) and wash the kettle inside again.

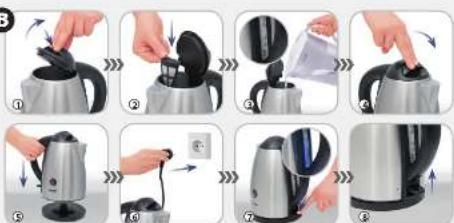

Operating the kettle (Fig. B)

① Press the button (6) and open the lid.
② Place the filter (9) in the kettle (if it is not in place).
③ Fill the kettle with the desired amount of water (the level is visible on the indicator (4)).

not boil the water if it is below the minimum level or beyond the maximum level on the indicator (4).

④ Close the lid.
⑤ Place the kettle on the base (5).
⑥ Plug the kettle to a socket provided with an earth pin.
⑦ Turn the kettle on by pressing the switch (7) – the water level indicator will light up (4).

in water is boiled, the thermo-indicator will turn from brown to red. The red colour informs that the appliance is hot.

⑧ After the water is boiled, the kettle will switch off automatically, the lever switch will return to its starting position and the power indicator will go off.

If you plan to use the kettle again soon, it is not necessary to remove the plug from the mains.

Make sure that the maximum kettle capacity is not exceeded when the kettle is filled with water.

In the event that an empty kettle is switched on, it will be switched off automatically by a thermal device.

To switch on the kettle after it has cooled down (about 15 min), remove it from the base, fill with water, replace on the base and switch on by pressing the switch (7). The cooling down of the kettle can be accelerated by pouring cold water into the kettle.

Cleaning and maintenance

(Fig. C)

Always allow the kettle to cool down completely before cleaning!

① Unplug the kettle from the mains.
② Remove the filter (9) and rinse it under running water.
③ Clean the outside surfaces with a soft damp cloth and washing-up liquid.

In order to remove the build-up of hard water film from the outside and inside walls of the kettle, wipe them with a damp cloth and vinegar.

④ Rinse the kettle with fresh water.

Various black-coloured, rusty, milky, etc. deposits may form inside the kettle and float on the water. This is caused by minerals occurring naturally in water (calcium, magnesium, iron, etc.). Such discoloration is not caused by faulty operation of the appliance and does not affect its use. In case of substantial accumulation of mineral deposits, proceed as described in the “Descaling” section.

Descaling

In the event that scale builds up on the bottom of the kettle, it needs to be removed. For this purpose use 6 - 10% vinegar or citric acid.

• open the lid by pressing the lid release button (6).
  add 0.5 l of vinegar or 40 g of citric acid and fill the kettle with water up to the maximum level. Switch on the kettle.
  Bring the mixture to boil and allow the kettle to stand for 30 minutes.
  Empty the kettle and rinse it with fresh water.
  Remove the filter (9) and rinse it under running water. Replace the filter.
  Fill the kettle with fresh water, boil the water and empty the kettle.
  sediment is still visible in the kettle, remove it with a sponge and rinse the kettle again. If unsuccessful, repeat the descaling process.

kettle should be descaled periodically to avoid its possible damage.

Ecology – environment protection

Each user can help protect the environment. It is neither difficult nor expensive. In order to do it, remember to discard the cardboard packing into a recycling paper container and the polyethylene (PE) bags into a container for plastics.

Dispose of the worn out appliance by handing it over to a local disposal centre, as the dangerous elements of this appliance can be hazardous to the environment.

Do not dispose the appliance together with other domestic wastes!!!

The importer/manufacturer is not liable for any damages resulting from improper use or handling of the appliance.

The importer/manufacturer reserves the right to modify the product at any time and without prior notice in order to adjust it to valid law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons.

Notes
