VP 3161 S - Vacuum Cleaner ECG - Free user manual and instructions

Type	Cylinder vacuum cleaner
Brand	ECG
Model	VP 3161 S
Power consumption	700 W
Dust container capacity	1.5 L
Filtration system	HEPA H13 filter
Noise level	78 dB(A)
Weight	4.5 kg
Dimensions (W x D x H)	260 x 320 x 360 mm
Cord length	5 m
Energy efficiency class	A
Suction power control	Electronic slider
Bagless	Yes
Included accessories	Crevice tool, upholstery brush, floor nozzle
Washable filter	Yes
Automatic cord rewind	Yes
Parking system	Vertical parking
Dust container emptying	One-touch release
Operating radius	8 m

Frequently Asked Questions - VP 3161 S ECG

How do I empty the dust container?

Press the release button on the dust container and pull it out. Hold it over a trash bin, open the bottom flap by pressing the latch, and empty. Close the flap securely before reinserting.

How often should I clean the HEPA filter?

The HEPA filter should be cleaned every 3-4 months or when the suction power decreases. Tap it gently or wash with cold water and let it dry completely for 24 hours before reuse.

What can I do if the vacuum loses suction?

Check if the dust container is full, the filter is clogged, or the hose/nozzle is blocked. Clean the filter and remove any obstructions from the accessories.

Is the vacuum suitable for pet hair?

Yes, the VP 3161 S is effective for pet hair thanks to its strong suction and included brush tools. Regular cleaning of the filter is recommended for optimal performance.

Can I use the vacuum without a bag?

This model is bagless. It uses a transparent dust container that you empty directly, so no bags are needed.

How do I change the exhaust filter?

Access the exhaust filter cover at the back of the vacuum. Remove the old filter and insert a new one of the same type (HEPA H13). Replace the cover securely.

What is the noise level of this vacuum?

The noise level is approximately 78 dB(A), which is typical for a cylinder vacuum cleaner. It may vary depending on the surface and power setting.

How do I clean the crevice tool?

The crevice tool can be wiped with a damp cloth. If it gets blocked, use a thin object like a wire to remove any debris from the narrow opening.

The vacuum overheats and shuts off – why?

This is a safety feature. The vacuum may overheat if the filter is clogged, the dust container is full, or the hose is blocked. Turn off the vacuum, unplug it, and let it cool for 30 minutes before addressing the issue.

Where can I find replacement parts?

Replacement filters and accessories are available at authorized ECG service centers or online. Use only genuine parts to ensure compatibility and safety.

USER MANUAL VP 3161 S ECG

Purple vacuum cleaner with black handle and black base, no visible text or symbols

VP 3161 S

PODLAHOVÝ VYSAVAČ

NÁVOD K OBSLUZE

PODLAHOVÝ VYSÁVAČ

NÁVOD NA OBSLUHU

ODKURZACZ PODŁOGOWY

INSTRUKCJA OBSŁUGI

PADLÓPORSZÍVÓ

HASZNÁLATI ÚTMUTATÓ

BODENSTAUBSAUGER

BEDIENUNGSANLEITUNG

VACUUM CLEANER

INSTRUCTION MANUAL

CZ

SK

PL

HU

DE

EN

BEZPEČNOSTNÍ POKYNY

Seznam součástí

1. PODLAHOVÝ KARTÁČ
2. TELESKOPICKÁ TRUBICE
3. REGULACE SACÍHO VÝKONU
4. SACÍ HADICE
5. TLAČÍTKO ZAPNUTÍ/VYPNUTÍ
6. TLAČÍTKO NAVÍJENÍ KABELU

7. REGULACE VÝKONU

8. INDIKACE PLNÉHO PRACHOVÉHO SÁČKU

9. PŘIPOJENÍ SACÍ HADICE
10. POJISTKA KRYTU PRACHOVÉHO SÁČKU
11. MADLO PRO PŘENÁŠENÍ
12. KRYT VÝSTUPNÍHO VZDUCHOVÉHO FILTRU
13. FILTR MOTORU
14. VÝMĚNNÝ PRACHOVÝ SÁČEK

Příslušenství

Podlahový kartáč

Simple line drawing of a cylindrical object with a black band and curved lines, resembling a stylized pen or tool (no text or symbols)

Kombinovaná hubice

Line drawing of a hand holding a small cylindrical object connected to a car (no text or symbols)

Three-step line drawings showing a hand holding a curved tool, a hand holding a spring, and a hand holding a device (no text or symbols present)

VYSÁVÁNÍ

Line drawing of a toru vacuum cleaner connected to a wall-mounted power outlet (no text or symbols)

Regulace výkonu

Line drawing of a robotic vacuum cleaner with open lid and directional arrows indicating motion (no text or symbols)

Line drawing of a robotic lawn mower with visible structural components and an arrow indicating direction (no text or symbols)

Diagram showing four scenarios of outdoor water heating: receiving water from a faucet, planting a solar panel, watering a drain, and receiving sunlight (no text or symbols)

ODSTRAŇOVÁNÍ PROBLÉMŮ

Zoznam súčastí

1. PODLAHOVÁ KEFA
2. TELESKOPICKÁ TRUBICA
3. REGULÁCIA NASÁVACIEHO VÝKONU
4. NASÁVACIA HADICA
5. TLAČIDLO ZAPNUTIA/VYPNUTIA
6. TLAČIDLO NAVÍJANIA KÁBLA

7. REGULÁCIA VÝKONU

8. INDIKÁCIA PLNÉHO PRACHOVÉHO VRECKA

9. PRIPOJENIE NASÁVACEJ HADICE
10. POISTKA KRYTU PRACHOVÉHO VRECKA
11. DRŽADLO NA PRENÁŠANIE
12. KRYT VÝSTUPNÉHO VZDUCHOVÉHO FILTRA
13. FILTER MOTORA
14. VÝMENNÉ PRACHOVÉ VRECKO

Príslušenstvo

Podlahová kefa

Simple line drawing of a cylindrical object with a black band and curved top edge, resembling a stylized pen or tool (no text or symbols)

Kombinovaná hubica

Je možné prepnút do polohy na vysávanie kobercov (Zošliapnutý pedál Ⓐ – kefa zasunutá) alebo do polohy na vysávanie tvrdých podláh (Zošliapnutý pedál Ⓑ – kefa vysunutá).

POKYNY NA POUŽÍVANIE VYSÁVAČA

ZOSTAVENIE VYSÁVAČA

Line drawing of a hand holding a small electric vacuum cleaner (no text or symbols)

SK

Line drawing of a hand holding a flexible hose with an arrow indicating direction (no text or symbols)

Illustration of two hands holding a ruler with an arrow indicating measurement (no text or symbols)

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

VYSÁVANIE

Line drawing of a vacuum cleaner connected to a wall-mounted power outlet (no text or symbols)

Po použití

Line drawing of a car interior with open lid and directional arrows indicating movement (no text or symbols)

Line drawing of a robotic vacuum cleaner with internal components and a directional arrow (no text or symbols)

Diagram showing four scenarios of outdoor water heating: receiving water from a faucet, spraying water into a solar panel, using a drain drain, and receiving sunlight.

SK

ODSTRAŇOVANIE PROBLÉMOV

Simple line drawing of a cylindrical object with a black band and a small curved mark on the side (no text or symbols)

Line drawing of a hand holding a small electric vacuum cleaner (no text or symbols)

Three-step medical procedure illustration showing hand positioning, needle insertion, and endoscopic insertion (no text or symbols)

PL

ODKURZANIE

Line drawing of a vacuum cleaner connected to a wall-mounted power outlet (no text or symbols)

Po użyciu

Line drawing of a robotic car with open lid and two black arrows indicating direction (no text or symbols)

Line drawing of a robotic vacuum cleaner with internal components and a directional arrow (no text or symbols)

Diagram showing four scenarios of outdoor water heating: receiving water from a faucet, planting a solar panel, watering a drain, and receiving sunlight (no text or symbols)

PL

USUWANIE PROBLEMÓW

A készülék részei

1. KEFÉS PADLÓSZÍVÓ FEJ
2. TELESZKÓPOS CSŐ
3. SZÍVÓTELJESÍTMÉNY SZABÁLYZÓ
4. SZÍVÓTÖMLŐ
5. BE- ÉS KIKAPCSOLÓ GOMB
6. KÁBELBEHÚZÓ GOMB

7. TELJESÍTMÉNY SZABÁLYOZÓ

8. PORZSÁK TELÍTETTSÉG KIJELZŐ

9. SZÍVÓTÖMLŐ CSATLAKOZTATÁSA
10. FEDÉL RÖGZÍTŐ
11. FOGANTYÚ A MOZGATÁSHOZ
12. KIMENÓ LEVEGÓ SZÜRÖFEDÉL
13. MOTOR ELÖTTI SZÜRÖ
14. CSERÉLHETŐ PORZSÁK

Tartozékok

Simple line drawing of a cylindrical object with a curved top and a black band, no text or symbols present.

Kombinált szívófej

Line drawing of a hand inserting a plug into a car (no text or symbols)

Three-step diagram showing a hand holding a flexible hose, a hand holding a syringe, and a hand holding a medical device (no text or symbols present)

PORSZÍVÓZÁS

Line drawing of a vacuum cleaner connected to a wall-mounted power outlet (no text or symbols)

Line drawing of a robotic device with open lid and directional arrows indicating movement (no text or symbols)

Line drawing of a robotic vacuum cleaner with internal components and a directional arrow (no text or symbols)

Diagram showing three scenarios of outdoor water heating: receiving water from a faucet, spraying water onto a solar panel, and receiving water from a faucet with sunlight.

PROBLÉMAMEGOLDÁS

Bodenbürste

Simple line drawing of a cylindrical object with a curved top and a black band, no text or symbols present.

Kombidüse

Line drawing of a hand connecting a small car to a charging plug (no text or symbols)

Three-step line drawings showing a hand holding a flexible hose, a spring scale, and a medical device with tubing (no text or symbols)

STAUBSAUGEN

Line drawing of a vacuum cleaner connected to a wall-mounted power outlet (no text or symbols)

Leistungsregelung

Line drawing of a car interior with open lid and two black arrows indicating direction (no text or symbols)

Line drawing of a robotic lawn mower with open lid and internal compartments (no text or symbols)

Illustration of four different outdoor scenes: a faucet, solar panel, a drain drain, and a tiled roof under sunlight (no text or symbols)

STÖRUNGSBEHEBUNG

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not responsible for damage caused during transportation, by improper use, voltage fluctuation or by changing or modifying any part of the appliance.

To prevent fire or electric shock, the following safety measures when using electrical equipment should always be observed:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Never remove the protective covers of the appliance, risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without the inserted dust bag, motor fi Iter and HEPA fi Iter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to performing maintenance.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Be more attentive if you are using the vacuum cleaner near children.
9. Use only accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service center.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not pull the cord from the outlet by yanking

the cable. Unplug the cable from the outlet by grasping the plug.

1. Do not touch the power cord or the vacuum cleaner with wet hands.

2. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any dirt residue, which can reduce the suction power of the vacuum cleaner.

3. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.

4. Never vacuum the following objects, which can cause damage to the appliance or injury to a person:

5. sharp objects like glass, screws, coins, nails, etc.

6. hot or smouldering objects like embers, cigarettes or fl ammable and volatile liquids

7. wet surfaces, water and other liquids.

8. Use extra care when cleaning stairs.

9. Use the vacuum cleaner only in accordance with instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for damages caused by the improper use of this appliance.

10. The appliance may be used by children 8 years or older and by persons with reduced physical or mental capabilities, if they are under supervision or if they have been instructed in the use of the appliance in a safe manner and understand the potential risks. Children must not play with the appliance. Children must not carry our cleaning and maintenance of the appliance, unless they are 8 years or older and under supervision. Children younger than 8 years have to be kept away from the appliance and its power supply.

VACUUM CLEANER DESCRIPTION

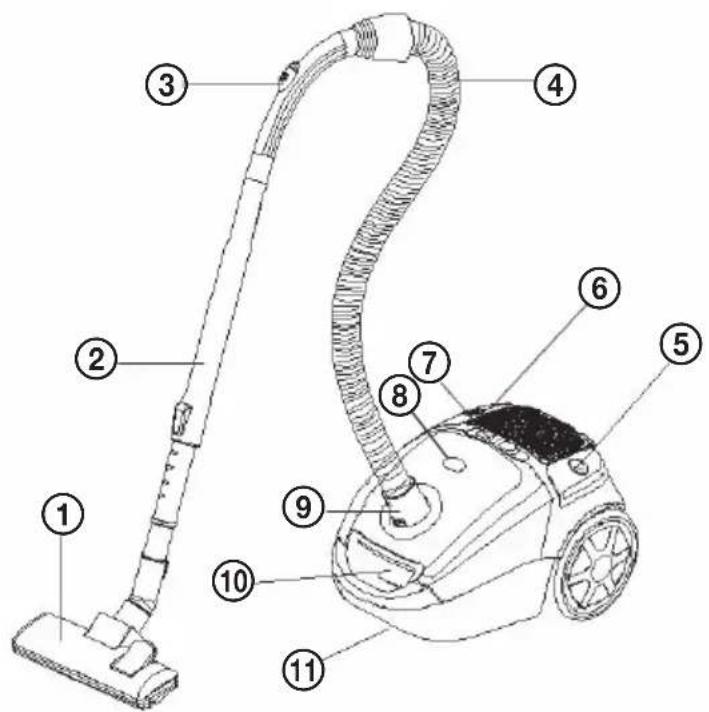

List of parts

1. FLOOR BRUSH
2. TELESCOPIC TUBE
3. SUCTION POWER REGULATION
4. SUCTION HOSE
5. ON/OFF BUTTON
6. CABLE REWIND BUTTON

7. POWER CONTROL

8. DUST BAG FULL INDICATOR

9. SUCTION HOSE CONNECTION
10. DUST BAG COVER LOCK
11. CARRYING HANDLE

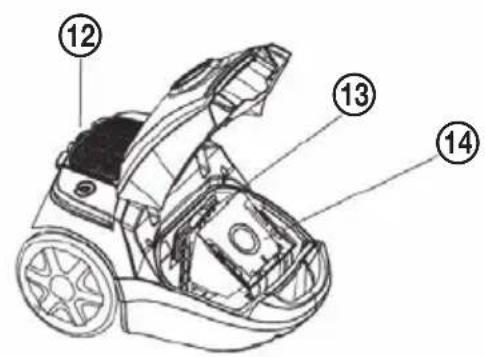

12. COVER OF THE AIR OUTFLOW FILTER
13. MOTOR FILTER
14. REPLACEABLE DUST BAG

Accessories

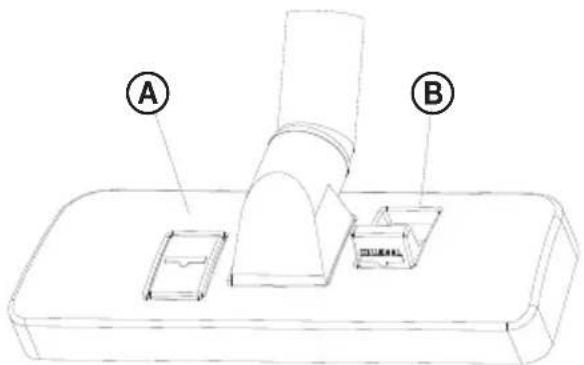

Floor brush

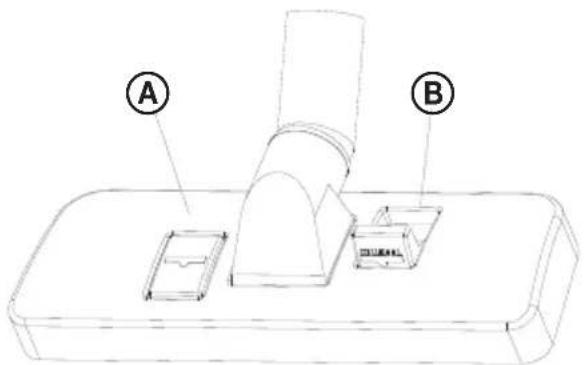

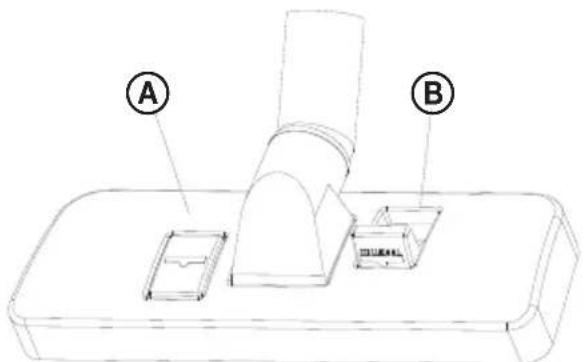

Can be switched to a position for carpets (press pedal Ⓐ – brush retracted) or to a position for hard floors (press pedal Ⓑ – brush is out).

Simple line drawing of a cylindrical object with a curved top and a black band, no text or symbols present.

Combined nozzle

EN

OPERATING INSTRUCTIONS

VACUUM CLEANER ASSEMBLY

Before you start assembling the vacuum cleaner, it must be turned off and disconnected from power.

Connect and disconnect hose

• Connection: Insert hose into the suction hole in the housing of the vacuum cleaner. Push the end in until it clicks.
• Disconnect: Unplug the appliance from the power supply, press the locks on the sides of the hose's end and pull out the hose from the suction opening.

Line drawing of a hand holding a small cylindrical object next to a vacuum cleaner (no text or symbols)

The telescopic tube assembly and installing the accessories

1. Insert the telescopic tube into the vacuum cleaner handle.
2. Adjust the telescopic tube to a suitable length: Press the pin lock and pull out the bottom part to desired length. If you want to lock the tube in the set length, simply release the lock.
3. Fasten the floor brush or the combination nozzle to the telescopic tube.

Three-step line drawings showing a hand holding a flexible hose, a hand holding a syringe, and a hand holding a medical device (no text or symbols present)

VACUUMING

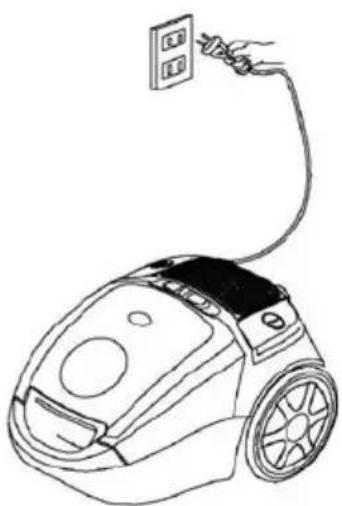

1. Pull pull out the necessary length of the power cord and plug it in the wall outlet. The yellow mark indicates the maximum length of the power cord. Never pull the power cord past this mark.
2. Start the appliance by pushing the button vacuum cleaner.
   in the back of the
3. If you want to retract the cord, press button with one hand and with the other hand hold the cord to prevent damage or injury by uncontrolled rewinding.

Line drawing of a vacuum cleaner connected to a wall-mounted power outlet (no text or symbols)

Power control

You can set the suction power of the appliance by using the motor power control located on the body of the vacuum cleaner. For cleaning fine materials we recommend that you set the minimum power. For mattresses, upholstered furniture and carpets set medium power. When cleaning paved, wooden or other hard floors, use the maximum power.

After use

Turn off the vacuum cleaner and unplug the power cord from the outlet. Before you add any accessories or before cleaning the appliance, always turn the vacuum cleaner off and unplug it from the outlet.

CLEANING AND MAINTENANCE

You will find instructions in this manual for routine maintenance of the vacuum cleaner. To ensure long life and service of the vacuum cleaner without problems, check regularly the hose, the dust bag and filters of the vacuum cleaner. Remove dirt from clogged hose, replace full dust bags and clean dirty motor filter.

Replacement dust bags and fi Iters

The dust bag and the motor filter are very important for optimum efficiency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but in the same time it has to be sufficiently porous to let air through. If the dust bag or the filter is clogged, which is indicated by the full bag indicator ⑧, the air cannot flow through the vacuum cleaner and it becomes ineffective, regardless of how much power the motor has. In order for the vacuum cleaner to work with maximum effectiveness, replace the dust bag regularly and clean the motor filter when necessary. Some fine particles can very quickly reduce the airflow and reduce the suction power already before the dust bag seems full. Therefore when vacuuming the residue of carpet cleaner, powder, dust from plaster and similar fine materials you should replace the dust bag more often.

CHANGING DUST BAG

- Before opening the cover, the vacuum cleaner has to be unplugged and the hose has to be disconnected from the vacuum cleaner!

• Never use the vacuum cleaner without the inserted dust bag and filter!

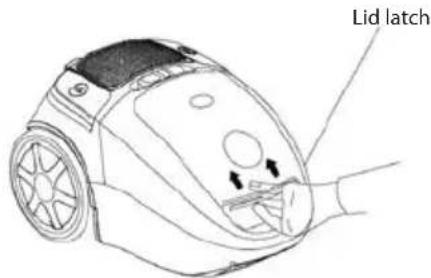

1. After unplugging it and disconnecting the hose, you open the cover of the dust bag by pressing the lock upward and opening the cover.

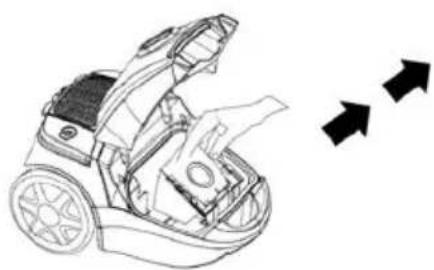

2. Take the holder of the dust bag by its handle and remove it together with the dust bag from the vacuum cleaner.

Line drawing of a mechanical device with two black arrows pointing toward it (no text or symbols)

1. Remove bag from its holder.

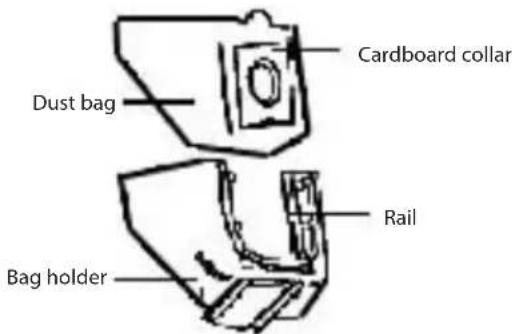

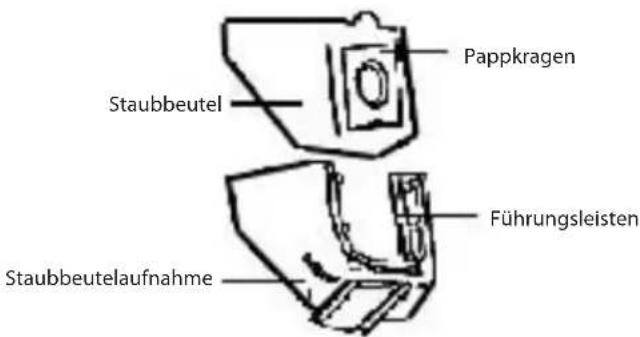

2. To insert a new dust bag in the holder: Unfold the bag carefully and insert the cardboard collar of the bag into the rail on the holder. Insert the collar fully.

3. Return the holder with the bag in the dust bag space, taking care that the holder is properly inserted in the guides in front of the dust bag space.

4. Close the dust bag cover and secure it by a gentle push.

Motor fi Iter cleaning

- The vacuum cleaner must be turned off and disconnected from power!

- Never use the vacuum cleaner without the inserted dust bag and fi Iter!

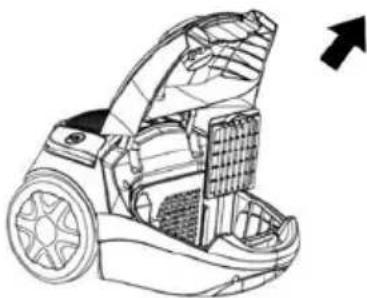

1. After unplugging, open the cover of the dust bag by pressing the lock upward and opening the cover.

2. Remove the motor filter and if it is very dirty, rinse it with warm water.

3. Before you insert the filter back in the vacuum cleaner let dry thoroughly.

Line drawing of a robotic lawn mower with visible internal components and an arrow indicating direction (no text or symbols)

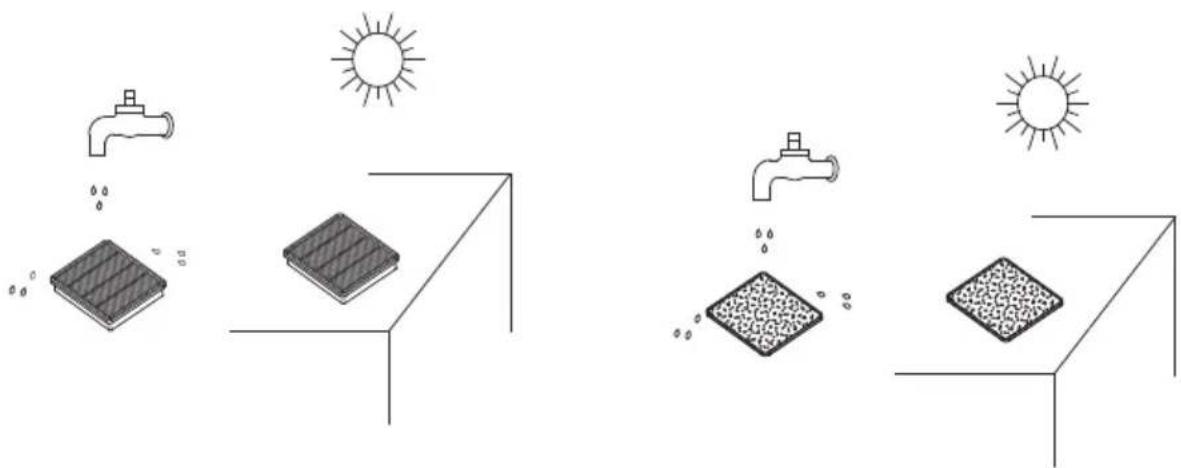

Cleaning output air fi Iter

Before leaving the vacuum cleaner, the air is cleaned in the output filter. You can clean the output filter as follows:

1. Turn off power and unplug the power cord from the outlet.
2. Open the output grid ⓆS in the back of the vacuum cleaner.
3. After opening the grid you will see the output fi Iter.
4. Rinse the filter under running water and let it dry thoroughly.
5. Return filter back to its place (or replace with a new one) and snap on the grid in the back of the vacuum cleaner.

Diagram showing three scenarios of outdoor water heating: receiving sunlight, planting a solar panel, and receiving the sun (no text or symbols)

TROUBLESHOOTING

Before requesting service, check the following list of possible common problems and their solution.

Problem Possible cause	Solution
Motor does not switch on.	Vacuum cleaner is without power supply	Check power supply cord and the electric outlet.If the device remains inoperative, contact the authorized service.
The suction power gradually decreases.	Full dust bag, clogged hose or tubes or dirty fi Iters.	Replace dust bag, remove foreign objects from the hose or tube, replace fi Iters.

EN

TECHNICAL SPECIFICATIONS

Suction power: max. 300 W

Thermostat fuse against motor overheating

Variable electronic suction power

Dustbag capacity: 2.0 l

Stainless steel telescopic tube

Rubber wheels for easier handling

Automatic cord rewind

Full dustbag indicator

7.5 m operating radius

Weight: 5.45 kg

Nominal voltage: 230–240 V\~ 50/60 Hz

Nominal input power: 1400 W

Max. input power: 1600 W

Noise level: < 75 dB

Attention

You can find alternative dust bags for this vacuum cleaner under the name KOMA ECG VP 3161 S. You can also use universal bags SWIRL Y 101 and BASE BA 4000

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

Changes in text and technical parameters reserved.

K+B Progres

K+B Progres, a.s. (dále jen K+B), IČO: 61860123
