Product Type	Electric Garden Vacuum Blower
Brand	Fieldmann
Model	FZF 4008-E
Input Voltage	230–240 V
Frequency	50 Hz
Input Power	3000 W
Protection Class	Class II (Double Insulation)
IP Rating	IPX0
Weight	2.8 kg
Idle Speed	14,000 rpm
Air Flow Speed	240 km/h
Maximum Air Flow Volume	9 m³/min
Collection Sack Capacity	45 L
Mulching Ratio	10:1
Sound Pressure Level (LpA)	84.3 dB(A)
Sound Power Level (LWA)	106 dB(A)
Vibration Level	3.702 m/s²
Functions	Blowing, Vacuuming, Mulching
Included Accessories	Collection sack, Shoulder strap, Wheels
Warranty	24 months

Frequently Asked Questions - FZF 4008-E Fieldmann

How do I switch between blower and vacuum mode?

Use the mode selection lever located on the side of the unit. Move it to the desired position before turning on the tool.

What is the mulching ratio and why is it important?

The mulching ratio is 10:1, meaning 10 volumes of leaves are reduced to 1 volume. This makes composting easier and reduces the frequency of emptying the collection sack.

Can I use the vacuum blower in the rain?

No, never use it in rain or wet conditions. The tool is not waterproof (IPX0) and water can cause electric shock or damage.

How do I attach the collection sack?

Place the plastic mouth of the bag over the outlet and secure it. Then attach the front of the bag under the unit using the clamp provided.

What type of extension cord should I use?

Use an outdoor-rated extension cord with a minimum conductor cross-section of 1.5 mm² and maximum length of 30 m. Recommended types: H05RN-F or H05VV-F.

How do I clean and maintain the vacuum blower?

After use, disconnect from power. Empty the collection sack, clean the area near the fan and tube with a brush. Do not use solvents. Check for wear on the sack and tighten all bolts.

What should I do if the tube gets clogged?

Immediately turn off and unplug the tool. Remove the clogged material carefully. Avoid pushing the nozzle directly into piles to prevent clogging.

Is it safe to vacuum wet leaves?

No, allow leaves to dry before vacuuming. Wet material sticks to the tube and can clog the fan. The tool is not designed for wet materials.

What personal protective equipment should I use?

Always wear safety glasses, hearing protection, gloves, long pants, and sturdy shoes. A dust mask is recommended in dusty conditions.

How should I store the vacuum blower?

Store in a dry, frost-free place out of reach of children. Disconnect from power, empty the collection sack, and clean the tool before storage.

USER MANUAL FZF 4008-E Fieldmann

Home & Garden Performance

Green Fieldmann air brush with black base and white cloth cover (no text or symbols on body)

FZF 4008 E

English 3-18

Čeština....19-34

Slovenčina 35-50

Magyarul 51-66

Polski 67-82

Electric Garden Vacuum Blower USER'S MANUAL

Thank you for purchasing this garden vacuum blower. Before using the inverter, please carefully read this user manual and keep it for future reference.

TABLE OF CONTENTS

1. GENERAL SAFETY REGULATIONS ....4

Important safety notice....4

Packaging 4

User's manual....4

1. MEANINGS OF WARNING SYMBOLS....5

2. SAFETY INSTRUCTIONS....6

Store these instructions and user's manuals in a safe place....6

Work area....6

Electrical safety....6

Personal safety 7

Operating and maintaining power tools....7

Additional safety directives for garden vacuum blowers 8

Recommendation....9

1. ASSEMBLING THE VACUUM BLOWER....10

Assembly 10

Attaching the collection sack....11

Attaching the shoulder strap 11

Before commencing work 12

Starting the vacuum blower 12

Turning off the vacuum blower....12

1. USING THE VACUUM BLOWER....13

Using the vacuum blower 13

Operating the vacuum blower 13

1. MAINTENANCE, STORAGE AND REPAIRS....14

2. DEVICE DESCRIPTION....15

3. ENVIRONMENTAL PROTECTION....16

4. DISPOSAL....16

5. DECLARATION OF CONFORMITY....17

1. GENERAL SAFETY REGULATIONS

Important safety notice

Before putting this power tool into operation it is important that you read the following instructions very carefully and understand them. They have been created for your protection and the protection of others and to ensure the long and problem-free life of this power tool.

Carefully unpack the product and take care not to throw away any part of the packaging before you find all the parts of the product.
Store the garden vacuum blower in a dry place out of reach of children.
Read all warnings and instructions. Failure to comply with the warnings and instructions may lead to electric shock, fire and/or serious injuries.

Packaging

The product's packaging prevents damage during transport. This packaging is a resource and can be recycled.

User's manual

Before you start working with the garden vacuum blower, read the following safety instructions and user's manual. Get familiar with the controls and correct use of the equipment. Keep the user's manual in a safe place for easy future reference. Save the original packaging, including the internal packing material, guarantee card and proof of purchase receipt for at least the time of the guarantee. If you need to ship this machine, pack it in the original cardboard box to ensure maximum protection during shipping or transport (e.g. when moving or when you need to send this product for repair).

Note: If you hand over the appliance to somebody else, do so together with this user's manual. Following the instructions in the included user's manual is a prerequisite for the proper use of the power tool. The user's manual also contains operating, maintenance, and repair instructions.

The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions.

This power tool is intended exclusively for blowing and vacuuming fallen leaves in private gardens.

Any other use that is not explicitly approved in these instructions, may cause damage to the power tool and presents a serious hazard to the user.

2. MEANINGS OF WARNING SYMBOLS

	⚠ WARNING:Carefully read this user's manual.Adhere to important safety instructions
	⚠ WARNING:Always use:Protective footwearEar protectionEye protectionSafety gloves
	Before carrying out any maintenance on this power tool, turn it off and disconnect the power plug from the socket
	In the event that the power cord becomes tangled or damaged, disconnect it from the power socket
	Do not use it when it is rainingDo not expose it to the effects of moisture
	Keep other persons at a safe distanceKeep all other persons at a safe distance
	When this power tool is connected to a power supply, do not insert hands or feet into openings.
	Double insulation
	⚠ ATTENTION - ENVIRONMENTAL PROTECTION!This power tool must not be disposed of together with household/communal waste.When the power tool comes to the end of its useful life, it must be taken to a collection point for ecological disposal.
	Guaranteed sound power level LWA 106 dB(A)

3. SAFETY INSTRUCTIONS

WARNING

ATTENTION! Read all instructions and manuals, making sure that you understand everything. Not adhering to the following instructions and manuals, may result in electric shock, fire or serious injuries. The term "power tool/s" used in the following text applies to your power tool powered from the mains (connected via the power cord).

Store these instructions and user's manuals in a safe place.

Attention: Noise protection! Adhere to local ordinances when putting it into operation.

Work area

Keep the work area clean and ensure sufficient lighting. Untidiness and poor lighting of the work area contribute to the incidence of injuries.
Never use power tools in explosive atmospheres such as near flammable liquids, gases or dust. Power tools create sparks, which may ignite dust or fumes.
Keep children and bystanders at a safe distance when working with power tools. You may lose control of the power tool when looking around.

Electrical safety

The plug of the electrical appliance must fit into the appropriate socket. The power plug must not be modified in any way. Do not use any adapters in connection with the power tool. Unmodified power plugs and suitable power sockets reduce the risk of electric shock.
Avoid physical contact with grounded surfaces such as pipes, radiators, kitchen stoves and refrigerators. The risk of electric shock is greater when your body is grounded.
Never expose power tools to rain or wet environments. Water that enters into power tools increases the risk of electric shock.
Do not use the power cord for any purpose other than its intended use. Never use the power cord for carrying or dragging the power tool and never pull the power plug out of the power socket by pulling on the power cord. Do not subject the power cord to high temperatures, oil, sharp edges or moving parts. Damaged or tangled power cords increase the danger of electric shock.
When working with the power tool outdoors, only use extension cords specifically designed for outdoor use. Using extension cords designed for outdoor use limits the risk of electric shock.

Personal safety

* Always pay full attention and concentrate on your work and proceed prudently when working with power tools. Do not use the power tool if you are tired or under the influence of drugs, alcohol or medication. When working with power tools, a single brief moment of inattentiveness may lead to very serious injuries.
Use personal protective equipment. Always use safety glasses. Using personal protective equipment such as dust masks, safety footwear with anti-slip soles, safety helmets or earmuffs (appropriate to the actual work conditions) reduces the risk of injury.
* Prevent the power tool from being accidentally turned on. Make sure that the On/Off trigger switch is in the "OFF" position before plugging it into a power socket. Carrying power tools with the finger on the ON/OFF trigger switch and plugging turned on power tools into a power socket increases the risk of injuries.
Remove all adjustment tools, i.e. screwdrivers before turning on the power tool. A screwdriver or other tool located in the rotating part of the power tool may cause injuries.
Do not lean too far forward. Always maintain a stable stance. This will enable better control over the power tool in unexpected situations.
Wear appropriate clothing. Do not wear any loose clothing or any decorations. Keep hair, clothing and gloves at a safe distance from moving parts. Loose clothing, decorations or long hair may become caught in the moving parts.
If it is possible to mount attachments for suction or dust collection, check that they are properly connected and that they are used correctly. Using these attachments reduces dust related hazards.

Operating and maintaining power tools

Do not overload the power tool. Always use suitable power tools for your work tasks. Using suitable power tools will make your work better and safer within the scope of the given performance range.
Do not use the power tool if it cannot be turned on and off using the On/Off trigger switch. A power tool that cannot be turned on or off using the intended On/Off trigger switch is dangerous and must be repaired.
* Always unplug the power plug from the power outlet before carrying out settings, changing a part of the accessories or when putting the power tool out of operation, i.e. storing it. This preventative measure reduces the risk of accidentally starting the power tool.
Store an unused power tool out of reach of children and do not permit the power tool to be used by persons that are not acquainted with the power tool and the provided instructions. Power tools are dangerous when used by inexperienced persons.
Keep you power tools in good order. Ensure that it is correctly setup and that moving parts are properly attached and generally pay attention to cracked parts and other defects, which could have an effect on the proper operation of the power tool. In the event of defects, have the power tool repaired before using it. Many accidents are caused by poorly maintained power tools.
Use the power tool as well as all accessories and respective tools according to the included manuals in the correct manner for the given type of CZ-4 tool; whilst respecting the work conditions and the defined manner of work. Using the power tool for work different to the defined form of work may lead to dangerous situations.
Have your power tool repaired only by qualified professional personnel with the exclusive use of original spare parts. This will ensure that the safety of your power tool is maintained.

Additional safety directives for garden vacuum blowers

* Always use appropriate protective equipment when working with the power tool to prevent injuries to the face, eyes, hands, legs, head or hearing damage. Use safety glasses, i.e. face protection, tall boots, i.e. stable footwear, long pants, work gloves and hearing protection.
Never turn the power tool on when it is upside down or when it is not in the correct work position.
Turn the motor off and pull out the power plug when not using the power tool, do not leave it without supervision, when cleaning or transporting it, or when the extension cord is tangled or damaged.
Never use the power tool when there are other persons in the vicinity, particularly children or pets. Turn the power tool off when children or pets approach. When working with the power tool, maintain a distance of at least 5 metres from other persons or pets.
Never point the blowing tube at bystanders or animals. Never blow objects/dirt towards bystanders or animals. The operator of the power tool is responsible for accidents and dangerous situations to which persons or their property are subjected.
* Never operate the power tool or handle the power plug with wet hands and never use it when it is raining.
Use only extension cords specifically designed for outdoor use and that are designated in this manner. Protect the extension cord against high temperatures, oil and sharp edges.
The quality of the extension cord must not be lower than type H05RN-F and H05VV-F and must have a minimum conductor cross-section of 1.5 mm² and a maximum recommended length of 30 m.
- Ensure that the extension cord is secured in such a manner that the plug of the power cord may not disconnect during operation.
- Keep the air inlets free of dust, fibres, hair and other materials that could reduce air flow.
When using the power tool, maintain good balance and a stable stance.
Do not use the power tool in enclosed or poorly ventilated areas or in the vicinity of flammable or explosive substances (fluids, gases, dust).
Do not use the power tool when you have loose hanging hair or decorations (jewellery). Tie up long hair and put loose hanging decorations aside.
Make sure that the vacuum blower does not suck up burning or smouldering materials such as ash, cigarette butts, etc.
* Never attempt to vacuum broken objects from glass, plastic, porcelain, etc.
Do not use the power tool in the suction mode without a collection sack attached.
Do not use the vacuum blower on areas covered with coarse or fine gravel neither in the blowing nor suction mode.
Only operate the power tool during full daylight or under sufficient artificial lighting.
When not using the power tool, place it in a dry place out of children's reach.
When finished using it, disconnect the power tool from the power supply and check it for damage. If you have even the slightest doubt about the integrity of your power tool, have it checked at an authorised service centre.
* Only use the power tool in accordance with the instructions contained in the provided user's manual.
* Regularly check that all bolts are firmly tightened.
Only use spare parts and accessories recommended by the manufacturer.
* Never attempt to repair the power tool yourself or to reach the parts inside the power tool. If necessary, always take the power tool to an authorised professional workshop.
This power tool is not designed to be used by persons (including children) with physical or mental impairments or by persons lacking knowledge and experience, with the exception of the case, where they are under supervision and when they are provided with instructions for the use of the power tool by an adult

responsible for their safety. Children must remain under supervision to ensure that they do not play with the power tool.

This power tool is not suitable for use by children.
The user should have the vendor or an expert demonstrate the safe operation of the power tool.
Statutory regulations may limit the age of the operator.
Before every use, check that the extension cords exhibit no signs of damage or ageing. Never a power tool with damaged power cords.
Always direct the power cord towards the back, away from the power tool.
In the event that the power cord is damaged during operation, pull the pull the power plug out of the socket. Under no circumstances should you touch the power cord.
When working on slopes, maintain a stable stance.
* Pull the power cord plug out of the socket:
- before leaving the vacuum blower without supervision,
- before removing any clogged material,
- before inspecting the power tool, cleaning or performing any kind of work on it.

In the event that a foreign object or other waste accidentally enters the vacuum, immediately stop the power tool and only use it after you have checked it and made sure that it is in safe working condition.

In the event that the vacuum blower is making unusual sounds or if it starts vibrating abnormally, STOP IT immediately, pull the plug out of the socket and identify the cause. Excessive vibrations may damage the vacuum blower and injure the user

Recommendation

a) It is recommended that you slightly water dusty surfaces or use a water sprayer.
b) It is recommended that you use the maximum length of the tube so that the air current reaches the work surface.
c) It is recommended that you use this power tool at a reasonable time of day, not too early in the morning or too late in the evening as this would disturb your neighbours. Adhere to times stipulated by local ordinances.

⚠️ User instructions AFTER using the VACUUM

a) After use, disconnect this power tool from the power source.
b) Thoroughly clean the power tool according to the instructions contained in chapter 7.

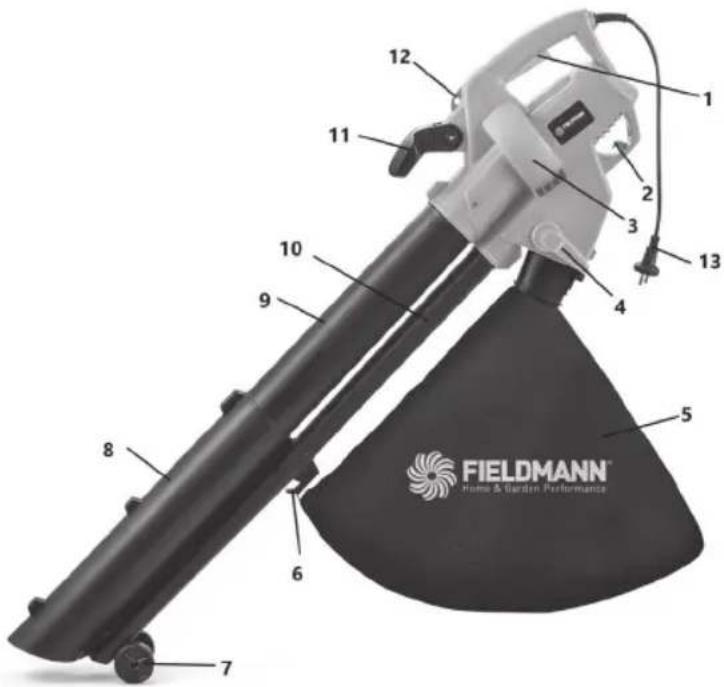

Description of the power tool (fig. 1)

1. On/Off trigger
2. Power cord retainer
3. Vacuum unit
4. Vacuum / blower mode selection lever
5. Collection sack
6. Attaching the bag to the tube

7. Support wheel

8. Bottom part of the vacuum tube

9. Top part of the vacuum tube (vacuuming)
10. Top part of the vacuum tube (blowing)
11. Handle
12. Attaching the shoulder strap
13. Power plug

4. ASSEMBLING THE VACUUM BLOWER

Warning! This vacuum blower must not be used or turned on until it is fully assembled.

DISCONNECT THE POWER CORD from the power grid before starting the assembly of the vacuum blower.

Assembly

Insert the top parts of the tube (fig 1, point 9, 10) into the vacuum blower unit (fig 1, point 3) and make sure that it is correctly seated. Then secure it in place using the included screws. Then connect the bottom tube with wheels (fig 1, point 8) to the top tubes. Check that it is inserted correctly, pushed in all the way and secured in place using the included screws.

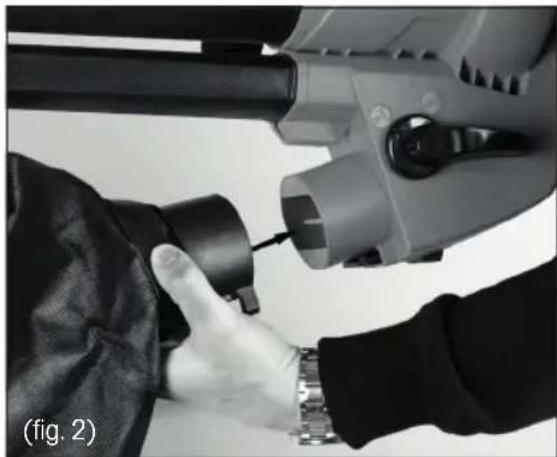

Attaching the collection sack

Close-up of a person using a handheld device to interact with another person's arm (no visible text or symbols)

Before attaching the collection sack, check that the mode selection lever is not clogged by material from previous use.

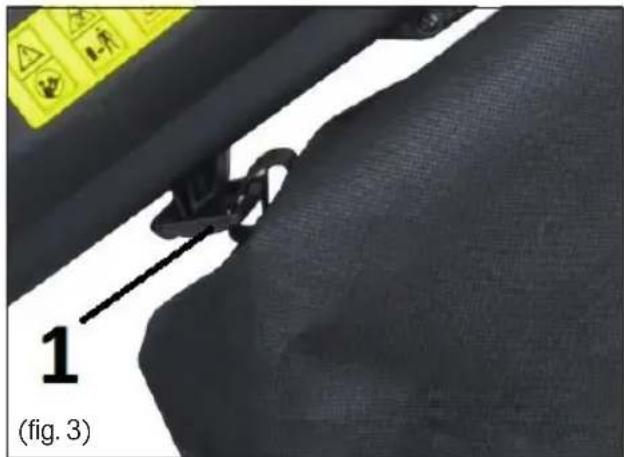

Place the plastic mouth of the bag over the outlet of the vacuum blower and secure it (fig. 2). Secure the front of the collection sack under the vacuum blower using the collection sack clamp (fig. 3).

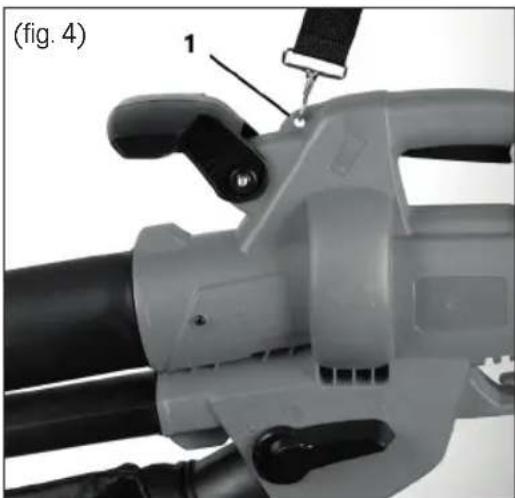

Attaching the shoulder strap

Close-up of a mechanical device with labeled component (1), no visible text or symbols beyond label and figure marker

This vacuum blower is supplied with a shoulder strap. This shoulder strap is connected to the top part of the vacuum blower unit using a snap hook (fig. 4, point 1). The shoulder strap reduces fatigue and increases work comfort. The shoulder strap can be set to any position.

Before commencing work

Before using this vacuum blower, connect it to a power source fitted with a residual current device and then turn on this power tool. Check that the residual current device is working correctly.
Before starting this vacuum blower, check that the middle tube is secured in place correctly.

⚠ Warning! Before selecting the vacuum or blower function, check that the mode selection lever (Fig 5, point 2) is in the normal position and that it is not blocked by materials from previous use.

Starting the vacuum blower

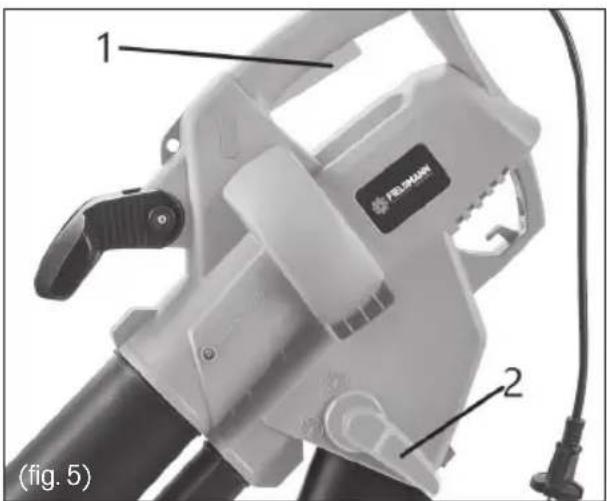

Using the mode selection lever (fig 5, point 2) located on the side of the vacuum blower unit, select one of the two functions and then turn the power tool on using the On/Off trigger (fig. 5, point 1).

Turning off the vacuum blower

If you want to turn this vacuum blower off, simply release the On/Off trigger (fig. 5, point 1)

6. USING THE VACUUM BLOWER

Using the vacuum blower

Do not attempt to vacuum wet materials. Before using the vacuum blower, allow fallen leaves and other materials to dry. This vacuum blower can be used to blow materials off terraces, roads, lawns, bushes, edges and pathways. It can also vacuum leaves, paper, small branches and sawdust. When this power tool is used in the vacuum mode, material will be sucked up through the nozzle on the suction tube and then moved to the collection sack. When it passes through the suction fan, it is partially mulched. Mulched plant material is suitable for composting.

⚠ Warning! The suction fan may be damaged in the event that a hard object is sucked in, for example a stone, a can, glass, etc.

⚠️ Important Do not use this power tool for vacuuming water or very wet materials. Never use this vacuum blower without the collection sack.

Operating the vacuum blower

Blower mode

Before commencing work, inspect the area that you wish to clean up. Remove all materials and items that could be deflected or which could become stuck or which could block the vacuum blower.

Using the mode selection lever on the side of the power tool (Fig 1, point 5), select the blower function and turn the power tool on. Lean the tube on the wheels and push the power tool forward. Point the tube nozzle at the materials that you wish to remove.

You can also hold the tube nozzle just above the ground and move it from side to side, while proceeding forward in the direction of where you wish to remove material. Blow the material into piles and then use the vacuum function to vacuum up the material.

Vacuum mode

Before commencing work, inspect the area that you wish to clean up. Remove all materials and items that could be deflected or which could become stuck or which could block the vacuum blower. Using the mode selection lever on the side of the power tool (Fig 1, point 5), select the vacuum function and turn the power tool on. Lean the tube on the wheels and push the power tool forward. Point the tube nozzle at the materials that you wish to vacuum. You can also hold the tube nozzle just above the ground and move it from side to side, while proceeding forward in the direction of where you wish to vacuum material. Do not push the tube nozzle directly into the material because this risks clogging the tube and reducing the performance of this power tool.

Plant material such as leaves has a large water content. Therefore, it may stick to the inner walls of the suction tube. If you wish to limit this problem, allow the plant material to dry out for a few days before vacuuming it.

7. MAINTENANCE, STORAGE AND REPAIRS

⚠ Warning! Disconnect this power tool from the power source before cleaning and before carrying out any standard maintenance.

Only store this power tool in a dry place that is protected against light and frost. Make sure that children do not have access to this power tool.

a) Keep all nuts and bolts securely tightened to the power tool so as to ensure its correct function.
b) Never leave material inside the power tool or in the collection sack. This may create a hazard when the vacuum blower is turned on again. Remove and empty out the collection sack. Check the normal function of the mode selection lever and check that it is not clogged with material. Using a suitable brush, clean out the area near the fan and inside the tube of the vacuum blower so that all material is removed. Do not use any type of solvent on the plastic parts of the vacuum blower.
c) Frequently check the degree of wear and tear on the collection sack.
d) Replace worn out or damaged parts with original spare parts or accessories. All damaged and worn out parts must be replaced to ensure the good operating condition of the vacuum blower.

Have repairs performed at an authorised service centre that will use only original spare parts.

8. DEVICE DESCRIPTION

Technical specifications
Input voltage 230–240V
Type of power supply and frequency 50Hz
Input power 3,000W
Protection class: Class II
Protection against the entry of solid substances and liquids IPXO
Capacity of the collection sack: 45 l
Air flow speed 240 km/h
Maximum air flow volume 9 m	^3
Mulching ratio 1:10
Weight	2.8
Idle speed (rpm) 14,000
Sound pressure level (SPL) 84.3 dB (A)
Sound pressure deviation kPa = 3 dB
Sound power level (SPL)	106 dB (A)
Sound power deviation LwA	KwA = 3 dB
Total vibration level	3.702 m/s ^2
Measurement deviation	K = 1.5 m/s ^2

The provided total noise level and vibration values were measured according to the requirements of the testing methodology describe in Directive 2000/14/EC.

9. ENVIRONMENTAL PROTECTION

Warning! Do not dispose of electrical and electronic waste with standard unsorted waste, rather use containers for sorted waste.

You will receive further information regarding the recycling of this power tool from an authorised vendor or at a waste collection facility.

10. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS

Dispose of used packaging material at a site designated for waste in your municipality.

The appliance and its accessories are manufactured from various materials, e.g. metal and plastic.

Take damaged parts to a recycling centre. Inquire at the relevant government department.

This product meets all the basic requirements of the applicable EU directives.

The text, design and technical specifications may be changed without prior notice and we reserve the right to make these changes.

11. DECLARATION OF CONFORMITY

FAST®

FAST ČR, a.s.

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

tel.: [phone], fax: [phone]

EU DECLARATION OF CONFORMITY

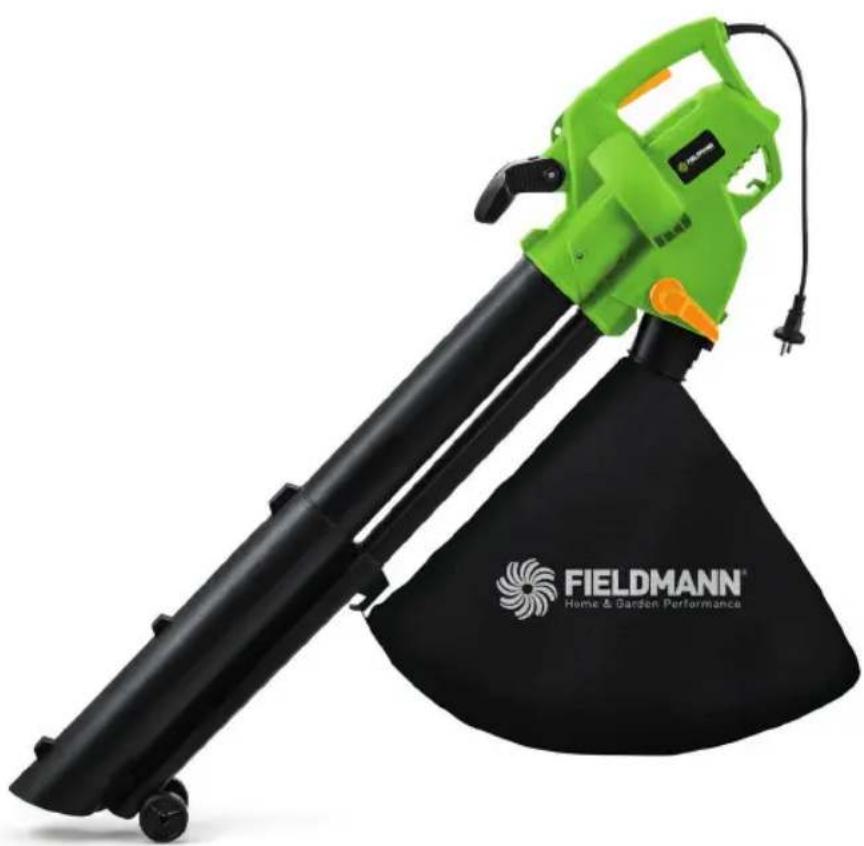

Product / brand: Leaf Blower/ Vacuum / FIELDMANN

Type / model: FZF 4008-E as factory model HY 6306P0

AC 230-240 V, 50Hz, 3000W, Class II, IPXO

L_PA = 87,3 dB(A), L_WA = 106 dB(A)

Manufacturer: FAST ČR, a.s.

U Sanitasu 1621, 251 01 Ríčany, Czech Republic

VAT no: CZ24777749

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above is in conformity with the relevant Union harmonization legislation:

Directive MD 2006/42/EC Directive EMC 2014/30/EU

Directive NEOE 2000/14/EC Directive RoHS 2011/65/EU

The relevant harmonized standards and the other technical specifications:

EN 60335-1:2012+A2 EN 55014-1:2017

EN 50636-2-100:2014 EN 55014-2:2015

EN 62233:2008 EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1

Place of issuance: Prague

Date of issuance: 22.03.2022

Name: Petr Uher - Responsible Person

Signature:

ICO:24777749, DIČ:CZ24777749

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the adate aof purchase to the end-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claim forservice can be applied either at dealer's shop where the product was bought, or at below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation ...

This warranty is avoid aespecially if aapply as follows: ■ Defects which were put on sale. ■ Wear-out aor adamage caused by acommon use. ■ The aproduct awas adamaged aby aunprofessional aor wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person. ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

Green Fieldmann air brush with black base cover (no visible text or symbols on body)

FIELDMANN®

Home & Garden Performance
