USER MANUAL JSBS014627 Jocel

Exterior view of a modern black double refrigerator with front panel and side door (no visible text or symbols)

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

INFORMAÇÕES DE SEGURANÇA E DE ADVERTÊNCIA.

Illustration showing a car with a cross symbol and two people handling a large object (no text or symbols present)

Technical line drawings of various household appliances and fixtures (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

ANTES DE UTILIZAR

EN IEC 61000-3-3: 2013+A1

EN 61000-3-2:2019+A1

Two cartoon characters with expressive faces and limbs, one standing and one sitting (no text or symbols)

Illustration showing a van with a cross symbol and two people handling a large object (no text or symbols present)

DÓNDE INSTALAR SU UNIDAD

Simple line drawing of a hand pressing down on a mechanical component (no text or symbols)

ESTANTE PARA PUERTA

Technical line drawings of a washing machine components (no text or symbols)

Telef. 00 34 914 879 573

http://www.jocel.es

EN IEC 61000-3-3: 2013+A1

EN 61000-3-2:2019+A1

Please read this instruction manual before connecting your Side by Side and keep it for future reference.

CONTENT

WARNING 49

SAFETY AND WARNING INFORMATION....51

PRODUCT INTRODUCTION ....53

INSTALLATION....55

OPERATION 57

CLEANING....64

GENERAL INFORMATION 65

NORMAL PHENOMENAS....65

CLIMATE CLASS 66

TROUBLESHOOTING....67

GENERAL WARRANTY TERMS 68

DECLARATION OF CONFORTMITY....69

CAUTION

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the
• hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
  • Children aged from 3 to 8 years are allowed to load and unload refrigerating/freezers appliances.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The refrigerant isobutene(R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, with which is nevertheless flammable.
• During transportation and installation of the appliance, ensure that none of the components of the refrigerant circuit becomes damaged.
• The refrigerant (R600a) is flammable.

Symbol ISO 7010 W021 Warning;

Risk of fire/flammable materials!

• WARNING: The appliance must be positioned so that the plug is accessible.
• WARNING: If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person to avoid any hazards.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments the appliance, unless they are of the type recommended by the manufacturer.
• WARNING: This unit uses R600a as the refrigerant and cyclopentane as the foaming agent, both of these materials are easily burnt, when discarding the unit it should be kept
• away from sources of extreme heat.
• WARNING: Danger of electrical shock, the unit is used yellow-green grounding wire of this appliance must be grounded before operation.

• WARNING: When the refrigerator is discarded after use please follow all local laws and regulations.

• WARNING: The refrigerant and insulation blowing gas are flammable. Disposing of the refrigerant can only be done at authorized waste disposal centers. Do not expose the refrigerant or insulation to extreme heat or an open flame.

• WARNING: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

• WARNING: To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
  – Clean regularly surfaces that can come in contact with food and accessible drainage systems.
  – Clean de water tank If not used for 48 hours.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the Side by Side appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

• WARNING: Risk of child entrapment.

• Before you throw away your old refrigerator or freezer:

• Take off the doors.

• Leave the shelves in place so that children may not easily climb inside.

• WARNING: Before performing any type of installation or cleaning, disconnect the Side by Side from the power source and reset the temperature controls to the desired setting(s).

• When you are finished, reconnect the Side by Side to the electrical source and reset the temperature controls to the desired setting.
• This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.

To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environment safe recycling.

BASIC SAFETY SYMBOL

This guide contains many important safety messages.

Always read and obey all safety messages.

DANGER

This is the safety alert symbol. It alerts you to warnings that will inform you of any potential hazards that could hurt or kill you. These messages will also help protect your unit from damage. All safety messages will be preceded by the safety alert symbol and the hazard signal word DANGER, WARNING, or CAUTION. These words mean:

DANGER

You could be killed or seriously injured if you don't follow the instructions.

WARNING

You may be killed or seriously injured if you don't follow the instructions.

CAUTION

Indicates an imminently hazardous situation which if not avoided, may result in minor or moderate injury or product damage only.

APPLIANCE CONNECTION

CAUTION

This product is applicable to 220-240V/50Hz only, and the allowable voltage fluctuation range is 187V\~242V. It cannot be used if the voltage frequency is not 50Hz.

In order to ensure safety, the socket and its cable must be able to withstand the current of above 10A.

LED LIGHT

Replaceable (LED only) light source by a professional.

This product contains two light sources of energy efficiency class F.

SAFETY AND WARNING INFORMATION

• To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following.
• Read all instructions before using this appliance.
• If you believe there is refrigerant leaking, do not touch the unit or the power outlet, ventilate the room and if possible turn your unit off using the circuit breaker. Call the manufacturer immediately.

• Refrigerant will cause serious injury when coming into contact with the skin or eyes. If this happens please immediately seek out medical treatment.

• Make sure to use a grounded power outlet. Consult a qualified electrician or service person if the grounding instructions are not completely understood, or if you have doubts on whether the appliance is properly grounded.

• Wait for 5 minutes or longer before reconnecting the power cord. Failure to do so may cause the freezer to fail.
• The incorrect grounding may cause breakdown and/or electric shock.
• A dedicated outlet should be used. Using several devices at one outlet may cause fire.
• Do not allow the power plug to face upward or to be squeezed at the back of the Side by Side. Water may be flown into or the plug may be damaged, which can cause fire or injury.
• Do not allow the power cord bent or pressed by the heavy object to be
• damaged.
• Unplug the power cord when cleaning, handling the interior lamp of the fridge.
• Failure to do so may result in an electric shock or other injury.
• Remove water or dust from the power plug with a dry clean cloth, do not use wet hands touch it and insert it with the ends of the pins securely connected.
• Do not use the Side by Side for non-domestic purposes (storing medicine or testing material, blood, using on a ship, etc.) It may cause an unexpected risk such as fire, electric shock, deterioration of stored material or chemical reaction.
• Do not use or store inflammable materials ether, benzene, alcohol, medicine, liquid propane gas, spray or cosmetics near or in the Side by Side. It may cause explosion or cause a fire.
• Do not put any glassware that is not design for use in a refrigerator or freezer inside. The glass may crack or break which can lead to injury.
• Do not place the heavy object or the dangerous objects such as: cup, flower vase, cosmetics, medicine or any containers with water in the Side by Side. It may be dropped and cause injury, fire or electric shock when opening or closing the door.
• Do not touch food or containers in the freezer with wet hands. It may cause frostbite.
• Do not spray water at the outside or the inside of the Side by Side do not clean it with benzene or thinner.
• Do not clean the unit with any acidic cleaners, abrasive brushes, sharp tools, and/or any cleaner that contains benzene.
• Do not use a drier to dry the inside of the unit, nor light a candle to remove odour. It may cause an explosion or fire.
• Do not cling to the door or the trays of the door. It may make the Side by Side fall down and cause serious injuries or even death. Especially, do not allow the children to do the above.
• Do not put ice in a thin crystal cup or ceramic ware. It may break cup or ceramic ware to cause injury.

- Do not allow anyone except a qualified service person to disassemble, repair, or alter the Side by Side. Unless directed by the manufacturer. It may cause injury, electric shock or fire.

- This appliance is intended to be used in household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

• Do not install the Side by Side in a wet or high humidity environment. Failure to do so will cause premature deterioration, cause the unit to run more frequently and can cause an electrical shock.
  • Install the appliance in a dry, well-ventilated room.
• The appliance should be placed close to the wall outlet, it is easy to cut off the power supply at the time of the accident.
• Do not expose the unit to extreme heat or any open flame.
• Keep your unit in a well-ventilated area, make sure if the unit is built-in that there is adequate air flow around the unit.
• Do not cover or obstruct the exhaust area on the back of your unit, failure to do so may cause eclectically shock or injury. It may cause electric shock or injury.

PRODUCT INTRODUCTION

PRODUCT FEATURES

This unit container super freeze, energy-savings, noise reduction, optimal refrigeration are preset options for your unit.

- Precise temperature control

Microcomputer control systems are able to separately control both the Side by Side and freezer more accurately.

• Automatic defrosting

This unit is equipped with a program that controls the frequency and duration of defrosting your freezer. This will make sure that you never need to manually defrost the freezer.

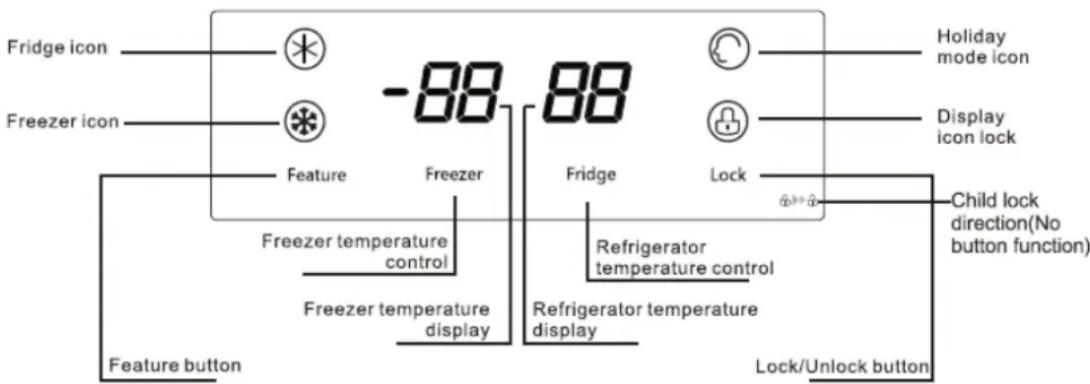

• LED display and temperature controls

The control board respectively displays the Side by Side and freezer temperatures. To change the setting in either section simply press the up or down arrow depending on the chance you would like made.

- Tempered glass, safe and reliable

Tempered glass, is safe and reliable, easy to clean and durable.

- Easy clean and removable door seal

The door seal(s) are easy to remove and clean, allowing the product to operate efficiently for longer.

• Door-open alarm system

If you leave any of your doors open for longer than 1-minute the alarm system will remind you to close the door.

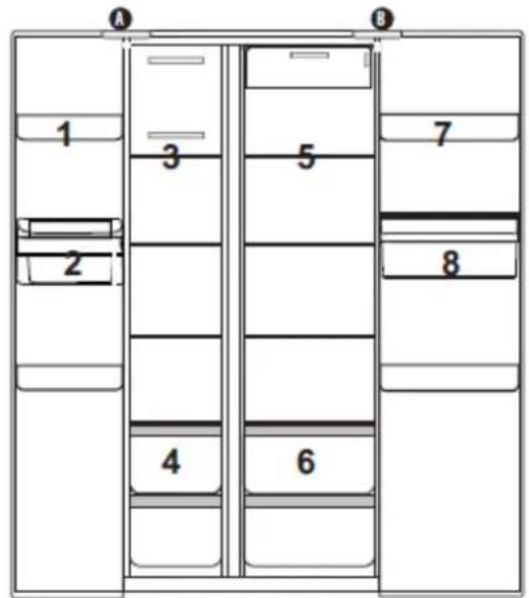

PRODUCT COMPONENTS

The layout of items below are subject to change without notice, and may not look or come setup as seen in the picture below.

The appearance and specifications of the actual product may differ depending on the model. Product components

A – Freezer compartment

1. Freezer door rack
2. Freezer ice maker box
3. Freezer glass shelves
4. Freezer drawer

B – Refrigerator compartment

1. Refrigerator glass shelves
2. Crisper
3. Refrigerator door rack
4. Refrigerator water dispenser tank

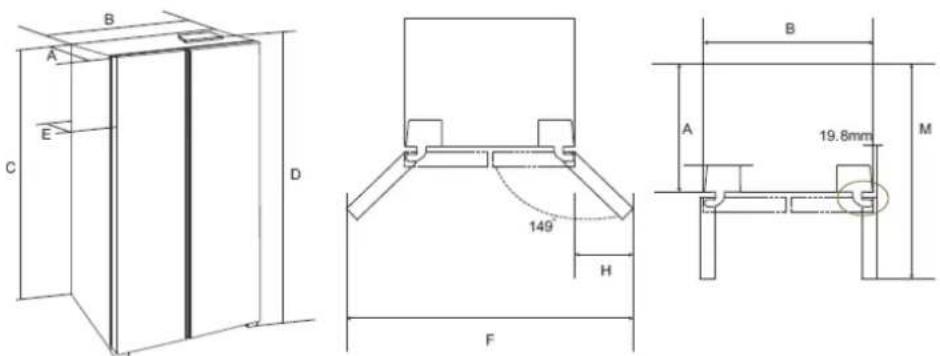

INSTALLATION DIMENSION

Select a good location to place your appliance where it is flat and easy to use. Avoid placing the unit near heat sources, direct sunlight or moisture.

A	B	C	D	E	F	H	M
551	911	1726	1780	636	1665	557	1081

- The above figures are a guideline for installation purposes. The actual dimensions of the unit may vary slightly.

- To ensure that your unit works at peak efficiency please maintain sufficient space around your unit as outlined on the next page.

INSTALLATION

TRANSPORTATION

- Do not carry the Side by Side horizontally or by laying it down.

- Do not carry the Side by Side by holding the door or handle; the Side by Side shall be carried by lifting the bottom.

• This unit should never be moved alone, two people are required to safely lift or move your unit.

Illustration showing a van with a cross symbol and two people handling a large box (no text or symbols present)

WHERE TO INSTALL YOUR UNIT

- The Side by Side must be placed on hard, flat ground; if cushioning is needed, stable, hard, nonflammable cushion blocks shall be used.

- Do not use the foam packaging as cushioning blocks!

• The unit shall be kept away from damp locations where water is present. Water or dirt should be removed from any surface of the unit as soon as possible using a soft cloth. This will help prevent rust and will help your unit run at peak efficiency.
• Place the Side by Side in a well-ventilated place, reserve a certain space around and behind the Side by Side, and do not cover or block the air grille on the rear cover plate of compressor at the back of refrigerator; Keep the Side by Side away from heat source or direct sunlight.

ADJUSTABLE PLASTIC FEET

• When the Side by Side stays in the packing box, plastic feet are in tightened state. After carrying it out from the packing box for placement, please make sure to adjust two front plastic feet until the height is suitable; just adjust two plastic feet with a wrench or directly by hand.
• Plastic feet and rear rollers must touch the ground to prevent the Side by Side from movement, vibration or noise. When moving the Side by Side, adjust plastic feet counterclockwise to keep them off the ground, and then push the Side by Side gently to move it.

Simple line drawing of a mechanical component with a downward arrow indicating force or movement (no text or symbols)

DOOR RACK

• Disassembly: Hold both sides of the door rack with both hands. Push it from the side without the guide and push it inward as seen in the diagram. Push until the edge of the door rack is separated from the grove of the liner.
• Installation: Hold both sides of the door rack with both hands. Install the buckle of the guide side at first. Then push the other side inward slightly, the guide will then click into place and the door rack will be installed. Please make sure it is installed properly before use.

INSTRUCTIONS FOR CHILD LOCK LEVER

• Press the child's lock lever with your thumb as the direction as below (1) and the water lever (2) will be locked and effectively reduced the water took by children.
• Press in the opposite direction to unlock and take water.

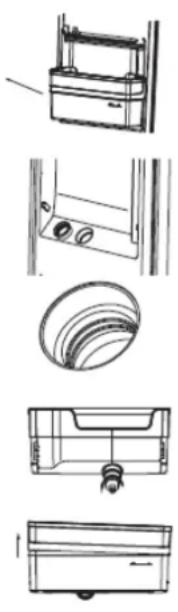

INSTRUCTIONS FOR WATER TANK ASSEMBLY

Technical line drawings of a mechanical component, showing front, side, top, and side views (no text or symbols)

1. Hold both sides of the tank with hands and pull the tank assembly off the door slightly in the direction indicated as below. Notes: The transparent silicone parts of the sealed water valve could be brought out meantime when removing the water tank. If so, remove them, and re-install them according to the following steps.
   1-1. Align the sealed part with the hole in the door and place it in it.
   1-2. It will be completed when the step of sealed part can be fitted to the step in the hole.2. Rotate counterclockwise to remove the water valve assembly from the water tank for cleaning.
2. Rotate counterclockwise to remove the water valve assembly from the water tank for cleaning.
3. Pinch the flange of the water tank cover slightly upwards, and the water tank cover can be separated from the water tank. Remove the other side with the same method. The tank and its cover can be cleaned after disassembly.
4. Install the water valve by rotating it clockwise after cleaning. When installing the tank cover, install the one side at first (do not press it all the way), then install the other side. Press firmly on edges of the tank cover to fit the tank. Re-install the entire water tank assembly at 45 to the door. Press the outer edge of the water tank slightly downwards to make it fit into the door.

FILL THE TANK WITH PURE DRINK WATER (\*)

• Open the inlet cover of water tank (1). Slowly fill the tank with pure drinking water up to the maximum fill line marked with "2L". Then close the inlet cover (1). To prevent any spills, please use a narrow-bore container to charge water.
• *Only direct drinking water or mineral water can be stored in the water tank

BEFORE USE

This Side by Side appliance is not intended to be used as a built-in appliance.

• Remove all of the packaging, including the foam backing at the bottom of the unit and the tape that fixes the shelves and door bins inside.
• Place the Side by Side to a proper position, and adjust the feet to level. It is recommended to wipe out your unit with a warm soapy cloth and dry it thoroughly before use.
• Place the Side by Side and adjust to level, clean it, let the Side by Side stand for above 4-6 hours, and then power the unit on. This helps make sure that the oil from the compressor has settled properly, and will help your unit run normally.

STARTING

• Connect the power cord, and turn on the power switch.
• Upon startup for the first time, the screen will display respective set temperature values (the temperature of the refrigerator section is set to 5°C, the temperature of the freezer is set to 18°C).
• The default mode is energy saving upon startup: The screen displays for 20s and then goes off. This mode to save energy and prolong the service life of LED lights.

CONTROL PANEL

FEATURE SELECTION

• Each press of the "Feature" button will cycle through the operating modes.
• Holiday Mode - the refrigerator will run at 6°C while the freezer will operate at -15°C.
• Super freezer mode – When the super freezer mode is selected, the compressor will operate continuously to freeze foods faster, and keep them fresh. The super freezer mode will automatically turn off either after 24h of operation, or when the freezer reaches -28°C. The super freezer icon will turn off, and the freezer will continue to operate at the normal set temperature.
• Super fridge mode – When the super fridge mode is selected, the fridge compartment reaches the set temperature in the shortest period, in order to keep the food as fresh as possible. under this mode, the set temperature of the fridge compartment locks on 0°C. The program runs 150mins maximally then exits automatically, the super fridge icon goes out, which represent the super fridge function is disable, the set temperature returns to the last one before the super fridge mode operates.

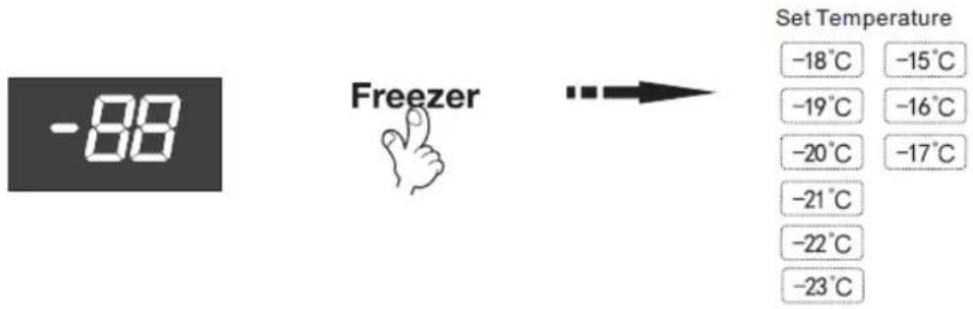

FREEZER COMPARTMENT SETTINGS

The default temperature of the freezer is -18^ . To change the temperature, press the "Freezer" button to cycle through the set temperatures.

CAUTION: Do not put fresh foods directly on the frozen foods.

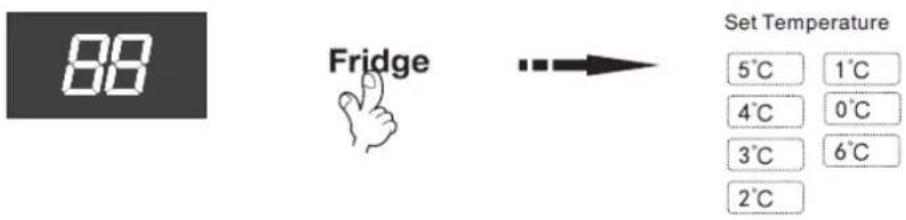

REFRIGERATOR COMPARTMENT SETTINGS

The default temperature of the refrigerator is 5^ C. To change the temperature, press the “Fridge” button to cycle through the set temperatures.

LOCK / UNLOCK BUTTON

This product has button lock function.

• Press the "Lock" button will enable lock mode and the lock icon will be visible.
• While the Side by Side is in this mode the other buttons on the control panel will not function, when the buttons are touched a chime will sound and the lock icon will flash.
• To exit lock mode press and hold the lock button for 3 seconds until the icon is no longer displayed.

OPEN DOOR ALARM

When the Side by Side door is open for above 1 min, the buzzer will alarm to remind users to close the door. After the door is closed, the alarm sound will stop automatically.

FRIDGE COMPARTMENT SWITCH OFF/ON

- Long press "fridge" button for 5s or 10s to set fridge compartment on/off, when fridge compartment is switched off, the fridge temperature digital display will go off; under the fridge compartment switched off state, long press "fridge" button for 5s or 10s to restart fridge function.

REFRIGERATOR COMPARTMENT

The fridge compartment should mainly be used to store food that will be consumed in a short time.

1. Refrigerator door rack
2. Refrigerator glass shelves
3. Crisper
4. Refrigerator water tank dispenser (*)

(*) The appearance and specifications of the actual product may differ depending on the model.

FREEZING COMPARTMENT

The freezing compartment is used to freeze foods, store deeply frozen foods and make ice cubes. It can preserve foods for a long time.

1. Freezer door rack
2. Freezer glass shelves
3. Freezer drawer
4. Door ice box maker (*)

(*) The appearance and specifications of the actual product may differ depending on the model.

CAUTION

The food especially the oily food which stored in refrigerator, please avoid the direct contact with the liner. When the interior stained with oil or oily food soup stains, should be cleaned immediately to avoid the long contact with the liner which may lead to the liner corrosion and cracking.

• Two-star ( ^** ) frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.
• One star (*), two star (***) and three star (*** ) compartments are not suitable for the freezing of fresh food.
• If the Side by Side appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
• Please depend on the actual situation of the product.

CAUTION

• When storing freezing foods, put them to the inside of freezing compartment, other than the bottle rack.
• -Do not put bottled or canned foods into the freezing compartment to prevent frost cracking.
• Before putting hot foods into the refrigerator, cool them to room temperature first; otherwise, they will increase power consumption.
• -Mark the freezing date on the packaging bag according to different storage lives of foods, so as to prevent foods from exceeding the time limit.
• -Divide foods into proper pieces and package them separately, which are easy to freeze thoroughly and will not froze together.
• -The packaging materials shall be odorless, airtight, watertight and pollution-free, so packaged foods are not easy to taint by other odor, without quality reduction.
• -Do not put too many fresh foods into the freezing compartment once, preferably not exceeding the freezing capacity value of refrigerator.
• -Melted foods cannot be frozen again, unless they are made into dishes; otherwise, their service quality will be affected.
• Glass bottles or glass containers shall not be placed into the freezing compartment or at the air outlet of refrigerating compartment duct; otherwise, they may explode.
• Foods cannot block the air outlet; otherwise, abnormal air circulation will be caused.

STORAGE OF FOODS

Your appliance has the accessories as the "Structure illustration" showed in general, with this part instruction you can have the right way to storage your food. The glass shelves and crisper can be removed to store food if needed.

Note: Food is not allowed to touch directly all surfaces inside the appliance. It has to be wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes

Precautions for internal and external cleaning of Side by Side:

• Before cleaning, always turn off the power switch, disconnect the power plug.
• During cleaning, make sure that no water will enter the switch, control panel, door lamp and top control box.
• Remove dirt from the outside of Side by Side with mild cleaner, then wipe with clean soft cloth, and let the Side by Side dry naturally.
• When cleaning door sealing strip, always use clean water, wipe with dry cloth and let it dry
• naturally. Wet soft cloth with warm water or neutral cleaner to wipe the Side by Side body except the door sealing strip.
• It is forbidden to flush the Side by Side directly with water, which will affect electrical insulation properties, etc.
• It is forbidden to clean the Side by Side with metal wipers, ware brushes, coarse abrasive cleaners, strong alkaline detergents, or flammable or toxic cleaning fluids.

DAIRY FOODS AND EGGS

• Most pre-packed dairy foods have a recommended 'use by/best before/best by/ date stamped on them. Store them in the fridge compartment and use within the recommended time.
• Butter can become tainted by strong smelling foods so it is best stored in a sealed container. Eggs should be stored in the fridge compartment.

RED MEAT

• Place fresh red meat on a plate and loosely cover with waxed paper, plastic wrap or foil.
• Store cooked and raw meat on separate plates. This will prevent any juice lost from the raw meat from contaminating the cooked product.

POULTRY

- Fresh whole birds should be rinsed inside and out with cold running water, dried and placed on a plate. Cover loosely with plastic wrap or foil Poultry pieces should also be stored this way. Whole poultry should never be stuffed until just before cooking, otherwise food poisoning may result.

FISH AND SEAFOOD

• Whole fish and fillets should be used on the day of purchase. Until required refrigerate on a plate loosely covered with plastic wrap, waxed paper or foil. If storing overnight or longer, take particular care to select very fresh fish.
• Whole fish should be rinsed in cold water to remove loose scales and dirt and then patted dry with paper towels. Place whole fish or fillets in a sealed plastic bag.
• Keep shellfish chilled at all times. Use within 1-2 days.

PRECOOKED FOODS AND LEFTOVERS

• These should be stored in suitable covered containers so that the food will not dry out. Keep for only 1-2 days.
• Reheat leftovers only once and until steaming hot.

VEGETABLE CONTAINER

• The vegetable container is the optimum storage location for fresh fruit and vegetables.
• Take care not to store the following at temperatures of less than 6^ C for long periods: Citrus fruit, melons, aborigines, pineapple, papaya, curette, passion fruit, cucumber, peppers, tomatoes.
• Undesirable changes will occur at low temperatures such as softening of the flesh, browning and/or accelerated decaying
• Do not refrigerate avocados (until they are ripe), bananas and mangoes.

FOOD	LOCATION (REFRIGERATOR COMPARTMENT)
Butter, cheese	Upper door rack
Eggs	Door rack
Fruit, vegetables, salad	Crisper
Meat, sausage, cheese, milk	Lower area (lowest shelf 1 crisper cover)
Dairy products, canned food, cans	Upper área or door rack
Drinks, bottles, tubes	Door rack
FOOD	LOCATION (FREEZER COMPARTMENT)
Small frozen food	Door rack
Packaged frozen foods	Freezer Drawer
Fish, meat, ice cream	Lower área (lower shelf of drawer)

Note: Food is not allowed to touch directly all surfaces inside the appliance. It has to be wrapped separately in aluminum sheet or in cellophane sheet or in airtight plastic boxes.

FREEZING AND STORING FOOD IN THE FREEZER COMPARTMENT

• To store deep-frozen food.
- To make ice cubes.
- To freeze food.

Note: Ensure that the freezer compartment door has been closed properly.

PURCHASING FROZEN FOOD

• Packaging must not be damaged.
• Use by the 'use by /best before/best by/' date.
• If possible, transport deep-frozen food in an insulated bag and place quickly in the freezer compartment.

STORING FROZEN FOOD

Store at -18^ C or colder. Avoid opening the freezer compartment door unnecessarily.

FREEZING FRESH FOOD

• Freeze fresh and undamaged food only.
• To retain the best possible nutritional value, flavour and colour, vegetables should be blanched before freezing. Aubergines, peppers, zucchini and asparagus do not require blanching.
• The following foods are suitable for freezing:

- Cakes and pastries, fish and seafood, meat, game, poultry, vegetables, fruit, herbs, eggs without shells, dairy products such as cheese and butter, ready meals and leftovers such as soups, stews, cooked meat and fish, potato dishes, souffles and desserts.

- The following foods are not suitable for freezing:

- Types of vegetables, which are usually consumed raw, such as lettuce or radishes, eggs in shells, grapes, whole apples, pears and peaches, hard-boiled eggs, yogurt, soured milk, sour cream, and mayonnaise.

RECOMMENDED STORAGE TIMES OF FROZEN FOOD IN THE FREEZER COMPARTMENT

These times vary depending on the type of food. The food that you freeze can be preserved from 1 to 12 months (minimum at -18°C).

FOOD	STORAGE TIME
Bacon, casseroles, milk	1 mes
Bread, ice cream, sausages, pie, prepared shellfish, oily fish	2 meses
Non-oily fish, shellfish, pizza, scones and muffins	3 meses
Ham, cakes, biscuits, beef and lamb chops, poultry pieces	4 meses
Butter, vegetables (blanched), eggs whole and yolks, cooked crayfish, minced meat (raw), pork (raw).	6 meses
Fruit (dry or in syrup), egg whites, beef (raw), whole chicken, lamb (raw), fruit cakes.	12 meses

DEFROSTING

- This production has automatic defrosting function, without manual operation.

CLEANING

Precautions for internal and external cleaning of Side by Side:

• Before cleaning, always turn off the power switch, turn off the power plug.
• During cleaning, make sure that no water will enter the switch, control panel, door lamp and top control box.
• Remove dirt from the outside of Side by Side with mild cleaner, then wipe with clean soft cloth, and let it dry naturally.
• When cleaning door sealing strip, always use clean water, wipe with dry cloth and let it dry naturally. Wet soft cloth with warm water or neutral cleaner to wipe the Side by Side body except the door sealing strip.
• It is forbidden to flush the Side by Side directly with water, which will affect electrical insulation
• properties, etc.
• It is forbidden to clean the Side by Side with metal wipers, ware brushes, coarse abrasive cleaners, strong alkaline detergents, or flammable or toxic cleaning fluids.

After cleaning, connect the power plug of refrigerator, and connected with the refrigerator.

GENERAL INFORMATION

ON VACATION:

- When you want to leave for vacation, you had better to make the Side by Side operate continuously and leave foods that can be stored for a short time. If you want to stop the Side by Side, remove all foods, disconnect the power plug, clean the inside of Side by Side fully, and open the door to avoid producing abnormal odors.

AT POWER FAILURE

- Generally, short-term power failure will not affect the temperature of the Side by Side sharply. However, if power failure lasts for a long time, you shall reduce the opening frequency of refrigerator, and shall not put fresh foods into the Side by Side (prevent rise in the temperature of Side by Side from speeding up). - If you know power failure is coming, you can turn on the “Super Freezer” function in advance to keep the temperature of refrigerator to the lowest value.

SHUTDOWN

- Generally, it is not suggested to stop Side by Side or turn off the power switch; otherwise, the life of Side by Side may be affected.

ENERGY SAVING TIPS

• Make sure to keep the Side by Side away from heat source and direct sunlight.
• Before storing hot foods, cool them to room temperature and then put into Side by Side.
• Close the door timely, reduce the opening frequency, and shorten the opening time.
• When unfreezing frozen foods, you can put them into the Side by Side compartment, which will assist in refrigeration of the Side by Side compartment.
• Make sure that the temperature sensor is not covered or blocked by foods, and keep proper distance with foods.

NORMAL PHENOMENAS

BUTTON FAILURE

- Please check the control board whether the fridge under lock mode. When under lock mode, all buttons can't work.(just some models)

LOW VOLTAGE, THE COMPRESSOR CAN'T START

- You should purchase pressurizer of more than 1000W when the area of the appliance installation, that's better to protect your Side by Side.

LONG TIME TO START

- When the ambient temperature too high, it will take long time to start the appliance.

MIDDLE BEAMS FEEL HOT

- Middle beams feel hot after a period of time of the appliance run, it belongs to the normal phenomenon.

DEW DROPS

- When external air flows into the cool inner surface of the Side by Side, dew drops can be formed. If the humidity of the installed location is high or during the rainy season, dew drops can form on the outer side of the Side by Side. This is a natural phenomenon that occurs during the humid weather, Wipe the water drops with a dry cloth.

NOISE

• When you operate the Side by Side for the first time, the fridge will operate at high speed to cool fast and the sound can seem louder. When the internal temperature falls below a certain level, the noise will subside.
• When the operation of the compressor is starting or ending; various parts expanding/ contracting or various control devices operating or temperature change within the Side by Side, you will hear the sounds, these are normal sounds.

COMPRESSOR HOT

- When working, the temperature of the compressor outer 80°C, please do not is more than touch the compressor it, may cause serious injury.

COMPRESSOR LONG TIME RUNNING

- When the ambient temperature too high or put too much fresh foods into the fridge, it will take long time to cool down until the appliance run at the setting temperature.

CLIMATE CLASS:

• Extended temperate (SN): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';
• Temperate(N): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';
• Subtropical (ST): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';
• Tropical(T): 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Note: More data information, please scan the QR code on the energy label.

TROUBLESHOOTING

Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

FAULT	POSSIBLE CAUSE	REMEDIAL ACTION
No display on the display panel	The mains plugo f the appliance is not in the socket properly.	Check whether the power is on.
Alarm sound	Door is slightly open or not close more than 1 minute.	Closet he door completely.
The compressor do not work	It's under defrosting mode	It's normal for defrosting.
	Power is not connected well.	Check whether the power is connected well.
Compressor runs too long	The equipment has recently been disconnected for a period of time	It takes some hours for the equipment to cool down completely
	Put too much fresh or hot food	Hot food Will cause the equipment to run longer until the desired the temperature is reached
	Doors are opened too frequently or too long	Warm air entering the equipment cause it to run longer. Open the door less often
Vibrating noise	Floor is uneven or weak	Be sure floor is level and solid and can adequately support fridge
	Items placed on the top of the fridge are vibrating	Remove items
	The equipment is touching wall or cabinets	Move equipment so that does not touch the wall or cabinets

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.
2. Exceeded the current legal period, for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of labor hand, according to current fees
3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910 351

E-mail: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below:

Complies with the following European directives and standards implementation.

Low Voltage

2014/35/EU

EN 60335-1:2012+A11+A13+A14+A1

+A2+A15

EN 60335-2-24:2010+A1+A2+A11

EN 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN IEC 55014-1: 2021

EN IEC 55014-2: 2021

EN IEC 61000-3-3: 2013+A1

EN 61000-3-2:2019+A1

Country of Origin: P.R.C.
