Product Type	Video Projector
Brand	Acer
Model	MU629K
Display Technology	DLP
Native Resolution	1920 x 1080 (Full HD)
Brightness	4000 ANSI Lumens
Contrast Ratio	20,000:1
Lamp Life	Up to 5000 hours (Standard) / 10000 hours (Eco)
Projection Size	30" - 300"
Throw Ratio	1.5 - 1.65
Keystone Correction	±40° Vertical
Dimensions (W x D x H)	315 x 223 x 98 mm
Weight	3.5 kg
Power Consumption	300W (Max)
Inputs	2x HDMI, 1x VGA, 1x USB, 1x Audio 3.5mm
Outputs	1x Audio 3.5mm, 1x Speaker (3W)
Lamp Type	UHP Lamp
Recommended Use	Home Cinema, Business Presentations
Cleaning	Use a soft, dry cloth for the lens; clean air filters monthly
Safety	Class 1 Laser Product; avoid looking directly into the lens
Repairability	Replaceable lamp; consult user manual for replacement procedure

Frequently Asked Questions - MU629K ACER

How do I turn on the Acer MU629K projector?

Press the Power button on the projector or remote control. Ensure the power cable is connected and the lamp indicator is off before pressing.

What is the maximum resolution supported?

The native resolution is Full HD (1920 x 1080). It can accept signals up to 4K (3840 x 2160) but will downscale them to 1080p.

How do I clean the projector lens?

Use a soft, lint-free cloth slightly dampened with lens cleaning solution. Wipe gently in circular motions. Do not use abrasive materials.

How often should I replace the lamp?

The lamp lasts up to 5000 hours in standard mode and 10000 hours in eco mode. Replace when the lamp indicator turns red or image becomes dim.

Can I connect my laptop via HDMI?

Yes, the projector has two HDMI inputs. Connect your laptop using an HDMI cable, then select the correct input source using the Source button.

How do I adjust the focus and zoom?

Use the focus ring on the lens to sharpen the image. The zoom ring adjusts image size without moving the projector.

What should I do if the projector overheats?

Ensure ventilation ports are not blocked. Clean the air filters. If the problem persists, turn off the projector and let it cool for 30 minutes.

Is there a built-in speaker?

Yes, it has a 3W speaker for basic audio. For better sound, connect external speakers to the audio output.

How do I enable keystone correction?

Press the Keystone button on the remote, then use the arrow keys to adjust the image shape. Vertical keystone correction is available.

Can I mount the projector on the ceiling?

Yes, the projector supports ceiling mounting. Use a compatible mount and follow the installation instructions in the manual. Ensure the mount is securely attached to a beam.

USER MANUAL MU629K ACER

Acer DLP Projector X1529HP/MF529/Q59F/EF565/EV-F60/ M459/BS-429/X1529HK/MF529K/Q59FK/ EF565K/EV-F60K/M459K/BS-429K/ H6542PK/E355DPK/HE-805PK/GM525PK/ H6531PK+/VH-425PK/H6542K/E355DEK/ HE-805EK/GM525EK/H6531EK+/VH- 425EK/H6543BDK/E356DK/HE-806K/ GM526K/H6547BDK/VH-426K/ H6543BDK+/H6547BDK+/E356D/HE-806/ GM526/X1526PK/D655FPK/V58FPK/ AF608PK/EV-F58PK/M456PK/BS-425APK/ DX525APK/KW320APK/H6542PK/X1526K/ D655FEK/V58FEK/AF608EK/EV-F58EK/ M456EK/BS-425AEK/DX525AEK/ KW320AEK/H6542EK/X1629HP/MU529/ Q59U/EU565/EU566/DX629/BS-529/ X1629HK/MU629K/Q59UK/EU565K/ EU566K/DX629K/BS-529K/H6543BD/ E357D/HE-807/GM527/H6542BD+/VH- 427/A1P2104 Series User's Guide

Copyright © 2021. Acer Incorporated.

All Rights Reserved.

Acer Projector User's Guide

Original Issue: 05/2021

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of merchantability or fitness for a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided below. The serial number and model number are recorded on the label affixed to your projector. All correspondence concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Acer Projector

Model number: ____

Serial number: ____

Date of purchase: ____

Place of purchase: ____

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.

"HDMI™, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

Information for Your Safety and Comfort

Read these instructions carefully. Keep this document for future reference.

Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

• Install the power supply unit before connecting the power cord to the AC power outlet.
- Unplug the power cord before removing the power supply unit from the projector.
- If the system has multiple sources of power, disconnect power from the system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

Warnings!

• Do not use this product near water.
• Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.
• Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.

This product should never be placed near or over a radiator or heat register, or in a built-in installation unless proper ventilation is provided.

- Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind onto or into the product.

iv

• To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface.
• Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices or lamp.

Using electrical power

• This product should be operated from the type of power indicated on the marking label. If you are not sure of the type of power available, consult your dealer or local power company.
• Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.
• If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.
• Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip's input rating.
• This product's AC adapter is equipped with a three-wire grounded plug. The plug only fits in a grounded power outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices that may interfere with the performance of this product.

- Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certified, VDE approved or its equivalent, 4.5 meters (14.76 feet) maximum length.

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service personnel when:

• the power cord or plug is damaged, cut or frayed
• liquid was spilled into the product
  • the product was exposed to rain or water
• the product has been dropped or the case has been damaged
• the product exhibits a distinct change in performance, indicating a need for service
• the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components. Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

- Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.

RG2 IEC 62471-5:2015

• Turn on the projector first and then signal sources.
- Do not place the product in the following environments:

• Space that is poorly ventilated or confined. At least 50cm clearance from walls and free flow of air around the projector are necessary.

- Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up.

- Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the life span and darken the image.

- Locations near fire alarms.

- Locations with an ambient temperature above 40^ / 104^ . Such environment

may cause the fan(s) to operate in standby mode.

- Locations where the altitudes are higher than 10000 feet.

- Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise or odor comes out of your projector. It might cause fire or electric shock. In this case, unplug immediately and contact your dealer.

- Do not keep using this product to break or drop it. In this case contact your dealer for inspection.

- Do not face the projector lens to the sun. It can lead to fire.

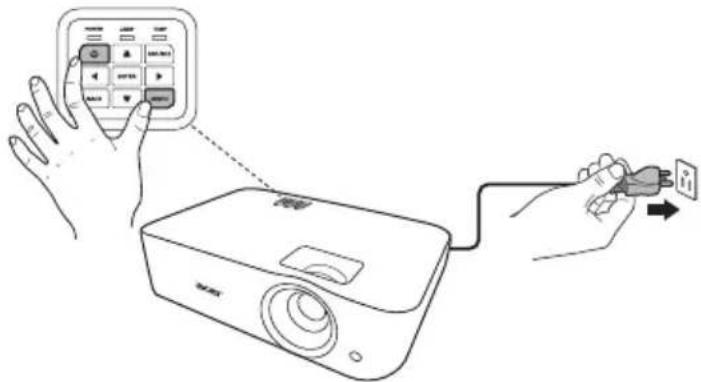

- When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.

- Do not frequently turn off the main power abruptly or unplug the projector during operation. The best way is to wait for the fan to stop before turning main power off.

- Do not touch the air outlet grille and bottom plate which become hot.

- Clean the air filter frequently. The temperature inside may rise and cause damage when the filter/ventilation slots are clogged with dirt or dust.

- Do not look into the air outlet grille when projector is operating. It may hurt your eyes.

• Always open the lens shutter or remove the lens cap when the projector is on.

- Do not block the projector lens with any object when the projector is under operation as this could cause the object to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press HIDE on the remote control.

- Do not operate lamps beyond the rated lamp life. It could cause it to break on rare occasions.

- Contact your local dealer or Acer service center when you need to change the lamp.

- The product will detect the life of the lamp itself. Please contact your local dealer or Acer service center for changing the lamp, when lamp warning message displays.

- Do not attempt to disassemble this projector. There are dangerous high voltages inside which may hurt you.

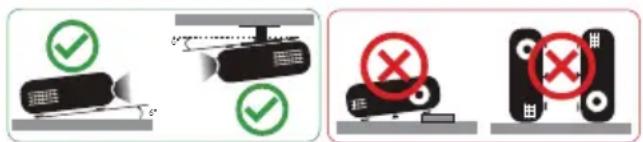

- Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage.

- This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.

- The projector should be placed in a horizontal way by means of desktop or ceiling mount mode only, and its tilt angles should not exceed 6 degrees, otherwise it would cause dramatical decrease of lamp life or severe safety concern of system malfunction.

Caution for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.
• Do not increase the volume level after your ears have adjusted.
• Do not listen to music at high volumes for extended periods.
• Do not increase the volume to block out noisy surroundings.
  • Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/Sustainability/index.htm

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Mercury advisory

For projectors or electronic products containing an LCD/CRT monitor or display:

"Lamp(s) contain Mercury, Dispose Properly."

Lamp(s) inside this product contain mercury and must be recycled or disposed of according to local, state or federal laws. For more information, contact the Electronic Industries Alliance at www.eiae.org. For lamp-specific disposal information, check www.lamprecycle.org

viii

First Thing First

Usage Notes

Do:

• Turn off the product before cleaning.
• Use a soft cloth moistened with mild detergent to clean the display housing.
• Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Don't:

• Block the slots and openings on the projector provided for ventilation.
• Use abrasive cleaners, waxes or solvents to clean the unit.
• Use under the following conditions:

• In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic field.
- Place in direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user's guide to maximize the life of your unit.

Warning:

• Do not look into the projector's lens when the lamp is on. The bright light may hurt your eyes.
  • To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
• Please do not open or disassemble the product as this may cause electric shock.
  • The product will detect the life of the lamp itself. Please contact your local dealer or Acer service center for changing the lamp, when lamp warning message displays.
• When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting power.
• Turn on the projector first and then the signal sources.
• Do not use lens cap when projector is in operation.
• When the lamp reaches the end of its life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, contact your local dealer or Acer service center.

Information for Your Safety and Comfort iii

First Thing First viii

Usage Notes viii

Precautions viii

Introduction 1

Product Features 1

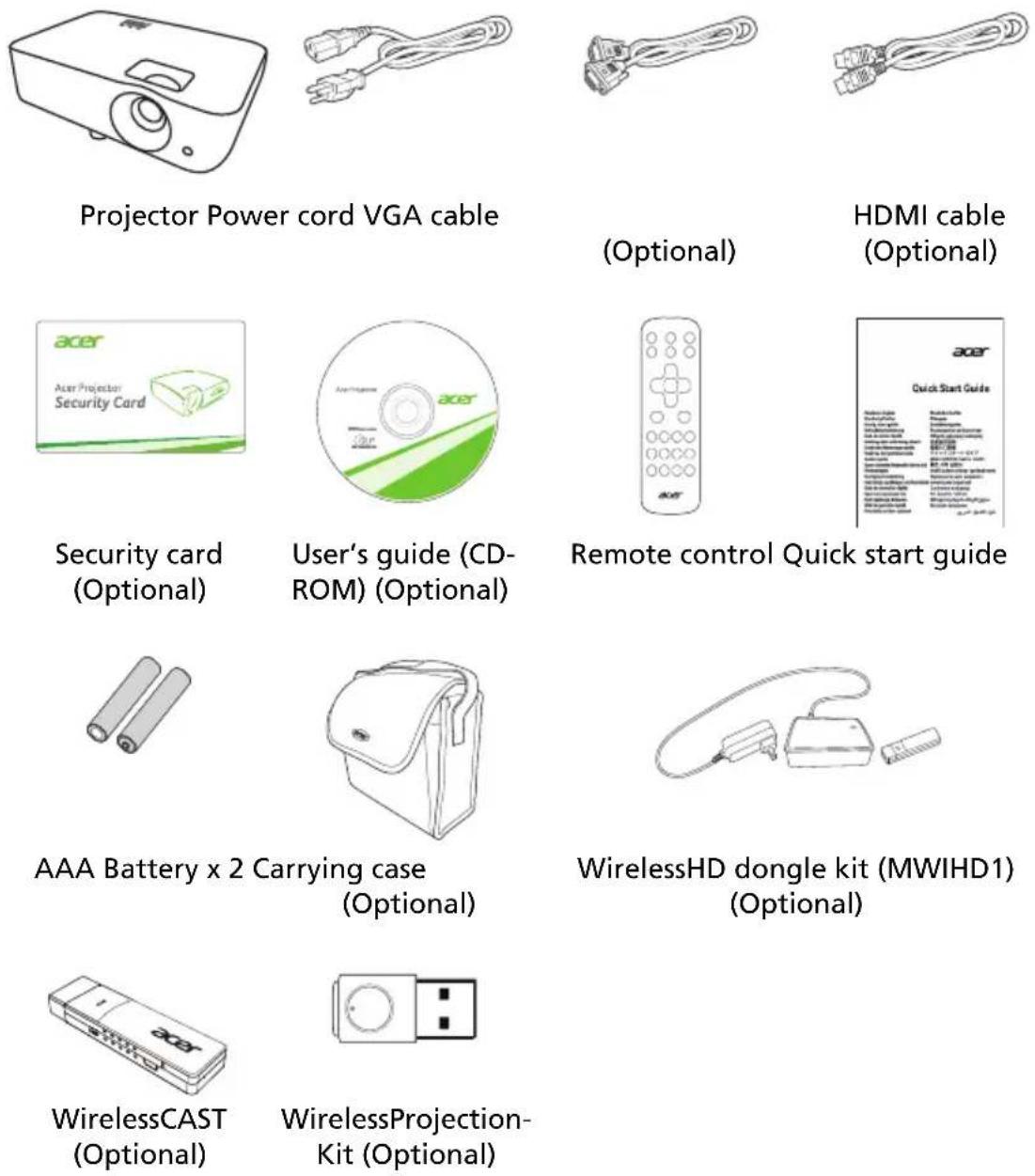

Package Overview 2

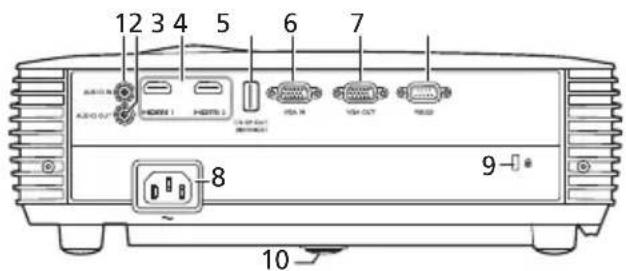

Projector Overview 3

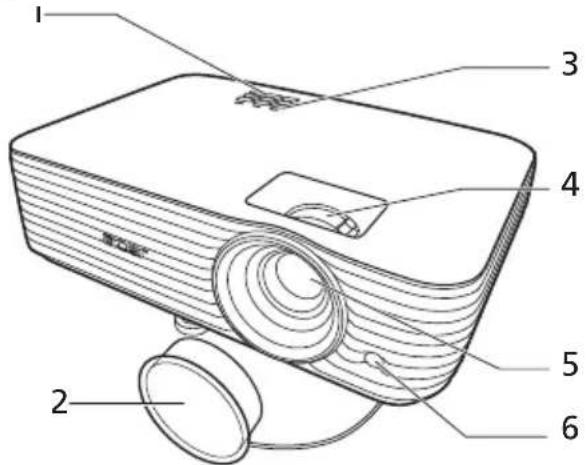

Projector Outlook 3

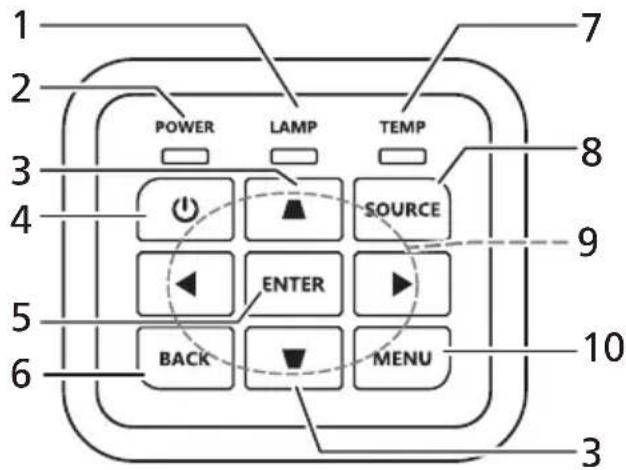

Control Panel 4

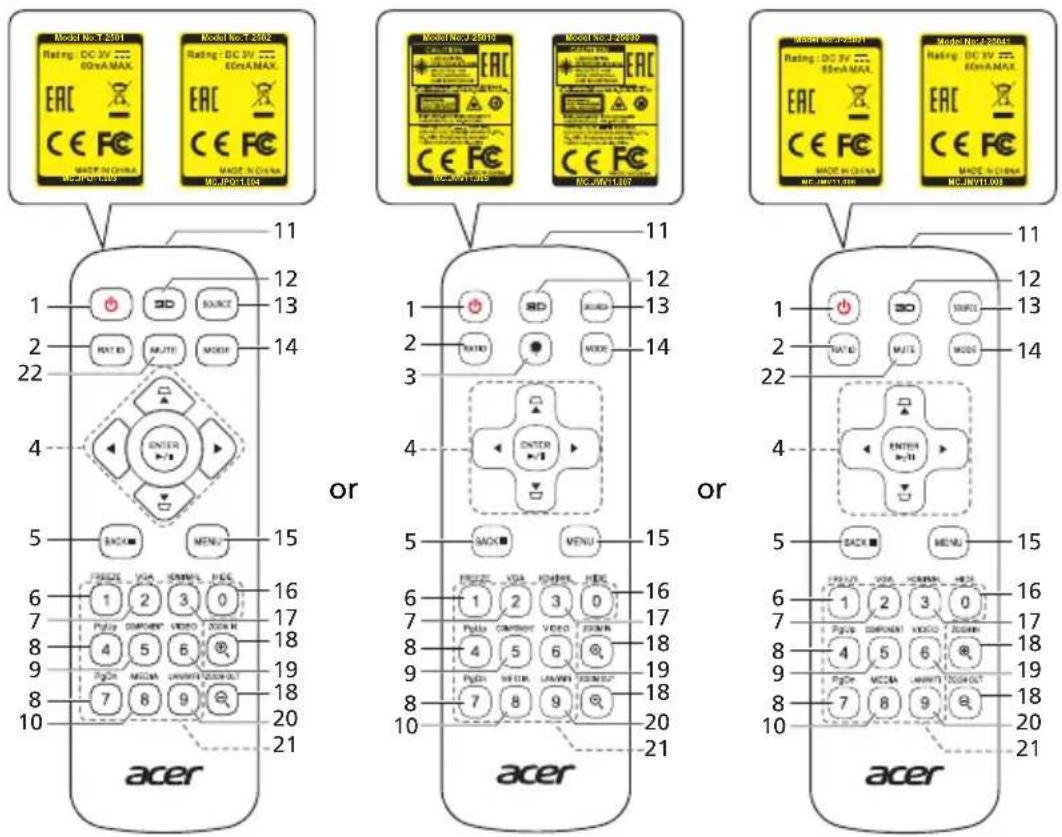

Remote Control Layout 5

MHL Feature Introduction 7

Getting Started 8

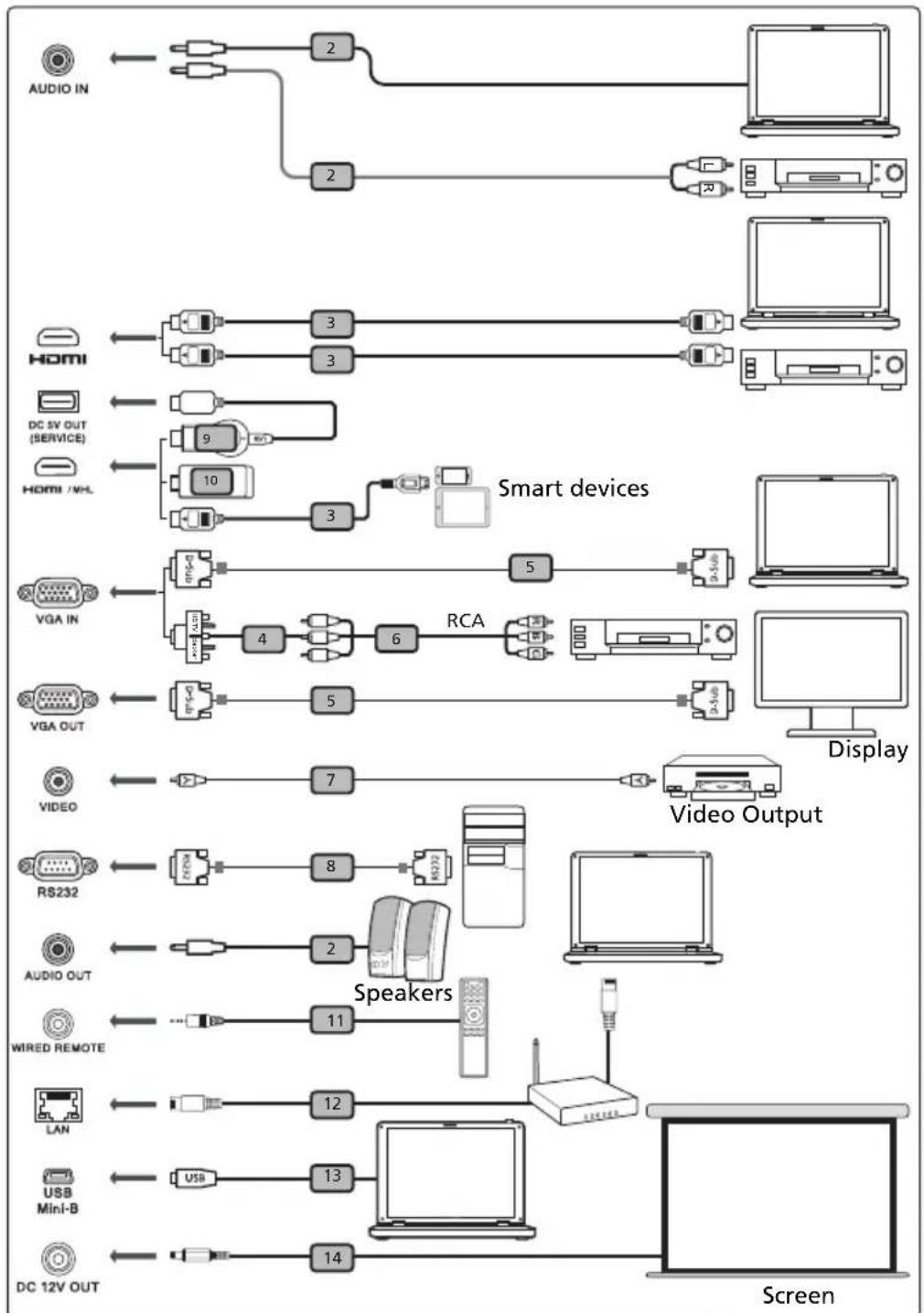

Connecting the Projector 8

Turning the Projector On/Off 10

Turning On the Projector 10

Turning Off the Projector 11

Adjusting the Projected Image 12

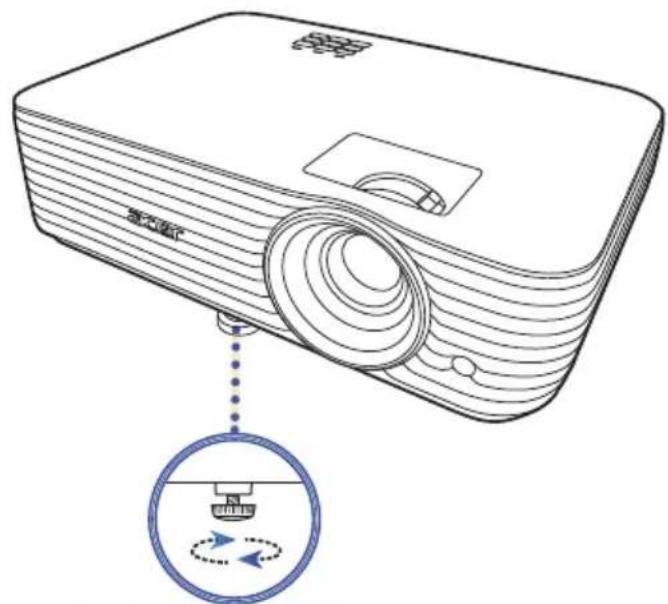

Adjusting the Height of the Projected Image 12

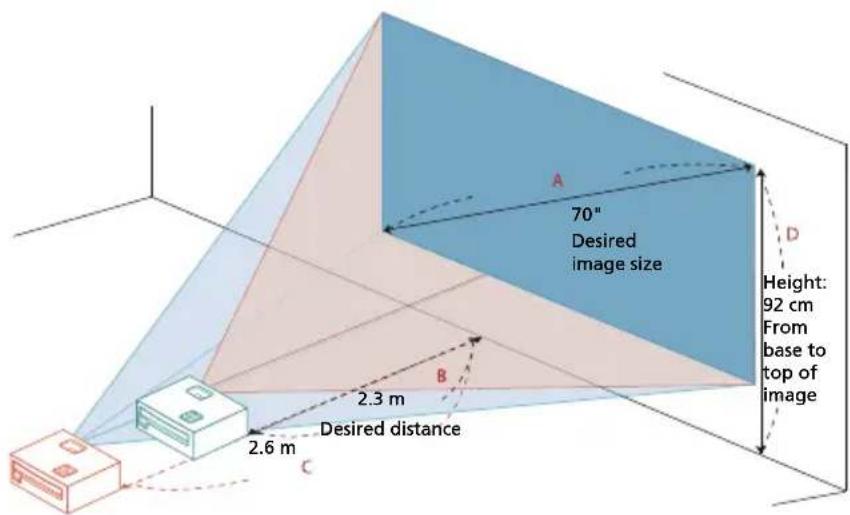

How to Get a Preferred Image Size by Adjusting

Distance and Zoom 13

User Controls 14

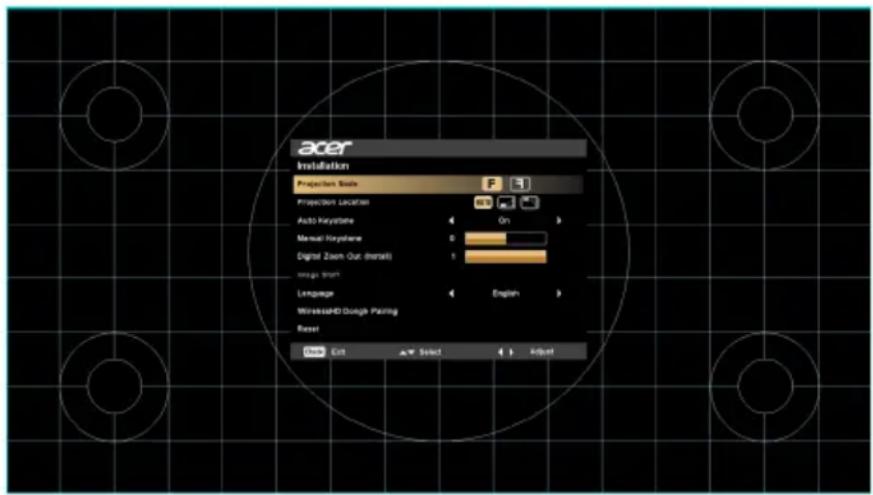

Installation Menu 14

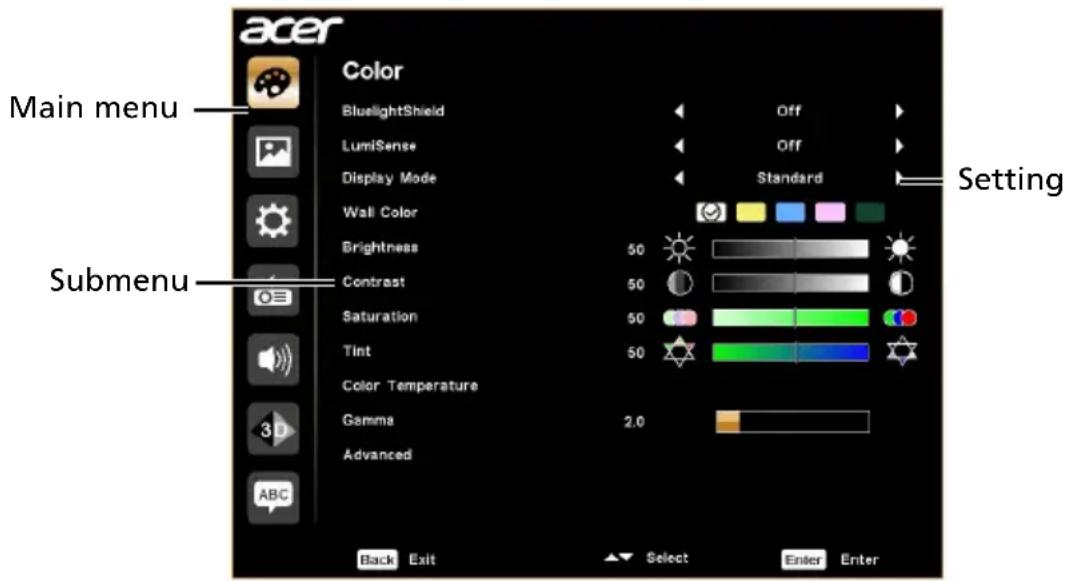

Onscreen Display (OSD) Menus 15

Color 16

Image 20

Setting 22

Management 26

Audio 27

3D 28

Language 29

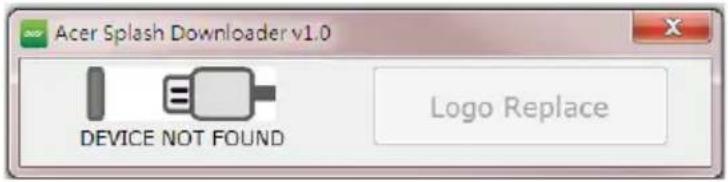

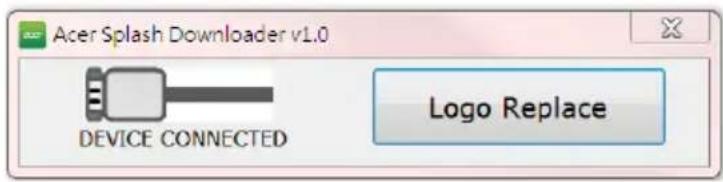

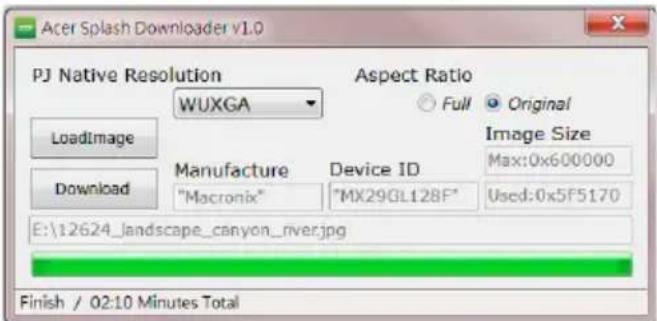

Acer Splash Downloader 30

Introduction 30

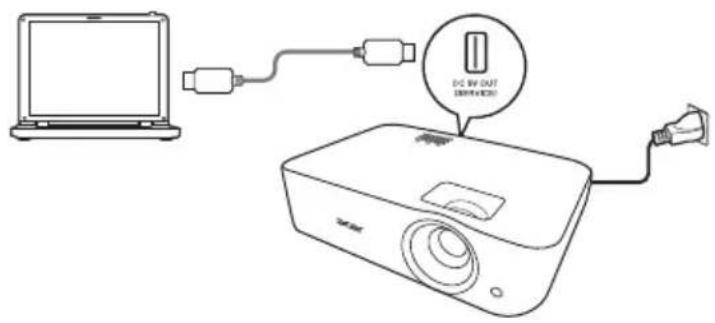

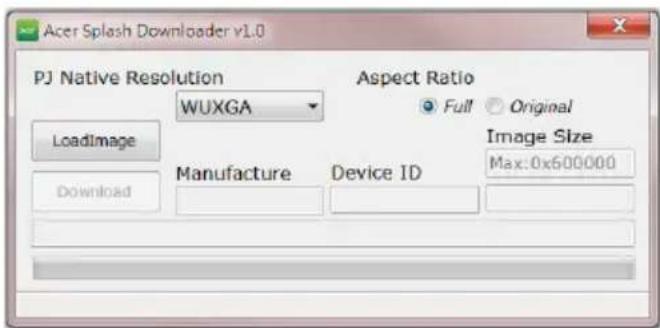

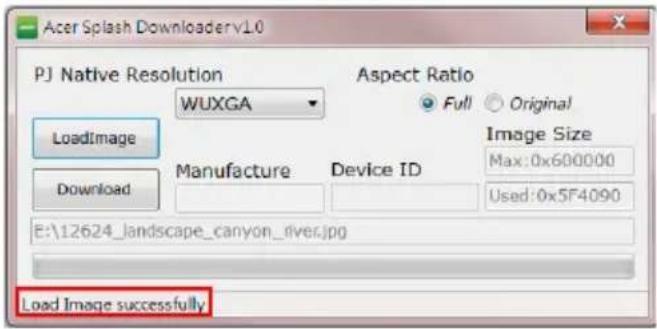

Using the Acer Splash Downloader 30

Appendices 33

Troubleshooting 33

LED & Alarm Definition Listing 37

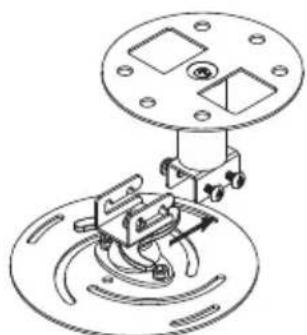

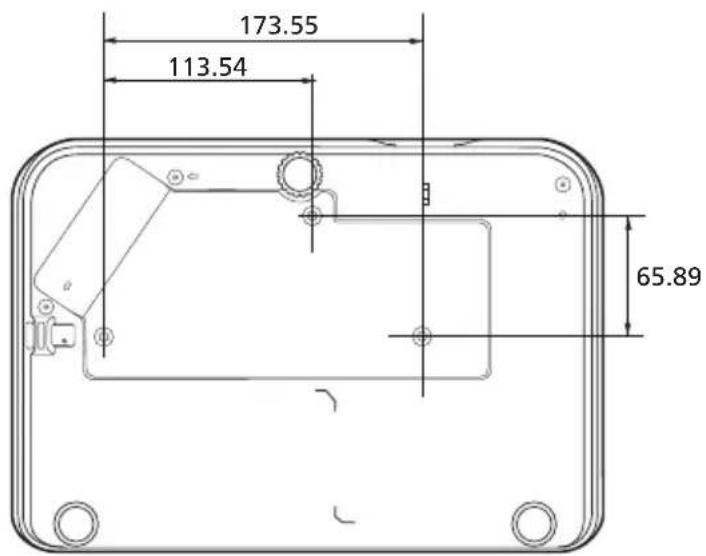

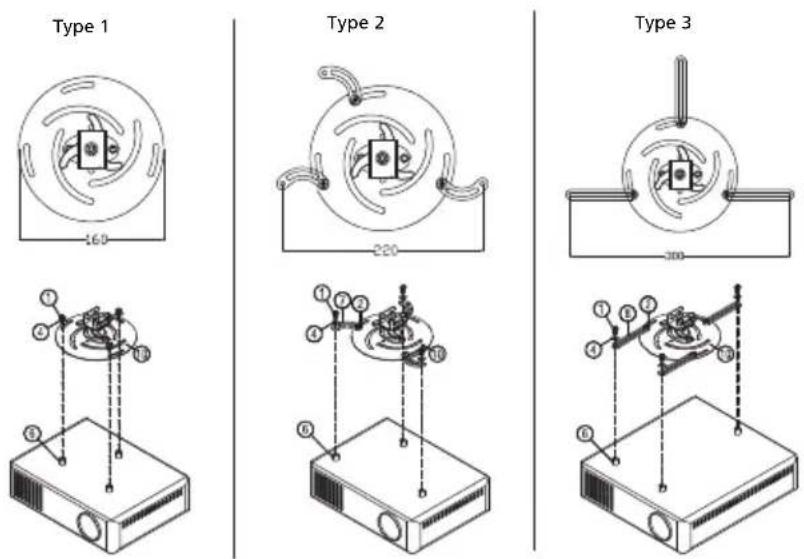

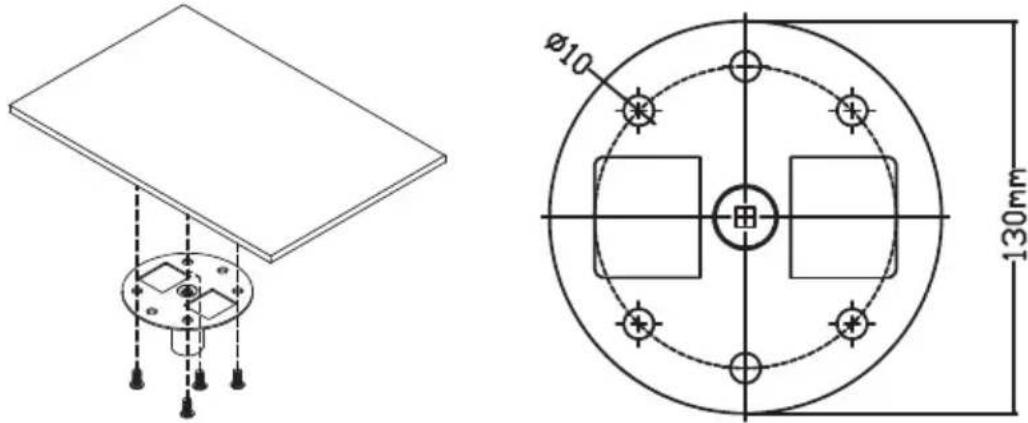

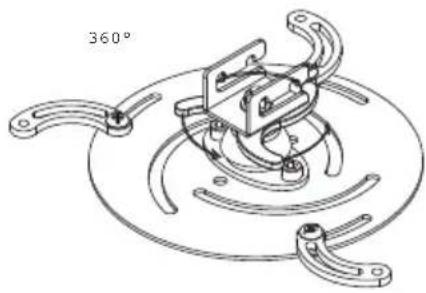

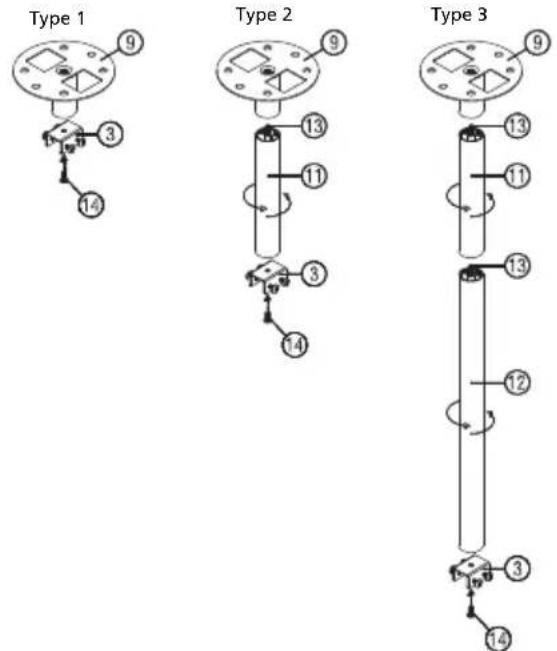

Ceiling Mount Installation 38

Specifications 41

Compatibility Modes 43

Regulations and safety notices 48

Introduction

Product Features

This product is a single-chip DLP ^® projector, including the following outstanding features:

• DLP ^ technology
• Enables projecting 3D content via DLP Link Technology: Blu-Ray 3D supported
• One-touch "3D" button on remote control allows quick and easy access to the 3D functions
• Acer ColorBoost technology delivers vivid, life-like images
  • High brightness and contrast ratio
• Versatile display modes enable optimum performance in any situation
• NTSC/PAL/SECAM compatible and HDTV (720p, 1080i, 1080p) supported
• Lower power consumption, economy (ECO) mode and EcoPro mode extend lamp life

- Dynamic Black / ExtremeEco functions help decrease lamp power consumption and further extend lamp life.

• Dynamic Black: If turned on, the projector dynamically adjusts the power consumption of the lamp according to the brightness of the image being projected. When projecting darker images the power consumption will be reduced and the contrast of the image will also be enhanced.
• ExtremeEco: The projector will decrease the power consumption of the lamp by up to 70% when no input signal can be detected for 15 minutes.

- Acer EcoProjection Technology delivers Intelligent power management approach and physical efficiency improvement

• Advanced keystone correction delivers optimum presentations

- Multi-language Onscreen Display (OSD) menus

- Manual focus/zoom projection lens

- 0.8 \~ 2X digital zoom and pan move function

- Microsoft ^ Windows ^ 2000, XP, 7, 8, 8.1, 10, Vista ^ , Macintosh OS, Chrome OS compliant

• CEC (Consumer Electronics Control) function supported

- LumiSense supported

- BluelightShield function supported

- Low input lag function helps reduce display input lag

• 1080p 120Hz supported

- Acer Display Widget supported

- Compatible with Acer Splash Downloader

- Digital Zoom Out (Install) and Image Shift functions allow projected image to be shifted toward the direction you choose

Package Overview

This projector comes with all the items shown below. Check to make sure you have them all. Contact your dealer immediately if any thing is missing.

Note: The package content may differ by regions.

Projector Overview

Projector Outlook

Front/upper side

# Description # Description
1 Control panel 4 Zoom ring and Focus ring
2 Lens cap 5 Projection lens
3 Power key and Power indicator LED 6 IR remote sensor

Rear side

Note: Connector interface is subject to model's specifications.

# Description # Description
1 Audio input connector 6 Monitor loop	p-through	through outputconnector (from VGA IN or VGA IN 1 only)
2 Audio output connector 7 RS232 connector
3 HDMI connector 8 Power socket
4 DC 5V output (service) 9 KensingtonTM lock port
5 Analog RGB signal/HDTV/component video input connector	10 Tilt adjusting wheel

Control Panel

# Function Description
1 LAMP Lamp indicator LED.
2 POWER Power indicator LED
3 Keystone Adjusts image distortion caused by tilting projection.
4 Power key Refer to the "Turning the Projector On/Off" section.
5 ENTER Confirms your selection of items.
6 BACK Cancels your selection, or goes back to previous page.
7 TEMP Temperature indicator LED.
8 SOURCE Changes the active source.
9 Four directional selection keys	Selects items or makes adjustments to your selection
10 MENU Launches the Onscreen Display (OSD) menu, returns to the previous step for the OSD menu operation or exits the OSD menu.

Remote Control Layout

# Function Description
1 POWER Refer to the		"Turning the Projector On/Off" section.
2 RATIO Chooses an aspect ratio.
3 Laser Emits visible laser pointer light for presentation purposes. This function is not available for the projectors sold in Japan/China.
4	Keystone	Adjusts image distortion caused by tilting projection.
	Four directional selection keys	Selects items or makes adjustments to your selection.
	ENTER Confirms your selection of items.
	▶// Play/Pause
5 BACK Cancels your selection, or goes back to previous page.
			■ Stop
6 FREEZE To pause the screen image.
7 VGA To change source to VGA. This connection supports analog RGB, and YPbPr (480i/480p/576i/576p/720p/1080i/1080p).
8 Pg	Up/PgDn For com	puter mode only. Use this button to select the next or previous page. This function is only available when connected to a computer via a mini USB cable.
9 COMPONENT (No function)
10 MEDIA Opens MEDI	IA SETUP page. (for LAN/wireless compatible models)
11 Infrared transmitter	Sends signals to the projector.
12 3D Press to open the 3D menu for adjusting 3D settings.
13 SOURCE Changes the active source.
14 MODE Chooses a display mode.
15 MENU Launches the Onscreen Display (OSD) menu or exits the OSD menu.
16 HIDE Press "HIDE"	to hide screen image; press again to display the image.
17 HDMI/MHL To change source to HDMITM (or MHL). (for the model with HDMITM or MHL connector)
18 ZOOM IN/ZOOM OUT	Zooms the projector display in or out.
19 VIDEO To change source to composite video.
20 LAN/WiFi To change source to LAN/WiFi. (for LAN/wireless compatible models)
21 Keypad 0~9	Press "0~9" to input a password in the "Setting" > "Security" OSD.
22 MUTE Mutes or un	mutes the projector's volume.

MHL Feature Introduction

When your smart device is connected to the projector, you can use some buttons on the remote control to control your smart device. Press "MODE" for one second to enter or leave the MHL control mode. After entering the MHL control mode, press "SOURCE" to switch between the navigation mode (default), media mode and numeric mode.

# Function			Description
			Navigation mode	Media mode	Numeric mode
14	MODE Long press for one select keys		second to enter or leave the MHL control mode.
13	SOURCE After entering the		MHL control mode, press to switch between the navigation mode (default), media mode and numeric mode.
4	F directional select keys	Up Up	(No function) (No function)
		down	down (No function) (No function)
		Left Left	ft (No function) (No function)
		Right Right	Right (No function) (No function)
21	Keypad 0~9		(No function) (No function)		0~9.
15	MENU		Goes to the root menu.	(No function) (No function)
4	ENTER Selects or		enters items.	Plays/Pauses/ Stops the playing of media files.	(No function)
	▶/|| Play/Pause
5	BACK		Exits current page.		(No function)
	■ Stop
8	PgUp/PgDn		Use this button to select the next or previous page.		(No function)
22	MUTE		Mutes or unmutes the projector's volume.		(No function)

Getting Started

Connecting the Projector

Note: Connector interface is subject to model's specifications.

Line drawing of a projector with a lens and screen (no text or symbols)

# Description # Description
1 Power cord 8 RS232 cable
2 Audio cable 9 Wireless dongle
3 HDMI (MHL) cable 10 WirelessHD dongle
4 VGA to component video/HDTV adapter 11	Wired remote control
5 VGA cable 12 RJ45 cable
6 3 RCA component cable 13 USB cable
7 Composite video cable 14 12V DC cable

Note: To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.

Note: Some smart devices require a converter (supplied by the smart device maker) to enable the MHL function.

Note: Compatible HDMI/MHL dongles: WirelessHD (MWIHD1), MWA3, HWA1, Chromecast™.

Turning the Projector On/Off

Turning On the Projector

1 Ensure that the power cord and signal cable are securely connected. The Power LED will light red.
2 Turn on the projector by pressing (POWER) on the control panel or remote control, and the Power indicator LED will turn blue.
3 Turn on your source (computer, notebook, video player, etc.). The projector will detect your source automatically (when it is the first time you turn on the projector or the Source Selection function is "Auto").

- If the screen displays "No Signal", please make sure the signal cables are securely connected.

- If you connect to multiple sources at the same time, use "SOURCE" on the control panel or remote control, or the direct source key on the remote control to switch between inputs.

Turning Off the Projector

1 To turn the projector off, press the power button. This message appears:

"Please press power button again to complete the shutdown process" Press the power button again.

2 The LED Power indicator will turn solid red to indicate standby mode.

3 It is now safe to unplug the power cord.

When Instant Resume is selected:

1 The LED Power indicator will turn RED and blink rapidly after the projector is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly.

2 As long as the power cord remains plugged in, you can press the power button to turn the projector immediately back on anytime during the 2-minute shutdown process.

3 Once the system has finished cooling, the LED Power indicator will stop blinking and turn solid red to indicate standby mode.

4 It is now safe to unplug the power cord.

Warning indicators:

- "Projector Overheated. Lamp will automatically turn off soon." This onscreen message indicates that the projector has overheated. The lamp will automatically turn off, the projector will automatically shut down, and the LED Temp indicator will turn solid red. Contact your local dealer or service center.

- "Fan failed. Lamp will automatically turn off soon." This onscreen message indicates that the fan has failed. The lamp will automatically turn off, the projector will automatically shut down, and the LED Temp indicator will blink. Contact your local dealer or service center.

Note: Whenever the projector automatically shuts down and the LED Temp indicator turns solid red, contact your local reseller or service center.

Adjusting the Projected Image

Adjusting the Height of the Projected Image

The projector is equipped with two elevator feet for adjusting the image height.

To raise the image:

1 Use the front Tilt adjusting wheel to raise the image to the desired height and angle.

To lower the image:

1 Use the front Tilt adjusting wheel to lower the image to the desired height and angle.

Tilt adjusting wheel

How to Get a Preferred Image Size by Adjusting Distance and Zoom

The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring.

- 1080P series with a zoom ratio of 1.1x and a throw ratio of 1.5 – 1.65:1 To obtain an image size of 70", set the projector at a distance between 2.3 m and 2.6 m from the screen and adjust the zoom level accordingly.

Desired Image Size Distance		(m) Top (cm)
Diagonal (inch)<A>	W (cm) x H (cm)	Max zoom<B>	Min zoom<C>	From base to top of image <D>
30 66 x 37	1.1 39
40 89 x 50	1.3 1.5 52
50 111 x 62	1.7 1.8 65
60 133 x 75	2.0 2.2 78
70 155 x 87	2.3 2.6 92
80 177 x 100	2.7 2.9 105
90 199 x 112	3.0 3.3 118
100 221 x 125	3.3 3.7 131
120 266 x 149	4.0 4.4 157
150 332 x 187	5.0 5.5 196
180 398 x 224	6.0 6.6 235
200 443 x 249	6.6 7.3 262
250 553 x 311	8.3 9.1 327
300 664 x 374	10.0		392

Zoom Ratio: 1.1 x

User Controls

Installation Menu

The Installation menu provides an Onscreen Display (OSD) for projector installation and maintenance. Use the OSD only when the message "No signal" is displayed on the screen or when the projector searches for input signal.

1 Turn on the projector by pressing (POWER) on the control panel or remote control.
2 Press "MENU" on the control panel or remote control to launch the OSD for projector installation and maintenance.

3 The background pattern acts as a guide to adjusting the calibration and alignment settings, such as screen size and distance, focus and more.

Note: The OSD screenshot is for reference only and may differ from the actual design.

4 The Installation menu includes several options.

Use the up and down arrow keys to select an option, the left and right arrow keys to adjust selected option settings, and the right arrow key to enter a submenu for feature setting. The new settings will be saved automatically upon exiting the menu.

5 Press "MENU" anytime to exit the menu and return to the Acer welcome screen.

Onscreen Display (OSD) Menus

The projector has multilingual Onscreen Display (OSD) menus that allow you to make image adjustments and change a variety of settings.

Using the OSD menus

• To open the OSD menu, press "MENU" on the control panel or remote control.
• When the OSD is displayed, use to select an item in the main menu.

After selecting the desired main menu item, press to enter a submenu for feature setting.

• Use ▲ ▼ to select the desired item and adjust the settings by using

• Select the next item to be adjusted in the submenu and adjust as described above.
• Press "MENU" on the control panel or remote control, the screen will return to the main menu.
• To exit the OSD menu, press "MENU" on the control panel or remote control again. It will close and the projector will automatically save the new settings.

Note: Some of the following OSD settings may not be available. Please refer to the actual OSD of your projector.

Color

BluelightShield	This function protects your eyes from over-exposure to blue light. The options are Off, Low, Medium, and High.Choose a preferred setting to reduce the level of blue light and get a comfortable viewing experience. ··········································································································································································································When this function is enabled, LumiSense will be automatically set to "Off".
LumiSense	The projector can intelligently optimizes the brightness and color saturation of projected image. The feature greatly enhances dark detail visibility and color saturation.• Off: For normal mode.• Normal: For enhancing the details in the dark area.• Boost: For boosting brightness of the projected image.• Dynamic Black: automatically optimizes the display of dark movie scenes enabling them to be shown in incredible detail. ····································································································································································································When his function is enabled, BluelightShield will be automatically set to "Off". ···································································································································································································
	LumiSense function is unavailable when 3D is set to "On" ··································································································································································································· ·Once the ambient temperature reaches 35°C, this function will be turned off automatically. After the ambient temperature drops below 32°C, the previous selection will be activated.
Display Mode	There are many factory presets optimized for various types of images.Bright: For brightness optimization.Presentation: For meeting presentation with higher brightness.Standard: For common environment.Video: For playing video in a bright environment.Movie: For brighter and general movie/video/photo playing.Dark Cinema: For dark movie content.Game Dark: For game content in a dark environment.Game Bright: For game content in a bright environment.Football: For football game.EcoPro: For extending lamp life.ISF Day/ISF Night: Only available when ISF is enabled.Education: For education environment.User 1/User 2/User 3: Memorize user's settings.
Color Profile	Available when User 1/User 2/User 3 is selected in the Display Mode menu. You can use one of the display modes as a starting point and customize the settings. The below OSD items can be adjusted and saved.
Wall Color	Use this function to choose a proper color according to the wall. There are several choices, including White, Light Yellow, Light Blue, Pink and Dark Green. It will compensate for the color deviation due to the wall color to show the correct image tone.
Brightness	Adjusts the brightness of the image.Press to darken the image.Press to lighten the image.
Contrast	Controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image.Press to decrease the contrast.Press to increase the contrast.
Saturation	Adjusts a video image from black and white to fully saturated colors.• Press to decrease the amount of color in the image.• Press to increase the amount of color in the image.
Tint	Adjusts the color balance of red and green.• Press to increase the amount of green in the image.• Press to increase the amount of red in the image.
Color Temperature	Adjusts the color temperature. At higher color temperatures, the screen looks colder; at lower color temperatures, the screen looks warmer.
Gamma	Effects the representation of dark scenery. With greater gamma value, dark scenery will look brighter.
Advanced	·Ind. Color Management: Adjusts the red, green, blue,cyan, yellow and magenta colors.·- Ind. Hue: Changes the hue of the color selected.·- Ind. Saturation: Adjusts a video image from blackand white to fully saturated color.·- Ind. Gain: Adjusts the contrast levels.·Brilliant Color: Produces an expanded on-screen colorspectrum that delivers enhanced color saturation forbright, true-to-life images. This feature is "On" bydefault.·White Peaking: Increases the brightness of whites thatare near 100%. (Video sources only)·Film Mode: Sets the image optimized to 24-frame TrueFilm mode for more realistic cadence of film playbackduring motion sequences.·Noise Reduction: Adjusts the level of noise reductionthat helps to eliminate unwanted noise in the picture.·Black Extension: Analyzes the current input image andcalculates an offset value which is then added to theanalog to digital converter black level value. Thisensures optimum black level for each analog source.·ISF: This menu is password protected and onlyaccessible by authorized calibrators. The ISF (ImagingScience Foundation) has developed carefully crafted,industry-recognized standards for optimal videoperformance and has implemented a trainingprogram for technicians and installers to use thesestandards to obtain optimal picture quality ISFcertified display devices. Accordingly, we recommendthat setup and calibration be performed by an ISFcertified installation technician. For more information,go to www.imagingscience.com or contact the dealeror retailer from whom you purchased the projector.
Rename	Available when User 1/User 2/User 3 is selected in theDisplay Mode menu. You can change User 1/User 2/User 3to your preferred mode name in English letters.

Note: "Saturation" and "Tint" functions are not supported under computer mode.


Projection Mode	• From The factory default setting.• Rea Reverses the image so you can project from behind a translucent screen.
Projection Location	• Auto Automatically adjusts projection location of image.• Desktop• Ceiling: Turns the image upside down for ceiling-mounted projection.
Aspect Ratio	Use this function to choose your desired aspect ratio.• Auto: Keeps the image with original width-height ratio and maximizes the image to fit native horizontal or vertical pixels.• Full (for WXGA/1080p/WUXGA models): The image will be displayed making full use of the horizontal and vertical pixels.• 4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio.• 16:9: The image will be scaled to fit the screen and displayed using a 16:9 ratio.• L.Box (for WXGA/1080p/WUXGA models): Keeps the original signal aspect ratio and zooms in by 1.333 times.
Auto Keystone	Automatically adjusts image distortion caused by tilting projection (±40 degrees).
Manual Keystone	Manually adjusts image distortion caused by tilting projection (±40 degrees).This function is unavailable when Auto Keystone is set to "On".
Native Resolution	Sets the natvie resolution between 1080P and WUXGA for the projector.
Digital Zoom Out (Install)	Sets the default size of the projected image. You can further zooms in or out the image by pressing .Using the functions of Digital Zoom Out (Install) and Image Shift together helps you fit the projected image full screen without adjusting the existing ceiling mount settings.
Image Shift	Shifts the projected image by pressingWhen Native Resolution is WUXGA, this functions is only available when the setting of Digital Zoom Out (Install) is less than 1.0.
Sharpness	Adjusts the sharpness of the image.Press to decrease the sharpness.Press to increase the sharpness.
H. Position (Horizontal Position)	Press to move the image left.Press to move the image right.
V. Position (Vertical Position)	Press to move the image down.Press to move the image up.
Frequency	Changes the projector's refresh rate to match the frequency of your computer's graphics card. If you experience a vertical flickering bar in the projected image, use this function to correct it.
Tracking	Synchronizes the signal timing of the display with the graphics card. If you experience an unstable or flickering image, use this function to correct it.
HDMI Color Range	Adjusts the color range of the HDMI image data to prevent color display error.Auto: Automatically adjusts the color range by information from the player.Limited Range: Processes the input image as limited color range data.Full Range: Processes the input image as full color range data.
HDMI Scan Info	Adjusts the overscan ratio of the HDMI image on screen.Auto: Automatically adjusts the overscan ratio by information from the player.Underscan: Always no overscan on the HDMI image.Overscan: Always keep overscan on the HDMI image.

Note: "H. Position", "V. Position", "Frequency" and "Tracking" functions are not supported under video or HDMI mode.

Note: "HDMI Color Range" and "HDMI Scan Info" are only available when the input signal is HDMI.

Setting

Startup Screen	Use this function to select your desired startup screen. If you change the setting, it will take effect when you exit the OSD menu.Acer: The default startup screen of your Acer projector.User: Use the picture you transfer to the projector. See "Acer Splash Downloader" for how to transfer the picture.
Source Selection	Manual: When switching input signals, you need to press "SOURCE" on the control panel or remote control, or the direct source key on the remote control.Auto: The projector will detect your source automatically.
Closed Caption	Selects a preferred closed captioning mode from CC1, CC2, CC3, CC4 (CC1 displays captions in the primary language in your area). Select "Off" to turn off the captioning feature. This function is only available when a composite video or S-Video input signal is selected and its system format is NTSC.
VGA OUT(Standby)	Selecting "On" enables the function. The projector can output a VGA signal when it is in standby mode and the VGA IN (or VGA IN 1) and VGA OUT sockets are correctly connected to the devices. Enabling this function increases the standby power consumption.
USB 5V(Standby)	Selecting "On" enables the function. The MHL port(s) and the DC 5V out port/USB A port (if available) on the projector can output 5V power when the projector is turned on. Only MHL port(s) will provide power output when MHL port(s) and USB A port are both plugged.
HDMI CEC	Selecting "On" allows synchronized power ON/OFF operation between the projector and a CEC-compatible device connected to the HDMI/MHL port of the projector. This function is only available for the HDMI/MHL port.
Low Input Lag	This function is especially suitable for gaming environment. It reduces input to output latency and helps create a seamless experience. ··········································································································································································································This function is only available for certain input timings. After turned on, performing Auto Keystone or adjusting the following settings will deactivate this function: Aspect ratio, Keystone, H. Position, V. Position, Frequency, HDMI Scan Info, Digital Zoom. When Display Mode is Game Dark or Game Bright, this function will be automatically turned on.
Security	SecurityThis projector provides a useful security function for the administrator to manage the projector.Press ▶to change the "Security" setting. If the security function is enabled, your must enter "Administrator Password" first before changing the security setting. ····································································································································································································The factory default of "Administrator Password" is "1234".Select "On" to enable the security function. You have to enter password depending on the "Security Mode". Please refer to "User Password" section for details.If "Off" is selected, you can switch on the projector without password.
Security	Timeout (Min.)Once "Security" is set to "On", you can set timeout function.Press to select timeout duration.The range is from 10 to 990 minutes.When time is up, the projector will request you to enter the password again.The factory default setting of "Timeout (Min.)" is "Off".Once the security function is enabled, the projector will request you to enter password when switching on the projector. Both "User Password" and "Administrator Password" can be accepted for this dialogue.
	User PasswordPress to set up or change "User Password".Use the numerical keys on the remote control to set the password and press "ENTER" to confirm.To delete the digits, Press .Enter the password again when you see "Confirm Password" displayed.The password should be 4~8 digits in length.If you select "Request password only after plugging power cord", you are requested to input the password every time the power cord is plugged. If you fail to enter the correct password within 20 minutes upon request, the projector will shut down automatically.If you select "Always request password while projector turns on", you are requested to input the password every time the projector is turned on. If you fail to enter the correct password within 20 minutes upon request, the projector will shut down automatically.
Security	Administrator PasswordYou can enter "Administrator Password" when the "Enter Administrator Password" or "Enter Password" dialogue box displays.Press to change "Administrator Password".The factory default of "Administrator Password" is "1234".If you forget your administrator password, do the following to retrieve the administrator password:Enter the unique 6-digit "Universal Password" which is printed on the Security Card that came with your projector. This unique password will be accepted by the projector no matter what the administrator password is.If the Security Card is lost, please contact your local Acer service center.
	Lock User Startup ScreenThis function is set to "OFF" by default. If set to "ON", the startup screen is locked and cannot be changed by the "Startup Screen" function.
Reset	Press "ENTER" after choosing "Yes" to return the display parameters on all menus to the factory default settings.

Management

ECO Mode	Choose "ECO" or "EcoPro" to dim the projector lamp, which will also lower the power consumption, reduce noise, and extend the lamp life. ("EcoPro" makes the lamp last longer.) Choose "Off" to return to the normal mode. · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · ·
	When "off" is selected, once the ambient temperature reaches 35°C, "ECO" will be activated automatically. After the ambient temperature drops below 32°C, the previous selection will be activated.
High Altitude	Choose "On" to turn on the High Altitude mode. When this function is turned on, the projector fans operate at full speed continuously to cool down the projector's temperature.
Turn Off Mode	Standard: Enables you to turn off the projector with fan cooling process by pressing the power button twice.Instant Resume: Enables you to restart the projector immediately within 2 minutes after turning it off.
Auto Shutdown (Minutes)	The projector will automatically shut down while there is no signal input detected after the time you set.
Menu Display Time (Seconds)	5/15/30: Chooses the length of time the OSD menu will remain active after your last key press.Manual: The OSD menu remains active. The only way to launch or exit the OSD menu is by pressing "MENU".
AC Power On	Selecting "On" enables the function. The projector will automatically turn on when power is supplied via the power cord.
Control Panel Lock	Off: Allows all keys on the control panel to operate normally.Child Lock: Disables the Power key on the control panel when the projector is in standby mode to prevent it from being accidentally turned on. To turn the projector on, press and hold the Power key for 3 seconds.Full Lock: Disables all keys on the control panel. If you turn off the projector without disabling the Full Lock function, the projector will still be in locked status the next time it is turned on. To disable Full Lock function, press and hold "POWER" on the control panel for 7 seconds and the Control Panel Lock will be set to "Off". When the projector is in standby mode, press and hold "POWER" on the control panel for 7 seconds to turn the projector on and the Control Panel Lock will be set to "Off".
Lamp	Lamp Hour Elapse: Displays the lamp's elapsed operating time (in hours).Lamp Reminding: Choose this function to show or hide warning message when the changing lamp message is displayed. The message will show up 30 hours before end of life.Lamp Hour Reset: Press "ENTER" after choosing "Yes" to reset the lamp hour counter to 0 hours.
Information Displays current status of this projector.

Audio

Volume	Press to decrease the volume.Press to increase the volume.
Mute	Choose "On" to turn mute on.Choose "Off" to turn mute off.
Power On/Off Volume	Select this function to adjust the notification volume when turning the projector on/off.
Alarm Volume	Select this function to adjust the volume of any warning notifications.

3D

3D	Selects "On" to enable the 3D function supported by DLP 3D technology.• On: Select this item while using DLP 3D glasses, quad buffer (NVIDIA/ATI...) graphics card and HQFS format file or DVD with corresponding SW player.• Off: Turns off the 3D mode.
3D Format	If the 3D content is not displayed correctly, you can select a 3D format that suits the 3D content you are viewing and obtain the best result.
24P 3D Choose 96Hz or 144Hz for 24p 3D.
3D L/R Invert	If you see a discrete or overlapping image while wearing DLP 3D glasses, you may need to execute "Invert" to get best match of left/right image sequence to get the correct image (for DLP 3D).
3D Warning Message	Choose "On" to display the 3D warning message.Note: 3D display is now enabled.1. Please make sure you have the correct 3D signals and glasses.2. Remember to turn off 3D if you don't want to see 3D images.3. If the 3D display isn't correct, please try to enable 3D L/R Invert.4. Display mode options will be disabled while in 3D mode.

Note: Supported 3D signal timings:

Signal source type Supported timing
Video/S-Video/Component video	HQFS 3D (480i@60Hz), 576i@50Hz
VGA/HDMI (PC mode) 640 x 480@50/60/100/120Hz800 x 600@50/60/100/120Hz1024 x 768@50/60/100/120Hz1280 x 800@50/60/100/120Hz (RB)
HDMI (Video mode) HQFS 3D (480i@60Hz), 576i@50Hz,Frame Packing (1080p@23.98/24Hz,720p@50/60Hz)Side-by-Side Horizontal (1080i@50/60Hz,1080p@50/60Hz)Top-and-Bottom (720p@50/60Hz,1080p@23.97/24Hz, 1080p@50/60Hz)

It needs correct settings on graphics card 3D application program for correct 3D display.

Note: "3D L/R Invert" and "3D Format" are only available when "3D" is enabled.

Language

Language

Sets a language for the OSD menus. Use to▼select your preferred language.

Acer Splash Downloader

Introduction

Acer Splash Downloader allows you to upload your desired picture onto an Acer projector. You can select the picture as the startup screen via the projector's OSD menu.

System Requirements

Maximum image size 6 Mbytes
Maximum image resolution	1920 x 1200Recommended: Native resolution
Minimum image resolution	800 x 600
Maximum color bits 24 bits
Image format BMP, JPG, PNG
Supported operation system	Windows 7, 8, 8.1, 10 (32 / 64 Bit)

Using the Acer Splash Downloader

1. Entering download mode

Long press the POWER and MENU buttons on the control panel simultaneously while plugging in the power cord until the LED indicator lights up red.

2. Connecting the computer to the projector

Use an USB cable to connect the computer and the projector.

3. Executing the Acer Splash Downloader tool on the computer

If the projector is not properly connecting to the computer, below message will be displayed.

If the projector successfully connects the computer, below message will be displayed. Press "Logo Replace" to proceed.

4. Loading the image

First, select the native resolution for the projector by adjusting "PJ Native Resolution" and decide if you want the image to be displayed full screen or in its original aspect ratio.

Press "LoadImage" and choose an image from your computer.

If the image is loaded successfully, the tool status will display "Load Image successfully".

"Setting changed!! Please load image again." will be displayed in the tool status when PJ Native Resolution or aspect ratio is adjusted after the image is loaded successfully.

"Image size is over defined range" will be displayed in the tool status when the image is too large, and "Load Image fail" will be displayed when the image format is not supported.

5. Downloading the image to the projector

Press "Download" to start downloading the image to the projector.

Note: If "Unknown" is shown in the Manufacture or Device ID field, the projector is not in a status suitable for download. Go back to step 1 and try again.

After the image is downloaded successfully, the projector will automatically shut down (enter standby mode), and the Startup Screen function in the OSD menu will be set to "User".

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center.

Image Problems and Solutions

# Problem Solution
1 No image appears onscreen	Make sure all the cables are correctly connected as described in the "Getting Started" section.Ensure none of the connector pins are bent or broken.Make sure the projector is switched on.
2 Partial, scrolling or incorrectly displayed image (For PC)	For an incorrectly displayed image:Open "My Computer > Control Panel," and then double-click the "Display" icon.Select the "Settings" tab.Verify that your display resolution setting is lower than or equal to 1600 x 1200 or 1920 x 1080.Click the "Advanced Properties" button.If the problem still appears, change the monitor display you are using and follow the steps below:Verify that the resolution setting is lower than or equal to 1600 x 1200 or 1920 x 1080.Click the "Change" button under the "Monitor" tab.Click "Show all devices > Standard monitor types" under the SP box, and choose the resolution mode you need under the "Models" box.Verify that the resolution setting of the monitor display is lower than or equal to 1600 x 1200 or 1920 x 1080.
3 Partial, scrolling or incorrectly displayed image (For notebooks)	· For an incorrectly displayed image: · Follow the steps for item 2 (above) to adjust the resolution of your computer. · Press the toggle output settings. Example: [Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8], Gateway [Fn]+[F4], IBM [Fn]+[F7], HP [Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5] · If you experience difficulty changing resolutions or your monitor freezes, restart all equipment including the projector.
4 The screen of the notebook computer is not displaying your presentation	· If you are using a Microsoft® Windows® based notebook: Some notebook PCs may deactivate their own screens when a second display device is in use. Each has a different way to be reactivated. Refer to your computer's manual for detailed information. · If you are using an Apple® Mac® OS based notebook: In System Preferences, open Display and select Video Mirroring "On."
5 Image is unstable or flickering	· Use "Tracking" to correct it. Refer to the "Image" section for more information. · Change the display color setting on your computer.
6 Image has vertical flickering bar	· Use "Frequency" to make an adjustment. Refer to the "Image" section for more information. · Check and reconfigure the display mode of your graphics card to make it compatible with the projector.
7 Image is out of focus	· Adjust the focus ring on the projector lens. · Make sure the projection screen is within the required distance. Refer to the "How to Get a Preferred Image Size by Adjusting Distance and Zoom" section for more information.
8 Image is stretched when displaying a "widescreen" DVD title	When you play a DVD encoded in anamorphic or 16:9 aspect ratio you may need to adjust the following settings: · If you play a 4:3 format DVD title, please change the format to 4:3 with the projector OSD. · If the image is still stretched, you will also need to adjust the aspect ratio. Set up the display format to 16:9 (wide) aspect ratio on your DVD player.
9 Image is too small or too large	Adjust the zoom lever on the top of the projector.Move the projector closer to or further from the screen.Press "MENU" on the control panel or remote control. Go to "Image" > "Aspect Ratio" and try different settings.
10 Image has slanted sides	If possible, reposition the projector so that it is centered on the screen and below the bottom of the screen.Press the Keystone correction keys on the control panel or remote control until the image becomes square.Press "MENU" on the control panel or remote control to open the OSD menu. Go to "Image" > "Auto Keystone" or "Image" > "Manual Keystone" to make adjustments.
11 Image is reversed	Select "Image" > "Projection Mode", "Image" > "Projection Location" on the OSD and adjust the projection direction.

Problems with the Projector

# Condition Solution
1 The projector stops responding to all controls	• If possible, turn off the projector, then unplug the power cord and wait at least 30 seconds before reconnecting power.• Make sure that the control panel lock function is disabled.
2 Lamp burns out or makes a popping sound	When the lamp reaches the end of its useful life, it will burn out and may make a loud popping sound. If this happens, the projector will not turn on until the lamp module has been replaced. To replace the lamp, contact your local dealer or Acer service center.

OSD Messages

# Condition Message Reminder
1 Message Fan Fail - the system fan is not working.
	Fan Fail.Lamp will automatically turn off soon.
	Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it is used.
	Projector Overheated.Lamp will automatically turn off soon.
	Replace the lamp - the lamp is about to reach its maximum lifetime. Prepare to replace it soon.
	Lamp is approaching the end of its useful life in full power operation.Replacement suggested!

LED & Alarm Definition Listing

LED Messages

Message Power LED LAMP LED TEMP LED

	Red Blue Red Red
Standby(Power cord plugged in)	V	-	-	-	-
Power on -- V -- --
Lamp retry -- Quick		flashing	-- --
Turning off (Cooling state)	Quick flashing	-- -- --
Turning off (Cooling completed)	V	-	-	-	-
Firmware download V -- V V
Acer splash download V -- V V
Error (Thermal failure)	-- V -- V
Error (Fan lock failure)	-- V	-- Quick		flashing
Error (Lamp breakdown)	-- V	V	--
Error (Color wheel failure)	-- V	Quick	flashing	--

Ceiling Mount Installation

If you wish to install the projector using a ceiling mount, please refer to the steps below:

1 Drill four holes into a solid, structurally sound part of the ceiling, and secure the mount base.

2 Choose the length combination based on actual environment. (CM-01S doesn't include Type 2 and Type 3.)

3 Type 1: For the standard size use three bracket screws to mount the projector to the ceiling mount bracket.

Type 2 and Type 3: Alternatively, for the larger size, use the sliding extensions for more supports.

Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution.

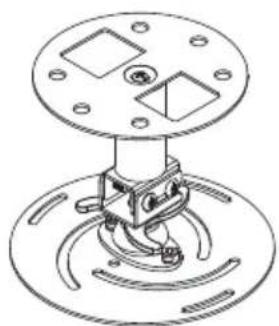

4 Connect the main body connector to the projector bracket (illustration 1), and then screw up four screws (illustration 2).

Technical line drawing of a mechanical assembly with circular components and a base plate (no text or symbols)

Illustration 1

Technical line drawing of a mechanical assembly with circular components and internal components (no text or symbols)

Illustration 2

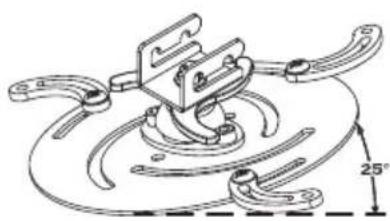

5 Adjust the angle and positioning as necessary.

Technical line drawing of a mechanical clamp or bracket assembly with angular annotation (360°), no readable text or symbols present.

Technical line drawing of a mechanical clamp or spring assembly with 25° angle标注 (no text or symbols)

Screw Type B Washer Type
Diameter (mm) Length (mm) Large Small
4	2	5	V

V

Unit: mm

Specifications

The specifications below are subject to change without notice. For final specs, please refer to Acer's marketing documentation.

Projection system	DLP^TM
Computer compatibility Refer to the "Compatibility Modes" section for more information.
Video compatibility NTSC (3.58/4.43), PAL (M/N), PAL 60, SECAM, HDTV(720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i)
Displayable colors 1.07 billion colors
Digital zoom 0.8 - 2 X
Weight Approximate 2.6 kg (5.73 lbs.)

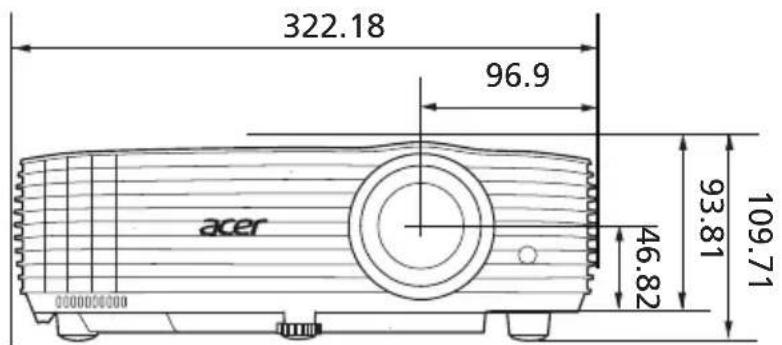

Dimensions (W x D x H) 322 x 225 x 93.8 mm (12.7" x 8.6"x 3.7")322 x 225 x 109.7 mm (12.7" x 8.6"x 4.3") (with tilt adjusting wheels)
Power supply Universal AC input 100 - 240 V, input frequency 50/60 Hz
Operating temperature 0°C to 40°C / 32°F to 104°F
Standard package contents	AC power cord x 1Remote control x 1Battery x 2 (for the remote control)Quick start guide x 1
Accessory (optional)	User's guide (CD-ROM) x 1VGA cable x 1HDMI cable x 1Security card x 1Carrying case x 1WirelessHD dongle kit (MWIHD1) x 1HWA1 dongle x 1WirelessCAST x 1WirelessProjection-Kit x 1

X1529HP/MF529/Q59F/EF565/EV-F60/M459/BS-429/X1529HK/MF529K/Q59FK/EF565K/EV-F60K/M459K/BS-429K/H6542PK/E355DPK/HE-805PK/GM525PK/H6531PK+/VH-425PK/H6542K/E355DEK/HE-805EK/GM525EK/H6531EK+/VH-425EK/H6543BDK/E356DK/HE-806K/GM526K/H6547BDK/VH-426K/H6543BDK+/H6547BDK+/E356D/HE-806/GM526/X1526PK/D655FPK/V58FPK/AF608PK/EV-F58PK/M456PK/BS-425APK/DX525APK/KW320APK/H6542PK/X1526K/D655FEK/V58FEK/AF608EK/EV-F58EK/M456EK/BS-425AEK/DX525AEK/KW320AEK/H6542EK/X1629HP/MU529/Q59U/EU565/EU566/DX629/BS-529/X1629HK/MU629K/Q59UK/EU565K/EU566K/DX629K/BS-529K/H6543BD/E357D/HE-807/GM527/H6542BD+/VH-427

Resolution Native: 1920 x 1080

Maximum: WUXGA (1920 x 1200) (supports reduce blanking only)

Aspect ratio Auto, 4:3, 16:9, Full, L.Box

Projection lens F = 2.0 - 2.05, f = 15.843 mm - 17.445 mm, 1:1.1 Manual Zoom and Manual Focus

Projection screen size (diagonal) 54" – 300" (138 cm – 762 cm)

Projection distance 1.0 - 10.0 m

Throw ratio 1.5 – 1.65:1 (100" + _3% @ 3.3 m)

Horizontal scan rate 15 – 100 KHz

Vertical refresh scan rate 24 – 120 Hz

Keystone correction +/-40 Degrees (Vertical), Manual & Auto

Audio 3W speaker x 1

Power consumption Standard mode: 309 W @100 VAC

ECO mode: 215 W @ 100 VAC

Standby mode: < 0.5 W

I/O connectors X1529HP/MF529/Q59F/EF565/EV-F60/M459/BS-429/X1629HP/MU529/Q59U/EU565/EU566/DX629/BS-529/H6543BD/E357D/HE-807/GM527/H6542BD+/VH-427	X1529HK/MF529K/Q59FK/EF565K/EV-F60K/M459K/BS-429K/H6542PK/E355DPK/HE-805PK/GM525PK/H6531PK+/VH-425PK/H6542K/E355DEK/HE-805EK/GM525EK/H6531EK+/VH-425EK/H6543BDK/E356DK/HE-806K/GM526K/H6547BDK/VH-426K/H6543BDK+/H6547BDK+/E356D/HE-806/GM526/X1526PK/D655FPK/V58FPK/AF608PK/EV-F58PK/M456PK/BS-425APK/DX525APK/KW320APK/H6542PK/X1526K/D655FEK/V58FEK/AF608EK/EV-F58EK/M456EK/BS-425AEK/DX525AEK/KW320AEK/H6542EK/X1629HK/MU629K/Q59UK/EU565K/EU566K/DX629K/BS-529K
Power socket V V
DC 5V OUT (SERVICE) V V
VGA IN V -
VGA OUT V -
RS232 V V
AUDIO IN V V
AUDIO OUT V V
HDMI 1 V V
HDMI 2 V V

* Design and specifications are subject to change without notice.

Compatibility Modes

1 VGA Analog - PC Signal

Mode Resolution V.Frequency [Hz]			H.Frequency [KHz]
VGA 640 x 480		60 31.47
		72 37.86
		75 37.50
		85 43.27
		120 61.91
SVGA 800 x 600		56 35.20
		60 37.88
		72 48.08
		75 46.88
		85 53.67
		120 77.43
XGA 1024 x 768		60 48.36
		70 56.48
		75 60.02
		85 68.68
		120 98.96
SXGA	1152 x 864	70 63.85
		75 67.50
		85 77.10
	1280 x 1024	60 63.98
		72 76.97
		75 79.98
		85 91.15
QuadVGA	1280 x 960 60 60.00
	1280 x 960 75 75.00
SXGA+ 1400 x 1050 60 65.32
UXGA 1600 x 1200 60 75.00
PowerBook G4	640 x 480 60 31.50
	640 x 480 66.6 (67) 35.00
	800 x 600 60 37.88
	1024 x 768 60 48.36
	1024 x 768 75 60.241
	1152 x 870 75 68.681
WXGA	1280 x 768 60 47.78
	1280 x 768 75 60.29
	1280 x 768 85 68.63
	1280 x 720 60 45.00
	1280 x 800 60 49.70
	1280 x 800 - RB 120 101.6
	1440 x 900 60 55.94
WSXGA+	1680 x 1050 60 65.29
acer_16:9	1366 x 768 60 47.71
HD 1080	1920 x 1080-RB 60 66.60
	1920 x 1080-EIA 60 67.50
acer_timing	1024 x 600 60 37.50
WUXGA	1920 x 1200-RB 59.95 74.04

2 HDMI - PC Signal

Mode Resolution	V.Frequency [Hz]		H.Frequency [KHz]
VGA_60	37.861640 x 48043.269	59.94 31.469
VGA_72 72.809
VGA_75		75	37.5
VGA_85 85.008
VGA_120		119.518 61.91
SVGA_56	800 x 600	56.25 35.156
SVGA_60		60.317 37.879
SVGA_72		72.188 48.077
SVGA_75		75	46.875
SVGA_85		85.061 53.674
SVGA_120		119.854	77.425
XGA_60	56.4761024 x 76860.023	60.004 48.363
XGA_70 70.069
XGA_75 75.029
XGA_120		119.804	98.958
SXGA_75	1152 x 86477.094	75	67.5
SXGA_85 84.99
SXGA_60	1280 x 1024	60.02 63.981
SXGA_72		72	76.97
SXGA_75		75.025 79.976
SXGA_85		85.024 91.146
QuadVGA_75	1280 x 960	75	75

SXGA+_60 1400 x 1050 59.978 65.317
UXGA_60 1600 x 1200 60 75
Mac G4 640 x 480@60Hz 59.94 31.469
MAC13 640 x 480@67Hz 66.667 35
Mac G4 800 x 600@60Hz 60.317 37.879
Mac G4 1024 x 768@60Hz 60.004 48.363
MAC19 1024 x 768@75Hz 75.02 60.241
MAC21 1152 x 870@75Hz 75.061 68.681
WXGA_60	1280 x 768	59.87 47.776
WXGA_75		74.893 60.289
WXGA_85		84.837 68.633
WXGA_60	1280 x 720	60 45
WXGA_60	1280 x 800	59.81 49.702
WXGA_120-RB	1280 x 800 119.909	101.563
WXGA+_60 1440 x 900	59.887 55.935
1680x1050_60 1680 x 1050 59.954 65.29
acer_16:9	1366 x 768	59.79 47.712
1920 x 1080_RB	1920 x1080 60 66.587
1920 x 1080_EIA 1920 x1080 60	67.5
acer_timing	1024 x 600	60
1920 x 1200-RB	1920 x 1200 59.957 74.038

3 HDMI - Video Signal

Mode	Resolution	V.Frequency [Hz]	H.Frequency [KHz]
480i	720 x 480(1440 x 480)	60	15.73
480p 720 x 480	60	31.47
576i	720 x 576(1440 x 576)	50	15.63
576p 720 x 576	50	31.25
720p	1280 x 720	60	45.00
720p	1280 x 720	50	37.50
1080i 1920 x 1080	60	33.75
1080i 1920 x 1080	50	28.13
1080p	1920 x 1080	60	67.50
1080p	1920 x 1080	50	56.26
1080p	1920 x 1080	24	27.00
1080p	1920 x 1080	23.98	26.97
1080p	1920 x 1080	30	33.75

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with the Class B limits may be attached to this equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.

Caution

Changes or modifications not expressly approved by the manufacturer could void the user's authority, which is granted by the Federal Communications Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

Compliant with Russian/Ukraine/Belarus/Morocco regulatory certification

Radio device regulatory notice

Note: The regulatory information below is for models with wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any country or region in which it has been approved for wireless use. Depending on configurations, this product may or may not contain wireless radio devices (such as wireless LAN and/or Bluetooth modules).

Canada — Low-power license-exempt radio communication devices (RSS-247)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is intended to be operated indoors and installation outdoors is subject to licensing.

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the country of use. For further information, please contact a local office in the country of use. Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.

EU Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN 55032:2015-AC:2016-07, Class B EN 61000-3-2:2014 EN 55024:2010-A1:2015 EN 61000-3-3:2013

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013 EN 62368-1:2014-A11

RoHS Directive: 2011/65/EU

EN 50581:2012

ErP Directive: 2009/125/EC

Regulation (EU) No. 617/ 2013 Regulation (EU) No. 2019/1782; EN 50563:2011 Regulation (EC) No. 1275/2008; EN 50564:2011

Year to begin affixin g CE marking 2021.

RU Jan/Sr. Manager

Acer Incorporated (Taipei, Taiwan)

May 30, 2021

Date

EU Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l.

Product: DLP Projector

Trade Name: Acer

Model Number: A1P1803/A1P1911/AWU1808/A1P2104

SKU Number: H6531BDK/E353DK/HE-F24JK/H6530BDK+/GM523K/VH-423K/

X1526HK/D655FK/V58FK/AF608K/EV-F58K/M456K/BS-425AK/

DX525AK/KW320AK/X1626HK/D567DK/EV-WU58HK/M556K/

D655UK/DX626K/BS-526K/X1529HK/MF529K/Q59FK/EF565K/

EV-F60K/M459K/BS-429K/X1629HK/MU629K/Q59UK/EU565K/

EU566K/DX629K/BS-529K/H6542BDK/E355DK/HE-805K/

GM525K/H6531BDK+/VH-425K/H6542PK/E355DPK/HE-805PK/

GM525PK/H6531PK+/VH-425PK/H6542K/E355DEK/HE-805EK/

GM525EK/H6531EK+/VH-425EK/H6543BDK/E356DK/HE-806K/

GM526K/H6547BDK/VH-426K/H6543BDK+/H6547BDK+/E356D/

HE-806/GM526/X1526PK/D655FPK/V58FPK/AF608PK/EV-F58PK/

M456PK/BS-425APK/DX525APK/KW320APK/H6542PK/X1526K/

D655FEK/V58FEK/AF608EK/EV-F58EK/M456EK/BS-425AEK/

DX525AEK/KW320AEK/H6542EK

We, Acer Incorporated, hereby declare under our sole responsibility that the product described above is in conformity with the relevant Union harmonization legislations as below Directive and following harmonized standards and/or other relevant standards have been applied:

EMC Directive: 2014/30/EU

EN 55032:2015+AC:2016-07, Class B

EN 55024:2010+A1:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013

EN 62368-1:2014+A11

RoHS Directive: 2011/65/EU

EN 50581:2012

ErP Directive: 2009/125/EC

□ Regulation (EU) No. 617/2013

Regulation (EC) No. 1275/2008; EN 50564:2011

☐ Regulation (EU) No. 2019/1782; EN 50563:2011

Year to begin affixin g CE marking 2021.

NuJaw

RU Jan/Sr. Manager

Acer Incorporated (Taipei, Taiwan)

Dec. 30, 2021

Date

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

Product: DLP Projector

Trade Name: Acer

Model Number: A1P2104

SKU Number: X1529HP/MF529/Q59F/EF565/EV-F60/M459/BS-429/X1629HP/MU529/Q59U/EU565/EU566/DX629/BS-529/H6543BD/E357D/HE-807/GM527/H6542BD+/VH-427/X1529HK/MF529K/Q59FK/EF565K/EV-F60K/M459K/BS-429K/X1629HK/MU629K/Q59UK/EU565K/EU566K/DX629K/BS-529K/H6542PK/E355DPK/HE-805PK/GM525PK/H6531PK+/VH-425PK/H6542K/E355DEK/HE-805EK/GM525EK/H6531EK+/VH-425EK/H6543BDK/E356DK/HE-806K/GM526K/H6547BDK/VH-426K/H6543BDK+/H6547BDK+/E356D/HE-806/GM526/X1526PK/D655FPK/V58FPK/AF608PK/EV-F58PK/M456PK/BS-425APK/DX525APK/KW320APK/H6542PK/X1526K/D655FEK/V58FEK/AF608EK/EV-F58EK/M456EK/BS-425AEK/DX525AEK/KW320AEK/H6542EK

Name of Responsible Party: Acer America Corporation

Address of Responsible Party: 333 West San Carlos St.

Suite 1500

San Jose, CA 95110

U.S.A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147
