P1206P - Vidéo-projecteur ACER - Free user manual and instructions

Product Type	Video Projector
Brand	Acer
Model	P1206P
Display Technology	DLP
Native Resolution	XGA (1024 x 768)
Brightness	3200 ANSI Lumens
Contrast Ratio	20000:1
Lamp Life	Up to 5000 hours (Eco mode)
Lamp Type	P-VIP 195W
Projection Distance	1.0 - 12.0 m
Projection Size	30 - 300 inches
Aspect Ratio	4:3 (native), 16:9 compatible
Keystone Correction	Vertical ±40 degrees
Input Ports	HDMI, VGA, Composite, S-Video, Audio
Output Ports	USB (service), 3.5mm audio
Dimensions (W x D x H)	314 x 224 x 113 mm
Weight	2.5 kg
Power Consumption	Max 260 W (Standby < 0.5 W)
Noise Level	33 dB (Eco mode)
Maintenance	Clean air filter every 500 hours; replace lamp when needed
Safety Features	Automatic shutdown after no signal; overheating protection
Spare Parts	Replacement lamp, air filter

Frequently Asked Questions - P1206P ACER

How do I connect my laptop to the Acer P1206P projector?

Use a VGA or HDMI cable to connect your laptop's output port to the projector's corresponding input port. Ensure the projector is powered on and set to the correct input source using the 'Source' button on the remote or control panel.

What is the recommended projection distance for a 100-inch screen?

For a 100-inch screen, the optimal projection distance is approximately 3.0 to 4.5 meters depending on zoom settings. Refer to the manual's projection table for exact distances.

How do I replace the lamp in the P1206P?

Turn off the projector and unplug it. Wait for the lamp to cool. Open the lamp cover on the side, unscrew the lamp module, and replace it with a new Acer certified lamp. Reattach the cover and reset the lamp timer via the on-screen menu.

Why is the projector showing 'No Signal'?

Check that the cable is securely connected to both the source device and the projector. Ensure the source device is powered on and outputting a signal. Press the 'Source' button on the remote to cycle through inputs until the correct one is selected.

Can I project onto a white wall, or do I need a screen?

A white wall can work, but a proper projector screen improves brightness, contrast, and image clarity. For best results, use a matte white or gray screen.

How often should I clean the air filter?

Clean the air filter every 500 hours of use or when the filter cleaning indicator appears. Remove the filter, wash it with mild detergent, dry thoroughly, and reinstall.

What is the native resolution of the P1206P?

The native resolution is XGA (1024 x 768). It can accept higher resolutions but will downscale them to this resolution.

How do I adjust the keystone correction?

Press the 'Keystone' button on the remote or access the on-screen menu under 'Image > Keystone'. Use the arrow keys to adjust vertical keystone within ±40 degrees.

What should I do if the projector overheats?

The projector will automatically shut down. Allow it to cool for at least 10 minutes. Ensure the air intake and exhaust vents are not blocked, and clean the air filter if necessary.

Can I use the projector for home theater with a 16:9 source?

Yes, it supports 16:9 content, but the native aspect ratio is 4:3. Images may have black bars on top and bottom or be cropped depending on the setting. Choose the appropriate display mode in the menu.

USER MANUAL P1206P ACER

Copyright © 2011 Acer Incorporated.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangle below (no readable text or symbols)

Acer Empowering Technology 26

OSD-menu's 28

Kleur 29

Beeld 30

Beheer 33

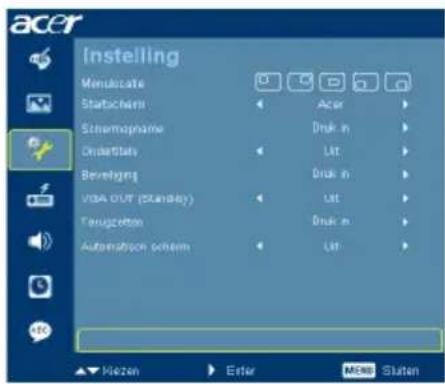

Instelling 34

Geluid 37

Timer 38

Taal 38

Acre LAN webpage management 39

Aanmelden 39

Start 40

Bedieningspaneel 40

Netwerkinstelling 41

Alarminstelling 41

Afmelden 42

Bijlagen 43

Problemen oplossen 43

Two rectangular electronic components with serrated edges, one larger and one smaller, shown without any text or symbols.

Acer Empowering Technology

http://www.nvidia.com/object/3D_Drivers_Downloads.html

- Stereoscopische speler (demo): http://www.3dtv.at/Downloads/Index_en.aspx

- DDD TriDef-mediaspeler (demo):

http://www.tridef.com/download/TriDef-3-D-Experience-4.0.2.html

Acre LAN webpage management

Aanmelden

Netwerkinstelling

Afmelden

Diagram of a projector with internal components and external load, showing no text or symbols

(Afbeelding #1)

Stoffilters schoonmaken

This Class B digital apparatus complies with Canadian ICES-003.

Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Hsin Tai Wu Rd., Hsichih, Taipei Hsien 221, Taiwan

Contact Person: Mr. Easy Lai, e-mail:[e-mail]

And.

Acer Italy s.r.l

Via Lepetit, 40, 20020 Lainate (MI) Italy

Tel: [phone], Fax: [phone], www.acer.it

Hereby declare that:

Product: Projector

Trade Name: Acer

Model Number: DSV1025/DSV1026/DNX1021/DNX1022/DNX1023/

DNX1024/DNX1016/DNX1017/DNX1018/DNX1014/DWX1015

Machine Type: P1101/P1101C/P1201/P1201B/P1201i/P1201n/

P1203P/P1203PB/P1203Pi/P1206P/P1303PW

series

Is compliant with the essential requirements and other relevant provisions of the following EC directives, and that all the necessary steps have been taken and are in force to assure that production units of the same product will continue comply with the requirements.

EMC Directive 2004/108/EC as attested by conformity with the following harmonized standards:

• EN55022, AS/NZS CISPR22, Class B
• EN55024
  -. EN61000-3-2 Class A
• EN61000-3-3

Low Voltage Directive 2006/95/EC as attested by conformity with the following harmonized standard:

-. EN60950-1

RoHS Directive 2002/95/EC on the Restriction of the Use of certain Hazardous Substances in Electrical and Electronic Equipment

-. The maximum concentration values of the restricted substances by weight in homogenous material are:

Lead 0.1% Polybrominated Biphenyls (PBB's) 0.1%
Mercury 0.1% Polybrominated Diphenyl Ethers (PBDE's) 0.1%
Hexavalent Chromium 0.1% Cadmium 0.01%

Directive 2009/125/EC with regard to establishing a framework for the setting of ecodesign requirements for energy-related product.

The standards listed below are applied to the product if built with WLAN module or wireless keyboard and mouse.

R&TTE Directive 1999/5/EC as attested by conformity with the following harmonized standard:

● Article 3.1(a) Health and Safety

-. EN60950-1
-. EN62311

● Article 3.1(b) EMC

-. EN301 489-1
-. EN301 489-17

● Article 3.2 Spectrum Usages

-. EN300 328
-. EN301 893 (Applicable to 5GHz high performance RLAN).

Year to begin affixing CE marking 2010.

Easy Lai

Jan. 18, 2011 -

Easy Lai /Manager

Date

Regulation Center, Acer Inc.

Acer America Corporation

333 West San Carlos St., San Jose

CA 95110, U. S. A.

Tel: [phone]

Fax:[phone]

www.acer.com

Federal Communications Commission Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer / Importer is responsible for this declaration:

Product: DLP Projector

Model Number: DSV1025/DSV1026/DNX1021/DNX1022/ DNX1023/DNX1024/DNX1016/DNX1017/ DNX1018/DNX1014/DWX1015

Machine Type: P1101/P1101C/P1201/P1201B/P1201i/P1201n/P1203P/P1203PB/P1203Pi/P1206P/P1303PW series

Name of Responsible Party: Acer America Corporation

Address of Responsible Party: 333 West San Carlos St. San Jose, CA 95110 U. S. A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147
