Product Type	Heat Gun
Brand	Blaupunkt
Model	HG5010
Power Supply	220-240 V AC, 50 Hz
Power Consumption	2000 W
Temperature Range	60 - 600 °C
Airflow	Two-stage: 500 l/min or 300 l/min
Temperature Control	Electronic with increase/decrease buttons
Blow Control	Two-stage switch
Intended Use	Heating, pre-heating plastics, welding shrink materials, removing paint
Included Accessories	4 nozzles, triangular scraper, scraper handle, carrying case
Power Cord Length	1.8 m
Housing Features	Comfortable soft handle, double ventilation ducts
Cleaning and Maintenance	Regularly clean ventilation grilles with compressed air or damp cloth; disconnect before cleaning
Safety Features	Overheating protection? Not specified, but safety instructions include keeping away from combustibles, not covering outlet, using protective equipment
Required Protective Equipment	Safety glasses (EN166), protective mask (EN149), gloves, ear protection, protective clothing
Standards Compliance	CE, Low Voltage Directive, EMC, WEEE (2012/19/EU)
Repairs	Only by authorized service professionals
Spare Parts	Use only original or manufacturer-recommended accessories
Operating Instructions	Read manual before use, store for future reference
Uses	Domestic use only

Frequently Asked Questions - HG5010 BLAUPUNKT

What is the power consumption of the Blaupunkt HG5010 heat gun?

The power consumption is 2000 W at 220-240 V AC, 50 Hz.

What temperature range does the heat gun offer?

The temperature range is 60°C to 600°C, adjustable with increase/decrease buttons.

How do I control the airflow?

The airflow is two-stage: 500 l/min or 300 l/min, controlled by the blow control switch.

What accessories are included with the HG5010?

The package includes 4 nozzles, a triangular scraper, a scraper handle, and a carrying case.

How should I clean the heat gun?

Disconnect from power, then clean the ventilation grilles with compressed air or a slightly damp cloth. Do not immerse in water.

Can I use the heat gun on flammable materials?

No. Never direct the hot air stream towards flammable materials or use in explosive atmospheres.

What personal protective equipment should I wear?

Wear safety glasses (EN166), protective mask (EN149), gloves, ear protection, and protective clothing.

How do I turn on and off the heat gun?

Plug into socket to turn on, then use the on/off switch with blow control to start. To deactivate, turn switch to 0 and unplug.

Can I leave the heat gun unattended while it is running?

No. Never leave the device unattended when switched on. Always hold it in your hand or place it on a heat-resistant surface after use.

Who can repair the heat gun?

Only authorized service professionals should perform repairs. Do not attempt to repair yourself due to electric shock risk.

USER MANUAL HG5010 BLAUPUNKT

Blue BLAUPUNKT Power TOOLS 1900 electric heater with black handle and black body (no visible text or symbols on device body)

Enjoy it.

Opalarka

Heat gun

IMPORTANT INFORMATION

To achieve the highest satisfaction, enjoy the product's performance and learn about all its features and functions, please read this manual before using the product.

Before using the device, read the Operating Instructions and comply to its contents. The manufacturer shall not be liable for any damage caused by the use of the device other than for its intended purpose or by improper handling.

Keep these Operating Instructions for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.
• The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.
  • Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).
• The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.
• Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Keep your workplace tidy and well lit.
  • Disorder and insufficient lighting lead to accidents.
• Do not use power tools in explosive atmospheres, i.e. in the presence of flammable liquids, gases or dust.
• A moment of carelessness may cause losing control of your tool.
• If it is possible to fit power tools for dust extraction or collection, check that they are fitted and working correctly. Using such power tools reduces the risk posed by the presence of dust.
• Do not lean out too far when working with your power tool. Maintain a stable posture and balance. This allows you to keep better control of your power tool in unforeseen situations.
• Avoid starting the power tool unintentionally. Make sure the power switch is in the OFF position before connecting the power tool to the mains. Carrying a power tool with your finger on its trigger or plugging in a power tool after switching it on can lead to accidents.
• Wear appropriate clothing. Do not work in loose clothing and do not wear jewellery while working. Keep your hair, clothing and gloves away from moving parts. The moving parts of a power tool can catch and pull in loose pieces of clothing, jewellery or long hair.
• Remove any spanners or tools from the power tool before starting it. A tool or spanner still connected to the rotating

part of the power tool may cause personal injury.

• Be careful when working with power tools, concentrate on your work and use common sense. Do not use a power tool when tired or under the influence of drugs, alcohol or medication. Even a moment of carelessness while working with a power tool can lead to a serious accident.
• Keep children away from the work area and DO NOT allow children to pull on the power cord - this can cause serious injury.
• Before making any adjustments, changing accessories or storing the power tool, move the switch to the off position to disconnect the power tool from the power supply. Such precautions reduce the risk of accidentally starting the power tool.
• Ensure that the vents are free from debris.
• The device may only be used in a dry, well-lit environment.
  • This tool should not be used by anyone under the age of 16.
• Never touch the hot outlet nozzle.
• Do not cover the outlet nozzle of the heat gun when it is running.
  • Always keep the heat gun in your hand when switched on. Do not put the heat gun down.
  • After finishing work, leave the heat gun in a place resistant to high temperatures.
• Do not direct the air stream towards the face and body of people and animals.
• Do not direct the working heat gun towards flammable materials.
• Do not leave the device unattended.
• Use the heat gun only in well-ventilated and ventilated rooms to avoid inhaling vapours and fumes.
• Do not wrap the power cord over the device.

SYMBOLS

• The following symbols may appear in the operating instructions or on the tool's nameplate.
  • These signs contain important information about the product and instructions on how to use it.

	Read the user manual.		Use ear protection
			Wear protective glovesGeneral warning
	Fire hazard		Wear protective clothing
	Electric shock hazard		Wear a protective mask
	Wear safety glasses		Wear respiratory protection

Device is compliant with EU directives:

-Low voltage directive (LVD)

-Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

WEAR PERSONAL PROTECTIVE EQUIPMENT

• Wear safety glasses according to En166
• Use protective masks in accordance with En149
• Use other types of proper personal protective equipment, depending on the type of work involved.

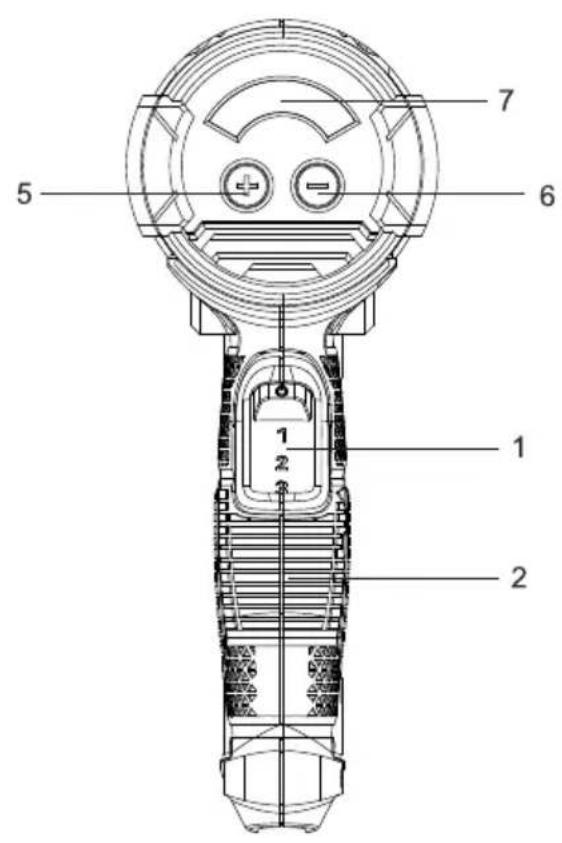

Device description:

1. On/off switch, blowing control.
2. Handle.
3. Hot air outlet.

4. Ventilation grille.

5. Temperature increase button.

6. Temperature decrease button.

7. Temperature indicator.

Intended use:

The device is used for heating or pre-heating plastic materials, for welding heat-shrinkable materials, for heating and removing paint coatings, as well as for other works requiring a stream of hot air.

Before each start-up:

1. Check that the power cord is in good condition.

2. Check that the ventilation grilles of the device are not blocked/covered.

3. If necessary, blow with compressed air.
4. Use a slightly dampened cloth for a more thorough cleaning.

Use:

1. Put the plug into the wall socket to turn the device on.
2. Hold the heat gun by the handle at the point designed for this purpose (5).
3. To deactivate the device, turn the button (4) to position 0, and then remove the plug from the socket.
4. When working, do not hold the heat gun in one place for a long time, move the heat gun so that the stream of hot air heats uniformly the desired surface
5. Use the button (1) to increase the temperature
6. Use the button (2) to decrease the temperature
7. In order to use the nozzle, put it on the air outlet of the heat gun. Exercise extreme caution, the air outlet and accessories can be very hot. There is a risk of burns. It is recommended to use protective gloves.

Technical data:

Power: 2000 W

Power supply: 220/240 VAC, 50 Hz

Supply air temperature: 600oC

Hot air gun

• High performance professional tool
- Two-stage blow control
• Temperature control
• Comfortable soft holder
• Double ventilation ducts
• Temperature range: 60-600°C
• Air flow 500 l/min or 300 l/min
• Power cord length: 1.8 m
- Included: 4 nozzles, triangular scraper, scraper handle, carrying case
