Product Type	Stand Fan
Brand	DCG
Model	VE1640
Voltage	220-240V~ 50/60Hz
Power Consumption	60W
Number of Blades	5
Fan Diameter	40 cm (15.7 in)
Speed Settings	3 (Low, Medium, High) + Off
Oscillation	Yes, with push/pull knob
Height Adjustment	Yes, telescopic pole with collar
Base Type	Weighted base with counterweight
Control Type	Rotary knob
Assembly Required	Yes (base, pole, blade, grille)
Cleaning Method	Mild soap and damp cloth, avoid water in motor
Usage Location	Indoor household only
Grille Material	Plastic
Blade Material	Plastic
Motor Type	AC Induction Motor (typical)

Frequently Asked Questions - VE1640 DCG

How do I assemble the base of the DCG VE1640 fan?

Place the column on the base and secure it using the L-screw with washer while engaging the counterweight. Make sure the column, base and counterweight are firmly coupled.

How do I attach the blade and grille?

Unscrew the plastic mounting nut from the motor housing. Position the rear grille against the motor housing with the handle uppermost, ensuring locating pegs engage. Tighten the grille mounting nut clockwise (do not overtighten). Slide the blade onto the motor shaft, aligning the slot with the drive pin. Tighten the blade cap anticlockwise. Attach the front grille and secure with clips and the small nut and bolt.

How do I adjust the fan speed?

Rotate the speed knob to select speed 1, 2, or 3 for low, medium, or high. To turn the fan off, rotate the knob to 0.

How do I use the oscillation feature?

Press the oscillation knob located on the motor housing to start oscillation. To stop, pull the knob up.

How do I clean the fan?

Always unplug the fan before cleaning. Use a mild soap and a damp cloth or sponge. Do not allow any water or other liquid to enter the motor housing. Do not use harsh detergents or solvents.

What voltage does the fan require?

The fan operates on 220-240V~ 50/60Hz as indicated on the product identification plate.

Can I use the fan outdoors?

No, this fan is designed for indoor household use only. Do not expose it to rain, moisture, or extreme conditions.

What should I do if the fan does not work?

Check that the fan is plugged in and the speed knob is not at 0. If it still does not work, do not attempt to repair it yourself. Return the complete product to the place of purchase for inspection, refund or replacement.

How do I store the fan when not in use?

Switch off and unplug the fan. Store it in a dry place away from dust and direct sunlight. You may disassemble the blade and grille for compact storage.

Is the fan safe to use around children?

Children should be supervised to ensure they do not play with the fan. The appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities unless properly supervised.

USER MANUAL VE1640 DCG

VE1640 VENTILATORE PIANTANA 40 CM 5 PALE 5 BLADES STAND FAN

CLIMA dcg16.it

CARATTERISTICHE TECNICHE: 220-240V\~ 50/60Hz 60W

PRIMA DELL'USO, LEGGERE, CAPIRE E RISPETTARE QUESTE ISTRUZIONI.

PRIMA DEL PRIMO UTILIZZO

Line drawing of a simple outdoor lamp with a vertical pole, base, and circular base (no text or symbols)

BEFORE OPERATING THIS PRODUCT, READ, UNDERSTAND, AND FOLLOW THESE INSTRUCTIONS.

BEFORE FIRST USE

Read and follow all the instructions in this "Use And Care" manual even if you feel you are familiar with the products, and find a place to keep it handy for future reference.

Your attention is drawn particularly to the sections concerning "IMPORTANT SAFEGUARDS"

IMPORTANT SAFEGUARDS

PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE PRODUCT.

When using the electrical appliance, the following basic safety precautions should always be followed.

WARNING - to reduce the risk of fire, electric shock or injury to persons or property:

• Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate.
• Do not use this fan with any solid state speed control device to reduce the risk of electric shock.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory, mental capabilities or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible by their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not leave the fan running unattended.
• Do not operate the product if it is dropped, damaged or showing signs

of product malfunction. Do not operate the product with a damaged plug or cord. Return the complete product to the place of purchase for inspection, refund or replacement.

• If it is not working properly, contact a qualified electrician or service centre for examination and repair, never try to dismantle it by yourself.
• Do not immerse or expose the product or flexible cord to rain, moisture or any other liquid.
• This product should not be used in the immediate vicinity of water, such as bathtubs, washbowls, swimming pools etc. where the likelihood of immersion or splashing could occur.
• Never install the unit where it could be subject to:

• Heat sources such as radiators, heat registers, stoves or other products that produce heat

• Direct sunlight

• Mechanical vibration or shock
• Excessive dust
• Lack of ventilation, such as a cabinet or bookcase

• Uneven surface

• Switch off and unplug from outlet when the product is not in use, before assembling or disassembling parts and before cleaning. Fully assemble the fan before switching on.

• Avoid contact with moving parts. Do not insert any body parts (e.g. finger) or objects through the grill when the fan is operating.
• Do not cover the grille, or operate in close proximity to curtains, etc.
• This product is intended for normal domestic/household use only.
  • Always disconnect the fan when moving it from one location to another.
• The use of attachments or accessories not recommended or sold by the product distributor may cause personal or property hazards or injuries.
• Be sure fan is on a stable surface when operating to avoid overturning.
• Do not immerse in water.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or similarly qualified person, in order to avoid a hazard. I

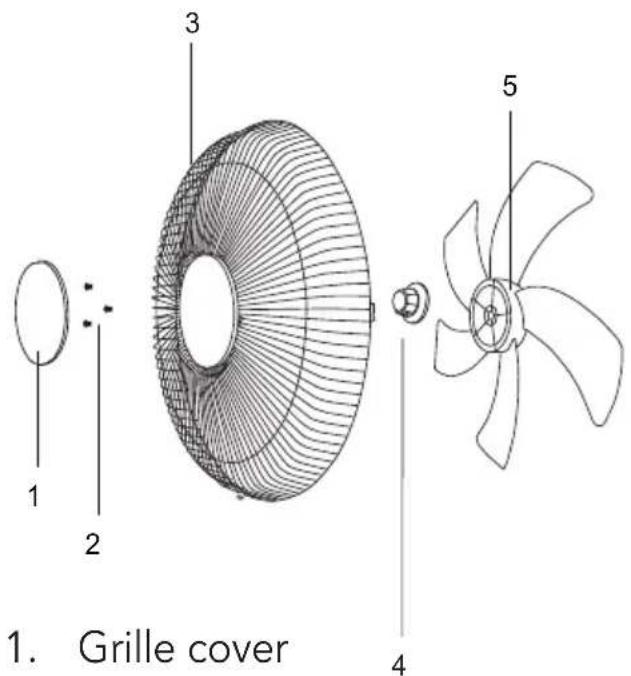

READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE FEATURES OF THIS PRODUCT

1. Grille cover
2. Screws
3. Front grille
4. Blade retaining nut
5. Blade
6. Grille mounting nut
7. Rear grille
8. Motor spindle
9. Motor housing
10. Oscillation knob
11. Pivot screw
12. Speed knob
13. Power cord
14. Retaining screw
15. Inner pole
16. Height adjustment knob
17. Outer pipe
18. Base plate
19. Base weight
20. L-screw

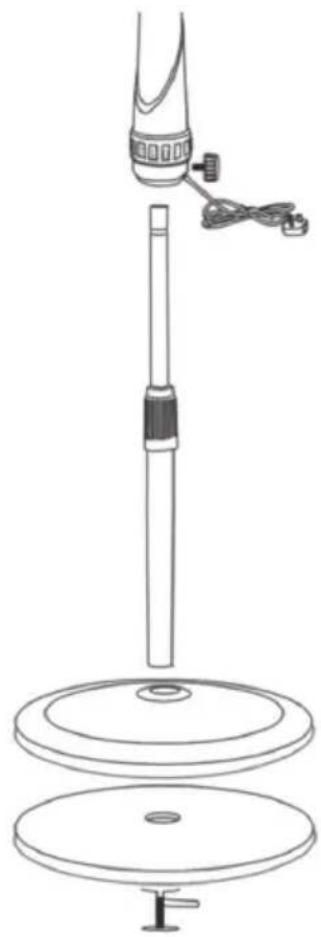

PRODUCT ASSEMBLY ASSEMBLE OF BASE

• Set the column in place on the base and secure it using the "L" screw with washer while also engaging the counterweight.
• Make sure column and base and counterweight are firmly coupled.
• Loosen the Height Adjustment Collar on top of the Inner Tube. Pull the Inner Tube out from the Outer Tube to adjust the tube to the desired height and tighten the collar.
• If necessary, slightly loosen the Set Screw by turning it anticlockwise. Slide the Switch Box down over the Inner Tube and tighten the Set Screw. Make sure the Set Screw is tightly secured.

Line drawing of a simple outdoor lamp with a vertical pole, base, and circular base (no text or symbols)

ASSEMBLE OF BLADE AND GRILLE

• Unscrew the plastic mounting nut from the front of the motor housing by rotating it anticlockwise.
• Position the rear grille against the front of the motor housing with the handle uppermost, ensuing that the locating pegs on the motor housing are engaged correctly in the holes of the rear grille.
• Tighten the Rear Grille Mounting Nut clockwise.

DO NOT OVERTIGHTEN IT.

• Push the fan blade onto the motor shaft, locating the slot at the back of the blade on the drive pin that passes through the motor shaft.
• Tighten the blade cap by turning it anticlockwise.
• Position the front grille against the rear grille so that the holes in the rims that accept the small nut and bolt are in line. Insert the bolt through the holes and screw on the nut. Do not fully tighten at the stage.
• Push the grille retaining clips into position ensuring that they engage correctly on the rim of the grille.
• Fully tighten the small nut and bolt that passes through the rim of the grille.

OPERATION OF THE PRODUCT Control Panel, SPEED SETTING

Switch Knob 0-1-2-3-

1. Speed setting by rotating knob with "1" - "2" - "3".
2. To switch the fan off, rotating knob with "0".
3. For oscillation, press the oscillation knob which located in the motor housing, the fan starts oscillating.
   To stop oscillation, pull up the oscillation knob.
4. Always unplug the appliance when it is not used.

CLEANING

• Switch off and unplug from the power supply before assembling or disassembling and cleaning.
• Keep the air vents at the rear of the main body free from dust or fluff—use a vacuum cleaner to remove these when necessary. Do not probe any opening to remove fluff.
• Fan component parts should be cleaned using mild soap and a damp cloth or sponge. Do not allow any water or other liquid to enter the motor housing.
• Thoroughly remove soap film with clean water.

CAUTION: Do not use harsh detergents, chemical cleaners or solvents as they may damage the surface finish of the fan components.
