| Product Type | Electric High Pressure Washer |
| Brand / Model | BLACK & DECKER PW1800SPL |
| Power Supply | 120 V ~ 60 Hz or 220 V ~ 50/60 Hz (depending on region) |
| Power Consumption | 1800 W |
| Working Pressure | 9.5 MPa (95 bar) / 1380 psi |
| Maximum Pressure | 14 MPa (140 bar) / 2030 psi |
| Water Flow (Working) | 5.5 L/min |
| Maximum Water Flow | 7.33 L/min |
| Max Input Water Temperature | 50 °C |
| Weight | 8.6 kg |
| Sound Pressure Level (LPA) | 78.77 dB(A) (K=3 dB(A)) |
| Sound Power Level (LWA) | 87 dB(A) |
| Vibration Level | 3.72 m/s² (K=1.5 m/s²) |
| Motor Protection Class | IPX5 |
| Motor Insulation Class | Class F |
| Gun Recoil Force (at max pressure) | 12.64 N |
| Key Components | Lance with adjustable spray nozzle, rotary spray nozzle, gun with safety catch, high pressure hose, detergent tank, nozzle cleaning tool, rotating nozzle kit, handle, hose reel |
| Safety Devices | Safety catch on gun, safety valve/pressure limiting valve, thermostat valve (on some models), residual current circuit-breaker recommended (30mA) |
| Intended Use | Cleaning vehicles, machines, boats, masonry, etc. with clean water and biodegradable detergents |
| Maintenance | Clean nozzle and intake filter regularly; use nozzle cleaning tool; unjam motor with tool if needed; winterize with antifreeze |
| Warranty Note | Repairs must be performed by authorized BLACK+DECKER service centers; modifications void warranty |
Frequently Asked Questions - PW1800SPL BLACK & DECKER
User questions about PW1800SPL BLACK & DECKER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual PW1800SPL - BLACK & DECKER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PW1800SPL by BLACK & DECKER.
USER MANUAL PW1800SPL BLACK & DECKER
Português 12
English 19
INSTRUCCIONES ORIGINALES INSTRUÇÕES ORIGINAIS ORIGINAL INSTRUCTIONS
WARNING: READ INSTRUCTION MANUAL BEFORE USING PRODUCT.
FIG. A

Note: The diagrams are for reference, the product may change in appearance or specifications without notice.


FIG. B

FIG. C



FIG. D

FIG. E

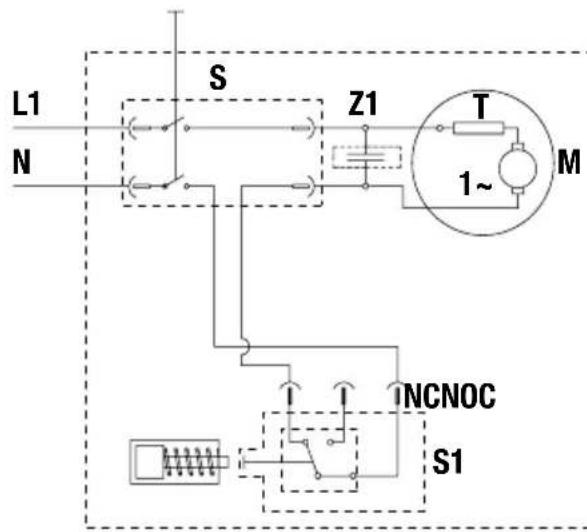

FIG. F


Volt
220V \~ 50Hz
220V \~ 60Hz
120V \~ 60Hz
127V \~ 60Hz

10m Max
2 × 2,5 ~mm^2

S = Interruptor/Interruptor/Switch
DO NOT RETURN THIS PRODUCT TO THE STORE, first contact your local BLACK+DECKER Office or nearest authorized service center.
SAVE THESE INSTRUCTIONS
The appliance you have purchased is a technologically advanced product designed by one of the leading manufacturers of high pressure pumps. To obtain the best performance from your unit, read this booklet carefully and follow the instructions each time you use it. We congratulate you on your choice and wish you successful operation.
GENERAL SAFETY RULES

SAFETY INSTRUCTIONS
General power tool safety warnings.
Warning! Read all safety warnings and
all instructions. Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference. The term in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.
- Safety "Must Nots"
a. Explosion or poisoning hazard. Do not use the appliance with inammable or toxic liquids, or any products which are not compatible with the correct operation of the appliance.
b. Injury hazard. Do not direct the water jet towards people or animals.
c. Electric shock hazard. Do not direct the water jet towards the unit itself, electrical parts or towards other electrical equipment
d. Short circuit hazard. Do not use the appliance outdoors in case of rain.
e. Injury hazard. Do not allow children or incompetent persons to use the appliance.
f. Electric shock hazard. Do not touch the plug and/or socket with wet hands.
g. Electric shock and short circuit hazard. Do not use the appliance if the electrical cable is damaged.
h. Explosion hazard. Do not use the appliance if the high pressure hose is damaged.
i. Accident hazard. Do not jam the trigger in the operating position.
j. Accident hazard. Check that the data plates are axed to the appliance, if not, inform your dealer. Units without plates must not be used as they are unidentiable and potentially dangerous.
k. Explosion hazard. Do not tamper with or alter the calibration of the safety valve.
I. Hazardous alteration of operating performance. Do not alter the original diameter of the spray head nozzle.
m. Accident hazard. Do not leave the appliance unattended.
n. Short circuit hazard. Do not move the appliance by pulling on the electrical cable.
o. Make sure that cars do not drive over the high pressure hose.
- Safety "Musts"
a. Short circuit hazard. All electrical conductors must be protected against the water jet.
b. Electric shock hazard. The appliance must only be connected to an adequate power supply in compliance with all applicable regulations.
▶ Use of a safety residual current circuit-breaker (R.C.C.B.) will provide additional protection for the operator (30mA).
c. Injury hazard. The high pressure may cause materials to bounce o surfaces at speed; therefore protective clothing and safety goggles must be worn.
d. Accidental start-up hazard. Before doing work on the appliance, remove the plug.
e. Injury hazard. Before pressing the trigger, grip the gun rmly to counteract the recoil.
f. Contamination hazard. Comply with the requirements of the local water supply company. According to DIN 1988, the appliance may only be connected to the mains drinking water supply if a backow preventer valve with drain facility is installed in the supply hose. Water that has flowed through backflow preventers is considered to be non-potable.
g. Accident hazard. Maintenance and/or repair of electrical components must be carried out by qualified and Authorized BLACK+DECKER sta for the warranty to take effect. If the supply cord is damaged, it must be replaced by the manufacturer, an Authorized BLACK+DECKER service centre or an equally qualified person in order to avoid a hazard. If the supply cord is replaced by an equally qualified person, but not Authorized by BLACK+DECKER, the warranty will lose effect.
h. Injury hazard. Discharge residual pressure before disconnecting the unit hose.
i. Accident hazard. Before using the appliance, check every time that the screws are fully tightened and that there are no broken or worn parts.
j. Explosion and electric shock hazard. Only use detergents which will not corrode the coating materials of the high pressure hose/electrical cable.
k. Injury hazard. Ensure that all people or animals keep a minimum distance of 16yd. (15M) away.
3. Improper use
▶ Use by unskilled persons or those who have not read and understood the instructions in the manual is forbidden.
▶ The introduction of inflammable, explosive and toxic liquids into the appliance is prohibited.
▶ Use of the appliance in a potentially inflammable or explosive atmosphere is forbidden.
▶ The use of non-original spare parts and any other spare parts not specifically intended for the model in question is prohibited.
⚠ Warning! All modifications to the appliance are prohibited. Any modifications made to the appliance shall render the Declaration of Conformity null and void and relieve the manufacturer of all liability under civil and criminal law.
⚠ Warning! Inadequate extension cords can be dangerous. If an extension cord is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground. It is recommended that this is accomplished by means of a cord reel which keeps the socket at least 60mm above the ground.
4. Service
a. Have your power tool serviced by a qualified repair person using only identical replacement
parts. This will ensure that the safety of the power tool is maintained.
5. Electrical safety

Your tool is double insulated; therefore no earth wire is required. Always check that the main voltage corresponds to the voltage on the rating plate.

Warning! If the power cord is damaged, it must be replaced by the manufacturer, authorized BLACK+DECKER Service Center or an equally qualified person in order to avoid damage or injury. If the power cord is replaced by an equally qualified person, but not authorized by BLACK+DECKER, the warranty will not be valid.
⚠ Warning! Always switch off the mains disconnecting switch when leaving the machine unattended.
6. Labels on tool
The label on your tool may include the following symbols:

Read instructions manual

Poisoning hazard

Injury hazard

Explosion hazard

Electric shock and short circuit hazard

Short circuit hazard

Danger of being beaten by objects that bounce

Use eye protection


..... Class II Construction

.... Safety Alert Symbol
V ..... Volts
A ..... Amperes
Hz ..... Hertz
W ...... Watts
min ..... minutes
\~ ..... Alternating Current
⚠ Warning! Safety signs. Comply with the instructions provided by the safety signs ted to the appliance. Check that they are present and legible; otherwise, replacements in the original positions.
TECHNICAL INFORMATION
ENVISAGED USE
This appliance has been designed for individual use for the cleaning of vehicles, machines, boats, masonry, etc, to remove stubborn dirt using clean water and biodegradable chemical detergents.
Vehicle engines may be washed only if the dirty water is disposed of as per regulations in force.
▶ Intake water temperature: See data plate on the appliance.
▶ Intake water pressure: Below 10 bar.
▶ Operating ambient temperature: Above 0 °C.
The machine complies with the IEC.
OPERATOR
The symbol on the front cover identifies the appliance's intended operator (professional or non-professional).

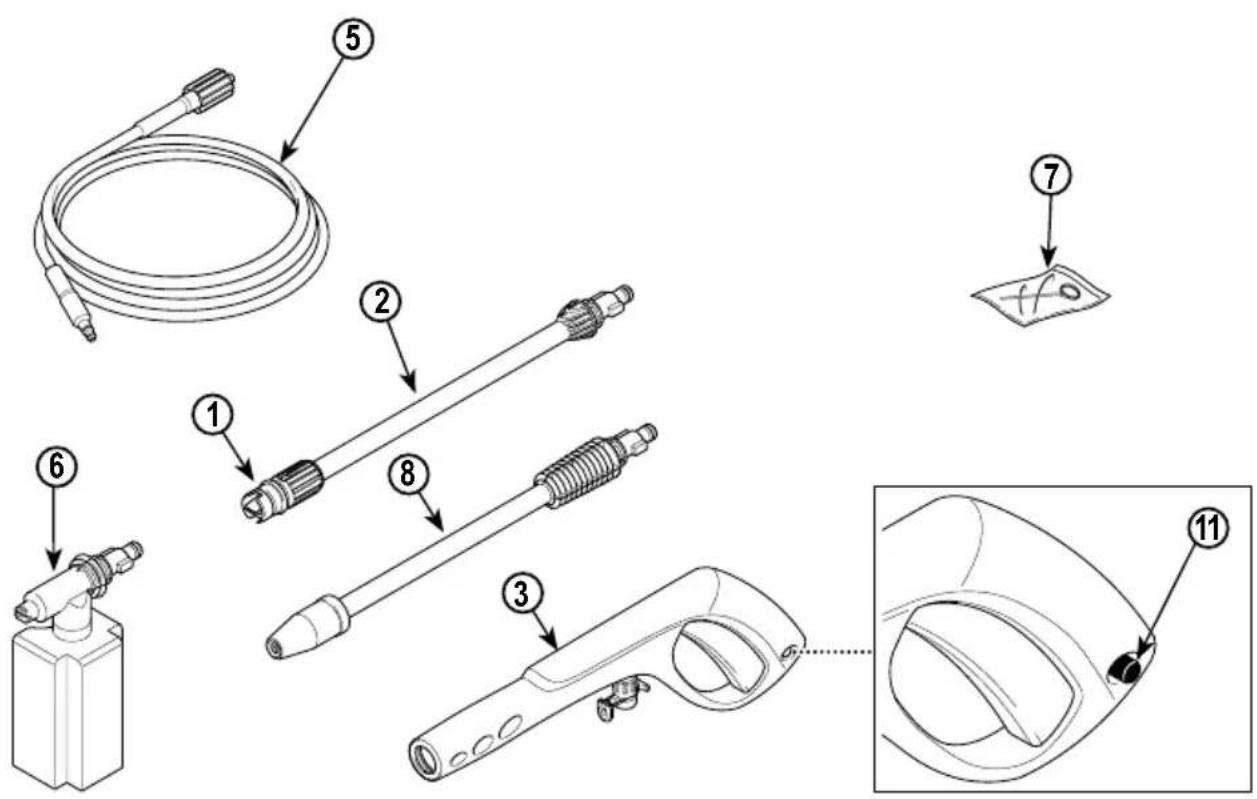

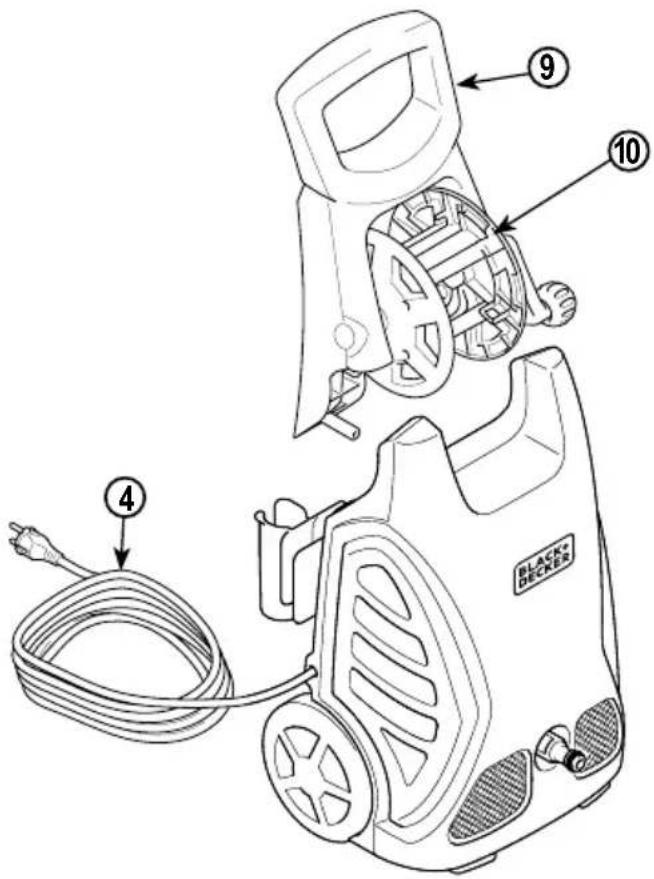

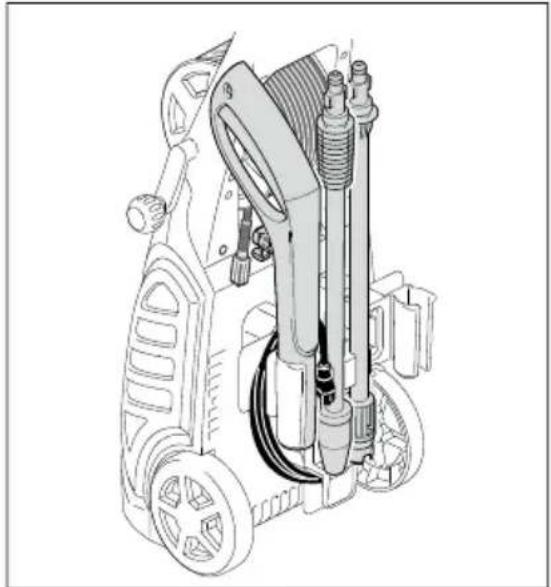

MAIN COMPONENTS (Fig. A)
- Lance with adjustable spray nozzle
- Rotary spray nozzle
- Gun with safety catch
- Power supply cable with plug (on models with this feature)
- High pressure hose
- Detergent tank (on models with this feature)
- Nozzle cleaning tool
- Rotating nozzle kit
- Handle
- Hose reel
Caution! Safety devices:
Do not tamper with or adjust the safety valve setting.
▶ Safety valve and pressure limiting valve:
The safety valve is also a pressure limiting valve. When the gun trigger is released, the valve opens and the water recirculates through the pump inlet or is discharged onto the ground.
▶ Thermostat valve (where fitted)
If the water temperature exceeds the temperature set by the manufacturer, the thermostat valve
discharges the hot water and draws in an amount of cold water equal to the amount of water discharged, until the correct temperature is restored.
▶ Safety catch (11): prevents accidental spraying of water.

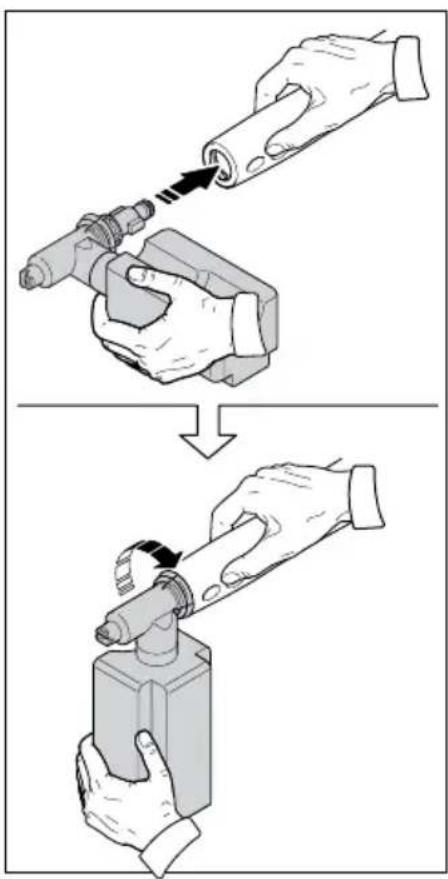

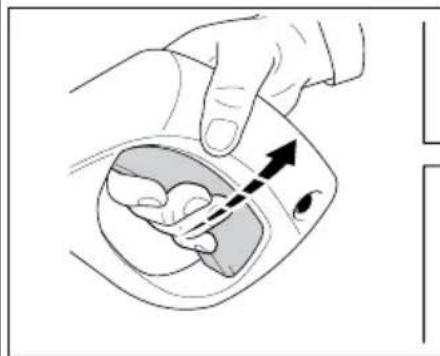

INSTALLATION (Fig. B) ASSEMBLY
Caution! All installation and assembly operations must be performed with the appliance disconnected from the mains power supply.

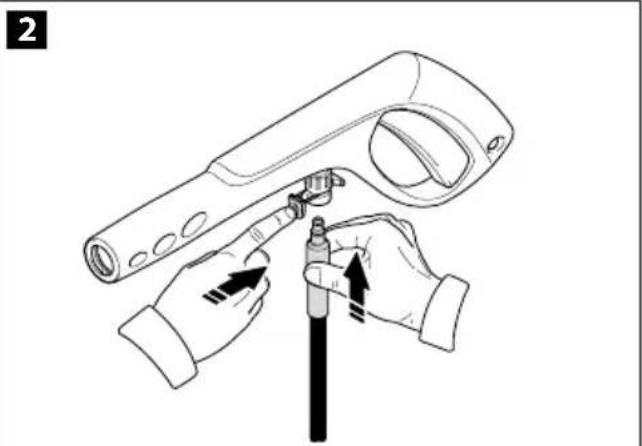

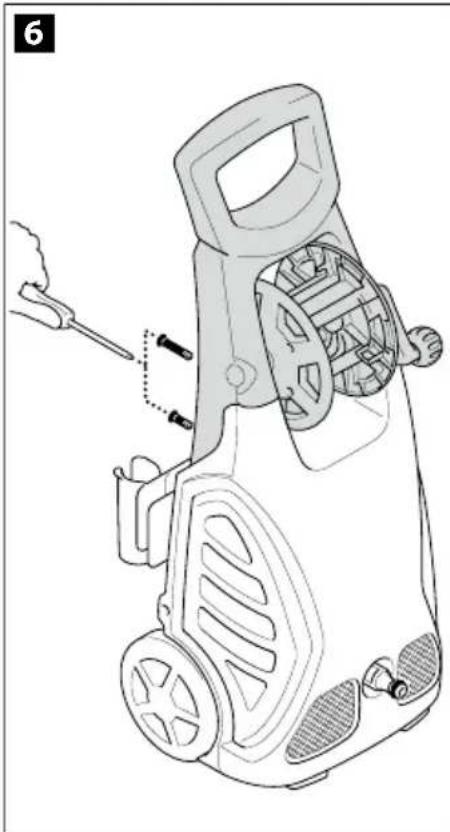

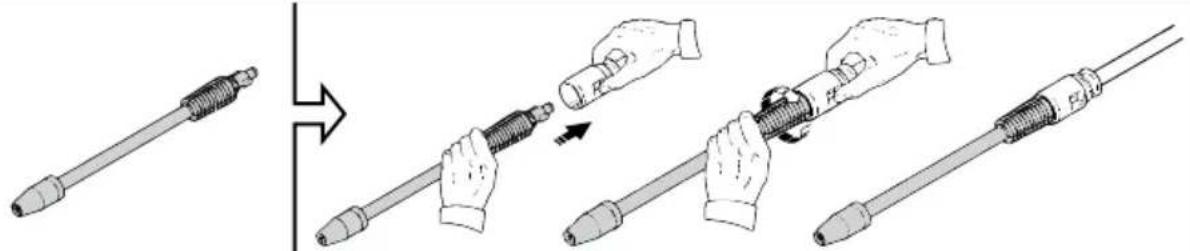

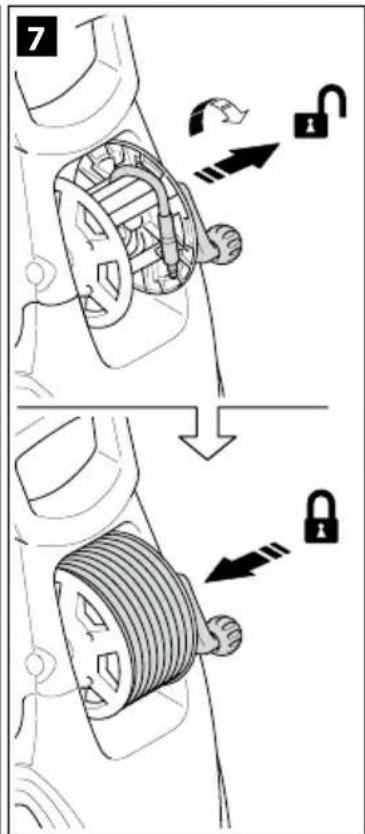

The assembly sequence is illustrated in Fig. B.

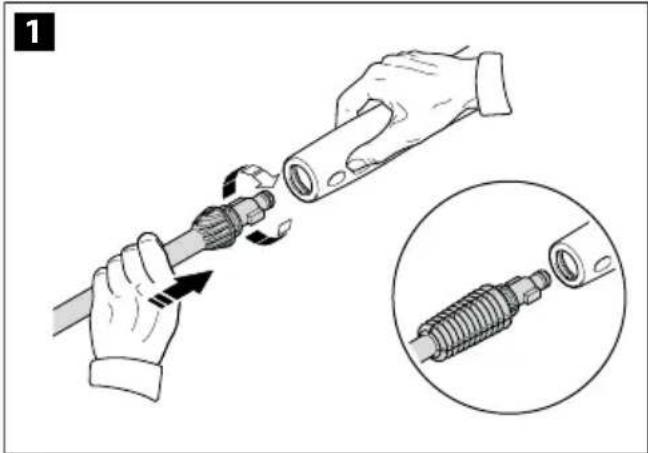

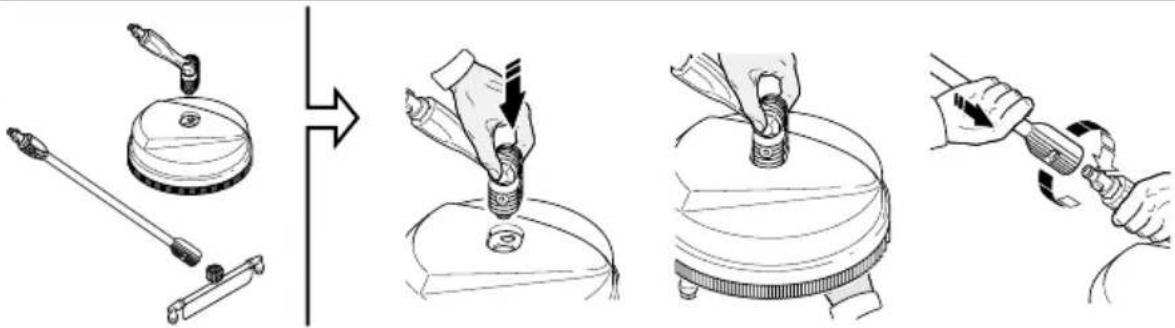

Assembling the rotating nozzle (For models with this feature)
The rotating nozzle kit delivers greater washing power. Use of the rotating nozzle may cause of reduction in pressure of 25% compared to the pressure obtained with the adjustable nozzle. However, the rotating nozzle kit delivers greater washing power due to the rotation of the water jet.

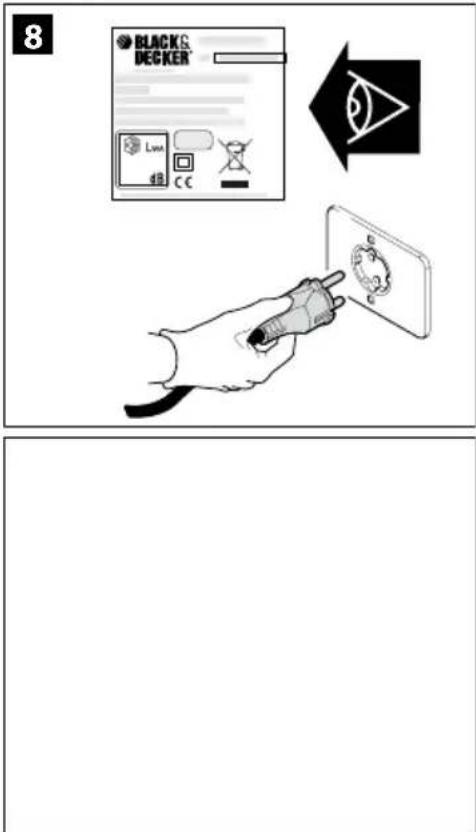

Electrical connection
Caution! Check that the electrical supply voltage and frequency (V/Hz) correspond to those on the appliance data plate (Fig. B8) The appliance should only be connected to a mains power supply equipped with an adequate earth connection and a derential security breaker (30mA) to cut off the electricity supply in the instance of a short circuit.
Use of extension cables: Use cables featuring "IPX5" protection level. The cross-section of the extension cable should be proportionate to its length; the longer it is, the greater its cross-section should be.

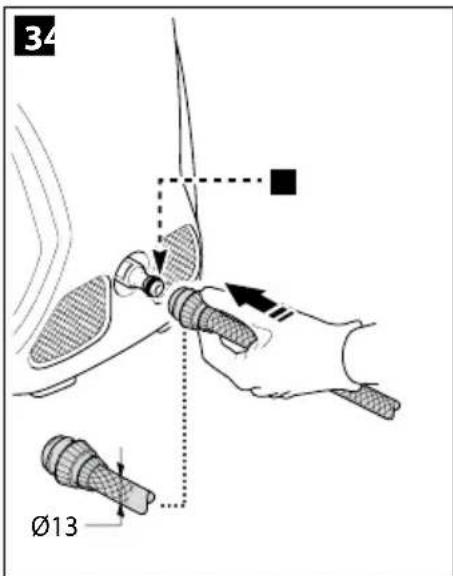

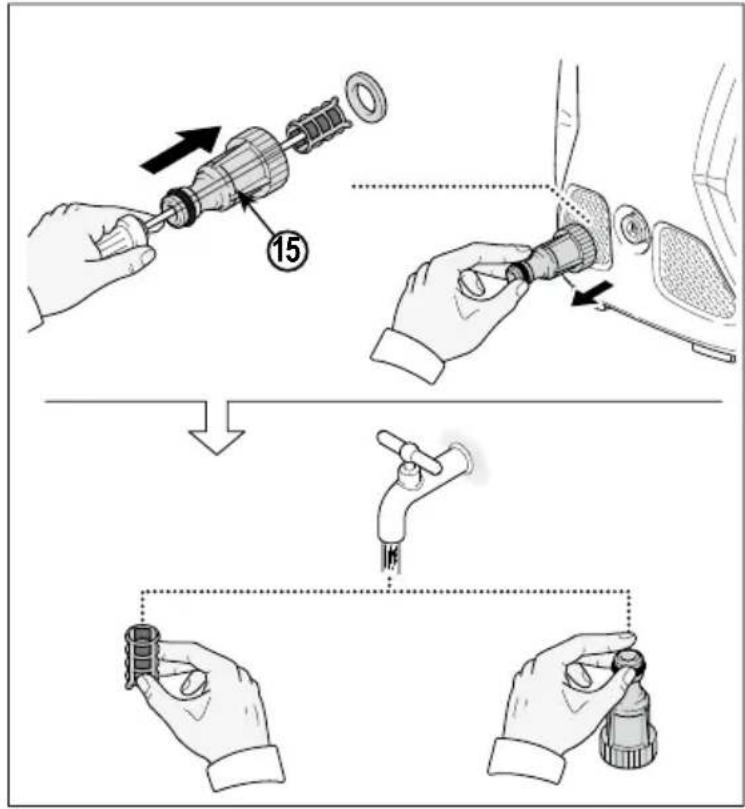

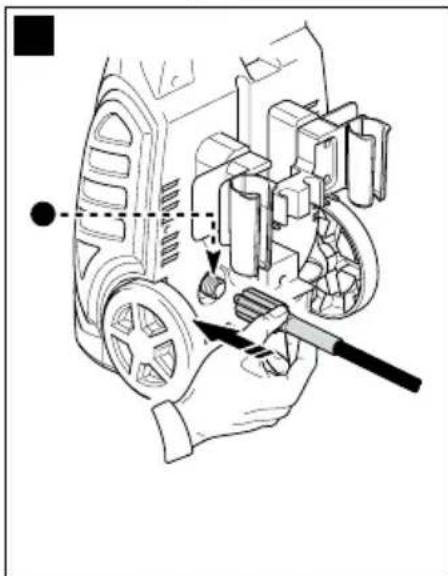

Water supply connection
Caution! Only clean or filtered water should be used for intake. The delivery of the water intake tap should be equal to that of pump capacity. Place the appliance as close to the water supply system as possible.
Connection points:
● Water outlet (OUTLET)
■ Water inlet with filter (INLET)
Connection to the mains water supply
The appliance can be connected directly to the mains drinking water supply only if the supply hose is fitted with a backflow preventer valve as per current regulations in force. Make sure that the hose is at least 13mm and that it is reinforced.
ADJUSTMENT INFORMATION (Fig. C)

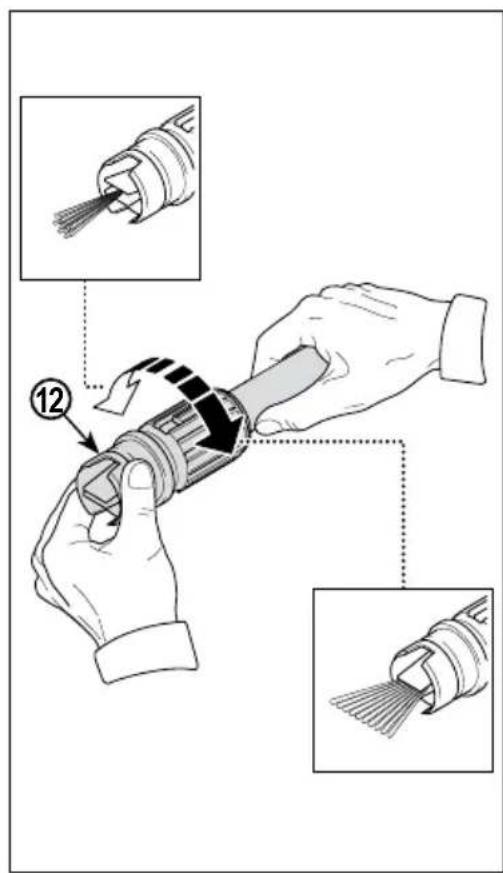

▶ Adjusting the spray nozzle (for models with this feature) Water flow is adjusted by regulating the nozzle (12).
▶ Adjusting the detergent (on models with this feature)
Detergent flow is adjusted using the regulator.
Adjusting the detergent pressure set the adjustable nozzle (12) on “■” to deliver detergent at the correct pressure (on models with this feature).
▶ Adjusting the pressure (on models with this feature)
The regulator (12) is used to adjust the working pressure. The pressure is shown on the pressure gauge (where fitted).
USE OF THE APPLIANCE (Fig. D) CONTROLS

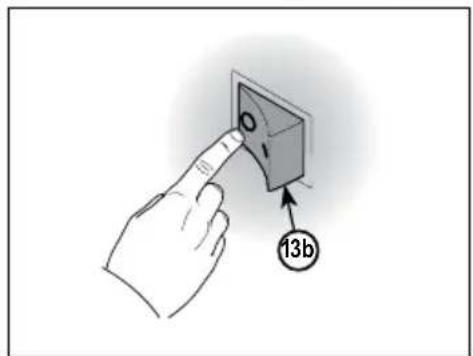

Starter device (Fig. D13)
Set the starter switch on (ON/I) to:
a. Start the motor (In models without TSS device);
b. Set the motor ready to start (In models with TSS device).
Note: If there is a pilot light on the starter device, it should light up.
If the "Low/High" settings are available, use them as follows:
Low: Low pressure washing
High: High pressure washing
Set the starter device switch on (OFF/0) to shut down the appliance.
If there is a pilot light on the starter device, it should go out.

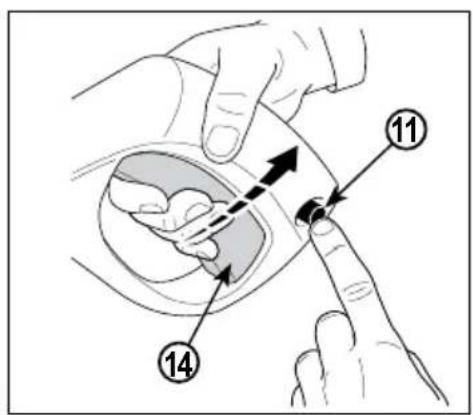

▶ Water jet control lever (14).

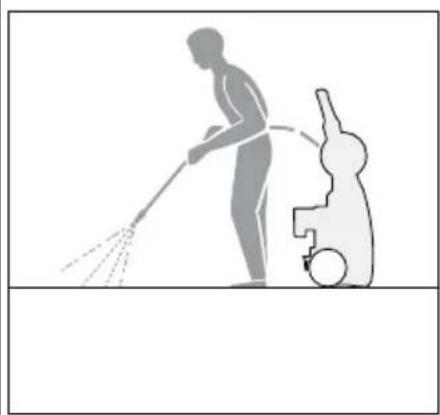

⚠ Caution! During operation the appliance must be positioned as shown in Fig. D on a sturdy, stable surface.
Start-up
- Turn on the water supply tap fully.
- Release the safety catch (11).
- Depress the gun trigger for a few seconds and start up the appliance using the starter device (ON/I).
Caution! Before starting up the appliance check that the water supply hose is connected properly; use of the appliance without water will damage it; do not cover the ventilation grilles when the appliance is in use.
TSS Models - In TSS models with automatic delivery flow cut-o system:
a. When the gun trigger is released, the dynamic pressure automatically cuts out the motor (see Fig. D);
b. When the gun trigger is depressed, the automatic drop in pressure starts the motor and the pressure is restored after a very slight delay;
c. If the TSS is to function correctly all gun releasing and depressing operations, must be performed at intervals of not less than 4 - 5 seconds at least.
On three-phase models for professional use: at first use, start the appliance for a very short time to check that the motor is running in the correct direction. If the motor fan is turning anti-clockwise, exchange two of the three phase wires (L1, L2, L3) in the electrical plug.
Note: To prevent damage to the appliance, do not allow it to operate dry and when running do not stop the water jet for more than 10 minutes at a time (for models without TSS device).
Stopping the appliance
- Set the starter device switch on (OFF/0).
- Depress the gun trigger and discharge the residual pressure inside the hoses.
- Engage the gun safety catch (11).
Restarting
- Release the safety catch (11).
- Depress the gun trigger and discharge the residual air inside the hoses.
- Set the starter device on (ON/I).
Storage
- Switch the appliance off (OFF/0).
- Remove the plug from the socket.
- Turn o the water supply tap.
- Discharge the residual pressure from the gun until all the water has come out of the nozzle.
- Drain and wash out the detergent tank at the end of the working session. To wash out the tank, use clean water instead of the detergent.
- Engage the gun safety catch (11).

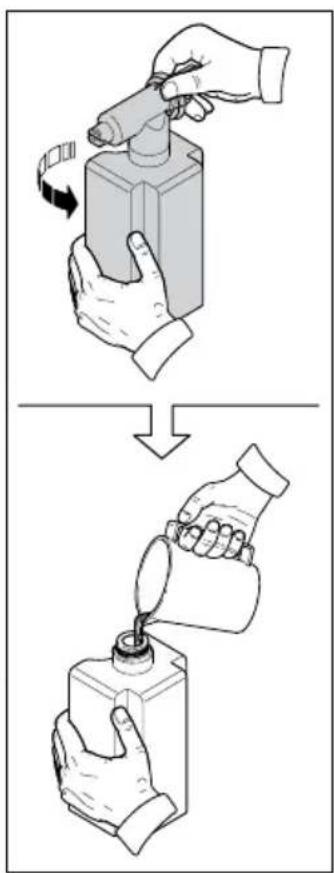

Relling and using detergent
When using detergent, the adjustable nozzle must be set on “■” (on models with this feature).
Use of a high pressure hose longer than the one originally supplied with the cleaner, or the use of an additional hose extension, may reduce or completely halt the intake of detergent. Fill the tank with highly degradable detergent.
Recommended cleaning procedure
Dissolve dirt by applying the detergent mixed with water to the surface while still dry. When dealing with vertical surfaces work from the bottom upwards. Leave the detergent to act for 1-2 minutes but do not allow the surface to dry. Starting from the bottom, use the high pressure jet at a minimum distance of 30cm. Do not allow the rinse water to run onto unwashed surfaces.
In some cases, scrubbing with brushes is needed to remove dirt. High pressure is not always the best solution for good washing results, since it may damage some surfaces. The finest adjustable nozzle jet setting or the rotopower nozzle should not be used on delicate or painted parts, or on pressurised components (e.g. tyres, inflation valves, etc.). Effective washing depends on both the pressure and volume of the water used, to the same degree.
MAINTENANCE (Fig. E)
Any maintenance operations not covered by this chapter should be carried out by an Authorized sales and service Centre.
⚠ Caution! Always disconnect the plug from the power socket before carrying out any work on the appliance.

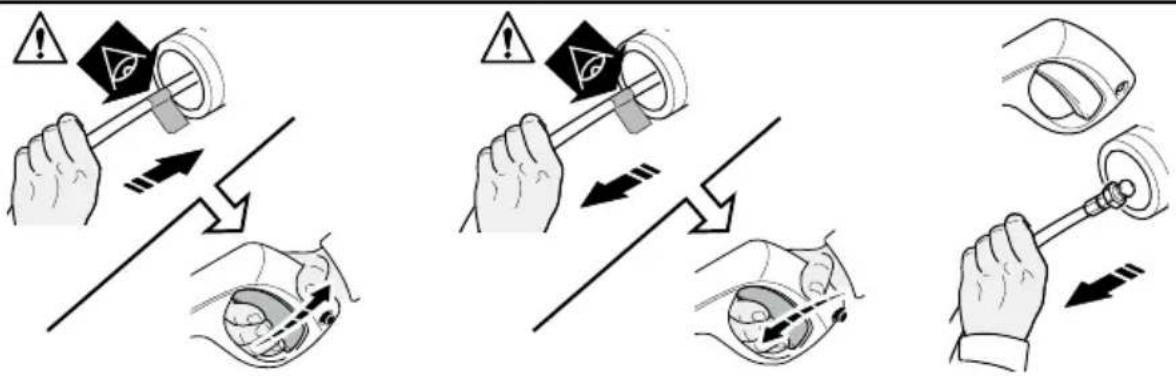

Cleaning the nozzle
- Disconnect the lance from the nozzle.
- Remove any dirt deposits from the nozzle hole using the tool (7).
Cleaning the filter
Inspect the intake filter (15) and detergent filter (if fitted) before each use, and clean in accordance with the instructions if necessary.
Unjamming the motor (On models with this feature) In case of lengthy stoppages, limescale sediments may cause the motor to seize. To unjam the motor, turn the drive shaft with a tool.
End-of-season storage
Treat the appliance with non-corrosive, non-toxic antifreeze and lubricate the o-rings using the lubricating grease tube (where sup- plied) as shown before storing it away for winter. Put the appliance in a dry place, protected from frost.
PROTECTING THE ENVIRONMENT

Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your BLACK+DECKER product needs replacement, or if it is of no further use to you, do not dispose of it with household waste. Make this product available for separate collection.

Separate collection of used products and packaging allows materials to be recycled and used again. Re-use of recycled materials helps prevent environmental pollution and reduces the demand for raw materials. Local regulations may provide for separate collection of electrical products from the household, at municipal waste sites or by the retailer when you purchase a new product.
SERVICE INFORMATION
BLACK+DECKER offers a full network of company-owned and authorized service locations. All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. For more information about our authorized service centers and if you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you, or visit us at www.BlackandDecker-la.com
SPECIFICATIONS PW1800SPL
| AR, B2C 220V ~ 50Hz B3 | 120V ~ 60Hz B2 220V | ~ 60Hz BR 127V | ~ 60Hz | |
| Power 1800W 1800W 1800W | 0W | |||
| Working flow 5,5 l/min 5,5 l/min 5,5 l/min | 5,5 l/min 5,5 l/min | |||
| Max water flow | 7,33 l/min | 7,33 l/min | 7,33 l/min | 7,33 l/min |
| Pressure | 9,5 MPa (95 bar) | 9,5 MPa (95 bar) | 9,5 MPa (95 bar) | 9,5 MPa (95 bar) |
| Maximum pressure | 14 MPa (140 bar) | 14 MPa (140 bar) | 14 MPa (140 bar) | 14 MPa (140 bar) |
| PSI | 2030 | 2030 | 2030 | 2030 |
| T° input | 50 °C | 50 °C | 50 °C | 50 °C |
| Maximum input pressure | 1 MPa 1 MPa 1 MPa 1 MPa | |||
| Repulsive force of the gun to the maximum pressure | 12,64 N | 12,64 N | 12,64 N | 12,64 N |
| Motor insulation | Class F | Class F | Class F | Class F |
| Motor protection | IPX5 | IPX5 | IPX5 | IPX5 |
| Sound level K=3 dB(A): | ||||
| LPA (EN 60704-1) | 78,77 dB(A) | 78,77 dB(A) | 78,77 dB(A) | 78,77 dB(A) |
| LWA (EN 60704-1) | 87 dB(A) | 87 dB(A) | 87 dB(A) | 87 dB(A) |
| Unit vibrations (K=1,5 m/s2) | 3,72 m/s2 | 3,72 m/s2 | 3,72 m/s2 | 3,72 m/s2 |
| Weight | 8,6 kg | 8,6 kg | 8,6 kg | 8,6 kg |
| Problem Possible Causes Solution | ||
| Pump does not reach working pressure | Nozzle worn Replace nozzle | |
| Water Iter fouled Clean filter (Fig. E15) | ||
| Water supply pressure low Turn on water supply tap fully | ||
| Air being sucked into system Check tightness of hose fittings | ||
| Air in pump | Switch off the appliance and keep depressing and releasing the gun trigger until the water comes out in a steady flow. Switch the appliance back on again. | |
| Adjustable nozzle not positioned correctly | Turn the adjustable nozzle (Fig. C12) | |
| Thermostatic valve tripped Wait for correct water temperature to be restored | ||
| Pressure drops during use | Water intake from external tank Connect appliance to the mains water supply | |
| Intake water too hot Reduce temperature | ||
| Nozzle clogged Clean nozzle (Fig. E7) | ||
| Intake filter dirty Clean filter (Fig. E15) | ||
| Motor “sounds” but fails to start | Insufficient power supply | Check that the voltage of the mains power supply line is the same as that on the plate (Fig. B) |
| Voltage loss due to use of extension cable Check characteristics of extension cable | ||
| Appliance not used for a long period of time | Contact your nearest Authorized Service Centre | |
| Problems with TSS device | Contact your nearest Authorized Service Centre | |
| Motor fails to start | No electrical power | Check that the plug is firmly in the socket and that the mains voltage supply is present (*) |
| Problems with TSS device | Contact your nearest Authorized Service Centre | |
| Appliance not used for a long period of time | Using the tool unjam the motor from the hole at the rear of the appliance (In models with this feature) (Fig. E) | |
| Water leakage | Seals worn | Have the seals replaced at your nearest Authorized Service Centre |
| Safety valve tripped and discharging Contact an Authorized service Centre | ||
| Appliance noisy | Water too hot | Reduce temperature (See technical data) |
| Oil leakage | Seals worn | Contact your nearest Authorized Service Centre |
| TSS versions only: Motor starts even with gun trigger is released | High pressure system or pump hydraulic circuit not watertight | Contact your nearest Authorized Service Centre |
| TSS versions only: No water delivery when gun trigger is depressed (With supply hose connected) | Nozzle clogged Clean nozzle (Fig. E) | |
| No detergent taken in | Adjustable nozzle on high pressure setting | set nozzle on “■” setting (Fig.C) |
| Detergent too dense | Dilute with water | |
| High pressure hose extension being used | Fit original hose | |
| Deposits or restriction in detergent circuit | Flush with clean water and eliminate any restrictions. If the problem persists, contact an Authorized service Centre | |
| * If the motor starts and does not restart during operation, wait 2-3 minutes before repeating the start-up procedure (overload cutout has been tripped).If the problem recurs more than once, contact your nearest Authorized Service Centre. | ||
INSTALACIÓN DE ACCESORIOS OPCIONALES / INSTALAÇÃO DE ACESSÓRIOS OPCIONAIS / INSTALLATION OF OPTIONAL ACCESSORIES

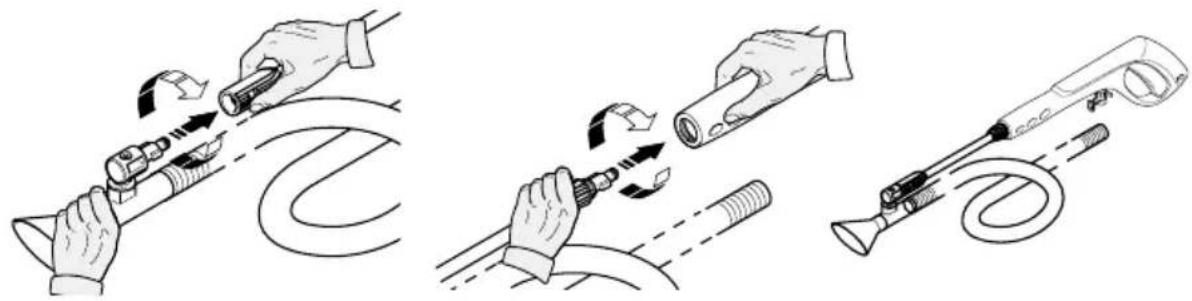

PWA001 - Lanza Rotatoria / Lança Turbo / Rotary Lance

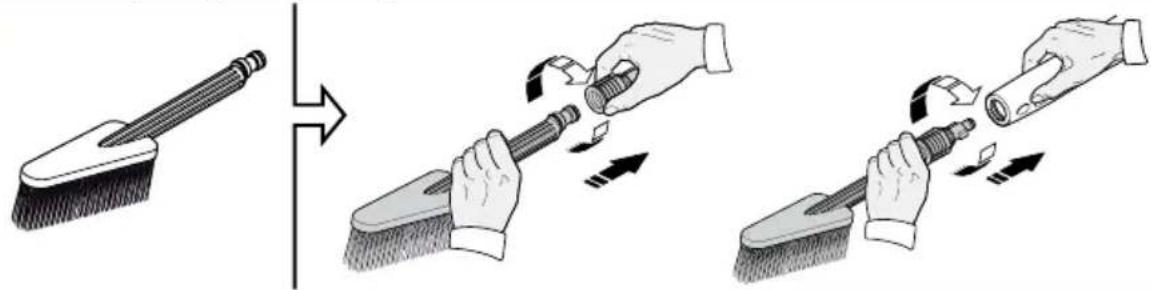

PWA002 - Cepillo Rígido / Escova Rígida / Fixed Brush


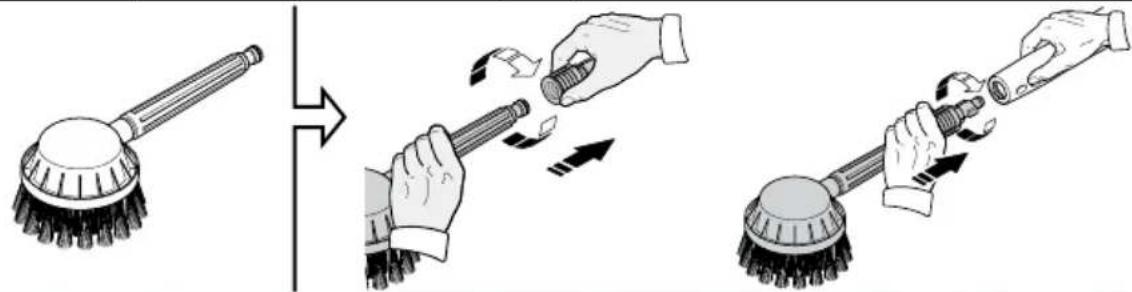

Illustration of three-step cleaning process: broom, brush, and roller (no text or symbols)PWA003 - Cepillo Rotatorio / Escova Giratória / Rotary Brush


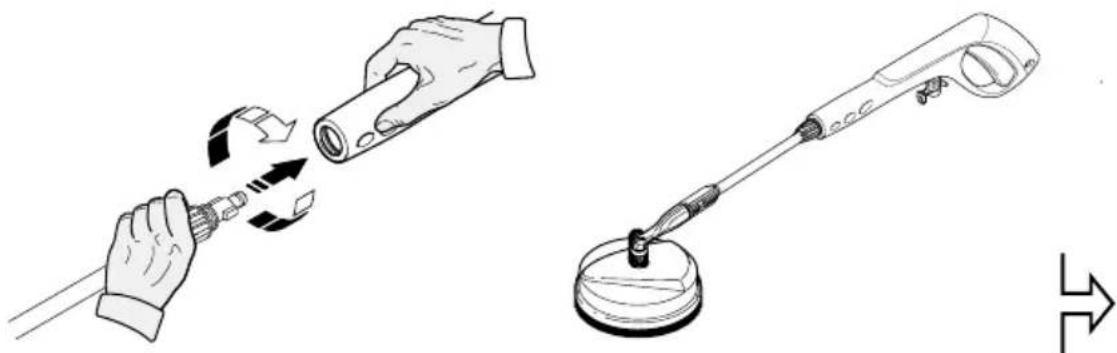

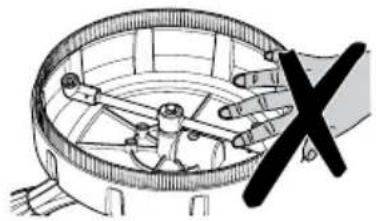

Illustration of three different cleaning or cleaning techniques: a brush, a tool, and a brush with a bulb (no text or symbols present)PWA004 - Limpiador de Patios / Limpador de Pisos / Patio Cleaner


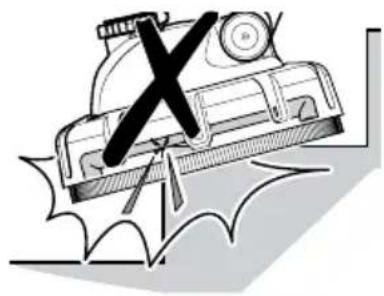

Illustration of two hand tools: one using a pen to interact with a tool, the other using a handheld device (no text or symbols present)PWA004
Buenos Aires (B1618FBQ)
CNPJ: 53.296.273/0001-91
Insc. Est.: 701.948.711.00-98
S.A.C.: 0800-703-4644
